INFINITI G-CONVERTIBLE 2011 User Guide

1. High-mounted stop light (P. 8-24)
2. Antenna (P. 4-84)— Satellite radio antenna (P. 4-38)
3. Rear window defroster (P. 2-31)
4. Retractable hard top (P. 3-18)
5. RearView Monitor camera (P. 4-22) 6. Trunk (P. 3-28)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
7. Sonar system sensors (if so equipped) (P. 5-45) 8.
Rear combination light (bulb replacement)
(P. 8-16)
9. Fuel-filler door — Operation (P. 3-30)
— Fuel recommendation (P. 9-3)
SSI0674
EXTERIOR REAR
0-4Illustrated table of contents

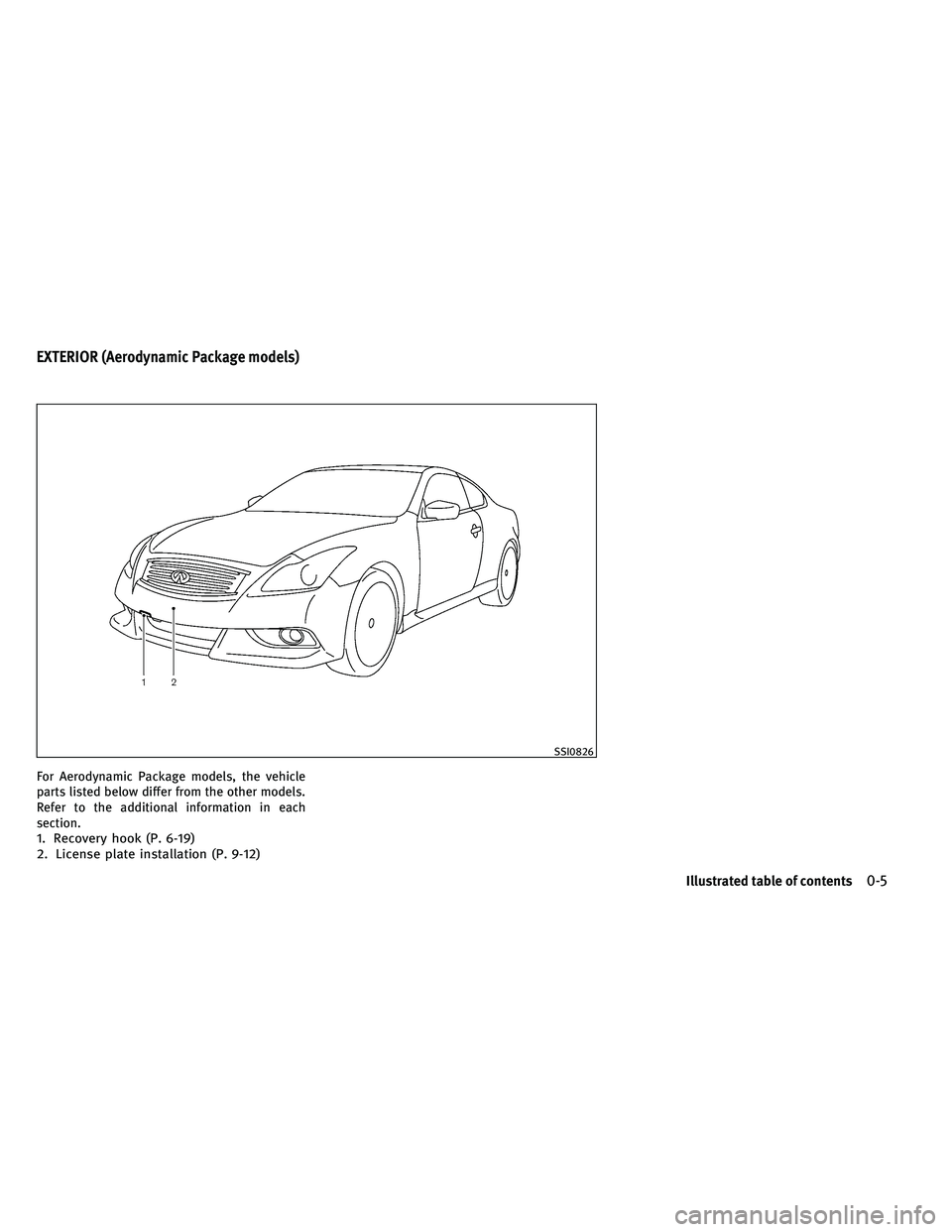

For Aerodynamic Package models, the vehicle
parts listed below differ from the other models.
Refer to the additional information in each
section.
1. Recovery hook (P. 6-19)
2. License plate installation (P. 9-12)
SSI0826
EXTERIOR (Aerodynamic Package models)
Illustrated table of contents0-5

1. Power window switch (P. 2-46)
2. Outside mirror remote control switch(P. 3-35)
3. Automatic drive positioner switch (if so equipped) (P. 3-36)
4. Sun visors (P. 3-34) 5. Map light (P. 2-49)
6. Inside rearview mirror
— Operation (P. 3-34)
— HomeLink universal transceiver
(if so equipped) (P. 2-51) 7. Console box (P. 2-45)
— Power outlet (P. 2-41)
— iPod player operation (P. 4-71)
— USB input operation (P. 4-62)
8. Front cup holders (P. 2-43)
SSI0818
PASSENGER COMPARTMENT
0-6Illustrated table of contents

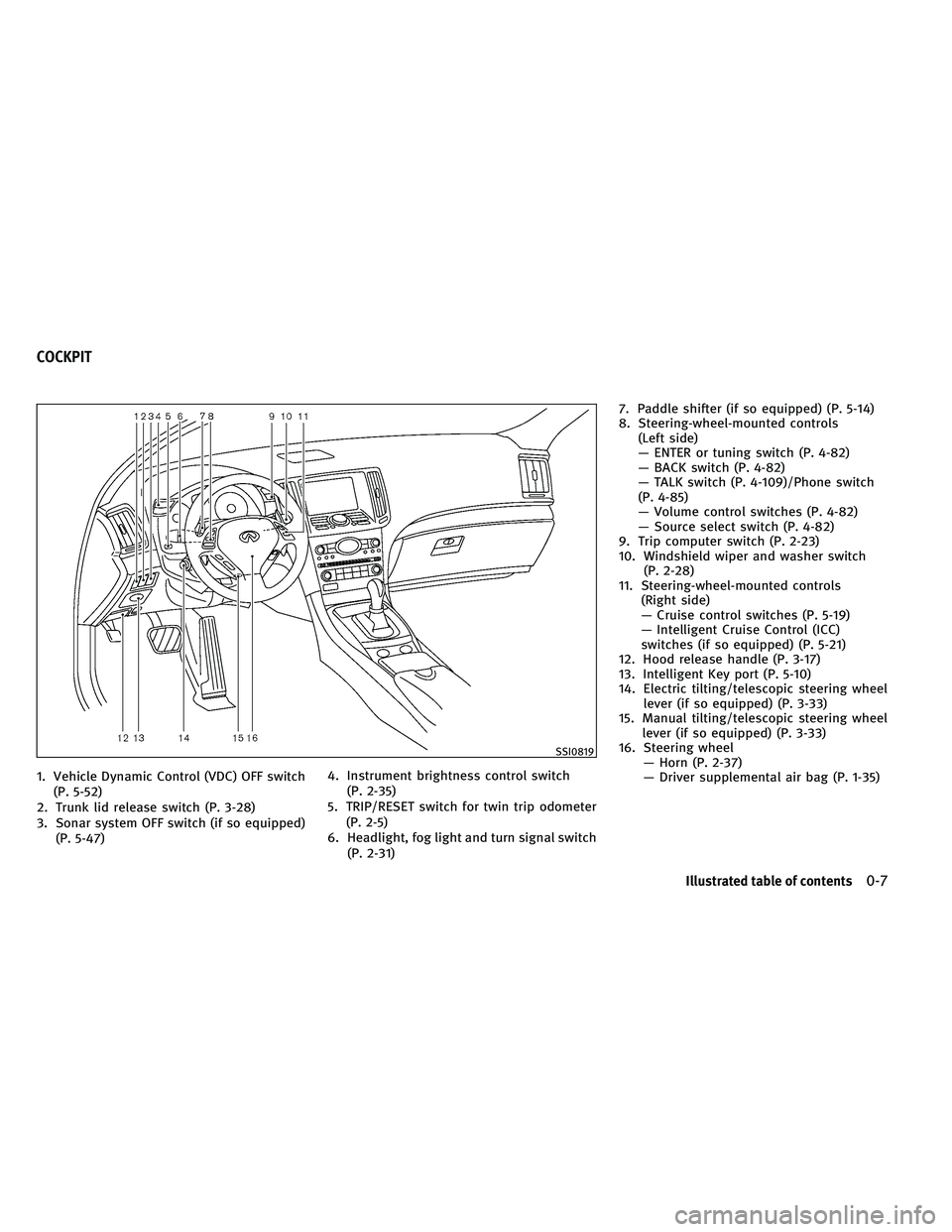

1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-52)
2. Trunk lid release switch (P. 3-28)
3. Sonar system OFF switch (if so equipped) (P. 5-47) 4. Instrument brightness control switch
(P. 2-35)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-31) 7. Paddle shifter (if so equipped) (P. 5-14)
8. Steering-wheel-mounted controls
(Left side)
— ENTER or tuning switch (P. 4-82)
— BACK switch (P. 4-82)
— TALK switch (P. 4-109)/Phone switch
(P. 4-85)
— Volume control switches (P. 4-82)
— Source select switch (P. 4-82)
9. Trip computer switch (P. 2-23)
10. Windshield wiper and washer switch (P. 2-28)
11. Steering-wheel-mounted controls (Right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-21)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-33)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-33)
16. Steering wheel — Horn (P. 2-37)
— Driver supplemental air bag (P. 1-35)
SSI0819
COCKPIT
Illustrated table of contents0-7

1. Side ventilator (P. 4-28)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-28)
4. Audio system (P. 4-37)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-37)
7.
Center display (P. 4-2)/Navigation system*
(if so equipped)
8. Hazard warning flasher switch (P. 2-36)
9. Front passenger supplemental air bag (P. 1-35)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-29)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or Storage box
(if so equipped) (P. 2-46)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-37) or Climate controlled seat
switch (if so equipped) (P. 2-38)
17. Retractable hard top operating switch (P. 3-18)
SSI0671
INSTRUMENT PANEL
0-8Illustrated table of contents

18. Rear window and outside mirrordefogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)
20. Trunk release power cancel switch (P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
Illustrated table of contents0-9

VQ37VHR ENGINE
1. Fuse/fusible link holder (P. 8-20)
2. Battery (P. 8-13)
3. Engine oil filler cap (P. 8-8)
4. Brake fluid reservoir (P. 8-12)5. Clutch fluid reservoir
(Manual Transmission models) (P. 8-12)
6. Window washer fluid reservoir (P. 8-13)
7. Power steering fluid reservoir (P. 8-11)
8. Air cleaner (P. 8-17)
9. Radiator filler cap (P. 8-7) 10. Drive belts location (P. 8-16)
11. Engine Coolant reservoir (P. 8-7)
12. Engine oil dipstick (P. 8-8)
SSI0345
ENGINE COMPARTMENT
0-10Illustrated table of contents

Warn-ing
light Name Page
Anti-lock Braking System
(ABS) warning light
2-9
Automatic Transmission
check warning light*2-9
Brake warning light 2-9
Charge warning light 2-10
Engine oil pressure warn-
ing light2-10
Intelligent Cruise Control
(ICC) system warning light
(orange)*2-10
Intelligent Key system
warning light
2-10
Warn-
ing
light Name Page
Low tire pressure warning
light
2-10
Master warning light 2-12
Preview Function warning
light (orange)* 2-12
Seat belt warning light 2-12
Supplemental air bag
warning light2-12
Vehicle Dynamic Control
(VDC) warning light 2-13
Indica-
tor
light Name Page
Automatic Transmission
position indicator light*
2-13
Front fog light indicator
light2-13
Front passenger air bag
status light2-13
High beam indicator light 2-13
Malfunction Indicator
Light (MIL)2-14
Security indicator light 2-14
Low beam indicator light 2-15
Turn signal/hazard indica-
tor lights 2-15
Vehicle Dynamic Control
(VDC) off indicator light2-15
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-11

MEMO
0-12Illustrated table of contents

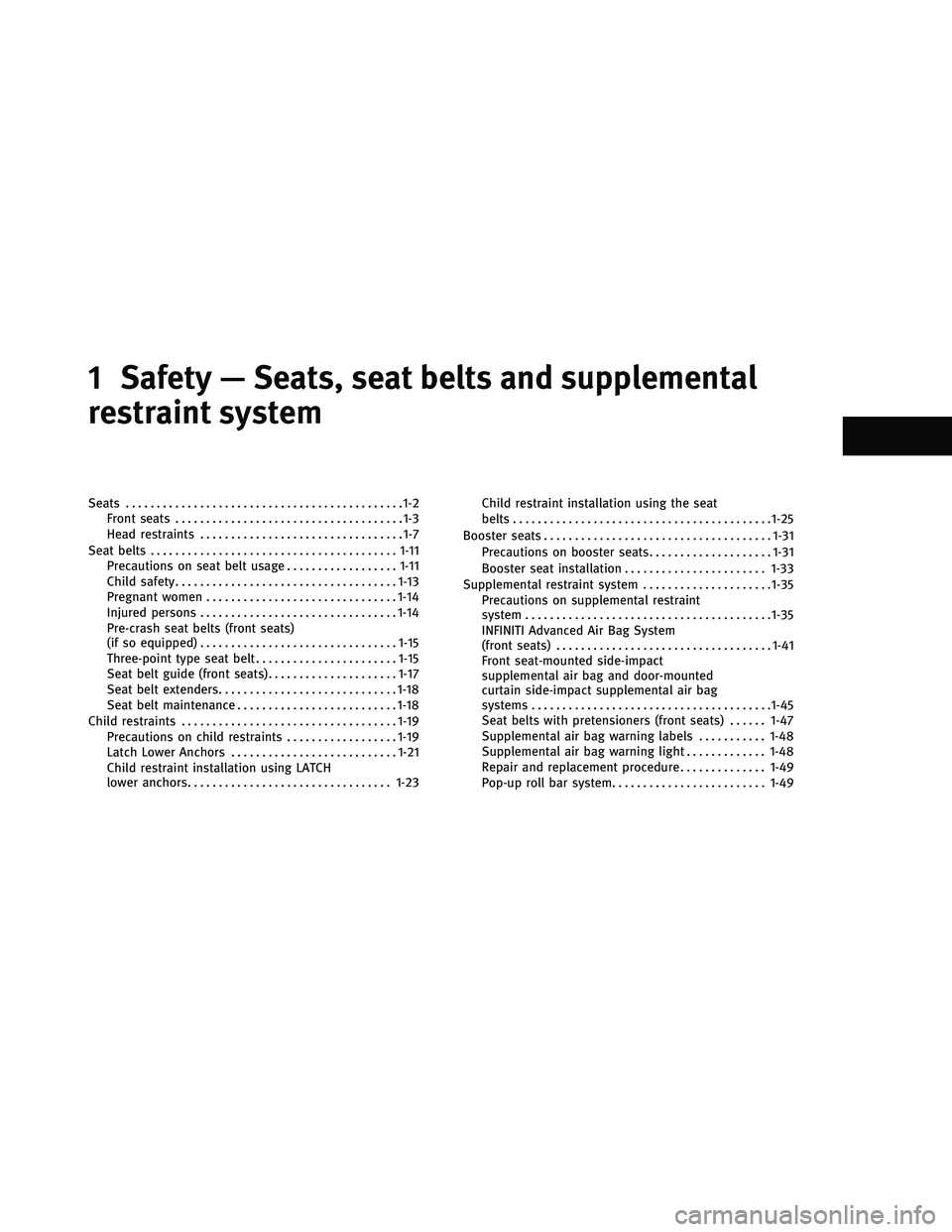

1 Safety — Seats, seat belts and supplemental
restraint system
Seats.............................................1-2
Front seats .....................................1-3
Head restraints .................................1-7
Seat belts ........................................ 1-11
Precautions on seat belt usage ..................1-11
Child safety .................................... 1-13
Pregnant women ............................... 1-14
Injured persons ................................ 1-14
Pre-crash seat belts (front seats)
(if so equipped) ................................ 1-15
Three-point type seat belt .......................1-15
Seat belt guide (front seats) .....................1-17
Seat belt extenders ............................. 1-18
Seat belt maintenance .......................... 1-18
Child restraints ................................... 1-19
Precautions on child restraints ..................1-19
Latch Lower Anchors ........................... 1-21
Child restraint installation using LATCH
lower anchors ................................. 1-23Child restraint installation using the seat
belts
.......................................... 1-25
Booster seats ..................................... 1-31
Precautions on booster seats ....................1-31
Booster seat installation ....................... 1-33
Supplemental restraint system .....................1-35
Precautions on supplemental restraint
system ........................................ 1-35
INFINITI Advanced Air Bag System
(front seats) ................................... 1-41
Front seat-mounted side-impact
supplemental air bag and door-mounted
curtain side-impact supplemental air bag
systems ....................................... 1-45
Seat belts with pretensioners (front seats) ......1-47
Supplemental air bag warning labels ...........1-48
Supplemental air bag warning light .............1-48
Repair and replacement procedure ..............1-49
Pop-up roll bar system ......................... 1-49
