INFINITI G-CONVERTIBLE 2011 Owner's Manual

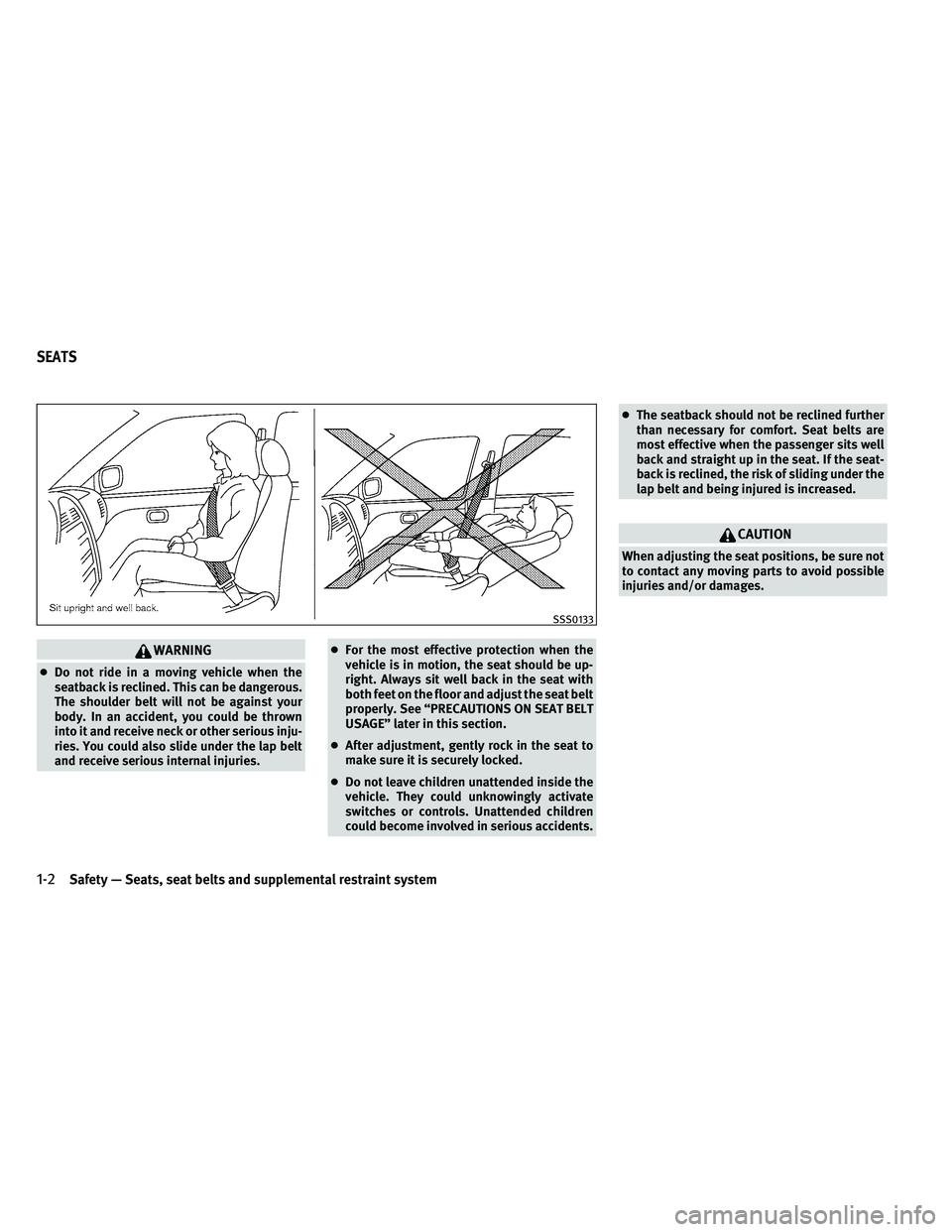

WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries. ●
For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.
● After adjustment, gently rock in the seat to
make sure it is securely locked.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
The seatback should not be reclined further
than necessary for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system

FRONT SEATS
Front power seat adjustment
Operating tips :
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function (if so
equipped). Forward and backward :
Moving the switch
1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is
in the P (Park) or N (Neutral) position with the
parking brake fully applied.
SSS1051
Safety — Seats, seat belts and supplemental restraint system1-3

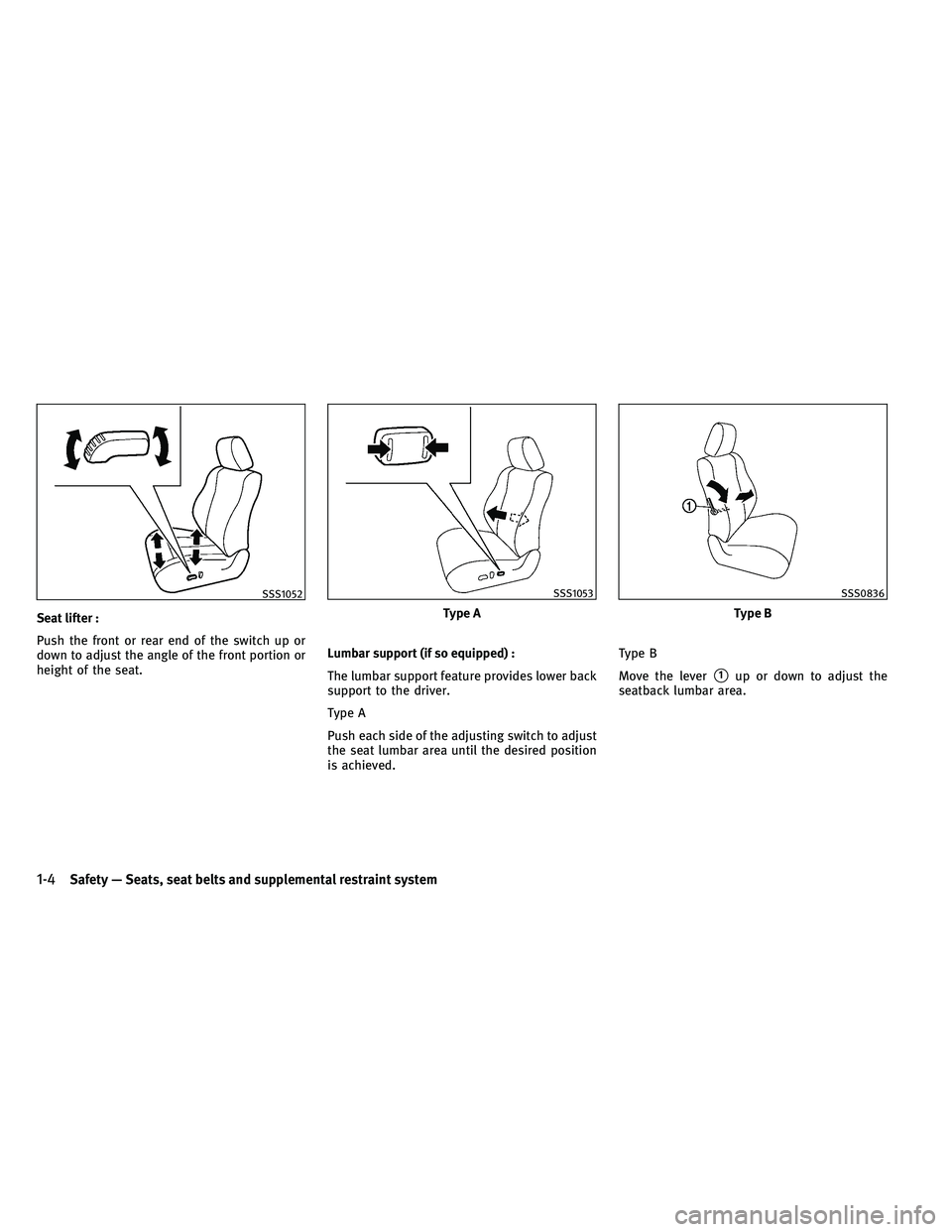

Seat lifter :
Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.Lumbar support (if so equipped) :
The lumbar support feature provides lower back
support to the driver.
Type A
Push each side of the adjusting switch to adjust
the seat lumbar area until the desired position
is achieved.Type B
Move the lever
1up or down to adjust the
seatback lumbar area.
SSS1052
Type A
SSS1053
Type B
SSS0836
1-4Safety — Seats, seat belts and supplemental restraint system

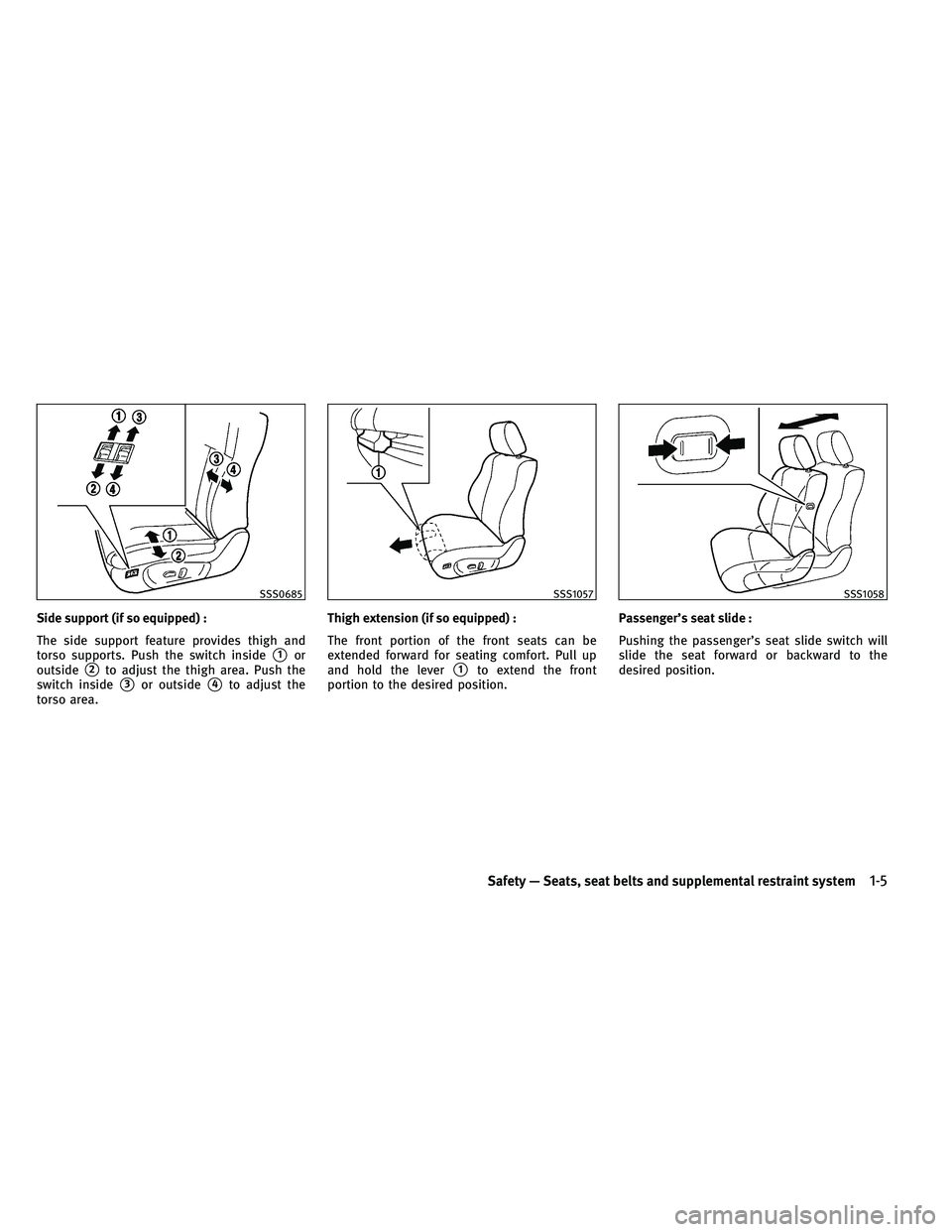

Side support (if so equipped) :
The side support feature provides thigh and
torso supports. Push the switch inside
1or
outside
2to adjust the thigh area. Push the
switch inside
3or outside4to adjust the
torso area. Thigh extension (if so equipped) :
The front portion of the front seats can be
extended forward for seating comfort. Pull up
and hold the lever1to extend the front
portion to the desired position. Passenger’s seat slide :
Pushing the passenger’s seat slide switch will
slide the seat forward or backward to the
desired position.
SSS0685SSS1057SSS1058
Safety — Seats, seat belts and supplemental restraint system1-5

Walk-in mechanism :
This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
If the sun visor is used, close it to the original
position before operating the walk-in feature.
1. Pull the seatback lever upward1to fold
the front seatback down. Make sure that
the front seatback is completely folded
down.
2. To slide the front seat forward, push the seatback switch
2. The front seat will
move forward.
3. Get in or out of the vehicle. 4. To return the front seat to its original
position, raise the seatback and firmly
push the seatback switch
2again.
●To stop the seat sliding, push the seatback
switch
2again or push the seat sliding
switch.
● The front passenger seat will stop returning
7.0 in (177.6 mm) from its front-most posi-
tion to retain space for the rear passenger.
● Depending on the seat position, the head
restraint may contact the roof headlining
during the walk-in operation. To prevent
possible interference, lower the seat using
the seat lifter switch.
CAUTION
● When returning the seat to its original posi-
tion, confirm the seat and seatback are
locked properly.
● Be careful not to pinch your hand or foot or
bump your head when operating the walk-in
seat.
● Do not place any objects near the seatback
of the front seats. They may be pinched and
damaged.
● When operating the walk-in function, always
release the seat belt from the seat belt
guide. Otherwise, the seat belt guide may be
damaged.
The automatic forwarding and reversing will not
work or stop under the following conditions:
● When the vehicle speed is above 4 MPH (7
km/h) (driver’s seat only).
● When the seat belt is fastened.
● When the selector lever is not in the P (Park)
position (Automatic Transmission model’s
driver’s seat) or the parking brake is not
applied (Manual Transmission model’s driv-
er’s seat).
● When the door is closed.
SSS0786
1-6Safety — Seats, seat belts and supplemental restraint system

●While the automatic drive positioner oper-
ates (if so equipped).
● When the automatic drive positioner
switches are pushed (if so equipped).
● When the seatback switch
2is pushed.
● When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-in
function or the seat adjusting switches after the
battery is disconnected. Otherwise, the seat will
not move backward during the walk-in function.

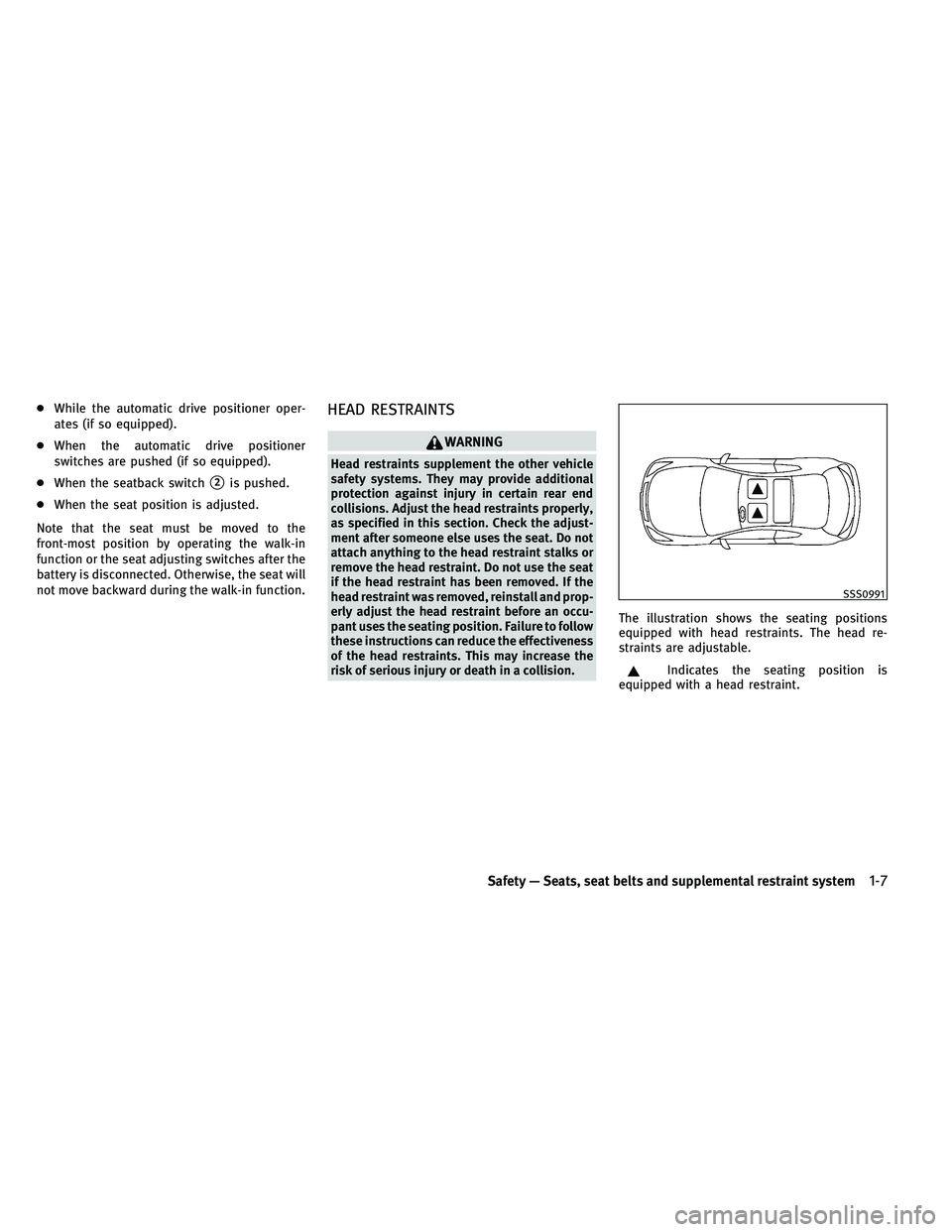

HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, reinstall and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision. The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0991
Safety — Seats, seat belts and supplemental restraint system1-7

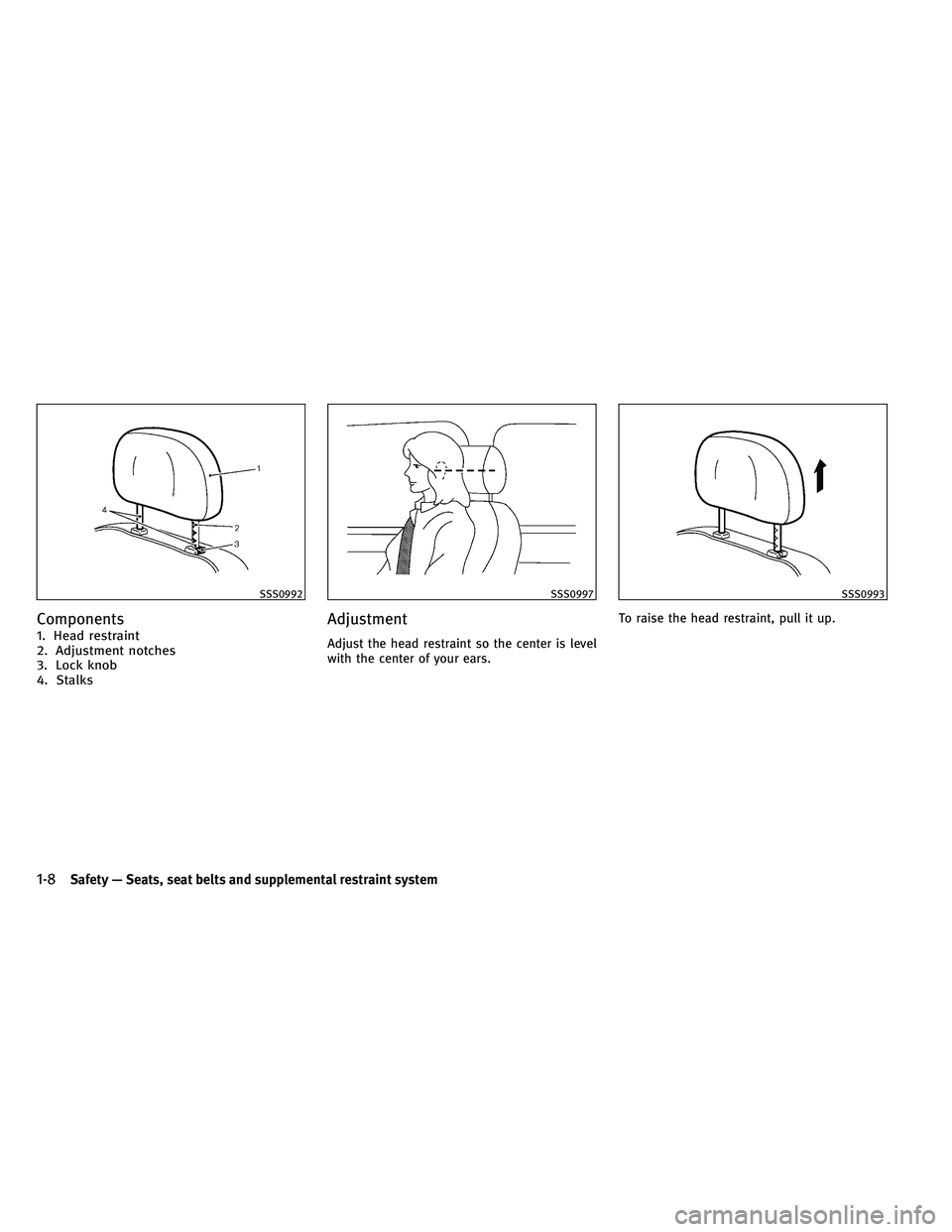

Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the head restraint so the center is level
with the center of your ears.To raise the head restraint, pull it up.
SSS0992SSS0997SSS0993
1-8Safety — Seats, seat belts and supplemental restraint system

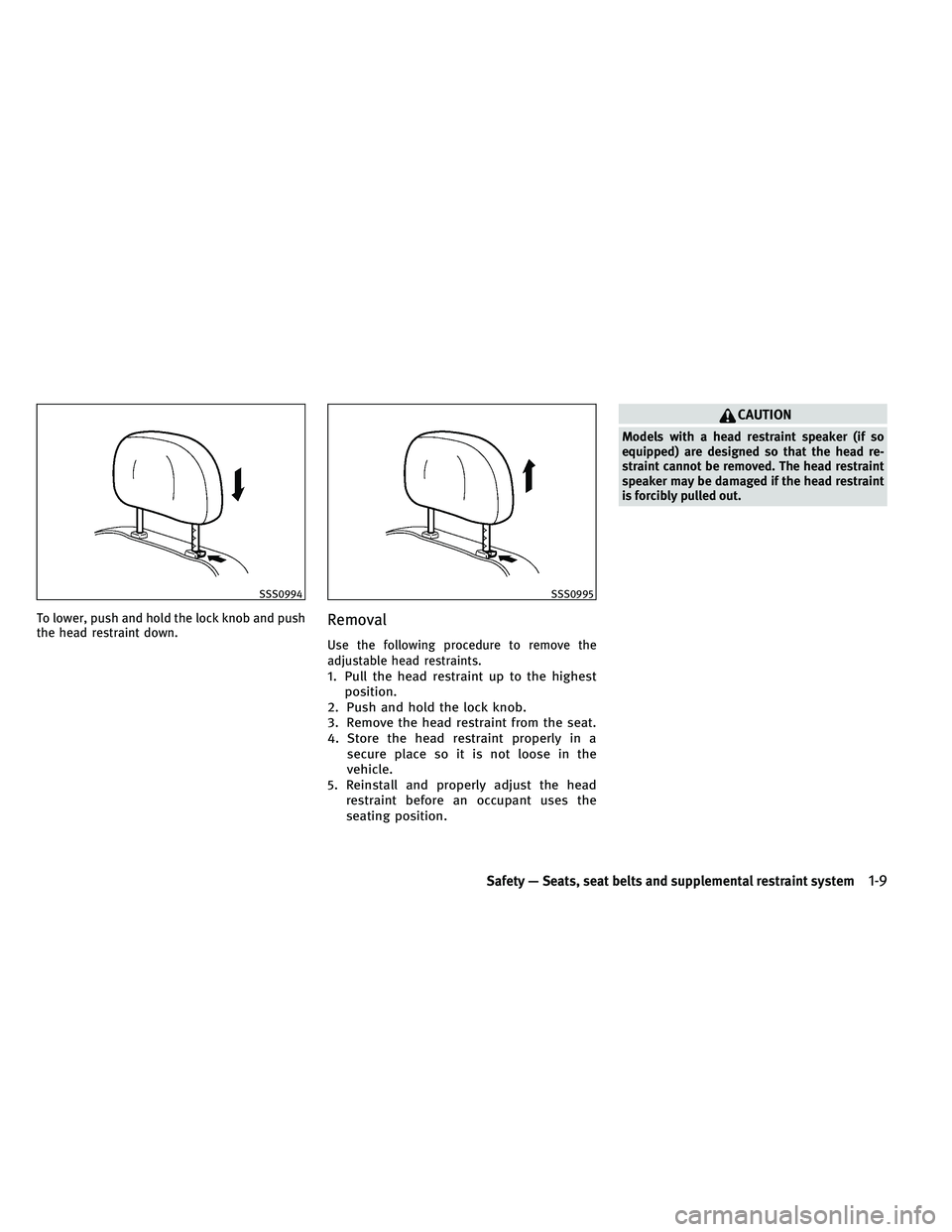

To lower, push and hold the lock knob and push
the head restraint down.Removal
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head restraint before an occupant uses the
seating position.
CAUTION
Models with a head restraint speaker (if so
equipped) are designed so that the head re-
straint cannot be removed. The head restraint
speaker may be damaged if the head restraint
is forcibly pulled out.
SSS0994SSS0995
Safety — Seats, seat belts and supplemental restraint system1-9

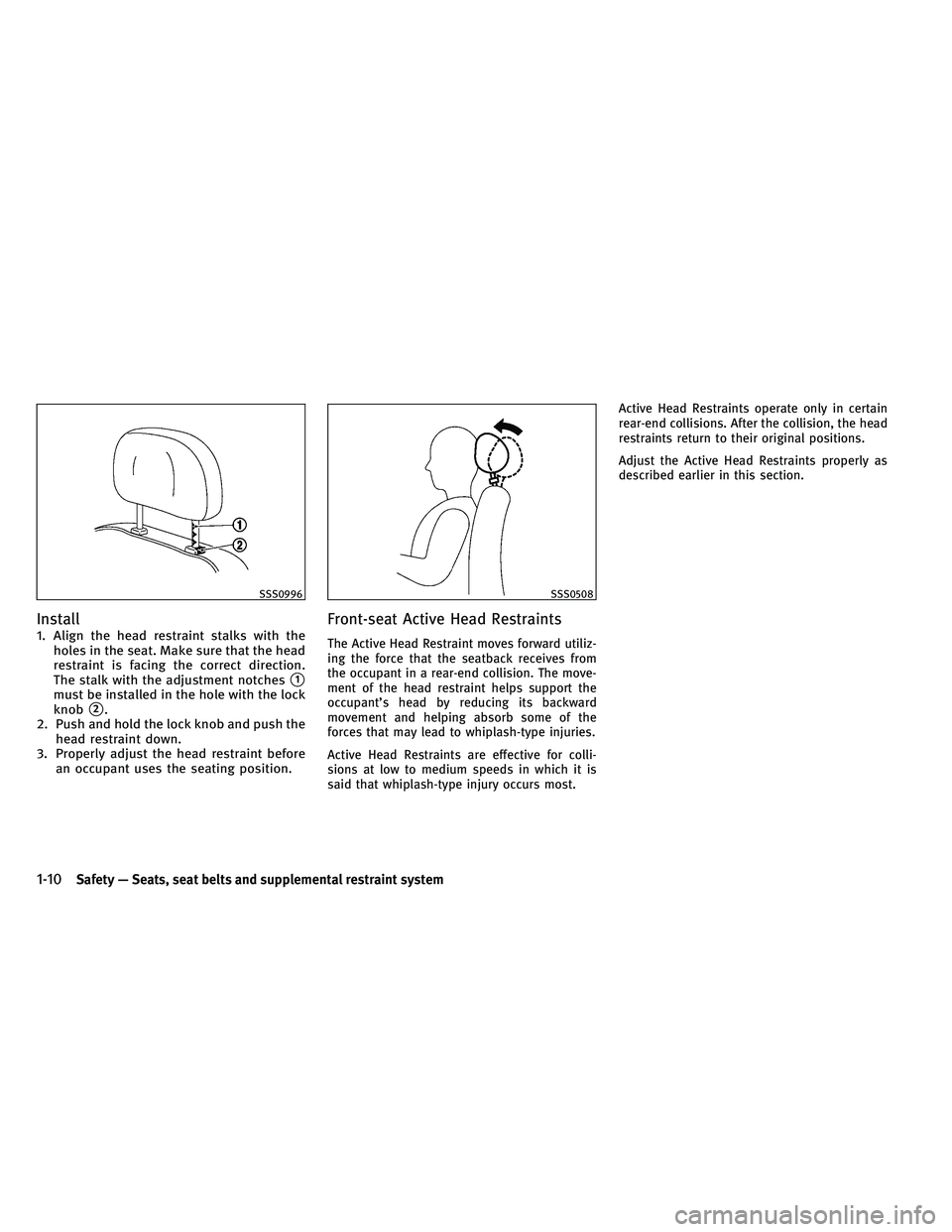

Install
1. Align the head restraint stalks with theholes in the seat. Make sure that the head
restraint is facing the correct direction.
The stalk with the adjustment notches
1
must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
Front-seat Active Head Restraints
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash-type injury occurs most. Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.
Adjust the Active Head Restraints properly as
described earlier in this section.
SSS0996SSS0508
1-10Safety — Seats, seat belts and supplemental restraint system

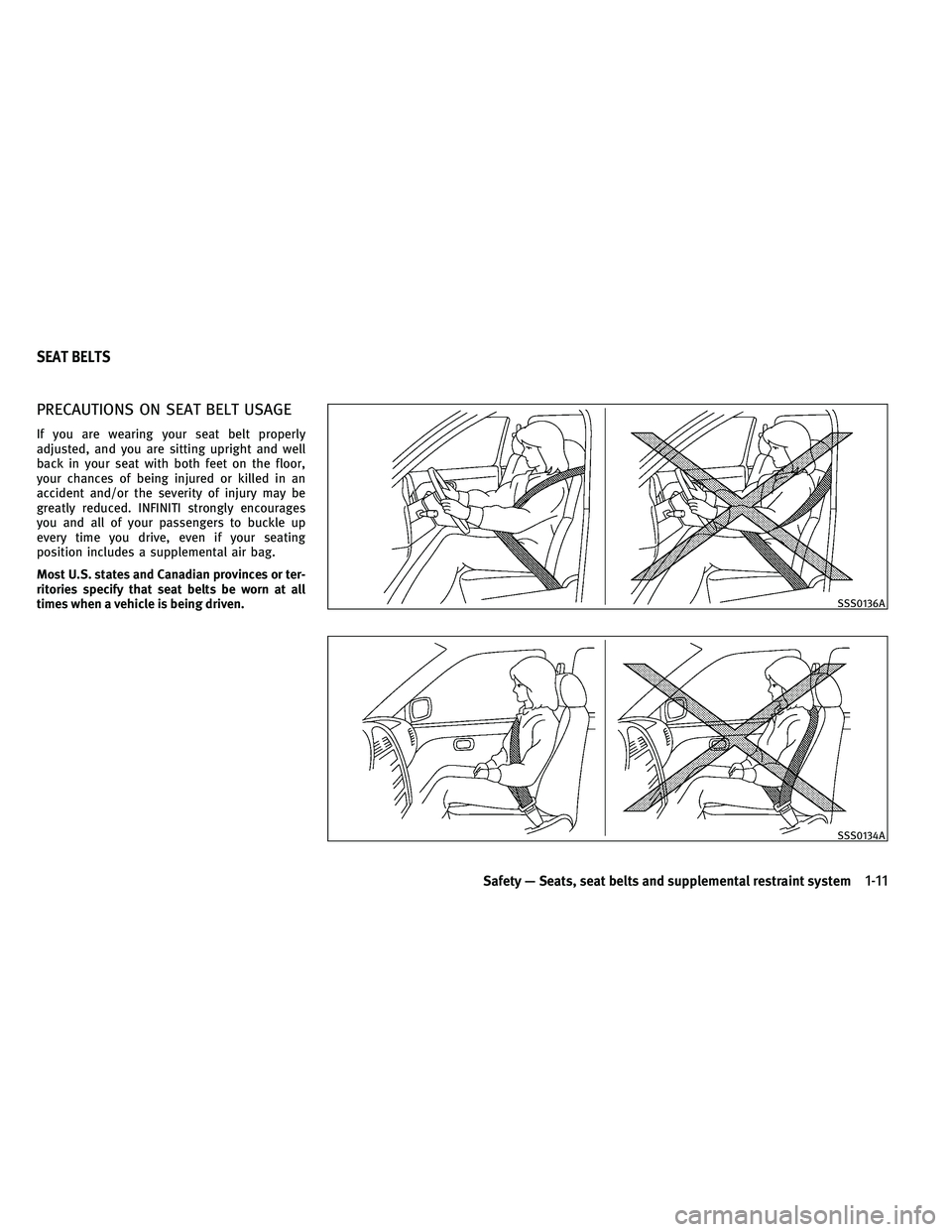

PRECAUTIONS ON SEAT BELT USAGE
If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor,
your chances of being injured or killed in an
accident and/or the severity of injury may be
greatly reduced. INFINITI strongly encourages
you and all of your passengers to buckle up
every time you drive, even if your seating
position includes a supplemental air bag.
Most U.S. states and Canadian provinces or ter-
ritories specify that seat belts be worn at all
times when a vehicle is being driven.
SSS0136A
SSS0134A
SEAT BELTS
