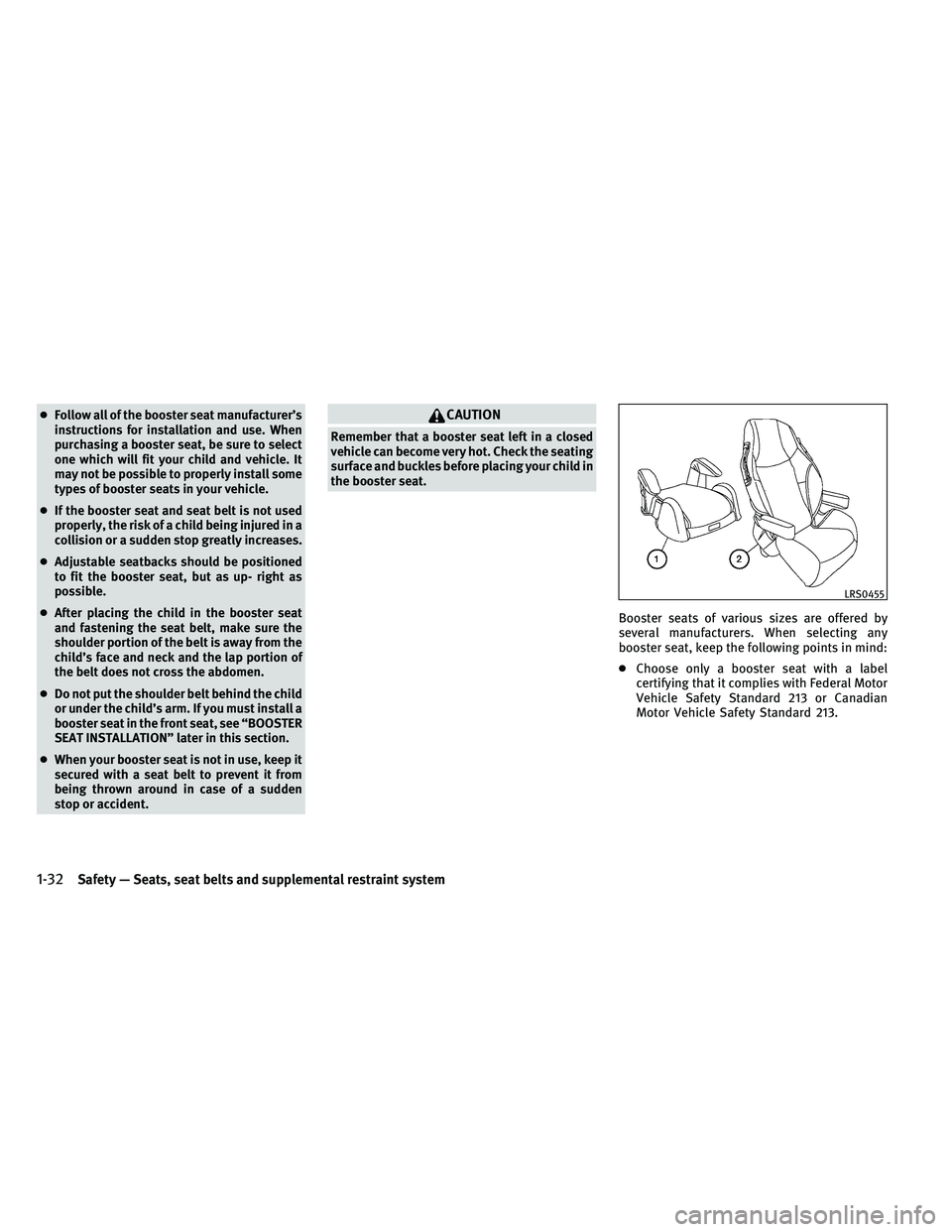

●Follow all of the booster seat manufacturer’s
instructions for installation and use. When
purchasing a booster seat, be sure to select
one which will fit your child and vehicle. It
may not be possible to properly install some
types of booster seats in your vehicle.
● If the booster seat and seat belt is not used
properly, the risk of a child being injured in a
collision or a sudden stop greatly increases.
● Adjustable seatbacks should be positioned
to fit the booster seat, but as up- right as
possible.
● After placing the child in the booster seat
and fastening the seat belt, make sure the
shoulder portion of the belt is away from the
child’s face and neck and the lap portion of
the belt does not cross the abdomen.
● Do not put the shoulder belt behind the child
or under the child’s arm. If you must install a
booster seat in the front seat, see “BOOSTER
SEAT INSTALLATION” later in this section.
● When your booster seat is not in use, keep it
secured with a seat belt to prevent it from
being thrown around in case of a sudden
stop or accident.CAUTION
Remember that a booster seat left in a closed
vehicle can become very hot. Check the seating
surface and buckles before placing your child in
the booster seat.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
●Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
LRS0455
1-32Safety — Seats, seat belts and supplemental restraint system

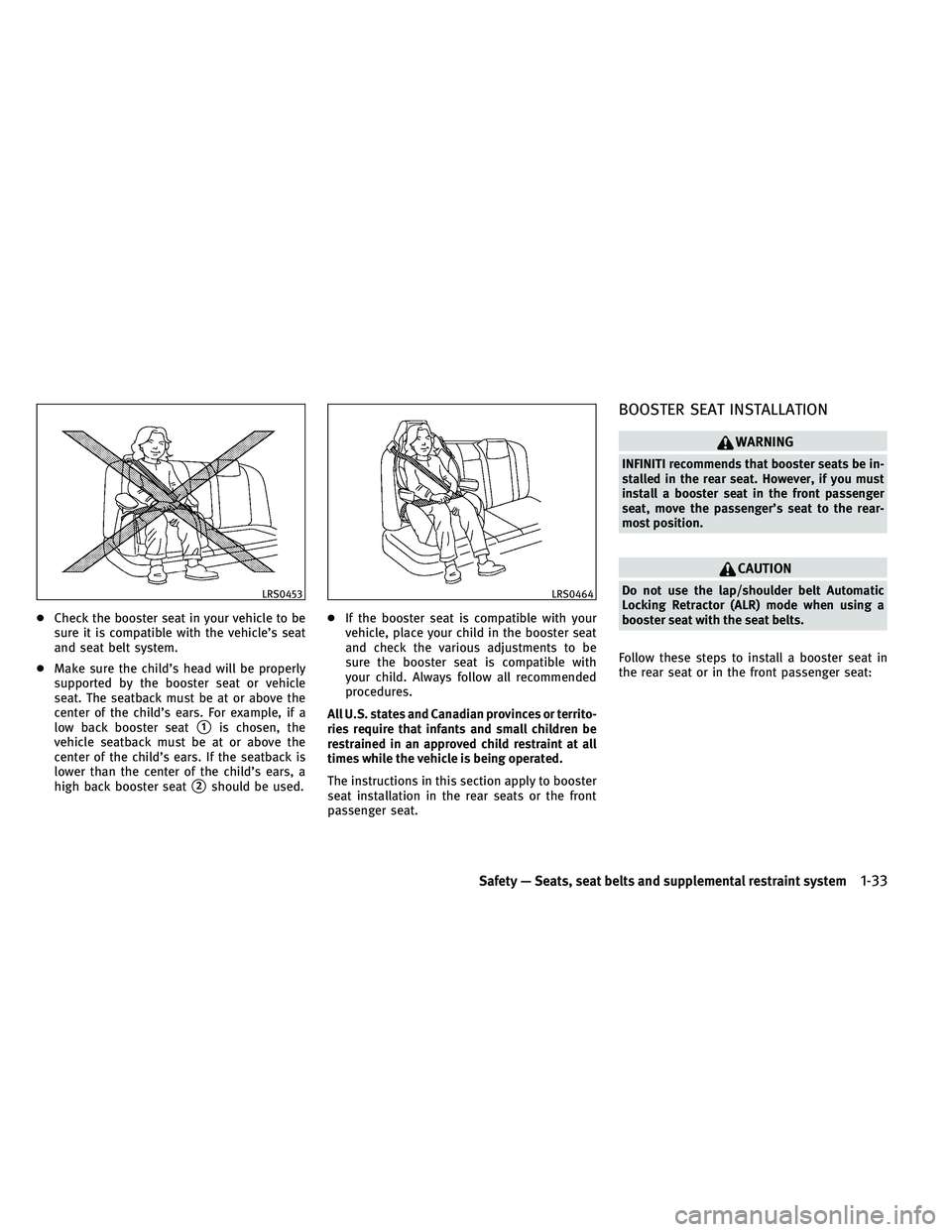

●Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
● Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2should be used. ●
If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
BOOSTER SEAT INSTALLATION
WARNING
INFINITI recommends that booster seats be in-
stalled in the rear seat. However, if you must
install a booster seat in the front passenger
seat, move the passenger’s seat to the rear-
most position.
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:LRS0453LRS0464
Safety — Seats, seat belts and supplemental restraint system1-33

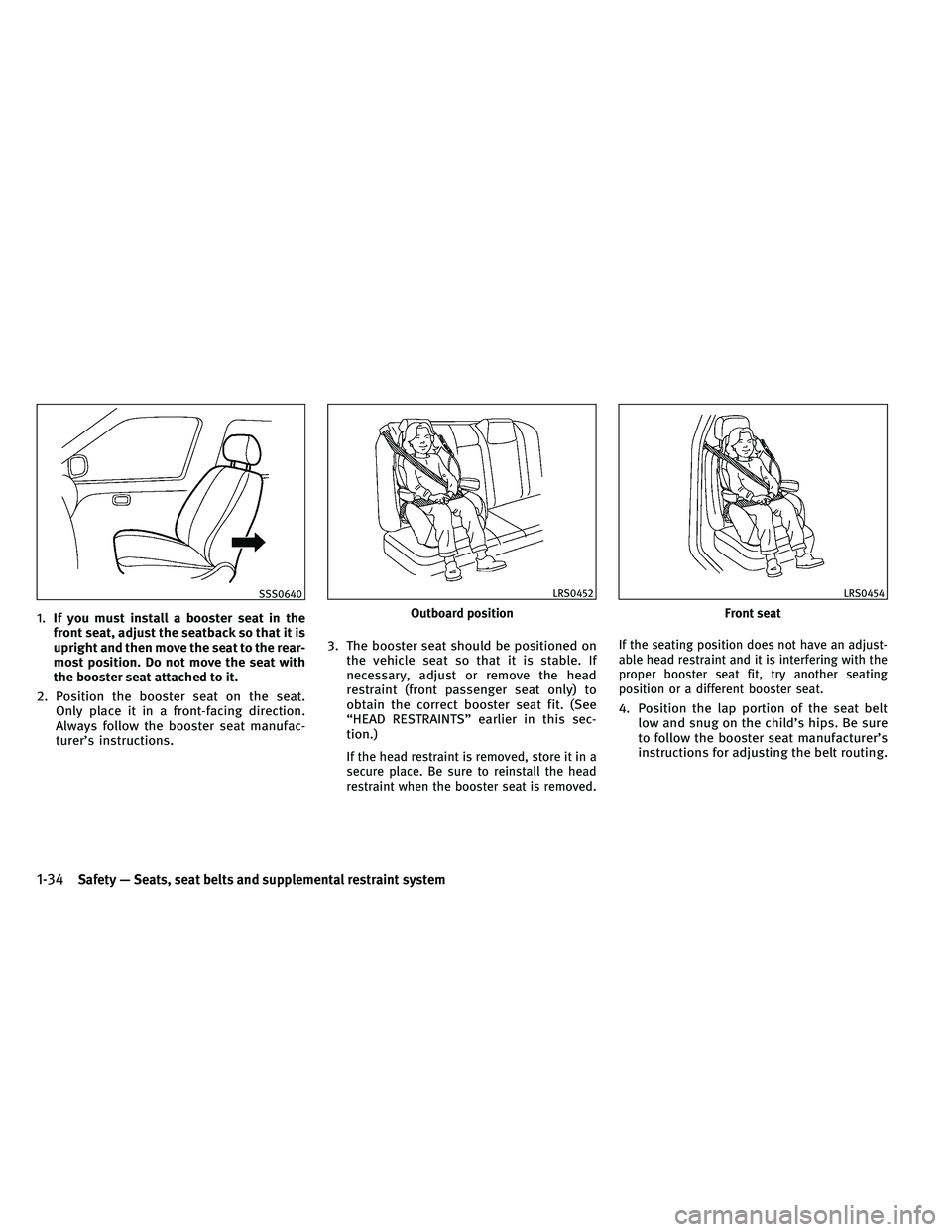

1.If you must install a booster seat in the
front seat, adjust the seatback so that it is
upright and then move the seat to the rear-
most position. Do not move the seat with
the booster seat attached to it.
2. Position the booster seat on the seat. Only place it in a front-facing direction.
Always follow the booster seat manufac-
turer’s instructions. 3. The booster seat should be positioned on
the vehicle seat so that it is stable. If
necessary, adjust or remove the head
restraint (front passenger seat only) to
obtain the correct booster seat fit. (See
“HEAD RESTRAINTS” earlier in this sec-
tion.)
If the head restraint is removed, store it in a
secure place. Be sure to reinstall the head
restraint when the booster seat is removed. If the seating position does not have an adjust-
able head restraint and it is interfering with the
proper booster seat fit, try another seating
position or a different booster seat.
4. Position the lap portion of the seat belt
low and snug on the child’s hips. Be sure
to follow the booster seat manufacturer’s
instructions for adjusting the belt routing.
SSS0640
Outboard position
LRS0452
Front seat
LRS0454
1-34Safety — Seats, seat belts and supplemental restraint system

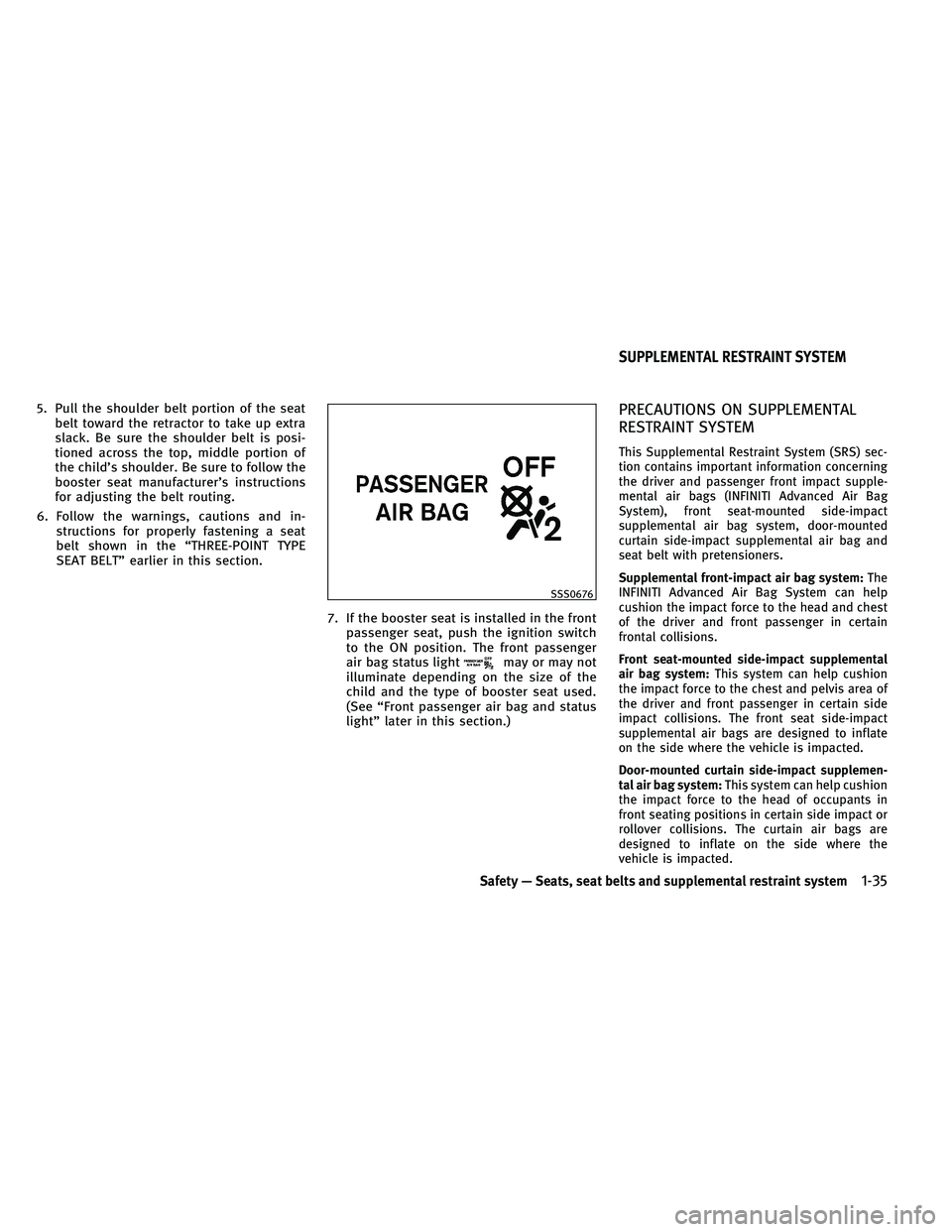

5. Pull the shoulder belt portion of the seatbelt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the belt routing.
6. Follow the warnings, cautions and in- structions for properly fastening a seat
belt shown in the “THREE-POINT TYPE
SEAT BELT” earlier in this section.
7. If the booster seat is installed in the frontpassenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
(See “Front passenger air bag and status
light” later in this section.)
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the driver and passenger front impact supple-
mental air bags (INFINITI Advanced Air Bag
System), front seat-mounted side-impact
supplemental air bag system, door-mounted
curtain side-impact supplemental air bag and
seat belt with pretensioners.
Supplemental front-impact air bag system: The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supplemental
air bag system: This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The front seat side-impact
supplemental air bags are designed to inflate
on the side where the vehicle is impacted.
Door-mounted curtain side-impact supplemen-
tal air bag system: This system can help cushion
the impact force to the head of occupants in
front seating positions in certain side impact or
rollover collisions. The curtain air bags are
designed to inflate on the side where the
vehicle is impacted.
SSS0676
SUPPLEMENTAL RESTRAINT SYSTEM
Safety — Seats, seat belts and supplemental restraint system1-35

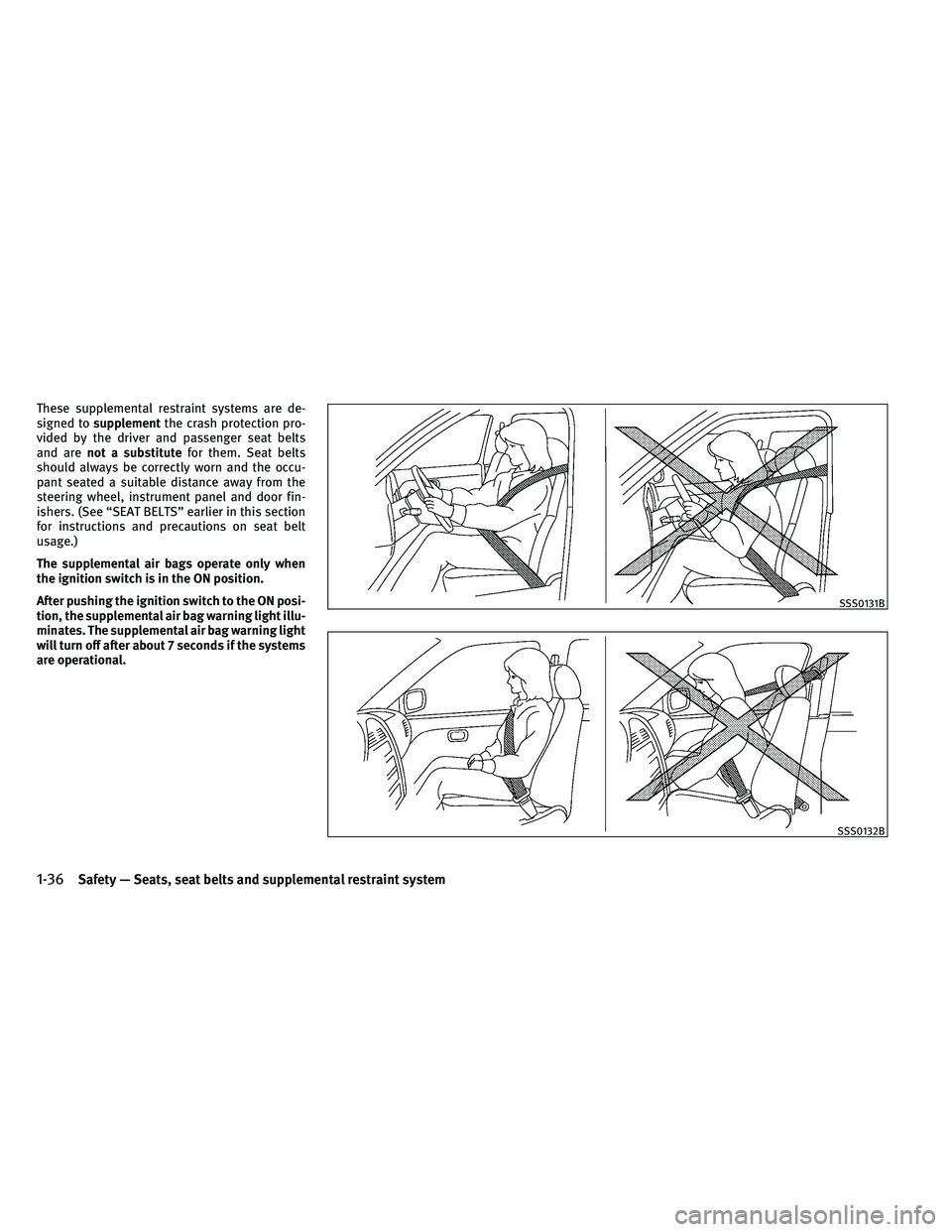

These supplemental restraint systems are de-
signed tosupplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See “SEAT BELTS” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SSS0131B
SSS0132B
1-36Safety — Seats, seat belts and supplemental restraint system

WARNING
●The supplemental front air bags ordinarily
will not inflate in the event of a side impact,
rear impact, rollover, or lower severity fron-
tal collision. Always wear your seat belts to
help reduce the risk or severity of injury in
various kinds of accidents.
● The front passenger air bag will not inflate if
the passenger air bag status light is lit or if
the front passenger seat is unoccupied. See
“Front passenger air bag and status light”
later in this section.
● The seat belts and the supplemental front air
bags are most effective when you are sitting
well back and upright in the seat with both
feet on the floor. The front air bags inflate
with great force. Even with the INFINITI Ad-
vanced Air Bag System, if you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the supplemental front air bag if you
are up against it when it inflates. Always sit
back against the seatback and as far-away
as practical from the steering wheel or in-
strument panel. Always use the seat belts. ●
The driver and front passenger seat belt
buckles are equipped with sensors that de-
tect if the seat belts are fastened. The Ad-
vanced Air Bag System monitors the severity
of a collision and seat belt usage then in-
flates the air bags as needed. Failure to prop-
erly wear seat belts can increase the risk or
severity of injury in an accident.
● The front passenger seat is equipped with an
occupant classification sensor (pattern sen-
sor) that turns the front passenger air bag
OFF under some conditions. This sensor is
only used in this seat. Failure to be properly
seated and wearing the seat belt can in-
crease the risk or severity of injury in an
accident. See “Front passenger air bag and
status light” later in this section.
● Keep hands on the outside of the steering
wheel. Placing them inside the steering
wheel rim could increase the risk of injury if
the supplemental front air bag inflates.
SSS0007
SSS0006
Safety — Seats, seat belts and supplemental restraint system1-37

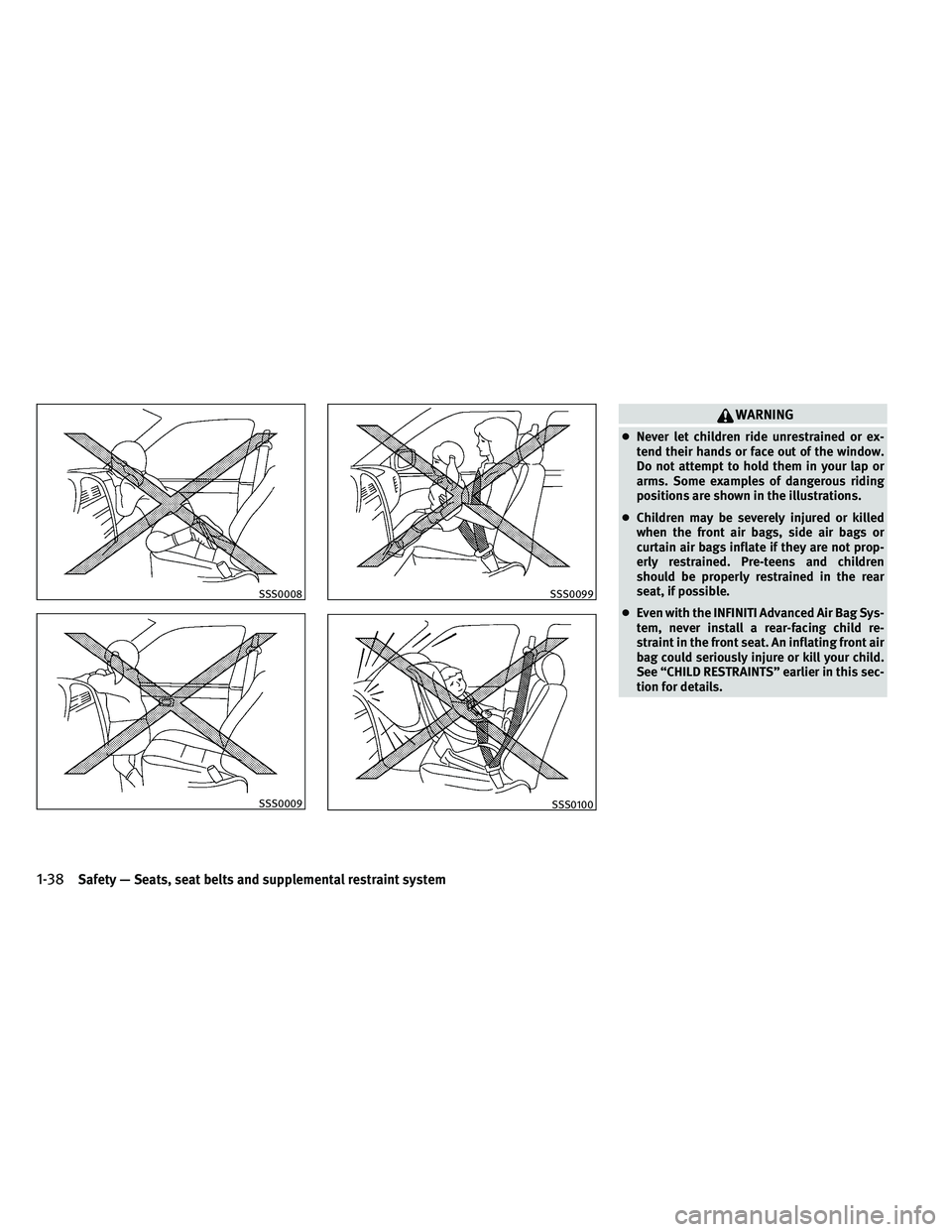

WARNING
●Never let children ride unrestrained or ex-
tend their hands or face out of the window.
Do not attempt to hold them in your lap or
arms. Some examples of dangerous riding
positions are shown in the illustrations.
● Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not prop-
erly restrained. Pre-teens and children
should be properly restrained in the rear
seat, if possible.
● Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating front air
bag could seriously injure or kill your child.
See “CHILD RESTRAINTS” earlier in this sec-
tion for details.
SSS0008
SSS0009
SSS0099
SSS0100
1-38Safety — Seats, seat belts and supplemental restraint system

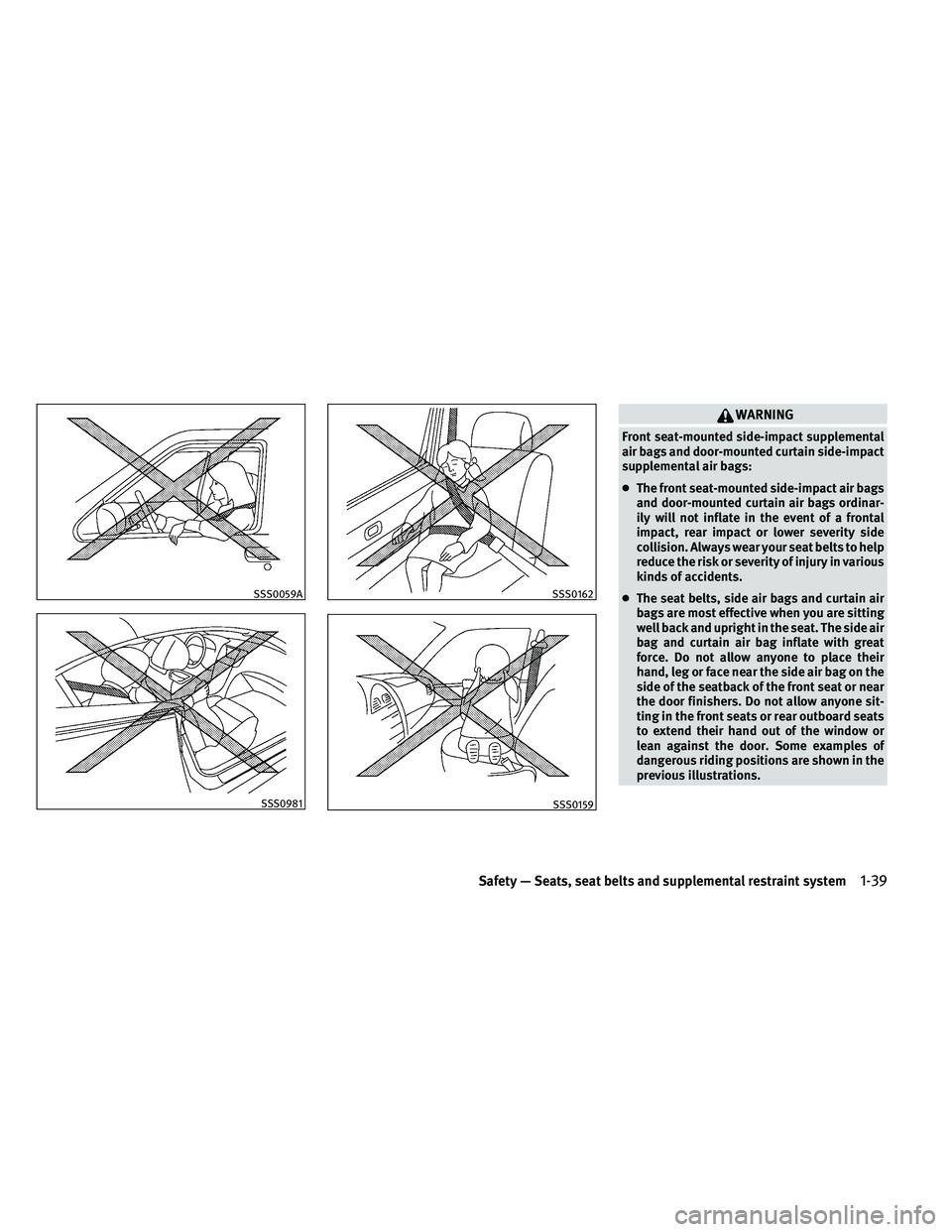

WARNING
Front seat-mounted side-impact supplemental
air bags and door-mounted curtain side-impact
supplemental air bags:
●The front seat-mounted side-impact air bags
and door-mounted curtain air bags ordinar-
ily will not inflate in the event of a frontal
impact, rear impact or lower severity side
collision. Always wear your seat belts to help
reduce the risk or severity of injury in various
kinds of accidents.
● The seat belts, side air bags and curtain air
bags are most effective when you are sitting
well back and upright in the seat. The side air
bag and curtain air bag inflate with great
force. Do not allow anyone to place their
hand, leg or face near the side air bag on the
side of the seatback of the front seat or near
the door finishers. Do not allow anyone sit-
ting in the front seats or rear outboard seats
to extend their hand out of the window or
lean against the door. Some examples of
dangerous riding positions are shown in the
previous illustrations.
SSS0059A
SSS0981
SSS0162
SSS0159
Safety — Seats, seat belts and supplemental restraint system1-39

●When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
supplemental side air bag inflates, you may
be seriously injured. Be especially careful
with children, who should always be prop-
erly restrained. Some examples of danger-
ous riding positions are shown in the
illustrations.
● Do not use seat covers on the front seat-
backs. They may interfere with supplemen-
tal side air bag inflation.
1. Crash zone sensor
2. Supplemental front air bag modules
(INFINITI Advanced Air Bags)
3. Front seat-mounted side-impact supplemental air bags 4. Occupant classification system control
unit
5. Occupant classification sensor (pattern sensor)
6. Pop-up roll bars
SSS0934
1-40Safety — Seats, seat belts and supplemental restraint system

7. Door-mounted curtain side-impactsupplemental air bag inflators
8. Door-mounted curtain side-impact supplemental air bags
9. Satellite sensors
10. Seat belt with pretensioners
11. Air bag Control Unit (ACU)
INFINITI ADVANCED AIR BAG SYSTEM
(front seats)
This vehicle is equipped with the INFINITI Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S.
regulations. It is also permitted in Canada.
However, all of the information, cautions and
warnings in this manual still apply and must be
followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
front passenger supplemental front-impact air
bag is mounted in the instrument panel above
the glove box. The front air bags are designed
to inflate in higher severity frontal collisions,
although they may inflate if the forces in an-
other type of collision are similar to those of a
higher severity frontal impact. They may not
inflate in certain frontal collisions. Vehicle dam-
age (or lack of it) is not always an indication of
proper front air bag operation. The INFINITI Advanced Air Bag System has dual
stage air bag inflators. The system monitors
information from the crash zone sensor, the Air
bag Control Unit (ACU), seat belt buckle
switches and the occupant classification sensor
(pattern sensor). Inflator operation is based on
the severity of a collision and seat belt usage
for the driver. For the front passenger, the
occupant classification sensor is also moni-
tored. Based on information from the sensors,
only one front air bag may inflate in a crash,
depending on the crash severity and whether
the front occupants are belted or unbelted.
Additionally, the front passenger air bag may be
automatically turned OFF under some condi-
tions, depending on the information provided
by the occupant classification sensor. If the
front passenger air bag is OFF, the passenger
air bag status light will be illuminated (if the
seat is unoccupied, the light will not be illumi-
nated, but the air bag will be off). (See “Front
passenger air bag and status light” later in this
section for further details.) One front air bag
inflating does not indicate improper perfor-
mance of the system.
If you have any questions about your air bag
system, contact an INFINITI retailer. If you are
considering modification of your vehicle due to
a disability, you may also contact INFINITI.
Contact information is contained in the front of
this Owner’s Manual.When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as
it may cause irritation and choking. Those with
a history of a breathing condition should get
fresh air promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.
Even with INFINITI Advanced Air Bags, seat belts
should be correctly worn and the driver and
passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module
during inflation.
The front air bags deflate quickly after a colli-
sion.
The supplemental front air bags operate only
when the ignition switch is in the ON position.
Safety — Seats, seat belts and supplemental restraint system1-41
