Page 2 of 458

Your INFINITI represents a new way of thinking
about vehicle design. It integrates advanced
engineering and superior craftsmanship with a
simple, refined aesthetic sensitivity associated
with traditional Japanese culture.
The result is a different notion of luxury and
beauty. The car itself is important, but so is the
sense of harmony that the vehicle evokes in its
driver, and the sense of satisfaction you feel
with the INFINITI — from the way it looks and
drives to the high level of retailer service.
To ensure that you enjoy your INFINITI to the
fullest, we encourage you to read this Owner’s
Manual immediately. It explains all of the fea-
tures, controls and performance characteristics
of your INFINITI; it also provides important
instructions and safety information.
A separate Warranty Information Booklet is in-
cluded in your Owner’s literature portfolio. The
INFINITI Service and Maintenance Guide ex-
plains details about maintaining and servicing
your vehicle. Always carry it with you when you
take your vehicle to an INFINITI retailer. The War-
ranty Information Booklet contents provide
complete information about all warranties cov-
ering this vehicle, the requirements to keep the
warranties in effect as well as the INFINITI Road-
side Assistance program.Additionally, a separate Customer Care and
Lemon Law Information Booklet will explain how
to resolve any concerns you may have with your
vehicle, as well as clarify your rights under your
state’s lemon law.
READ FIRST — THEN DRIVE SAFELY
Before driving your vehicle, read your Owner’s
Manual carefully. This will ensure familiarity
with controls and maintenance requirements,
assisting you in the safe operation of your
vehicle.
WARNING
IMPORTANT SAFETY INFORMATION REMINDERS
FOR SAFETY!
Follow these important driving rules to help
ensure a safe and comfortable trip for you and
your passengers!
●
NEVER drive under the influence of alcohol or
drugs.
● ALWAYS observe posted speed limits and
never drive too fast for conditions.
● ALWAYS give your full attention to driving
and avoid using vehicle features or taking
other actions that could distract you.
● ALWAYS use your seat belts and appropriate
child restraint systems. Pre-teen children
should be seated in the rear seat.
● ALWAYS provide information about the
proper use of vehicle safety features to all
occupants of the vehicle.
● ALWAYS review this Owner’s Manual for im-
portant safety information.
FOREWORD
Page 4 of 458

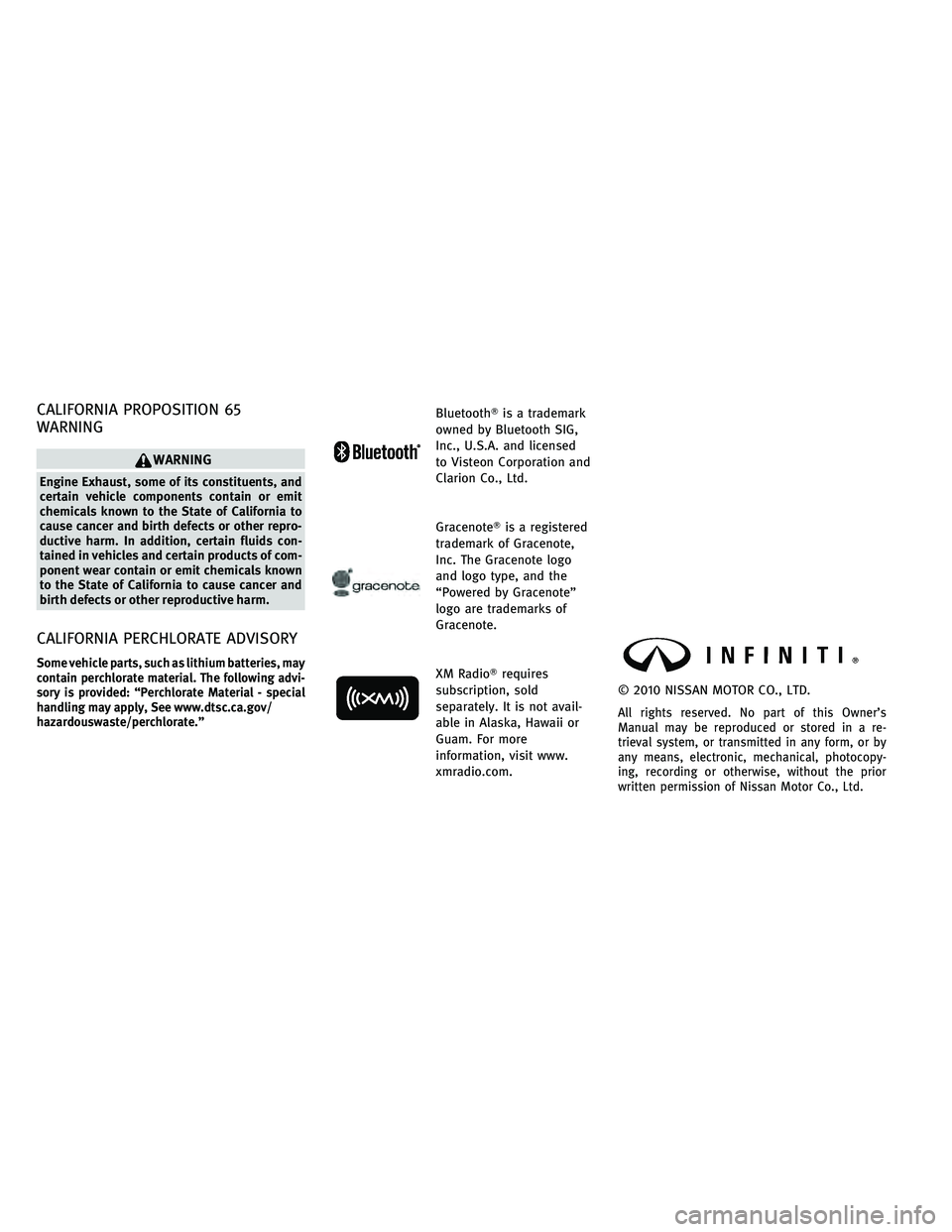

CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm. In addition, certain fluids con-
tained in vehicles and certain products of com-
ponent wear contain or emit chemicals known
to the State of California to cause cancer and
birth defects or other reproductive harm.
CALIFORNIA PERCHLORATE ADVISORY
Some vehicle parts, such as lithium batteries, may
contain perchlorate material. The following advi-
sory is provided: “Perchlorate Material - special
handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
Bluetoothis a trademark
owned by Bluetooth SIG,
Inc., U.S.A. and licensed
to Visteon Corporation and
Clarion Co., Ltd.
Gracenote is a registered
trademark of Gracenote,
Inc. The Gracenote logo
and logo type, and the
“Powered by Gracenote”
logo are trademarks of
Gracenote.
XM Radio requires
subscription, sold
separately. It is not avail-
able in Alaska, Hawaii or
Guam. For more
information, visit www.
xmradio.com.
© 2010 NISSAN MOTOR CO., LTD.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a re-
trieval system, or transmitted in any form, or by
any means, electronic, mechanical, photocopy-
ing, recording or otherwise, without the prior
written permission of Nissan Motor Co., Ltd.
Page 8 of 458

0 Illustrated table of contents
Seats, seat belts and supplemental restraint
system (SRS)..................................... 0-2
Exterior front...................................... 0-3
Exterior rear ...................................... 0-4
Exterior (Aerodynamic Package models) ............. 0-5
Passenger compartment ........................... 0-6 Cockpit
........................................... 0-7
Instrument panel .................................. 0-8
Meters and gauges ................................ 0-9
Engine compartment .............................. 0-10
VQ37VHR engine .............................. 0-10
Warning and indicator lights .......................0-11
Page 16 of 458

18. Rear window and outside mirrordefogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)
20. Trunk release power cancel switch (P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
Illustrated table of contents0-9
Page 17 of 458

VQ37VHR ENGINE
1. Fuse/fusible link holder (P. 8-20)
2. Battery (P. 8-13)
3. Engine oil filler cap (P. 8-8)
4. Brake fluid reservoir (P. 8-12)5. Clutch fluid reservoir
(Manual Transmission models) (P. 8-12)
6. Window washer fluid reservoir (P. 8-13)
7. Power steering fluid reservoir (P. 8-11)
8. Air cleaner (P. 8-17)
9. Radiator filler cap (P. 8-7) 10. Drive belts location (P. 8-16)
11. Engine Coolant reservoir (P. 8-7)
12. Engine oil dipstick (P. 8-8)
SSI0345
ENGINE COMPARTMENT
0-10Illustrated table of contents
Page 18 of 458

Warn-ing
light Name Page
Anti-lock Braking System
(ABS) warning light
2-9
Automatic Transmission
check warning light*2-9
Brake warning light 2-9
Charge warning light 2-10
Engine oil pressure warn-
ing light2-10
Intelligent Cruise Control
(ICC) system warning light
(orange)*2-10
Intelligent Key system
warning light
2-10
Warn-
ing
light Name Page
Low tire pressure warning
light
2-10
Master warning light 2-12
Preview Function warning
light (orange)* 2-12
Seat belt warning light 2-12
Supplemental air bag
warning light2-12
Vehicle Dynamic Control
(VDC) warning light 2-13
Indica-
tor
light Name Page
Automatic Transmission
position indicator light*
2-13
Front fog light indicator
light2-13
Front passenger air bag
status light2-13
High beam indicator light 2-13
Malfunction Indicator
Light (MIL)2-14
Security indicator light 2-14
Low beam indicator light 2-15
Turn signal/hazard indica-
tor lights 2-15
Vehicle Dynamic Control
(VDC) off indicator light2-15
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-11
Page 22 of 458

FRONT SEATS
Front power seat adjustment
Operating tips :
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function (if so
equipped). Forward and backward :
Moving the switch
1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is
in the P (Park) or N (Neutral) position with the
parking brake fully applied.
SSS1051
Safety — Seats, seat belts and supplemental restraint system1-3
Page 71 of 458

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Warning/indicator lights and audible reminders ...... 2-8
Checking bulbs ................................ 2-8
Warning lights ................................. 2-9
Indicator lights ................................ 2-13
Audible reminders .............................. 2-15
Dot matrix liquid crystal display ...................2-16
Indicators for operation ........................ 2-18
Indicators for retractable hard top ..............2-21
Indicators for maintenance .....................2-22
Trip computer ................................. 2-23
Security systems ................................. 2-26
Vehicle security system ........................ 2-26
INFINITI Vehicle Immobilizer System ............2-27
Windshield wiper and washer switch ...............2-28
Rain-sensing auto wiper system (if so
equipped) .................................... 2-30
Rear window and outside mirror defroster switch . . . 2-31 Headlight and turn signal switch
..................2-31
Xenon headlights ............................. 2-31
Headlight switch .............................. 2-32
Turn signal switch ............................. 2-35
Fog light switch ............................... 2-36
Hazard warning flasher switch .....................2-36
Horn ............................................ 2-37
Heated seats (if so equipped) .....................2-37
Climate controlled seats (if so equipped) ...........2-38
Vehicle Dynamic Control (VDC) OFF switch ..........2-39
Clock ............................................ 2-40
Adjusting the time ............................. 2-40
Power outlets .................................... 2-41
Cigarette lighter and ashtrays
(if so equipped) .................................. 2-42
Front ......................................... 2-42
Rear ......................................... 2-42
Storage ......................................... 2-43
Cup
holders .................................. 2-43
Glove box .................................... 2-44
Console box .................................. 2-45
Storage box (if so equipped) ...................2-46
Windows ........................................ 2-46
Power windows ............................... 2-46
Page 75 of 458

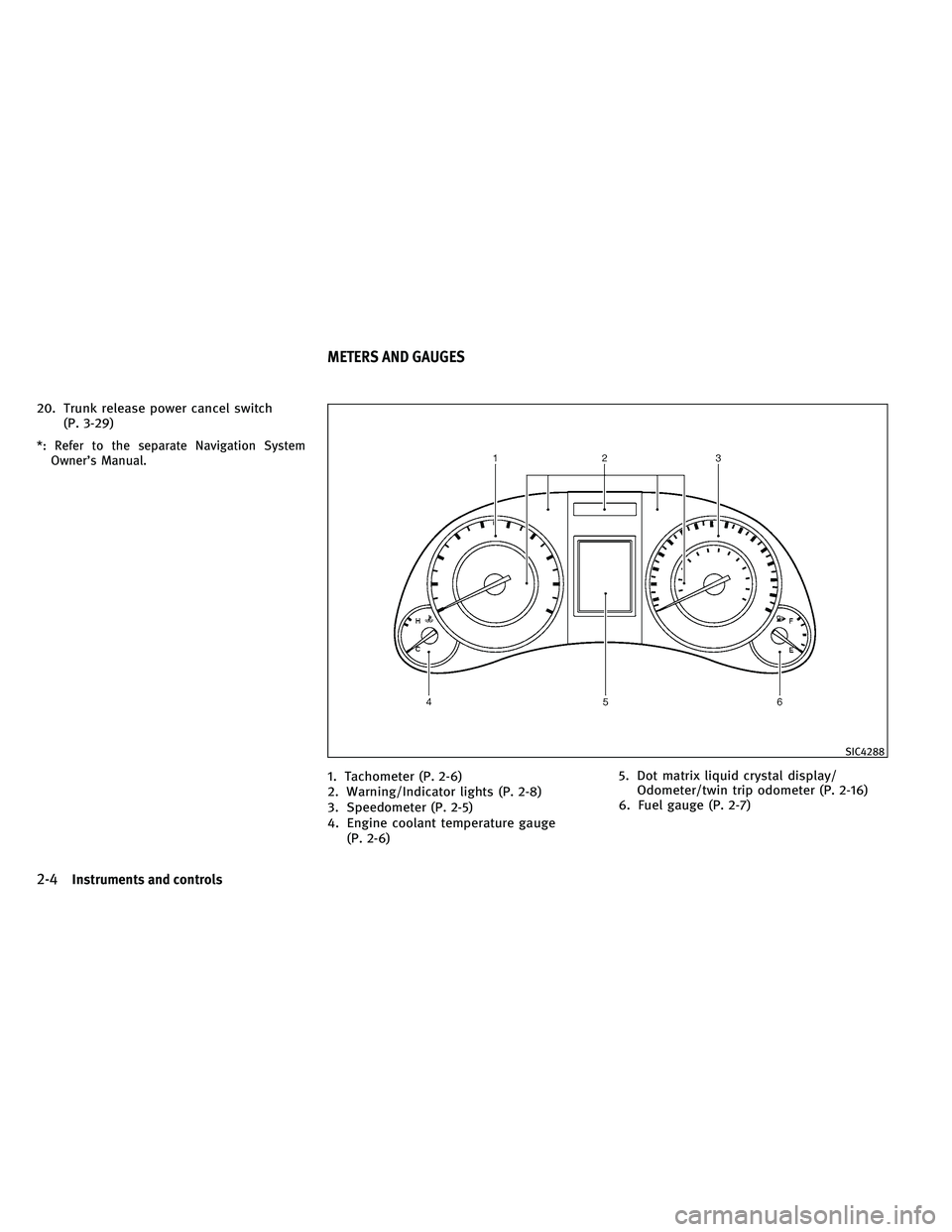

20. Trunk release power cancel switch(P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
2-4Instruments and controls
Page 76 of 458

The needle indicators in the speedometer, ta-
chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the igni-
tion switch is pushed to the LOCK position. This
is not a malfunction.
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Speedometer
SIC4289
Odometer/twin trip odometer
SIC3259
Instruments and controls2-5
