display INFINITI G37 2010 Owners Manual

Command List Category Command: Command Action
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
● Phone Command:Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry).
Monitor, climate, audio, phone and voice recognition systems
4-115
 —
—
04/21/10—debbie


● Navigation Command:Command Action
Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
● Information Command:Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
● Audio Command:Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.
4-116 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


5. Speak “011811112223333”. 6. Speak “Dial”.
7. System makes a call to 011-81-111-222-
3333.
Note :
Any digit input format is available in the Inter-
national Number input process. INFINITI VOICE RECOGNITION
ALTERNATE COMMAND MODE The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated, an
expanded list of commands can be used after
pressing the TALK switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker Ad-
aptation Function available in that mode. (See
“Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.SAA2541 SAA2542
4-122 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Activating Alternate Command Mode When the Standard Mode is active, perform the
following steps to switch to the Alternate Com-
mand Mode.
1. Push the SETTING button on the instru-
ment panel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key. 4. Highlight the “Alternate Command Mode”
key.
5. The confirmation message is displayed on
the screen. Push the “OK” key to activate
the Alternate Command Mode.
Displaying command list If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the fol-
lowing procedure for displaying the voice com-
mand list (available only in Alternate Command
Mode). 1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.SAA2529 SAA2543 SAA2544
Monitor, climate, audio, phone and voice recognition systems
4-123
 —
—
04/21/10—debbie


Information Commands: Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Audio Commands: Command Action
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth  audio player.
AUX Turns on the AUX.
4-126 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie

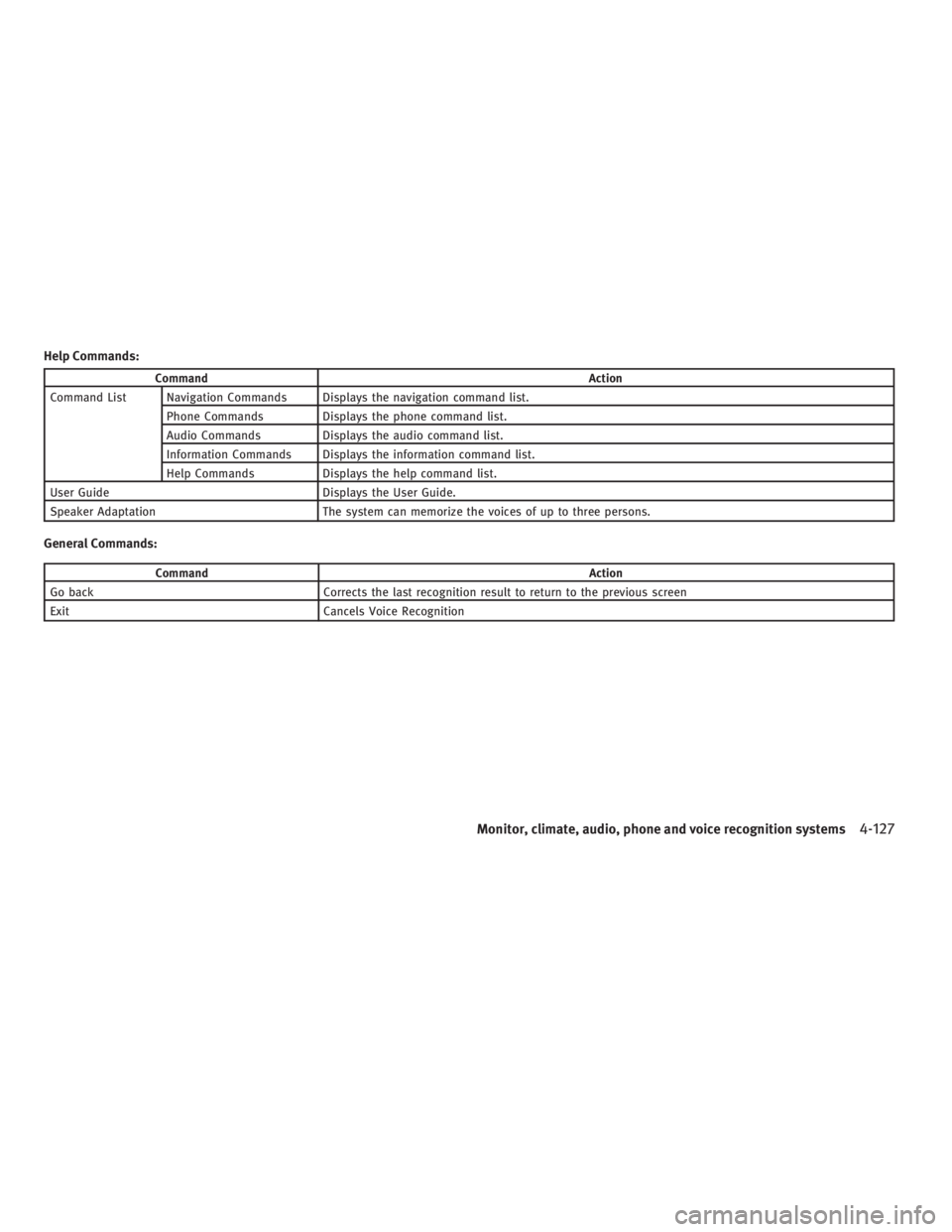

Help Commands: Command Action
Command List Navigation Commands Displays the navigation command list.
Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide.
Speaker Adaptation The system can memorize the voices of up to three persons.
General Commands: Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Monitor, climate, audio, phone and voice recognition systems
4-127
 —
—
04/21/10—debbie


Displaying user guide You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrument
panel.
2. Select the “Others” key using the INFINITI
controller and push the ENTER button.
3. Highlight the “Voice Recognition” key us-
ing the INFINITI controller and push the
ENTER button.
4. Highlight the “User Guide” key using the
INFINITI controller and push the ENTER
button. 5. Highlight an item using the INFINITI con-
troller and push the ENTER button.
Available items :
● Getting Started
Describe the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Refer to Navigation System Owner’s Manual.
● Finding a Street Address (if so equipped)
Refer to Navigation System Owner’s Manual.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system.
● Voice Recognition Settings
Describes the available voice recognition
settings. ● Adapting the System to Your Voice
Tutorial adapting the system to your voice.
USING THE SYSTEM
Initialization When the ignition switch is pushed to the ON
position, INFINITI Voice Recognition is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the TALK switch is pushed
before the initialization completes the display
will show the message: “Phonetic data down-
loaded. Please wait.” or a beep sounds.
Before starting To get the best performance from INFINITI Voice
Recognition, observe the following.
● Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.SAA2547
4-128 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


● Wait until a tone sounds before speaking a
command.
● Speak in a natural voice without pausing
between words.
Giving voice command 1. Push and release the TALK switch
located on the steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Please say a command”.
3. After the tone sounds and the icon on the
screen changes from to ,
speak a command.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice. SAA1588 SAA2548
Monitor, climate, audio, phone and voice recognition systems
4-129
 —
—
04/21/10—debbie


4. Select the user whose voice is memorized
by the system.
5. Select the “Start Speaker Adaptation
Learning” key. 6. Select a category to be learned by the
system from the following list.
● Phone Commands
● Navigation Commands
● Information Commands
● Audio Commands
● Help Commands
The voice commands in the category are
displayed.
7. Select a voice command and then push
the ENTER button.
The voice recognition system starts. 8. The system requests that you repeat a
command after a tone.
9. After the tone sounds and the icon on the
screen changes from to ,
speak the command that the system re-
quested.
10. When the system has recognized the
voice command, the voice of the user is
learned.
Push the switch or BACK button to return
to the previous screen.
If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from “None” to
“Stored”.SAA2550 SAA2551 SAA2552
Monitor, climate, audio, phone and voice recognition systems
4-131
 —
—
04/21/10—debbie


Speaker Adaptation function settings :
Edit User Name
Edit the user name using the keypad displayed
on the screen.
Delete Voice Data
Resets the user’s voice that the voice recogni-
tion system has learned.
Continuous Learning
When this item is turned to ON, you can have
the system learn the voice commands in suc-
cession, without selecting commands one by
one. Minimize voice feedback (for
Alternate Command Mode) To minimize the voice feedback from the sys-
tem, perform the following steps.
1. Push the SETTING button on the instru-
ment panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Minimize Voice Feedback”
key.
5. The setting is turned to ON and the voice
guidance will now be reduced when using
the Voice Recognition system.SAA2553
4-132 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie
