The voice adaptation mode will stop if:
●The
button is pressed in voice adap-
tation mode.
● The vehicle is driven during voice adaptation
mode.
● The ignition switch is turned to the OFF or
LOCK position. INFINITI Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes, Stan-
dard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and an-
nounced by the system. You can complete your
desired operation by simply following the
prompts given by the system. (See “INFINITI
VOICE RECOGNITION STANDARD MODE” later in
this section for details.)
For advanced operation, you can use the Alter-
nate Command Mode. (See “INFINITI VOICE REC-
OGNITION ALTERNATE COMMAND MODE” later
in this section for details.) When this mode is
active, an expanded list of commands can be
spoken after pushing the TALK
switch,
and the voice command menu prompts are
turned off. Review the expanded command list,
which is available when this mode is active.
Note that in this mode the recognition success
rate may be affected as the number of available
commands and the ways of speaking each
command are increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using
the Speaker Adaptation Function available in that mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and
Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner’s
Manual of your vehicle.
INFINITI VOICE RECOGNITION
STANDARD MODE
The following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
INFINITI VOICE RECOGNITION SYSTEM
(models with navigation system)
Monitor, climate, audio, phone and voice recognition systems4-109
—
—
07/15/10—tbrooks


Activating Standard Mode
When the Alternate Command Mode is active,
perform the following steps to switch to the
Standard Mode.
1. Push the SETTING button on the instru-ment panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key. 4. Select the “Alternate Command Mode”
key.
5. The indicator turns off and the Standard Mode activates.Displaying user guide
If you use the INFINITI Voice Recognition system
for the first time or you do not know how to
operate it, you can display the User Guide for
confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “User Guide” key.
5. Select a preferred item.
You can skip steps 1 and 3 above if you say
“Help”.
Available items :
● Getting Started
Describes the basics of how to operate the
INFINITI Voice Recognition system.
SAA2529SAA2530SAA2531
4-110Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Tutorial for entering a destination by using
the Address Book.
● Finding a Street Address (if so equipped)
Tutorial for entering a destination by street
address.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips of speaking for correct
command recognition by the system.
Note that the Command List feature is only
available when Alternate Command Mode is
active.
Getting Started
Before using the INFINITI Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Select the “Getting Started” key.
2. You can confirm the page by scrolling the screen using the INFINITI controller.
Tutorials on the operation of the INFINITI Voice
Recognition system
If you choose “Using the Address Book”, “Find-
ing a Street Address” or “Placing Calls”, you
can view tutorials on how to perform these
operations using INFINITI Voice Recognition.
Let’s Practice
This mode helps learn how to use the INFINITI
Voice Recognition system.
1. Select the “Let’s Practice” key.
2. After the message screen appears, push
the TALK
switch on the steering
wheel.
3. Speak the displayed number after the tone. The evaluation screen will be dis-
played and the result can be confirmed.
SAA2532SAA2534
Monitor, climate, audio, phone and voice recognition systems4-111
—
—
07/15/10—tbrooks


Giving voice commands
1. Push the TALKswitch located on the
steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Would you like to access Phone, Naviga-
tion, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Selecting the “Practice” key will start the
practice mode. See “Let’s Practice” earlier in
this section.
4. Continue to follow the voice menu prompts and speak after the tone sounds
until your desired operation is completed.
Selecting the “Help ” key can display the
detailed information of the each command. Operating tips :
●
Say a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the BACK button once to return to the
previous screen.
● To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, “Voice canceled” will be announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [] on the steering switch or
use the audio system volume knob while the
system is making an announcement.
SAA3001SAA2535
Monitor, climate, audio, phone and voice recognition systems4-113
—
—
07/15/10—tbrooks

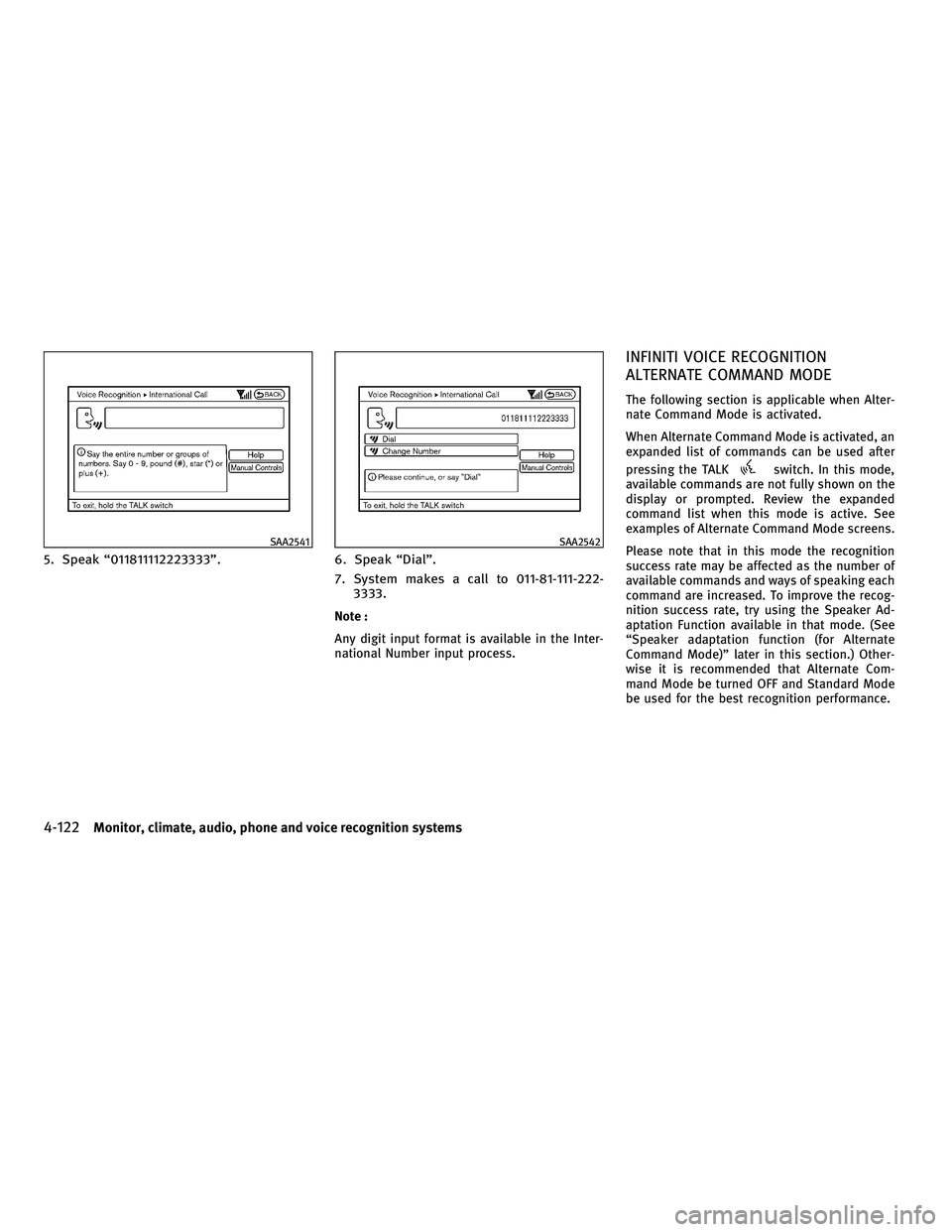

5. Speak “011811112223333”.6. Speak “Dial”.
7. System makes a call to 011-81-111-222- 3333.
Note :
Any digit input format is available in the Inter-
national Number input process.
INFINITI VOICE RECOGNITION
ALTERNATE COMMAND MODE
The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated, an
expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker Ad-
aptation Function available in that mode. (See
“Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.
SAA2541SAA2542
4-122Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

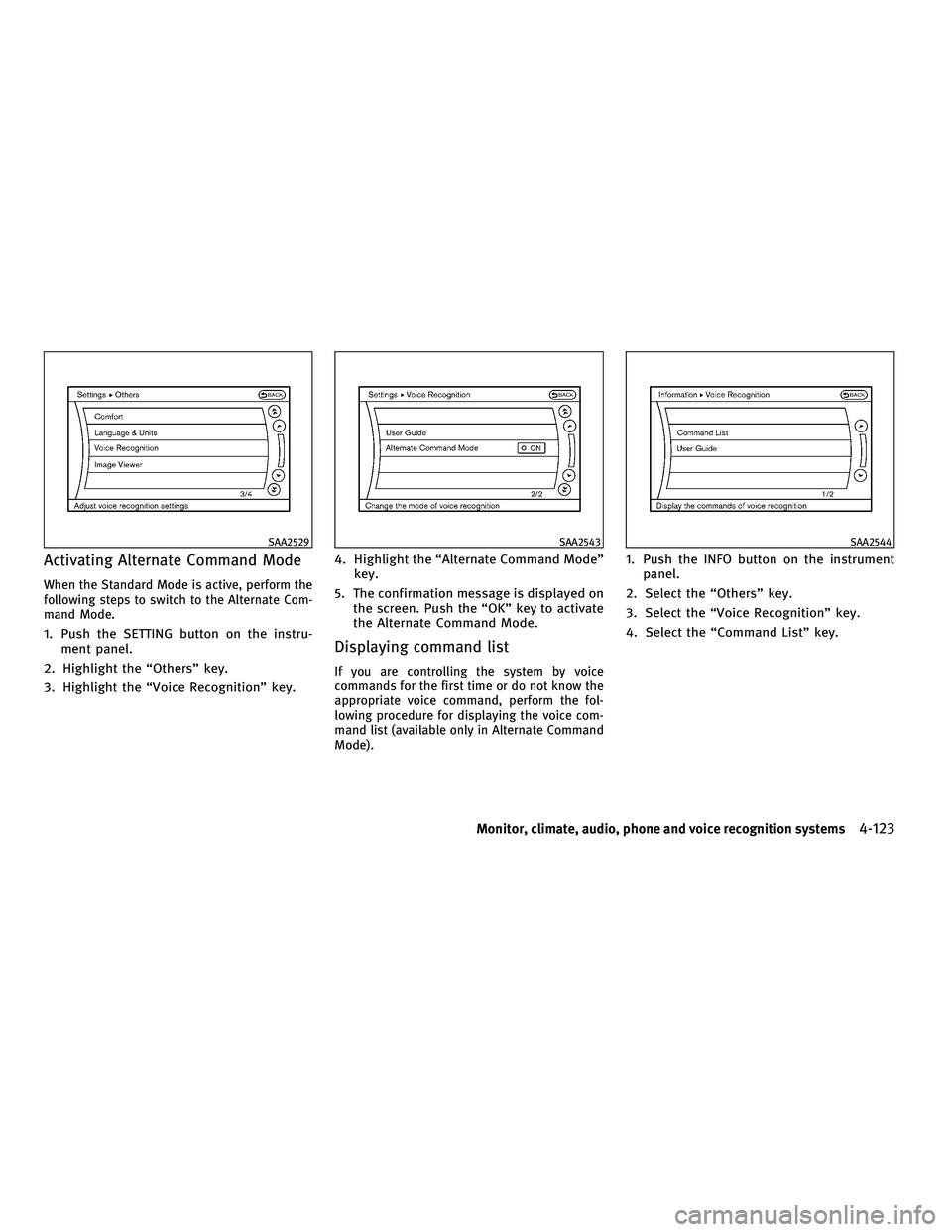

Activating Alternate Command Mode
When the Standard Mode is active, perform the
following steps to switch to the Alternate Com-
mand Mode.
1. Push the SETTING button on the instru-ment panel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key. 4. Highlight the “Alternate Command Mode”
key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command list
If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the fol-
lowing procedure for displaying the voice com-
mand list (available only in Alternate Command
Mode).
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
SAA2529SAA2543SAA2544
Monitor, climate, audio, phone and voice recognition systems4-123
—
—
07/15/10—tbrooks

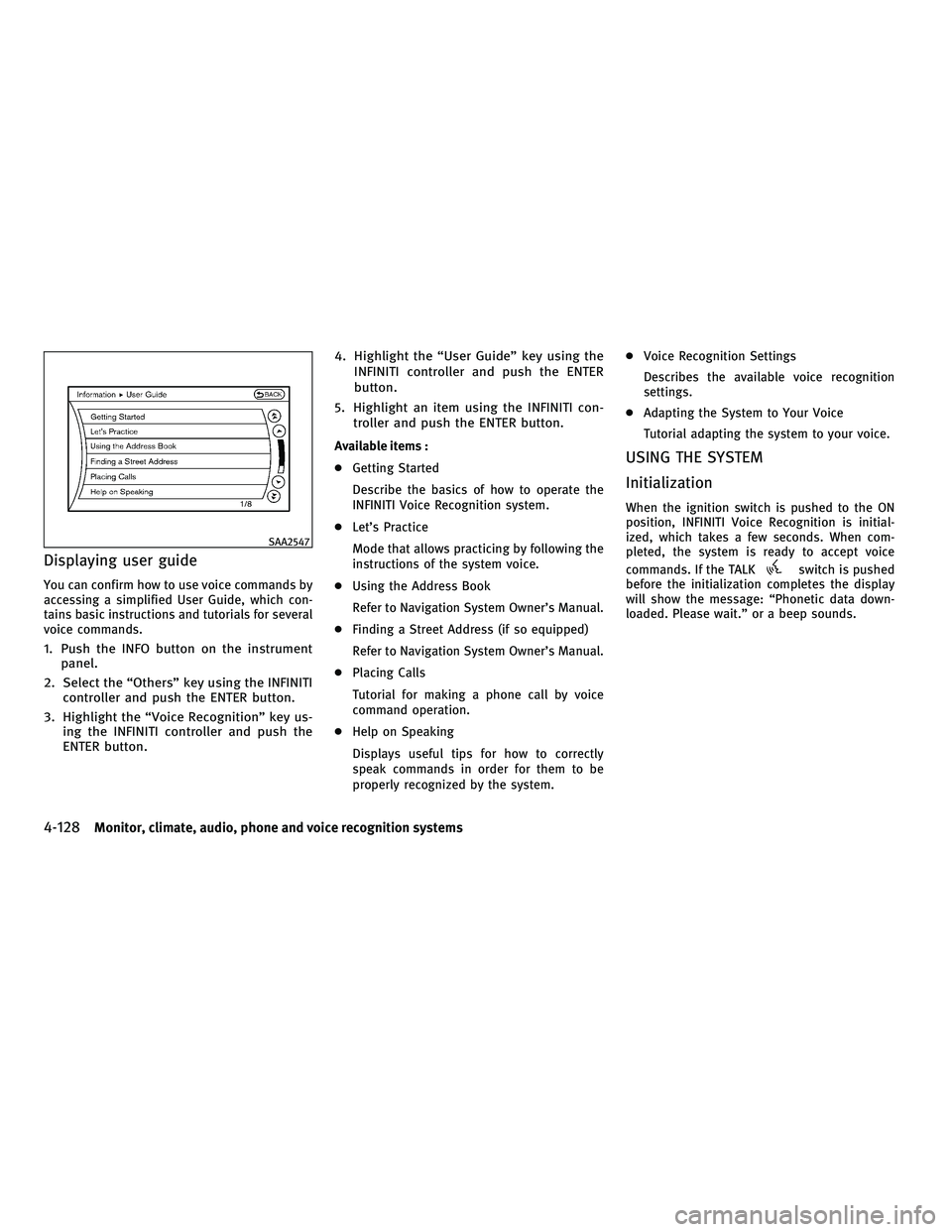

Displaying user guide
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key using the INFINITI controller and push the ENTER button.
3. Highlight the “Voice Recognition” key us- ing the INFINITI controller and push the
ENTER button. 4. Highlight the “User Guide” key using the
INFINITI controller and push the ENTER
button.
5. Highlight an item using the INFINITI con- troller and push the ENTER button.
Available items :
● Getting Started
Describe the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Refer to Navigation System Owner’s Manual.
● Finding a Street Address (if so equipped)
Refer to Navigation System Owner’s Manual.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system. ●
Voice Recognition Settings
Describes the available voice recognition
settings.
● Adapting the System to Your Voice
Tutorial adapting the system to your voice.USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, INFINITI Voice Recognition is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display
will show the message: “Phonetic data down-
loaded. Please wait.” or a beep sounds.
SAA2547
4-128Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

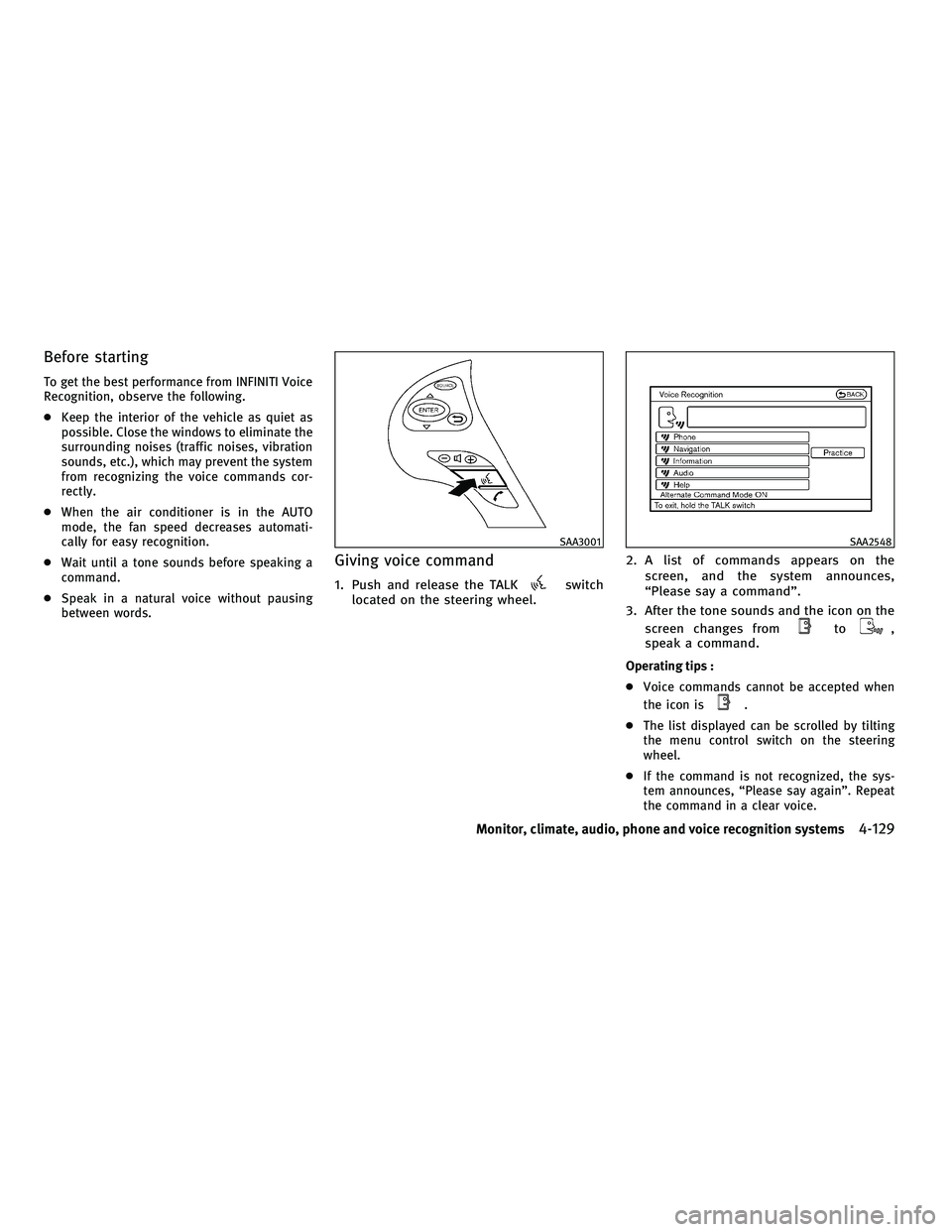

Before starting
To get the best performance from INFINITI Voice
Recognition, observe the following.
●Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
● Wait until a tone sounds before speaking a
command.
● Speak in a natural voice without pausing
between words.
Giving voice command
1. Push and release the TALKswitch
located on the steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Please say a command”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
SAA3001SAA2548
Monitor, climate, audio, phone and voice recognition systems4-129
—
—
07/15/10—tbrooks

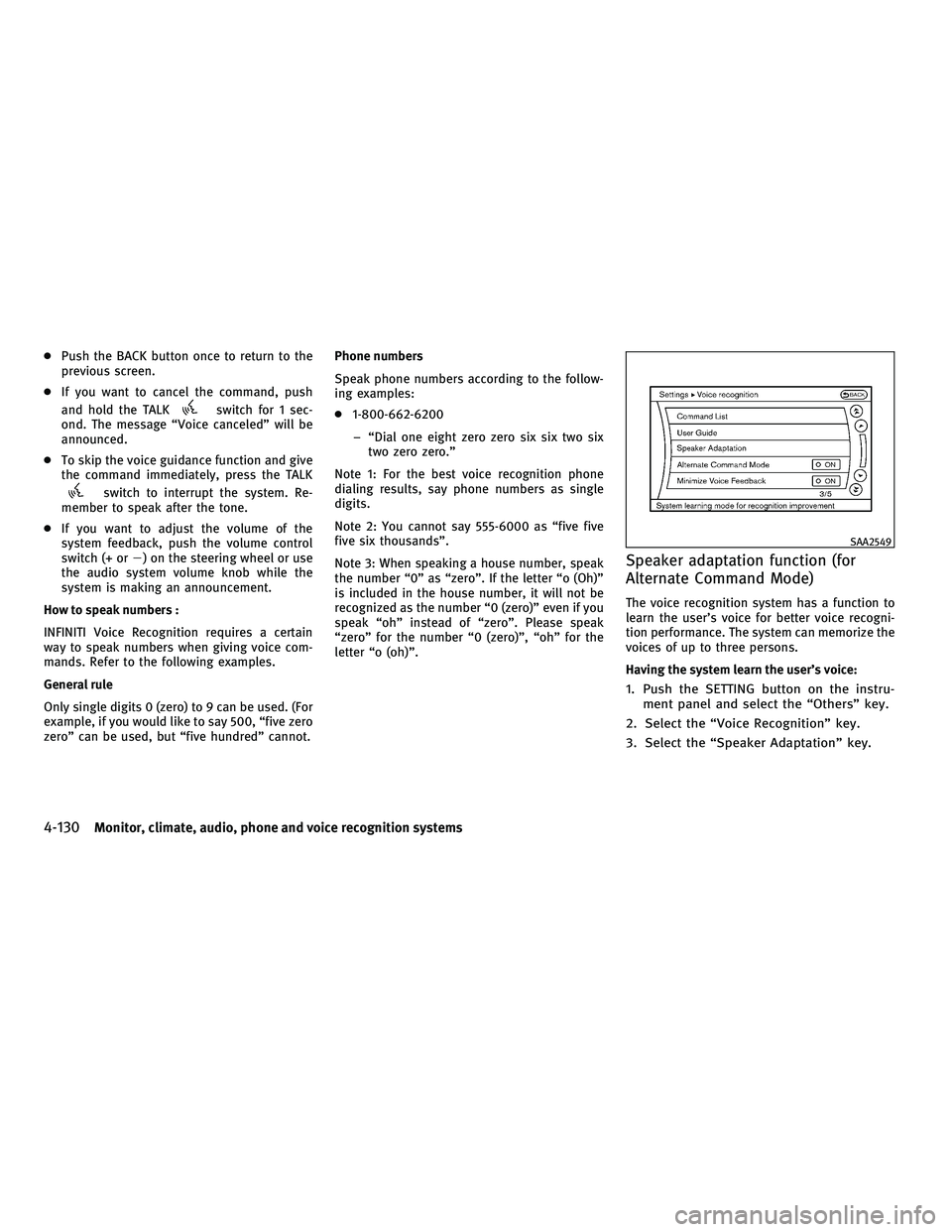

●Push the BACK button once to return to the
previous screen.
● If you want to cancel the command, push
and hold the TALK
switch for 1 sec-
ond. The message “Voice canceled” will be
announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
switch (+ or ) on the steering wheel or use
the audio system volume knob while the
system is making an announcement.
How to speak numbers :
INFINITI Voice Recognition requires a certain
way to speak numbers when giving voice com-
mands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot. Phone numbers
Speak phone numbers according to the follow-
ing examples:
●
1-800-662-6200
– “Dial one eight zero zero six six two six two zero zero.”
Note 1: For the best voice recognition phone
dialing results, say phone numbers as single
digits.
Note 2: You cannot say 555-6000 as “five five
five six thousands”.
Note 3: When speaking a house number, speak
the number “0” as “zero”. If the letter “o (Oh)”
is included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”. Please speak
“zero” for the number “0 (zero)”, “oh” for the
letter “o (oh)”.
Speaker adaptation function (for
Alternate Command Mode)
The voice recognition system has a function to
learn the user’s voice for better voice recogni-
tion performance. The system can memorize the
voices of up to three persons.
Having the system learn the user’s voice:
1. Push the SETTING button on the instru- ment panel and select the “Others” key.
2. Select the “Voice Recognition” key.
3. Select the “Speaker Adaptation” key.
SAA2549
4-130Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

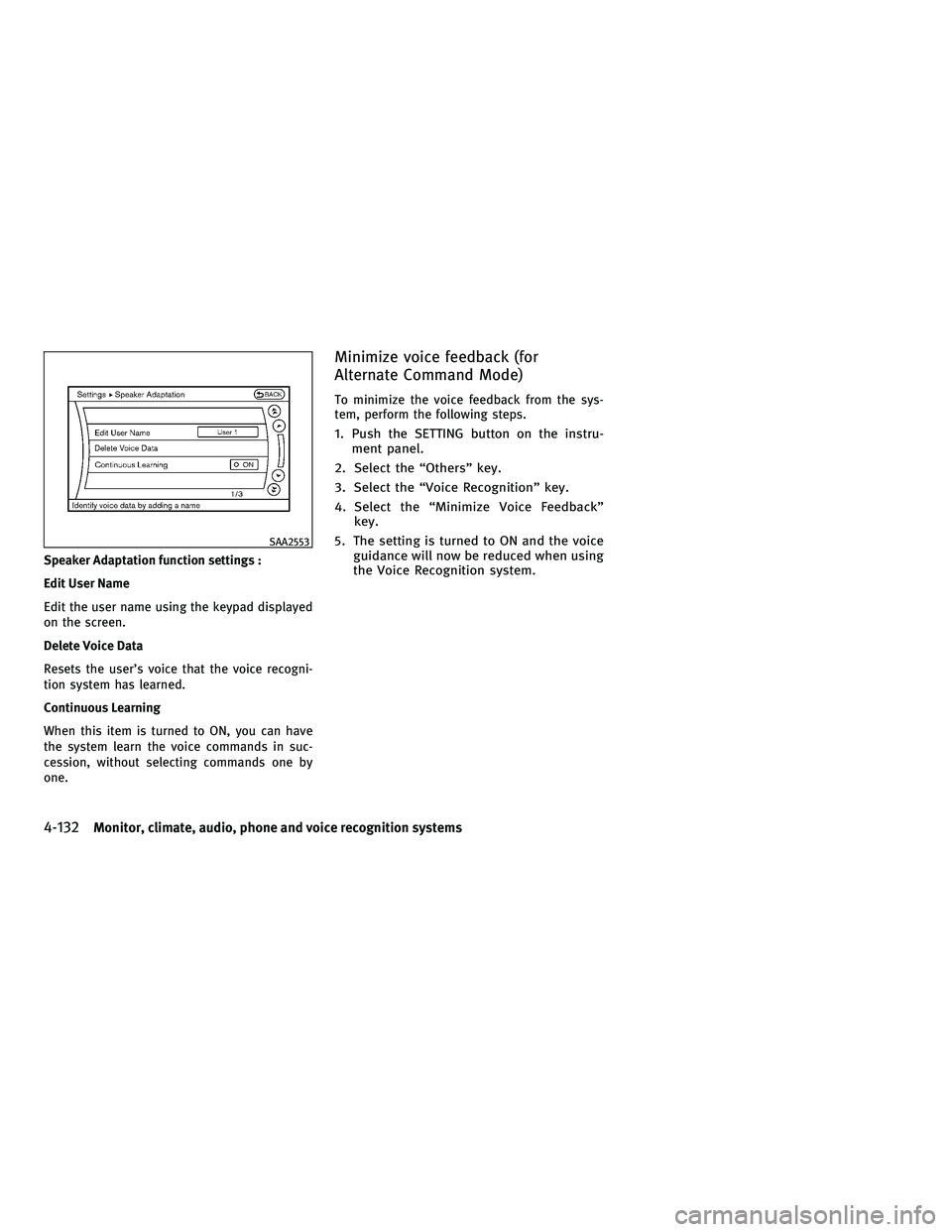

Speaker Adaptation function settings :
Edit User Name
Edit the user name using the keypad displayed
on the screen.
Delete Voice Data
Resets the user’s voice that the voice recogni-
tion system has learned.
Continuous Learning
When this item is turned to ON, you can have
the system learn the voice commands in suc-
cession, without selecting commands one by
one.
Minimize voice feedback (for
Alternate Command Mode)
To minimize the voice feedback from the sys-
tem, perform the following steps.
1. Push the SETTING button on the instru-ment panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Minimize Voice Feedback” key.
5. The setting is turned to ON and the voice guidance will now be reduced when using
the Voice Recognition system.
SAA2553
4-132Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks
