CAN SYSTEM (TYPE 8)
LAN-385
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 10
Check low tire pressure warning control unit circuit. Refer to LAN-403, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8478E
SKIB4312E
Page 4055 of 5621
LAN-386
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 11
Check steering angle sensor circuit. Refer to LAN-403, "Steering Angle Sensor Circuit Inspection" .
PKIB8479E
SKIB4313E
Page 4056 of 5621
CAN SYSTEM (TYPE 8)
LAN-387
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 12
Check Intelligent Key unit circuit. Refer to LAN-404, "Intelligent Key Unit Circuit Inspection" .
PKIB8480E
SKIB4314E
Page 4057 of 5621
LAN-388
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 13

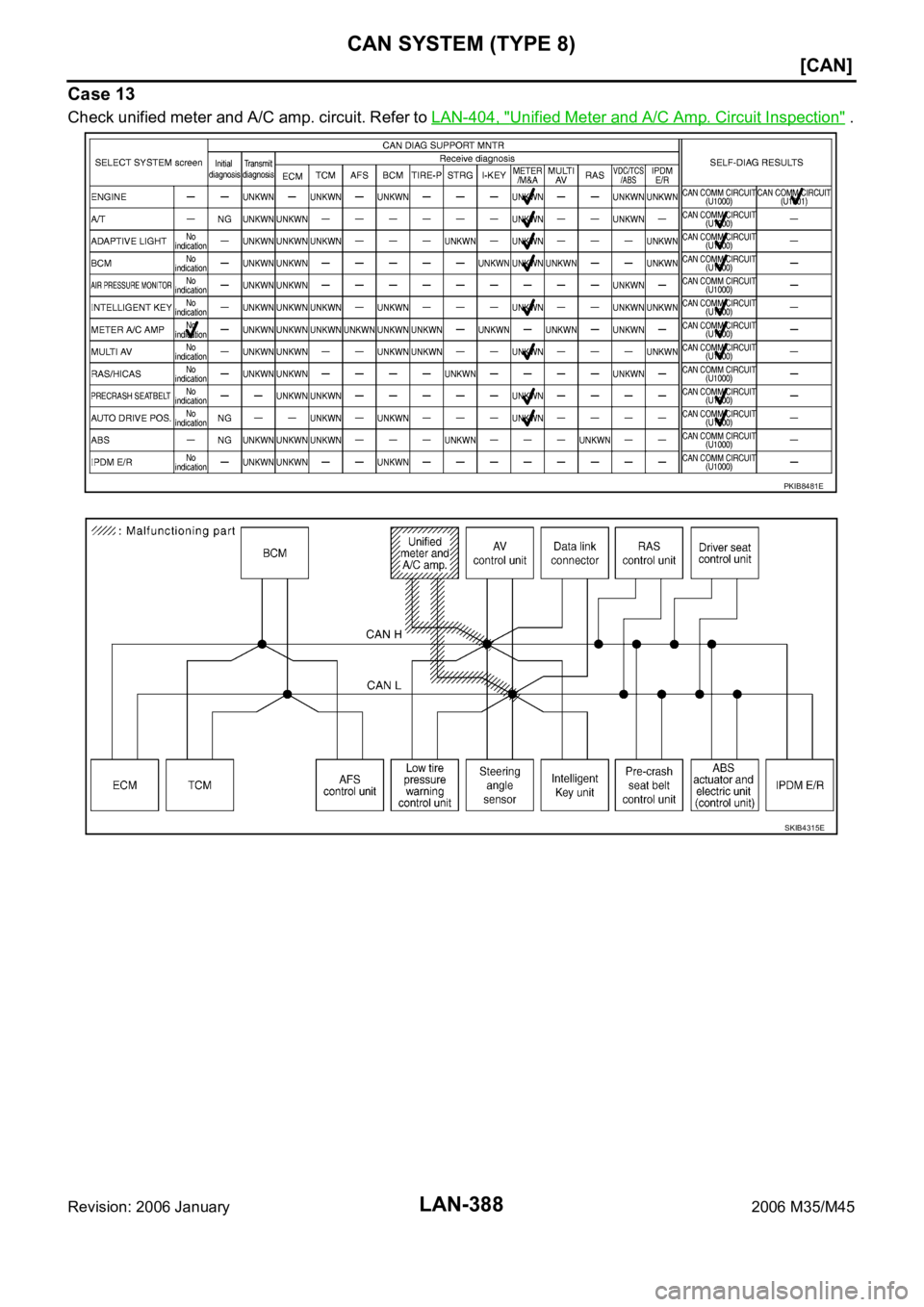

Check unified meter and A/C amp. circuit. Refer to LAN-404, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8481E
SKIB4315E
Page 4058 of 5621
CAN SYSTEM (TYPE 8)
LAN-389
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 14

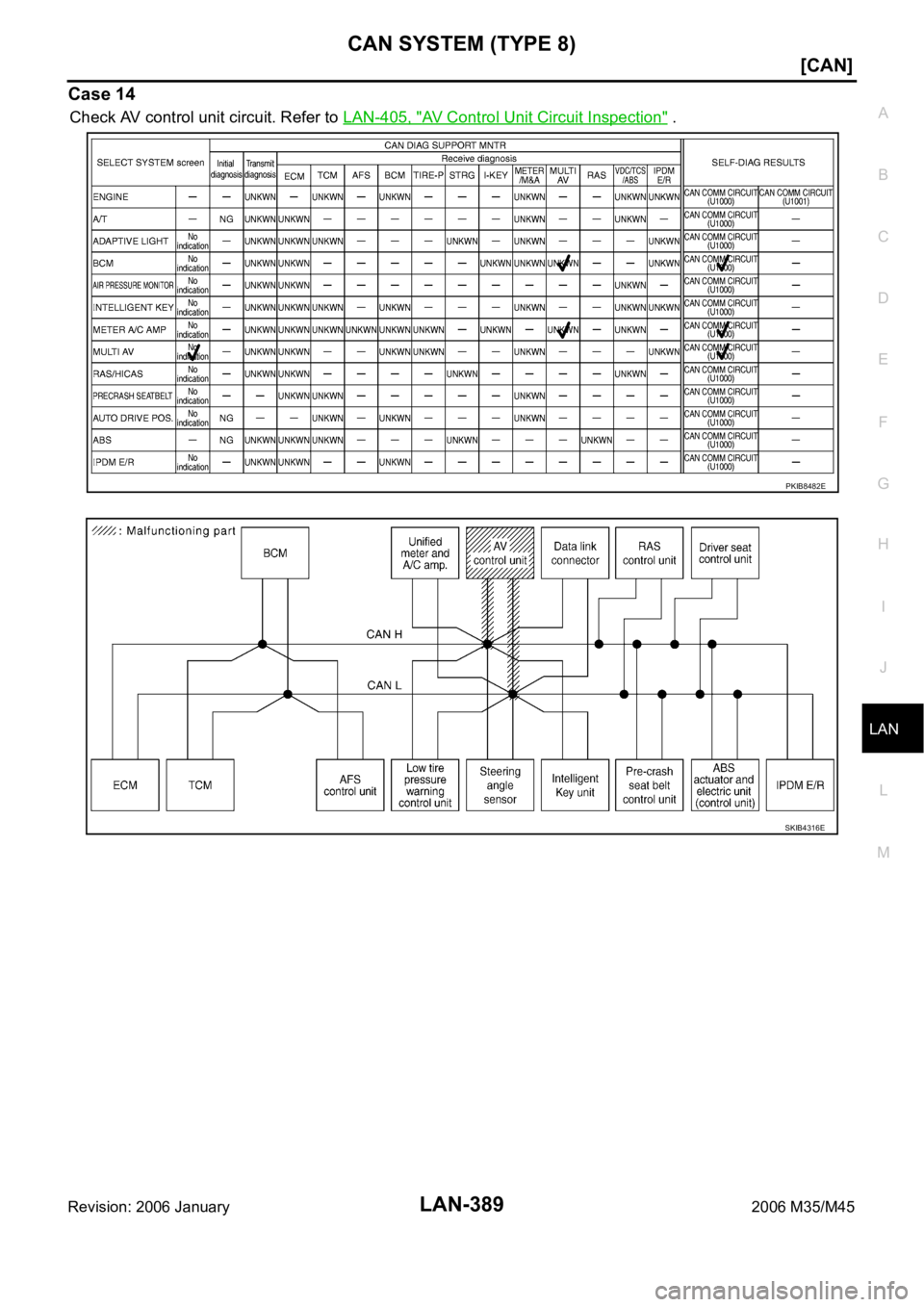

Check AV control unit circuit. Refer to LAN-405, "AV Control Unit Circuit Inspection" .
PKIB8482E
SKIB4316E
Page 4059 of 5621
LAN-390
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 15

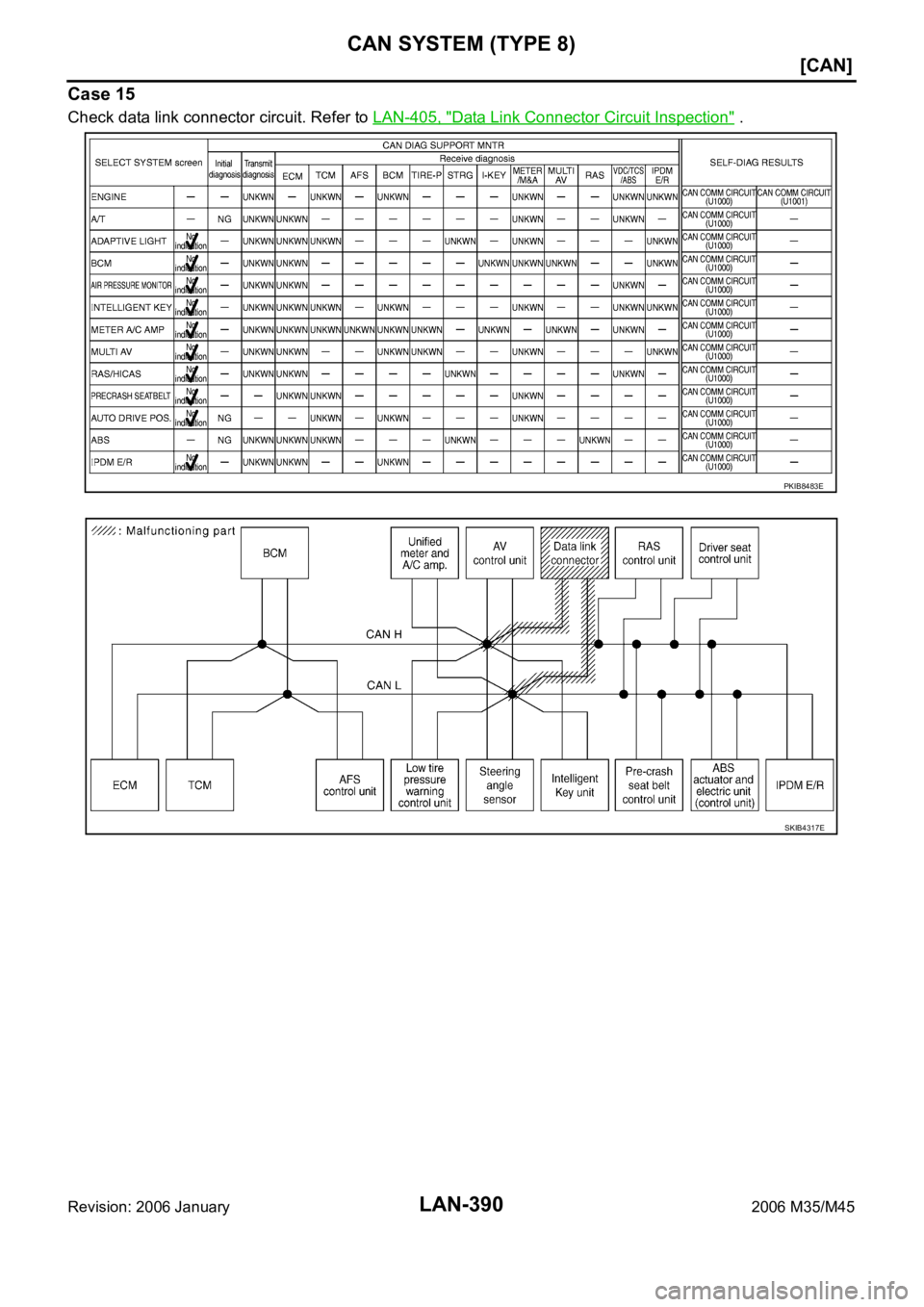

Check data link connector circuit. Refer to LAN-405, "Data Link Connector Circuit Inspection" .
PKIB8483E
SKIB4317E
Page 4060 of 5621
CAN SYSTEM (TYPE 8)
LAN-391
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 16
Check RAS control unit circuit. Refer to LAN-406, "RAS Control Unit Circuit Inspection" .
PKIB8484E
SKIB4318E
Page 4061 of 5621
LAN-392
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 17
Check pre-crash seat belt control unit circuit. Refer to LAN-406, "Pre-Crash Seat Belt Control Unit Circuit
Inspection" .
PKIB8485E
SKIB4319E
Page 4062 of 5621
CAN SYSTEM (TYPE 8)
LAN-393
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 18

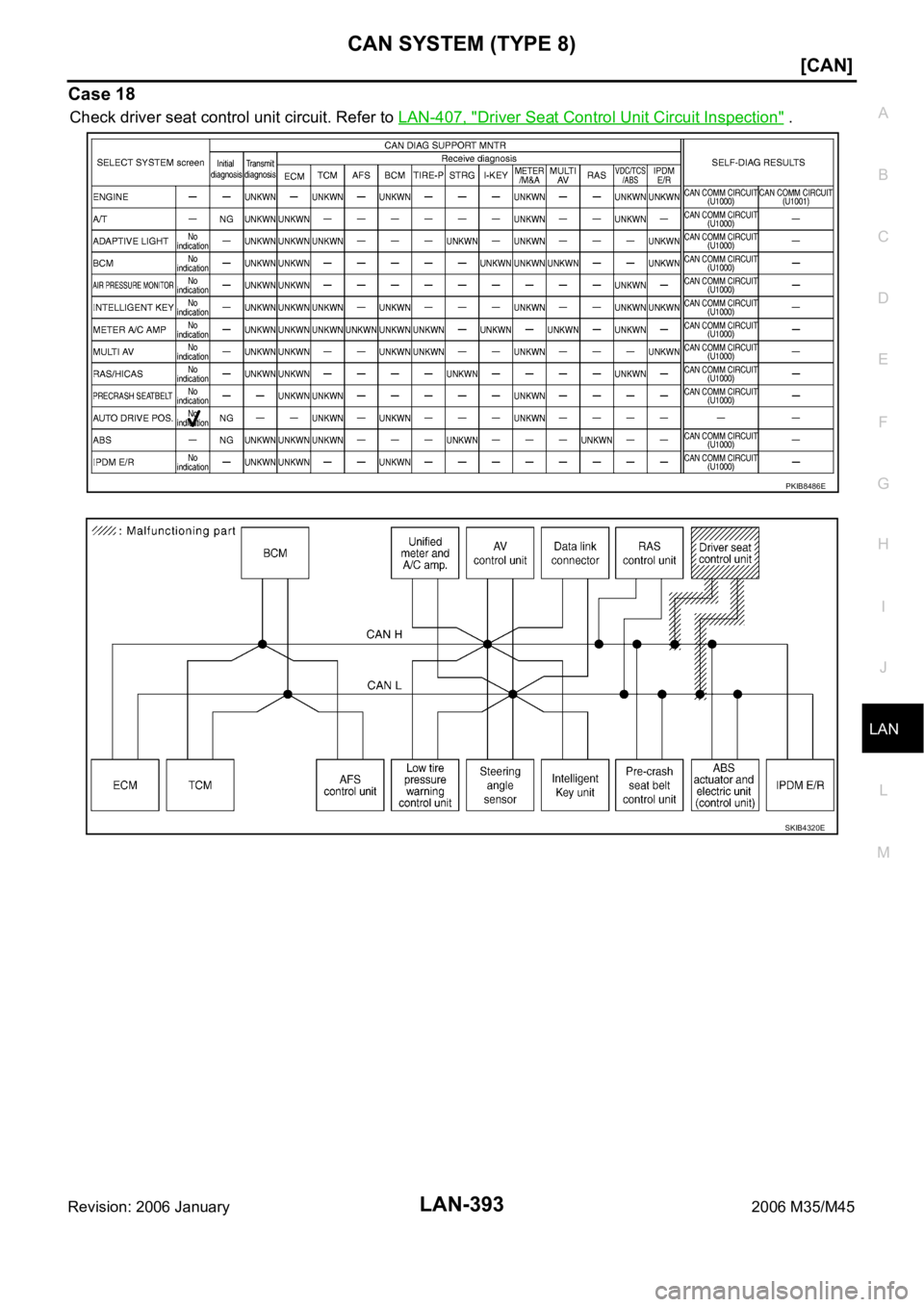

Check driver seat control unit circuit. Refer to LAN-407, "Driver Seat Control Unit Circuit Inspection" .
PKIB8486E
SKIB4320E
Page 4063 of 5621
LAN-394
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 19

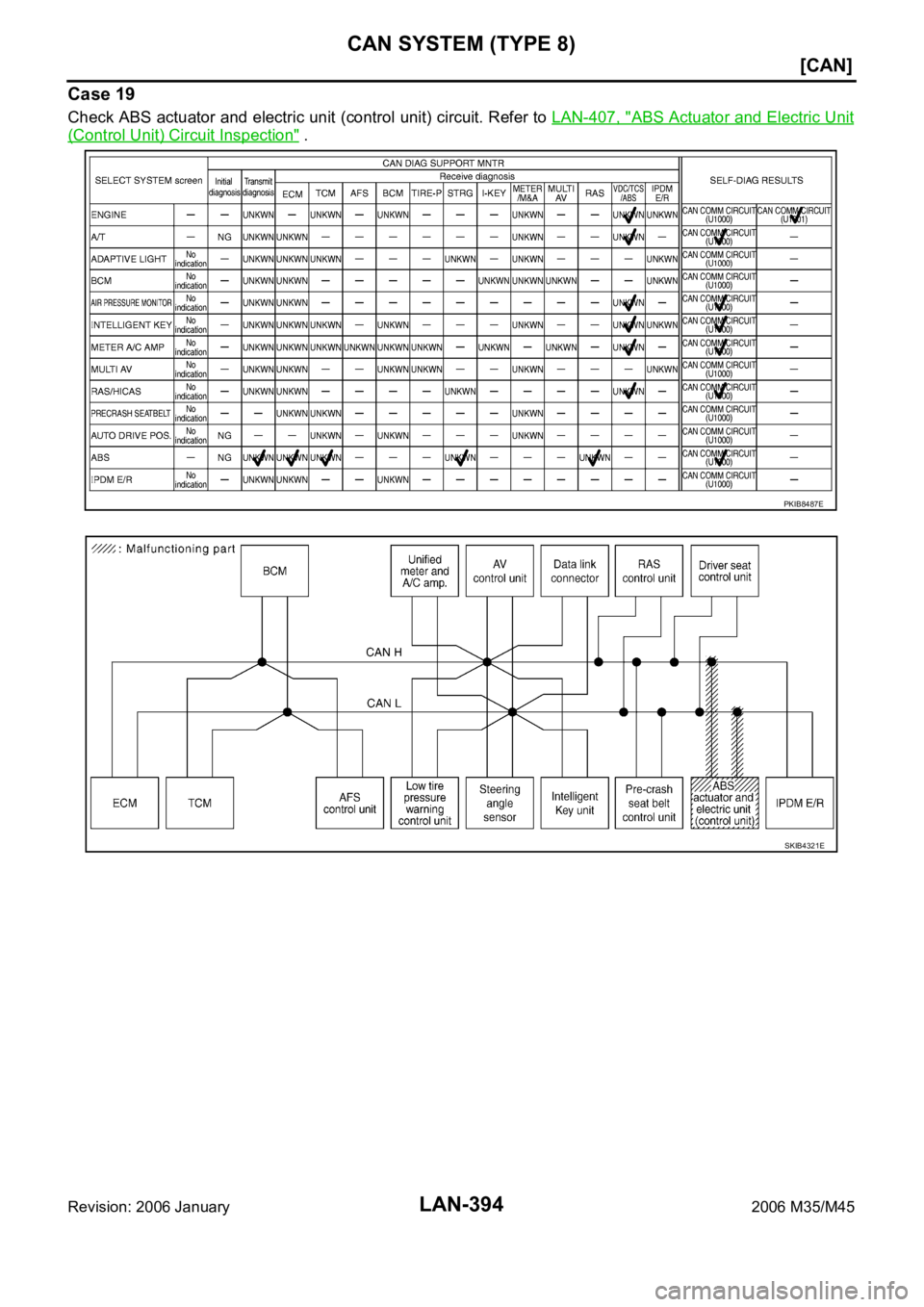

Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-407, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIB8487E
SKIB4321E
