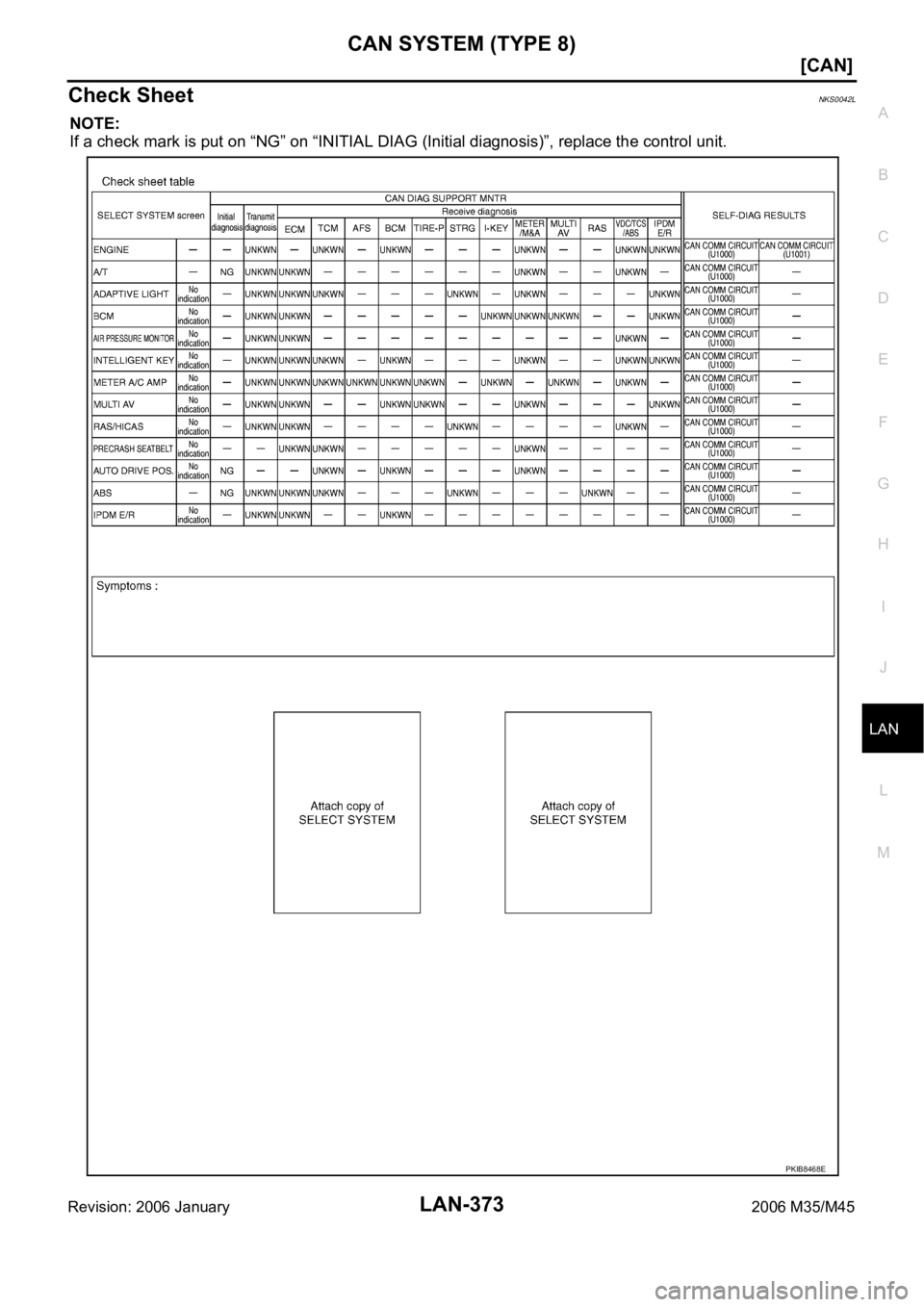

Check SheetNKS0042L
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8468E

LAN-376
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

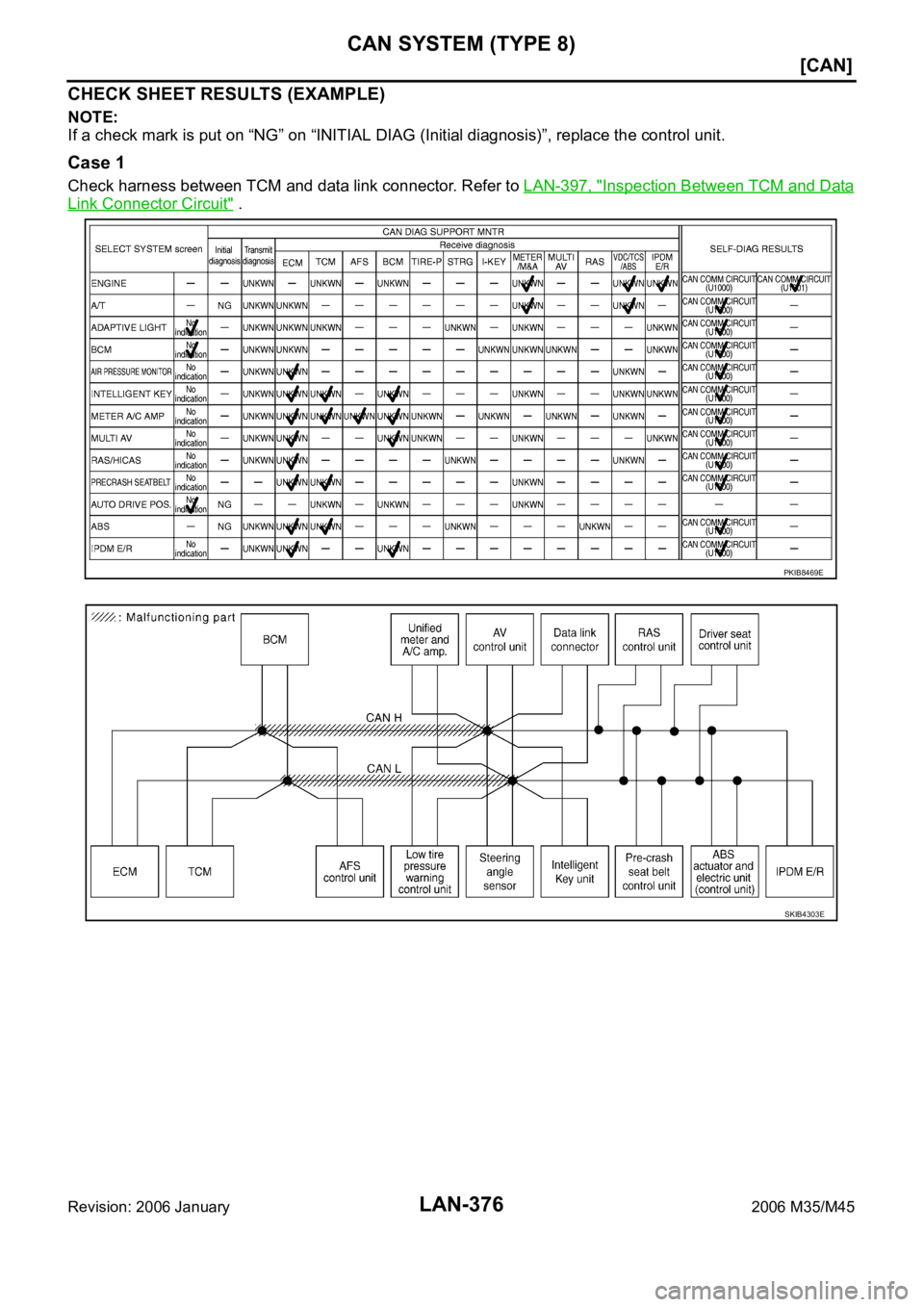

Check harness between TCM and data link connector. Refer to LAN-397, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8469E
SKIB4303E

CAN SYSTEM (TYPE 8)
LAN-377
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and RAS control unit. Refer to LAN-398, "Inspection Between
Data Link Connector and RAS Control Unit Circuit" .
PKIB8470E
SKIB4304E

LAN-378
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 3
Check harness between RAS control unit and pre-crash seat belt control unit. Refer to LAN-399, "Inspection
Between RAS Control Unit and Pre-Crash Seat Belt Control Unit Circuit" .
PKIB8471E
SKIB4305E

CAN SYSTEM (TYPE 8)
LAN-379
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 4
Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-399,
"Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control Unit Circuit" .
PKIB8472E
SKIB4306E

LAN-380
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 5

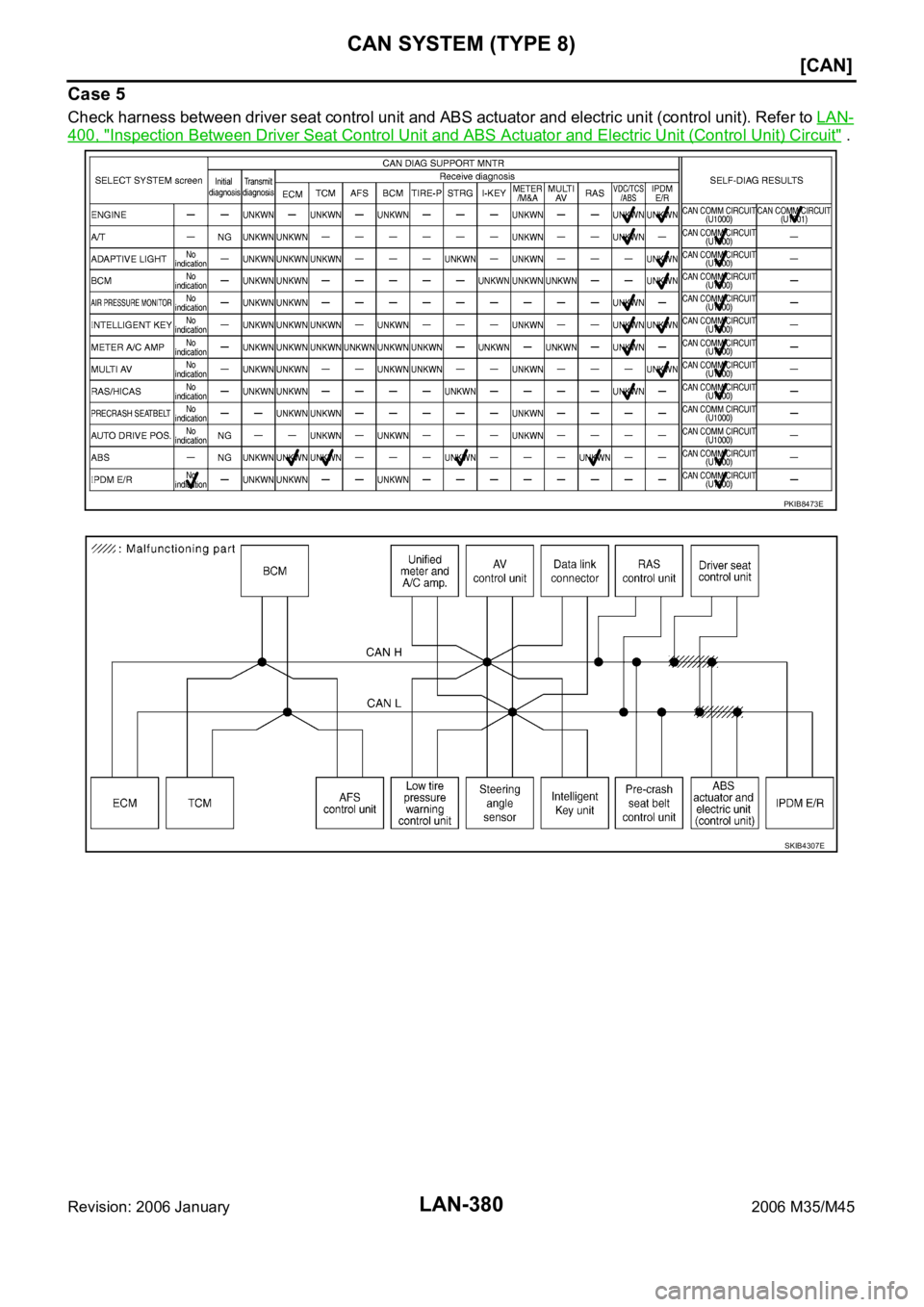

Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
400, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8473E
SKIB4307E

CAN SYSTEM (TYPE 8)
LAN-381
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 6

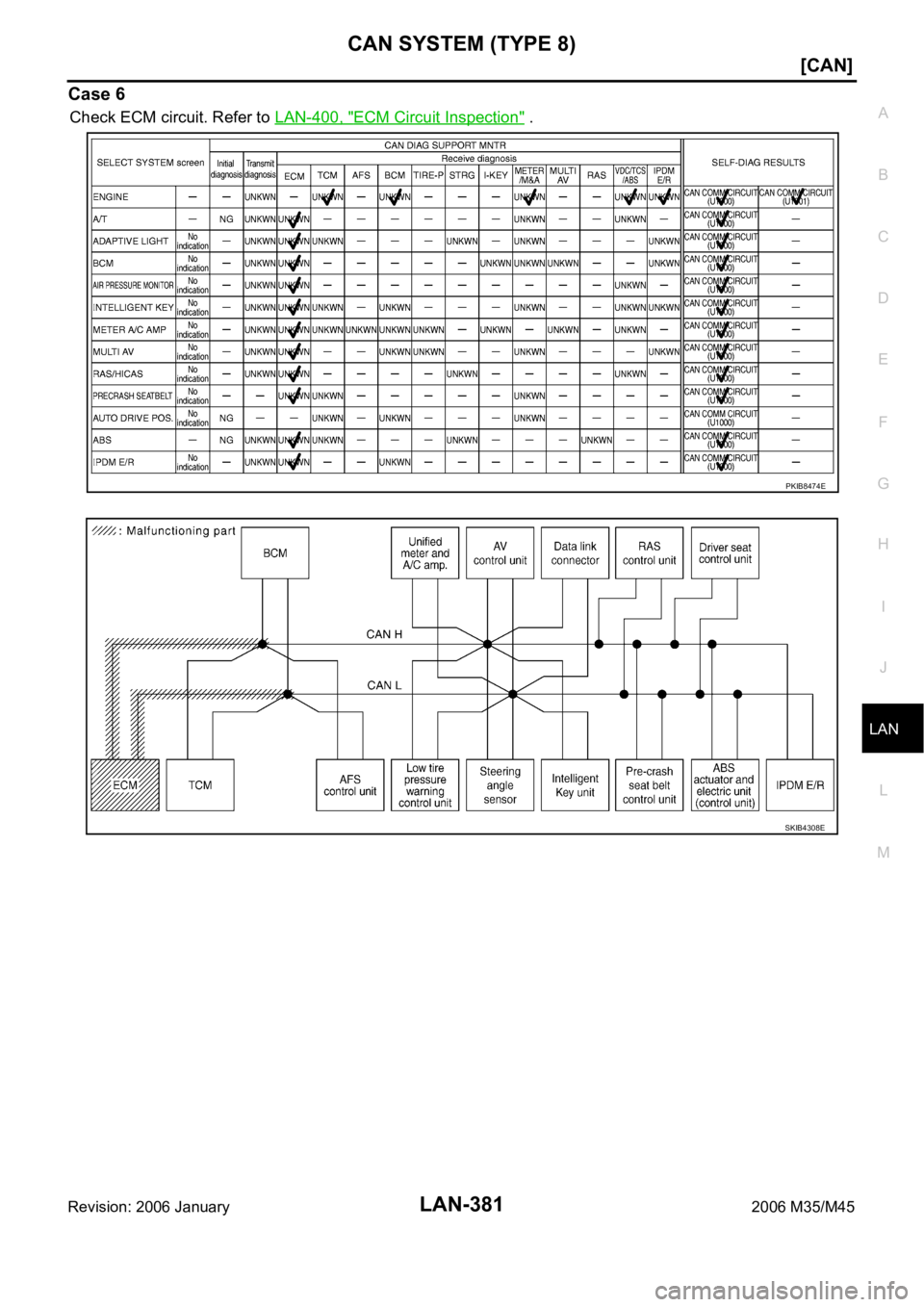

Check ECM circuit. Refer to LAN-400, "ECM Circuit Inspection" .
PKIB8474E
SKIB4308E

LAN-382
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 7

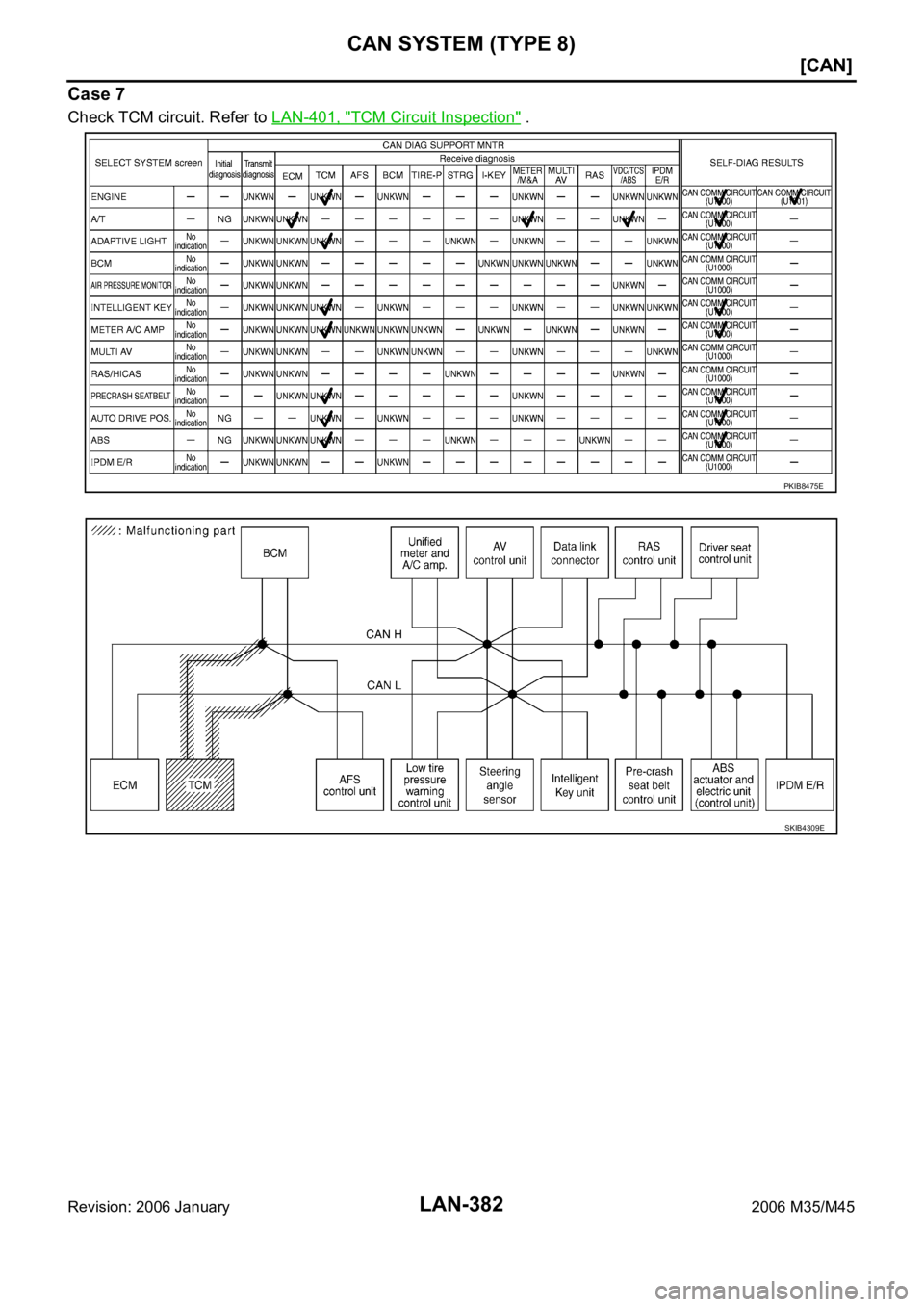

Check TCM circuit. Refer to LAN-401, "TCM Circuit Inspection" .
PKIB8475E
SKIB4309E

CAN SYSTEM (TYPE 8)
LAN-383
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 8

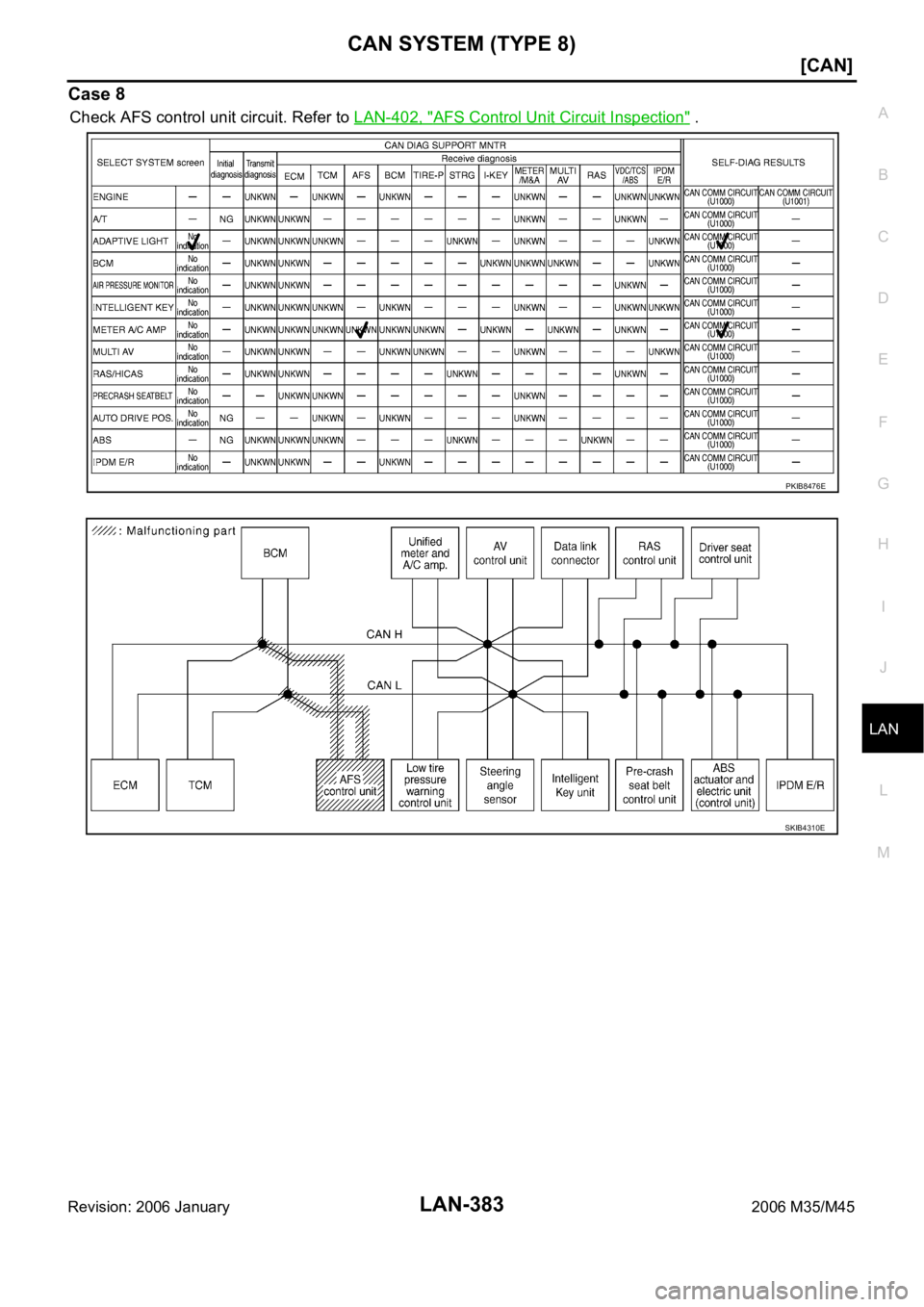

Check AFS control unit circuit. Refer to LAN-402, "AFS Control Unit Circuit Inspection" .
PKIB8476E
SKIB4310E

LAN-384
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
Case 9

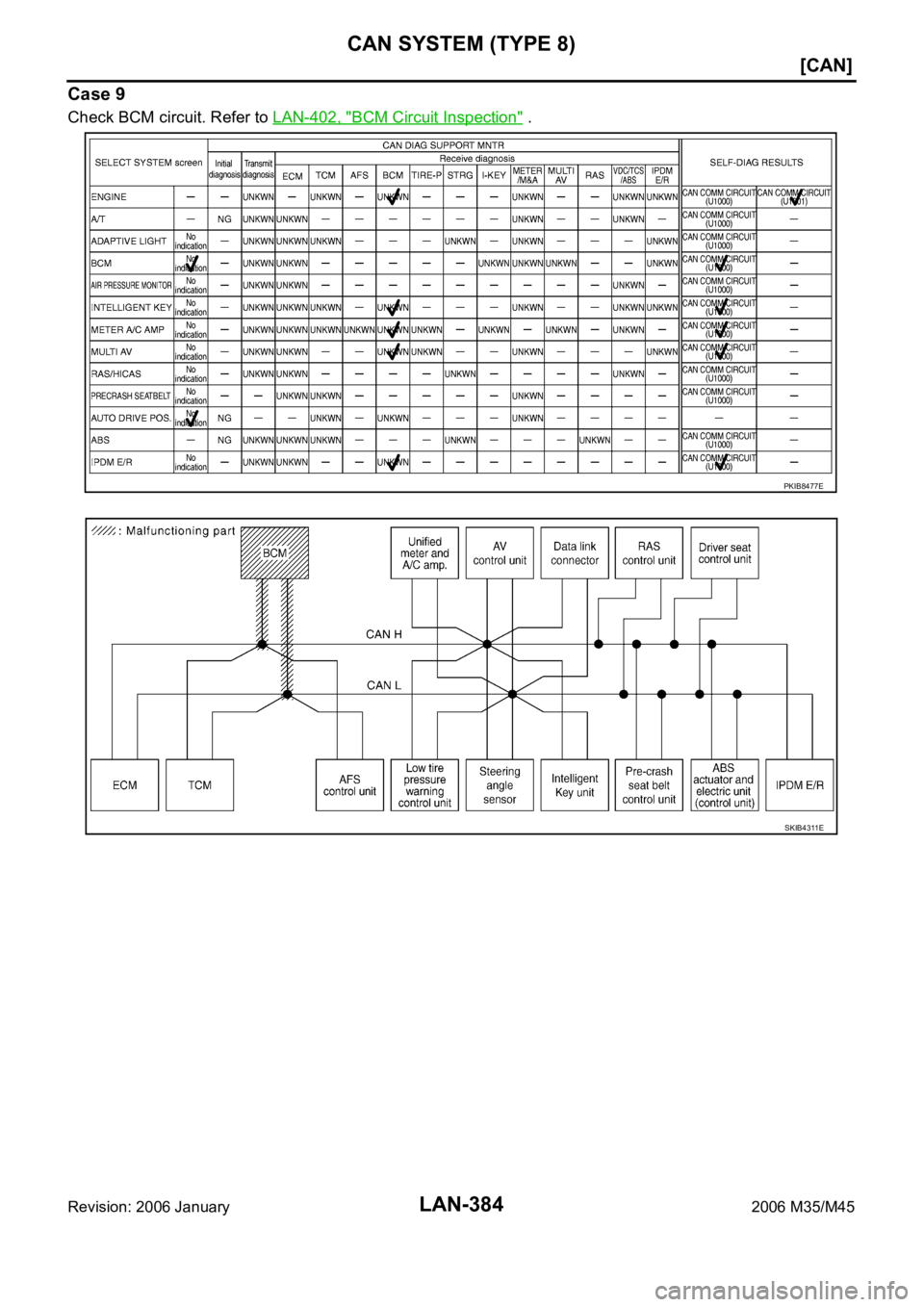

Check BCM circuit. Refer to LAN-402, "BCM Circuit Inspection" .
PKIB8477E
SKIB4311E
