Page 3851 of 5621
LAN-182
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 January2006 M35/M45
TKWT3264E
Page 3852 of 5621
CAN SYSTEM (TYPE 4)
LAN-183
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

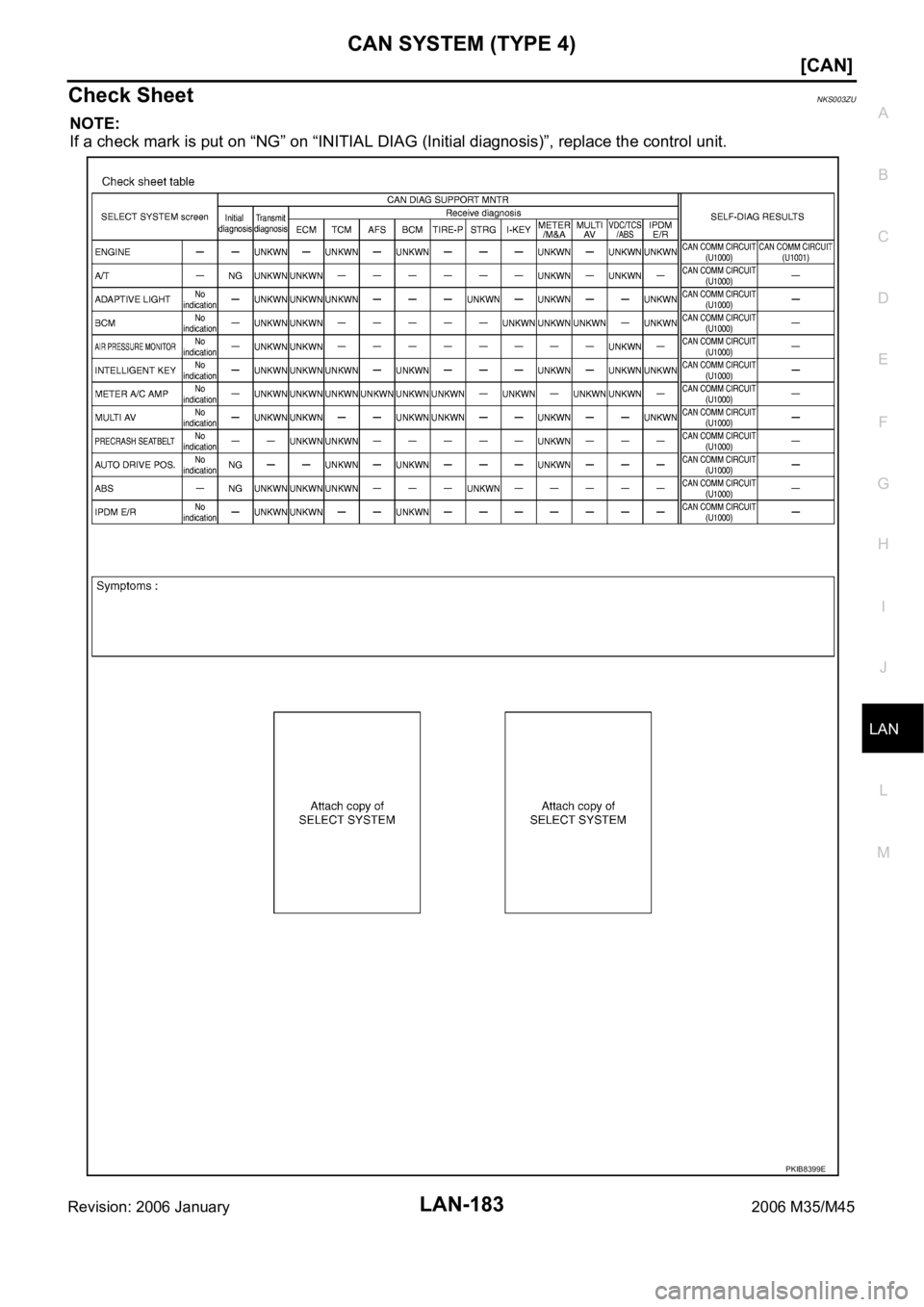

Check SheetNKS003ZU
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8399E
Page 3853 of 5621

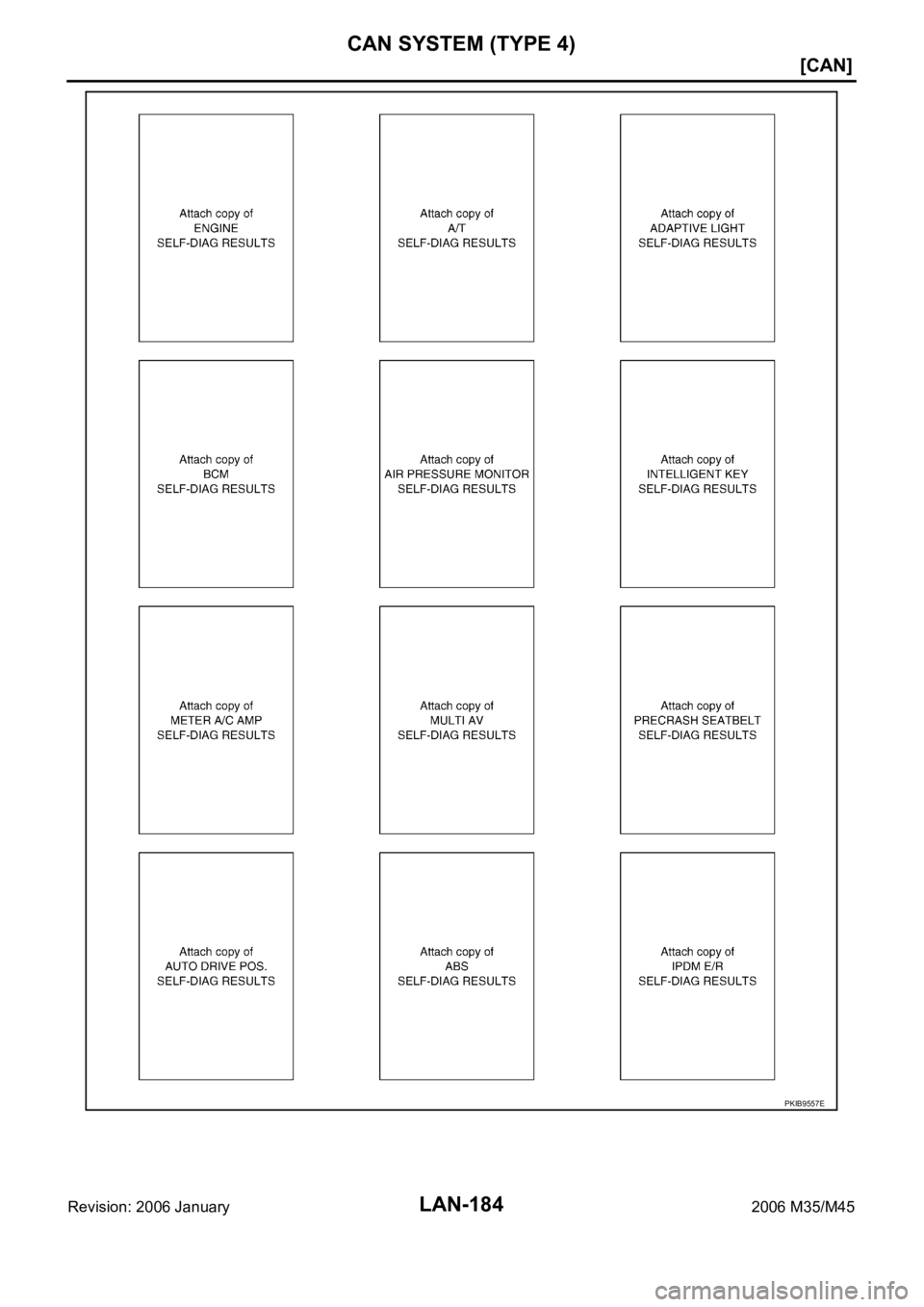

LAN-184
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 January2006 M35/M45
PKIB9557E
Page 3854 of 5621
CAN SYSTEM (TYPE 4)

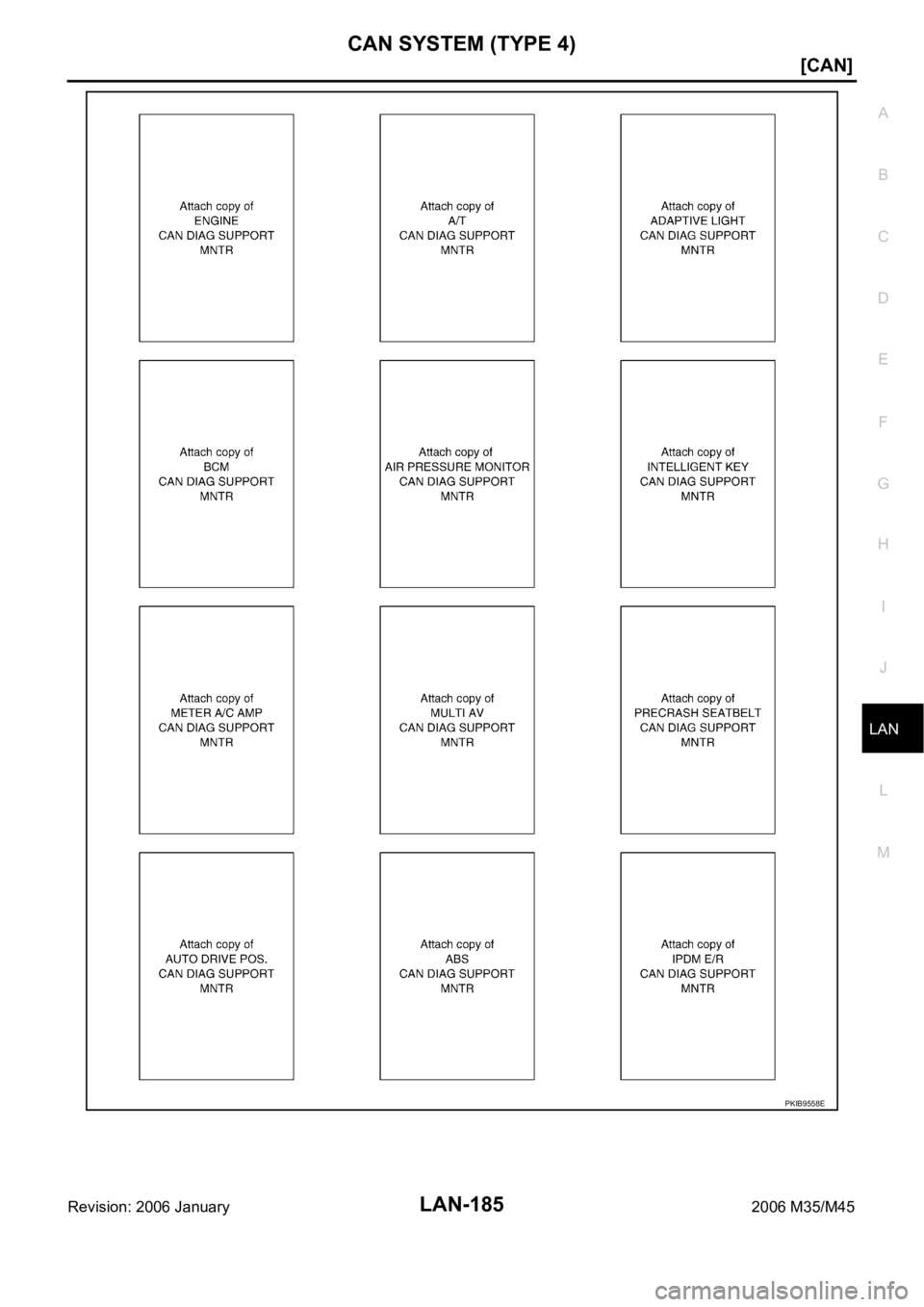

LAN-185
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
PKIB9558E
Page 3855 of 5621
LAN-186
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-205, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8400E
SKIB4130E
Page 3856 of 5621
CAN SYSTEM (TYPE 4)
LAN-187
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and pre-crash seat belt control unit. Refer to LAN-206, "Inspec-
tion Between Data Link Connector and Pre-Crash Seat Belt Control Unit Circuit" .
PKIB8401E
SKIB4131E
Page 3857 of 5621
LAN-188
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 January2006 M35/M45
Case 3
Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-207,
"Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control Unit Circuit" .
PKIB8402E
SKIB4132E
Page 3858 of 5621
CAN SYSTEM (TYPE 4)
LAN-189
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 4
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
207, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8403E
SKIB4133E
Page 3859 of 5621
LAN-190
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 January2006 M35/M45
Case 5
Check ECM circuit. Refer to LAN-208, "ECM Circuit Inspection" .
PKIB8404E
SKIB4134E
Page 3860 of 5621
CAN SYSTEM (TYPE 4)
LAN-191
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

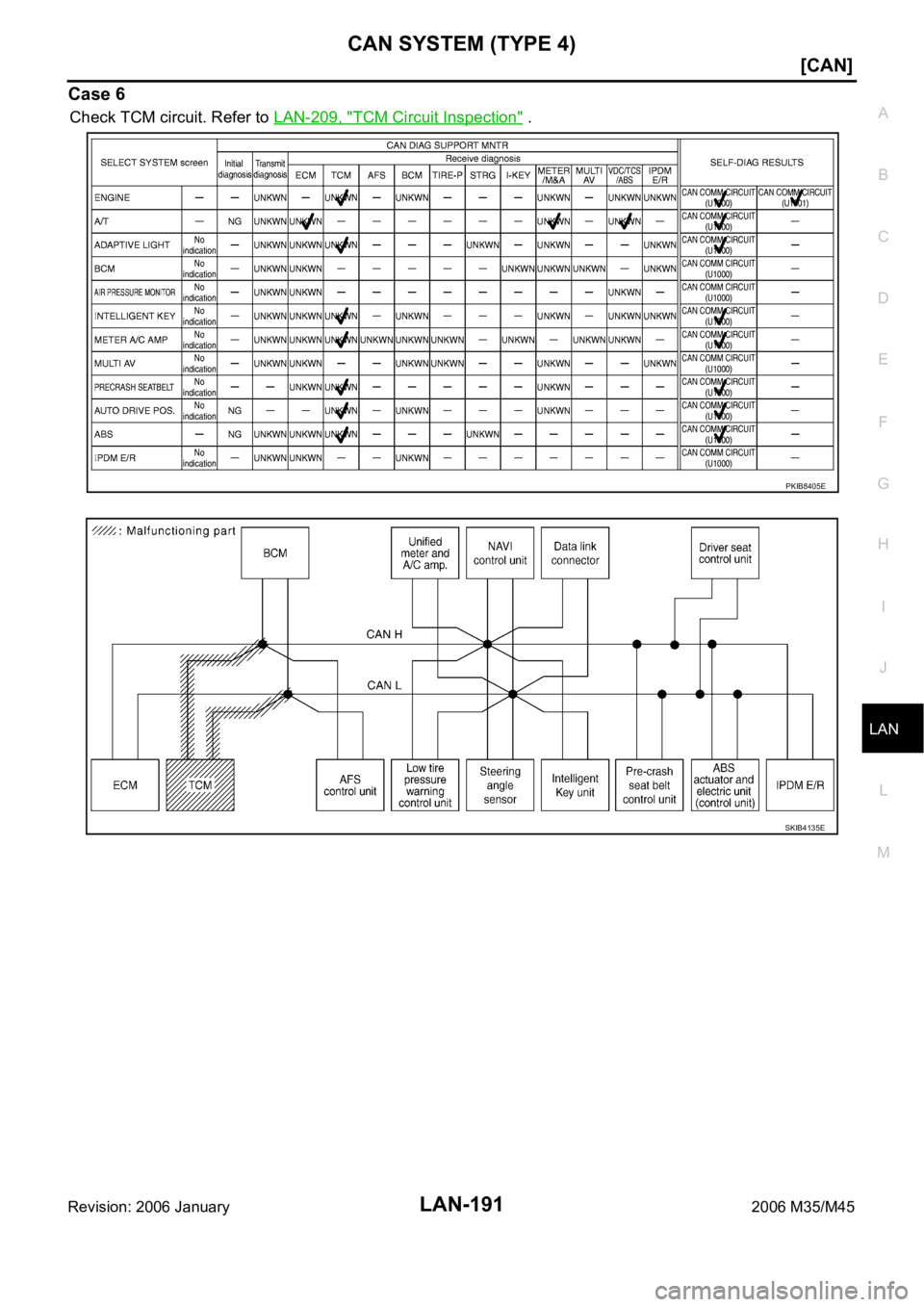

Case 6
Check TCM circuit. Refer to LAN-209, "TCM Circuit Inspection" .
PKIB8405E
SKIB4135E
