Page 3811 of 5621
LAN-142
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45
Case 4
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
160, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8403E
SKIB4115E
Page 3812 of 5621
CAN SYSTEM (TYPE 3)
LAN-143
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 5
Check ECM circuit. Refer to LAN-161, "ECM Circuit Inspection" .
PKIB8404E
SKIB4116E
Page 3813 of 5621
LAN-144
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45

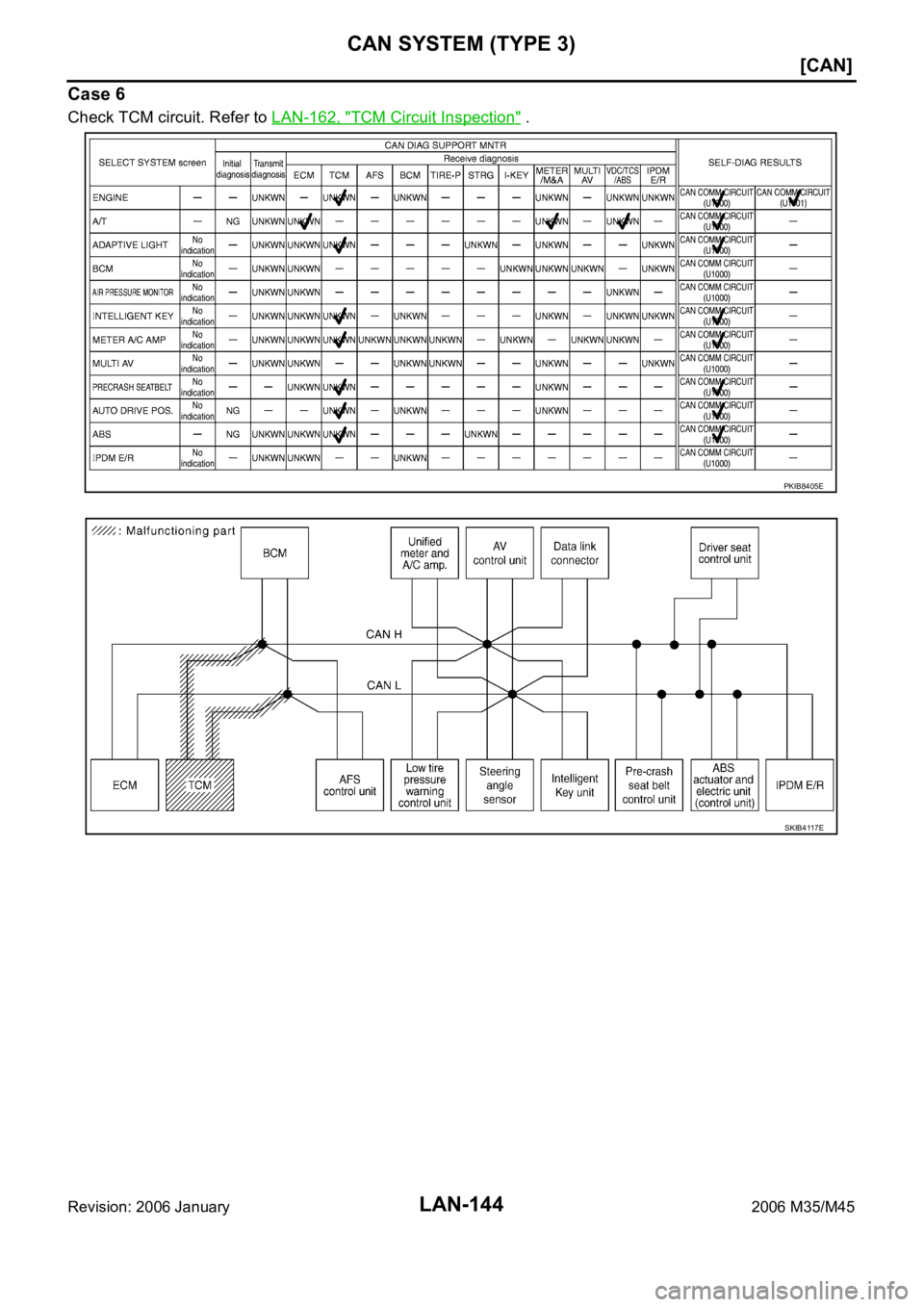

Case 6
Check TCM circuit. Refer to LAN-162, "TCM Circuit Inspection" .
PKIB8405E
SKIB4117E
Page 3814 of 5621
CAN SYSTEM (TYPE 3)
LAN-145
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

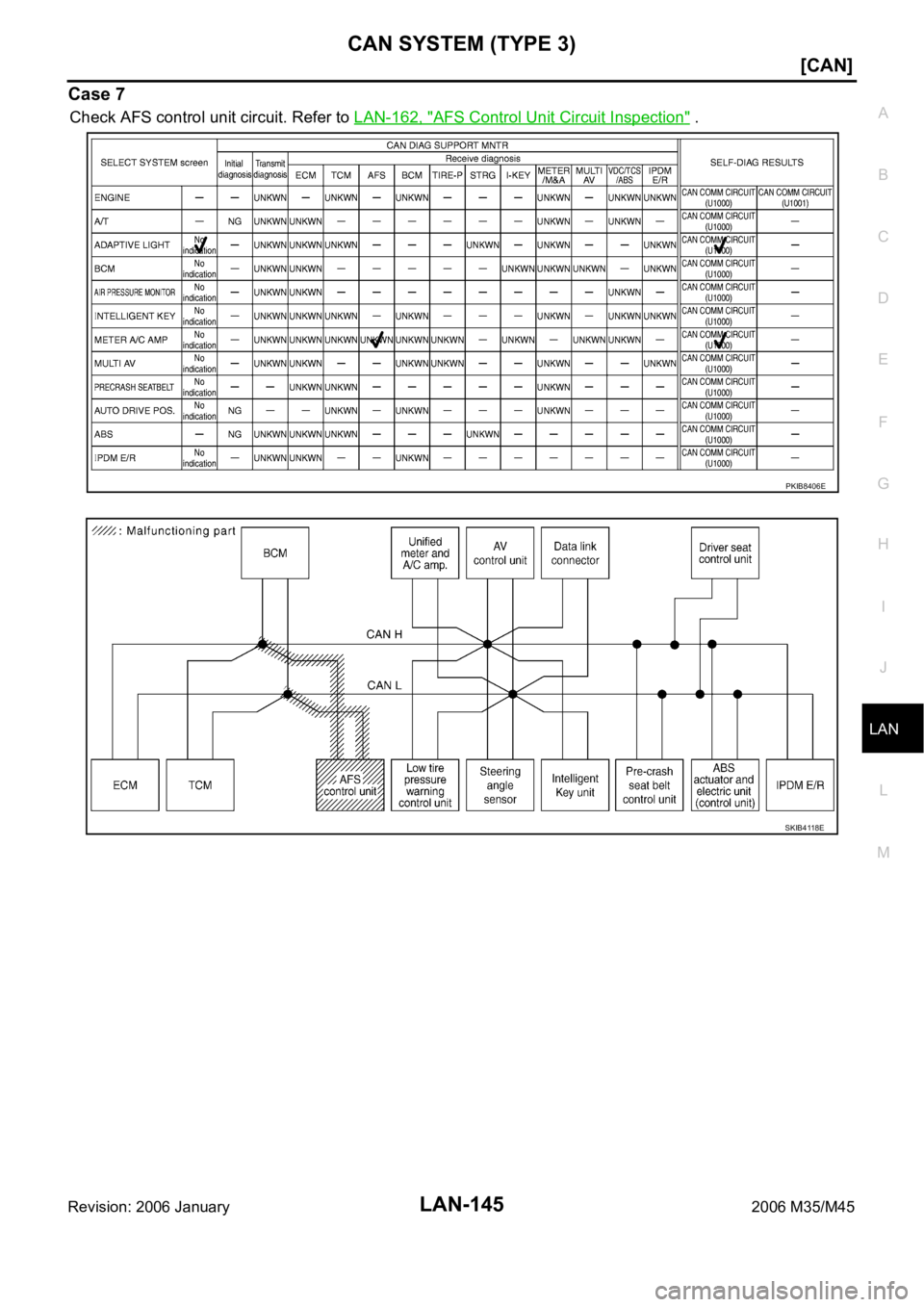

Case 7
Check AFS control unit circuit. Refer to LAN-162, "AFS Control Unit Circuit Inspection" .
PKIB8406E
SKIB4118E
Page 3815 of 5621
LAN-146
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45
Case 8
Check BCM circuit. Refer to LAN-163, "BCM Circuit Inspection" .
PKIB8407E
SKIB4119E
Page 3816 of 5621
CAN SYSTEM (TYPE 3)
LAN-147
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 9
Check low tire pressure warning control unit circuit. Refer to LAN-163, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8408E
SKIB4120E
Page 3817 of 5621
LAN-148
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45
Case 10
Check steering angle sensor circuit. Refer to LAN-164, "Steering Angle Sensor Circuit Inspection" .
PKIB8409E
SKIB4121E
Page 3818 of 5621
CAN SYSTEM (TYPE 3)
LAN-149
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 11
Check Intelligent Key unit circuit. Refer to LAN-164, "Intelligent Key Unit Circuit Inspection" .
PKIB8410E
SKIB4122E
Page 3819 of 5621
LAN-150
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2006 January2006 M35/M45

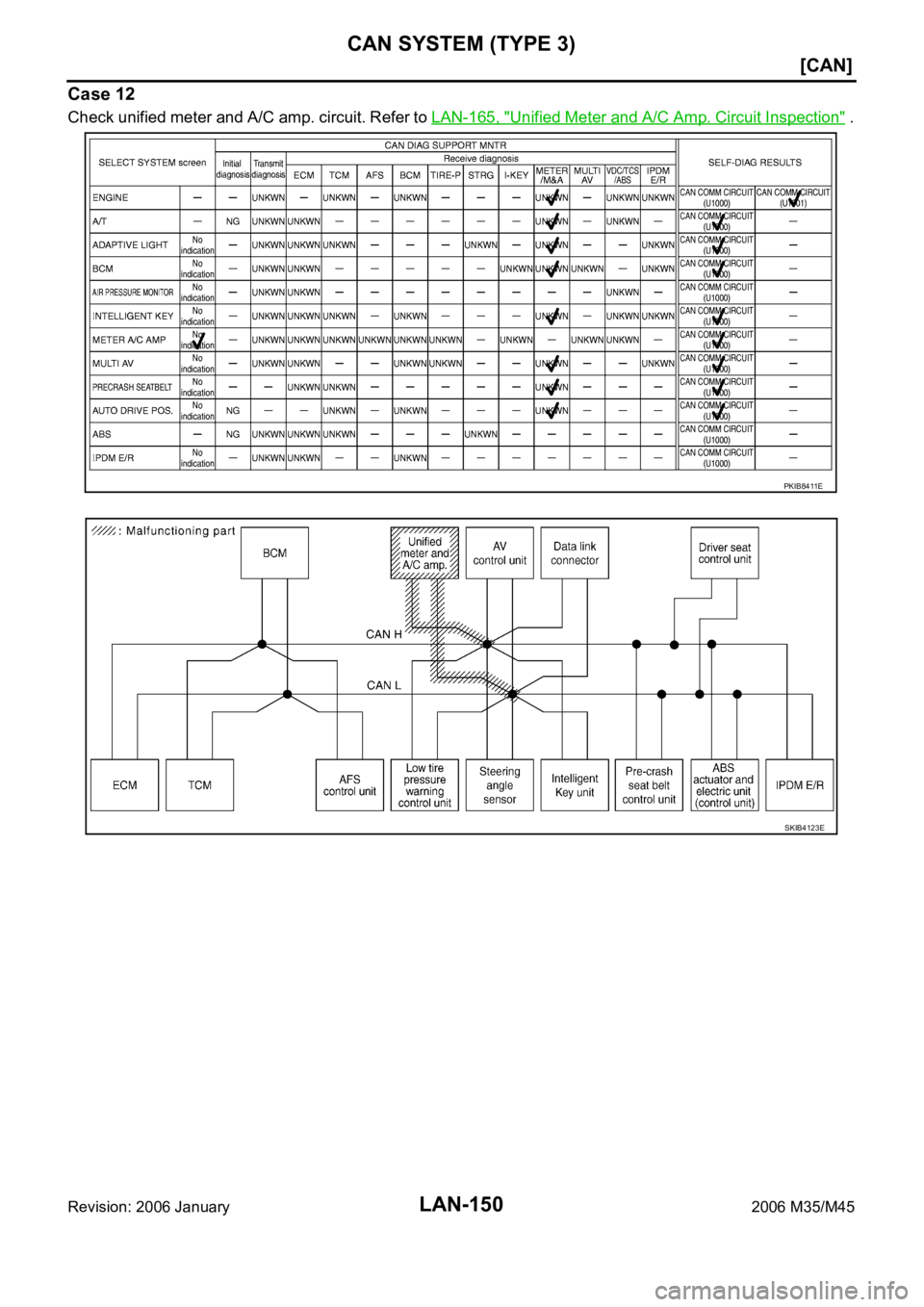

Case 12
Check unified meter and A/C amp. circuit. Refer to LAN-165, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8411E
SKIB4123E
Page 3820 of 5621
CAN SYSTEM (TYPE 3)
LAN-151
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

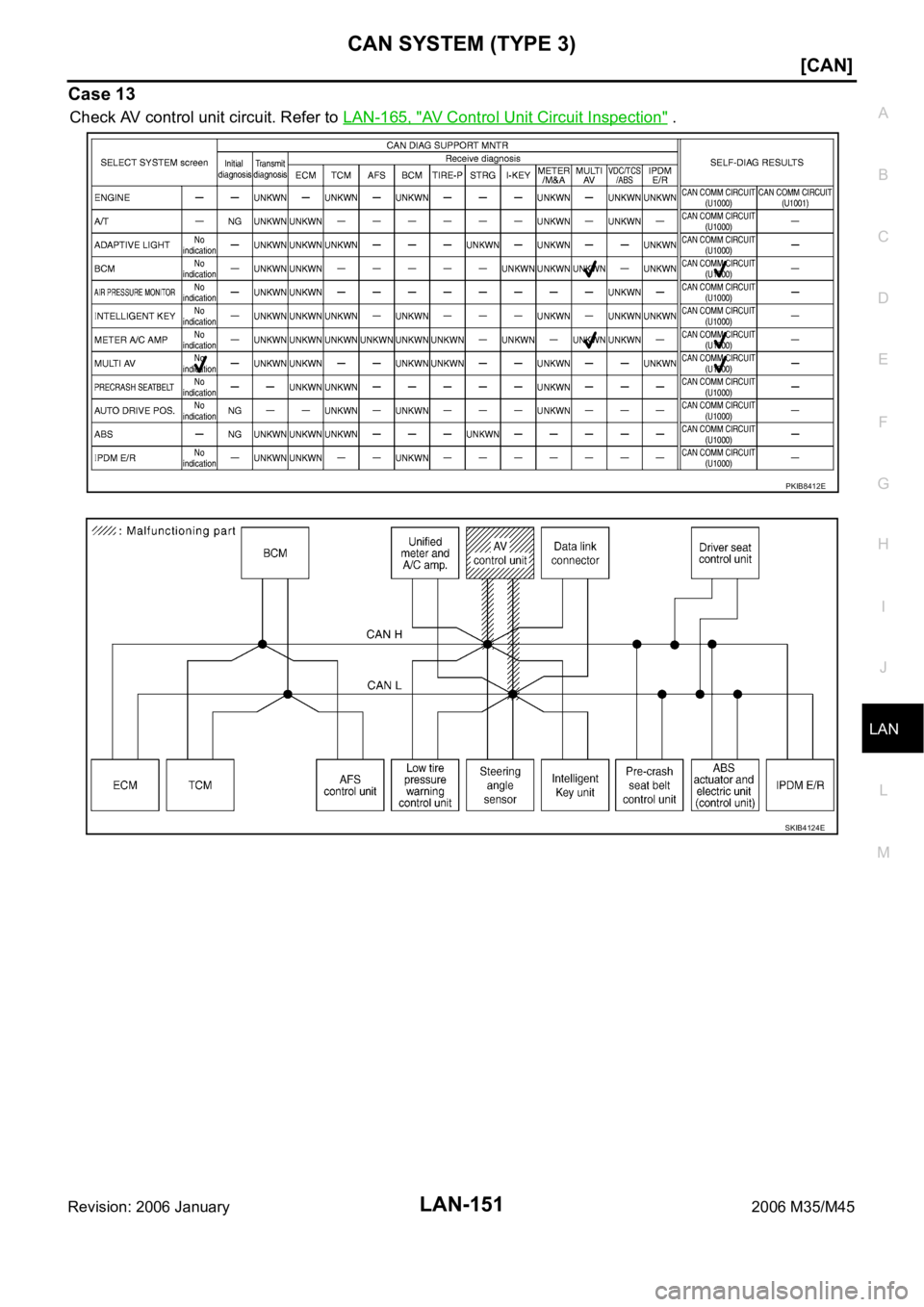

Case 13
Check AV control unit circuit. Refer to LAN-165, "AV Control Unit Circuit Inspection" .
PKIB8412E
SKIB4124E
