Page 3861 of 5621

INFINITI M35 2006 Factory Service Manual LAN-192 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 7 Check AFS control unit circuit. Refer to LAN-209, "AFS Control Unit Circuit Inspection" . PKIB8406E SKIB4137E

Page 3862 of 5621

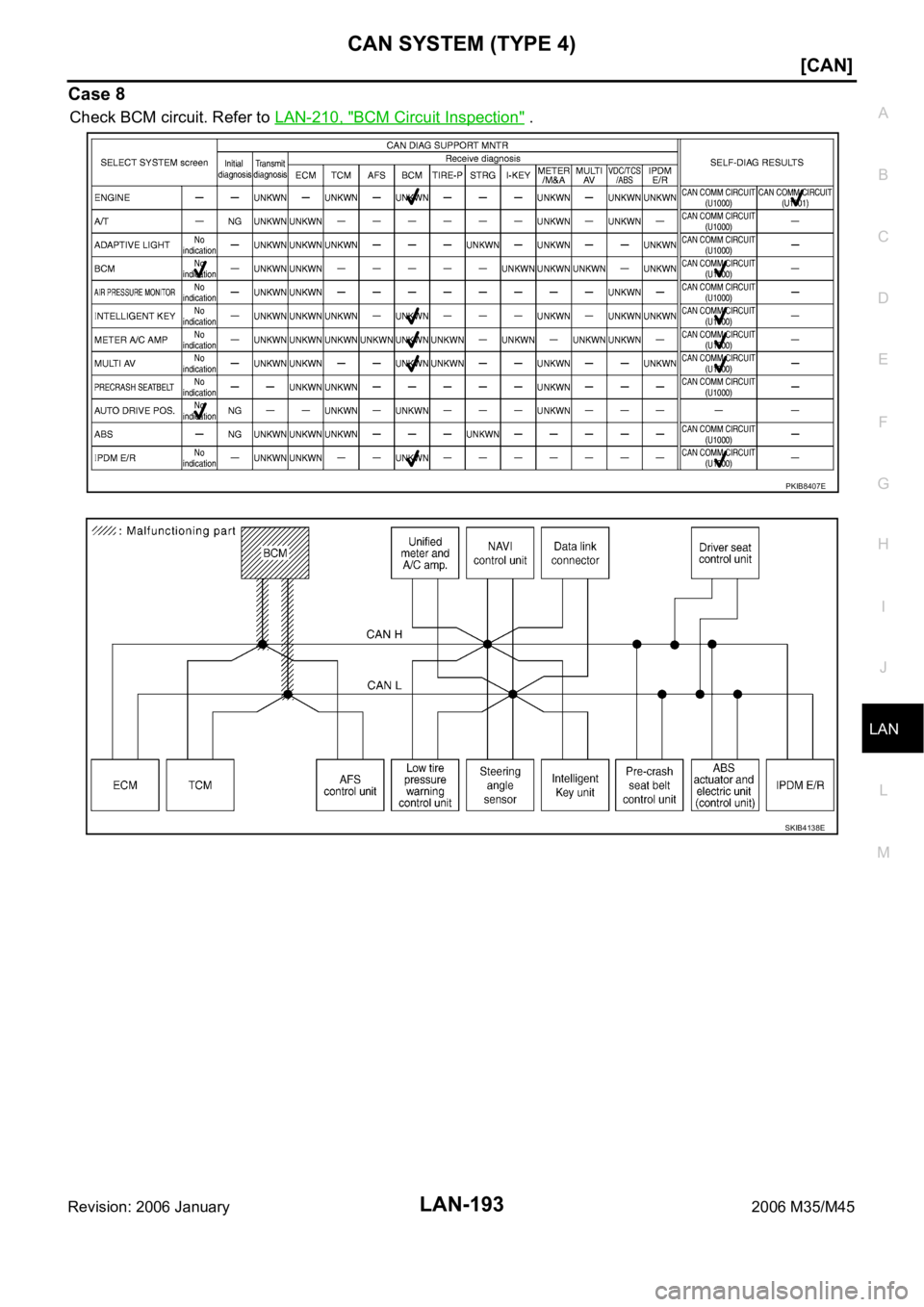

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-193 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check BCM circuit. Refer to LAN-210, "BCM Circuit Inspection" . PKIB8407E SKIB4138E

Page 3863 of 5621

INFINITI M35 2006 Factory Service Manual LAN-194 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 9 Check low tire pressure warning control unit circuit. Refer to LAN-210, "Low Tire Pressure Warning Control

Page 3864 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-195 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 10 Check steering angle sensor circuit. Refer to LAN-211, "Steering Angle Sensor Circuit Inspec

Page 3865 of 5621

INFINITI M35 2006 Factory Service Manual LAN-196 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 11 Check Intelligent Key unit circuit. Refer to LAN-211, "Intelligent Key Unit Circuit Inspection" . PKIB8410E SKIB414

Page 3866 of 5621

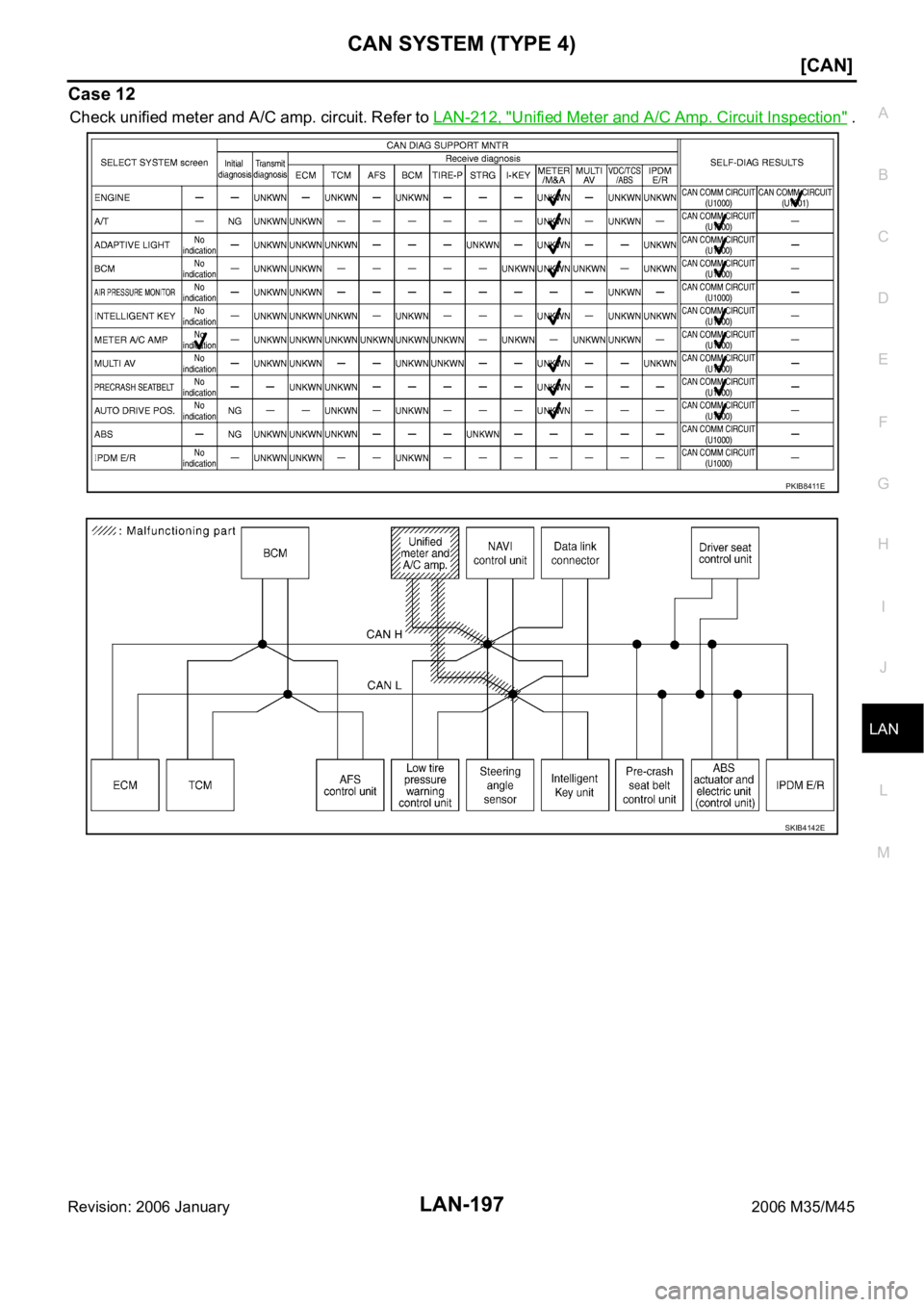

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-197 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 12 Check unified meter and A/C amp. circuit. Refer to LAN-212, "Unified Meter and A/C Amp. Circ

Page 3867 of 5621

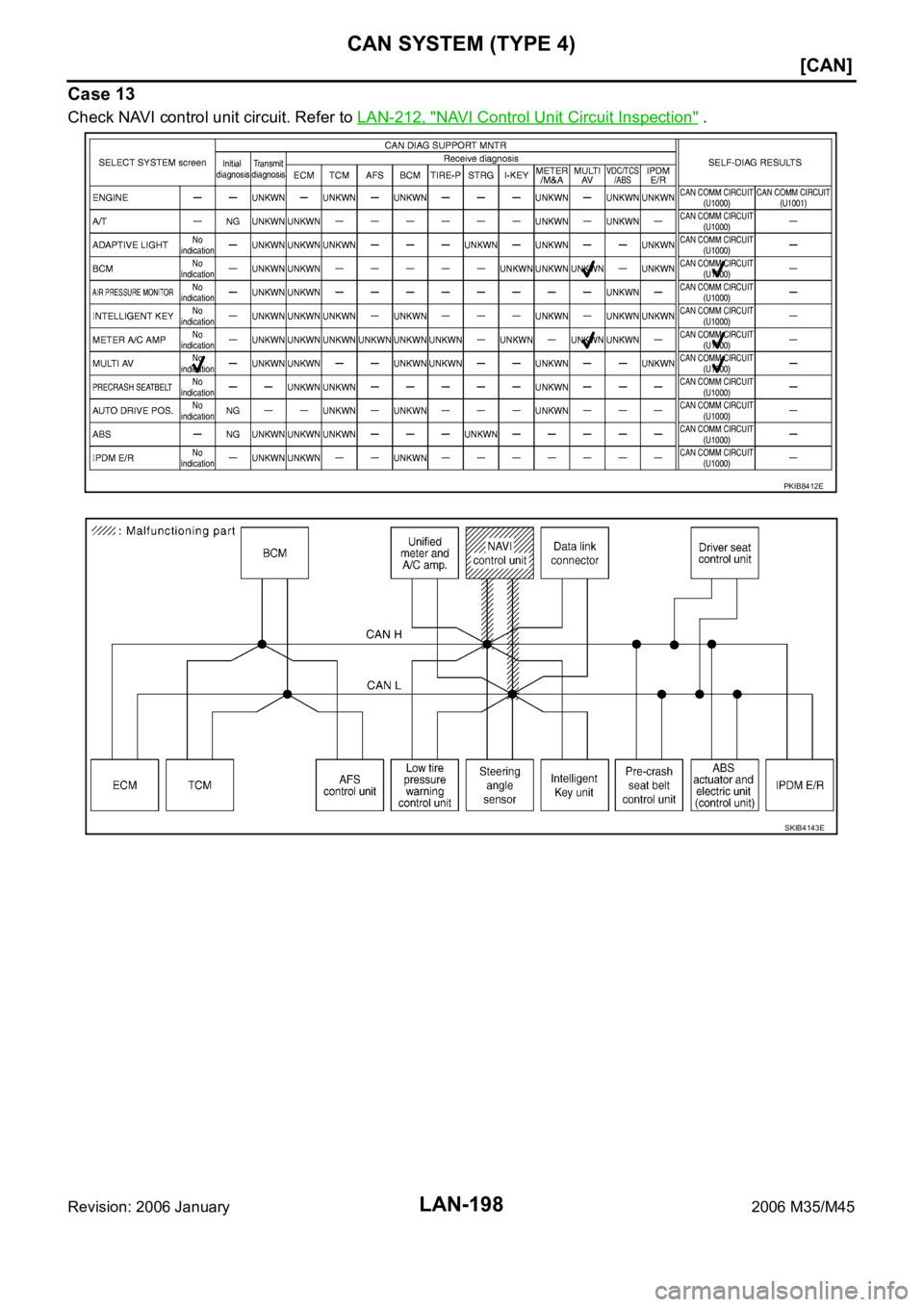

INFINITI M35 2006 Factory Service Manual LAN-198 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 13 Check NAVI control unit circuit. Refer to LAN-212, "NAVI Control Unit Circuit Inspection" . PKIB8412E SKIB4143E

Page 3868 of 5621

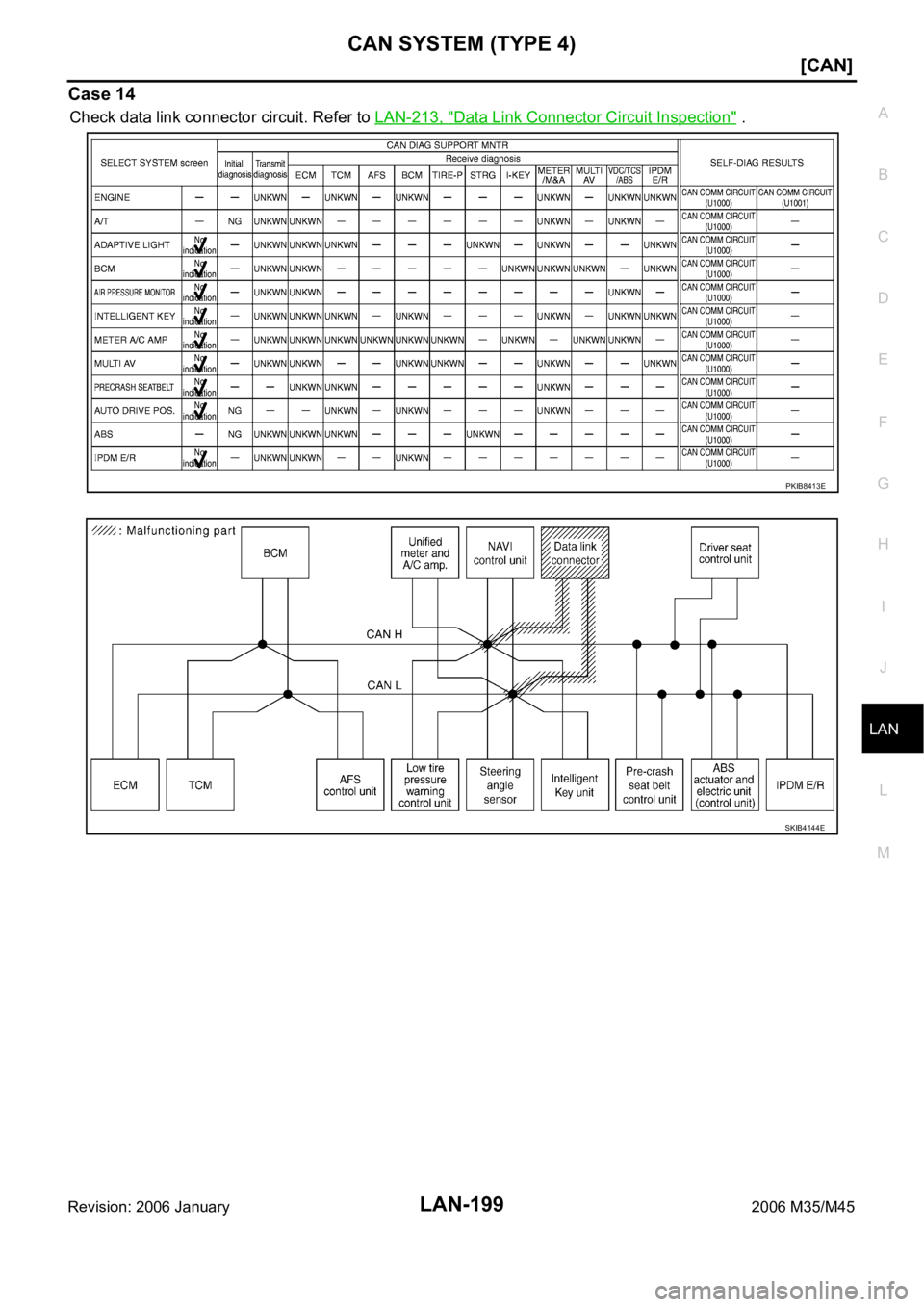

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-199 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 14 Check data link connector circuit. Refer to LAN-213, "Data Link Connector Circuit Inspection

Page 3869 of 5621

INFINITI M35 2006 Factory Service Manual LAN-200 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 15 Check pre-crash seat belt control unit circuit. Refer to LAN-213, "Pre-Crash Seat Belt Control Unit Circu

Page 3870 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-201 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 16 Check driver seat control unit circuit. Refer to LAN-214, "Driver Seat Control Unit Circuit
