CYLINDER BLOCK
EM-123
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CYLINDER BLOCKPFP:11010

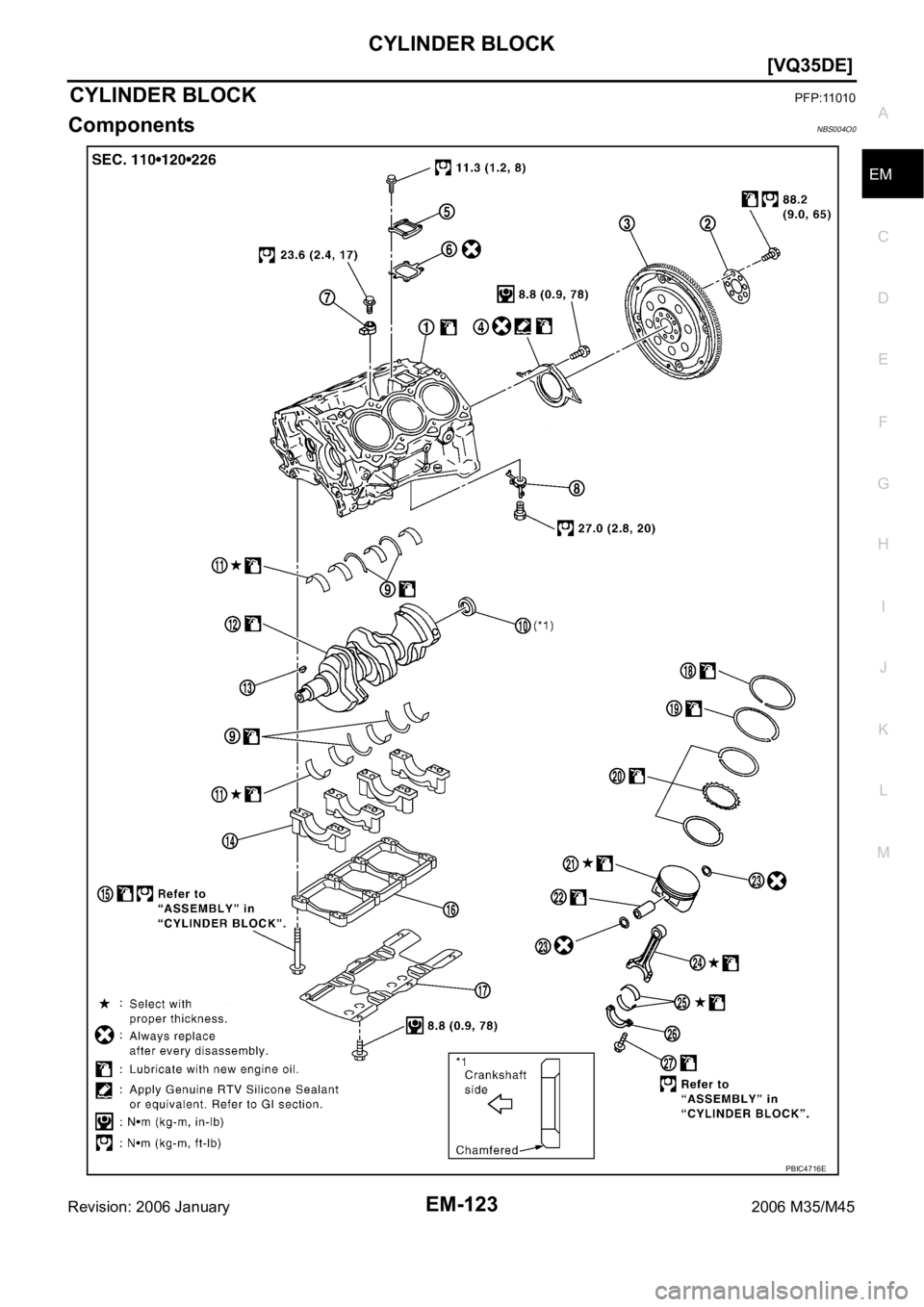

ComponentsNBS004O0
PBIC4716E

EM-124
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
Disassembly and AssemblyNBS004O1
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1. Remove the engine assembly from the vehicle. Refer to EM-29, "
Removal and Installation (2WD Models)"
or EM-36, "Removal and Installation (AWD Models)" .
2. Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use a widely use engine stand holding the surface, to
which transmission is installed.
Remove drive plate with power tool. Fix crankshaft with a ring gear stopper [SST: KV1011770
(J44716)], and remove mounting bolts.
Loosen mounting bolts in diagonal order.
1. Cylinder block 2. Reinforcement plate 3. Drive plate
4. Rear oil seal retainer 5. Cover 6. Gasket
7. Knock sensor 8. Oil jet 9. Thrust bearing
10. Pilot converter 11. Main bearing 12. Crankshaft
13. Crankshaft key 14. Main bearing cap 15. Main bearing cap bolt
16. Main bearing beam 17. Baffle plate (2WD models) 18. Top ring
19. Second ring 20. Oil ring 21. Piston
22. Piston pin 23. Snap ring 24. Connecting rod
25. Connecting rod bearing 26. Connecting rod bearing cap 27. Connecting rod bolt
1. Cylinder block 2. Gasket 3. Water connector
4. Gasket 5. Cylinder block heater 6. Connector protector cap
PBIC2614E

CYLINDER BLOCK
EM-125
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CAUTION:
Do not disassemble drive plate.
Never place drive plate with signal plate facing down.
When handling signal plate, take care not to damage or
scratch it.
Handle signal plate in a manner that prevents it from
becoming magnetized.
3. Lift the engine with hoist to install it onto the widely use engine stand.
CAUTION:
Use an engine stand that has a load capacity [220 kg (441 lb) or more] large enough for supporting
the engine weight.
If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the
potential risk of overturning the stand.
–Remove intake manifold collector. Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .
–Remove intake manifold. Refer to EM-24, "INTAKE MANIFOLD" .
–Remove fuel injector and fuel tube assembly. Refer to EM-45, "FUEL INJECTOR AND FUEL TUBE" .
–Remove ignition coil. Refer to EM-42, "IGNITION COIL" .
–Remove rocker cover. Refer to EM-51, "ROCKER COVER" .
–Remove exhaust manifold. Refer to EM-26, "EXHAUST MANIFOLD" .
–Other removable brackets.
NOTE:
The figure shows an example of widely use engine stand that
can hold mating surface of transmission with drive plate
removed.
CAUTION:
Before removing the hanging chains, make sure the
engine stand is stable and there is no risk of overturning.
4. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
SEM760G
PBIC0085E

EM-126
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
5. Drain engine coolant by removing water drain plugs from cylin-
der block both sides at “B” and “C” and cylinder block front side
at “A” as shown in the figure.
6. Remove the following parts:
Oil pans (lower and upper); Refer to EM-29, "OIL PAN AND OIL STRAINER" .
Front and rear timing chain case; Refer to EM-64, "TIMING CHAIN" .
Cylinder head; Refer to EM-101, "CYLINDER HEAD" .
7. Remove knock sensor.
CAUTION:
Carefully handle sensor avoiding shocks.
8. Remove pilot converter using the pilot bushing puller (SST) as
necessary.
9. Remove rear oil seal retainer.
Remove by inserting a screwdriver between main bearing cap and rear oil seal retainer.
CAUTION:
If rear oil seal retainer is removed, replace it with new one.
NOTE:
Regard both rear oil seal and retainer as an assembly.
10. Remove baffle plate from main bearing beam (2WD models).
11. Remove piston and connecting rod assembly with the following procedure:
Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer
to EM-140, "
CONNECTING ROD SIDE CLEARANCE" .
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
PBIC2610E
SEM005G

CYLINDER BLOCK
EM-127
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
b. Remove connecting rod bearing cap.
c. Using a hammer handle or similar tool, push piston and connect-
ing rod assembly out to the cylinder head side.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod big
end.
12. Remove connecting rod bearings from connecting rod and connecting rod bearing cap.
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
Identify installation positions, and store them without mixing them up.
13. Remove piston rings form piston.
Before removing piston rings, check the piston ring side clearance. Refer to EM-141, "PISTON RING
SIDE CLEARANCE" .
Use a piston ring expander (commercial service tool).
CAUTION:
When removing piston rings, be careful not to damage
piston.
Be careful not to damage piston rings by expanding them
excessively.
14. Remove piston from connecting rod as follows:
a. Using a snap ring pliers, remove snap rings.
b. Heat piston to 60 to 70
C (140 to 158F) with an industrial use
drier or equivalent.
EMQ0191D
PBIC0087E
PBIC1638E
PBIC1639E

EM-128
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
c. Push out piston pin with stick of outer diameter approximately 20
mm (0.79 in).
15. Remove main bearing cap bolts.
NOTE:
Use TORX socket (size E14).
Before loosening main bearing cap bolts, measure the crankshaft end play. Refer to EM-140, "CRANK-
SHAFT END PLAY" .
Loosen main bearing cap bolts in the reverse order shown in
the figure in several different steps.
16. Remove main bearing beam.
17. Remove main bearing caps.
CAUTION:
Be careful not to drop main bearing, and to scratch the sur-
face.
Using main bearing cap bolts, remove main bearing cap while
shaking it back-and-forth.
18. Remove crankshaft.
19. Remove main bearings and thrust bearings from cylinder block and main bearing caps.
CAUTION:
Be careful not to drop main bearing, and to scratch the surface.
Identify installation positions, and store them without mixing them up.
20. Remove oil jet.
ASSEMBLY
1. Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to
remove any foreign material.
CAUTION:
Use a goggles to protect your eye.
PBIC0262E
PBIC1800E
EMQ0195D

CYLINDER BLOCK
EM-129
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
2. Install each plug to cylinder block as shown in the figure.
Apply sealant to the thread of water drain plugs “A”, “B” and
“C”.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
Apply sealant to the thread of plugs “D” and “E”.
Use Genuine High Strength Thread Locking Sealant or
equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
Apply sealant to the thread of plug “F”.
Use Anaerobic Liquid Gasket or equivalent. Refer to GI-
48, "RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS" .
NOTE:
For Canada, “F” in the figure is not plug but block heater.
Refer to EM-123, "
Components" .
Replace washers with new one.
Tighten each plug as specified below.
3. Install oil jet.
Insert oil jet dowel pin into cylinder block dowel pin hole, and
tighten mounting bolts.
4. Install main bearings and thrust bearings as follows:
CAUTION:
Be careful not to drop main bearing, and to scratch the surface.
a. Remove dust, dirt, and engine oil on bearing mating surfaces of cylinder block and main bearing caps.
PBIC2610E
Part Washer Tightening torque
A No 9.8 Nꞏm (1.0 kg-m, 87 in-lb)
B No 19.6 Nꞏm (2.0 kg-m, 14 ft-lb)
C No 19.6 Nꞏm (2.0 kg-m, 14 ft-lb)
D Yes 12.3 Nꞏm (1.3 kg-m, 9 ft-lb)
E Yes 62 Nꞏm (6.3 kg-m, 46 ft-lb)
F Yes 62 Nꞏm (6.3 kg-m, 46 ft-lb)
PBIC0898E

EM-130
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
b. Install thrust bearings to the both sides of the No. 3 journal hous-
ing on cylinder block and main bearing cap.
Install thrust bearings with the oil groove facing crankshaft
arm (outside).
Install thrust bearing with a protrusion on one end on cylinder
block, and thrust bearing with a protrusion at center on main
bearing cap. Align each protrusion with mating notch.
c. Install main bearings paying attention to the direction.
Main bearing with oil hole and groove goes on cylinder block.
The one without them goes on main bearing cap.
Before installing main bearings, apply engine oil to the bear-
ing surface (inside). Do not apply engine oil to the back sur-
face, but thoroughly clean it.
When installing, align main bearing stopper protrusion to cut-
out of cylinder block and main bearing caps.
Ensure the oil holes on cylinder block and those on the corre-
sponding bearing are aligned.
5. Install crankshaft to cylinder block.
While turning crankshaft by hand, check that it turns smoothly.
6. Install main bearing cap.
Main bearing caps are identified by identification mark cast on
them. For installation, face front mark to front side.
NOTE:
Main bearing cap cannot be replaced as a single part, because it
is machined together with cylinder block.
7. Install main bearing beam.
Install main bearing beam with front mark facing downward
(oil pan side) and front mark facing front of the engine.
PBIC0807E
PBIC2489E
SEM456G
PBIC0881E

CYLINDER BLOCK
EM-131
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
8. Install main bearing cap bolts in numerical order as shown in the
figure as follows:
a. Inspect the outer diameter of main bearing cap bolt. Refer to
EM-148, "
MAIN BEARING CAP BOLT OUTER DIAMETER" .
b. Apply new engine oil to threads and seat surfaces of main bear-
ing cap bolts.
c. Tighten main bearing cap bolts in several different steps.
d. Turn all main bearing cap bolts 90 degrees clockwise (Angle
tightening).
CAUTION:
Use the angle wrench [SST: KV10112100 (BT8653-A)] to
check tightening angle. Do not make judgment by visual
inspection.
After installing main bearing cap bolts, make sure that crank-
shaft can be rotated smoothly by hand.
Check the crankshaft end play. Refer to EM-140, "CRANK-
SHAFT END PLAY" .
9. Install piston to connecting rod as follows:
a. Using a snap ring pliers, install new snap ring to the groove of piston rear side.
Insert it fully into groove to install.
b. Install piston to connecting rod.
Using an industrial use drier or similar tool, heat piston until piston pin can be pushed in by hand without
excess force [approx. 60 to 70
C (140 to 158F)]. From the front to the rear, insert piston pin into piston
and connecting rod.
Assemble so that the front mark on the piston head and the
cylinder number on connecting rod are positioned as shown in
the figure.
c. Install new snap ring to the groove of the piston front side.
Insert it fully into groove to install.
After installing, make sure that connecting rod moves
smoothly.
10. Using a piston ring expander (commercial service tool), install
piston rings.
CAUTION:
When installing piston rings, be careful not to damage
piston.
Be careful not to damage piston rings by expending them
excessively.: 35.3 Nꞏm (3.6 kg-m, 26 ft-lb)
PBIC1800E
PBIC0921E
SEM838F
PBIC0087E

EM-132
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
If there is stamped mark on ring, mount it with marked side
up.
NOTE:
If there is no stamp on ring, no specific orientation is required
for installation.
Position each ring with the gap as shown in the figure refer-
ring to the piston front mark.
Check the piston ring side clearance. Refer to EM-141, "PISTON RING SIDE CLEARANCE" .
11. Install connecting rod bearings to connecting rod and connecting rod bearing cap.
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
Before installing connecting rod bearings, apply engine oil to the bearing surface (inside). Do not apply
engine oil to the back surface, but thoroughly clean it.
When installing, align connecting rod bearing stopper protru-
sion with cutout of connecting rods and connecting rod bear-
ing caps to install.
Ensure the oil hole on connecting rod and that on the corre-
sponding bearing are aligned.
12. Install piston and connecting rod assembly to crankshaft.
Position crankshaft pin corresponding to connecting rod to be installed onto the bottom dead center.
Apply engine oil sufficiently to the cylinder bore, piston and crankshaft pin journal.
Match the cylinder position with the cylinder number on connecting rod to install.
Be sure that front mark on piston crown is facing front of engine.
Using a piston ring compressor (SST) or suitable tool, install
piston with the front mark on the piston crown facing the front
of the engine.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod big
end.Stamped mark:
To p r i n g : —
Second ring : “R”
SEM757G
PBIC0808E
PBIC2067E
PBIC2945E
