lock INFINITI M35 2006 Factory Service Manual

CYLINDER BLOCK
EM-133
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
13. Install connecting rod bearing cap.
Match the stamped cylinder number marks on connecting rod
with those on connecting rod bearing cap to install.
Be sure that front mark on connecting rod bearing cap is fac-
ing front of the engine.
14. Tighten connecting rod bolt as follows:
a. Inspect the outer diameter of connecting rod bolt. Refer to EM-149, "
CONNECTING ROD BOLT OUTER
DIAMETER" .
b. Apply engine oil to the threads and seats of connecting rod bolts.
c. Tighten connecting rod bolts.
d. Then tighten all connecting rod bolts 90 degrees clockwise
(Angle tightening).
CAUTION:
Always use the angle wrench [SST: KV10112100 (BT8653-
A)]. Avoid tightening based on visual check alone.
After tightening connecting rod bolts, make sure that crank-
shaft rotates smoothly.
Check the connecting rod side clearance. Refer to EM-140,
"CONNECTING ROD SIDE CLEARANCE" .
15. Install baffle plate to main bearing beam (2WD models).
16. Install new rear oil seal retainer to cylinder block.
Apply new engine oil to both oil seal lip and dust seal lip.
Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to rear oil seal retainer as
shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:
Replace with a new parts.
Attaching should be done within 5 minutes after coating.
Make sure the garter spring is in position and seal lips
not inverted.
NOTE:
Regard both rear oil seal and retainer as an assembly.
PBIC0809E
: 19.6 Nꞏm (2.0 kg-m, 14 ft-lb)
SEM953E
PBIC2661E

EM-134
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
17. Install pilot converter.
With a drift [outer diameter: approx. 33 mm (1.30 in)], press-fit
as far as it will go.
Press-fit pilot converter with its chamfer facing crankshaft as
shown in the figure.
18. Install knock sensor.
Install knock sensor so that connector faces front of the
engine.
After installing knock sensor, connect harness connector, and
lay it out to rear of the engine.
CAUTION:
Do not tighten mounting bolts while holding connector.
If any impact by dropping is applied to knock sensor,
replace it with new one.
NOTE:
Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.
Make sure that knock sensor does not interfere with other parts.
19. Note the following, assemble in the reverse order of disassembly after this step.
Drive plate
When installing drive plate to crankshaft, be sure to correctly align crankshaft side dowel pin and drive
plate side dowel pin hole.
CAUTION:
If these are not aligned correctly, engine runs roughly and “MIL” turns on.
Install drive plate and reinforcement plate as shown in the fig-
ure.
Holding ring gear with the ring gear stopper [SST:
KV10117700 (J44716)].
Tighten the mounting bolts crosswise over several times.
PBIC0899E
SEM537E
PBIC0810E
PBIC0910E

CYLINDER BLOCK
EM-135
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
How to Select Piston and Bearing NBS004O2
DESCRIPTION
*: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipment from the plant is described as a reference.
The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When New Cylinder Block is Used
Check the cylinder bore grade (“1”, “2” or “3”) on rear side of cylinder
block, and select piston of the same grade.
NOTE:
Piston is available with piston pin as a set for the service part. (Only
“0” grade piston pin is available.)
When Cylinder Block is Reused
1. Measure the cylinder bore inner diameter. Refer to EM-144, "Cylinder Bore inner Diameter" .
2. Determine the bore grade by comparing the measurement with
the values under the cylinder bore inner diameter of the “Piston
Selection Table”.
3. Select piston of the same grade.
Selection points Selection parts Selection items Selection methods
Between cylinder block and
crankshaftMain bearingMain bearing grade
(bearing thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer
diameter determine connecting
rod bearing selection.
Between cylinder block and pis-
tonPiston and piston pin assembly
(Piston is available together
with piston pin as assembly.)Piston grade
(piston skirt diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
Between piston and connecting
rod*———
SEM756G
PBIC0812E

EM-136
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
Piston Selection Table
Unit: mm (in)
NOTE:
Piston is available together with piston pin as assembly.
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no
piston pin grades can be selected. (Only “0” grade is available.)
No second grade mark is available on piston.
HOW TO SELECT CONNECTING ROD BEARING
When New Connecting Rod and Crankshaft are Used
Check pin diameter grade (“0”, “1” or “2”) on front of crankshaft, and
select connecting rod bearing of the same grade.
NOTE:
There is no grading for connecting rod big end diameter.
When Crankshaft and Connecting Rod are Reused
1. Measure the connecting rod big end diameter. Refer to EM-142, "CONNECTING ROD BIG END DIAME-
TER" .
2. Make sure that the connecting rod big end diameter is within the standard value.
3. Measure the crankshaft pin journal diameter. Refer to EM-146, "
CRANKSHAFT PIN JOURNAL DIAME-
TER" .
4. Determine the grade of crankshaft pin diameter grade by corresponding to the measured dimension in
“Crankshaft pin journal diameter” column of “Connecting Rod Bearing Selection Table”.
5. Select connecting rod bearing of the same grade.
Connecting Rod Bearing Selection Table
Unit: mm (in)
Unit: mm (in)
Undersize Bearings Usage Guide
When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod
bearings, use undersize (US) bearings.
When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing
installed, and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
Grade 1 2 (or no mark) 3
Cylinder bore inner diameter95.500 - 95.510
(3.7598 - 3.7602)95.510 - 95.520
(3.7602- 3.7606)95.520 - 95.530
(3.7606 - 3.7610)
Piston skirt diameter95.480 - 95.490
(3.7590 - 3.7594)95.490 - 95.500
(3.7594 - 3.7598)95.500 - 95.510
(3.7598 - 3.7602)
SEM452G
Connecting rod big end diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft Connecting rod bearing
Crankshaft pin journal diameter Grade (Mark) Dimension (Bearing thickness range) Bearing grade No. Color
51.968 - 51.974 (2.0460 - 2.0462) 0 1.500 - 1.503 (0.0591 - 0.0592) STD 0 Black
51.962 - 51.968 (2.0457 - 2.0460) 1 1.503 - 1.506 (0.0592 - 0.0593) STD 1 Brown
51.956 - 51.962 (2.0455 - 2.0457) 2 1.506 - 1.509 (0.0593 - 0.0594) STD 2 Green

CYLINDER BLOCK
EM-137
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CAUTION:
In grinding crankshaft pin to use undersize bearings, keep
the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].
Bearing undersize table
Unit: mm (in)
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft are Used
1. “Main Bearing Selection Table” rows correspond to bearing
housing grade on rear left side of cylinder block.
2. “Main Bearing Selection Table” columns correspond to journal
diameter grade on front side of crankshaft.
3. Select main bearing grade at the point where selected row and column meet in “Main Bearing Selection
Table”.
When Cylinder Block and Crankshaft are Reused
1. Measure cylinder block main bearing housing inner diameter and crankshaft main journal diameter. Refer
to EM-144, "
MAIN BEARING HOUSING INNER DIAMETER" and EM-145, "CRANKSHAFT MAIN JOUR-
NAL DIAMETER" .
2. Correspond the measured dimension in “Cylinder block main bearing housing inner diameter” row of
“Main Bearing Selection Table”.
3. Correspond the measured dimension in “Crankshaft main journal diameter” column of “Main Bearing
Selection Table”.
4. Select main bearing grade at the point where selected row and column meet in following selection table.
PBIC1908E
Size Thickness
US 0.25 (0.0098) 1.626 - 1.634 (0.0640 - 0.0643)
SEM756G
SEM452G

EM-138
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45

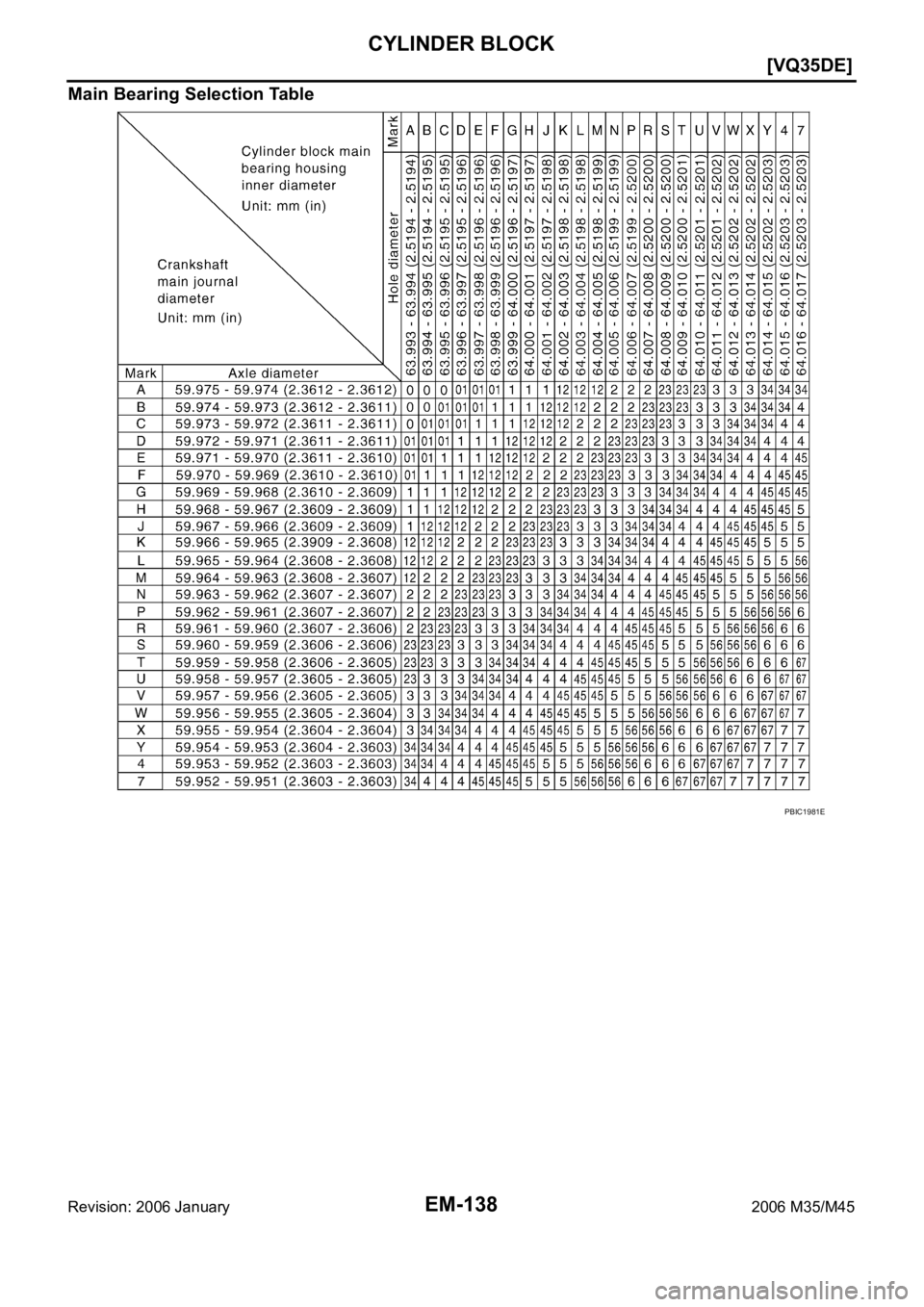

Main Bearing Selection Table
PBIC1981E

CYLINDER BLOCK
EM-139
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Main Bearing Grade Table (All Journals)
Undersize Bearing Usage Guide
When the specified main bearing oil clearance is not obtained with standard size main bearings, use
underside (US) bearing.
When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and
grind main journal so that the main bearing oil clearance satisfies the standard.
CAUTION:
In grinding crankshaft main journal to use undersize bear-
ings, keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].
Bearing undersize table
Unit: mm (in) Grade numberThickness
Unit: mm (in)Width
Unit: mm (in)Identification color Remarks
0 2.000 - 2.003 (0.0787 - 0.0789)
19.9 - 20.1
(0.783 - 0.791)Black
Grade and color are
the same for upper
and lower bearings. 1 2.003 - 2.006 (0.0789 - 0.0790) Brown
2 2.006 - 2.009 (0.0790 - 0.0791) Green
3 2.009 - 2.012 (0.0791 - 0.0792) Yellow
4 2.012 - 2.015 (0.0792 - 0.0793) Blue
5 2.015 - 2.018 (0.0793 - 0.0794) Pink
6 2.018 - 2.021 (0.0794 - 0.0796) Purple
7 2.021 - 2.024 (0.0796 - 0.0797) White
01UPR 2.003 - 2.006 (0.0789 - 0.0790) Brown
Grade and color are
different for upper and
lower bearings. LWR 2.000 - 2.003 (0.0787 - 0.0789) Black
12UPR 2.006 - 2.009 (0.0790 - 0.0791) Green
LWR 2.003 - 2.006 (0.0789 - 0.0790) Brown
23UPR 2.009 - 2.012 (0.0791 - 0.0792) Yellow
LWR 2.006 - 2.009 (0.0790 - 0.0791) Green
34UPR 2.012 - 2.015 (0.0792 - 0.0793) Blue
LWR 2.009 - 2.012 (0.0791 - 0.0792) Yellow
45UPR 2.015 - 2.018 (0.0793 - 0.0794) Pink
LWR 2.012 - 2.015 (0.0792 - 0.0793) Blue
56UPR 2.018 - 2.021 (0.0794 - 0.0796) Purple
LWR 2.015 - 2.018 (0.0793 - 0.0794) Pink
67UPR 2.021 - 2.024 (0.0796 - 0.0797) White
LWR 2.018 - 2.021 (0.0794 - 0.0796) Purple
PBIC1908E
Size Thickness
US 0.25 (0.0098) 2.132 - 2.140 (0.0839 - 0.0843)

EM-140
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
Inspection after DisassemblyNBS004O3
CRANKSHAFT END PLAY
Measure the clearance between thrust bearings and crankshaft
arm when crankshaft is moved fully forward or backward with a
dial indicator.
If the measured value exceeds the limit, replace thrust bearings,
and measure again. If it still exceeds the limit, replace crank-
shaft also.
CONNECTING ROD SIDE CLEARANCE
Measure the side clearance between connecting rod and crank-
shaft arm with a feeler gauge.
If the measured value exceeds the limit, replace connecting rod,
and measure again. If it still exceeds the limit, replace crank-
shaft also.
PISTON TO PISTON PIN OIL CLEARANCE
Piston Pin Hole Diameter
Measure the inner diameter of piston pin hole with an inside
micrometer.
Piston Pin Outer Diameter
Measure the outer diameter of piston pin with a micrometer.
Piston to Piston Pin Oil Clearance
(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)
If the calculated value is out of the standard, replace piston and piston pin assembly. Standard : 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Limit : 0.30 mm (0.012 in)
EMQ0196D
Standard : 0.20 - 0.35 mm (0.0079 - 0.0138 in)
Limit : 0.40 mm (0.016 in)
PBIC0815E
Standard : 21.993 - 22.005 mm (0.8659 - 0.8663 in)
PBIC0116E
Standard : 21.989 - 22.001 mm (0.8657 - 0.8662 in)
PBIC0117E
Standard : 0.002 - 0.006 mm (0.0001 - 0.0002 in)

CYLINDER BLOCK
EM-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
When replacing piston and piston pin assembly, refer to EM-135, "HOW TO SELECT PISTON" .
NOTE:
Piston is available together with piston pin as assembly.
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts,
no piston pin grades can be selected. (Only “0” grade is available.)
PISTON RING SIDE CLEARANCE
Measure the side clearance of piston ring and piston ring groove
with a feeler gauge.
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston also.
PISTON RING END GAP
Make sure that the cylinder bore inner diameter is within the
specification. Refer to EM-144, "
Cylinder Bore inner Diameter" .
Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure the piston ring end gap with a feeler gauge.
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings.Standard:
Top ring : 0.045 - 0.080 mm (0.0018 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.065 - 0.135 mm (0.0026 - 0.0053 in)
Limit:

Top ring : 0.11 mm (0.0043 in)

2nd ring : 0.10 mm (0.004 in)
SEM024AA
Standard:
Top ring : 0.23 - 0.33 mm (0.0091 - 0.0130 in)
2nd ring : 0.33 - 0.48 mm (0.0130 - 0.0189 in)
Oil ring : 0.20 - 0.50 mm (0.0079 - 0.0197 in)
Limit:


Top ring : 0.54 mm (0.0213 in)


2nd ring : 0.80 mm (0.0315 in)
Oil ring : 0.95 mm (0.0374 in)
PBIC0118E

EM-142
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
CONNECTING ROD BEND AND TORSION
Check with a connecting rod aligner.
If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER
Install connecting rod bearing cap without installing connecting
rod bearing, and tightening connecting rod bolts to the specified
torque. Refer to EM-128, "
ASSEMBLY" for the tightening proce-
dure.
Measure the inner diameter of connecting rod big end with an
inside micrometer.
If out of the standard, replace connecting rod assembly.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Measure the inner diameter of connecting rod bushing with an inside
micrometer.Bend:
Limit : 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
To r s i o n :
Limit : 0.30 mm (0.012 in) per 100 mm (3.94 in) length
PBIC2077E
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC1641E
Standard : 22.000 - 22.012 mm (0.8661 - 0.8666 in)
PBIC0120E
