IGNITION SIGNAL
EC-1415
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser (1) harness connector.
3. Turn ignition switch ON.
4. Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E7.
3. Check harness continuity between IPDM E/R terminal 17 and condenser terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> Go to EC-879, "POWER SUPPLY AND GROUND CIRCUIT" .
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E12, F3
Harness for open or short between IPDM E/R and condenser
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2713E
Voltage: Battery voltage
PBIB0624E
Continuity should exist.

EC-1416
[VK45DE]
IGNITION SIGNAL
Revision: 2006 January2006 M35/M45
8. CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors.
9. CHECK CONDENSER
Refer to EC-1417, "
Component Inspection"
OK or NG
OK >> GO TO 10.
NG >> Replace condenser.
10. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch ON.
5. Check voltage between ignition coil terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.Continuity should exist.
: Vehicle front 1. Ignition coil (with power transistor)
(bank 2)2. Ignition coil (with power transistor)
(bank 1)
Voltage: Battery voltage
PBIB2692E
PBIB0138E

IGNITION SIGNAL
EC-1417
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connector F3
Harness for open or short between ignition coil and harness connector F3
>> Repair or replace harness or connectors.
12. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 13.
NG >> Repair open circuit or short to power in harness or connectors.
13. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 46, 60, 61, 62, 65, 79, 80, 81 and ignition coil terminal
1. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-1417, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace ignition coil with power transistor.
15. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005PT
IGNITION COIL WITH POWER TRANSISTOR
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.Continuity should exist.
Continuity should exist.

FUEL INJECTOR
EC-1421
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS005PX
TBWT1065E

FUEL INJECTOR
EC-1425
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
6. CHECK SUB-HARNESS CIRCUIT FOR OPEN AND SHORT
1. Disconnect fuel injector harness connectors.
2. Check harness continuity between the following terminals. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK FUEL INJECTOR
Refer to EC-1426, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace fuel injector.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
: Vehicle front 1. Fuel injector (bank 2) 2. Fuel injector (bank 1)
Harness connector terminal Fuel injector terminal
F251 terminal 1
2 F251 terminal 2
F251 terminal 3
F251 terminal 6
F251 terminal 5 1
F271 terminal 1
2 F271 terminal 2
F271 terminal 3
F271 terminal 6
F271 terminal 5 1
Continuity should exist.
PBIB2693E

EC-1428
[VK45DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45

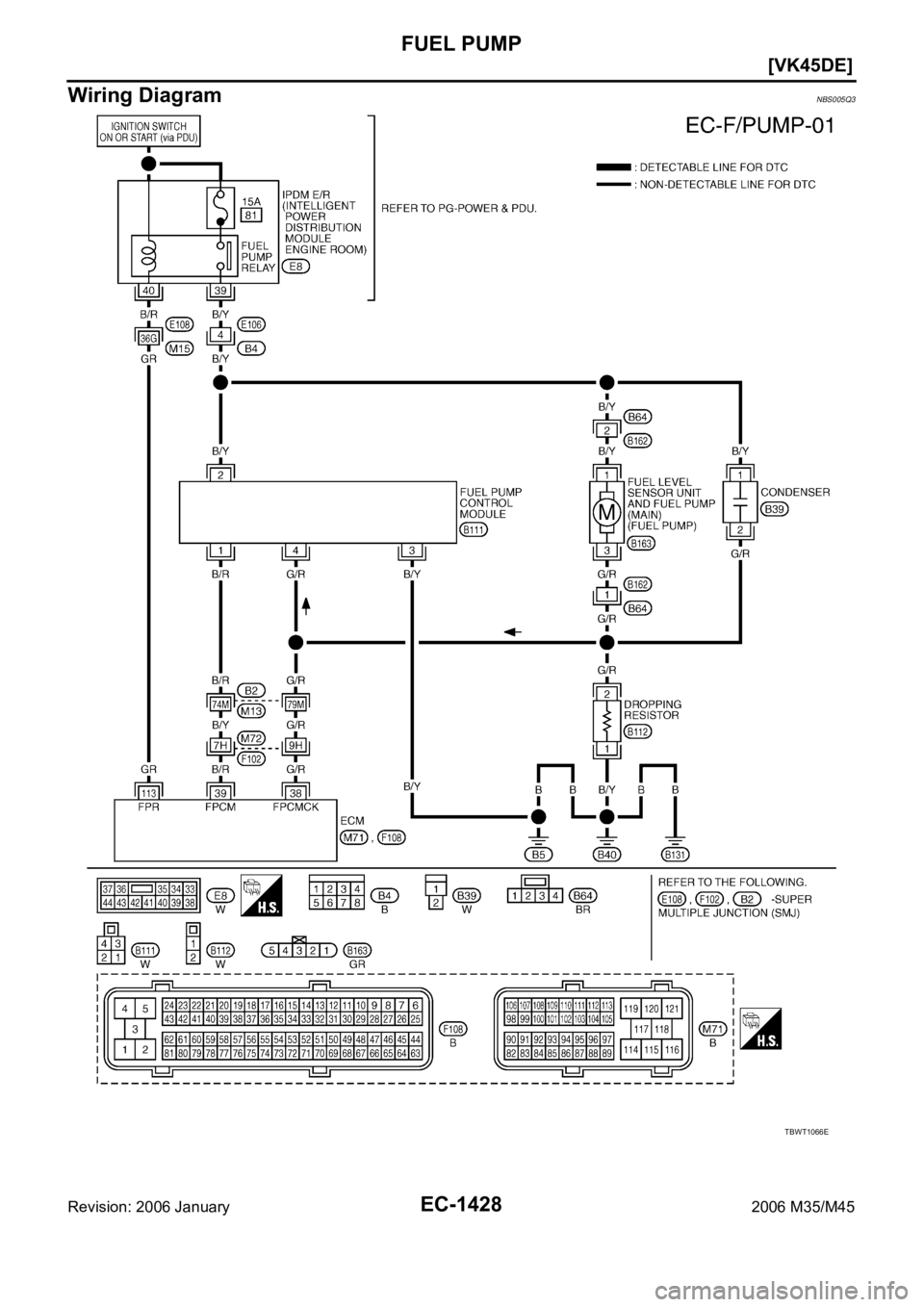

Wiring DiagramNBS005Q3
TBWT1066E

FUEL PUMP
EC-1431
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continuity between IPDM E/R terminal 39 and condenser terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E106, B4
IPDM E/R connector E8
Harness for open or short between IPDM E/R and condenser
>> Repair open circuit or short to power in harness or connectors.
9. CHECK CONDENSER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect dropping resistor harness connector.
3. Check harness continuity between condenser terminal 2 and dropping resistor terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10. CHECK CONDENSER
Refer to EC-1433, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace condenser.Continuity should exist.
: Vehicle front 1. FPCM 2. Dropping resistor
Continuity should exist.
PBIB2708E

EC-1432
[VK45DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45
11 . CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect harness connectors E106, B4.
3. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector (1).
–Illustration shows the view with rear seat cushion and inspection
hole cover (RH) removed.
–: Vehicle front
4. Check harness continuity between the following;
harness connector B4 terminal 4 and “fuel level sensor unit and fuel pump” terminal 1,
“fuel level sensor unit and fuel pump” terminal 3 and dropping resistor terminal 2,
dropping resister terminal 1 and ground.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.
Harness connector B4
Harness connectors B64, B162
Harness for open or short between “fuel level sensor unit and fuel pump” and harness connector B4
Harness for open or short between “fuel level sensor unit and fuel pump” and dropping resistor
Harness for open or short between dropping resistor and ground
>> Repair open circuit or short to power in harness or connectors.
13. CHECK DROPPING RESISTOR
Refer to EC-1433, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace dropping resistor.
14. CHECK FUEL PUMP
Refer to EC-1433, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace fuel pump.
PBIB2706E
Continuity should exist.

REFRIGERANT PRESSURE SENSOR
EC-1435
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

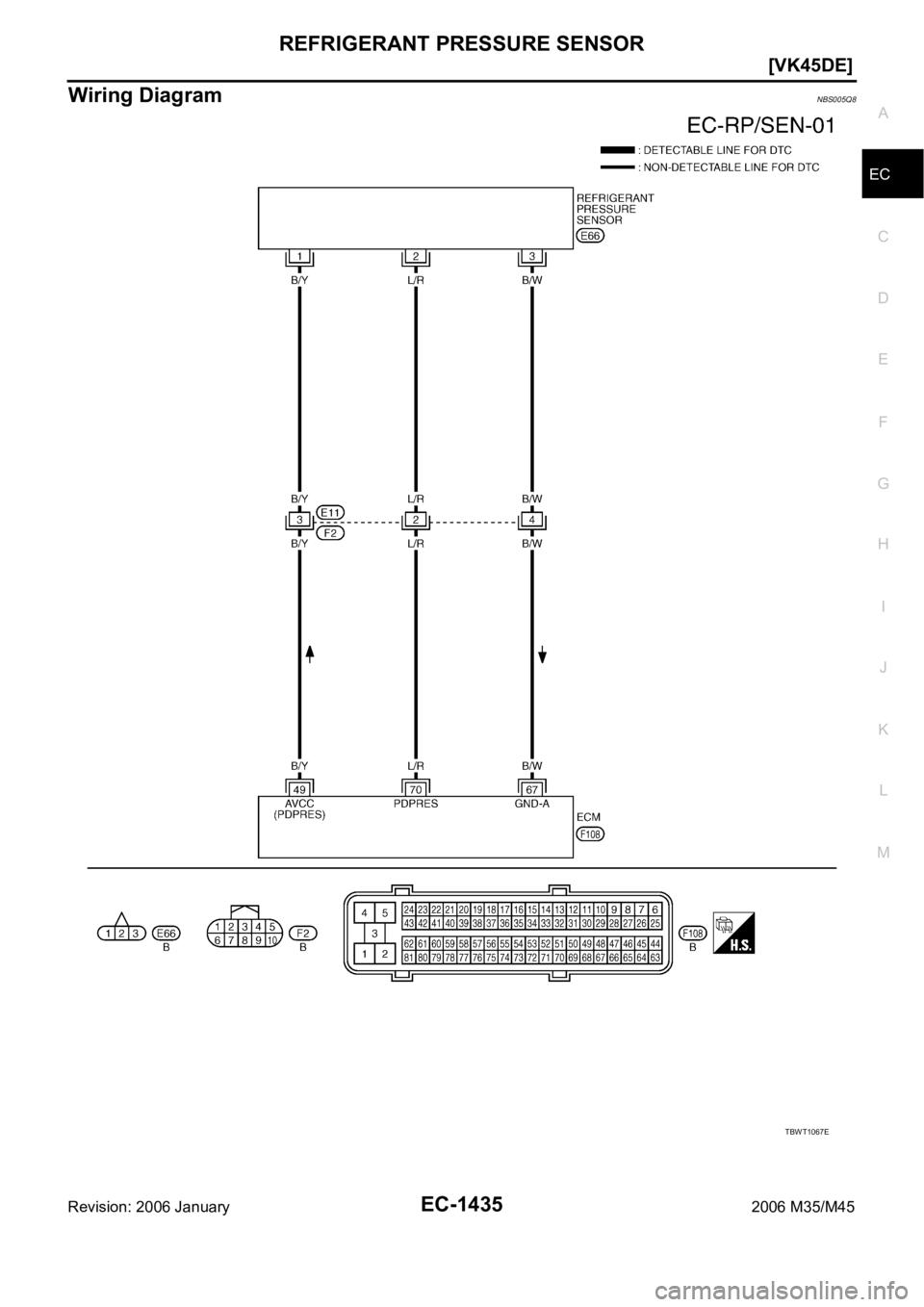

Wiring DiagramNBS005Q8
TBWT1067E

EC-1438
[VK45DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2006 January2006 M35/M45
5. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between refrigerant pressure sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 70 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationNBS005QA
REFRIGERANT PRESSURE SENSOR
Refer to ATC-167, "Removal and Installation of Refrigerant Pressure Sensor" . Continuity should exist.
