INFINITI M35 2006 Factory Service Manual

LAN-522
[CAN]
CAN SYSTEM (TYPE 11)
Revision: 2006 January2006 M35/M45
SchematicNKS0044S
TKWT3295E

CAN SYSTEM (TYPE 11)
LAN-523
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

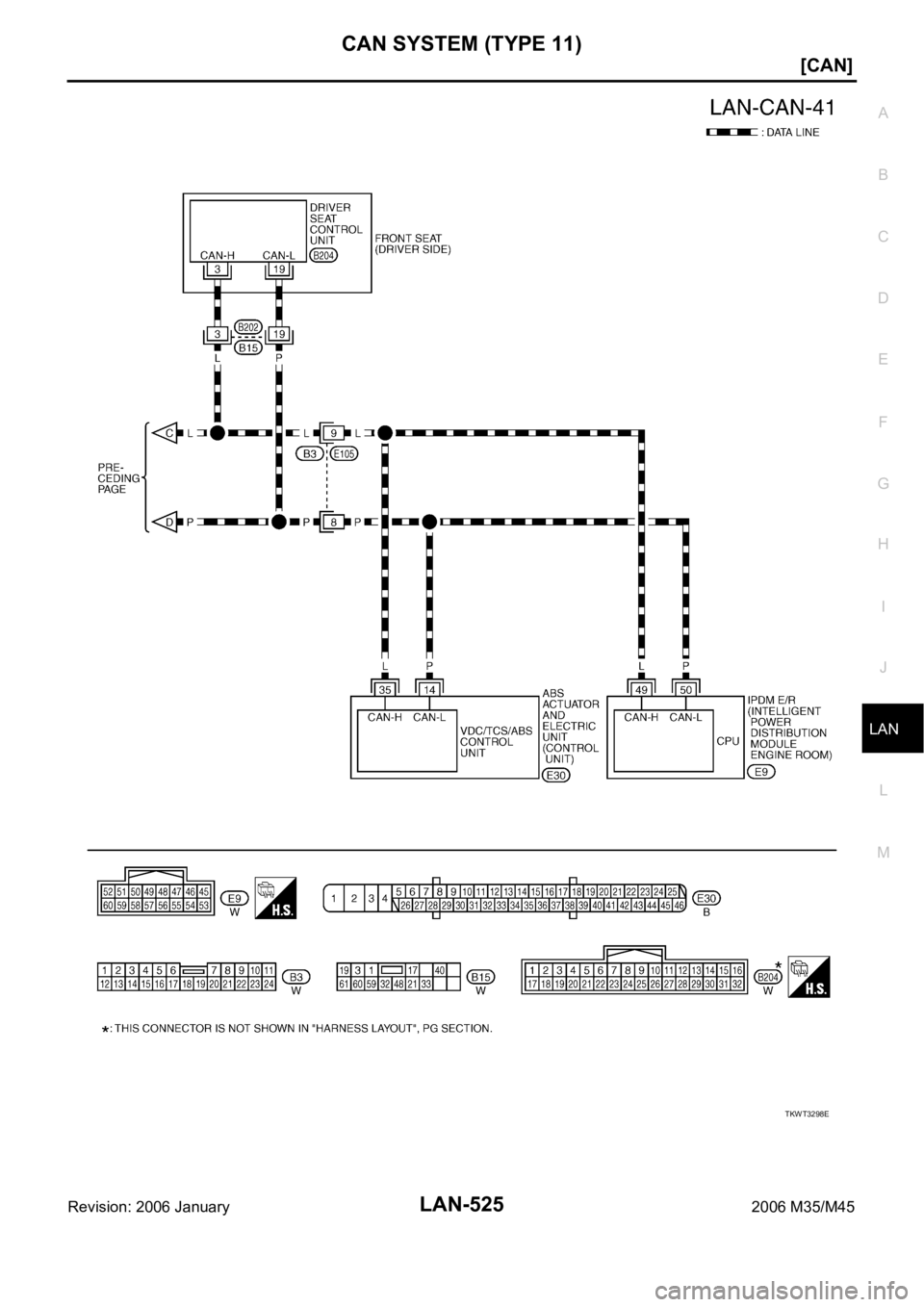

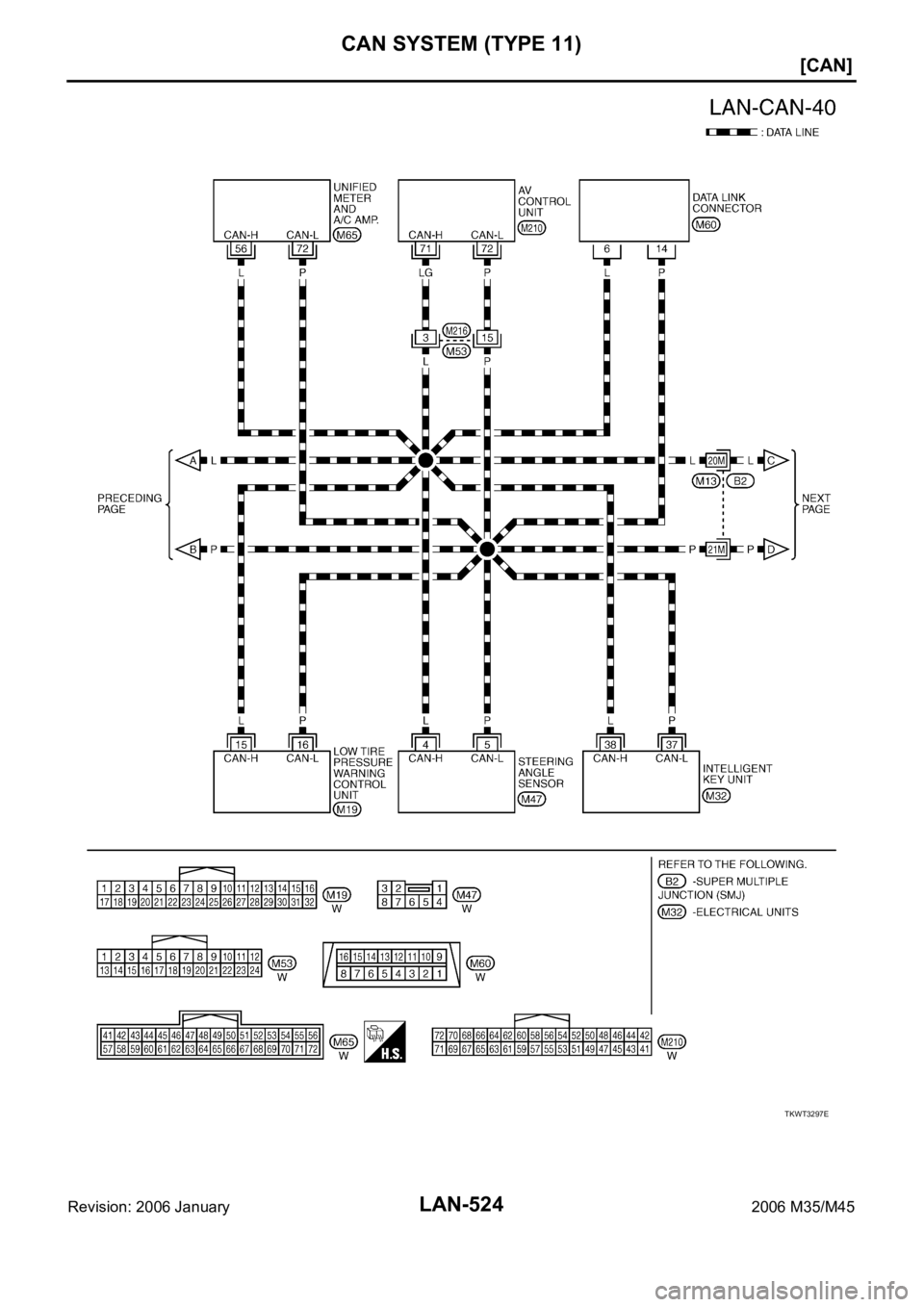

Wiring Diagram — CAN —NKS0044T
TKWT3296E

LAN-524
[CAN]
CAN SYSTEM (TYPE 11)
Revision: 2006 January2006 M35/M45
TKWT3297E

CAN SYSTEM (TYPE 11)
LAN-525
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
TKWT3298E

LAN-526
[CAN]
CAN SYSTEM (TYPE 11)
Revision: 2006 January2006 M35/M45

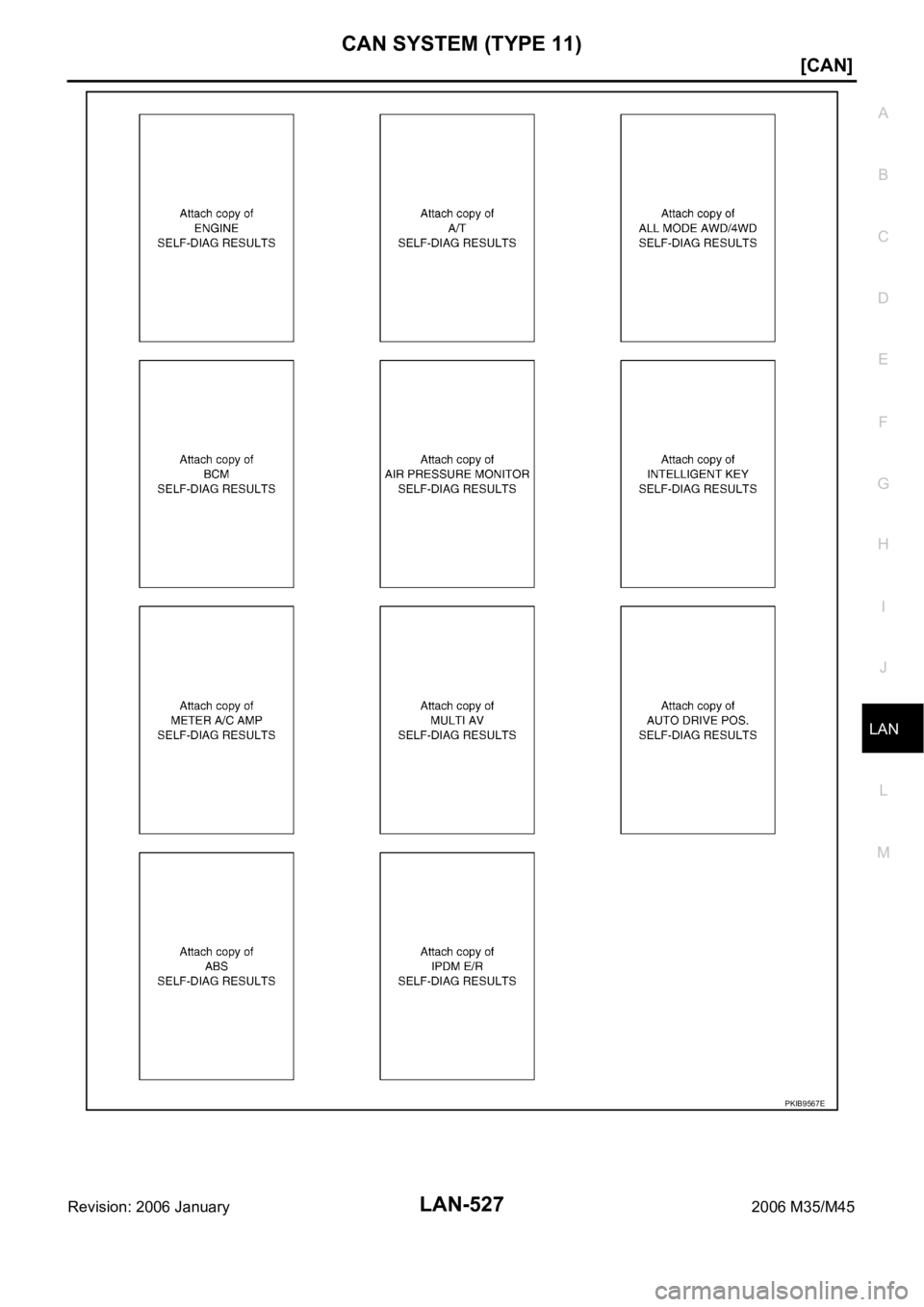

Check SheetNKS0044U
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8519E

CAN SYSTEM (TYPE 11)
LAN-527
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
PKIB9567E

LAN-528
[CAN]
CAN SYSTEM (TYPE 11)
Revision: 2006 January2006 M35/M45
PKIB9568E

CAN SYSTEM (TYPE 11)
LAN-529
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-546, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8520E
SKIB4406E

LAN-530
[CAN]
CAN SYSTEM (TYPE 11)
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and driver seat control unit. Refer to LAN-547, "Inspection
Between Data Link Connector and Driver Seat Control Unit Circuit" .
PKIB8521E
SKIB4407E

CAN SYSTEM (TYPE 11)
LAN-531
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 3
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
548, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8522E
SKIB4408E
