GW-110
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.

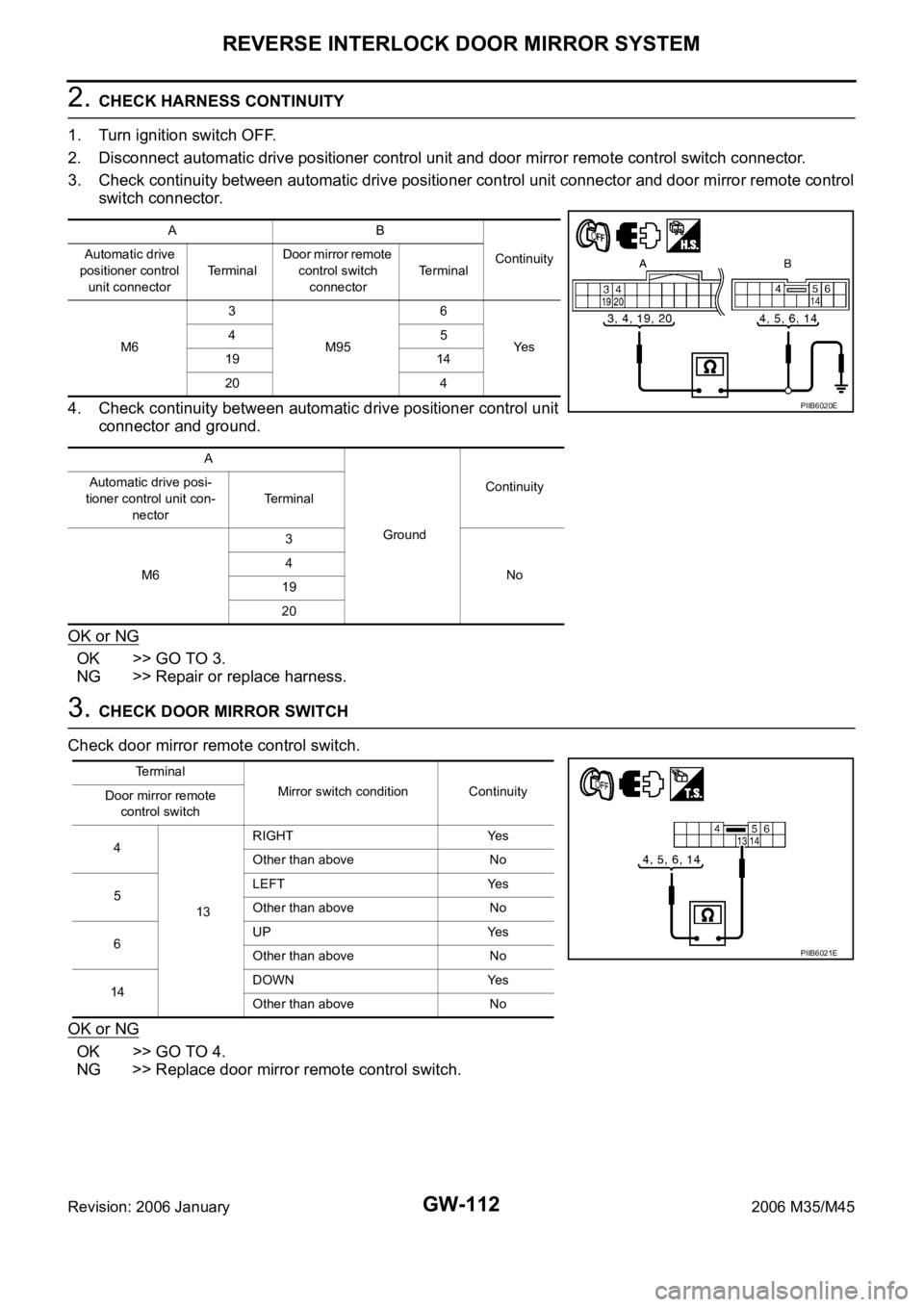

2. Disconnect automatic drive positioner control unit and door mirror remote control switch connector.
3. Check continuity between automatic drive positioner control unit connector and door mirror remote control
switch connector.
4. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK CANGEOVER SWITCH
Check door mirror remote control switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door mirror remote control switch.
4. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness.
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
remote control
switch
connectorTerminal
M62
M953
Ye s
18 2
A
GroundContinuity
Automatic drive
positioner control
unit connectorTerminal
No
M62
18
PIIB6016E
Terminal
Change over switch
conditionContinuity
Door mirror remote control switch
2
13LEFT Yes
Other than above No
3RIGHT Yes
Other than above No
PIIB6017E
Door mirror remote
control switch connectorTerminal
GroundContinuity
M95 13 Yes
PIIB6018E
Page 3630 of 5621
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-111
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 January2006 M35/M45
5. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL
1. Connect automatic drive positioner control unit connector.
2. Turn ignition switch ON.
3. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace automatic drive positioner control unit.
Check Mirror Switch Circuit CheckNIS0023C
1. CHECK MIRROR SWITCH SIGNAL
With CONSULT-II
Check the operation on “(MIR CON SW–UP/DN) and (MIR CON SW–RH/LH) in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ON position.

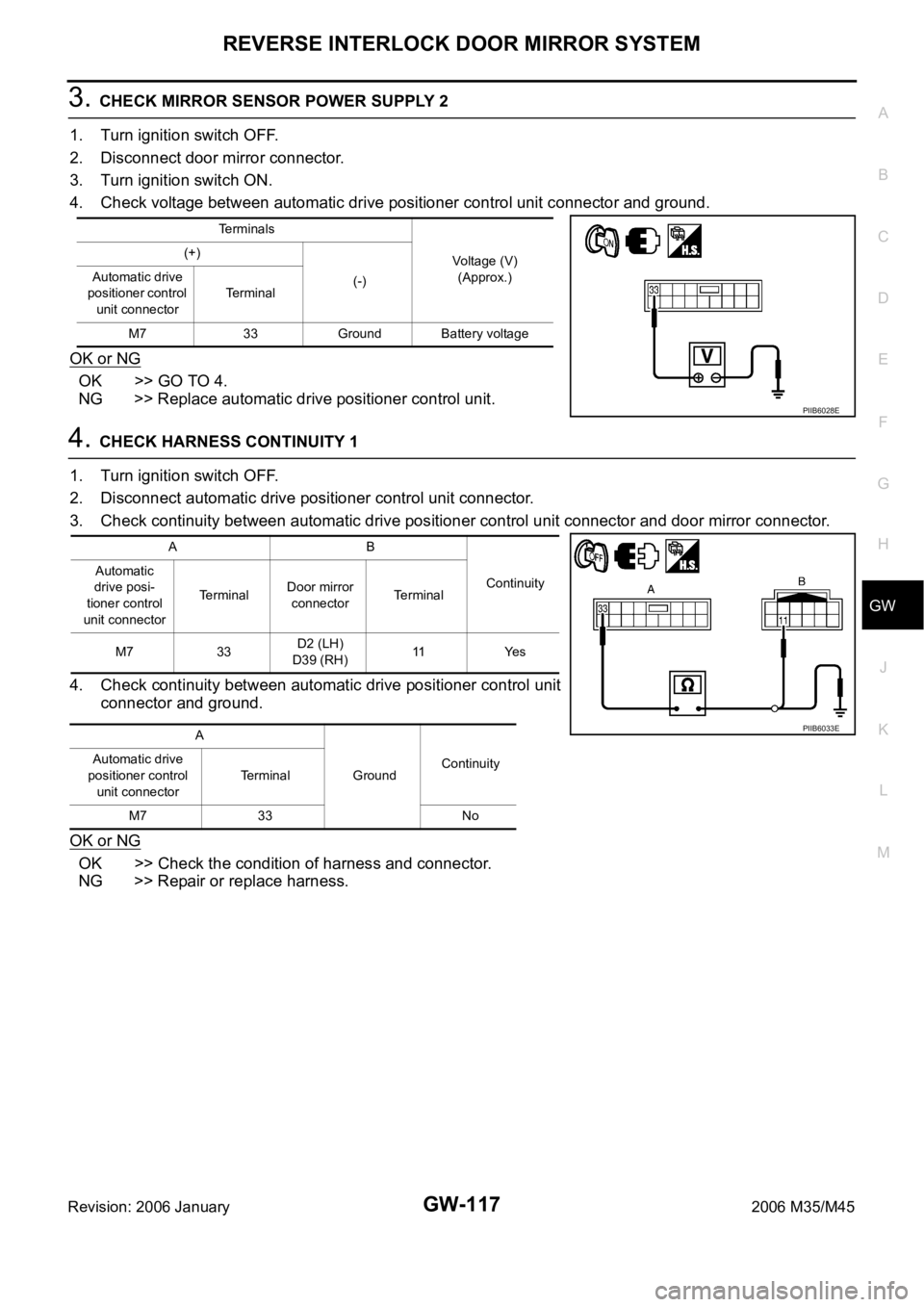

2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Mirror switch circuit is OK.
NG >> GO TO 2.
Terminals
Voltage (V)
(Approx.) (+)
(-) Automatic drive
positioner control
unit connectorTerminal
M62
Ground 5
18
PIIB6015E
Monitor item
[OPERATION or UNIT]Contents
MIR CON SW–UP“ON/
OFF”ON/OFF status judged from the mirror switch
(UP) signal is displayed.
MIR CON SW–DN“ON/
OFF”ON/OFF status judged from the mirror switch
(DOWN) signal is displayed.
MIR CON SW–RH“ON/
OFF”ON/OFF status judged from the mirror switch
(RIGHT) signal is displayed.
MIR CON SW–LH“ON/
OFF”ON/OFF status judged from the mirror switch
(LEFT) signal s displayed.
PIIA0199E
Te r m i n a l s
Mirror switch
ConditionVoltage (V)
(Approx.) (+)
(–) Automatic drive
positioner control
unit connectorTerminal
M63
GroundUP 0
Other than above 5
4LEFT 0
Other than above 5
19DOWN 0
Other than above 5
20RIGHT 0
Other than above 5
PIIB6019E
Page 3631 of 5621
GW-112
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control switch connector.
3. Check continuity between automatic drive positioner control unit connector and door mirror remote control
switch connector.
4. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR MIRROR SWITCH
Check door mirror remote control switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door mirror remote control switch.
AB
Continuity Automatic drive
positioner control
unit connectorTe r m i n a lDoor mirror remote
control switch
connectorTerminal
M63
M956
Ye s 45
19 14
20 4
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
M63
No 4
19
20
PIIB6020E
Terminal
Mirror switch condition Continuity
Door mirror remote
control switch
4
13RIGHT Yes
Other than above No
5LEFT Yes
Other than above No
6UP Yes
Other than above No
14DOWN Yes
Other than above No
PIIB6021E
Page 3632 of 5621
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-113
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 January2006 M35/M45
4. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL
1. Connect automatic drive positioner control unit connector.
2. Turn ignition switch ON.
3. Check voltage between automatic drive positioner control unit and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace automatic drive positioner control unit.
Check Mirror Motor Circuit CheckNIS0023D
1. CHECK MIRROR MOTOR FUNCTION
With CONSULT-II
Check the operation with (MIRROR MOTOR RH, MIRROR MOTOR LH) in the ACTIVE TEST.
Without CONSULT-II

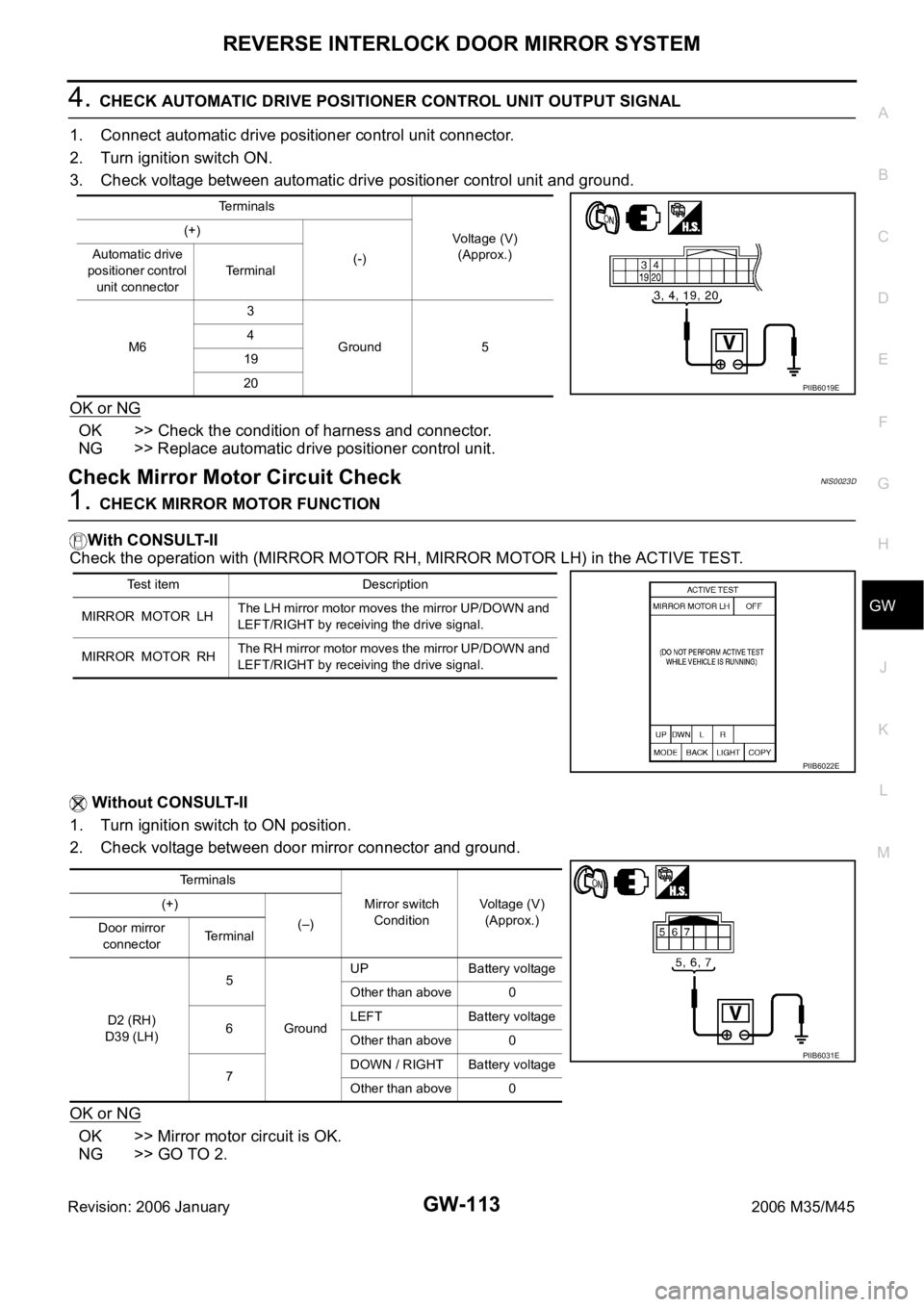

1. Turn ignition switch to ON position.
2. Check voltage between door mirror connector and ground.
OK or NG
OK >> Mirror motor circuit is OK.
NG >> GO TO 2.
Terminals
Voltage (V)
(Approx.) (+)
(-) Automatic drive
positioner control
unit connectorTerminal
M63
Ground 5 4
19
20
PIIB6019E
Test item Description
MIRROR MOTOR LHThe LH mirror motor moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
MIRROR MOTOR RHThe RH mirror motor moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
PIIB6022E
Te r m i n a l s
Mirror switch
ConditionVoltage (V)
(Approx.) (+)
(–)
Door mirror
connectorTerminal
D2 (RH)
D39 (LH)5
GroundUP Battery voltage
Other than above 0
6LEFT Battery voltage
Other than above 0
7DOWN / RIGHT Battery voltage
Other than above 0
PIIB6031E
Page 3633 of 5621
GW-114
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.

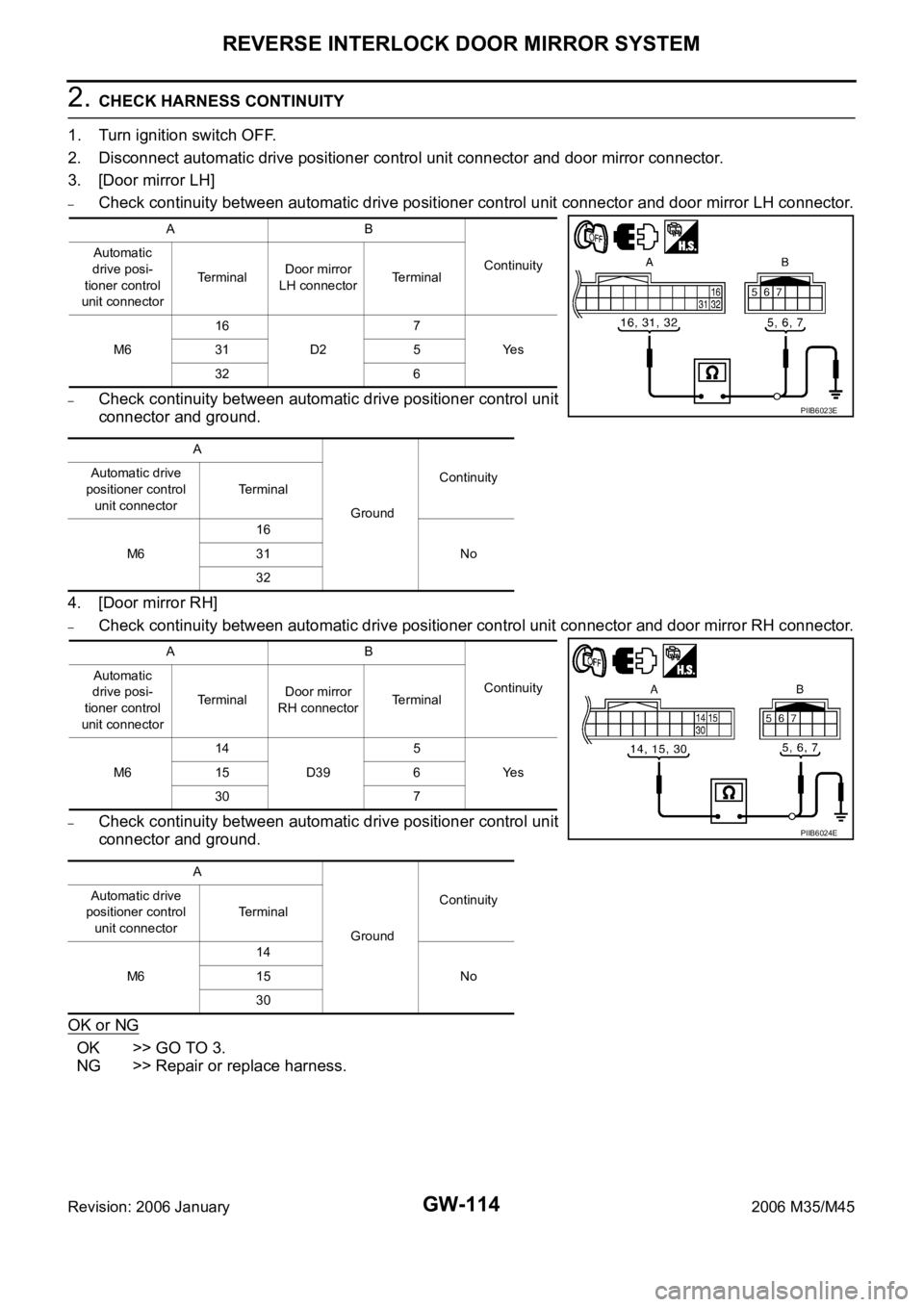

2. Disconnect automatic drive positioner control unit connector and door mirror connector.
3. [Door mirror LH]
–Check continuity between automatic drive positioner control unit connector and door mirror LH connector.
–Check continuity between automatic drive positioner control unit
connector and ground.
4. [Door mirror RH]
–Check continuity between automatic drive positioner control unit connector and door mirror RH connector.
–Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
LH connectorTerminal
M616
D27
Ye s 31 5
32 6
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M616
No 31
32
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
RH connectorTerminal
M614
D395
Ye s 15 6
30 7
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M614
No 15
30
PIIB6023E
PIIB6024E
Page 3634 of 5621
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-115
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 January2006 M35/M45
3. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL
1. Connect automatic drive positioner control unit connector.
2. Turn ignition switch ON.
3. [Door mirror LH]

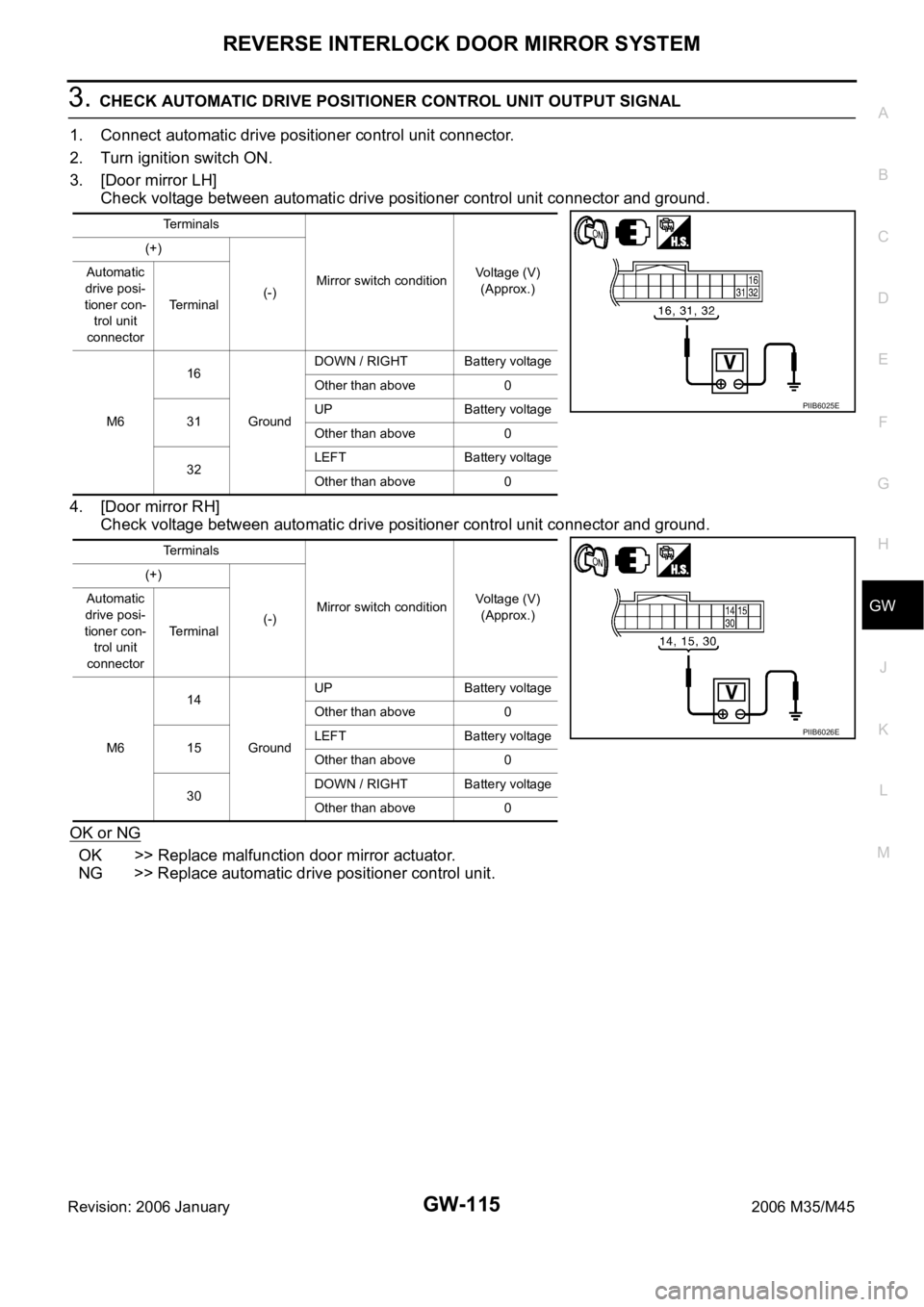

Check voltage between automatic drive positioner control unit connector and ground.
4. [Door mirror RH]
Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Replace malfunction door mirror actuator.
NG >> Replace automatic drive positioner control unit.
Terminals
Mirror switch conditionVoltage (V)
(Approx.) (+)
(-) Automatic
drive posi-
tioner con-
trol unit
connectorTerminal
M616
GroundDOWN / RIGHT Battery voltage
Other than above 0
31UP Battery voltage
Other than above 0
32LEFT Battery voltage
Other than above 0
Terminals
Mirror switch conditionVoltage (V)
(Approx.) (+)
(-) Automatic
drive posi-
tioner con-
trol unit
connectorTerminal
M614
GroundUP Battery voltage
Other than above 0
15LEFT Battery voltage
Other than above 0
30DOWN / RIGHT Battery voltage
Other than above 0
PIIB6025E
PIIB6026E
Page 3635 of 5621
GW-116
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2006 January2006 M35/M45
Check Mirror Sensor Circuit Check NIS0023E
1. CHECK MIRROR SENSOR INSPECTION
With CONSULT-II
Check the voltage on (MIR/SE LH R–L, MIR/SE LH U–D, MIR/SE RH R–L, MIR/SE RH U–D) in the DATA
MONITOR.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Mirror sensor LH circuit is OK.
NG >> GO TO 3.
2. CHECK MIRROR SENSOR POWER SUPPLY 1
Check voltage between door mirror connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
Monitor item
[OPERATION or UNIT]Contents
MIR/SE LH R–L “V”Voltage output from door mirror LH horizontal sensor
(LH/RH) is displayed.
MIR/SE LH U–D “V”Voltage output from door mirror LH vertical sensor
(UP/DOWN) is displayed.
MIR/SE RH R–L “V”Voltage output from door mirror RH horizontal sensor
(LH/RH) is displayed.
MIR/SE RH U–D “V”Voltage output from door mirror RH vertical sensor
(UP/DOWN) is displayed.
PIIA0197E
Terminals
Mirror face positionVoltage (V)
(Approx.) (+)
(-) Automatic drive
positioner control
unit connectorTerminal
M6Door
mirror
RH side5
GroundClose to perk 4.2
Close to valley 0.5
21Close to left edge 3.5
Close to right edge 0.5
Door
mirror
LH side6Close to perk 4.2
Close to valley 0.5
22Close to left edge 0.5
Close to right edge 3.5
PIIB6027E
Terminals
Voltage (V)
(Approx.) (+)
(-)
Door mirror
connectorTe r m i n a l
D2 (LH)
D39 (RH)11 Ground Battery voltage
PIIB6032E
Page 3636 of 5621
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-117
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 January2006 M35/M45
3. CHECK MIRROR SENSOR POWER SUPPLY 2
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.
3. Turn ignition switch ON.
4. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace automatic drive positioner control unit.
4. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector.

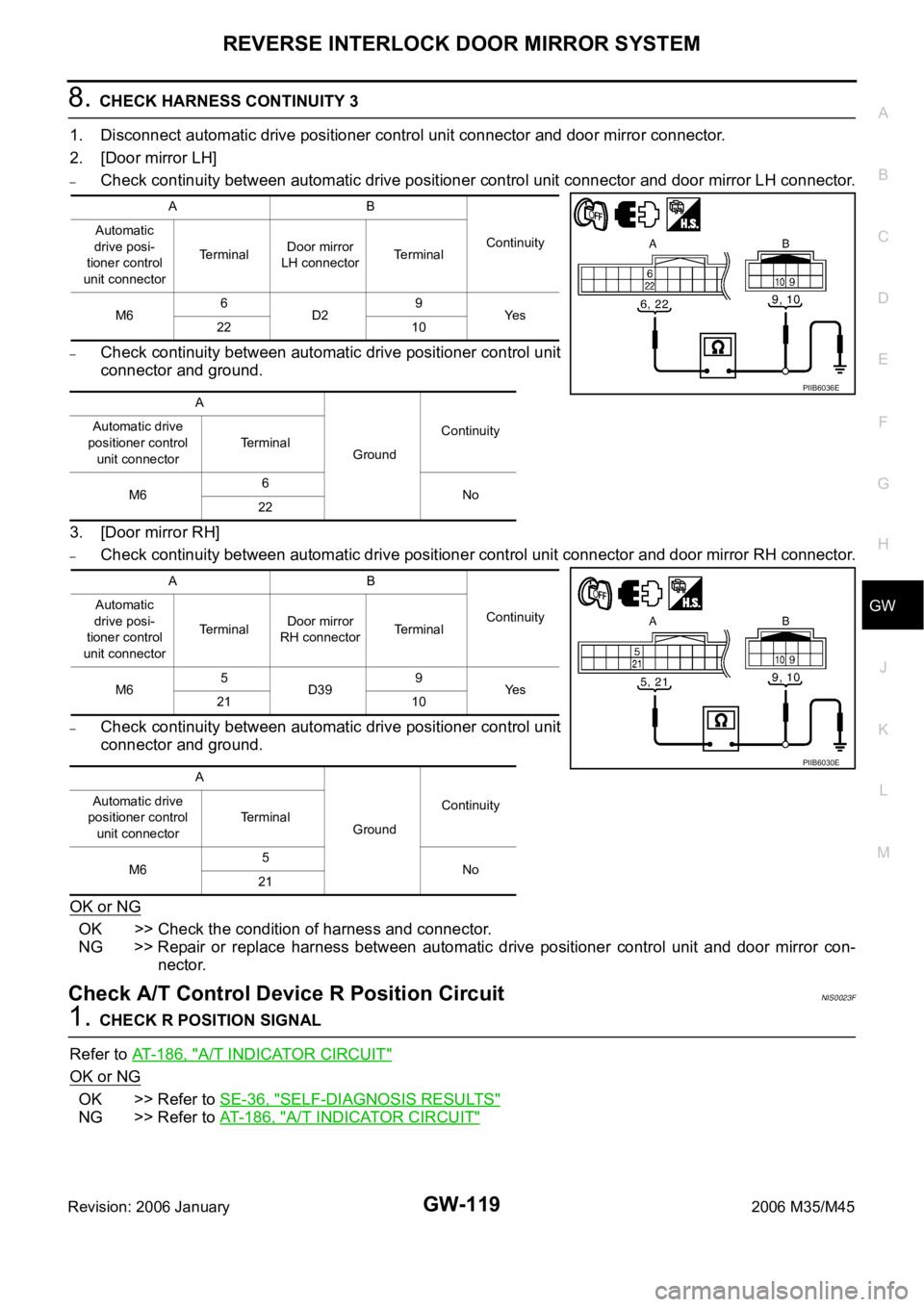

3. Check continuity between automatic drive positioner control unit connector and door mirror connector.
4. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Repair or replace harness.
Terminals
Voltage (V)
(Approx.) (+)
(-) Automatic drive
positioner control
unit connectorTerminal
M7 33 Ground Battery voltage
PIIB6028E
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
connectorTerminal
M7 33D2 (LH)
D39 (RH)11 Ye s
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M7 33 No
PIIB6033E
Page 3637 of 5621
GW-118
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2006 January2006 M35/M45
5. CHECK MIRROR SENSOR GROUND 1
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.
3. Check continuity between door mirror connector and ground.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6. CHECK MIRROR SENSOR GROUND 2
Check continuity between automatic drive positioner control unit connector and ground.
OK or NG
OK >> GO TO 7.
NG >> Replace auto drive positioner control unit.
7. CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit connector.
2. Check continuity between automatic drive positioner control unit connector and door mirror connector.
3. Check continuity between automatic drive positioner control unit
connector and door mirror connector.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror.
Door mirror connector Terminal
GroundContinuity
D2 (LH)
D39 (RH)12 Yes
PIIB6034E
Automatic drive posi-
tioner control unit con-
nectorTerminal
GroundContinuity
M7 41 Yes
PIIB6029E
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
connectorTerminal
M7 41D2 (LH)
D39 (RH)12 Yes
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M7 41 Yes
PIIB6035E
Page 3638 of 5621
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-119
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 January2006 M35/M45
8. CHECK HARNESS CONTINUITY 3
1. Disconnect automatic drive positioner control unit connector and door mirror connector.
2. [Door mirror LH]
–Check continuity between automatic drive positioner control unit connector and door mirror LH connector.
–Check continuity between automatic drive positioner control unit
connector and ground.
3. [Door mirror RH]
–Check continuity between automatic drive positioner control unit connector and door mirror RH connector.
–Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror con-
nector.
Check A/T Control Device R Position CircuitNIS0023F
1. CHECK R POSITION SIGNAL
Refer to AT-186, "
A/T INDICATOR CIRCUIT"
OK or NG
OK >> Refer to SE-36, "SELF-DIAGNOSIS RESULTS"
NG >> Refer to AT-186, "A/T INDICATOR CIRCUIT"
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
LH connectorTerminal
M66
D29
Ye s
22 10
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M66
No
22
AB
Continuity Automatic
drive posi-
tioner control
unit connectorTerminalDoor mirror
RH connectorTerminal
M65
D399
Ye s
21 10
A
GroundContinuity Automatic drive
positioner control
unit connectorTerminal
M65
No
21
PIIB6036E
PIIB6030E
