INFINITI M35 2006 Factory Service Manual
Page 671 of 5621

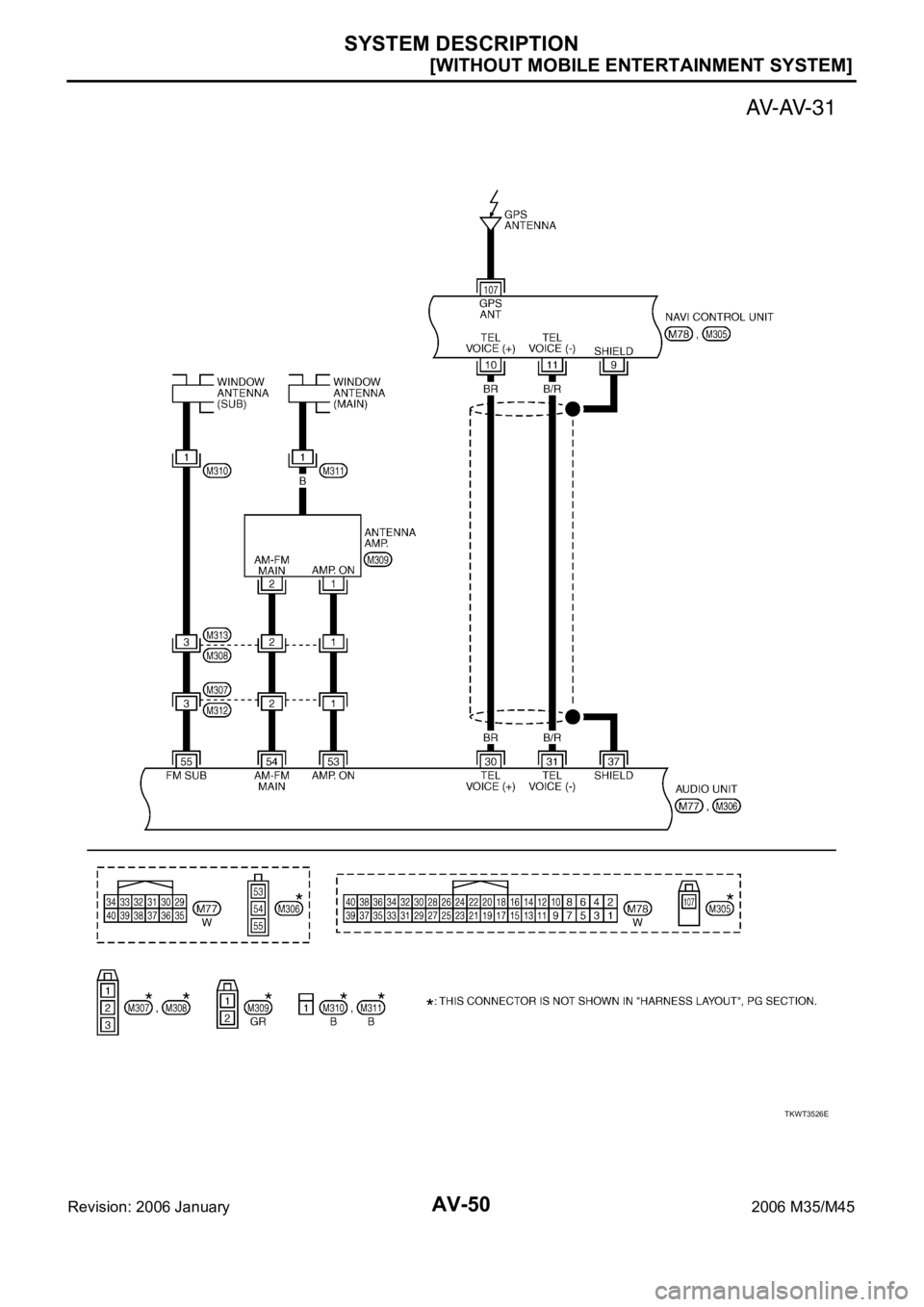

![INFINITI M35 2006 Factory Service Manual AV-50
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3526E](/img/42/57023/w960_57023-670.png "INFINITI M35 2006 Factory Service Manual AV-50
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3526E")
Page 672 of 5621

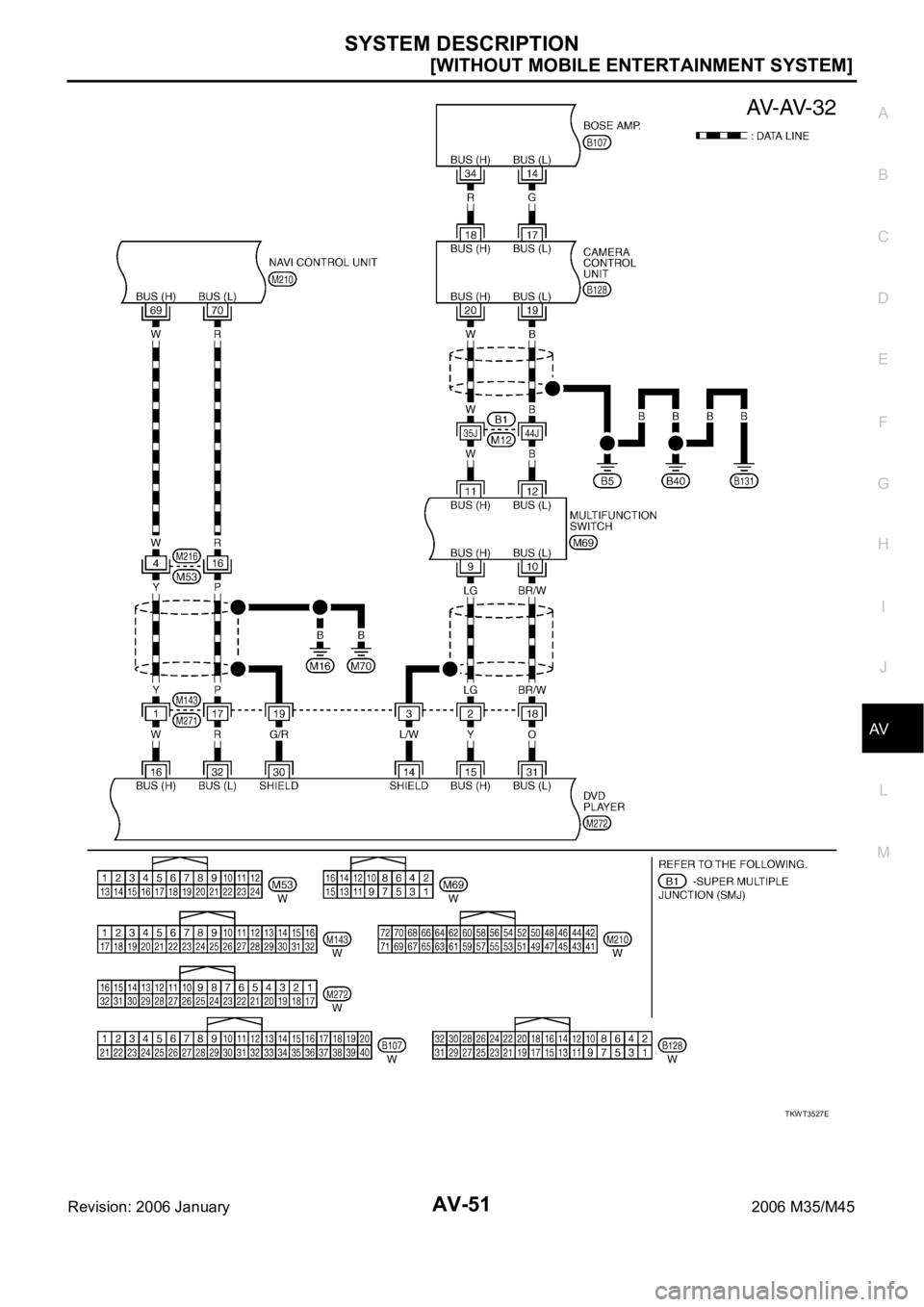

![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-51
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3527E](/img/42/57023/w960_57023-671.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-51
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3527E")
Page 673 of 5621

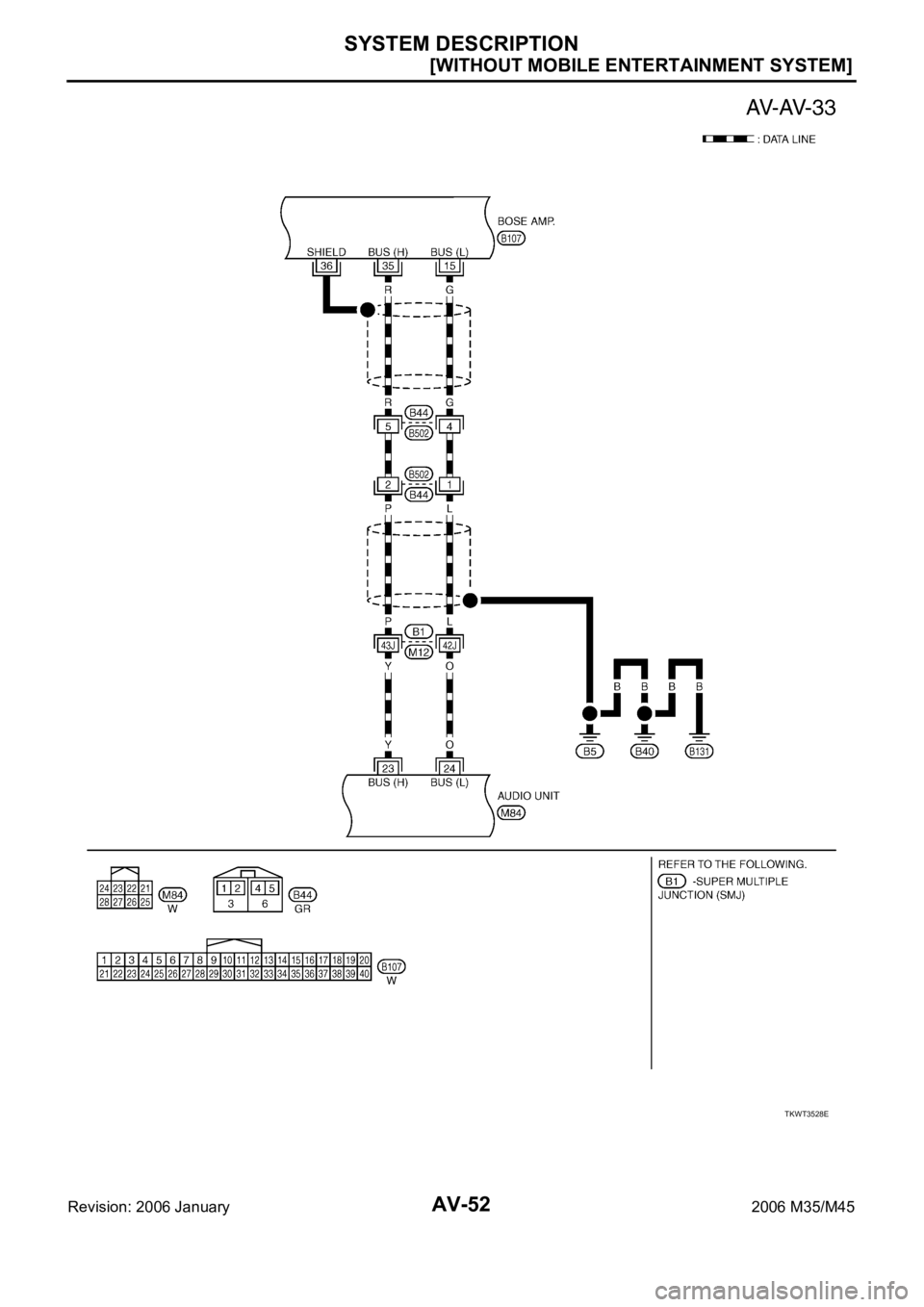

![INFINITI M35 2006 Factory Service Manual AV-52
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3528E](/img/42/57023/w960_57023-672.png "INFINITI M35 2006 Factory Service Manual AV-52
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3528E")
Page 674 of 5621
![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-53
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3529E](/img/42/57023/w960_57023-673.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-53
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3529E")
Page 675 of 5621

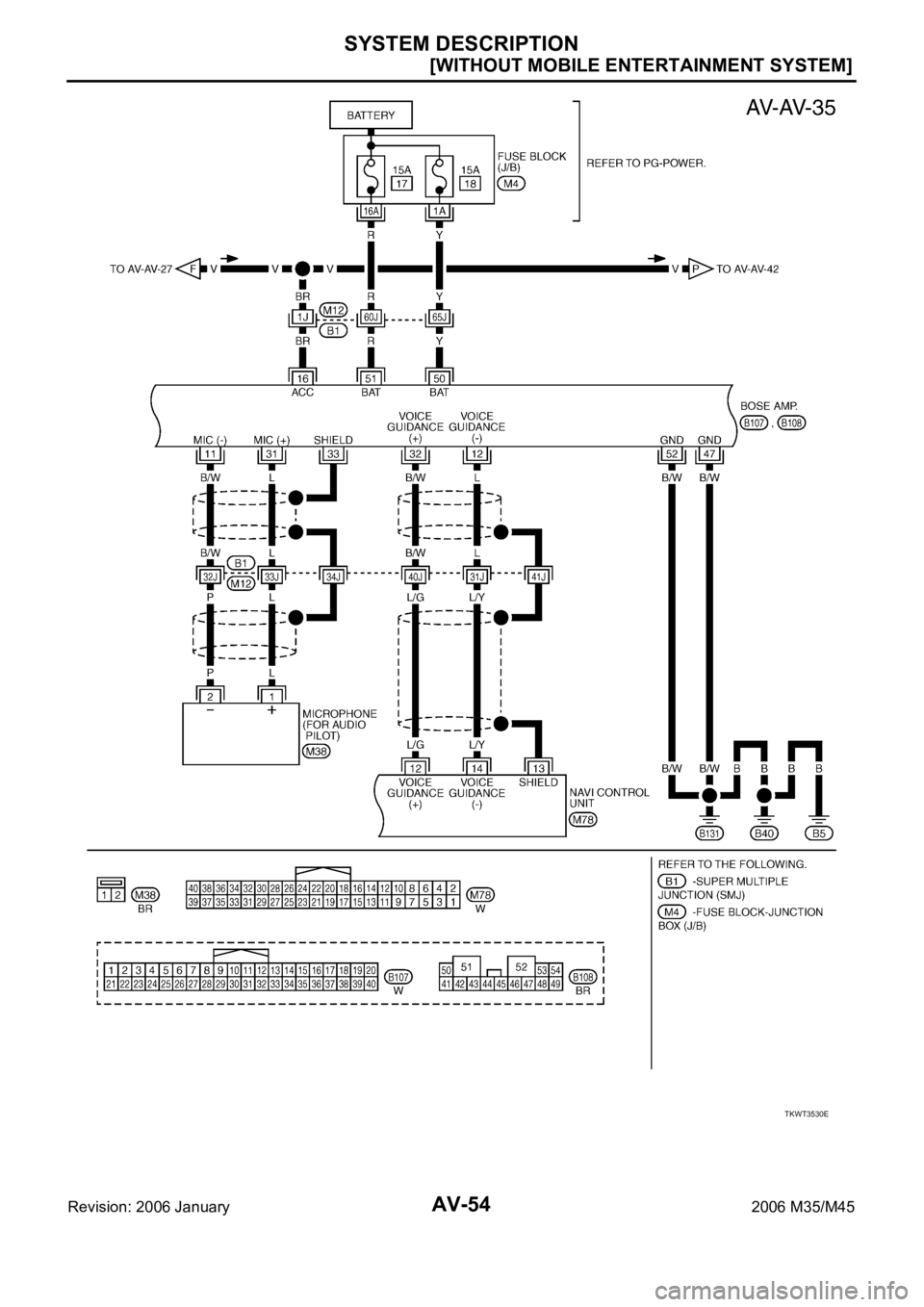

![INFINITI M35 2006 Factory Service Manual AV-54
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3530E](/img/42/57023/w960_57023-674.png "INFINITI M35 2006 Factory Service Manual AV-54
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3530E")
Page 676 of 5621

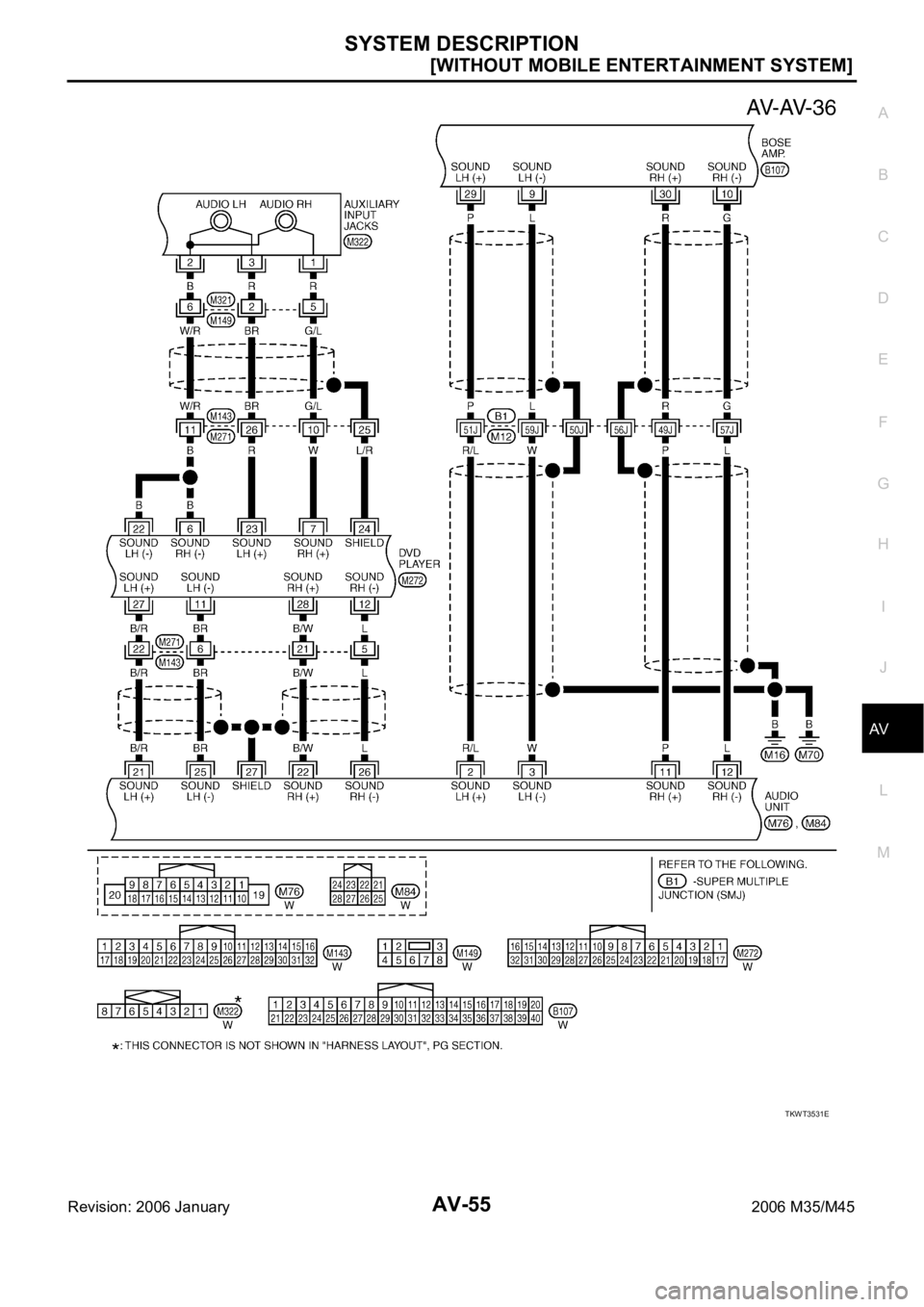

![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-55
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3531E](/img/42/57023/w960_57023-675.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-55
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3531E")
Page 677 of 5621

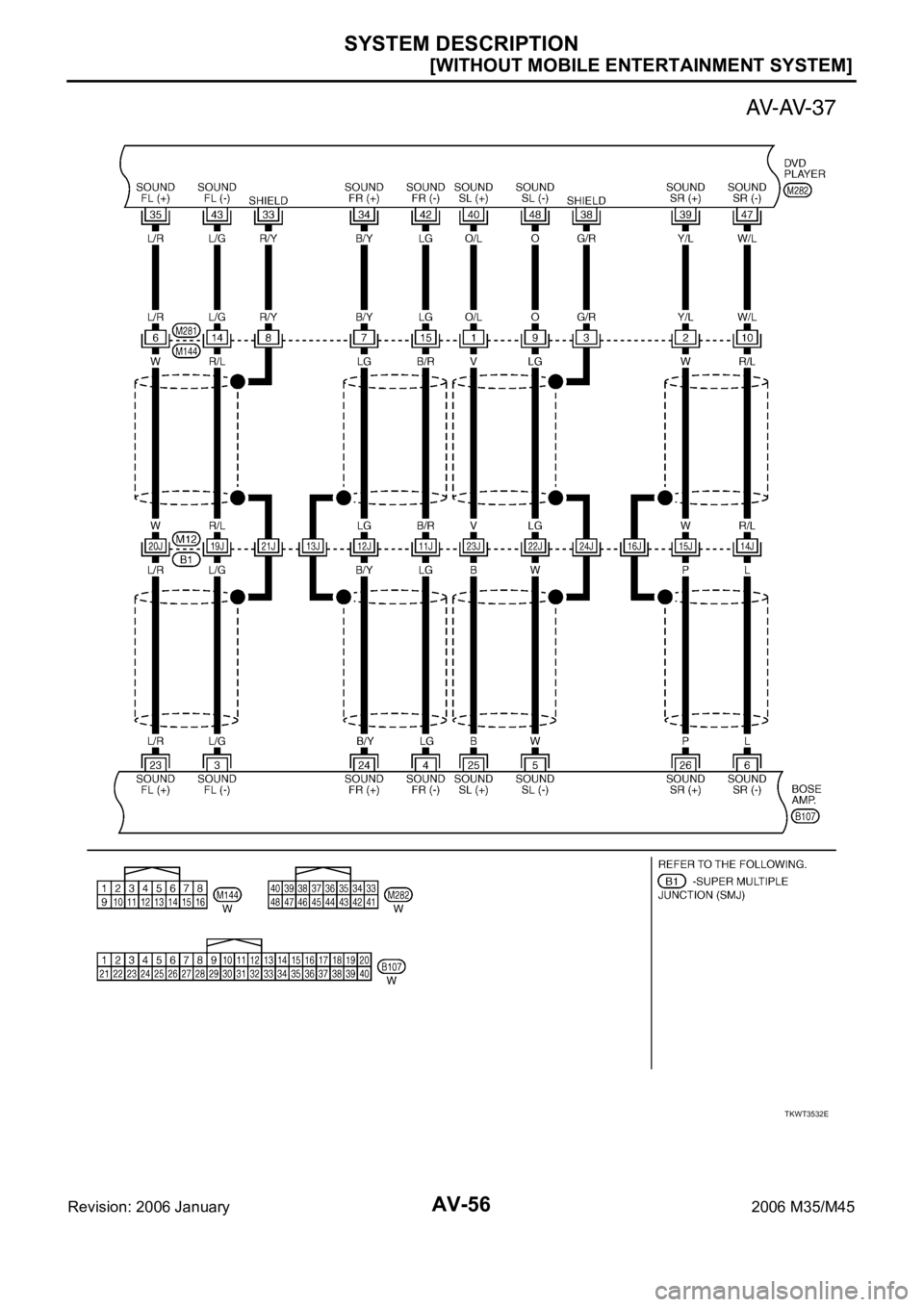

![INFINITI M35 2006 Factory Service Manual AV-56
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3532E](/img/42/57023/w960_57023-676.png "INFINITI M35 2006 Factory Service Manual AV-56
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3532E")
Page 678 of 5621

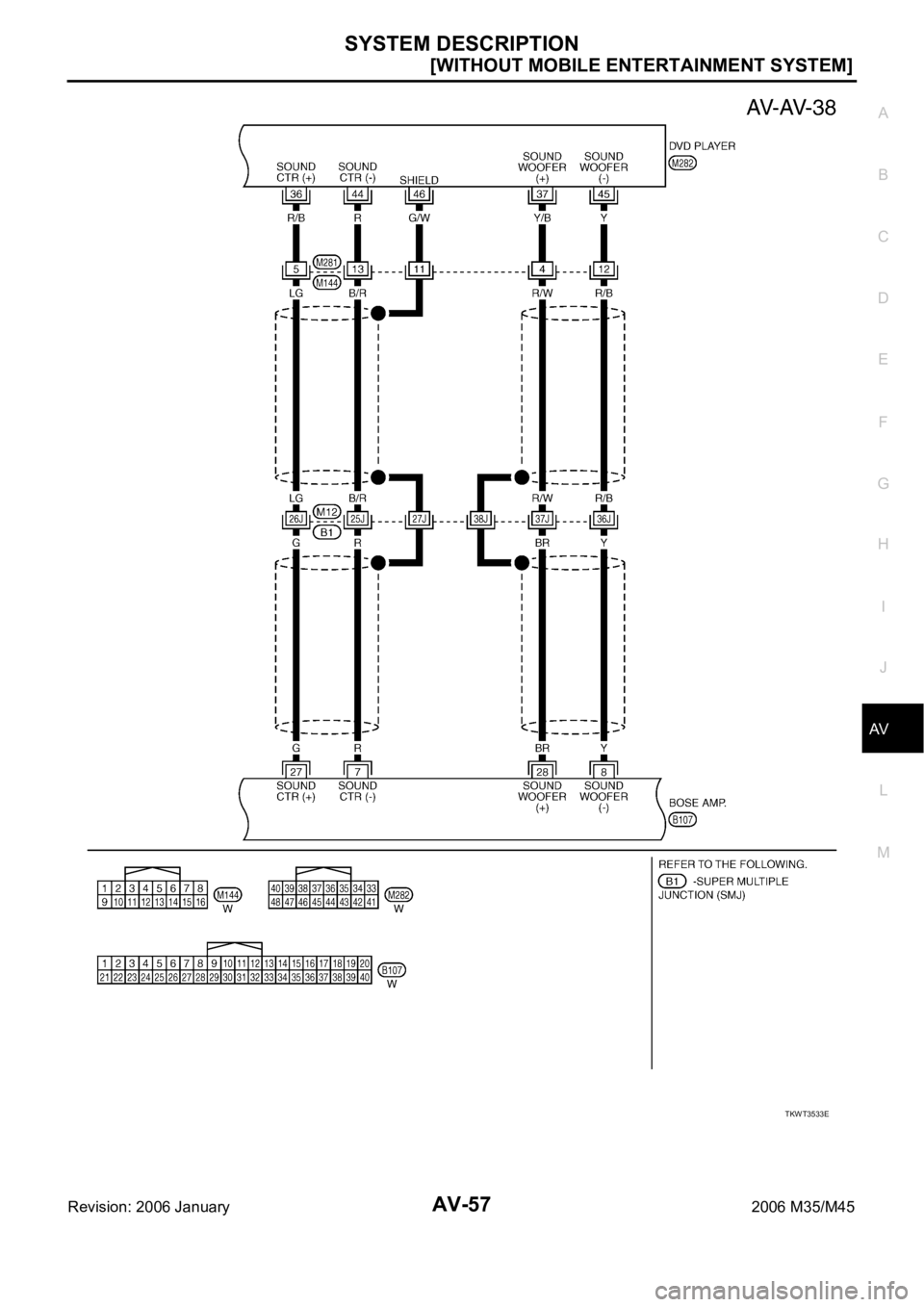

![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-57
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3533E](/img/42/57023/w960_57023-677.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-57
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3533E")
Page 679 of 5621
![INFINITI M35 2006 Factory Service Manual AV-58
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3534E](/img/42/57023/w960_57023-678.png "INFINITI M35 2006 Factory Service Manual AV-58
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3534E")
Page 680 of 5621

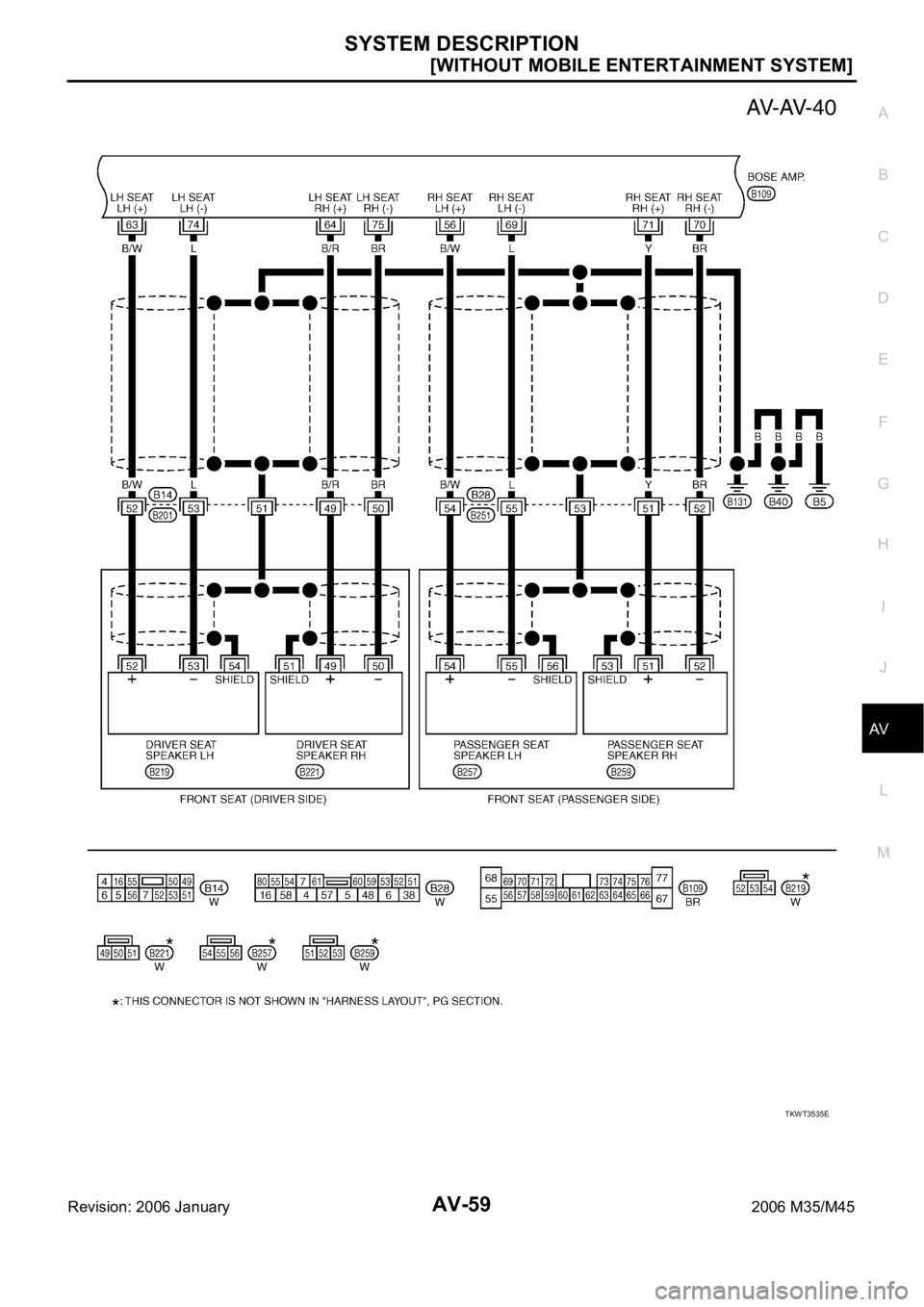

![INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-59
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3535E](/img/42/57023/w960_57023-679.png "INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-59
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3535E")
