INFINITI M35 2006 Factory Service Manual

AV-60
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3536E

SYSTEM DESCRIPTION
AV-61
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3537E

AV-62
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3538E

SYSTEM DESCRIPTION
AV-63
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3539E

AV-64
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45

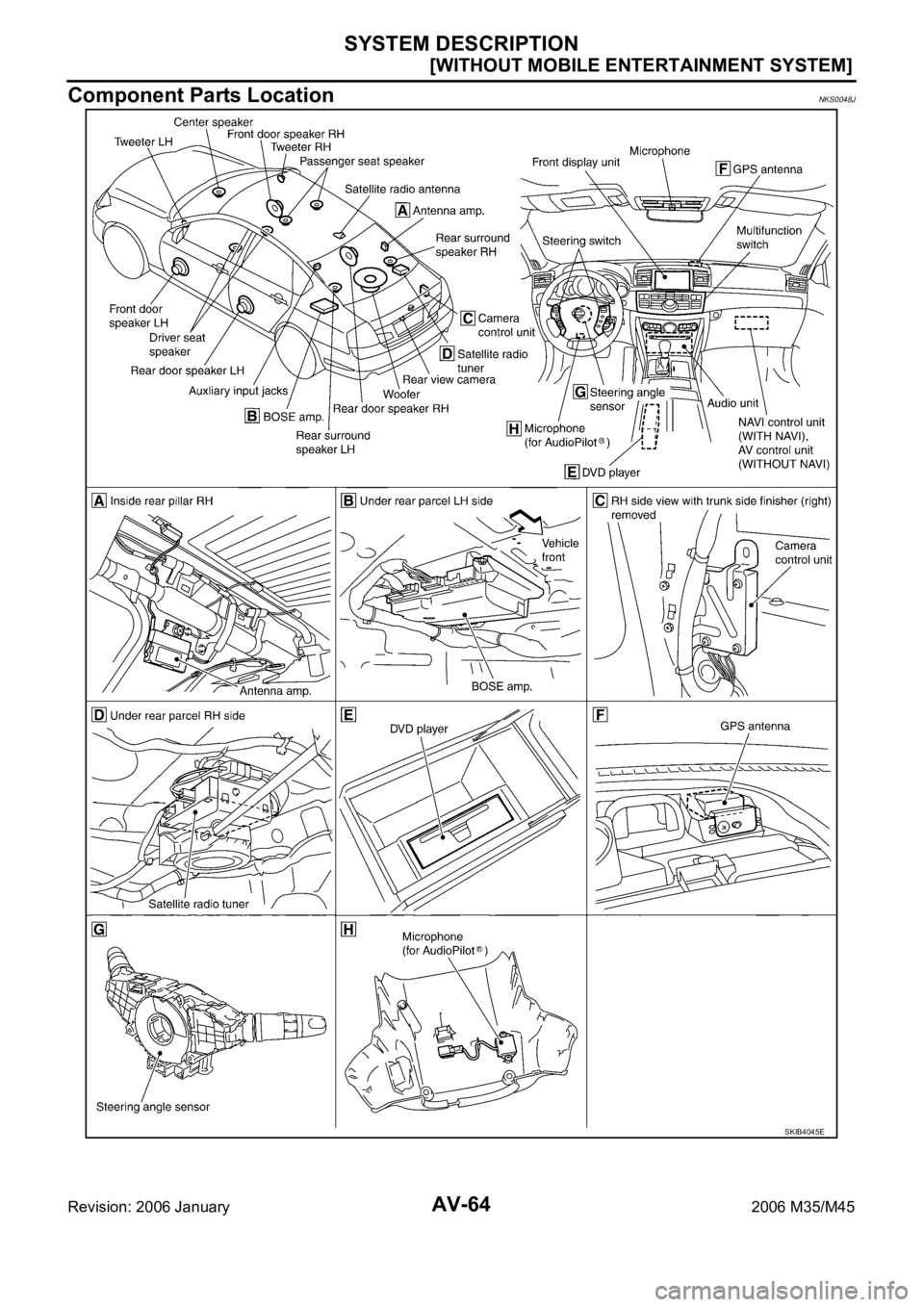

Component Parts LocationNKS0048J
SKIB4045E

SYSTEM DESCRIPTION
AV-65
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45

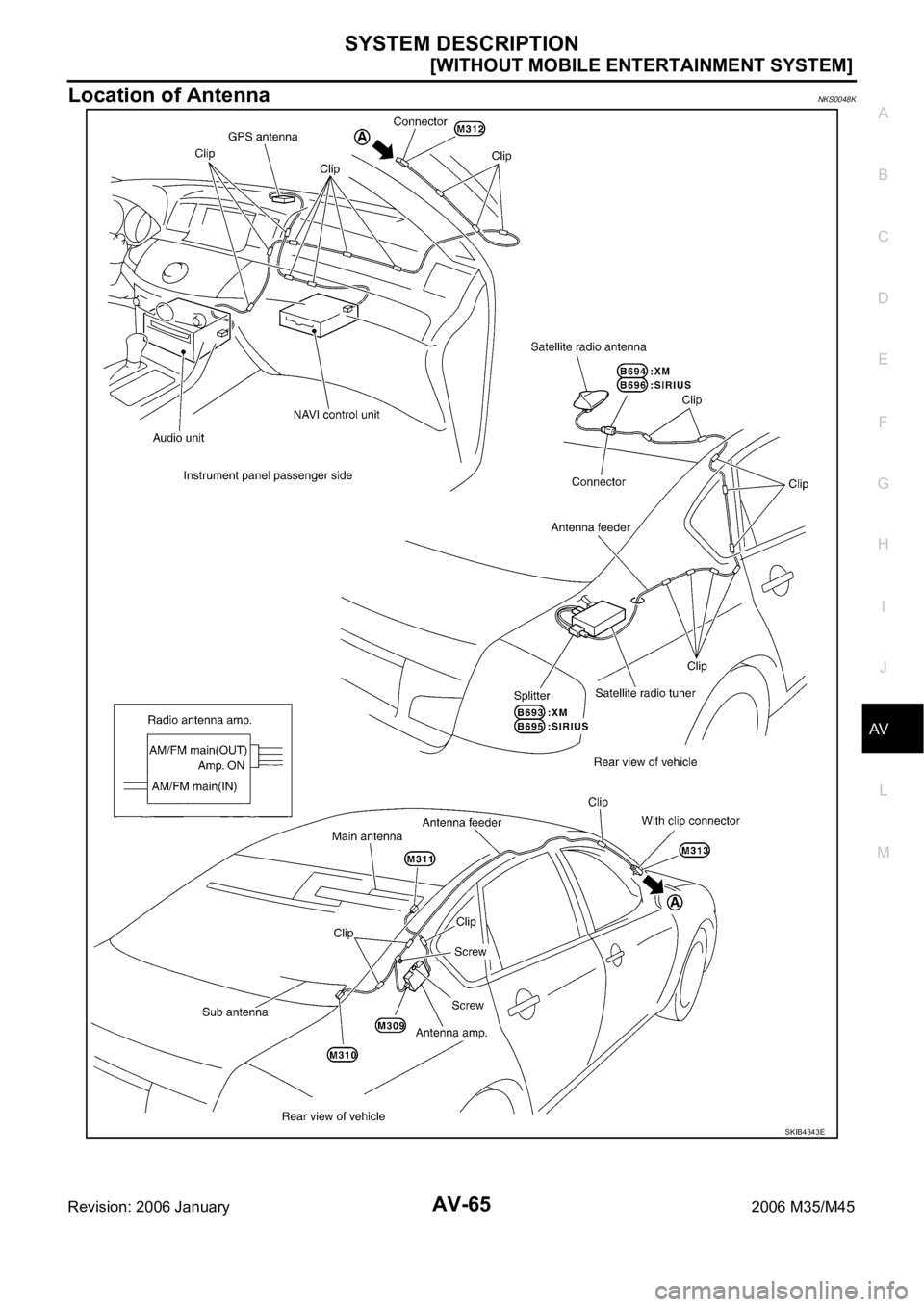

Location of AntennaNKS0048K
SKIB4343E

AV-66
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
Revision: 2006 January2006 M35/M45
TERMINALS AND REFERENCE VALUE FOR CONTROL UNITPFP:00000
Audio Unit for Base SystemNKS0048L
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
2
(P)
*1
(R/L)*2
3
(W)Audio signal front LH
Output ON Receive audio signal.
4
(V)
*1
(LG)*2
5
(SB)Audio signal rear LH
6
(BR)15
(G)Steering switch signal A Input ONKeep pushing SOURCE
switch.Approx. 0 V
Keep pushing MENU UP
switch.Approx. 1.2 V
Keep pushing MENU DOWN
switch.Approx. 2.5 V
Keep pushing ENTER
switch.Approx. 3.7 V
Except for above. Approx. 5 V
7
(V)Ground ACC power supply Input ACC
Battery voltage
8
(R/Y)Ground Illumination control signal Input OFFIllumination control switch is
operated by lighting switch
in ON position.Change between approx. 0 V
and approx. 12 V
9
(R)Ground Illumination signal Input OFFLighting switch is OFF. Approx. 0 V
Lighting switch is ON. Approx. 12 V
11
(BR)
*1
(P)*2
12
(R)*1
(L)*2Audio signal front RH
Output ON Receive audio signal.
13
(Y)14
(P)Audio signal rear RH
15
(G)GroundSteering switch signal
ground– ON – Approx. 0 V
16
(O)15
(G)Steering switch signal B Input ONKeep pushing VOL DOWN
switch.Approx. 0 V
Keep pushing VOL UP
switch.Approx. 1.2 V
Keep pushing TEL switch. Approx. 2.5 V
Keep pushing BACK switch. Approx. 3.7 V
Except for above. Approx. 5 V
19
(Y)Ground Battery power supply Input OFF
Battery voltage
20
(B)Ground Ground – ON – Approx. 0 V
23
(R)
*1
(Y)*2–Communication signal
(H)Input/
Output–– –
SKIB3609E
SKIB3609E

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
AV-67
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
24
(B)*1
(O)*2–Communication signal
(L)Input/
Output–– –
30
(BR)31
(B/R)TEL voice signal Input ONWhen inputting telephone
voice.
32
(L/G)
*1
(P)*2
33
(L/Y)*1
(L)*2Voice guidance signal Input ON Push “VOICE” button.
37 – Shield – – – –
38 – Shield – – – –
41
(R)45
(G)Audio signal LH Input ON Satellite radio mode is ON.
42
(B)46
(W)Audio signal RH Input ON Satellite radio mode is ON.
43
(W)GroundCommunication signal
(AUDIO-SAT)Output ON Satellite radio mode is ON.
47 – Shield – – – –
48 – Shield – – – –
50
(B)Ground REQ1 (SAT-AUDIO) Input ON Satellite radio mode is ON. Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3826E
SKIB3825E

AV-68
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
Revision: 2006 January2006 M35/M45
*1: 2WD models without navigation system and RAS
*2: Except *1
Audio Unit for BOSE SystemNKS0048M
51
(R)GroundCommunication signal
(SAT-AUDIO)Input ON Satellite radio mode is ON.
53 Ground Antenna amp ON signal Output ON
Approx. 12 V
54 – AM-FM main Input – – –
55 – FM sub Input – – –Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3824E
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switch Operation
2
(R/L)3
(W)Audio signal LH Output ON Receive audio signal.
6
(BR)15
(G)Steering switch signal A Input ONKeep pushing SOURCE
switch.approx. 0 V
Keep pushing MENU UP
switch.Approx. 1.2 V
Keep pushing MENU DOWN
switch.Approx. 2.5 V
Keep pushing ENTER
switch.Approx. 3.7 V
Except for above. Approx. 5 V
7
(V)Ground ACC power supply Input ACC
Battery voltage
8
(R/Y)Ground Illumination control signal Input OFFIllumination control switch is
operated by lighting switch
in ON position.Change between approx. 0 V
and approx. 12 V
9
(R)Ground Illumination signal Input OFFLighting switch is OFF. Approx. 0 V
Lighting switch is ON. Approx. 12 V
11
(P)12
(L)Audio signal RH Output ON Receive audio signal.
SKIB3609E
SKIB3609E

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT
AV-69
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
15
(G)GroundSteering switch signal
ground– ON – Approx. 0 V
16
(O)15
(G)Steering switch signal B Input ONKeep pushing VOL DOWN
switch.Approx. 0 V
Keep pushing VOL UP
switch.Approx. 1.2 V
Keep pushing TEL, PTT
switch.Approx. 2.5 V
Keep pushing BACK switch. Approx. 3.7 V
Except for above. Approx. 5V
19
(Y)Ground Battery power supply Input OFF
Battery voltage
20
(B)Ground Ground – ON – Approx. 0 V
21
*
(B/R)25
*
(BR)Sound signal LH
Input ONWhen playing DVD
(Down mix is ON)
22
*
(B/W)26
*
(L)Sound signal RH
23
(Y)–Communication signal
(H)Input/
Output–– –
24
(O)–Communication signal
(L)Input/
Output–– –
27
*– Shield––
30
(BR)31
(B/R)TEL voice signal Input ONWhen inputting TEL voice
signal.
37 – Shield – – – –
41
(R)45
(G)Audio signal LH Input ON Satellite radio mode is ON.
42
(B)46
(W)Audio signal RH Input ON Satellite radio mode is ON. Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switch Operation
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
