DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
Connection Line Between Units Is Yellow (2 or More Lines)
When 2 or more connection lines between control unit (AV control unit, NAVI control) and each unit are dis-
played in yellow, these communication system lines may be open or shorted. The malfunctioning parts can be
detected by the combination of the connection lines displayed in yellow.
Applicable parts Description Probable malfunction location
Control unit to
Amplifier
Audio unitBase system
Audio unit power supply and ground circuit mal-
function is detected
Malfunction is detected on communication cir-
cuit between multifunction switch and audio unit
Malfunction is detected on communication sig-
nal between audio unit and AV (NAVI) control
unit
Audio unit power and ground circuit
Communication circuit between multifunction
switch and audio unit
Multifunction switch
Audio unit
AV (NAVI) control unit
BOSE system
Malfunction is detected on communication cir-
cuit between multifunction switch and camera
control unit
Malfunction is detected on communication cir-
cuit between camera control unit and BOSE
amp
Communication circuit between camera control
unit and BOSE amp
Multifunction switch
Camera control unit
BOSE amp

DIAGNOSIS SYSTEM
AV-91
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
Confirmation/Adjustment ModeNKS0048X
1. Start the diagnosis function, and then select “Confirmation/
Adjustment”.
2. Select each screen switch of Confirmation/Adjustment screen to
display the relevant diagnosis screen. Press the “BACK” switch
to return to the initial screen of Confirmation/Adjustment.

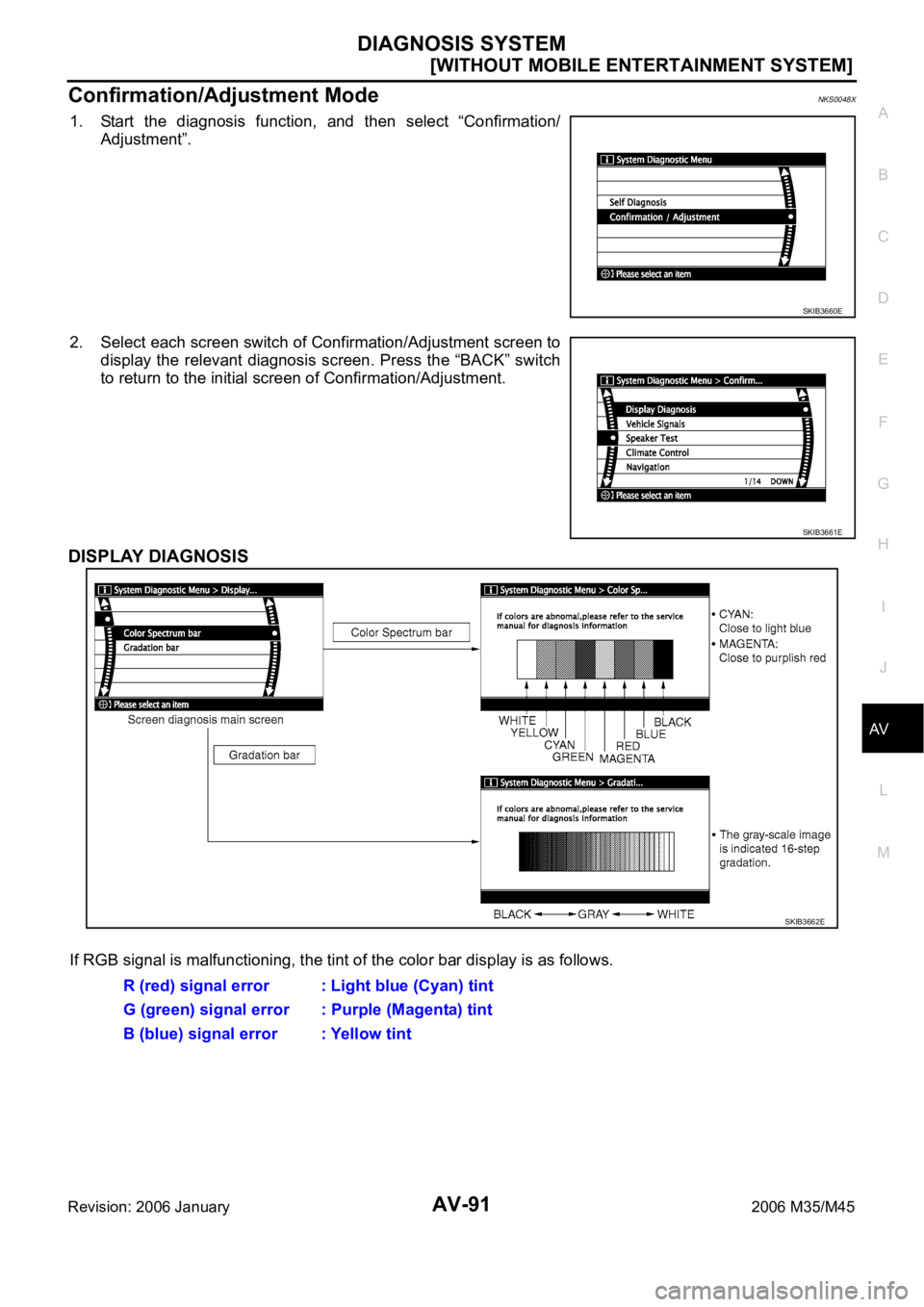

DISPLAY DIAGNOSIS
If RGB signal is malfunctioning, the tint of the color bar display is as follows.
SKIB3660E
SKIB3661E
SKIB3662E
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint

AV-92
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
VEHICLE SIGNALS
A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.
SPEAKER TEST
When selecting “Speaker Test”, speaker diagnosis screen is dis-
played. When pressing “Start”, test tone emits from the speaker. At
that time, when pressing “Start”, test tone emits from next speaker.
Then, when pressing the “END”, test tone stops.
NOTE:
The frequency of test tone emitted from each speaker is as follows.
CLIMATE CONTROL
For details, refer to ATC-55, "Self-diagnosis Function" .
SKIB3663E
Diagnosis itemDis-
playVehicle status Remarks
Vehicle speedON Vehicle speed > 0 km/h (0 MPH)
Changes in indication may be delayed. This is nor-
mal. OFF Vehicle speed = 0 km/h (0 MPH)
— Ignition switch in ACC position
Parking brakeON Parking brake is applied.
OFF Parking brake is released.
LightsON Light switch ON
–
OFF Light switch OFF
IgnitionON Ignition switch ON
–
OFF Ignition switch in ACC position
ReverseON Selector lever in R position
Changes in indication may be delayed. This is nor-
mal. OFFSelector lever in any position
other than R
— Ignition switch in ACC position
Tw e e t e r : 3 k H z
Front door speaker : 300 Hz
Rear door speaker : 1 kHz
Rear surround speaker : 1 kHz
Center speaker : 1 kHz
Woofer : 100 Hz
Seat speaker : 1 kHz
SKIB3664E

DIAGNOSIS SYSTEM
AV-93
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
NAVIGATION
Steering Angle Adjustment
The steering angle output value detected with the gyroscope can be
adjusted.
Speed Calibration
Usually the automatic distance correction function adjusts the mal-
function in distance caused by the tires wearing down or the tire
pressure change. If prompt adjustment is necessary when the tire
chains are installed etc., perform this procedure.
ERROR HISTORY
The diagnostic results of “Self-diagnosis” determine if any malfunction occurred between selecting “Self-diag-
nosis” and displaying “Self-diagnostic Results”.
If an error occurred before the ignition switch was turned ON and does not occur again until “Self-diagnosis” is
completed, the trouble diagnosis result will be judged normal. Therefore, errors in the past which cannot be
found by “Self-diagnosis”, must be found by checking the “Error record”.
The error history shows the error occurrence frequency in past. The frequency of occurrence is displayed by 2
types: the count down type and the count up type. Select either type according to the error item.
In “Error History” of models with NAVI, time and place that the selected error last occurred are displayed. Be
careful about the following.
If there is a malfunction with the GPS antenna circuit board in the NAVI control unit, the correct date of
occurrence may not be able to be displayed.
Place of the error occurrence is represented by the position of the current location mark at the time an
error occurred. If current location mark has deviated from the correct position, then the place of the error
occurrence cannot be located correctly.
Transition Screen
Without NAVI
SKIB3684E
SKIB3685E
SKIB3665E

AV-94
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
With NAVI
Count Down Type
When the error is detected, set the counter to 40. If the system is normal when turning the ignition switch
ON, the counter decreases by 1.
The lower limit of the counter is 1. It can be reset to 0 by “Delete log” switch or CONSULT-II.
Count Up Type
When the ignition switch is turned ON if the error is detected, the counter increases 1. Even if it is normal
when the ignition switch is turned ON the next time, the counter does not decrease.
The upper limit of the counter is 50. 51 or more is displayed as 50. It can be reset to 0 by “Delete log”
switch or CONSULT-II.
Error Item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items
SKIB3687E
Display type of occur-
rence frequencyError history display item
Count down type CAN_COMM_CIRCUIT, CONTROL UNIT (CAN), AV COMM CIRCUIT, CONTROL UNIT (AV)
Count up type Other than the above
Error item Description Possible cause/Action to take
CAN_COMM_CIRCUITCAN communication malfunction is
detectedPerform the diagnosis using CONSULT-II,
and then repair the malfunctioning parts
based on diagnostic results.
Refer to AV-103, "
SELF-DIAG RESULTS"
.
CONTROL UNIT (CAN) CAN initial diagnosis malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-135, "
AV (NAVI) Control Unit"
CONTROL UNIT (AV) AV communication circuit initial diagno-
sis malfunction is detectedReplace AV (NAVI) control unit
Refer to AV-135, "AV (NAVI) Control Unit"
AV COMM CIRCUIT
Switches Connection Error
DVD Deck Connection Error
Audio Unit Connection Error
Amplifier Connection Error
Rearview Camera Connection ErrorMalfunction is detected on communi-
cation circuit between AV (NAVI) con-
trol unit and DVD player
Communication circuit between AV
(NAVI) control unit and DVD player
AV (NAVI) control unit
DVD player

DIAGNOSIS SYSTEM
AV-95
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
AV COMM CIRCUIT
Switches Connection Error
Audio Unit Connection Error
Amplifier Connection Error
Rearview Camera Connection ErrorBOSE surround 5.1ch system
Malfunction is detected on communi-
cation circuit between DVD player
and multifunction switch
Communication circuit between DVD
player and multifunction switch
DVD player
Multifunction switch
BOSE 2ch system
Malfunction is detected on communi-
cation circuit between AV (NAVI)
control unit and multifunction switch
Communication circuit between AV
(NAVI) control unit and multifunction
switch
AV (NAVI) control unit
Multifunction switch
AV COMM CIRCUIT
Audio Unit Connection Error
Amplifier Connection Error
Rearview Camera Connection ErrorMalfunction is detected on communi-
cation circuit between multifunction
switch and camera control unit
Communication circuit between multi-
function switch and camera control unit
Multifunction switch
Camera control unit
AV COMM CIRCUIT
Audio Unit Connection Error
Amplifier Connection ErrorBase system
Audio unit power supply and ground
circuit malfunction is detected
Malfunction is detected on communi-
cation circuit between multifunction
switch and audio unit
Malfunction is detected on communi-
cation signal between audio unit and
AV (NAVI) control unit
Audio unit power supply and ground cir-
cuit
Communication circuit between multi-
function switch and audio unit
Multifunction switch
Audio unit
AV (NAVI) control unit
BOSE system
Malfunction is detected on communi-
cation circuit between camera con-
trol unit and BOSE amp
Communication circuit between camera
control unit and BOSE amp
Camera control unit
BOSE amp
AV COMM CIRCUIT
Audio Unit Connection Error
Audio unit power supply and ground
circuit malfunction is detected
Malfunction is detected on communi-
cation circuit between BOSE amp
and audio unit
Malfunction is detected on communi-
cation signal between audio unit and
AV (NAVI) control unit
Audio unit power supply and ground cir-
cuit
Communication circuit between BOSE
amp and audio unit
Audio unit
AV (NAVI) control unit
AV COMM CIRCUIT
Rearview Camera Connection Error
Camera control unit power supply
and ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between camera con-
trol unit and AV (NAVI) control unit
Camera control unit power supply and
ground circuit
Camera control unit
AV (NAVI) control unit
AV COMM CIRCUIT
Switches Connection Error
Multifunction switch power supply
and ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between multifunction
switch and AV (NAVI) control unit
Multifunction switch power supply and
ground circuit
Multifunction switch
AV (NAVI) control unit
AV COMM CIRCUIT
DVD Deck Connection Error
DVD player power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between DVD player
and AV (NAVI) control unit
DVD player power supply and ground
circuit
DVD player
AV (NAVI) control unit Error item Description Possible cause/Action to take

AV-96
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
AV COMM CIRCUIT
Amplifier Connection Error
BOSE amp power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation signal between BOSE amp
and AV (NAVI) control unit
BOSE amp power supply and ground
circuit
BOSE amp
AV (NAVI) control unit
Front Display Connection Error
Front display unit power supply and
ground circuit malfunction is
detected
Malfunction is detected on communi-
cation circuit between front display
unit and AV (NAVI) control unit
Malfunction is detected on communi-
cation signal between front display
unit and AV (NAVI) control unit
Front display unit power supply and
ground
Communication circuit between front
display unit and AV (NAVI) control unit
Front display unit
AV (NAVI) control unit
GPS Antenna ErrorGPS antenna connection malfunction
is detected
GPS antenna feeder
GPS antenna
NAVI control unit
Camera Control Unit Connection ErrorCamera and connection recognition
signal circuit malfunction is detected
Camera-connection recognition signal
circuit
Camera control unit
AV (NAVI) control unit
FLASH-ROM Error Of Control UnitAV (NAVI) control unit malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-135, "
AV (NAVI) Control Unit"
Connection Of GyroNAVI control unit malfunction is
detectedReplace NAVI control unit
Refer to AV-135, "AV (NAVI) Control Unit"
GPS Communication Error
GPS malfunction is detectedIf the symptoms such as the GPS receipt
malfunction occur, intermittent malfunction
caused by strong radio interference may
be detected.
If the malfunction always occurs, replace
NAVI control unit. GPS ROM Error
GPS RAM Error
GPS RTC Error
DVD-ROM Communication Error
Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit
There is dirt and damage on the map
disc
Map disc
NAVI control unit
Refer to AV-135, "
AV (NAVI) Control
Unit" DVD-ROM Read Error
DVD-ROM Disc Error
DVD-ROM Mechanism not Detected
DVD-ROM Mechanism Error
DVD-ROM Focus Error
DVD-ROM TOC Error
DVD-ROM Seek Error
DVD-ROM Error Correction Error
DVD-ROM Data Transfer Error
DVD-ROM Data Error
DVD-ROM Time-out
DVD-ROM Loading / Eject Error
CAN Controller Memory Error
AV (NAVI) control unit malfunction is
detectedReplace AV (NAVI) control unit
Refer to AV-135, "
AV (NAVI) Control Unit"Bluetooth Module Connection ErrorError item Description Possible cause/Action to take

DIAGNOSIS SYSTEM
AV-97
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
VEHICLE CAN DIAGNOSIS
CAN communication status and error counter is displayed.
Error counter displays 0 if any malfunction is not detected in the
past. If the malfunction is detected, it displays 40. When turning
the ignition switch ON, if it is normal, it displays 39. The lower
limit of the counter is 1.
If it is reset, the error counter is deleted.
NOTE:
“???” indicates “UNKWN”.
AV COMM DIAGNOSIS
Displays the communication condition between AV (NAVI) con-
trol unit (master unit) and each unit and between audio unit
(sub-master unit) and each unit.
Error counter displays 0 if any malfunction is not detected in the
past. If the malfunction is detected, it displays 40. When turning
the ignition switch ON, if it is normal, it displays 39. The lower
limit of the counter is 1.
If it is reset, the error counter is deleted.
ITM: AV (NAVI) control unit
NOTE:
“???” indicates “UNKWN”.Items Display (Current)Error counter
(Past)
Tx (HVAC) OK /??? 0 - 40
Rx (ECM) OK /??? 0 - 40
Rx (Cluster) OK /??? 0 - 40
Rx (BCM) OK /??? 0 - 40
Rx (HVAC) OK /??? 0 - 40
Rx (USM) OK /??? 0 - 40
Rx (TPMS) OK /??? 0 - 40
SKIB3666E
ItemsStatus
(Current)Counter
(Past)
C Tx (ITM-PrimarySW) OK /??? 0 - 40
C Rx (PrimarySW-ITM) OK /??? 0 - 40
C Rx (STRG SW-ITM) OK /??? 0 - 40
C Rx (RrSeatSW-ITM) OK /??? 0 - 40
C Rx (Audio-ITM) OK /??? 0 - 40
C Rx (Amp-ITM) OK /??? 0 - 40
C Rx (RearCamera-ITM) OK /??? 0 - 40
C Rx (DVD-ITM) OK /??? 0 - 40
C Rx (Amp-Audio) OK /??? 0 - 40
C Rx (DVD-Audio) OK /??? 0 - 40SKIB3667E

AV-98
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
DIAGNOSIS SYSTEM
Revision: 2006 January2006 M35/M45
HANDSFREE PHONE
Handsfree Volume Adjustment
The received volume adjustment of hands-free phone can be
adjusted to Low, Medium, and High settings.
Voice Microphone Test
When this function is turned “ON”, the voice that is input to microphone is output to front speaker via TEL voice
signal line. The microphone and TEL voice signal line can be checked.
Delete Handsfree Memory
Erase the memory related to the hands-free phone.
SKIB3668E

DIAGNOSIS SYSTEM
AV-99
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
CAMERA CONT.
There are 2 functions: “Connection Confirmation”, “Adjust offset of rear view camera”.
Connection Confirmation
The input signals of steering angle sensor signal, reverse signal, and
vehicle speed signal can be checked.
Adjust Offset of Rear View Camera
If the adjustment of rear view monitor guiding line display position is
necessary when rear view camera is removed, use this mode to
adjust it.
SKIB3688E
Diagnosis item Display Vehicle status
Steering Angle SensorONIt turns ON when the steering is turning with the ignition switch ON (Once it turns
ON, it does not change during Connection Confirmation mode)
OFFTurn ignition switch ACC
It turns OFF when the steering is not turning with the ignition switch ON
— Camera-connection recognition signal malfunction
Reverse SensorON Selector lever in R position with ignition switch ON
OFFTurn ignition switch ACC
Selector lever in any position other than R with ignition switch ON
— Camera-connection recognition signal malfunction
Vehicle Speed SensorON When vehicle speed is 0 km/h or more with ignition switch ON
OFFTurn ignition switch ACC
When vehicle speed is 0 km/h with ignition switch ON
— Camera-connection recognition signal malfunction
SKIB3689E
