Body INFINITI M35 2006 Factory Repair Manual

BODY REPAIR
BL-295
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
Body AlignmentNIS00212
BODY CENTER MARKS
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
SIIA2459E

BL-296
BODY REPAIR
Revision: 2006 January2006 M35/M45

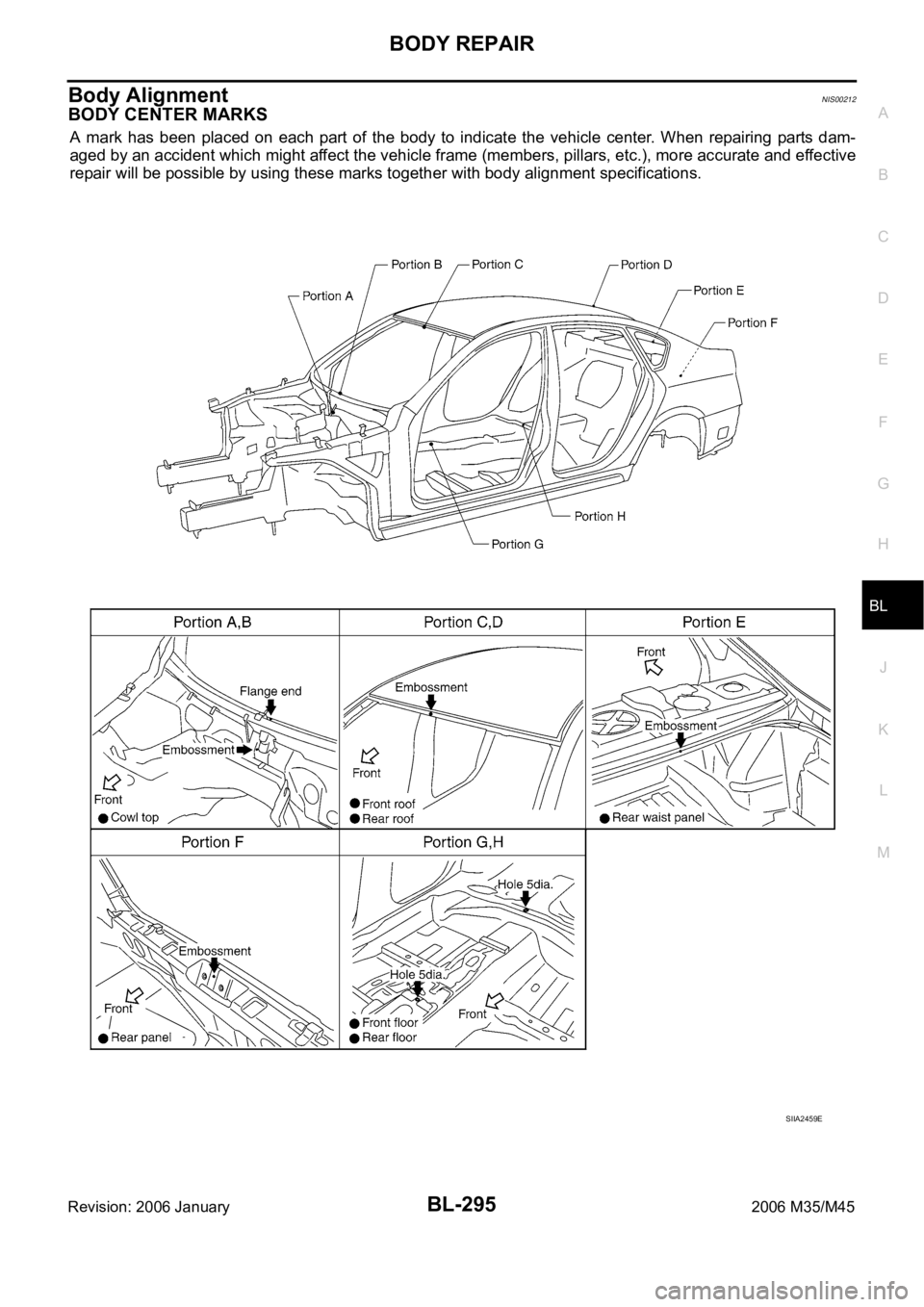

PANEL PARTS MATCHING MARKS
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
SIIA2460E

BODY REPAIR
BL-297
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
DESCRIPTION
All dimensions indicated in the figures are actual.
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
Measurements should be taken at the center of the mounting holes.
An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
The coordinates of the measurement points are the distances measured from the standard line of X, Y
and Z.
PIIA0104E

BL-298
BODY REPAIR
Revision: 2006 January2006 M35/M45
ENGINE COMPARTMENT
Measurement
SIIA2461E

BODY REPAIR
BL-299
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45

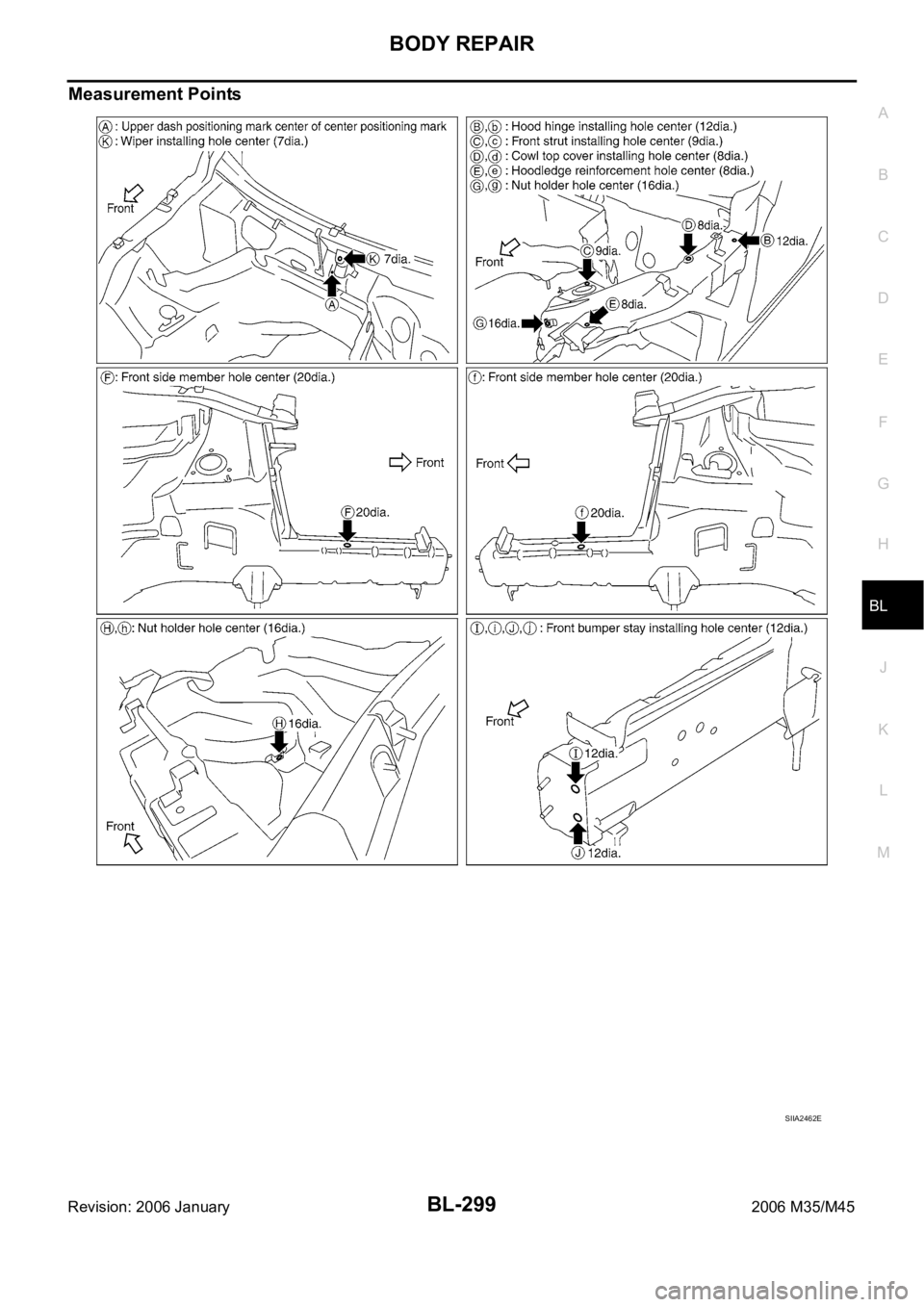

Measurement Points
SIIA2462E

BL-300
BODY REPAIR
Revision: 2006 January2006 M35/M45

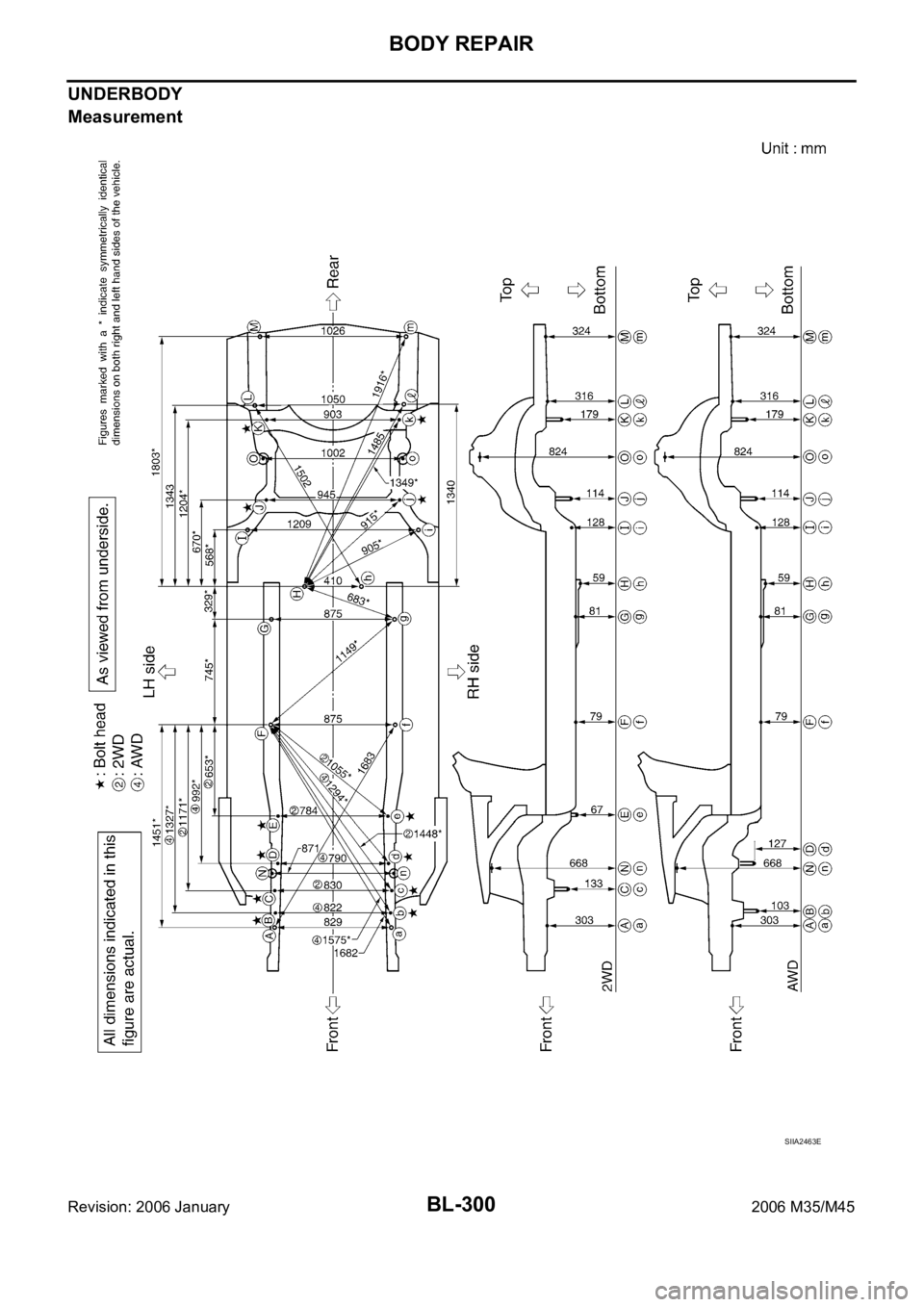

UNDERBODY
Measurement
SIIA2463E

BODY REPAIR
BL-301
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45

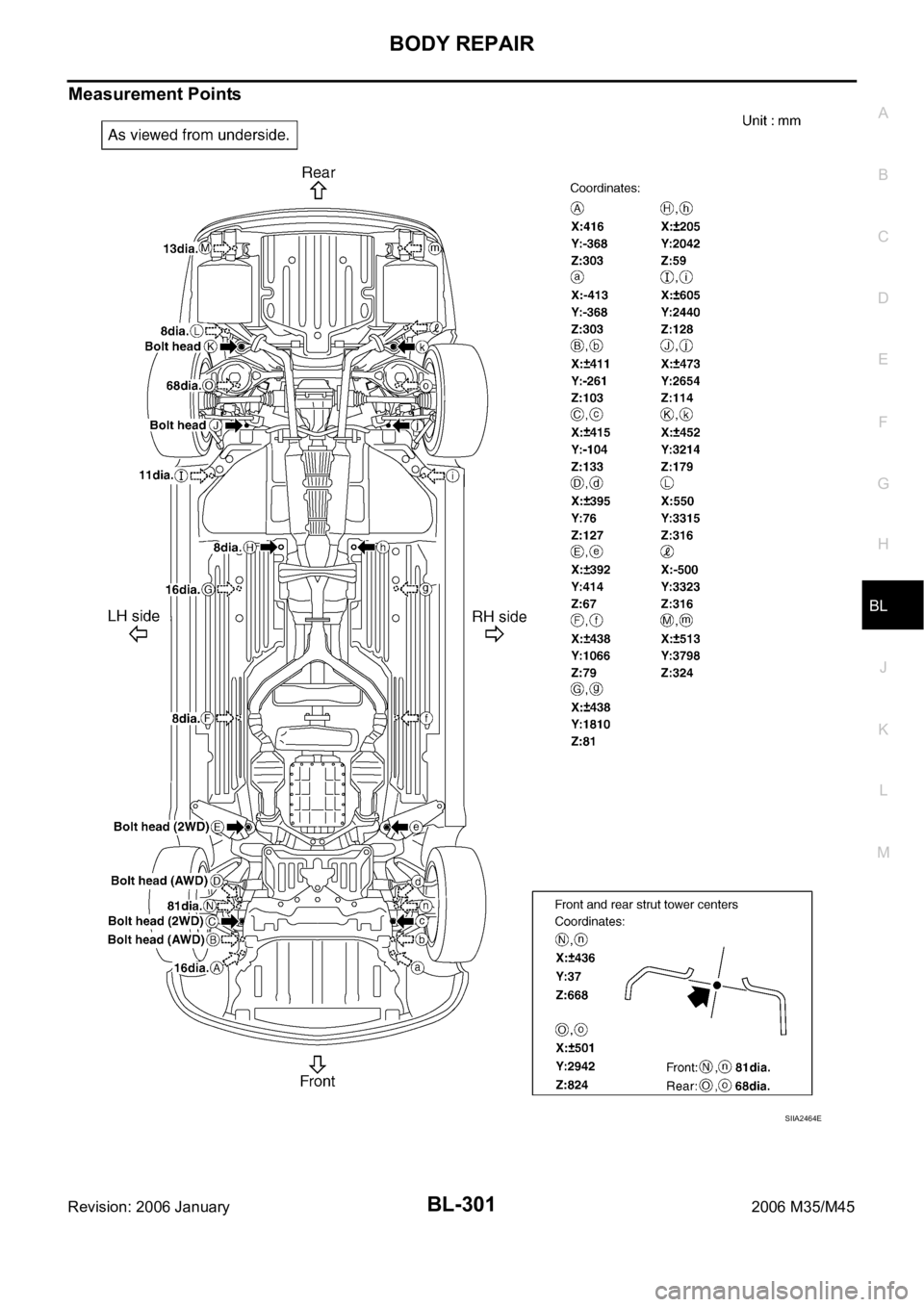

Measurement Points
SIIA2464E

BL-302
BODY REPAIR
Revision: 2006 January2006 M35/M45

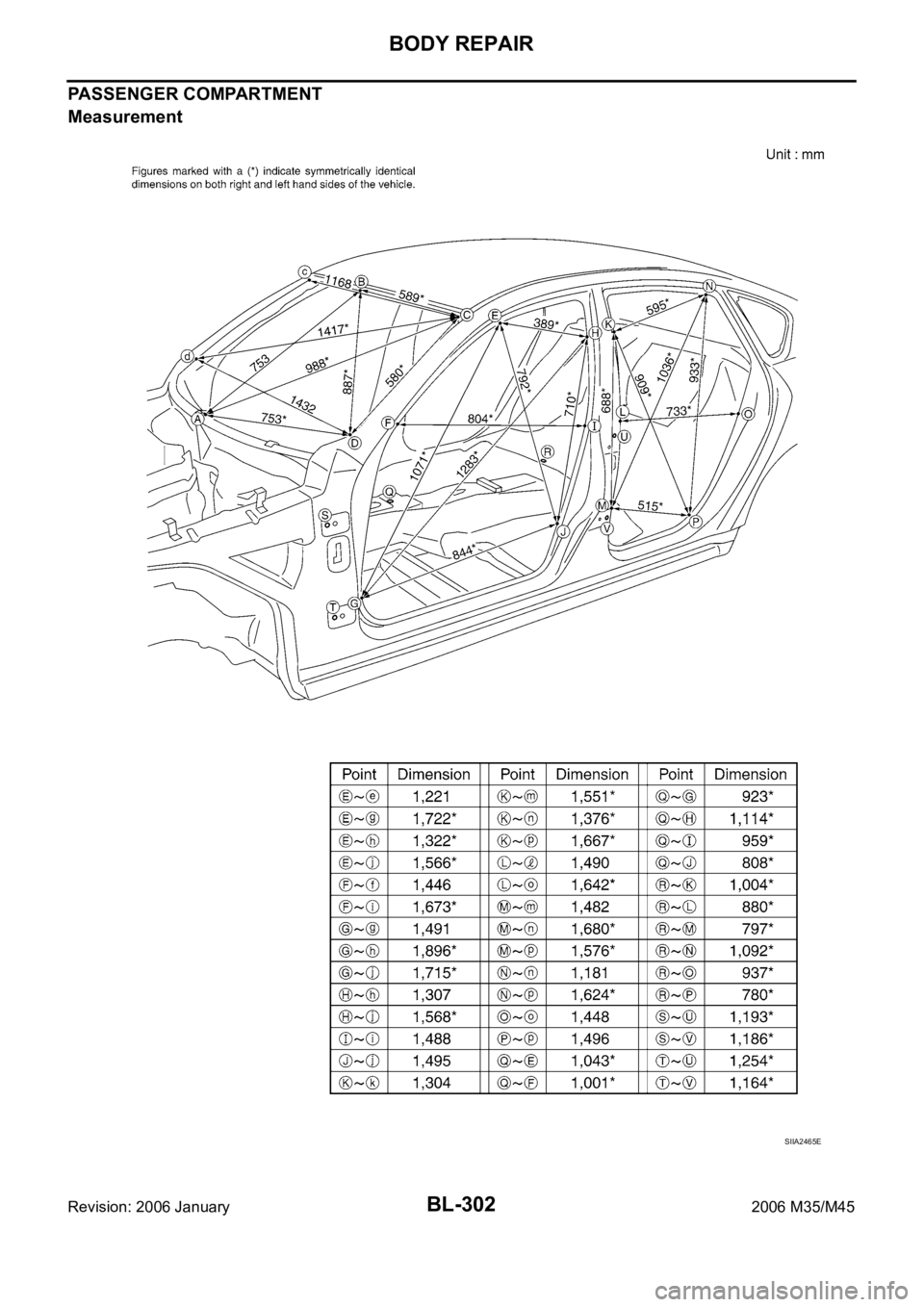

PASSENGER COMPARTMENT
Measurement
SIIA2465E

BODY REPAIR
BL-303
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45

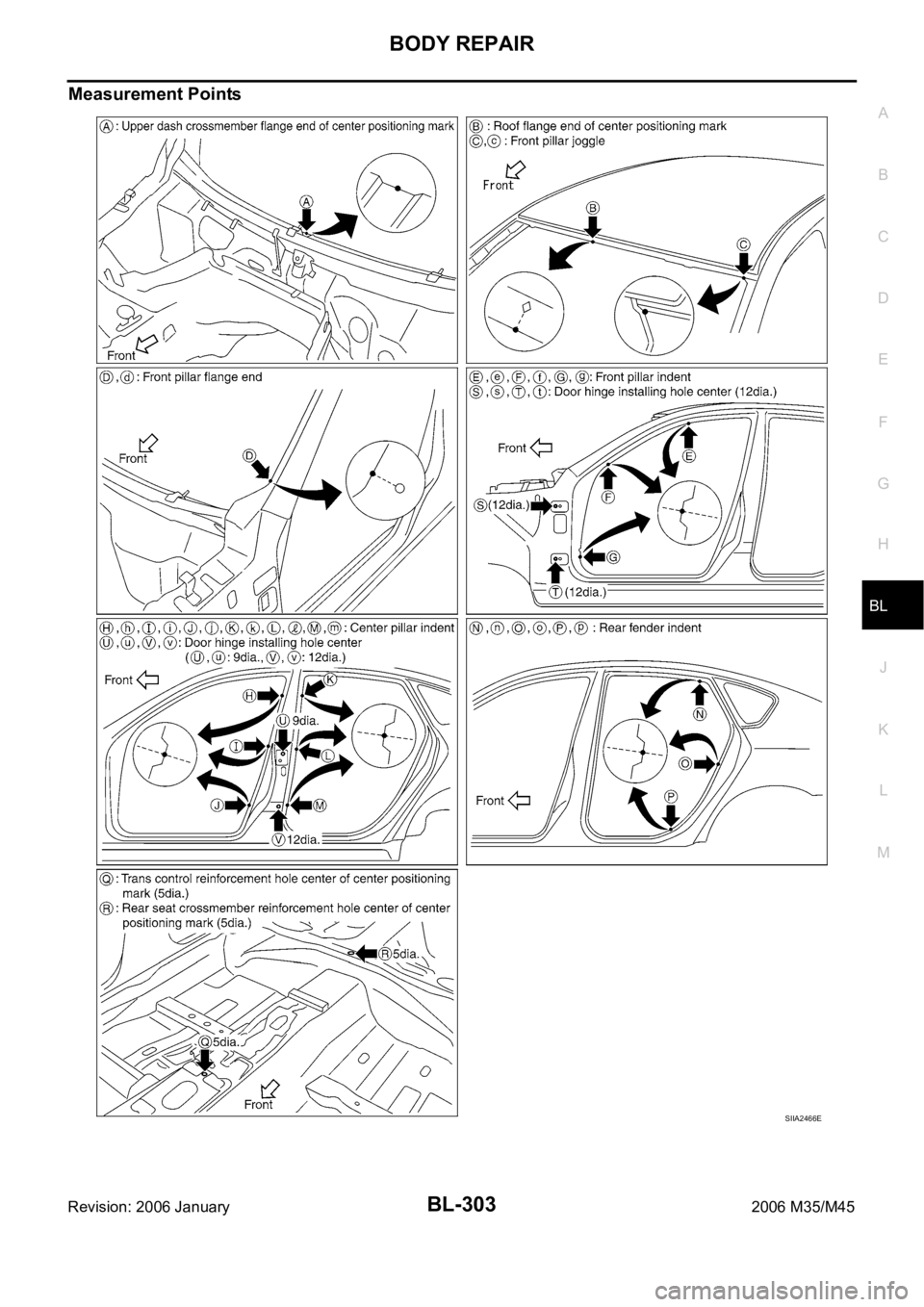

Measurement Points
SIIA2466E

BL-304
BODY REPAIR
Revision: 2006 January2006 M35/M45

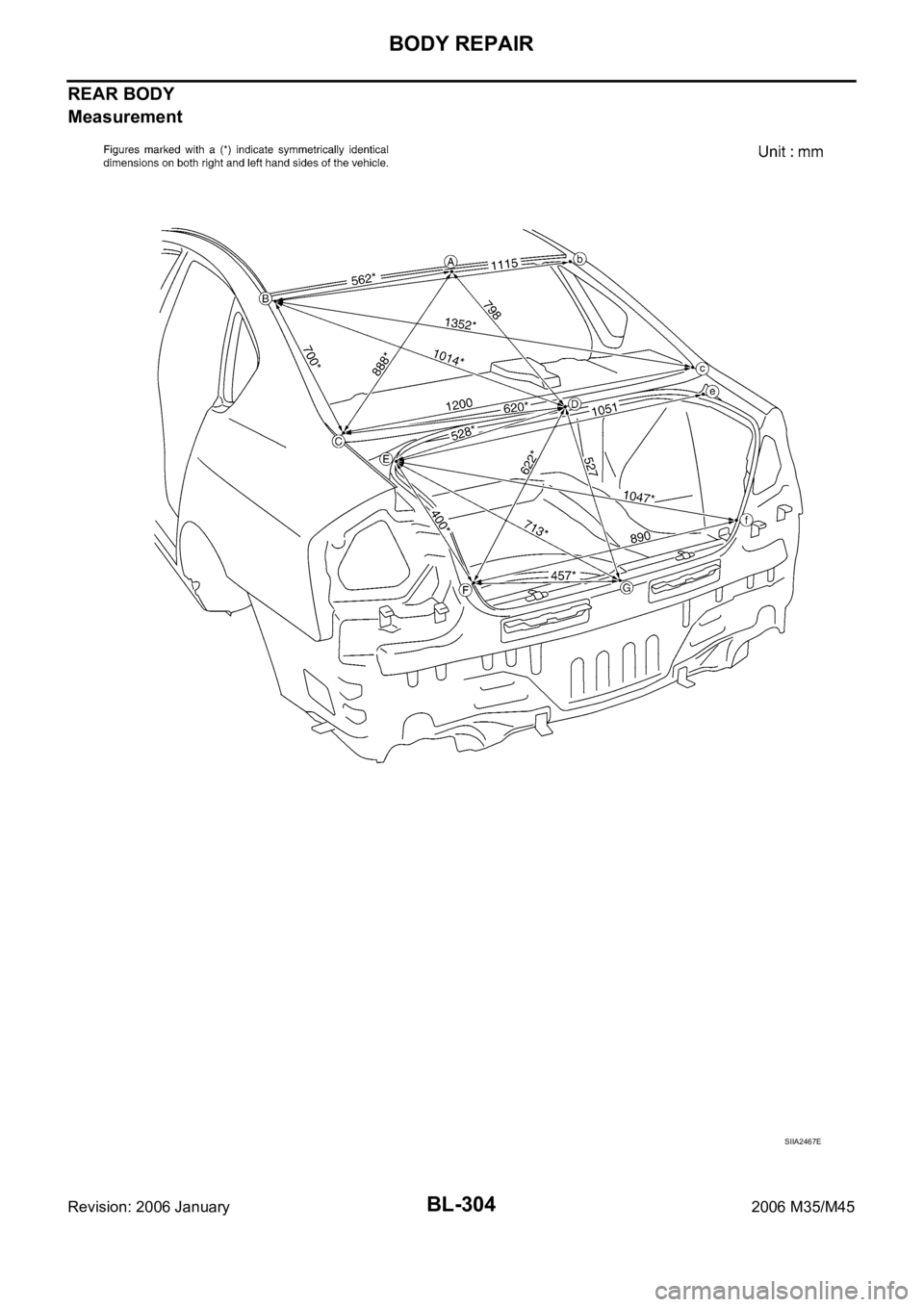

REAR BODY
Measurement
SIIA2467E
