ESP INFINITI Q50-HYBRID 2014 User Guide

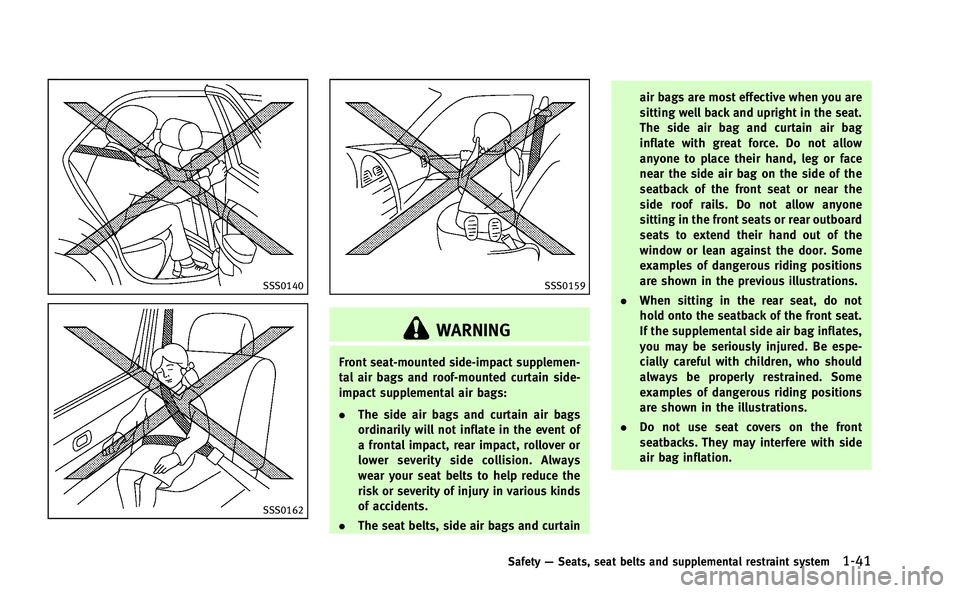

SSS0140
SSS0162
SSS0159
WARNING
Front seat-mounted side-impact supplemen-
tal air bags and roof-mounted curtain side-
impact supplemental air bags:
.The side air bags and curtain air bags
ordinarily will not inflate in the event of
a frontal impact, rear impact, rollover or
lower severity side collision. Always
wear your seat belts to help reduce the
risk or severity of injury in various kinds
of accidents.
. The seat belts, side air bags and curtain air bags are most effective when you are
sitting well back and upright in the seat.
The side air bag and curtain air bag
inflate with great force. Do not allow
anyone to place their hand, leg or face
near the side air bag on the side of the
seatback of the front seat or near the
side roof rails. Do not allow anyone
sitting in the front seats or rear outboard
seats to extend their hand out of the
window or lean against the door. Some
examples of dangerous riding positions
are shown in the previous illustrations.
. When sitting in the rear seat, do not
hold onto the seatback of the front seat.
If the supplemental side air bag inflates,
you may be seriously injured. Be espe-
cially careful with children, who should
always be properly restrained. Some
examples of dangerous riding positions
are shown in the illustrations.
. Do not use seat covers on the front
seatbacks. They may interfere with side
air bag inflation.
Safety —Seats, seat belts and supplemental restraint system1-41

2-12Instruments and controls
12-volt battery charge warning lightPower steering warning lightHigh beam assist indicator light*
Anti-lock Braking System (ABS) warning
lightSeat belt warning light and chimeHigh beam indicator light
Supplemental air bag warning lightMalfunction Indicator Light (MIL)
Brake system warning light (yellow)Vehicle Dynamic Control (VDC) warning lightREADY to drive indicator light
Brake warning light (red)Approaching Vehicle Sound for Pedestrians
(VSP) OFF indicator lightSecurity indicator light
Direct Response Hybrid®System warning
lightECO drive indicator lightTurn signal/hazard indicator lights
Forward emergency braking system warning
light*EV indicator lightVehicle Dynamic Control (VDC) off indicator
light
Low fuel warning lightExterior light indicator
Low tire pressure warning lightFront fog light indicator light *: if so equipped
Master warning lightFront passenger air bag status light
CHECKING BULBS
With all doors closed, apply the parking
brake and push the ignition switch to the
ON position without starting the INFINITI
Direct Response Hybrid
®System. The
following lights will come on (if so
equipped):
,or,,,,,
The following lights come on briefly and
then go off (if so equipped):
,or,,,,
If any light does not come on, it may
indicate a burned-out bulb or an open
circuit in the electrical system. Have the
system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed in the vehicle information dis-
play between the speedometer and tach-
ometer. (See “Vehicle information display”
(P.2-21).)
WARNING LIGHTS
12-volt battery charge warning
light
When the ignition switch is in the ON
position, the 12-volt battery charge warn-
ing light illuminates. After starting the
hybrid system, the light turns off.
If the light continues to illuminate after
starting the hybrid system, it may indicate
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

2-14Instruments and controls
2. If the brake fluid level is correct, havethe warning system checked by an
INFINITI retailer.
Brake system malfunction warning:
If the brake warning light (red) and the
following warning light illuminate at the
same time when the parking brake is
released and the brake fluid level is
sufficient, there may be a malfunction in
the brake system.
. Brake system warning light (yellow)
WARNING
If both the brake system warning light
(yellow) and the brake warning light (red)
illuminate when the parking brake is re-
leased and the hybrid system is on, do not
drive the vehicle. More brake pedal effort
than normal will be required and there will
be a significant reduction in brake perfor-
mance, which could result in an accident.
Immediately stop the vehicle in a safe
location and contact an INFINITI retailer.
A chime sounds if a malfunction occurs in
the brake system power supply. .
Anti-lock Braking System (ABS) warning
light
— Avoid driving at high speed and
sudden braking, and see an INFINITI
retailer as soon as possible for an
inspection.
WARNING
. Your brake system may not be working
properly if the brake warning light (red)
is on. Driving could be dangerous. If you
judge it to be safe, drive carefully to the
nearest service station for repairs.
Otherwise, have your vehicle towed
because driving it could be dangerous.
. Pressing the brake pedal with the hybrid
system stopped and/or low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked at an INFINITI
retailer.
Direct Response Hybrid®Sys-
tem warning light
When the ignition switch is in the ON
position, the Direct Response Hybrid®
System (hybrid system) warning light
illuminates. After starting the hybrid sys-
tem, the hybrid system warning light turns
off.
If the hybrid system warning light illumi-
nates while driving, it may indicate that
there is a malfunction in the electric motor
and/or other hybrid system components.
Stop your vehicle immediately and contact
your INFINITI retailer.
If the hybrid system warning light blinks
while driving, it may indicate that the Li-ion
battery charge is low and you cannot
continue to drive.
Do not allow the vehicle to coast when the
Li-ion battery is low or when the hybrid
system warning light blinks while driving.
The engine will not automatically start to
charge the Li-ion battery while the vehicle
is coasting.

2-24Instruments and controls
INDICATORS FOR OPERATION
1. Hybrid system start operation
indicator
This indicator appears when the shift lever
is in the P (Park) position.
This indicator means that the INFINITI
Direct Response Hybrid
®System will start
by pushing the ignition switch with the
brake pedal depressed. You can start the
hybrid system directly in any position of
the ignition switch.
2. NO KEY warning
The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.
See “Intelligent Key system” (P.3-6) for
more details.
3. SHIFT “P”warning
This warning will appear in the following
conditions.
.When the shift lever is in any position
except P (Park) and the push button
ignition switch has been placed in the
OFF position from the ON position. .
When the shift lever is operated while
the READY to drive indicator light is
flashing.
. The driver’s door is opened with the
shift lever in “N”,“D”or“R”.
. When the vehicle cannot be driven
because the hybrid system temperature
has become too high.
. When the engine stops due to sudden
deceleration on a cold winter day.
. If a malfunction occurs in a situation
other than those described above and
the engine cannot start automatically.
When this warning appears, place the shift
lever in the P (Park) position.
When the SHIFT “P”warning appears, a
buzzer will sound.
This warning will turn off in the following
conditions.
. When the shift lever has been placed in
the P (Park) position.
. When the ignition switch has been
pushed to ON.
4. Shift to Park - Li-ion battery low
warning
This warning appears when the shift lever
is in the “N”position and level of remain- ing charge in the Li-ion battery is low.
When this warning appears, place the shift
lever in the P (Park) position.
This will turn off in the following condi-
tions.
.
When the shift lever has been placed in
the P (Park) position.
5. Shift to Park - Press brake and
start warning
This warning appears after the hybrid
system was automatically turned off if the
level of remaining charge in the Li-ion
battery is low.
When this warning appears, place the shift
lever in the P (Park) position and restart
the hybrid system.
6. “PUSH” warning
This warning appears when the shift lever
is moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT“P”warning appears.
To push the ignition switch to the OFF
position, perform the following procedure:
. SHIFT “P”warning ?(Move the shift
lever to “P”)?PUSH warning ?(Push
the ignition switch ?ignition switch

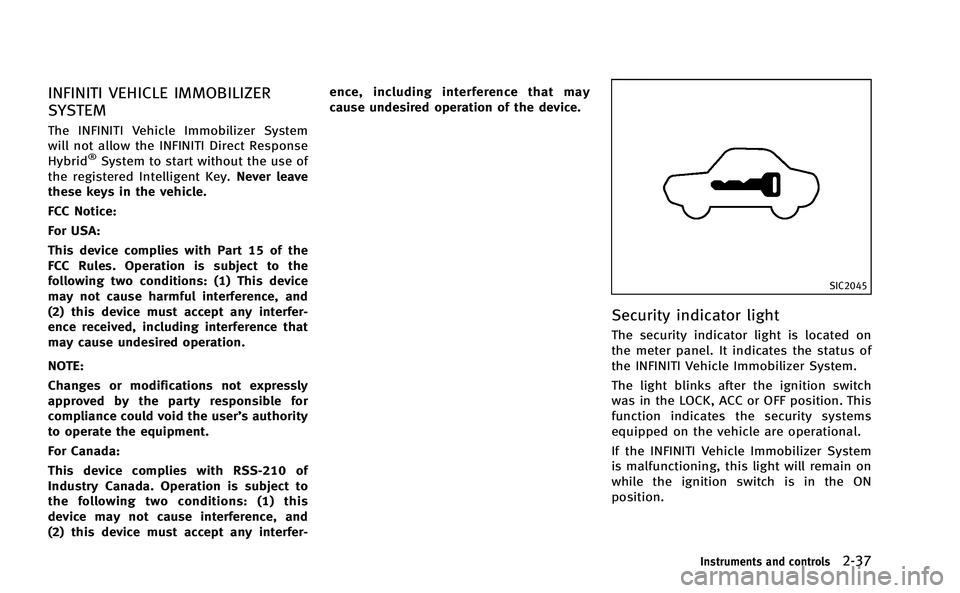

INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System
will not allow the INFINITI Direct Response
Hybrid
®System to start without the use of
the registered Intelligent Key. Never leave
these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer- ence, including interference that may
cause undesired operation of the device.
SIC2045
Security indicator light
The security indicator light is located on
the meter panel. It indicates the status of
the INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch
was in the LOCK, ACC or OFF position. This
function indicates the security systems
equipped on the vehicle are operational.
If the INFINITI Vehicle Immobilizer System
is malfunctioning, this light will remain on
while the ignition switch is in the ON
position.
Instruments and controls2-37

JVI0643X
To defog/defrost the rear window glass
and outside mirrors, start the INFINITI
Direct Response Hybrid
®System and push
the switch
*1on. The indicator light*2
will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
SIC3267
HEADLIGHT SWITCH
Lighting
*1Turn the switch to theposition:
The front parking, side marker, tail
and license plate lights will come on.
*2Turn the switch to theposition:
Headlights will come on and all the
other lights remain on.
SIC3268
Autolight system
The autolight system allows the headlights
to be set so they turn on and off
automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
*1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the
switch to the OFF,
orposition.
Instruments and controls2-41

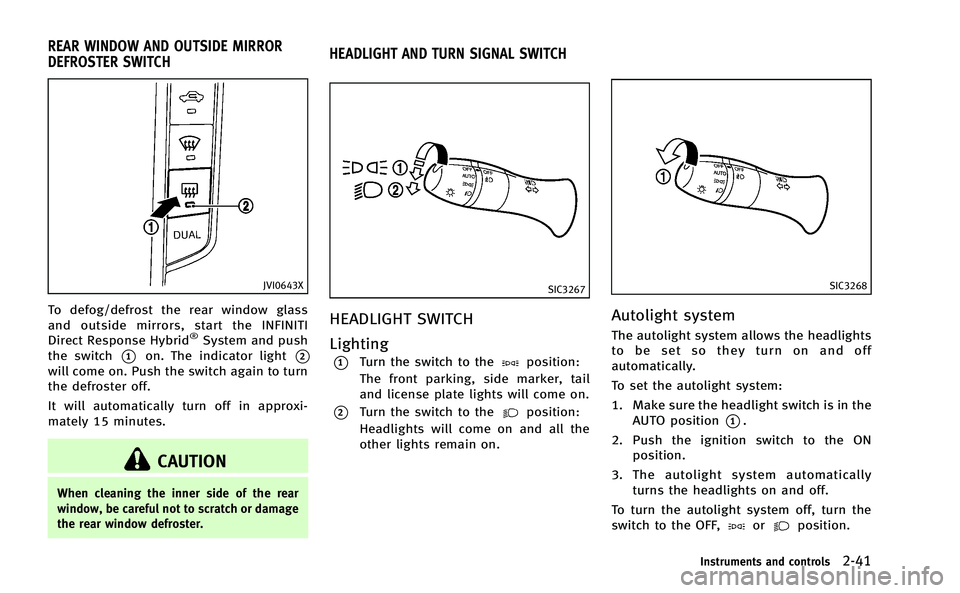

REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH

located on the ambient image sensor.
If the ambient image sensor is damaged
due to an accident, contact an INFINITI
retailer.
Battery saver system
A chime will sound and the light reminder
warning will appear in the vehicle informa-
tion display when the driver side door is
opened with the light switch in the
orposition and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
orposition while the ignition switch is in
the ON position, the lights will automati-
cally turn off after a period of time when
the ignition switch has been pushed to the
OFF position.
When the headlight switch remains in the
orposition after the lights
automatically turn off, the lights will turn
on when the ignition switch is pushed to
the ON position.
CAUTION
. When you turn on the headlight switch
again after the lights automatically turn off, the lights will not turn off auto-
matically. Be sure to turn the light
switch to the OFF position when you
leave the vehicle for extended periods of
time, otherwise the 12-volt battery will
be discharged.
. Never leave the light switch on when the
INFINITI Direct Response Hybrid
®System
is not running for a period of time even if
the headlights turn off automatically.
Daytime running light system
The daytime running lights automatically
illuminate when the hybrid system is
started with the parking brake released.
The daytime running lights operate with
the headlight switch in the OFF, AUTO or
position. Turn the headlight switch to
theposition for full illumination when
driving at night.
If the parking brake is applied before the
hybrid system is started, the daytime
running lights do not illuminate. The day-
time running lights illuminate once the
parking brake is released. The daytime
running lights will remain on until the
ignition switch is pushed to the OFF
position.
WARNING
When the daytime running light system is
active, tail lights on your vehicle are not on.
It is necessary at dusk to turn on your
headlights. Failure to do so could cause an
accident injuring yourself and others.
Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS)
will automatically adjust the headlights
(low beam) toward the turning direction to
improve the driver’s view. When the head-
light switch is ON and the driver operates
the steering wheel in a turn, the AFS
system will be activated.
The AFS will operate:
. when the headlight switch is ON.
. when the shift lever is in any position
other than P (Park) or R (Reverse).
. when the vehicle is driven at above 3
MPH (5 km/h) for the left-side head-
light. Note that the right-side low beam
headlight will swivel but the left-side
headlight will not swivel when the
vehicle is below 3 MPH (5 km/h) and
Instruments and controls2-45

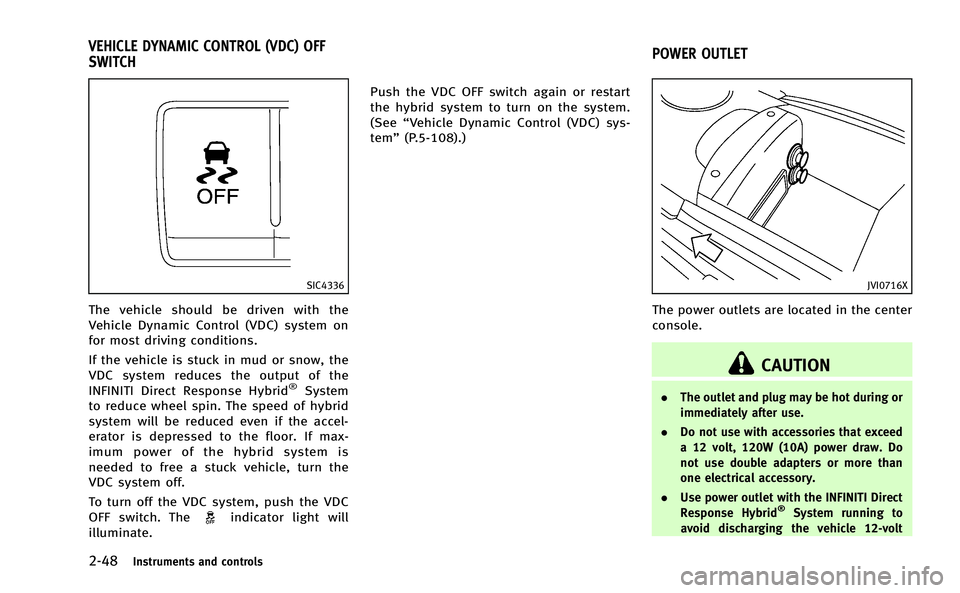

2-48Instruments and controls
SIC4336
The vehicle should be driven with the
Vehicle Dynamic Control (VDC) system on
for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the output of the
INFINITI Direct Response Hybrid
®System
to reduce wheel spin. The speed of hybrid
system will be reduced even if the accel-
erator is depressed to the floor. If max-
imum power of the hybrid system is
needed to free a stuck vehicle, turn the
VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator light will
illuminate. Push the VDC OFF switch again or restart
the hybrid system to turn on the system.
(See
“Vehicle Dynamic Control (VDC) sys-
tem” (P.5-108).)
JVI0716X
The power outlets are located in the center
console.
CAUTION
.The outlet and plug may be hot during or
immediately after use.
. Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
. Use power outlet with the INFINITI Direct
Response Hybrid
®System running to
avoid discharging the vehicle 12-volt
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH POWER OUTLET

SIC4353

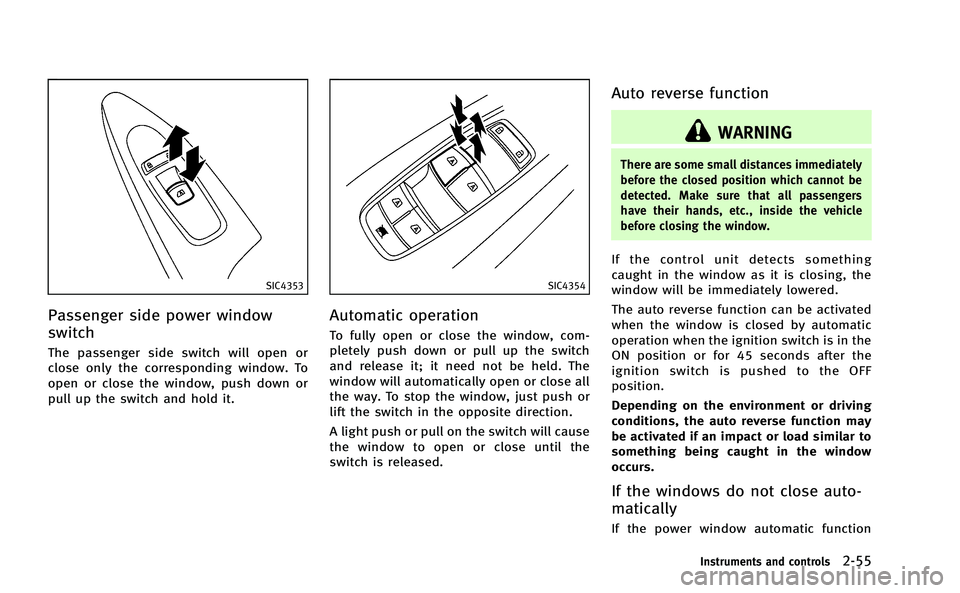

Passenger side power window
switch
The passenger side switch will open or
close only the corresponding window. To
open or close the window, push down or
pull up the switch and hold it.
SIC4354
Automatic operation
To fully open or close the window, com-
pletely push down or pull up the switch
and release it; it need not be held. The
window will automatically open or close all
the way. To stop the window, just push or
lift the switch in the opposite direction.
A light push or pull on the switch will cause
the window to open or close until the
switch is released.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the window.
If the control unit detects something
caught in the window as it is closing, the
window will be immediately lowered.
The auto reverse function can be activated
when the window is closed by automatic
operation when the ignition switch is in the
ON position or for 45 seconds after the
ignition switch is pushed to the OFF
position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
If the windows do not close auto-
matically
If the power window automatic function
Instruments and controls2-55

2-60Instruments and controls
Owner’s Manual), the lights will illuminate
under the following condition:
.any door is opened with the ignition
switch in any position
— remain on while the door is opened.
When the door is closed, the lights
go off.
CAUTION
Do not use for extended periods of time with
the INFINITI Direct Response Hybrid®Sys-
tem stopped. This could result in a dis-
charged 12-volt battery.SIC3869
The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period
of time when the lights remain illuminated
to prevent the 12-volt battery from becom-
ing discharged. The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
12-volt battery from becoming discharged.

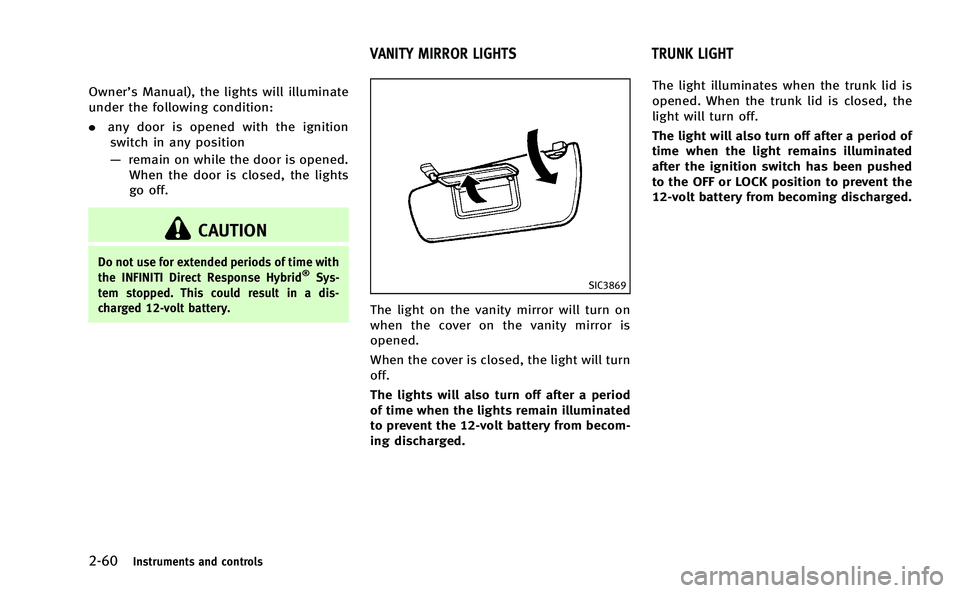

VANITY MIRROR LIGHTS
TRUNK LIGHT
