IDX INFINITI QX4 2001 Factory Service Manual

INDICATIONS OF 4WD WARNING LAMPNBTF0011S03
Flickering pattern or flick-
ering conditionMalfunction Check items
1 Front revolution sensor circuit is shorted or open.Revolution sensor (front) circuit,
TF-61.
2 Rear revolution sensor circuit is shorted or open.Revolution sensor (rear) [Refer to
AT-111, ªDTC P0720 Vehicle Speed
Sensor´A/T (Revolution sensor)º.]
3 4WD solenoid valve circuit is shorted or open. 4WD solenoid valve circuit, TF-64.
42-4WD shift solenoid valve circuit is shorted or 2WD switch of
4WD shift switch is shorted.2-4WD shift solenoid valve circuit or
4WD shift switch circuit, TF-66.
5 Transfer motor relay circuit is shorted or open. Transfer motor relay circuit, TF-70.
8Power supply voltage of throttle position sensor is improper. Or
A/D converter of transfer control unit functions improperly.Throttle position sensor (Refer to
AT-176, ªDTC P1705 Throttle Posi-
tion Sensorº.)
9 Transfer fluid temperature sensor circuit is open.Transfer fluid temperature sensor
circuit, TF-73.
10 Neutral-4LO switch circuit is shorted or open. Neutral-4LO switch circuit, TF-76.
112-4WD shift solenoid valve circuit, 2WD switch of 4WD shift
switch circuit or clutch pressure switch circuit is shorted or open.2-4WD shift solenoid valve circuit,
4WD shift switch circuit or clutch
pressure switch circuit, TF-66, 80.
12 Line pressure switch circuit is shorted or open. Line pressure switch circuit, TF-83.
13 Engine speed signal circuit is shorted or open.Engine speed signal (Refer to
AT-116, ªDTC P0725 Engine Speed
Signalº.)
14 Throttle position sensor circuit is shorted or open.Throttle position sensor (Refer to
AT-176, ªDTC P1705 Throttle Posi-
tion Sensorº.)
15 Failure in power supply circuit of transfer control unit. Power supply of transfer control unit
16 4WD shift switch circuit is shorted. 4WD shift switch circuit, TF-66.
17 ABS operation signal circuit is shorted. ABS operation signal circuit, TF-86.
18ATP switch, wait detection switch or neutral-4LO switch circuit is
shorted or open.ATP switch, wait detection switch or
neutral-4LO switch circuit*, TF-76.
19Transfer control device actuator motor is faulty. (Abnormalities
are detected when actuator motor fails to operate while shifting
from ª4Hº to ª4LOº or vice versa.)Actuator motor and motor circuit,
TF-115, 89.
20Transfer control device actuator motor arm position sensing
switch is faulty.Actuator motor arm position sensing
switch and sensing switch circuit,
TF-115, 92.
21Transfer control device actuator circuit is faulty (Abnormalities
are detected when motor relay circuit is open/shorted or relay
monitor circuit is open/shorted.)Actuator motor, actuator motor arm
position sensing switch and their
associated circuits, TF-114, 115 and
94.
Repeats flickering every
2 to 5 sec.Circuits that the self-diagnosis covers have no malfunction. Ð
Repeats flickering every
0.25 sec.IPower supply failure of memory back-up.
IBattery is disconnected for a long time.
IBattery performance is poor.Data erase/display circuit, TF-88.GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis without CONSULT-II (Cont'd)
TF-29

SMT965D
6. Touch ªSELF-DIAG RESULTSº on SELECT DIAG MODE
screen.
SMT966D
7. Self-diagnostic results are displayed.
SELF-DIAGNOSTIC ITEMSNBTF0012S02
Detected items
(Screen terms for CONSULT-II,
ªSELF-DIAG RESULTº mode)Malfunction is detected when... Check items
Revolution sensor (front) (Note 3)
(VHCL SPEED SEN´FR)IFront revolution sensor (installed on T/F) signal is not
input due to open circuit.
IImproper signal is input while driving.Revolution sensor (front) circuit,
TF-61.
Revolution sensor (rear)
(VHCL SPEED SEN´RR)ISignal from vehicle speed sensor 1 (installed on A/T)
is not input due to open circuit.
IImproper signal is input while driving.Revolution sensor (rear) [Refer to
AT-111, ªDTC P0720 Vehicle Speed
Sensor´A/T (Revolution sensor)º.]
4WD solenoid valve
(DUTY SOLENOID)
IProper voltage is not applied to solenoid valve due to
open or short circuit.4WD solenoid valve, TF-64.
2-4WD shift solenoid valve
(2-4WD SOLENOID)2-4WD shift solenoid valve or
4WD shift switch circuit, TF-66.
Transfer motor relay
(MOTOR RELAY)IMotor does not operate properly due to open or short
circuit in transfer motor or motor relay.Transfer motor relay circuit,
TF-70.
Transfer fluid temperature sensor
(FLUID TEMP SENSOR)ISignal voltage from fluid temperature sensor is abnor-
mally high (T/F fluid temperature is abnormally low)
while driving.Transfer fluid temperature sensor
circuit, TF-73.
Neutral-4LO switch
(N POSI SW TF)IImproper signal is input while driving. Neutral-4LO switch, TF-76.
Clutch pressure
(CLUTCH PRESSURE)IImproper signal is input due to open or short circuit.
IMalfunction occurs in clutch pressure hydraulic circuit.Clutch pressure switch circuit
(*1), TF-80.
Line pressure
(LINE PRESSURE)IImproper signal is input due to open or short circuit.
IMalfunction occurs in line pressure hydraulic circuit.Line pressure switch circuit (*1),
TF-83.
Engine speed signal (Note 1)
(ENGINE SPEED SIG)IEngine speed is abnormally low while driving.Engine speed signal (Refer to
AT-116, ªDTC P0725 Engine Speed
Signalº.)
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-31

SMT962D
DATA MONITORNBTF0012S03CONSULT-II Setting ProcedureNBTF0012S03011. Turn ignition switch to ªOFFº position.
2. Connect CONSULT-II to data link connector, which is located
in instrument lower panel on driver side.
3. Turn ignition switch to ªONº position.
4. Touch ªSTARTº.
SMT964D
5. Touch ªALL MODE 4WDº.
SMT965D
6. Touch ªDATA MONITORº.
SAT972J
7. Touch ªECU INPUT SIGNALSº or ªMAIN SIGNALSº.
8. Select ªNumerical Displayº, ªBar Chart Displayº or ªLine Graph
Displayº.
9. Touch ªSETTINGº to set record conditions.
SAT973J
10. Touch ªAUTO TRIGº or ªMANU TRIGº.
11. Return to ªSELECT MONITOR ITEMº on ªDATA MONITORº
screen and touch ªSTARTº.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-33

Item [Unit]Monitor item
Remarks
ECU input
signalsMain sig-
nalsItem menu
selection
Duty solenoid valve [%]
(Transfer 4WD solenoid valve)qH
2-4WD shift solenoid valve [ON-OFF]qH
Control signal outputs of transfer control unit Transfer motor relay [ON-OFF]qH
Shift activating 1 [ON-OFF]qH
Shift activating 2 [ON-OFF]qH
2-4WD shift solenoid valve monitor
[ON-OFF]H
Check signal (re-input signal) of transfer control
unit control signal output is displayed. If circuit
is shorted or open, ON/OFF state does not
change. Transfer motor relay monitor [ON-OFF]H
Shift activating monitor 1 [ON-OFF]H
Shift activating monitor 2 [ON-OFF]H
4WD fail lamp [ON-OFF]qHTransfer control unit control signal output for
4WD warning lamp (left)
Shift position switch 1 [ON-OFF]qH
Shift position switch 2 [ON-OFF]qH
2WD indicator lamp [ON-OFF]HTransfer control unit control signal output for
4WD shift indicator lamp (rear)
AUTO indicator lamp [ON-OFF]HTransfer control unit control signal output for
4WD shift indicator lamp (front & rear)
LOCK indicator lamp [ON-OFF]HTransfer control unit control signal output for
4WD shift indicator lamp (center)
4LO indicator lamp [ON-OFF]HTransfer control unit control signal output for
4WD shift indicator lamp (right)
Offset at startingHAppears on monitor but does not function.
Clutch limit [N´m (kg-m, ft-lb)]HClutch force release limit value set in WORK
SUPPORT
Voltage [V]HValue measured by voltage probe is displayed.
Frequency [Hz]HValue measured by pulse probe is displayed. If
measurement is impossible, ª#º sign is dis-
played. ª#º sign is also displayed at the final
data value until the measurement result is
obtained.
DUTY-HIH
Duty cycle value for measurement probe is dis-
played.
DUTY-LOWH
PLS WIDTH-HIH
Measured pulse width of measurement probe is
displayed.
PLS WIDTH-LOWH
*: This item is indicated as ªCOMP CL TORQº.GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-35

Indicated items
(Screen terms for CONSULT, ªDATA
MONITORº mode)Display Conditions
Clutch pressure switch
(CL PRES SW)OFFIgnition switch in ªONº, and 4WD shift switch in ª2WDº.
(ªWaitº function is not operating.)
ONIgnition switch in ªONº, and 4WD shift switch in ªAUTOº
or ª4Hº and A/T selector lever in ªDº. (ªWaitº function is
not operating.)
Control torque
(COMP CL TORQ)0 kg-m
4WD shift switch
(ªWaitº function is not oper-
ating.)In ª2WDº position
39 - 1,079 N´m
(4 - 110 kg-m, 29 - 796 ft-lb)In ªAUTOº position
1,079 N´m
(110 kg-m, 796 ft-lb)In ª4Hº or ª4LOº position
4WD solenoid
(DUTY SOLENOID)4% In ª2WDº position
94 - 4% In ªAUTOº position
4% In ª4Hº or ª4LOº position
2-4WD shift solenoid valve
(2-4WD SOL)OFF
4WD shift switchIn ª2WDº position
ON (ªWaitº function is not oper-
ating.)
In ªAUTOº position
OFF (ªWaitº function is operat-
ing.)
ON (ªWaitº function is not oper-
ating.)
In ª4Hº position
OFF (ªWaitº function is operat-
ing.)
ON In ª4LOº position
Indicated items Display Conditions
Battery voltage Approx. 12V Key switch ªONº and engine at rest
Approx. 13 - 14V During idling
AUTO switch OFF 4WD shift switch in other than ªAUTOº position
ON 4WD shift switch in ªAUTOº position
4L switch OFF 4WD shift switch in other than ª4LOº position
ON 4WD shift switch in ª4LOº position
N position switch OFF A/T selector lever in other than ªNº position
ON A/T selector lever in ªNº position
R position swtich OFF A/T selector lever in other than ªRº position
ON A/T selector lever in ªRº position
P position switch OFF A/T selector lever in other than ªPº position
ON A/T selector lever in ªPº position
Throttle opening 0.0/8 - 8.0/8 Throttle fully closed (0.0/8) or throttle fully open (8.0/8)
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-37

solved by this method. Refer to SYMPTOM 8, TF-108.
2) A slight shock is felt at a few hertz as if it were being pushed
lightly from behind.
SMT962D
CONSULT-II Setting ProcedureNBTF0012S06021. Turn ignition switch to ªOFFº position.
2. Connect CONSULT-II to data link connector, which is located
in instrument lower panel on driver side.
3. Turn ignition switch to ªONº position.
4. Touch ªSTARTº.
5. Touch ªALL MODE 4WDº.
SMT965D
6. Touch ªWORK SUPPORTº.
SMT967D
7. Select WORK ITEM by touching ªCLUTCH/F RLS LIM ADJº.
NOTE:
ªSTART TORQ OFFSET ADJº is displayed, but the transfer does
not have this function.
CLUTCH FORCE RELEASE LIMIT ADJUSTMENTNBTF0012S071.2 kg-m: Tight corner braking symptom is alleviated. However,
vibration may occur when accelerating on a low  road (icy road,
etc.).
0.3 kg-m: Initial set value
0.2 kg-m: Do not set to this value because the tight corner braking
symptom will get worse.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-39

IntroductionNBTF0013DESCRIPTIONNBTF0013S01When a malfunction (indicated by the 4WD warning lamp illumination) occurs, collect information first from the
customer about how the malfunction occurs. Then, proceed with the diagnosis presuming it is the cause. Also
inspect the electrical system, paying close attention to other possibilities such as fluid level and leaks.
All-mode 4WD transfer is controlled by transfer control unit and sensors.
If a malfunction occurs in the all-mode 4WD system, the 4WD warning lamp lights up to inform of the system
malfunction. There are two ways to identify the cause of the malfunction.
1) Performing the self-diagnosis. (The 4WD warning lamp will indicate what kind of malfunction has occurred
by flickering.)
2) Performing diagnosis using CONSULT-II.
DIAGNOSTIC WORKSHEETNBTF0013S02Information from CustomerNBTF0013S0201KEY POINTS
WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Information sheet from customer
Customer name MR/MS Model & Year VIN
Transfer model
ATX14AEngine Mileage
Incident Date Manuf. Date In Service Date
FrequencylContinuouslIntermittent ( times a day)
Symptomsl4WD shift indicator lamp does not turn on.
l4WD warning lamp does not turn on.
l4WD shift indicator lamp does not turn off.
lATP warning lamp does not turn on.
l4LO indicator lamp does not turn on.
l4WD shift indicator lamp does not indicate ª4Hº.
l4WD shift indicator lamp repeats flicking.
lTight corner braking symptom occurs.
l4WD system does not operate.
lOthers.
4WD warning lamplContinuously litlNot lit
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð INTRODUCTION

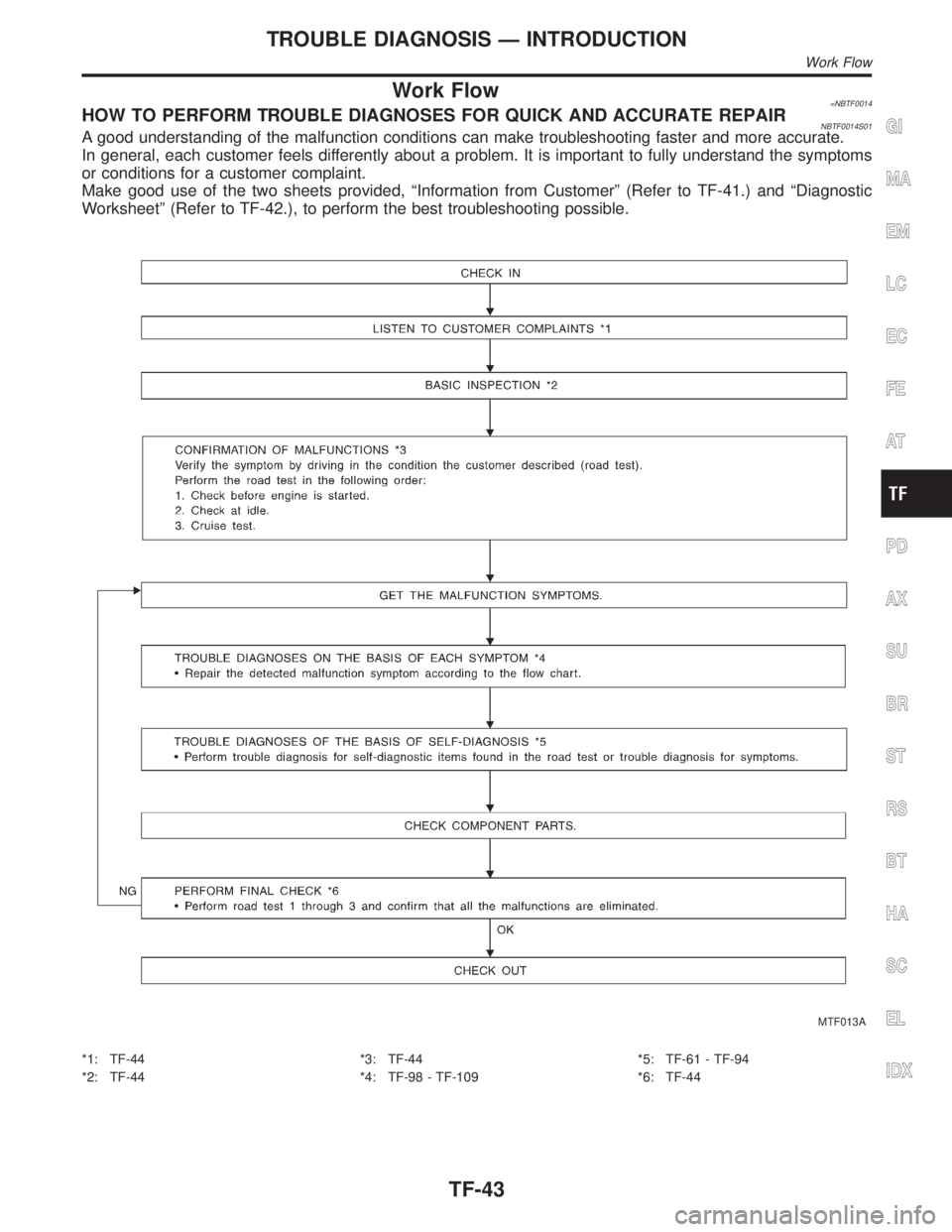

Introduction
TF-41

Work Flow=NBTF0014HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIRNBTF0014S01A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a problem. It is important to fully understand the symptoms
or conditions for a customer complaint.
Make good use of the two sheets provided, ªInformation from Customerº (Refer to TF-41.) and ªDiagnostic
Worksheetº (Refer to TF-42.), to perform the best troubleshooting possible.
MTF013A
*1: TF-44
*2: TF-44*3: TF-44
*4: TF-98 - TF-109*5: TF-61 - TF-94
*6: TF-44
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð INTRODUCTION
Work Flow
TF-43

1. CHECK BEFORE ENGINE IS STARTED=NBTF0017S02
1 CHECK 4WD SHIFT INDICATOR LAMP
1. Park vehicle on flat surface.
2. Turn ignition switch to ªOFFº position.
3. Move A/T selector lever to ªPº position.
4. Set 4WD shift switch to ª4Hº position.
SMT849D
5. Set 4WD shift switch to ª2WDº position.
6. Turn ignition switch to ªONº position. (Do not start engine.)
7. Does 4WD shift indicator lamp turn ON for approx. 1 second?
SMT958D
YesorNo
Ye s©GO TO 2.
No©Go to Symptom 1. Refer to TF-98.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
TF-45

2. CHECK AT IDLE=NBTF0017S03
1 CHECK 4WD SHIFT INDICATOR LAMP
1. Park vehicle on flat surface.
2. Turn ignition switch to ªOFFº position.
3. Move A/T selector lever to ªPº or ªNº position.
4. Set 4WD shift switch to ª4Hº position.
5. Set 4WD shift switch to ª2WDº position.
6. Start engine.
7. Is 4WD shift indicator lamp turned OFF?
SMT958D
YesorNo
Ye s©Go to ªATP SWITCH, WAIT DETECTION SWITCH AND NEUTRAL-4LO SWITCHº. Refer
to TF-76.
No©GO TO 2.
2 CHECK 4WD WARNING LAMP
Is 4WD warning lamp turned OFF?
YesorNo
Ye s©GO TO 3.
No©Perform self-diagnosis. Refer to ªTrouble Diagnosis without CONSULT-IIº, TF-27.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
TF-47
