SPARK PLUG (PLATINUM-TIPPED TYPE)
2005 QX56
CAUTION:

Do not drop or shock spark plug.

Do not use a wire brush for cleaning.

If plug tip is covered with carbon, spark plug cleaner may
be used.

Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Installation is in the reverse order of removal.Cleaner air pressure:
Less than 588 kPa (5.9 bar, 6 kg/cm
2 , 85 psi)
Cleaning time:
Less than 20 seconds
SM A77 3C
SM A80 6CA

FUEL INJECTOR AND FUEL TUBE
EM-29
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
FUEL INJECTOR AND FUEL TUBEPFP:16600
Removal and InstallationEBS00LM6
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
REMOVAL
1. Remove the engine room cover using power tool. Refer to EM-11, "REMOVAL" .
2. Release the fuel pressure. Refer to EC-93, "
FUEL PRESSURE RELEASE" .
3. Disconnect the negative battery terminal.
4. Disconnect the fuel injector harness connectors.
5. Disconnect the fuel hose assembly from the fuel tubes (right bank and left bank).
CAUTION:

While hoses are disconnected, plug them to prevent fuel from draining.

Do not separate the fuel connector and fuel hose.
6. Remove the fuel injectors with the fuel tube assembly.
1. Fuel tube (right bank) 2. Cap 3. Fuel damper
4. O-ring 5. O-ring (blue) 6. Fuel injector
7. Clip 8. O-ring (brown) 9. O-ring
10. Fuel hose assembly 11. Fuel tube (left bank)
KBIA2472E

EM-30Revision: October 2005
FUEL INJECTOR AND FUEL TUBE
2005 QX56
7. Remove the fuel injector from the fuel tube using the following
steps.
a. Spread open and remove the clip.
b. Remove the fuel injector from the fuel tube by pulling straight
out.
CAUTION:

Be careful with remaining fuel that may leak out from fuel
tube.

Do not damage injector nozzles during removal.

Do not bump or drop fuel injectors.

Do not disassemble fuel injectors.
8. Remove the fuel damper from each fuel tube.
INSTALLATION
1. Install the fuel damper to each fuel tube using the following
steps.
a. Apply engine oil to the new O-ring and set it into the cap of the
fuel tube.
CAUTION:

Handle O-ring with bare hands. Never wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of for-
eign material.

When installing O-ring, do not scratch it with tool or fin-
gernails.

Do not twist or stretch the O-ring.
b. Make sure that the backup spacer is in the O-ring connecting surface of the fuel damper.
NOTE:
The backup spacer is part of the fuel damper assembly.
c. Insert the fuel damper until it seats on the fuel tube.
CAUTION:

Insert straight, making sure that the axis is lined up.

Do not pressure-fit with excessive force.
d. Install the cap, and then tighten the bolts evenly.

After tightening the bolts, make sure that there is no gap between the cap and fuel tube.
2. Install new O-rings to the fuel injector paying attention to the items below.
CAUTION:

Upper and lower O-ring are different.
KBIA2506E
Reference value :130 N (13.3 kg, 29.2 lb)
KBIA2473E

FUEL INJECTOR AND FUEL TUBE
EM-31
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56

Handle O-ring with bare hands. Never wear gloves.

Lubricate new O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert O-ring straight into fuel tube. Do not angle or twist it.
3. Install the fuel injector to the fuel tube using the following steps.
a. Insert new clip into clip mounting groove on the fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
the clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Do not allow the clip to interfere with the O-ring. If
interference occurs, replace the O-ring.
b. Insert the fuel injector into the fuel tube with the clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of the clip.

Make sure that the fuel tube flange is securely fixed in the
flange fixing groove on the clip.
c. Make sure that installation is complete by checking that the fuel
injector does not rotate or come off.

Make sure that the protrusions of the fuel injectors are aligned
with the cutouts of the clips after installation.
4. Install the fuel tube and fuel injector assembly to the intake manifold.
CAUTION:
Do not let the tip of the injector nozzle come in contact with other parts.

Tighten fuel tube assembly bolts “a” to “b” in illustration in two
steps.
5. Install the fuel hose assembly.

Insert connectors straight, making sure that the axis is lined up with fuel tube side to prevent O-ring
from being damaged.

Tighten bolts evenly in several steps.

Make sure that there is no gap between the flange and fuel tube after tightening the bolts.
CAUTION:

Handle O-ring with bare hands. Do not wear gloves.Fuel tube side : Blue
Nozzle side : Brown
KBIA2507E
1st step : 12.8 N·m (1.3 kg-m, 9 ft-lb)
2nd step : 24.5 N·m (2.5 kg-m, 18 ft-lb)
KBIA2474E

EM-32Revision: October 2005
FUEL INJECTOR AND FUEL TUBE
2005 QX56

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert new O-ring straight into fuel tube. Do not twist it.
6. Installation of the remaining components is in the reverse order of removal.
INSPECTION AFTER INSTALLATION
After installing the fuel tubes, make sure there are no fuel leaks at the connections using the following steps.
1. Apply fuel pressure to the fuel lines by turning ignition switch ON (with engine stopped). Then check for
fuel leaks at the connections.
NOTE:
Use mirrors for checking on hidden points.
2. Start the engine and rev it up and check for fuel leaks at the connections.
CAUTION:
Do not touch the engine immediately after stopping, as engine becomes extremely hot.

ROCKER COVER
EM-33
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
ROCKER COVERPFP:13264
Removal and InstallationEBS00LM7
REMOVAL
1. Remove the engine room cover using power tool. Refer to EM-11, "REMOVAL" .
2. Remove the air duct and resonator assembly. Refer to EM-14, "
REMOVAL" (for left bank only) .
3. Move the harness on the upper rocker cover and its peripheral aside.
4. Remove the electric throttle control actuator, loosening the bolts diagonally (for left bank only).
5. Remove the ignition coil. Refer to EM-26, "
REMOVAL" .
6. Remove the PCV hose from the PCV control valve.
7. Loosen the bolts in reverse order shown using power tool.
CAUTION:
Do not hold the rocker cover by the oil filler neck (right
bank).
1. Rocker cover (left bank) 2. PCV control valve 3. O-ring
4. Rocker cover gasket (left bank) 5. Rocker cover (right bank) 6. PCV control valve
7. O-ring 8. Oil filler cap 9. Rocker cover gasket (right bank)
KBIA2508E
KBIA2509E

EM-34Revision: October 2005
ROCKER COVER
2005 QX56
INSTALLATION
1. Apply liquid gasket to the joint part of the cylinder head and
camshaft bracket following the steps below.
NOTE:
Illustration shows an example of left bank side (zoomed in
shows No.1 camshaft bracket).
a. Refer to illustration “a” to apply liquid gasket to the joint part of
No.1 camshaft bracket and cylinder head.
b. Refer to illustration “b” to apply liquid gasket 90° to illustration
“a”.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-45, "
Recommended Chemical Products and Sealants" .
2. Install the rocker cover.

Make sure the new rocker cover gasket is installed in the groove of the rocker cover.

Tighten the bolts in two steps in the numerical order shown.
CAUTION:
Do not hold the rocker cover by the oil filler neck (right
bank).
3. Install the PCV hose.
NOTE:

Remove foreign materials from inside the hose using com-
pressed air.

The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].
4. Installation of the remaining components is in the reverse order of removal.
KBIA2510E
1st step : 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step : 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA2509E

TIMING CHAIN
EM-35
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
TIMING CHAINPFP:13028
Removal and InstallationEBS00LM8

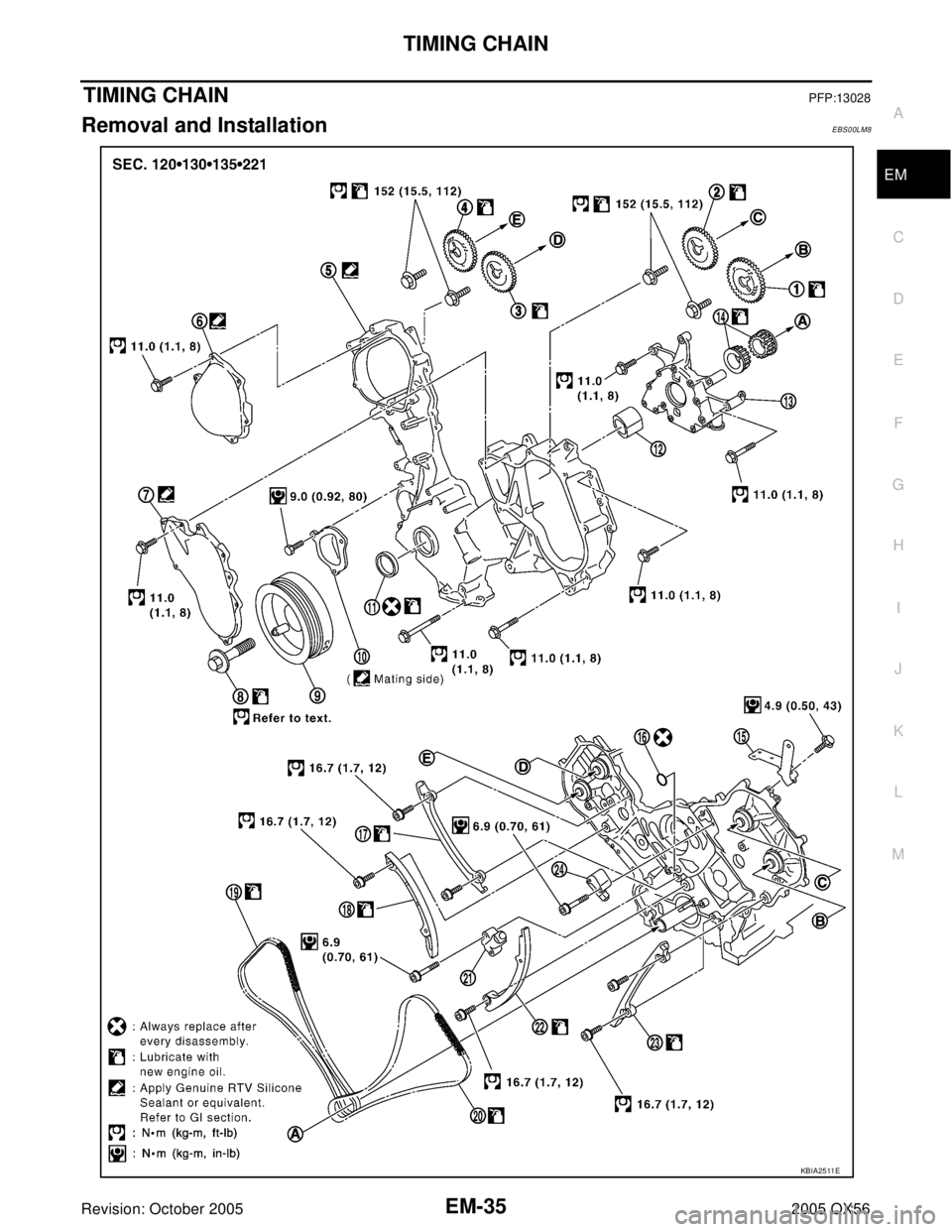

KBIA25 11 E

EM-36Revision: October 2005
TIMING CHAIN
2005 QX56
NOTE:

To remove timing chain and associated parts, start with those on the left bank. The procedure for remov-
ing parts on the right bank is omitted because it is the same as that for removal on the left bank.

To install timing chain and associated parts, start with those on the right bank. The procedure for installing
parts on the left bank is omitted because it is the same as that for installation on the right bank.
REMOVAL
1. Remove the engine assembly from the vehicle. Refer to EM-69, "REMOVAL" .
2. Remove the following components and related parts:

Drive belt auto tensioner and idler pulley. Refer to EM-12, "DRIVE BELTS" .

Thermostat housing and water hose. Refer to CO-19, "Removal of Thermostat Housing, Water Outlet
and Heater Pipe" .

Power steering pump bracket. Refer to PS-26, "REMOVAL" .

Oil pan (lower), (upper) and oil strainer. Refer to EM-22, "OIL PAN AND OIL STRAINER" .

Ignition coil. Refer to EM-26, "IGNITION COIL" .

Rocker cover. Refer to EM-33, "ROCKER COVER" .
3. Remove the chain case cover (right bank) and (left bank).
a. Loosen and remove the bolts in the reverse of order shown.
b. Cut the liquid gasket and remove the covers using Tool.
CAUTION:
Do not damage mating surfaces.
4. Obtain compression TDC of No. 1 cylinder as follows:
a. Turn the crankshaft pulley clockwise to align the TDC identifica-
tion notch (without paint mark) with the timing indicator on the
front cover.
1. Camshaft sprocket (left bank EXH) 2. Camshaft sprocket (left bank INT) 3. Camshaft sprocket (right bank INT)
4. Camshaft sprocket (right bank EXH) 5. Front cover 6. Chain case cover (right bank)
7. Chain case cover (left bank) 8. Crankshaft pulley bolt 9. Crankshaft pulley
10. Chain tensioner cover 11. Front oil seal 12. Oil pump drive spacer
13. Oil pump assembly 14. Crankshaft sprocket 15. Bracket
16. O-ring 17. Timing chain tension guide (right
bank)18. Timing chain slack guide (right bank)
19. Timing chain (right bank) 20. Timing chain (left bank) 21. Chain tensioner (right bank)
22. Timing chain slack guide (left bank) 23. Timing chain tension guide (left
bank)24. Chain tensioner (left bank)
Tool number: KV10111100 (J-37228)
KBIA2475E
KBIA2476E

TIMING CHAIN
EM-37
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
b. At this time, make sure both intake and exhaust cam lobes of
No. 1 cylinder (top front on left bank) point outside.

If they do not point outside, turn crankshaft pulley once more.
5. Remove the crankshaft pulley.
a. Secure crankshaft using suitable tool, remove crankshaft bolt.
b. Remove the crankshaft pulley from the crankshaft.

Remove the crankshaft pulley using suitable tool. Set the
bolts in the two bolt holes [M6 x 1.0 mm (0.04 in)] on the front
surface.
NOTE:
The dimension between the centers of the two bolt holes is 61
mm (2.40 in).
6. Remove the front cover.
a. Loosen and remove the bolts in the reverse of order shown.
b. Cut the liquid gasket and remove the covers using Tool.
CAUTION:
Do not damage mating surfaces.
7. Remove the front oil seal using suitable tool.
CAUTION:
Do not damage front cover.
8. Remove the oil pump drive spacer.

Hold and remove the flat space of the oil pump drive spacer
by pulling it forward.
KBIA0400J
PBIC0053E
KBIA2477E
Tool number : KV10111100 (J-37228)
KBIA2478E
KBIA2512E
