LUGGAGE FLOOR TRIM
Revision: October 20052005 QX56
LUGGAGE FLOOR TRIMPFP:84999
Removal and InstallationEIS0 04 WU
LIIA1333E
Page 1902 of 3419
LUGGAGE FLOOR TRIM
EI-41
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: October 20052005 QX56
REMOVAL
1. Remove 2nd and 3rd row seat belts. Refer to SB-3, "SEAT BELTS" .
2. Remove third row seat belt buckles.
3. Remove third row seat assembly. Refer to SE-104, "
Third Row" .
4. Remove back door weatherstrip. Refer to EI-42, "
BACK DOOR TRIM" .
5. Remove rear luggage room lamp. Refer to EI-38, "
HEADLINING" .
Disconnect harness from lamp.
6. Remove rear upper finisher. Refer to EI-38, "
HEADLINING" .
7. Remove rear door kicking plates. Refer to EI-35, "
BODY SIDE TRIM" .
8. Remove rear lower finisher.
9. Disconnect door open/close link. Refer to BL-135, "
BACK DOOR LOCK" .
10. Remove cargo net hooks.
11. Remove luggage side lower finishers LH/RH.
Disconnect power point, RH side.
12. Remove coat hooks.
13. Remove luggage side upper finishers LH/RH.
Disconnect harness to door open/close switch, LH side.
14. Remove tie down hooks LH/RH.
15. Remove floor side finishers LH/RH.
16. Remove luggage floor board.
17. Remove storage box.
18. Remove front luggage floor bracket.
19. Remove rear luggage box bracket.
INSTALLATION
Installation is in the reverse order of removal.

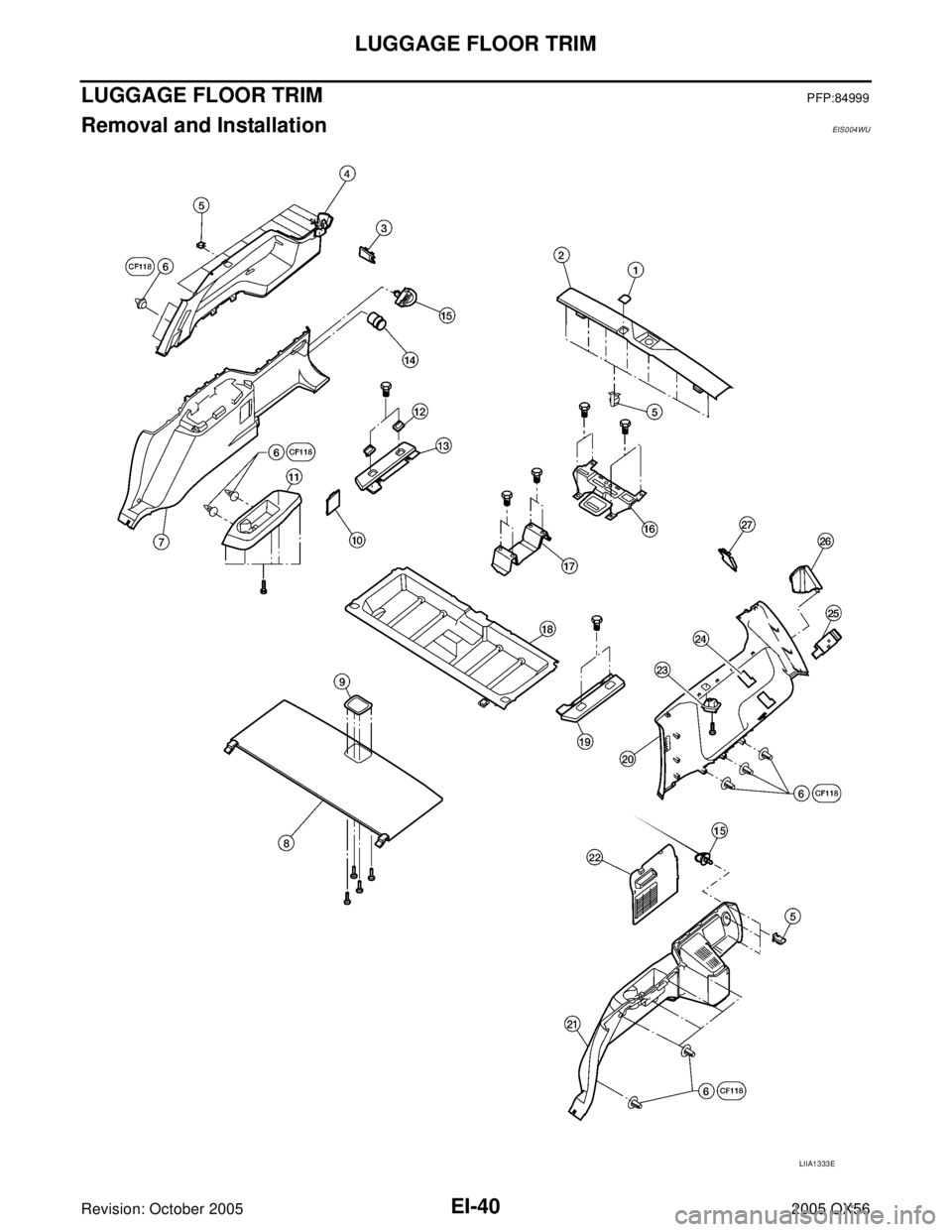

1. Rear lower finisher cap 2. Rear lower finisher 3. Cap upper seat belt finisher RH
4. Luggage side finisher RH 5. Metal clip 6. Plastic clip
7. Luggage side finisher lower RH 8. Luggage floor board 9. Latch luggage floor board
10. Leak check cap 11. Cup holder 12. Tie down hook
13. Floor side finisher RH 14. Power point assembly 15. Cargo net hook
16. Rear luggage box bracket 17. Front luggage floor bracket 18. Storage box
19. Floor side finisher LH 20. Luggage side finisher upper LH 21. Luggage side finisher lower LH
22. Lid luggage side lower 23. Coat hook 24. Cap lower seat belt finisher
25. Back door open/close switch 26. Cap luggage side upper 27. Cap upper seat belt finisher LH
Page 1903 of 3419
EI-42
BACK DOOR TRIM
Revision: October 20052005 QX56
BACK DOOR TRIMPFP:90900
Removal and InstallationEIS004WV
1. Disconnect door open/close link. Refer to BL-135, "BACK DOOR LOCK" .
2. Open back door glass.
3. Remove inside weatherstrip around back door glass.
4. Remove assist handle.
5. Release clips and remove back door lower finisher.
6. Release clips and remove back door upper finisher.
7. Release clips and remove back door side finishers LH and RH.
Installation is in the reverse order of removal.
1. Back door upper finisher 2. Back door glass weatherstrip 3. Back door side finisher RH
4. Back door lower finisher 5. Back door bumper 6. Back door pull handle
7. Back door mask 8. Back door side finisher LH
WIIA0224E

Page 1904 of 3419
EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 3
Precautions for Drain Engine Coolant ...................... 3
Precautions for Disconnecting Fuel Piping .............. 3
Precautions for Removal and Disassembly ............. 3
Precautions for Inspection, Repair and Replace-
ment ......................................................................... 3
Precautions for Assembly and Installation ............... 3
Parts Requiring Angular Tightening ......................... 3
Precautions for Liquid Gasket .................................. 4
REMOVAL OF LIQUID GASKET SEALING .......... 4
LIQUID GASKET APPLICATION PROCEDURE ..... 4
PREPARATION ........................................................... 5
Special Service Tools ............................................... 5
Commercial Service Tools ........................................ 7
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 9
NVH Troubleshooting —Engine Noise ..................... 9
Use the Chart Below to Help You Find the Cause
of the Symptom. ..................................................... 10
ENGINE ROOM COVER ...........................................11
Removal and Installation .........................................11
REMOVAL ............................................................11
INSTALLATION ....................................................11
DRIVE BELTS ........................................................... 12
Checking Drive Belts .............................................. 12
Tension Adjustment ................................................ 12
Removal and Installation ........................................ 12
DRIVE BELT ....................................................... 12
INSTALLATION ................................................... 13
Drive Belt Auto Tensioner and Idler Pulley ............. 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
AIR CLEANER AND AIR DUCT ............................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSTALLATION ................................................... 14
CHANGING AIR CLEANER FILTER ................... 14INTAKE MANIFOLD ................................................. 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 17
INSPECTION AFTER INSTALLATION ................ 18
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST .......................................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSPECTION AFTER REMOVAL ....................... 20
INSTALLATION ................................................... 20
OIL PAN AND OIL STRAINER ................................. 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL ....................... 23
INSTALLATION ................................................... 24
INSPECTION AFTER INSTALLATION ................ 25
IGNITION COIL ......................................................... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
SPARK PLUG (PLATINUM-TIPPED TYPE) ............. 27
Removal and Installation ........................................ 27
REMOVAL ........................................................... 27
INSPECTION AFTER REMOVAL ....................... 27
INSTALLATION ................................................... 28
FUEL INJECTOR AND FUEL TUBE ........................ 29
Removal and Installation ........................................ 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 30
INSPECTION AFTER INSTALLATION ................ 32
ROCKER COVER ..................................................... 33
Removal and Installation ........................................ 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 34
TIMING CHAIN .......................................................... 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 36
INSPECTION AFTER REMOVAL ....................... 38
INSTALLATION ................................................... 39
Page 1905 of 3419
EM-2Revision: October 20052005 QX56 CAMSHAFT ............................................................... 43
Removal and Installation ........................................ 43
REMOVAL ........................................................... 43
INSPECTION AFTER REMOVAL ........................ 46
INSTALLATION .................................................... 48
Valve Clearance ...................................................... 51
INSPECTION ....................................................... 51
ADJUSTMENT .................................................... 53
OIL SEAL .................................................................. 55
Removal and Installation of Valve Oil Seal ............. 55
REMOVAL ........................................................... 55
INSTALLATION .................................................... 55
Removal and Installation of Front Oil Seal ............. 56
REMOVAL ........................................................... 56
INSTALLATION .................................................... 56
Removal and Installation of Rear Oil Seal .............. 56
REMOVAL ........................................................... 56
INSTALLATION .................................................... 57
CYLINDER HEAD ..................................................... 58
On-Vehicle Service ................................................. 58
CHECKING COMPRESSION PRESSURE ......... 58
Removal and Installation ........................................ 59
REMOVAL ........................................................... 59
INSPECTION AFTER REMOVAL ........................ 60
INSTALLATION .................................................... 60
Disassembly and Assembly .................................... 61
DISASSEMBLY ................................................... 61
ASSEMBLY ......................................................... 62
Inspection After Disassembly ................................. 63
CYLINDER HEAD DISTORTION ........................ 63
VALVE DIMENSIONS .......................................... 64
VALVE GUIDE CLEARANCE .............................. 65
VALVE GUIDE REPLACEMENT ......................... 65
VALVE SEAT CONTACT ..................................... 67
VALVE SEAT REPLACEMENT ........................... 67
VALVE SPRING SQUARENESS ......................... 68
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................... 68
ENGINE ASSEMBLY ................................................ 69
Removal and Installation ........................................ 69
REMOVAL ........................................................... 69
INSTALLATION .................................................... 72
INSPECTION AFTER INSTALLATION ................ 72
CYLINDER BLOCK ................................................... 73
Disassembly and Assembly .................................... 73
DISASSEMBLY ................................................... 74ASSEMBLY ..........................................................77
How to Select Piston and Bearing ..........................82
DESCRIPTION ....................................................82
HOW TO SELECT PISTON .................................83
HOW TO SELECT CONNECTING ROD BEAR-
ING .......................................................................84
HOW TO SELECT MAIN BEARING ....................85
Inspection After Disassembly ..................................89
CRANKSHAFT END PLAY ..................................89
CONNECTING ROD SIDE CLEARANCE ...........89
PISTON AND PISTON PIN CLEARANCE ...........89
PISTON RING SIDE CLEARANCE .....................90
PISTON RING END GAP ....................................90
CONNECTING ROD BEND AND TORSION .......91
CONNECTING ROD BEARING (BIG END) ........91
CONNECTING ROD BUSHING OIL CLEAR-
ANCE (SMALL END) ...........................................91
CYLINDER BLOCK DISTORTION ......................92
MAIN BEARING HOUSING INSIDE DIAMETER ...93
PISTON TO CYLINDER BORE CLEARANCE ....93
CRANKSHAFT JOURNAL DIAMETER ...............94
CRANKSHAFT PIN DIAMETER ..........................95
OUT-OF-ROUND AND TAPER OF CRANK-
SHAFT .................................................................95
CRANKSHAFT RUNOUT ....................................95
CONNECTING ROD BEARING OIL CLEAR-
ANCE ...................................................................95
MAIN BEARING OIL CLEARANCE .....................96
CRUSH HEIGHT OF MAIN BEARING ................97
CRUSH HEIGHT OF CONNECTING ROD
BEARING .............................................................97
MAIN BEARING CAP BOLT DIAMETER .............97
CONNECTING ROD BOLT DIAMETER ..............98
SERVICE DATA AND SPECIFICATIONS (SDS) ......99
Standard and Limit ..................................................99
GENERAL SPECIFICATIONS .............................99
DRIVE BELTS ......................................................99
EXHAUST MANIFOLD ........................................99
CAMSHAFT AND CAMSHAFT BEARING ......... 100
CYLINDER HEAD .............................................. 102
CYLINDER BLOCK ............................................ 104
PISTON, PISTON RING AND PISTON PIN ...... 105
CONNECTING ROD .......................................... 105
CRANKSHAFT ................................................... 106
MAIN BEARING ................................................. 107
Page 1906 of 3419
PRECAUTIONS
EM-3
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
PRECAUTIONSPFP:00001
Precautions for Drain Engine CoolantEBS00LLK
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingEBS00LLL
Before starting work, make sure no fire or spark producing items are in the work area.
Release fuel pressure before disconnecting and disassembly.
After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyEBS00LLM
When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.
Exercise maximum care to avoid damage to mating or sliding surfaces.
Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used where noted in the step.
Precautions for Inspection, Repair and ReplacementEBS00LLN
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationEBS00LLO
Use torque wrench to tighten bolts or nuts to specification.
When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.
Replace with new gasket, packing, oil seal or O-ring.
Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.
Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
Release air within route when refilling after draining engine coolant.
Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine
stopped). Then make sure that there are no leaks at fuel line connections.
After repairing, start engine and increase engine speed to check engine coolant, fuel, oil, and exhaust
systems for leakage.
Parts Requiring Angular TighteningEBS00LLP
For final tightening of the following engine parts use Tool:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap bolts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angle
tightening)
Do not use a torque value for final tightening.
The torque value for these parts are for a preliminary step.
Ensure thread and seat surfaces are clean and lightly coated with engine oil. Tool number : KV10112100 (BT-8653-A)
Page 1907 of 3419
EM-4Revision: October 2005
PRECAUTIONS
2005 QX56
Precautions for Liquid GasketEBS00NIM
REMOVAL OF LIQUID GASKET SEALING
After removing the bolts and nuts, separate the mating surface
and remove the old liquid gasket sealing using Tool.
CAUTION:
Do not damage the mating surfaces.
Tap the seal cutter to insert it.
In areas where the Tool is difficult to use, lightly tap to slide it.
LIQUID GASKET APPLICATION PROCEDURE
1. Remove the old liquid gasket adhering to the gasket application
surface and the mating surface using suitable tool.
Remove the liquid gasket completely from the groove of the
liquid gasket application surface, bolts, and bolt holes.
2. Thoroughly clean the mating surfaces and remove adhering
moisture, grease and foreign material.
3. Attach the liquid gasket tube to the Tool.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-45, "
Recommended Chemical Products and Sealants" .
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.
If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.
As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified in the procedure, it should also be
applied outside the holes.
Within five minutes of liquid gasket application, install the mat-
ing component.
If the liquid gasket protrudes, wipe it off immediately.
Do not retighten after the installation.
Wait 30 minutes or more after installation before refilling the
engine with engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe them.Tool number : KV1011100 (J-37228)
WBIA0566E
PBIC0003E
Tool number : WS39930000 ( — )
WBIA0567E
SEM 15 9F
Page 1908 of 3419
PREPARATION
EM-5
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
PREPARATIONPFP:00002
Special Service ToolsEBS00LLR
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
KV10111100
(J-37228)
Seal cutterRemoving steel oil pan and rear timing chain
case
—
(J-44626)
Air fuel sensor SocketLoosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)
EG15050500
(J-45402)
Compression gauge adapterInspecting compression pressure
KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(—)
AdapterDisassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but part (2) is not.
KV10112100
(BT-8653-A)
Angle wrenchTightening bolts for cylinder head, main bear-
ing cap and connecting rod cap
KV10107902
(J-38959)
Valve oil seal pullerRemoving valve oil seal
S-NT046
LBIA0444E
ZZA1225D
PBIC1650E
S-NT014
S-NT011
Page 1909 of 3419
EM-6Revision: October 2005
PREPARATION
2005 QX56
KV10115600
(J-38958)
Valve oil seal driftInstalling valve oil seal
Use side A.
a: 20 (0.79) dia. d: 8 (0.31) dia.
b: 13 (0.51) dia. e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia. f: 5 (0.20) dia.
Unit: mm (in)
EM03470000
(J-8037)
Piston ring compressorInstalling piston assembly into cylinder bore
ST16610001
(J-23907)
Pilot bushing pullerRemoving crankshaft pilot bushing
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
—
(J-47245)
Ring gear stopperRemoving and installing crankshaft pulley
—
(J-45488)
Quick connector releaseRemoving fuel tube quick connectors in en-
gine room Tool number
(Kent-Moore No.)
Tool nameDescription
S-NT603
S-NT044
S-NT045
S-NT052
LBIA0451E
PBIC0198E
Page 1910 of 3419
PREPARATION
EM-7
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
Commercial Service ToolsEBS00LLS
(Kent-Moore No.)
Tool nameDescription
Power toolLoosening bolts and nuts
Spark plug wrench Removing and installing spark plug
(J-24239-01)
Cylinder head bolt wrenchLoosening and tightening cylinder head bolt,
and use with angle wrench [SST:
KV10112100 (BT-8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
Valve seat cutter set Finishing valve seat dimensions
Pulley pullerRemoving crankshaft pulley
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
PBIC0190E
S-NT047
NT583
S-NT048
ZZA0010D
S-NT030
S-NT015
