interfere with the operation of the Intelligent
Key system under the following operating
conditions:∙ When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
∙ When in possession of wireless equip- ment, such as a cellular telephone, trans-
ceiver or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby.
∙ When the Intelligent Key is placed near an electric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one. When the Intelligent Key battery is low, a
“Key Battery Low” indicator illuminates in the
vehicle information display. For additional in-
formation, refer to “Vehicle information dis-
play warnings and indicators” in the “Instru-
ments and controls” section of this manual.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object. ∙ Do not change or modify the Intelligent
Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
∙ Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
3-8Pre-driving checks and adjustments

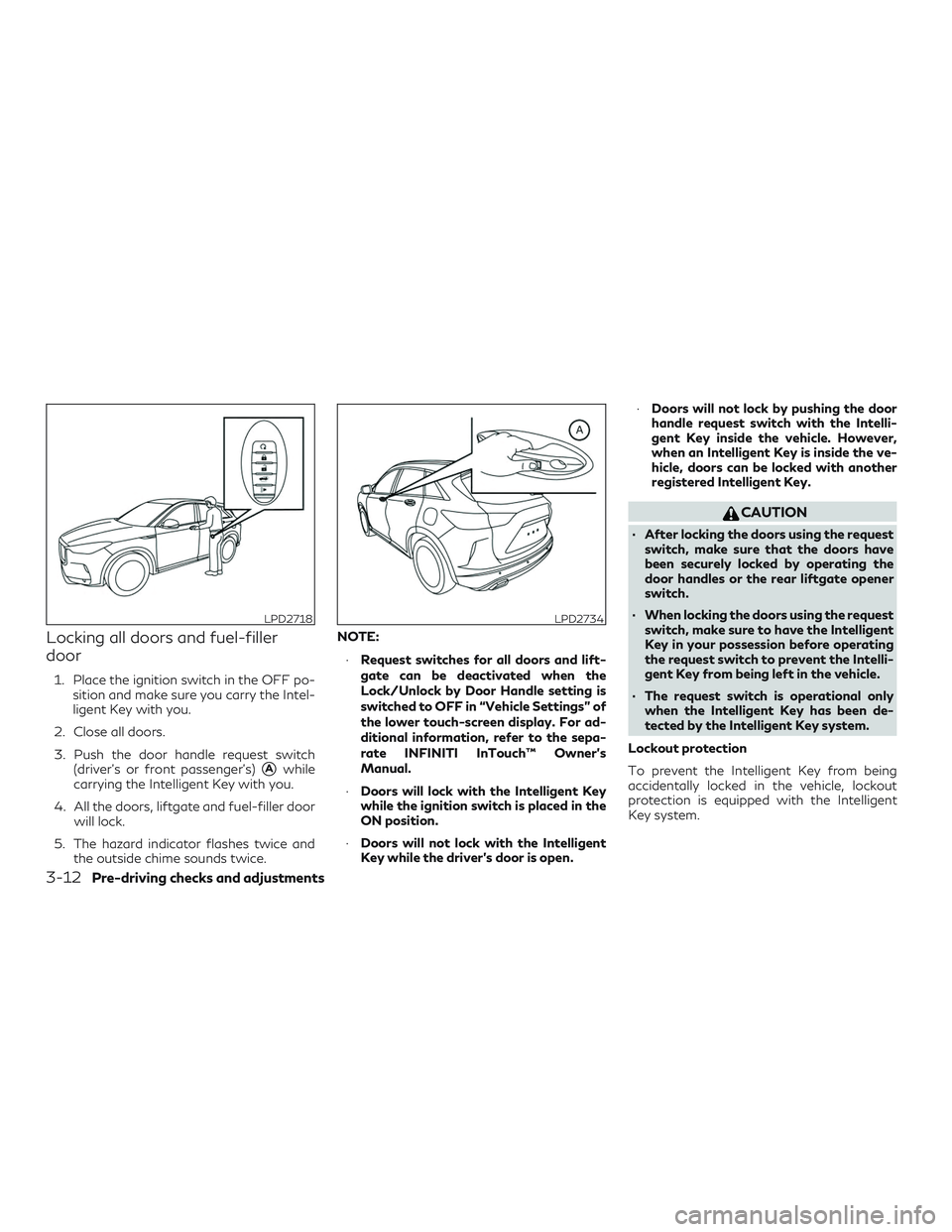

Locking all doors and fuel-filler
door
1. Place the ignition switch in the OFF po-sition and make sure you carry the Intel-
ligent Key with you.
2. Close all doors.
3. Push the door handle request switch (driver’s or front passenger’s)
Awhile
carrying the Intelligent Key with you.
4. All the doors, liftgate and fuel-filler door will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice. NOTE:
∙ Request switches for all doors and lift-
gate can be deactivated when the
Lock/Unlock by Door Handle setting is
switched to OFF in “Vehicle Settings” of
the lower touch-screen display. For ad-
ditional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s
Manual.
∙ Doors will lock with the Intelligent Key
while the ignition switch is placed in the
ON position.
∙ Doors will not lock with the Intelligent
Key while the driver’s door is open. ∙
Doors will not lock by pushing the door
handle request switch with the Intelli-
gent Key inside the vehicle. However,
when an Intelligent Key is inside the ve-
hicle, doors can be locked with another
registered Intelligent Key.
CAUTION
∙ After locking the doors using the request
switch, make sure that the doors have
been securely locked by operating the
door handles or the rear liftgate opener
switch.
∙ When locking the doors using the request switch, make sure to have the Intelligent
Key in your possession before operating
the request switch to prevent the Intelli-
gent Key from being left in the vehicle.
∙ The request switch is operational only when the Intelligent Key has been de-
tected by the Intelligent Key system.
Lockout protection
To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent
Key system.
LPD2718LPD2734
3-12Pre-driving checks and adjustments

NOTE:
The one touch unlock sensor can be deacti-
vated when the Touch Sensitive Door Sensor
setting is switched to OFF in “Vehicle Set-
tings” of the lower touch-screen display. For
additional information, refer to the separate
INFINITI InTouch™ Owner’s Manual.
If a door handle is pulled too quickly while
unlocking the doors using the one touch un-
lock sensor, you may be unable to open the
door. Returning the door handle to its original
position will allow you to open the door.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after unlocking the door(s).∙ Opening any door.
∙ Pushing the ignition switch.
The interior light timer illuminates for a period
of time when a door is unlocked.
The interior light can be turned off without wait-
ing by performing one of the following opera-
tions:
∙ Placing the ignition switch in the ON po- sition. ∙ Locking the doors with the Intelligent
Key.
∙ Switching the room light switch to the OFF position.
Door handle welcome lights
When you unlock the doors using the Intelli-
gent Key, request switch or one touch unlock
sensor, the door handle welcome lights
A
will illuminate for a period of time. The wel-
come lights will also illuminate when you
open an unlocked door without carrying the
Intelligent Key with you. When you lock the
doors using the Intelligent Key or request
switch, the door handle welcome lights fade
out.
Driver’s and passenger’s side
LPD2732
3-14Pre-driving checks and adjustments

NOTE:
The door handle welcome lights and one
touch unlock sensor can be deactivated in
“Vehicle Settings” in the lower touch-screen
display. For additional information, refer to
the separate INFINITI InTouch™ Owner’s
Manual.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can oper-
ate all door locks using the remote keyless
function of the Intelligent Key. The remote
keyless function can operate at a distance of
33 ft (10 m) away from the vehicle. The op-
erating distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not
function under the following conditions:∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the rear liftgate are open or not closed securely.
∙ When the Intelligent Key battery is dis- charged.
CAUTION
When locking the doors using the Intelli-
gent Key, be sure not to leave the key in the
vehicle.
Locking doors
1. Place the ignition switch in the LOCK position.
2. Close all doors.
3. Press the
button on the Intelli-
gent Key.
4. The hazard indicator lights flash twice and the horn beeps once.
5. All doors will be locked.
LPD2257
Pre-driving checks and adjustments3-15

CAUTION
After locking the doors using the Intelligent
Key, be sure that the doors have been se-
curely locked by operating the door handles.

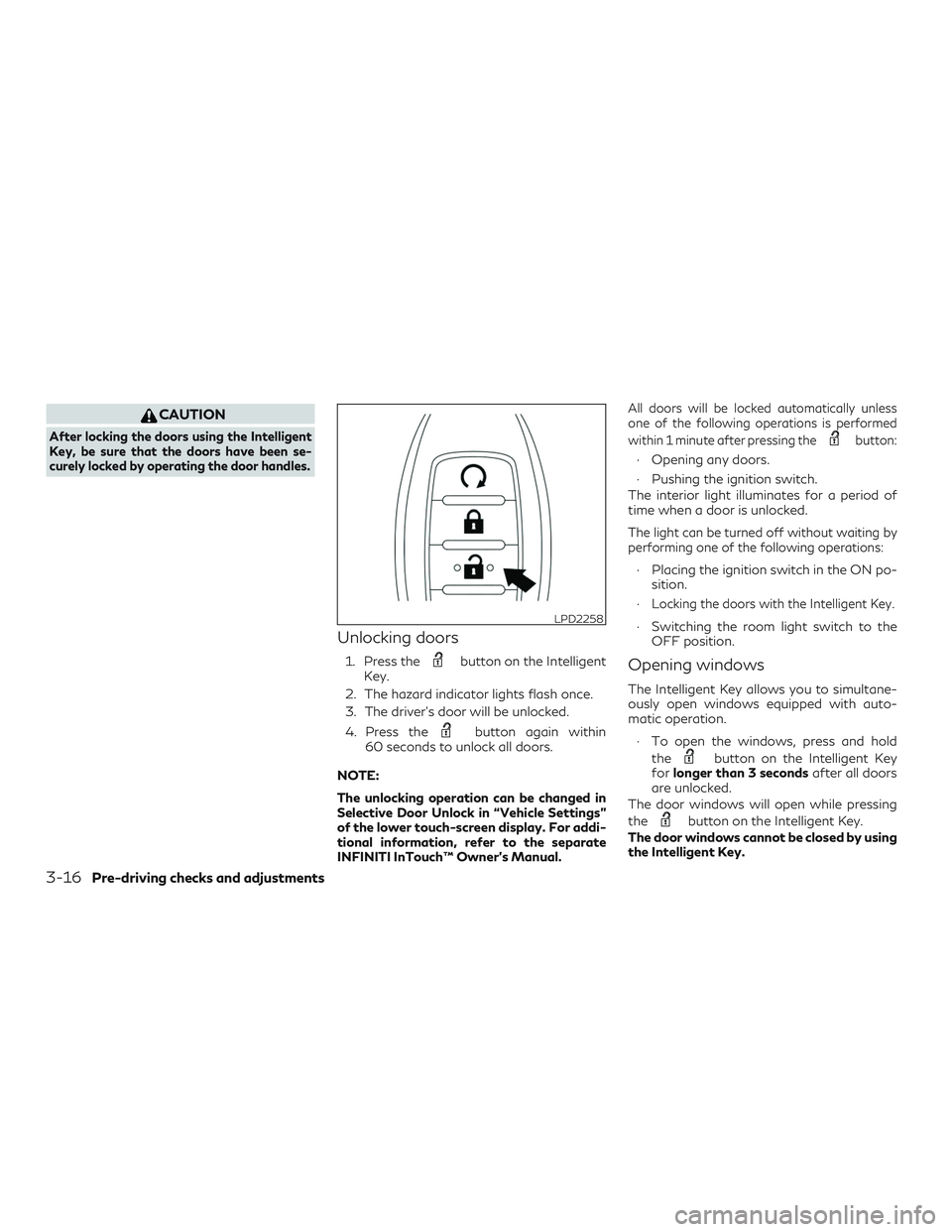

Unlocking doors
1. Press thebutton on the Intelligent
Key.
2. The hazard indicator lights flash once.
3. The driver’s door will be unlocked.
4. Press the
button again within
60 seconds to unlock all doors.
NOTE:
The unlocking operation can be changed in
Selective Door Unlock in “Vehicle Settings”
of the lower touch-screen display. For addi-
tional information, refer to the separate
INFINITI InTouch™ Owner’s Manual.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pressing the
button:
∙ Opening any doors.
∙ Pushing the ignition switch.
The interior light illuminates for a period of
time when a door is unlocked.
The light can be turned off without waiting by
performing one of the following operations:
∙ Placing the ignition switch in the ON po- sition.
∙
Locking the doors with the Intelligent Key.
∙ Switching the room light switch to the OFF position.
Opening windows
The Intelligent Key allows you to simultane-
ously open windows equipped with auto-
matic operation.
∙ To open the windows, press and hold the
button on the Intelligent Key
for longer than 3 seconds after all doors
are unlocked.
The door windows will open while pressing
the
button on the Intelligent Key.
The door windows cannot be closed by using
the Intelligent Key.
LPD2258
3-16Pre-driving checks and adjustments

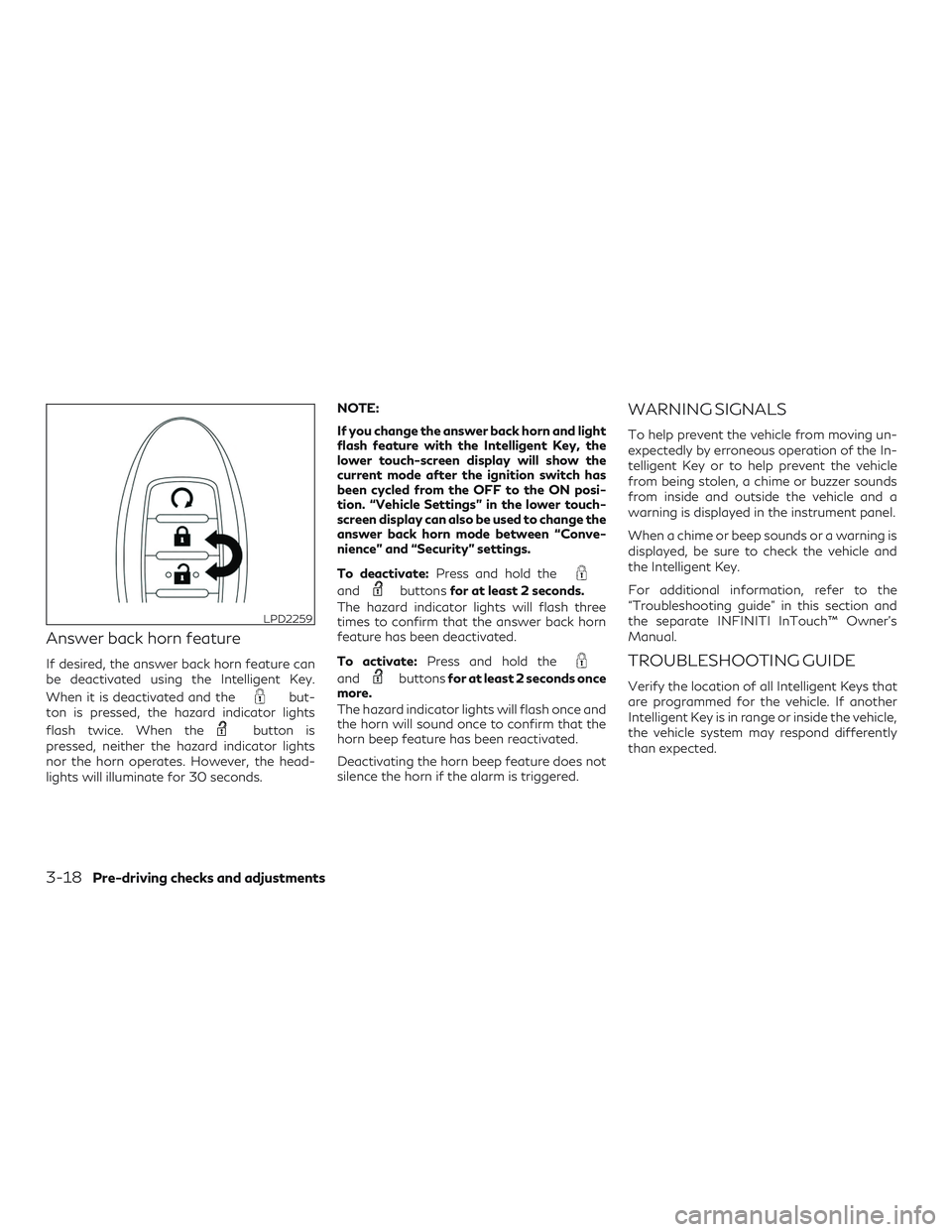

Answer back horn feature
If desired, the answer back horn feature can
be deactivated using the Intelligent Key.
When it is deactivated and the
but-
ton is pressed, the hazard indicator lights
flash twice. When the
button is
pressed, neither the hazard indicator lights
nor the horn operates. However, the head-
lights will illuminate for 30 seconds. NOTE:
If you change the answer back horn and light
flash feature with the Intelligent Key, the
lower touch-screen display will show the
current mode after the ignition switch has
been cycled from the OFF to the ON posi-
tion. “Vehicle Settings” in the lower touch-
screen display can also be used to change the
answer back horn mode between “Conve-
nience” and “Security” settings.
To deactivate:
Press and hold the
andbuttonsfor at least 2 seconds.
The hazard indicator lights will flash three
times to confirm that the answer back horn
feature has been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds once
more.
The hazard indicator lights will flash once and
the horn will sound once to confirm that the
horn beep feature has been reactivated.
Deactivating the horn beep feature does not
silence the horn if the alarm is triggered.
WARNING SIGNALS
To help prevent the vehicle from moving un-
expectedly by erroneous operation of the In-
telligent Key or to help prevent the vehicle
from being stolen, a chime or buzzer sounds
from inside and outside the vehicle and a
warning is displayed in the instrument panel.
When a chime or beep sounds or a warning is
displayed, be sure to check the vehicle and
the Intelligent Key.
For additional information, refer to the
“Troubleshooting guide” in this section and
the separate INFINITI InTouch™ Owner’s
Manual.
TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the vehicle,
the vehicle system may respond differently
than expected.
LPD2259
3-18Pre-driving checks and adjustments

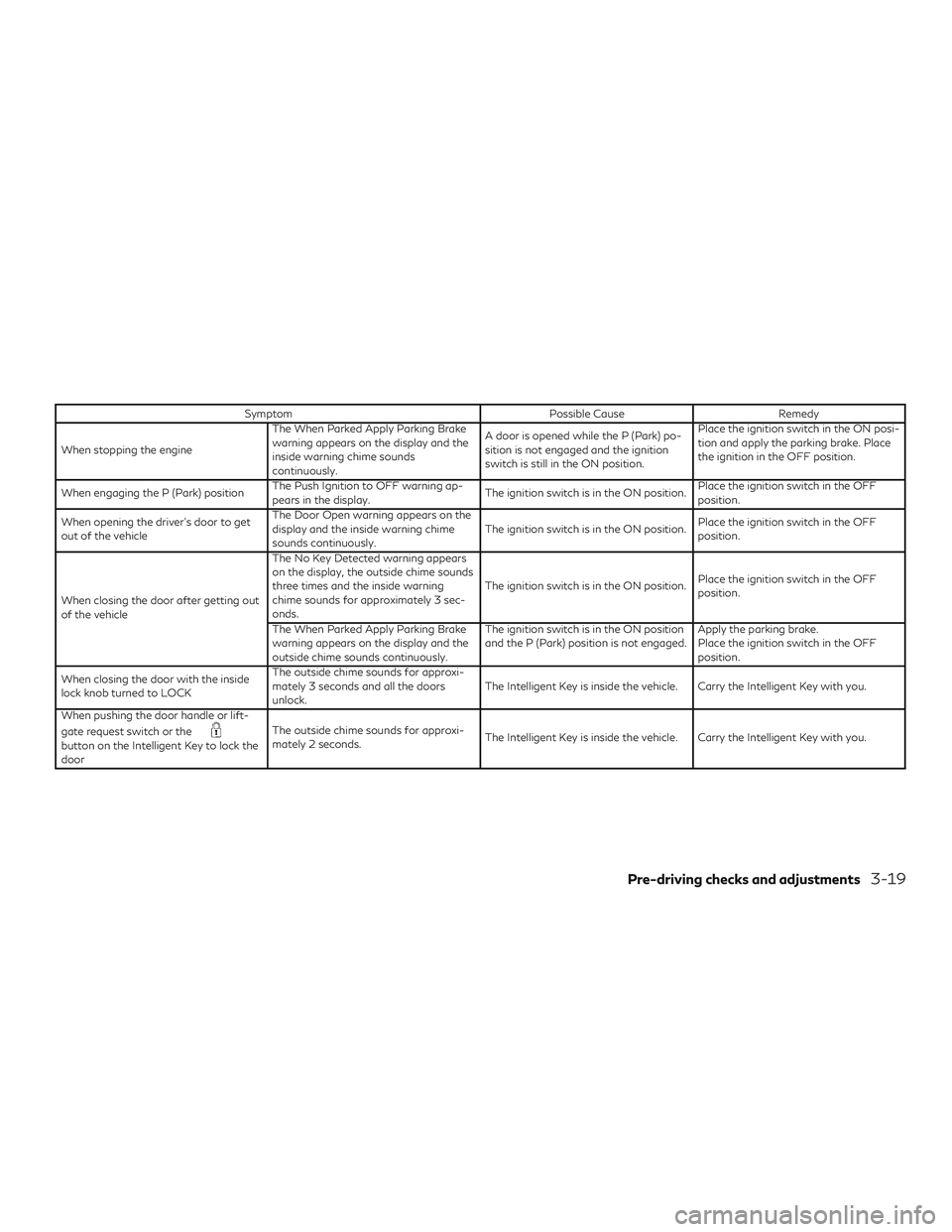

SymptomPossible CauseRemedy
When stopping the engine The When Parked Apply Parking Brake
warning appears on the display and the
inside warning chime sounds
continuously. A door is opened while the P (Park) po-
sition is not engaged and the ignition
switch is still in the ON position.Place the ignition switch in the ON posi-
tion and apply the parking brake. Place
the ignition in the OFF position.
When engaging the P (Park) position The Push Ignition to OFF warning ap-
pears in the display. The ignition switch is in the ON position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicle The Door Open warning appears on the
display and the inside warning chime
sounds continuously.
The ignition switch is in the ON position.
Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicle The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately 3 sec-
onds.
The ignition switch is in the ON position.
Place the ignition switch in the OFF
position.
The When Parked Apply Parking Brake
warning appears on the display and the
outside chime sounds continuously. The ignition switch is in the ON position
and the P (Park) position is not engaged.
Apply the parking brake.
Place the ignition switch in the OFF
position.
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for approxi-
mately 3 seconds and all the doors
unlock.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the door handle or lift-
gate request switch or the
button on the Intelligent Key to lock the
door The outside chime sounds for approxi-
mately 2 seconds.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-19

SymptomPossible CauseRemedy
When pushing the ignition switch to
start the engine The Key Battery Low warning appears
on the display.
The battery charge may be getting low.Replace the battery with a new one. For
additional information, refer to “Battery
replacement” in the “Do-it-yourself” sec-
tion of this manual.
The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately 3 sec-
onds. The battery charge may be getting low.
Replace the battery with a new one. For
additional information, refer to “Battery
replacement” in the “Do-it-yourself” sec-
tion of this manual.
When pushing the ignition switch The I-Key System Error: See Owner’s
Manual warning appears on the display. It warns of a malfunction with the Intel-
ligent Key system.It is recommended that you visit an
INFINITI retailer.
LOG-IN FUNCTION
After setting up the user information, the
system will automatically recognize the user
upon turning on the vehicle.
There will be a personalized welcome greet-
ing and screen prompt to log in.
This feature allows four drivers to use their
own registration, drive mode, driving posi-
tion, air conditioner, and auto settings and
memorizes these custom settings.
The log-in user can be changed on the wel-
come greeting screen or the User List screen.
For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual. The log-in function is linked to the following
features:
∙ Meter
∙ Audio
∙ Navigation system display (if so equipped)
∙ Navigation settings (if so equipped)
∙ Air conditioner
∙ Automatic drive positioner (if so equipped)
∙ Engine/transmission ∙ Steering
∙ Suspension (if so equipped)
∙ Active trace control system
∙ Driver assistance except for the Forward
Emergency Braking (FEB) with Pedes-
trian Detection system (if so equipped)
∙ Body Control Module (BCM)
3-20Pre-driving checks and adjustments

CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time.
∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the lock but-
ton.
∙ The brake is pressed.
∙ The doors are not closed and locked.
∙ The liftgate is open.
∙ The I-Key Indicator Light remains solid in the vehicle information display. ∙ The alarm sounds due to illegal entry into
the vehicle.
∙ Two Remote Engine Starts, or a single Remote Engine Start with an extension,
have already been used.
∙ The vehicle is not in P (Park).
∙ There is a detected registered key already inside of the vehicle.
∙ The Remote Engine Start function has been switched to the OFF position in
“Vehicle Settings” of the lower touch-
screen display. For additional informa-
tion, refer to the separate INFINITI
InTouch™ Owner’s Manual.
The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, refer
to the separate INFINITI InTouch™ Owner’s
Manual.
Pre-driving checks and adjustments3-23

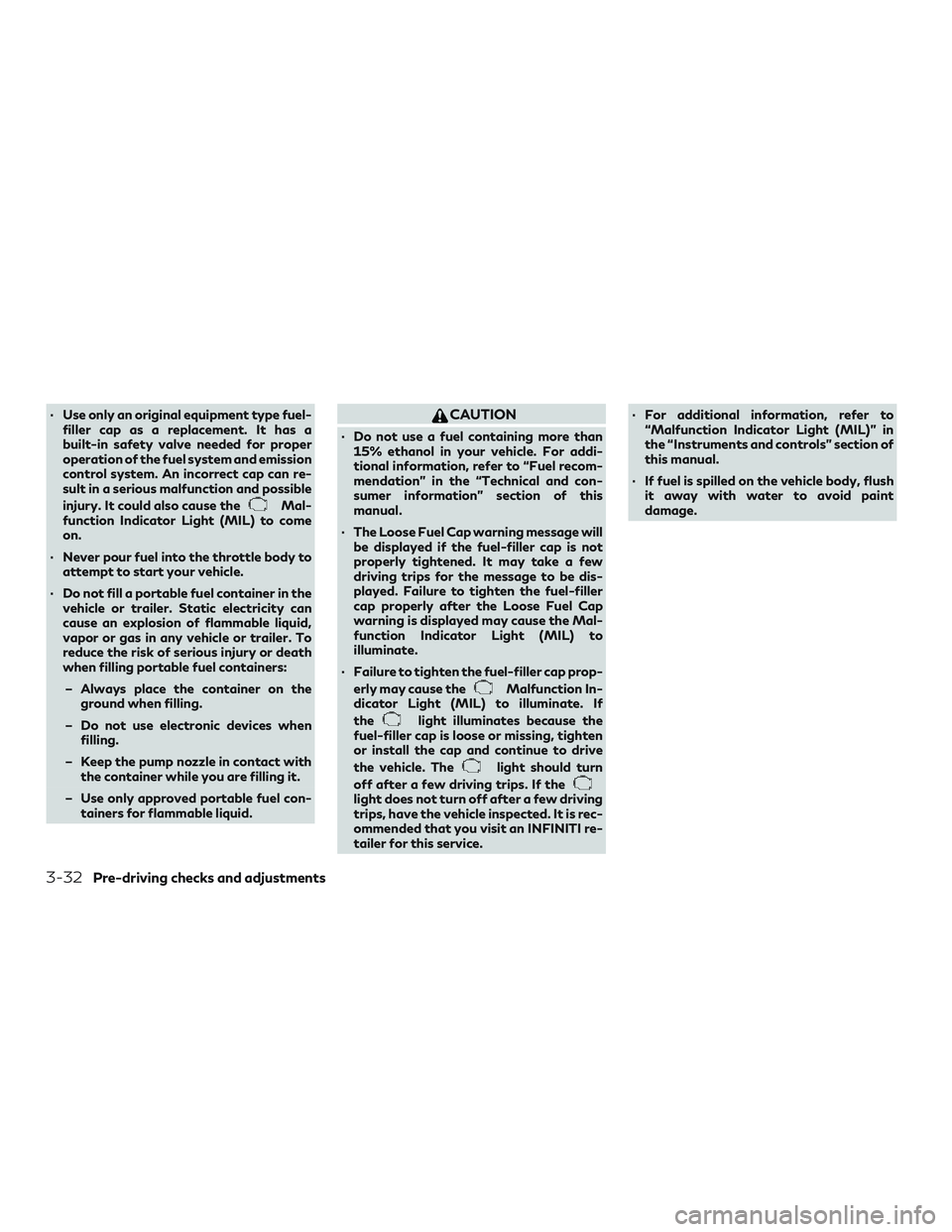

∙ Use only an original equipment type fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emission
control system. An incorrect cap can re-
sult in a serious malfunction and possible
injury. It could also cause the
Mal-
function Indicator Light (MIL) to come
on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
∙ Do not use a fuel containing more than15% ethanol in your vehicle. For addi-
tional information, refer to “Fuel recom-
mendation” in the “Technical and con-
sumer information” section of this
manual.
∙ The Loose Fuel Cap warning message will be displayed if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be dis-
played. Failure to tighten the fuel-filler
cap properly after the Loose Fuel Cap
warning is displayed may cause the Mal-
function Indicator Light (MIL) to
illuminate.
∙ Failure to tighten the fuel-filler cap prop- erly may cause the
Malfunction In-
dicator Light (MIL) to illuminate. If
the
light illuminates because the
fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive
the vehicle. The
light should turn
off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected. It is rec-
ommended that you visit an INFINITI re-
tailer for this service. ∙ For additional information, refer to
“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
∙ If fuel is spilled on the vehicle body, flush it away with water to avoid paint
damage.
3-32Pre-driving checks and adjustments
