To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
Awhile refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning
The Loose Fuel Cap warning will appear in
the vehicle information display when the
fuel-filler cap is not tightened correctly after
the vehicle has been refueled. It may take a
few driving trips for the message to be dis-
played. To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap as soon as possible. For additional informa-
tion, refer to “Fuel-filler cap” in this sec-
tion.
2. Tighten the fuel-filler cap until it a single click is heard. 3. Press the
buttonAon the steer-
ing wheel for about 1 second to turn off
the Loose Fuel Cap warning message in
the vehicle information display
B.
LPD2726LPD2786
Pre-driving checks and adjustments3-33

MEMORY STORAGE FUNCTION

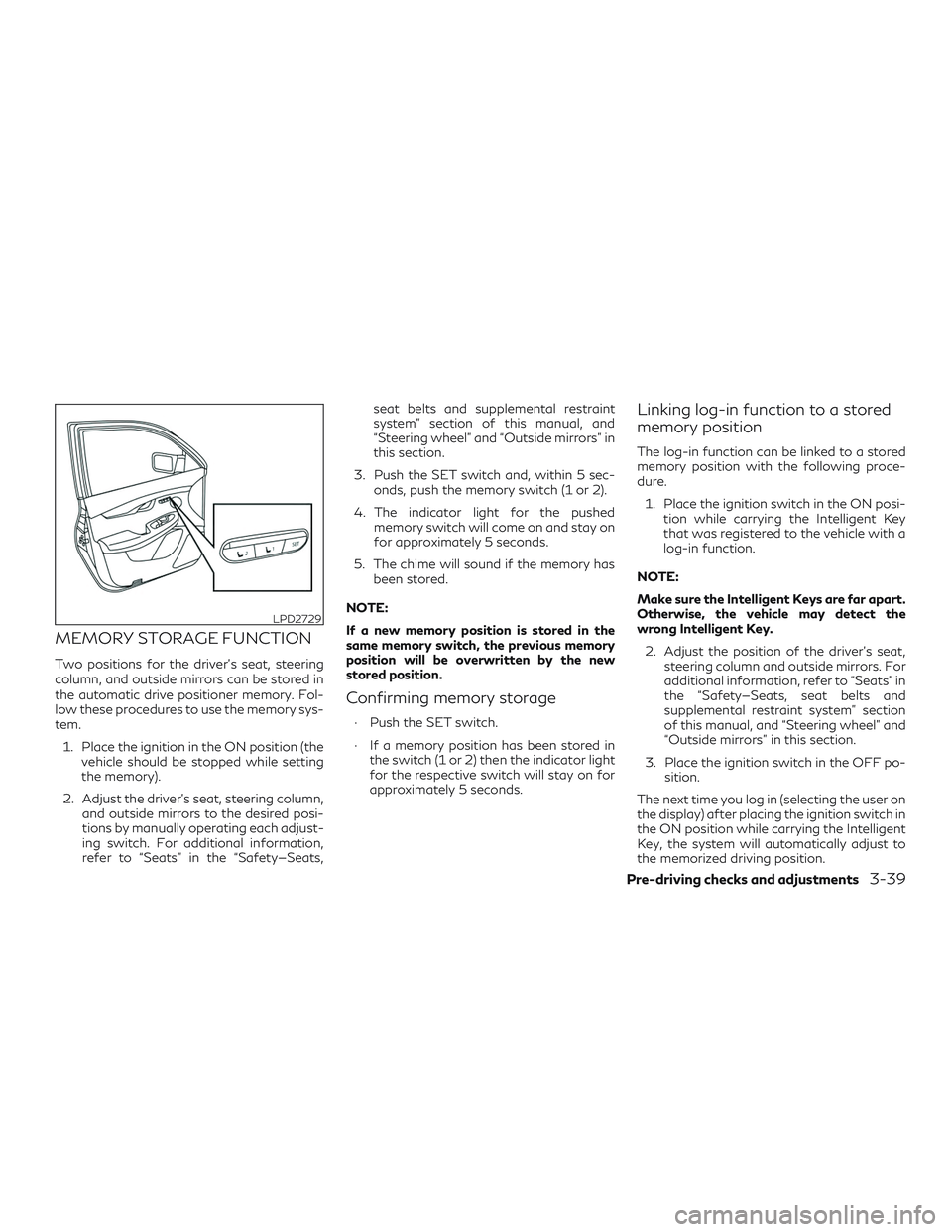

Two positions for the driver’s seat, steering
column, and outside mirrors can be stored in
the automatic drive positioner memory. Fol-
low these procedures to use the memory sys-
tem.1. Place the ignition in the ON position (the vehicle should be stopped while setting
the memory).
2. Adjust the driver’s seat, steering column, and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
refer to “Seats” in the “Safety—Seats, seat belts and supplemental restraint
system” section of this manual, and
“Steering wheel” and “Outside mirrors” in
this section.
3. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
4. The indicator light for the pushed memory switch will come on and stay on
for approximately 5 seconds.
5. The chime will sound if the memory has been stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay on for
approximately 5 seconds.
Linking log-in function to a stored
memory position
The log-in function can be linked to a stored
memory position with the following proce-
dure.
1. Place the ignition switch in the ON posi- tion while carrying the Intelligent Key
that was registered to the vehicle with a
log-in function.
NOTE:
Make sure the Intelligent Keys are far apart.
Otherwise, the vehicle may detect the
wrong Intelligent Key. 2. Adjust the position of the driver’s seat, steering column and outside mirrors. For
additional information, refer to “Seats” in
the “Safety—Seats, seat belts and
supplemental restraint system” section
of this manual, and “Steering wheel” and
“Outside mirrors” in this section.
3. Place the ignition switch in the OFF po- sition.
The next time you log in (selecting the user on
the display) after placing the ignition switch in
the ON position while carrying the Intelligent
Key, the system will automatically adjust to
the memorized driving position.
LPD2729
Pre-driving checks and adjustments3-39

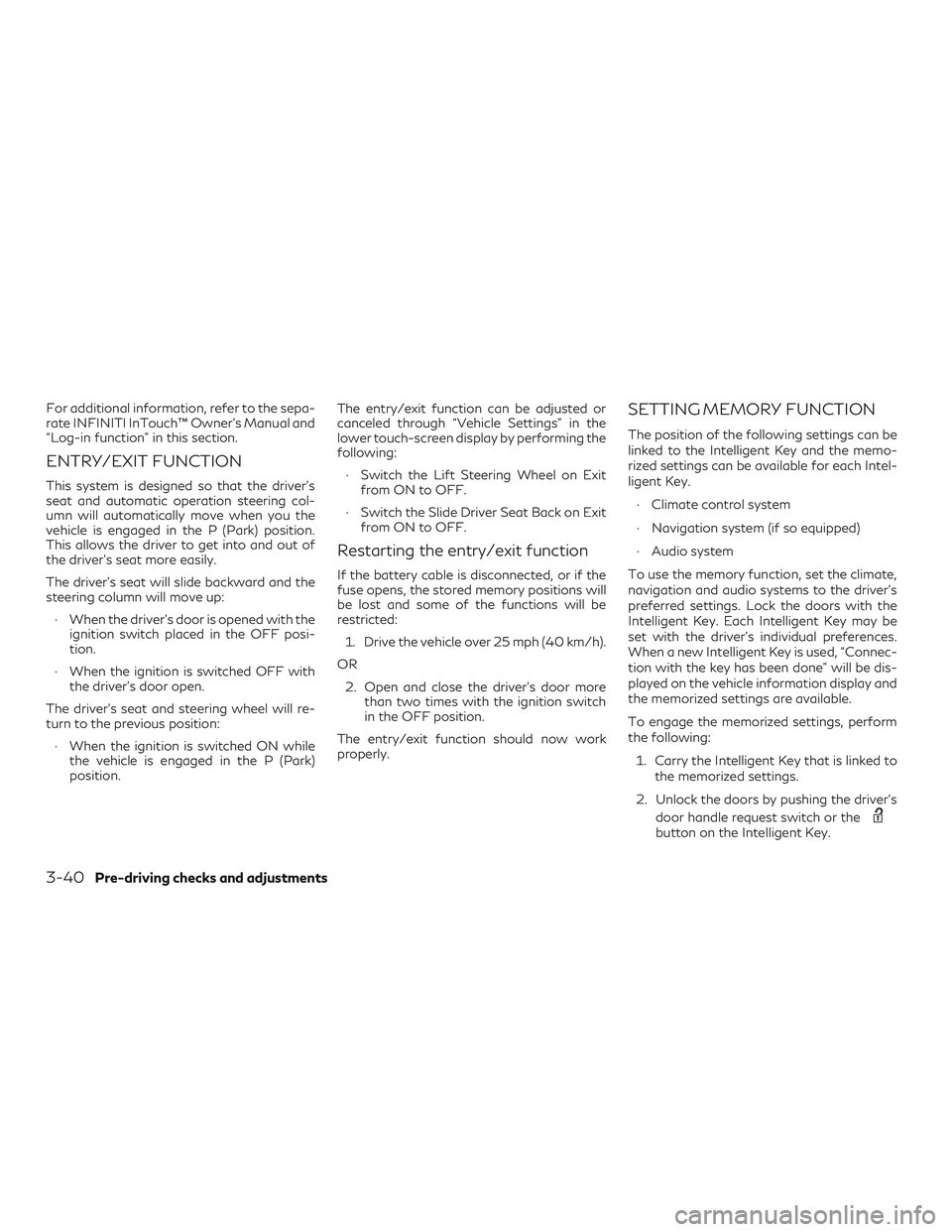

For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual and
“Log-in function” in this section.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when you the
vehicle is engaged in the P (Park) position.
This allows the driver to get into and out of
the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up:∙ When the driver’s door is opened with the ignition switch placed in the OFF posi-
tion.
∙ When the ignition is switched OFF with the driver’s door open.
The driver’s seat and steering wheel will re-
turn to the previous position: ∙ When the ignition is switched ON while the vehicle is engaged in the P (Park)
position. The entry/exit function can be adjusted or
canceled through “Vehicle Settings” in the
lower touch-screen display by performing the
following:
∙ Switch the Lift Steering Wheel on Exit from ON to OFF.
∙ Switch the Slide Driver Seat Back on Exit from ON to OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.
∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key.
3-40Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera Aiding Sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar System Operation ....................4-25
Turning ON and OFF the sonar function .....4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-28
Moving Object Detection (MOD)
(if so equipped) ................................. 4-29
MOD system operation ......................4-30
Turning MOD on and off ....................4-33
MOD system limitations .....................4-33
System maintenance ........................ 4-34
Vents .......................................... 4-35
Heater and air conditioner (automatic) ..........4-36
Automatic operation ........................ 4-37
Manual operation ........................... 4-38
Operating tips ............................... 4-39
CLIMATE setting screen .....................4-40
Rear

climate control (if so equipped) .........4-42
Heater and air conditioner settings ..............4-43
Servicing air conditioner ........................ 4-43
USB/iPod® charging ports .....................4-44
Antenna ....................................... 4-44
Car phone or CB radio .......................... 4-45

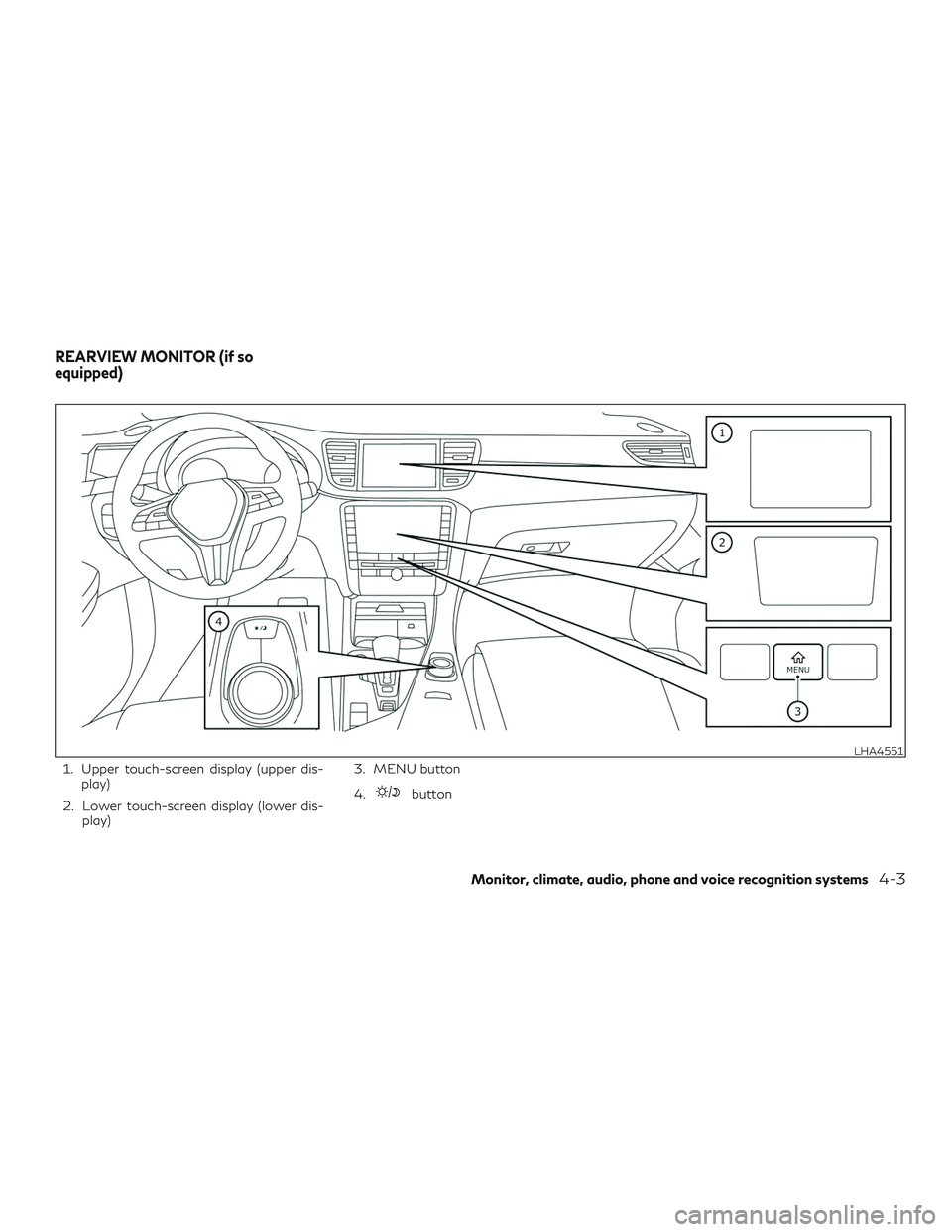

1. Upper touch-screen display (upper dis-play)
2. Lower touch-screen display (lower dis- play) 3. MENU button
4.
button
LHA4551
REARVIEW MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-3

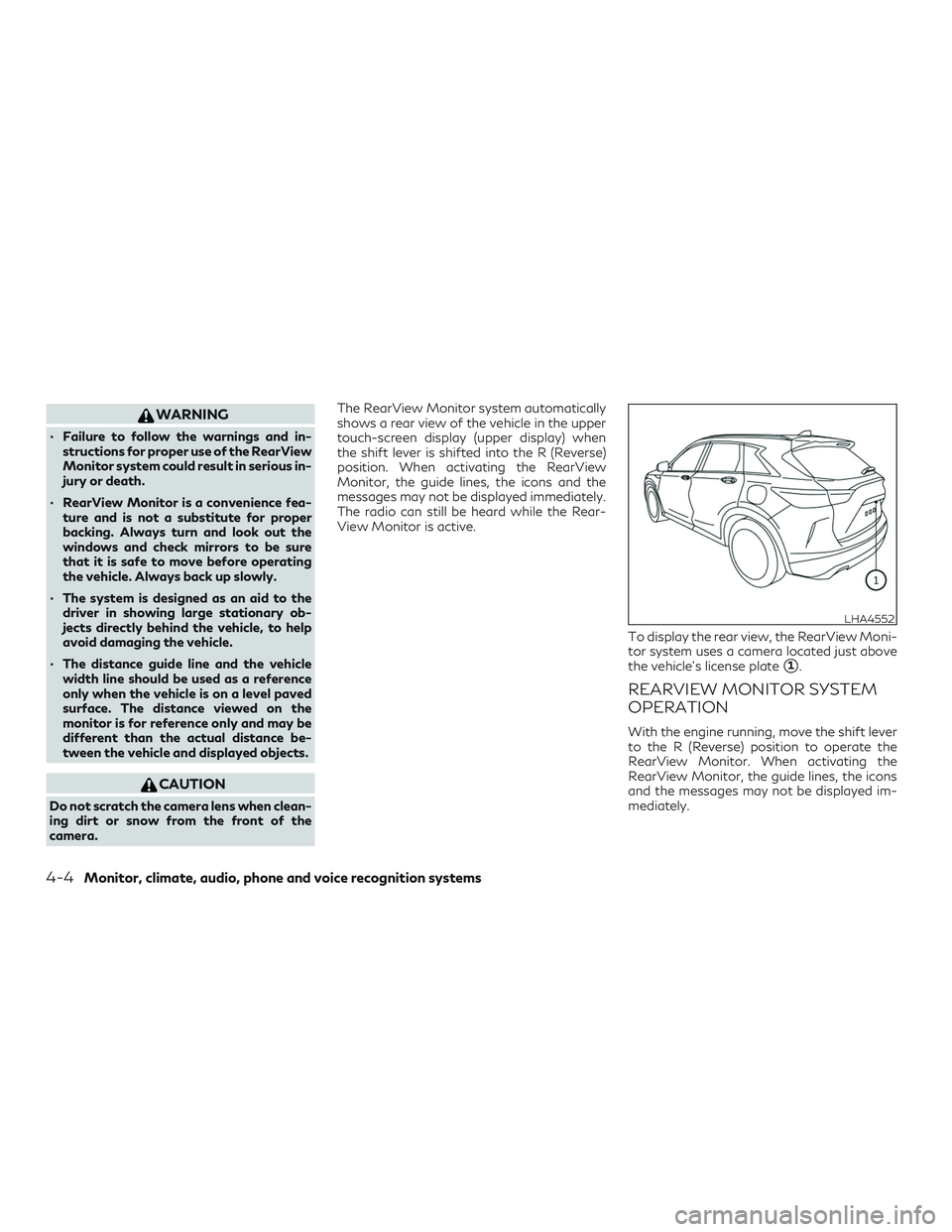

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the RearView
Monitor system could result in serious in-
jury or death.
∙ RearView Monitor is a convenience fea- ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
∙ The system is designed as an aid to the driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
∙ The distance guide line and the vehicle width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera. The RearView Monitor system automatically
shows a rear view of the vehicle in the upper
touch-screen display (upper display) when
the shift lever is shifted into the R (Reverse)
position. When activating the RearView
Monitor, the guide lines, the icons and the
messages may not be displayed immediately.
The radio can still be heard while the Rear-
View Monitor is active.
To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the engine running, move the shift lever
to the R (Reverse) position to operate the
RearView Monitor. When activating the
RearView Monitor, the guide lines, the icons
and the messages may not be displayed im-
mediately.
LHA4552
4-4Monitor, climate, audio, phone and voice recognition systems

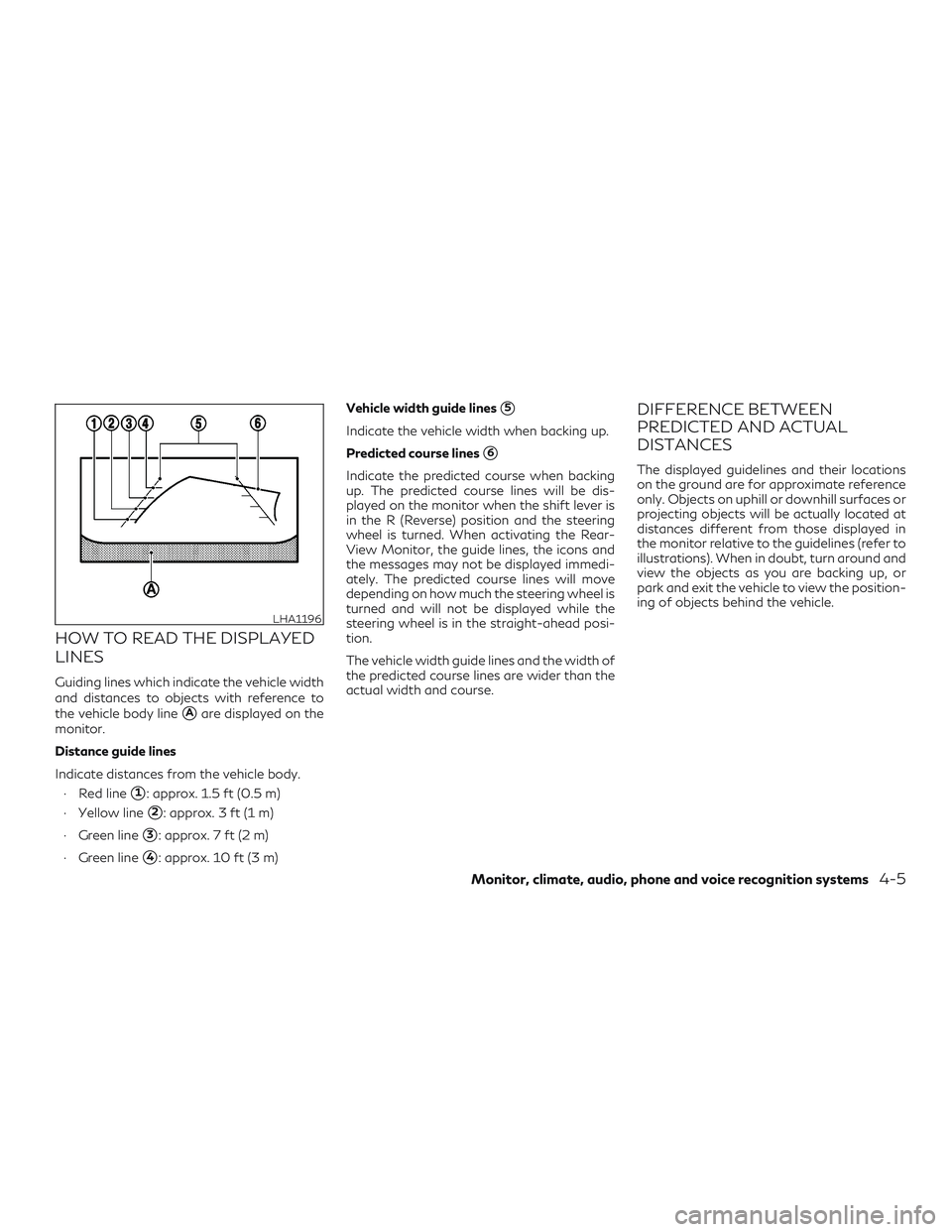

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to
the vehicle body line
Aare displayed on the
monitor.
Distance guide lines
Indicate distances from the vehicle body.
∙ Red line
1: approx. 1.5 ft (0.5 m)
∙ Yellow line
2: approx. 3 ft (1 m)
∙ Green line
3: approx. 7 ft (2 m)
∙ Green line
4: approx. 10 ft (3 m) Vehicle width guide lines
5
Indicate the vehicle width when backing up.
Predicted course lines
6
Indicate the predicted course when backing
up. The predicted course lines will be dis-
played on the monitor when the shift lever is
in the R (Reverse) position and the steering
wheel is turned. When activating the Rear-
View Monitor, the guide lines, the icons and
the messages may not be displayed immedi-
ately. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the straight-ahead posi-
tion.
The vehicle width guide lines and the width of
the predicted course lines are wider than the
actual width and course.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.
LHA1196
Monitor, climate, audio, phone and voice recognition systems4-5

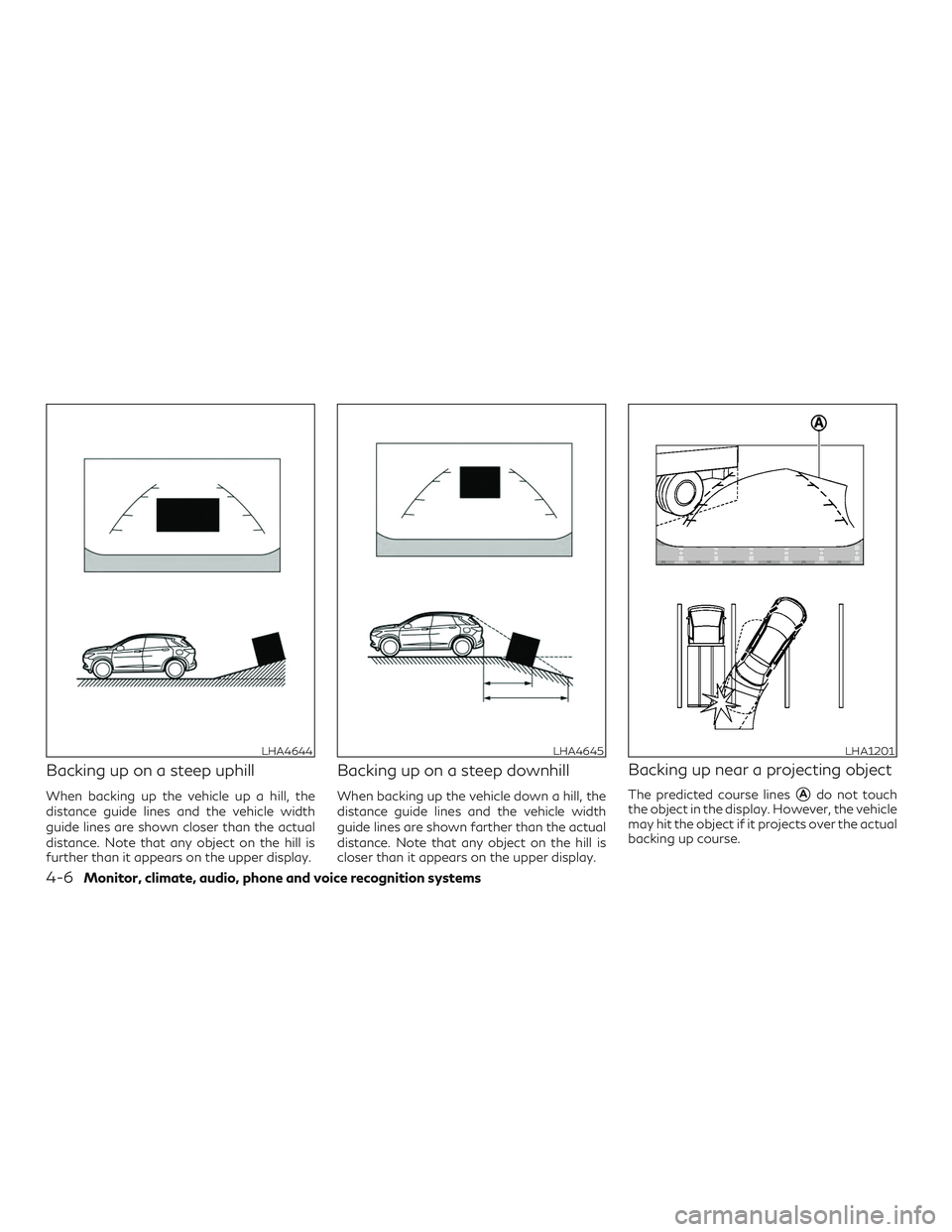

Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the upper display.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the upper display.
Backing up near a projecting object
The predicted course linesAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
LHA4644LHA4645LHA1201
4-6Monitor, climate, audio, phone and voice recognition systems

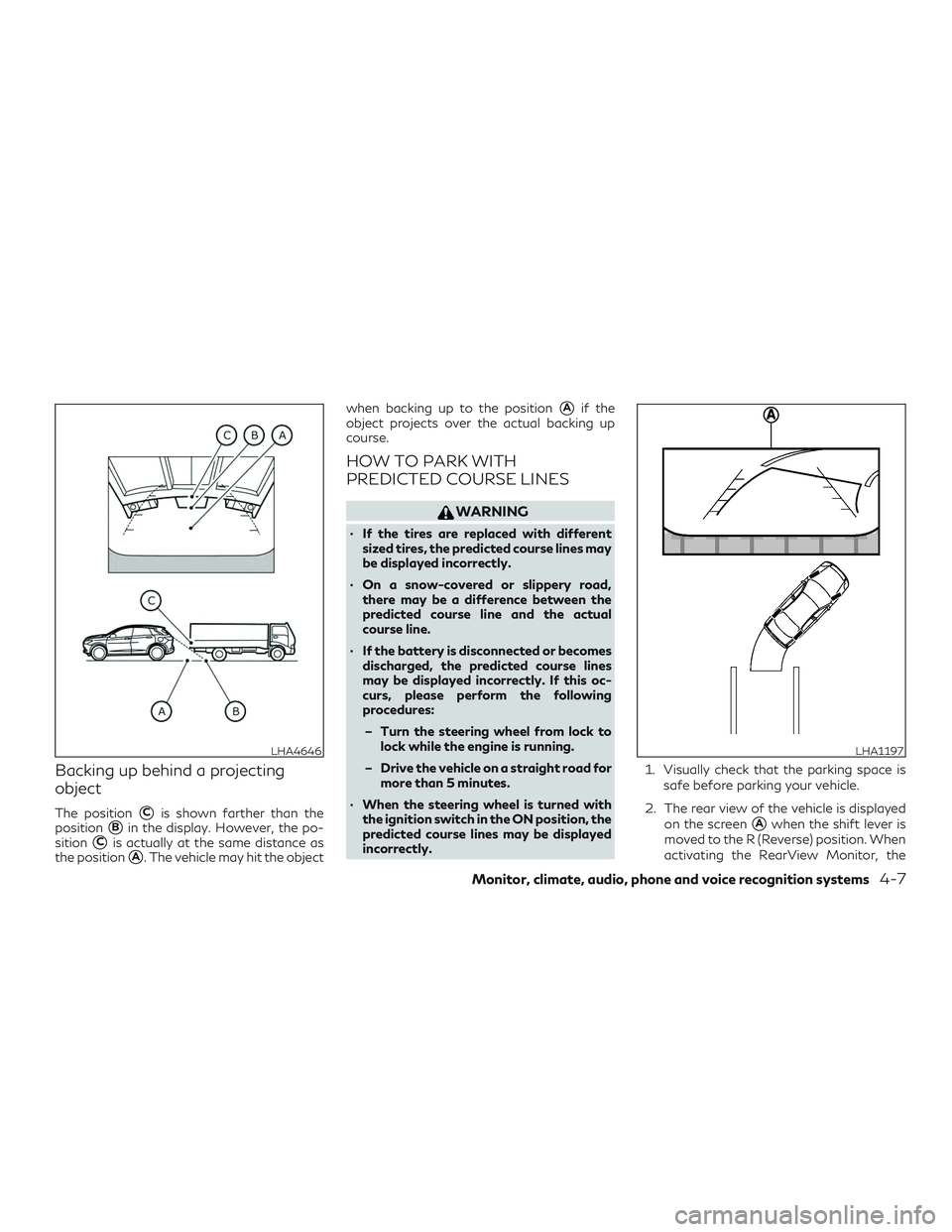

Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the object when backing up to the position
Aif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
∙ If the tires are replaced with different sized tires, the predicted course lines may
be displayed incorrectly.
∙ On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
∙ If the battery is disconnected or becomes discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to lock while the engine is running.
– Drive the vehicle on a straight road for more than 5 minutes.
∙ When the steering wheel is turned with the ignition switch in the ON position, the
predicted course lines may be displayed
incorrectly. 1. Visually check that the parking space is
safe before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is
moved to the R (Reverse) position. When
activating the RearView Monitor, the
LHA4646LHA1197

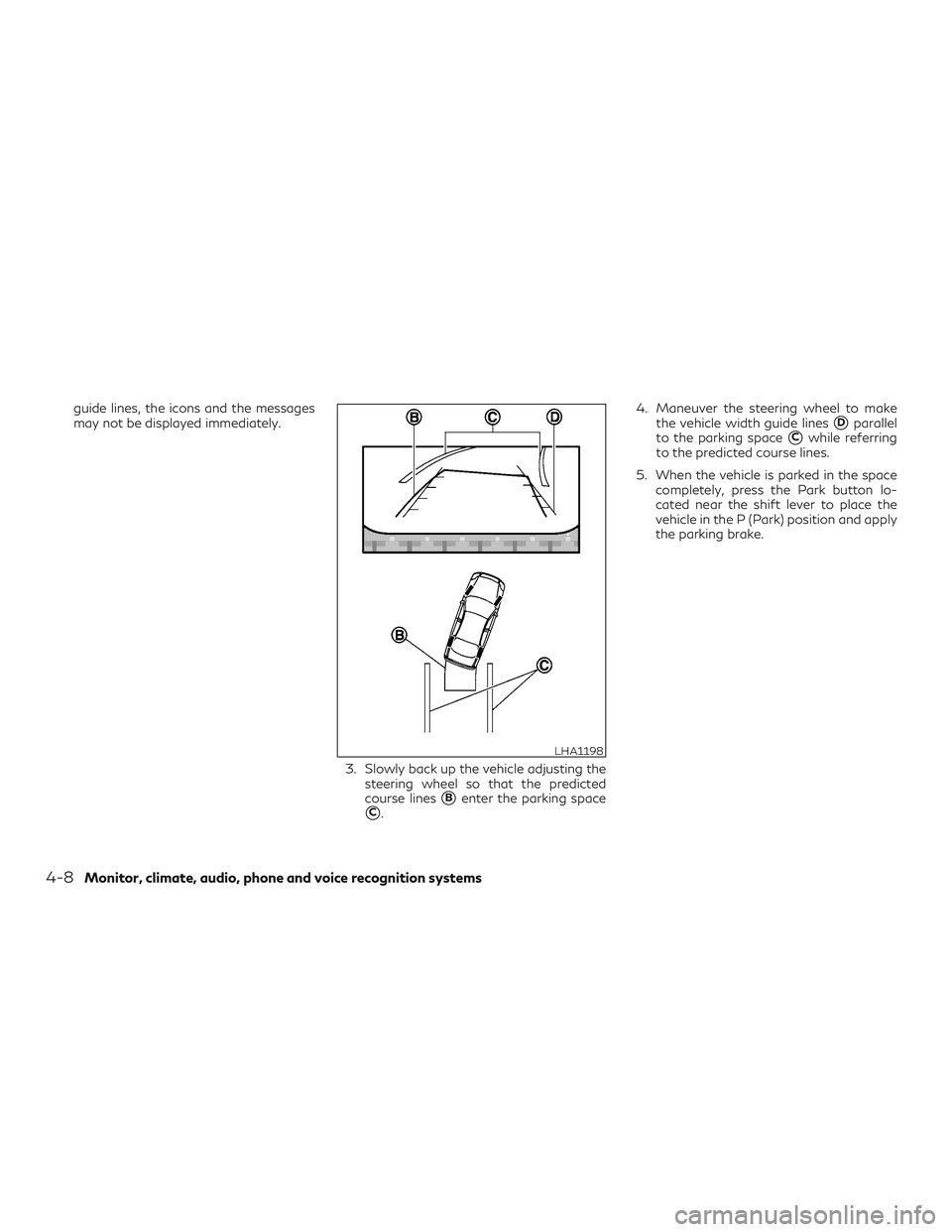

Monitor, climate, audio, phone and voice recognition systems4-7

guide lines, the icons and the messages
may not be displayed immediately.3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted
course lines
Benter the parking space
C. 4. Maneuver the steering wheel to make
the vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, press the Park button lo-
cated near the shift lever to place the
vehicle in the P (Park) position and apply
the parking brake.
LHA1198
4-8Monitor, climate, audio, phone and voice recognition systems
