Body INFINITI QX56 2004 Factory Service Manual

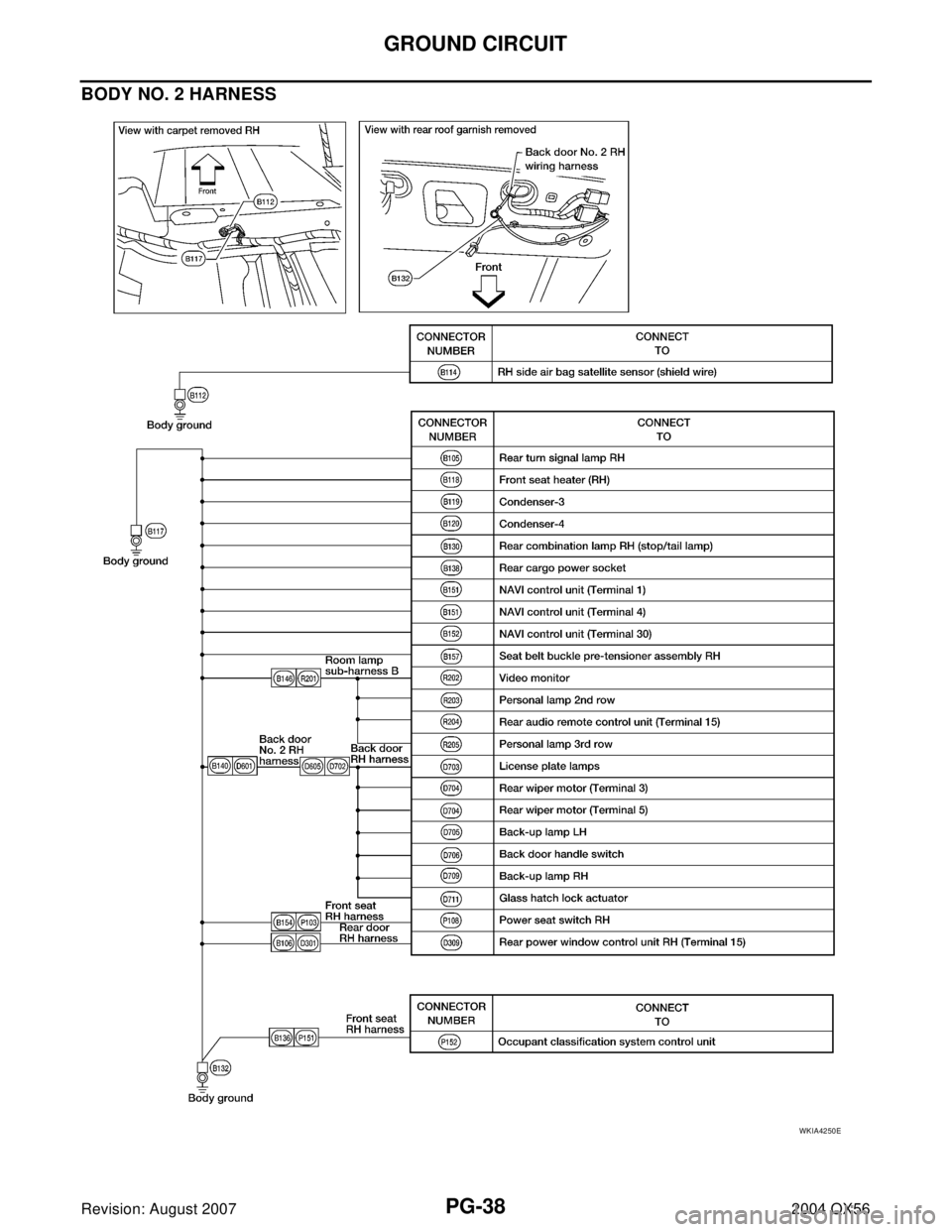

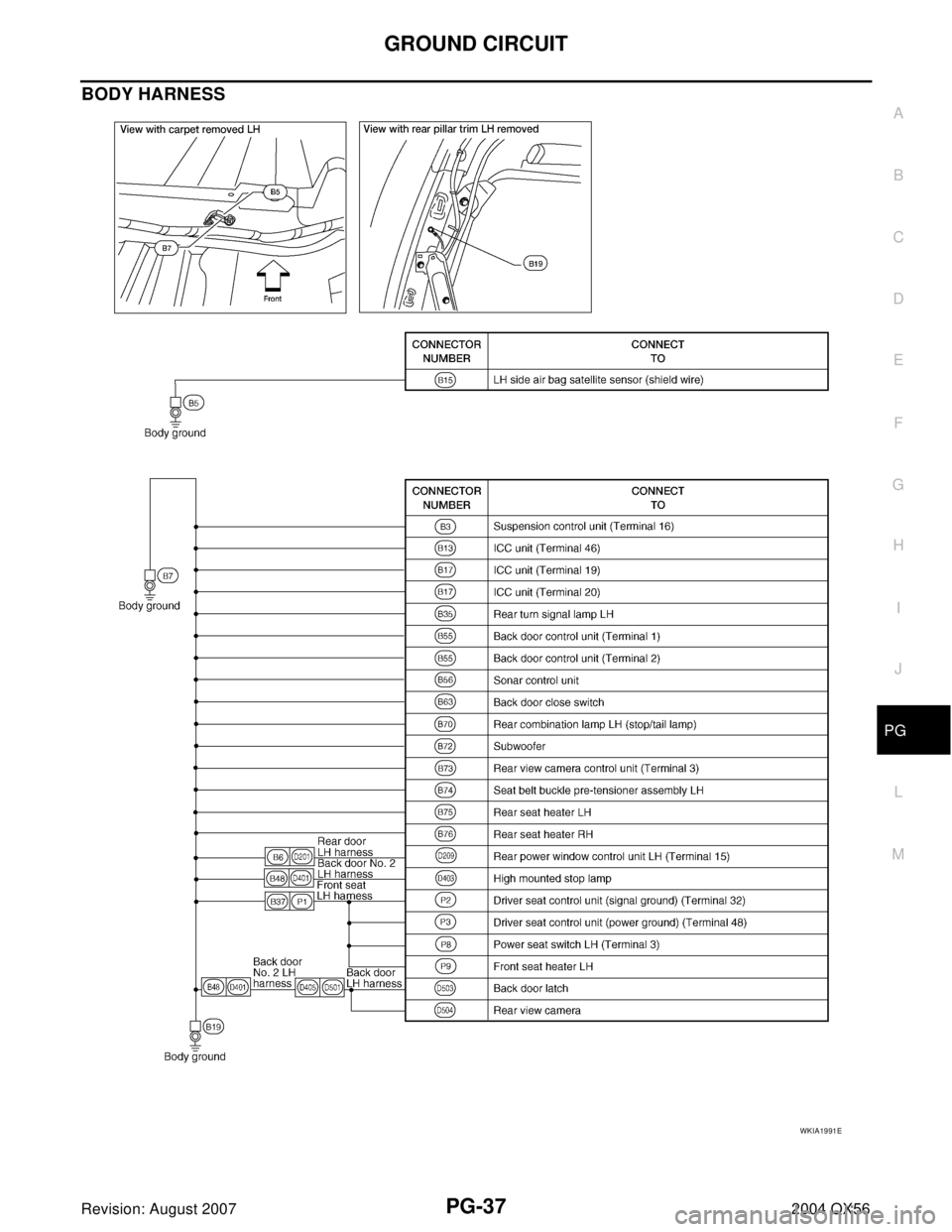

GROUND CIRCUIT
PG-37
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
BODY HARNESS
WKIA1991E

PG-38
GROUND CIRCUIT
Revision: August 20072004 QX56
BODY NO. 2 HARNESS
WKIA4250E

PG-40
HARNESS
Revision: August 20072004 QX56
HARNESSPFP:24010
Harness LayoutEKS007NY
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

Main Harness

Engine Room Harness LH View (Engine Compartment)

Engine Room Harness RH View (Engine Compartment)

Engine Control Harness

Chassis Harness

Body Harness

Body No. 2 Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated below.
SEL252V
Connector typeWater proof type Standard type
Male Female Male Female

Cavity: 4 or Less

Relay connector

Cavity: From 5 to 8

Cavity: 9 or More

Ground terminal etc.
—

HARNESS
PG-53
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
BODY HARNESS
WKIA3561E

HARNESS
PG-55
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: August 20072004 QX56
BODY NO. 2 HARNESS
WKIA3538E

POWER STEERING OIL PUMP
PS-27
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: August 20072004 QX56
Disassembly and AssemblyEGS000MY
INSPECTION BEFORE DISASSEMBLY
Disassemble power steering oil pump only if the following conditions are found.

Oil leakage from oil pump

Deformed or damaged pulley

Poor performance
DISASSEMBLY
CAUTION:
When retaining drive shaft in a vise, always use copper or aluminum plates between vise and shaft.
NOTE:
Mount the oil pump in a vise as needed.
1. Unscrew three bracket bolts and remove bracket from rear cover.
2. Unscrew four rear cover bolts and remove rear cover from body assembly.
3. Remove gasket from body assembly.
4. Remove lock pin, cartridge and side plate from body assembly.
5. Remove pulley from drive shaft assembly.
1. Bracket 2. Rear cover 3. Gasket
4. Lock pin 5. Cam ring 6. Rotor
7. Vane 8. Cartridge 9. Side plate
10. O-ring 11. Body assembly 12. Oil seal
13. Drive shaft assembly 14. Snap ring 15. Pulley
16. Spring washer 17. Flow control valve 18. Pressure sensor
19. Connector bolt 20. Copper washer 21. Bracket
22. Suction pipe 23. O-ring
WGIA0076E

PS-28
POWER STEERING OIL PUMP
Revision: August 20072004 QX56
6. Remove snap ring from drive shaft assembly, then press out
drive shaft assembly.
CAUTION:
When removing snap ring, be careful not to damage drive
shaft assembly.
7. Using a screwdriver, remove oil seal from body assembly.
8. Remove O-ring from body assembly.
9. Remove connector bolt, then flow control valve and spring from
body assembly.
CAUTION:
Be careful not to drop and deform the flow control valve.
10. Remove suction pipe from body assembly.
11. Remove O-ring for suction pipe.
INSPECTION AFTER DISASSEMBLY
Body Assembly and Rear Cover Inspection

Check body assembly and the inside of rear cover for damage. If any damage is found, replace with new
part for rear cover and replace with new power steering pump assembly for body assembly.
Cartridge Assembly Inspection

Check cam ring, side plate, rotor and vane for damage. If any damage is found, replace cartridge assem-
bly with new one.
ASSEMBLY
CAUTION:
When retaining drive shaft assembly in a vise, always use copper or aluminum plates between vise
and shaft.
NOTE:
Mount the oil pump in a vise as needed.
1. Apply a coat of Genuine NISSAN PSF or equivalent to oil seal lip and to the circumference of oil seal.
Refer to MA-10, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
SST 0 10 B
SST 0 34 A
SGIA0524E

POWER STEERING OIL PUMP
PS-29
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: August 20072004 QX56
2. Install oil seal to body assembly using suitable tool.
NOTE:
Do not reuse oil seal.
3. Apply a coat of Genuine NISSAN PSF or equivalent to drive shaft assembly and press drive shaft assem-
bly into body assembly with suitable tool, then install snap ring.
NOTE:
Do not reuse snap ring.
4. Apply a coat of Genuine NISSAN PSF or equivalent to O-ring and install O-ring into body assembly.
NOTE:
Do not reuse O-ring.
5. Install side plate to body assembly.
6. Install lock pin into lock pin hole, and install cam-ring as shown.

When installing cam ring, align letter "E" to rear cover as
shown.
CAUTION:
Do not confuse the assembling direction of cam ring. If
cam ring is installed facing the incorrect direction, it may
cause pump operation malfunction.
7. Install rotor to body assembly.
SST 0 38 A
SGIA0422E
WGIA0079E

PS-30
POWER STEERING OIL PUMP
Revision: August 20072004 QX56

When installing rotor, the punch mark on the face of the rotor
faces the body assembly.
8. Install vane to rotor with round portion facing outside.
9. Check if drive shaft assembly turns smoothly.
10. Install gasket to body assembly.
NOTE:
Do not reuse gasket.
11. Install rear cover to body assembly and tighten bolts to the specified torque.
12. Install bracket to rear cover and tighten bolts at the specified torque.
13. Install pulley to drive shaft assembly then tighten lock nut at the specified torque.
14. Install spring and flow control valve, copper washers, joint and connector bolt to body assembly. Then
tighten connector bolt to the specified torque.
NOTE:
Do not reuse O-ring.
15. Apply a coat of Genuine NISSAN PSF or equivalent to O-ring, then install O-ring to suction pipe.
NOTE:
Do not reuse O-ring.
16. Install suction pipe to body assembly.
SGIA0424E
SST 8 43 A
