INTAKE MANIFOLD
2006 QX56
5. Install the quick connector cap on the quick connector joint (onengine side only).
6. Install the fuel hose and tube to hose clamps.
7. Refill the engine coolant. Refer to CO-11, "
REFILLING ENGINE
COOLANT" .
INSPECTION AFTER INSTALLATION

After installing fuel tubes, make sure there is no fuel leakage at connections in the following steps.
–Apply fuel pressure to fuel lines by turning ignition switch ON (with engine stopped). Then check for fuel
leaks at connections.
–Start the engine and rev it up and check for fuel leaks at the connections.

Perform procedures for “Throttle Valve Closed Position Learning ” after finishing repairs. Refer to EC-78,
"Throttle Valve Closed Position Learning" .

If electric throttle control actuator is replaced, perform procedures for “Idle Air Volume Learning” after fin-
ishing repairs. Refer to EC-78, "
Idle Air Volume Learning" .
SBIA0354E

EXHAUST MANIFOLD AND THREE WAY CATALYSTEM-21
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
Removal and InstallationEBS00RF1
REMOVAL
WARNING:
Perform the work when the exhaust and cooling system have cooled sufficiently.
1. Remove the engine undercover (rear) using power tool (4WD models).
2. Remove front final drive assembly (4WD models). Refer to FFD-12, "
Removal and Installation" .
3. Remove the main muffler assembly and center exhaust tube. Refer to EX-3, "
Removal and Installation" .
4. Remove the front exhaust tubes. Refer to EX-3, "
Removal and Installation" .
5. Remove the front tires. Refer to WT-7, "
Rotation" .
6. Remove fender protectors. Refer to EI-23, "
Removal and Installation" .
7. Remove the air fuel ratio A/F sensors (bank 1, bank 2).

Follow steps below to remove each air fuel ratio A/F sensor.
a. Remove the harness connector of each air fuel ratio A/F sensor, and harness from bracket and middle clamp.
1. Air fuel ratio A/F sensor 1 (bank 2) 2. Exhaust manifold cover (bank 2) 3. Exhaust manifold (bank 2)
4. Gaskets 5. Exhaust manifold (bank 1) 6. Exhaust manifold cover (bank 1)
7. Air fuel ratio A/F sensor 1 (bank 1)
WBIA0466E

EM-22Revision: November 2009
EXHAUST MANIFOLD AND THREE WAY CATALYST
2006 QX56
b. Remove the air fuel ratio A/F sensors from both left and rightexhaust manifolds using Tool.
CAUTION:

Do not damage the air fuel ratio A/F sensors

Discard any air fuel ratio A/F sensor which has been
dropped from a height of more than 0.5m (19.7 in) onto a
hard surface such as a concrete floor. Replace it with a
new one.
8. Support engine using a suitable tool.
9. Remove the exhaust manifold (LH) following the steps below.
a. Remove the engine mounting insulator. Refer to EM-74
.
b. Remove the exhaust manifold cover.
c. Remove the engine mounting bracket. Refer to EM-74
.
d. Loosen the nuts in reverse order as shown using power tool.
e. Remove the exhaust manifold (LH) (A).
10. Remove the exhaust manifold (RH) following the steps below.
a. Remove the engine mounting insulator. Refer to EM-74
.
b. Remove the exhaust manifold cover.
c. Remove the engine mounting bracket. Refer to EM-74
.
d. Remove the oil level gauge guide. Refer to EM-24
.
e. Loosen the nuts in reverse order as shown using power tool.
f. Remove the exhaust manifold (RH) (B).
INSPECTION AFTER REMOVAL
Surface Distortion

Check the flatness of each exhaust manifold flange surface
using suitable tools.

If measurement exceeds the limit, replace the exhaust manifold.
INSTALLATION
Installation is in the reverse order of removal. Tool number : — (J-44626)
WBIA0630E
WBIA0696E
WBIA0696E
Flatness limit : 0.3 mm (0.012 in)
KBIA2504E

EXHAUST MANIFOLD AND THREE WAY CATALYSTEM-23
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56

Install new exhaust manifold gasket with the top of the triangular
up mark on it facing up and its coated face (gray side) toward
the exhaust manifold side.

Tighten the exhaust manifold nuts in the numerical order shown.
Then recheck the torque of the nuts both (A) and (B).

Before installing new air fuel ration A/F sensors, clean the exhaust system threads using Tool and apply
anti-seize lubricant.
CAUTION:

Do not over tighten the air fuel ratio A/F sensors. Doing so may cause damage to the sensor,
resulting in the MIL coming on.
KBIA2553E
WBIA0696E
Tool number : J-43897-12
: J-43897-18

EM-24Revision: November 2009
OIL PAN AND OIL STRAINER
2006 QX56
OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00RF2
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the engine oil when the engine is hot.
1. Remove the engine. Refer to EM-74, "
REMOVAL" .
2. Remove the oil pan (lower) using the following steps.
a. Remove the oil pan (lower) bolts using power tool.
1. Oil pan (upper) 2. O-ring3. O-ring
4. O-ring 5. O-ring (with collar)6. Oil level gauge guide
7. Oil level gauge 8. O-ring9. Connector bolt
10. Oil filter 11. Oil cooler12. Relief valve
13. Oil pressure sensor 14. Gasket15. Drain plug
16. Oil pan (lower) 17. Oil strainer
KBIA2465E
KBIA2466E

OIL PAN AND OIL STRAINEREM-25
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
b. Insert Tool between the lower oil pan and the upper oil pan.
CAUTION:

Be careful not to damage the mating surface.

Do not insert a screwdriver, this will damage the mating
surfaces.
c. Slide (1) the Tool by tapping (2) its side with a hammer to remove the lower oil pan from the upper oil pan.
3. Remove the oil strainer from the oil pan (upper).
4. Remove the oil pan (upper) using the following steps.
a. Remove the oil pan (upper) bolts a shown.
b. Remove the oil pan (upper) from the cylinder block by prying it at the points shown, using suitable tool.
CAUTION:
Do not damage mating surface.
5. Remove the O-rings from the oil pump and front cover. NOTE:
Do not reuse O-rings.
INSPECTION AFTER REMOVAL
Clean the oil strainer. Tool number : KV10111100 (J-37228)
WBIA0566E
KBIA2467E
KBIA2468E
KBIA2469E

EM-26Revision: November 2009
OIL PAN AND OIL STRAINER
2006 QX56

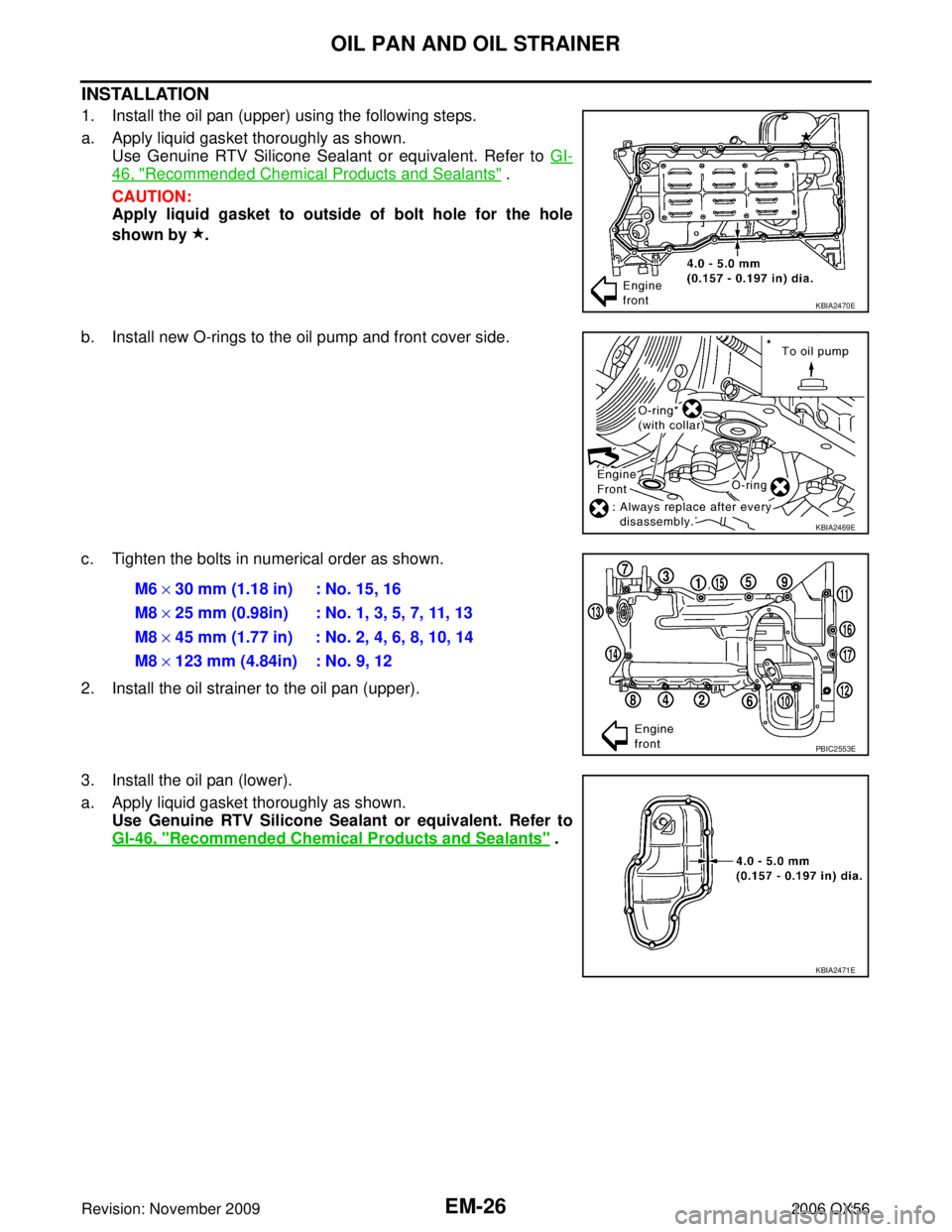

INSTALLATION
1. Install the oil pan (upper) using the following steps.
a. Apply liquid gasket thoroughly as shown.Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-
46, "Recommended Chemical Products and Sealants" .
CAUTION:
Apply liquid gasket to outside of bolt hole for the hole
shown by .
b. Install new O-rings to the oil pump and front cover side.
c. Tighten the bolts in numerical order as shown.
2. Install the oil strainer to the oil pan (upper).
3. Install the oil pan (lower).
a. Apply liquid gasket thoroughly as shown. Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants" .
KBIA2470E
KBIA2469E
M6 × 30 mm (1.18 in) : No. 15, 16
M8 × 25 mm (0.98in) : No. 1, 3, 5, 7, 11, 13
M8 × 45 mm (1.77 in) : No. 2, 4, 6, 8, 10, 14
M8 × 123 mm (4.84in) : No. 9, 12
PBIC2553E
KBIA2471E

OIL PAN AND OIL STRAINEREM-27
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
b. Tighten the oil pan (lower) bolts in numerical order as shown.
4. Install the oil pan drain plug.
5. Install engine assembly. Refer to EM-76, "
INSTALLATION" .

Do not fill the engine oil for at least 30 minutes after oil pan is installed.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and add engine oil if necessary. Refer to LU-7, "OIL LEVEL" .
2. Start the engine, and check for leaks of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level again.
PBIC2595E

EM-28Revision: November 2009
IGNITION COIL
2006 QX56
IGNITION COILPFP:22448
Removal and InstallationEBS00RF3
REMOVAL
1. Remove the engine room cover using power tool. Refer to EM-12, "REMOVAL" .
2. Disconnect the harness connector from the ignition coil.
3. Remove the ignition coil. CAUTION:
Do not shock ignition coil.
INSTALLATION
Installation is in the reverse order of removal.
1. Ignition coil 2. Spark plug
KBIA2505E

SPARK PLUG (PLATINUM-TIPPED TYPE)EM-29
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
SPARK PLUG (PLATINUM-TIPPED TYPE)PFP:22401
Removal and InstallationEBS00RF4
REMOVAL
1. Remove the ignition coil. Refer to EM-28, "REMOVAL" .
2. Remove the spark plug using suitable tool.
INSPECTION AFTER REMOVAL

Do not use a wire brush for cleaning.

If the spark plug tip is covered with carbon, a spark plug cleaner may be used.
1. Ignition coil 2. Spark plug
KBIA2505E
SEM294A
SMA773C
Cleaner air pressure
: Less than 588 kPa (5.9 bar, 6 kg/cm2 , 85 psi)
Cleaning time : Less than 20 seconds
