Page 2371 of 3383
LAN-102
[CAN]
CAN SYSTEM (TYPE 4)
Revision: November 20092006 QX56

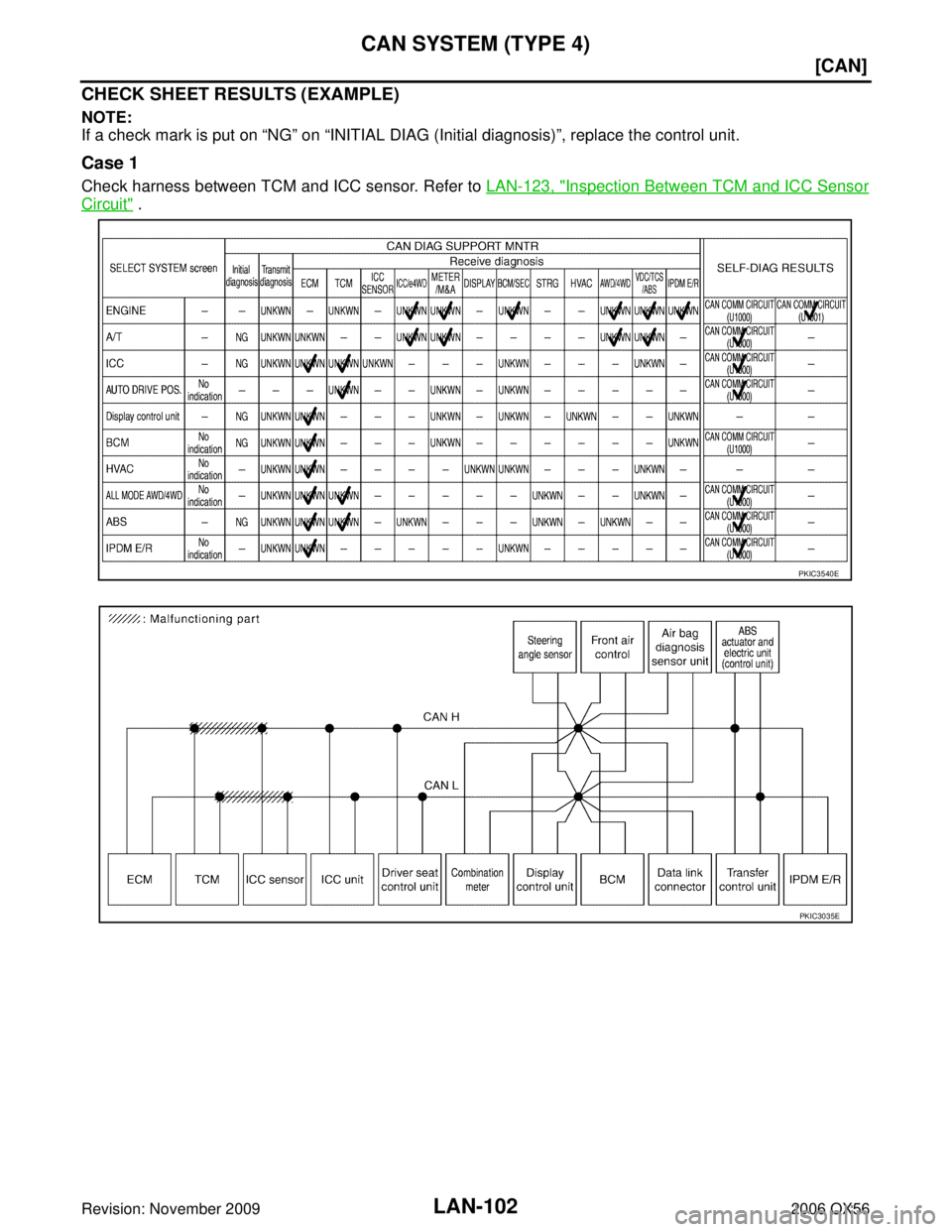

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, replace the control unit.
Case 1
Check harness between TCM and ICC sensor. Refer to LAN-123, "Inspection Between TCM and ICC Sensor
Circuit" .
PKIC3540E
PKIC3035E
Page 2372 of 3383
CAN SYSTEM (TYPE 4)LAN-103
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56

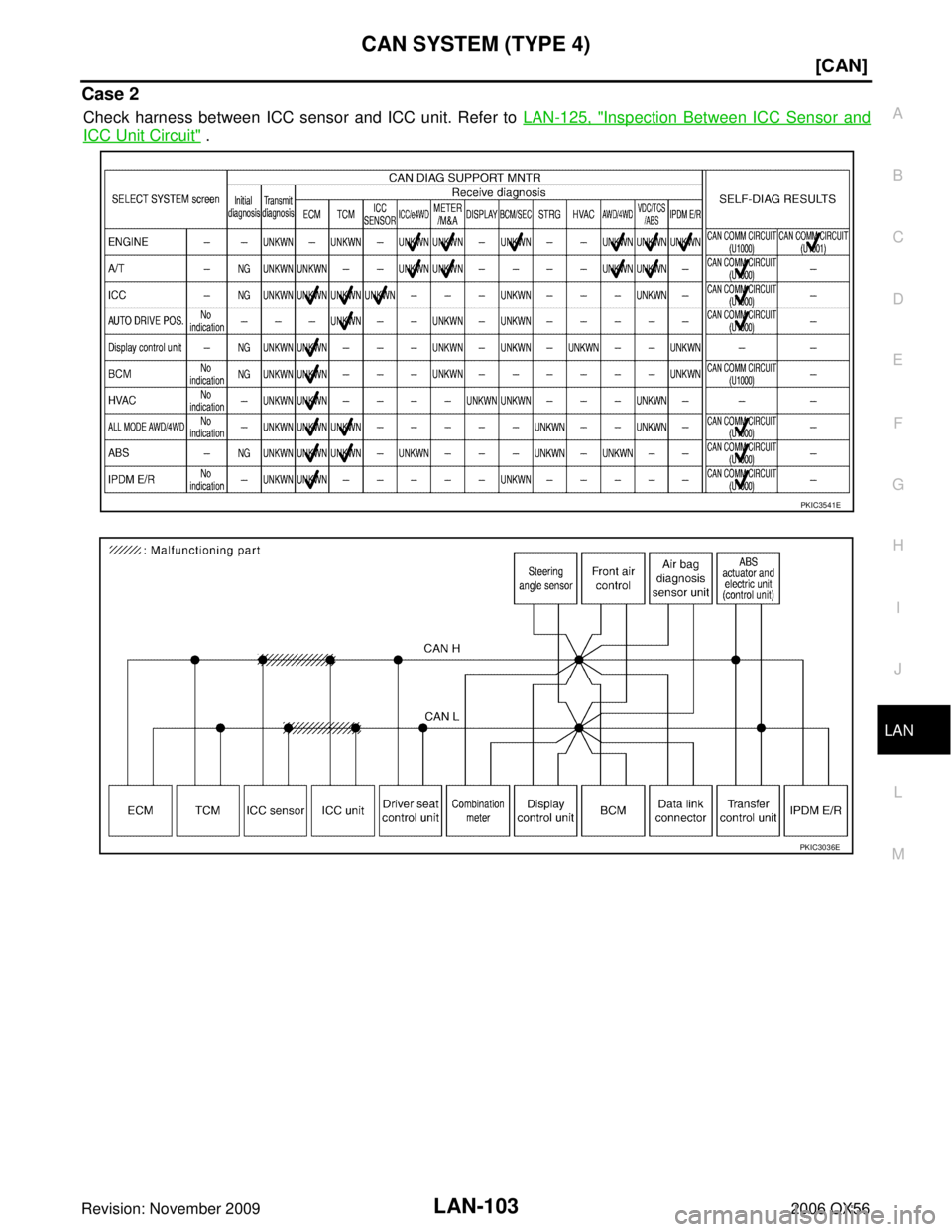

Case 2
Check harness between ICC sensor and ICC unit. Refer to LAN-125, "Inspection Between ICC Sensor and
ICC Unit Circuit" .
PKIC3541E
PKIC3036E
Page 2373 of 3383
LAN-104
[CAN]
CAN SYSTEM (TYPE 4)
Revision: November 20092006 QX56

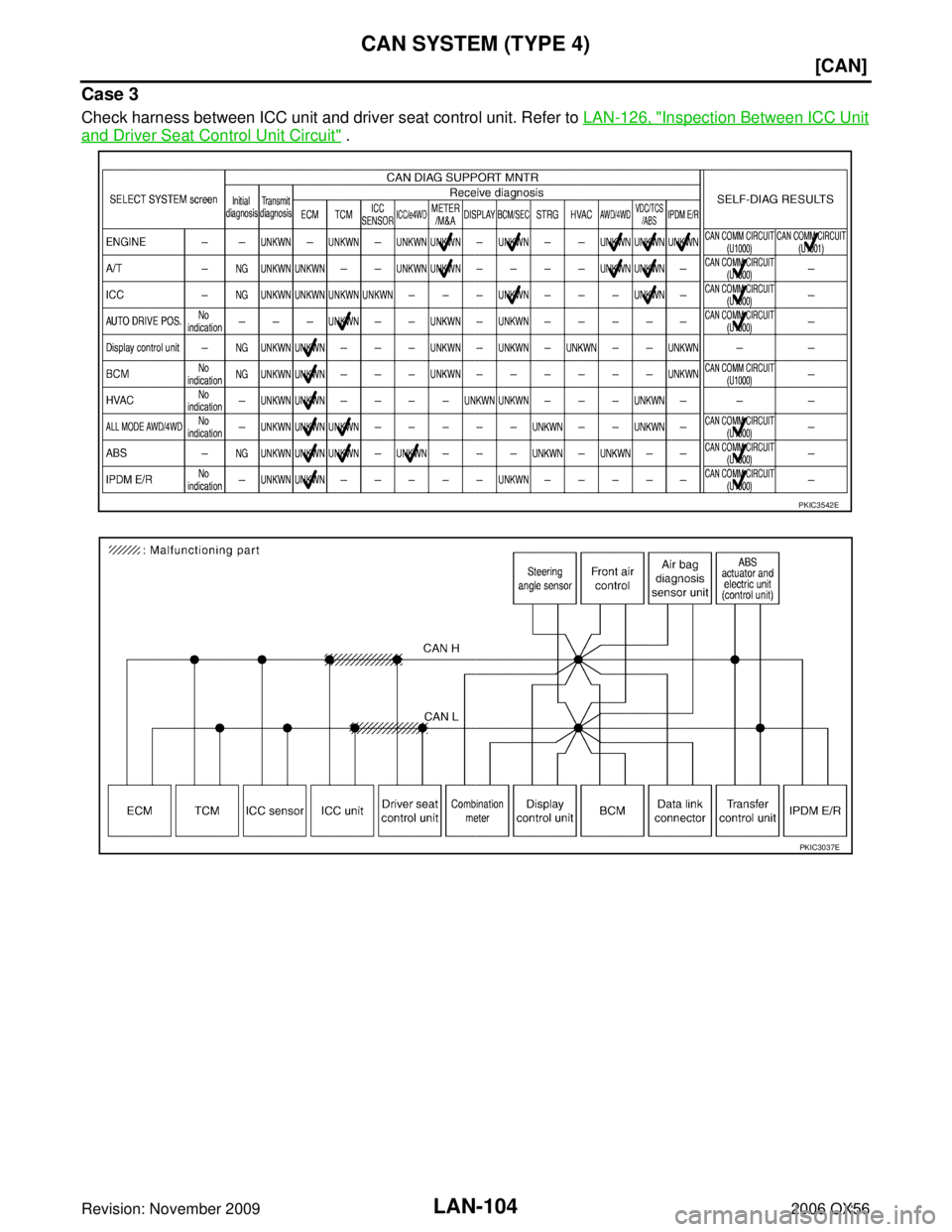

Case 3
Check harness between ICC unit and driver seat control unit. Refer to LAN-126, "Inspection Between ICC Unit
and Driver Seat Control Unit Circuit" .
PKIC3542E
PKIC3037E
Page 2374 of 3383
CAN SYSTEM (TYPE 4)LAN-105
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
Case 4
Check harness between driver seat control unit and data link connector. Refer to LAN-126, "Inspection
Between Driver Seat Control Unit and Data Link Connector Circuit" .
PKIC3543E
PKIC3038E
Page 2375 of 3383
LAN-106
[CAN]
CAN SYSTEM (TYPE 4)
Revision: November 20092006 QX56

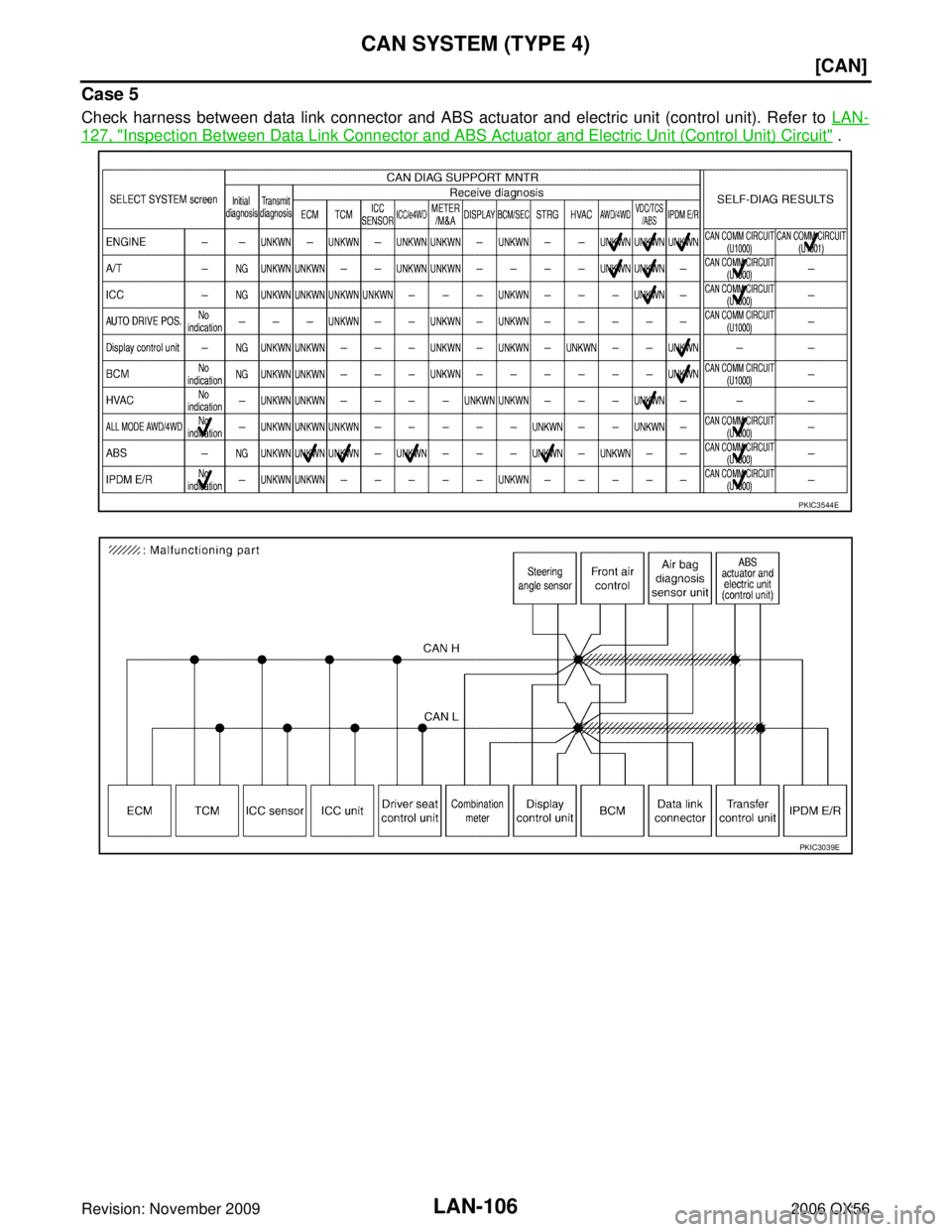

Case 5
Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to LAN-
127, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIC3544E
PKIC3039E
Page 2376 of 3383
CAN SYSTEM (TYPE 4)LAN-107
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56

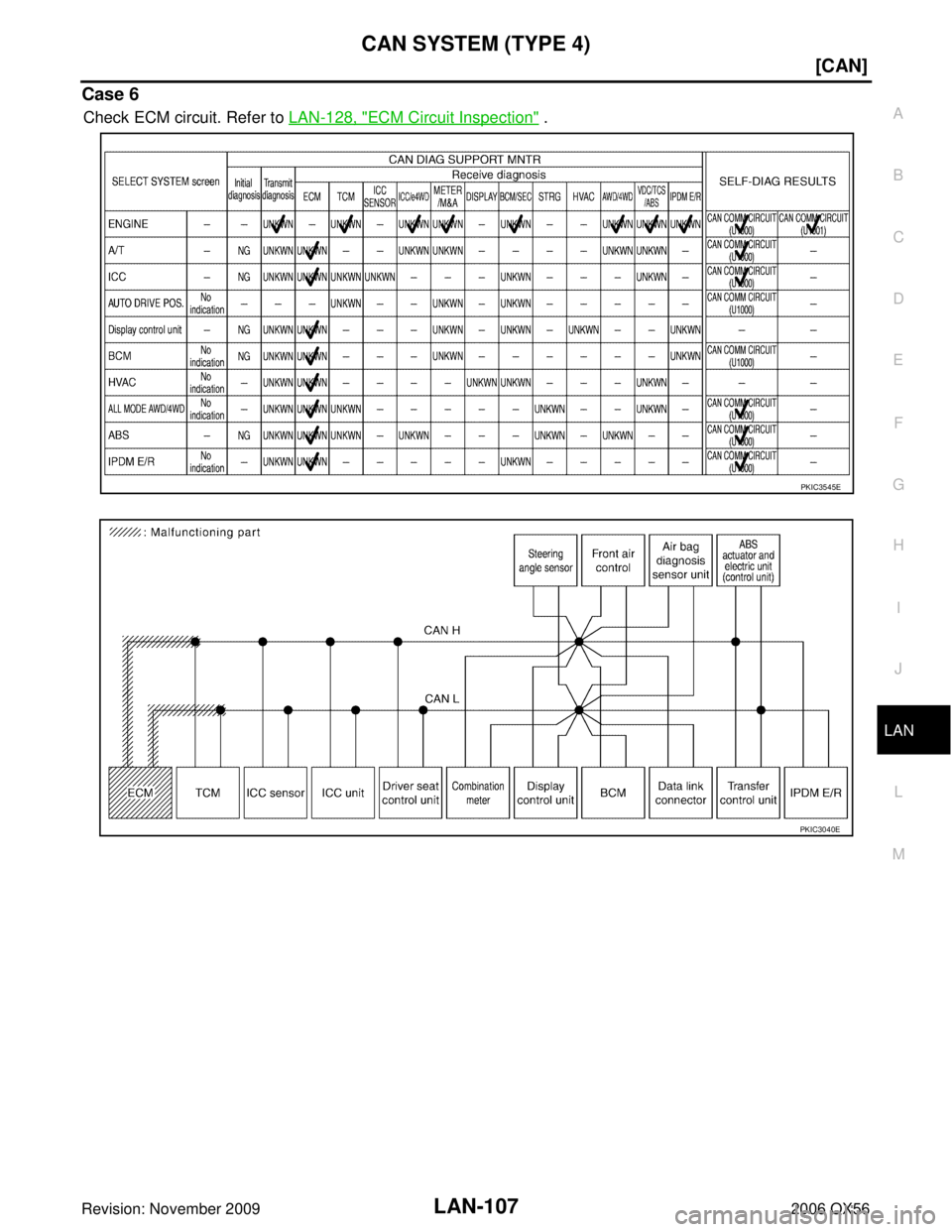

Case 6
Check ECM circuit. Refer to LAN-128, "ECM Circuit Inspection" .
PKIC3545E
PKIC3040E
Page 2377 of 3383
LAN-108
[CAN]
CAN SYSTEM (TYPE 4)
Revision: November 20092006 QX56
Case 7
Check TCM circuit. Refer to LAN-129, "TCM Circuit Inspection" .
PKIC3546E
PKIC3041E
Page 2378 of 3383
CAN SYSTEM (TYPE 4)LAN-109
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56

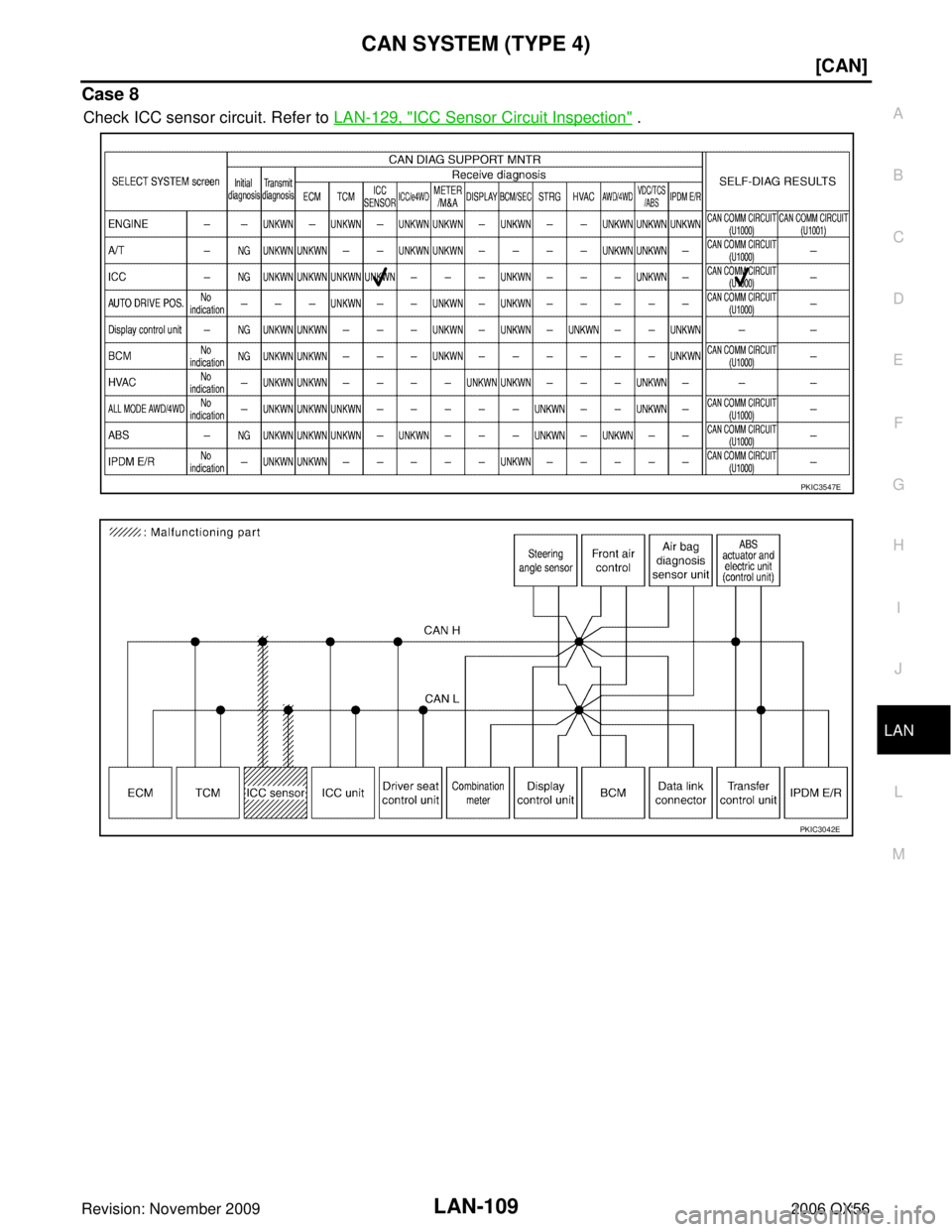

Case 8
Check ICC sensor circuit. Refer to LAN-129, "ICC Sensor Circuit Inspection" .
PKIC3547E
PKIC3042E
Page 2379 of 3383
LAN-110
[CAN]
CAN SYSTEM (TYPE 4)
Revision: November 20092006 QX56

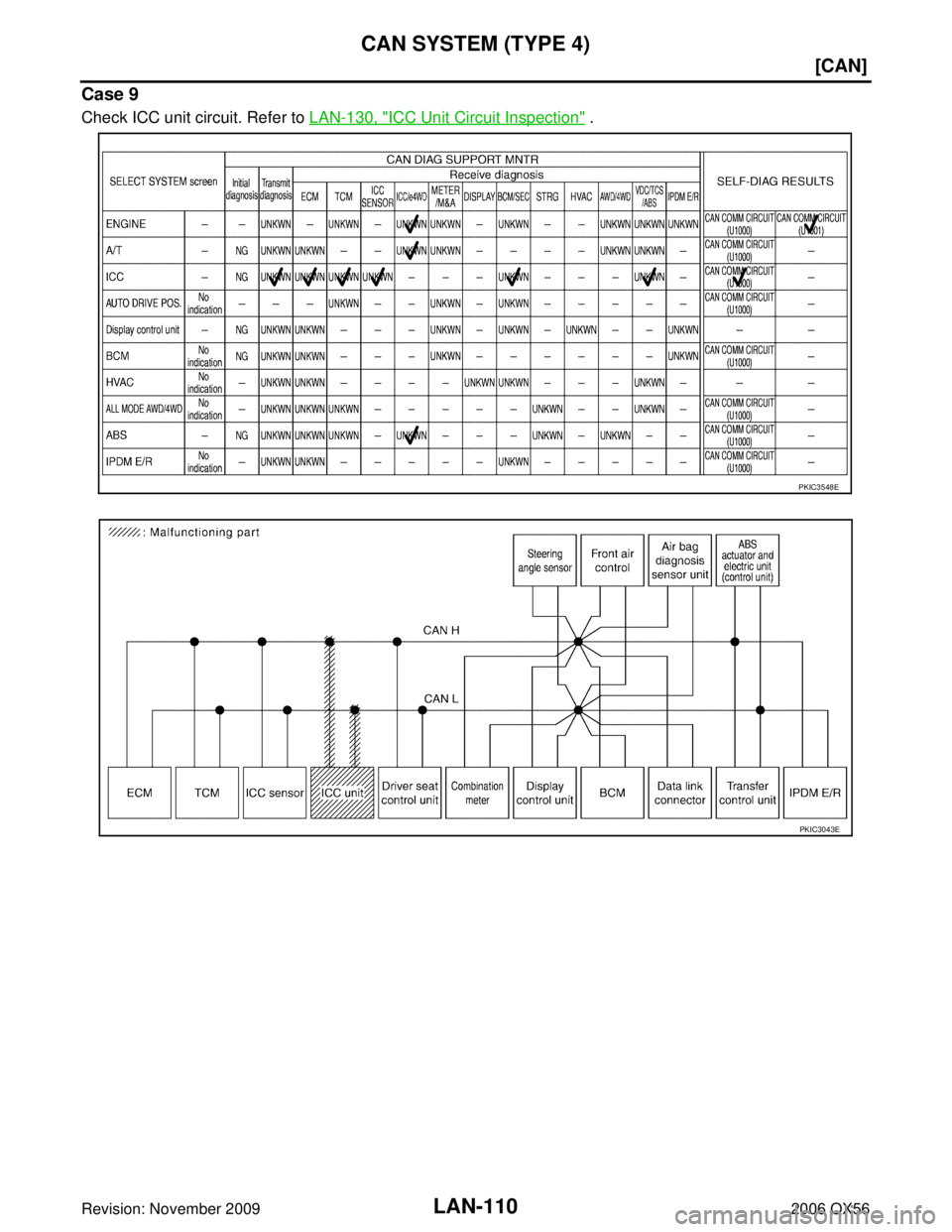

Case 9
Check ICC unit circuit. Refer to LAN-130, "ICC Unit Circuit Inspection" .
PKIC3548E
PKIC3043E
Page 2380 of 3383
CAN SYSTEM (TYPE 4)LAN-111
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56

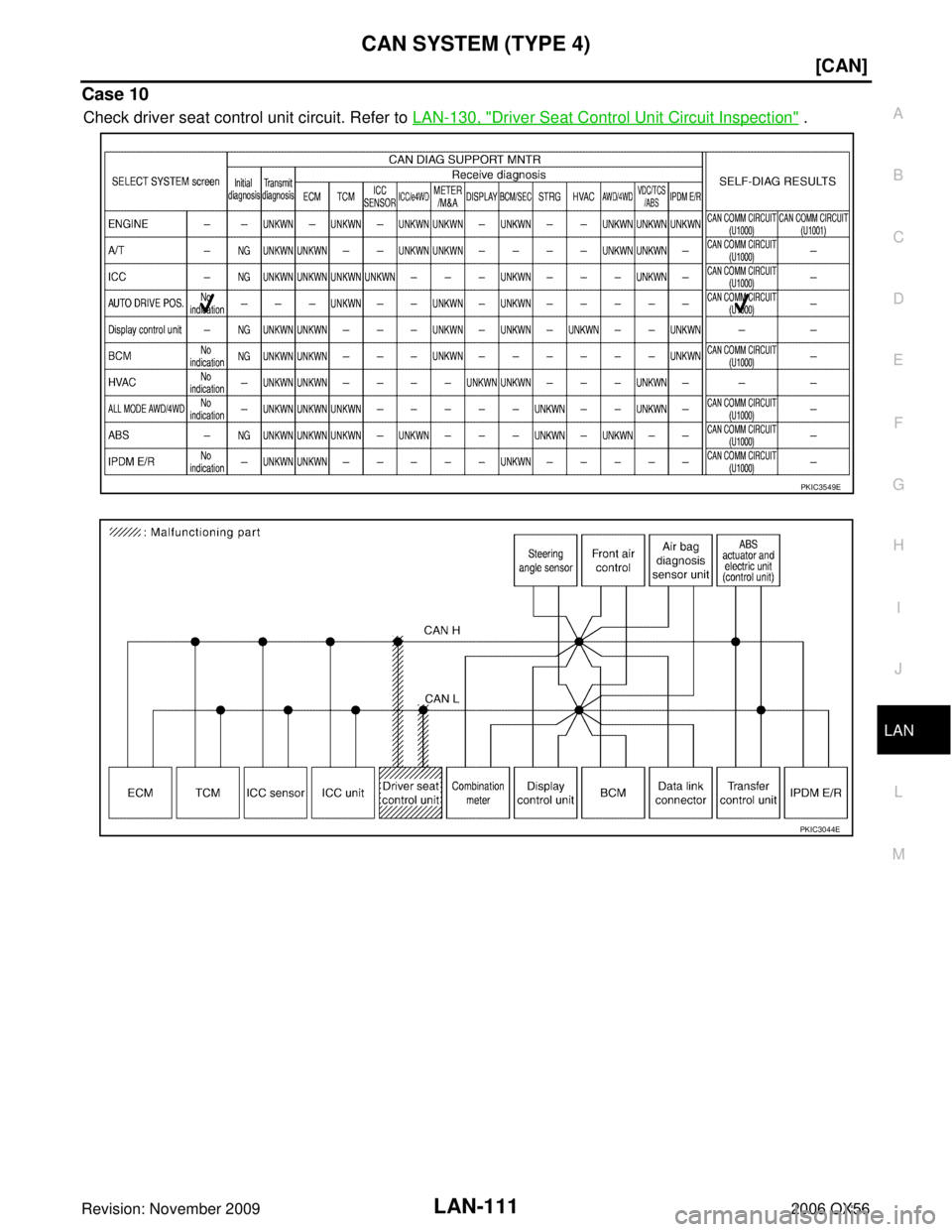

Case 10
Check driver seat control unit circuit. Refer to LAN-130, "Driver Seat Control Unit Circuit Inspection" .
PKIC3549E
PKIC3044E
