INFINITI QX56 2006 Factory Service Manual

PB-10
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: November 20092006 QX56

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
DE
F
G H
I
J
L
M
SECTION
A
B
PG
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
POWER SUPPLY ROUTING CIRCUIT ................. ..... 4
Schematic ........................................................... ..... 4
Wiring Diagram — POWER — ................................. 6 BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 6
ACCESSORY POWER SUPPLY — IGNITION
SW. IN ACC OR ON ............................................. 11
IGNITION POWER SUPPLY — IGNITION SW.
IN ON ............................................................... ... 12
IGNITION POWER SUPPLY — IGNITION SW.
IN ON AND/OR START .................................... ... 13
Fuse .................................................................... ... 17
Fusible Link ......................................................... ... 17
Circuit Breaker (Built Into BCM) .......................... ... 17
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ................................... ... 18
System Description ............................................. ... 18
SYSTEMS CONTROLLED BY IPDM E/R ........ ... 18
CAN COMMUNICATION LINE CONTROL ...... ... 18
IPDM E/R STATUS CONTROL ........................ ... 19
CAN Communication System Description ........... ... 19
Function of Detecting Ignition Relay Malfunction ... 19
CONSULT-II Function IPDM E/R ......................... ... 20
CONSULT-II BASIC OPERATION ................... ... 20
SELF-DIAGNOSTIC RESULTS ....................... ... 21
DATA MONITOR .............................................. ... 21
ACTIVE TEST .................................................. ... 23
Auto Active Test .................................................. ... 24
DESCRIPTION ................................................. ... 24
OPERATION PROCEDURE ............................ ... 24
INSPECTION IN AUTO ACTIVE TEST MODE ... 24
Schematic ........................................................... ... 26
IPDM E/R Terminal Arrangement ........................ ... 27
IPDM E/R Power/Ground Circuit Inspection ....... ... 28Inspection with CONSULT-II (Self-Diagnosis) .....
... 29
Removal and Installation of IPDM E/R ................ ... 30
REMOVAL ........................................................ ... 30
INSTALLATION ................................................ ... 30
GROUND CIRCUIT ................................................ ... 31
Ground Distribution ................................................. 31 MAIN HARNESS ................................................. 31
ENGINE ROOM HARNESS ............................. ... 34
ENGINE CONTROL HARNESS ....................... ... 37
BODY HARNESS ............................................. ... 38
BODY NO. 2 HARNESS .................................. ... 39
BACK DOOR NO. 2 RH HARNESS ................. ... 40
HARNESS .............................................................. ... 41
Harness Layout ...................................................... 41 HOW TO READ HARNESS LAYOUT .............. ... 41
OUTLINE .......................................................... ... 42
MAIN HARNESS ................................................. 43
ENGINE ROOM HARNESS (LH VIEW) ........... ... 45
ENGINE ROOM HARNESS (RH VIEW) .......... ... 48
ENGINE CONTROL HARNESS ....................... ... 50
CHASSIS HARNESS ....................................... ... 52
BODY HARNESS ............................................. ... 54
BODY NO. 2 HARNESS .................................. ... 56
ROOM LAMP HARNESS ................................. ... 58
FRONT DOOR LH HARNESS ......................... ... 59
FRONT DOOR RH HARNESS ......................... ... 59
REAR DOOR LH HARNESS ............................ ... 60
REAR DOOR RH HARNESS ........................... ... 60
BACK DOOR HARNESS ................................. ... 61
Wiring Diagram Codes (Cell Codes) ................... ... 62
ELECTRICAL UNITS LOCATION ......................... ... 65
Electrical Units Location ...................................... ... 65
ENGINE COMPARTMENT ............................... ... 65
PASSENGER COMPARTMENT ...................... ... 66
HARNESS CONNECTOR ...................................... ... 68
Description ........................................................... ... 68
HARNESS CONNECTOR (TAB-LOCKING
TYPE) ............................................................... ... 68
HARNESS CONNECTOR (SLIDE-LOCKING

PG-2Revision: November 20092006 QX56
TYPE) ...............................................................
... 69
HARNESS CONNECTOR (DIRECT-CONNECT
SRS COMPONENT TYPE) .............................. ... 70
ELECTRICAL UNITS ............................................. ... 71
Terminal Arrangement ......................................... ... 71
STANDARDIZED RELAY ....................................... ... 72
Description ........................................................... ... 72
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ..................................... ... 72
TYPE OF STANDARDIZED RELAYS ............... ... 72SUPER MULTIPLE JUNCTION (SMJ) ...................
... 74
Terminal Arrangement .......................................... ... 74
FUSE BLOCK-JUNCTION BOX (J/B) ................... ... 76
Terminal Arrangement .......................................... ... 76
FUSE AND FUSIBLE LINK BOX ........................... ... 77
Terminal Arrangement .......................................... ... 77
FUSE AND RELAY BOX ........................................ ... 78
Terminal Arrangement .......................................... ... 78

PRECAUTIONSPG-3
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00BMY
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: November 20092006 QX56
POWER SUPPLY ROUTING CIRCUITPFP:24110

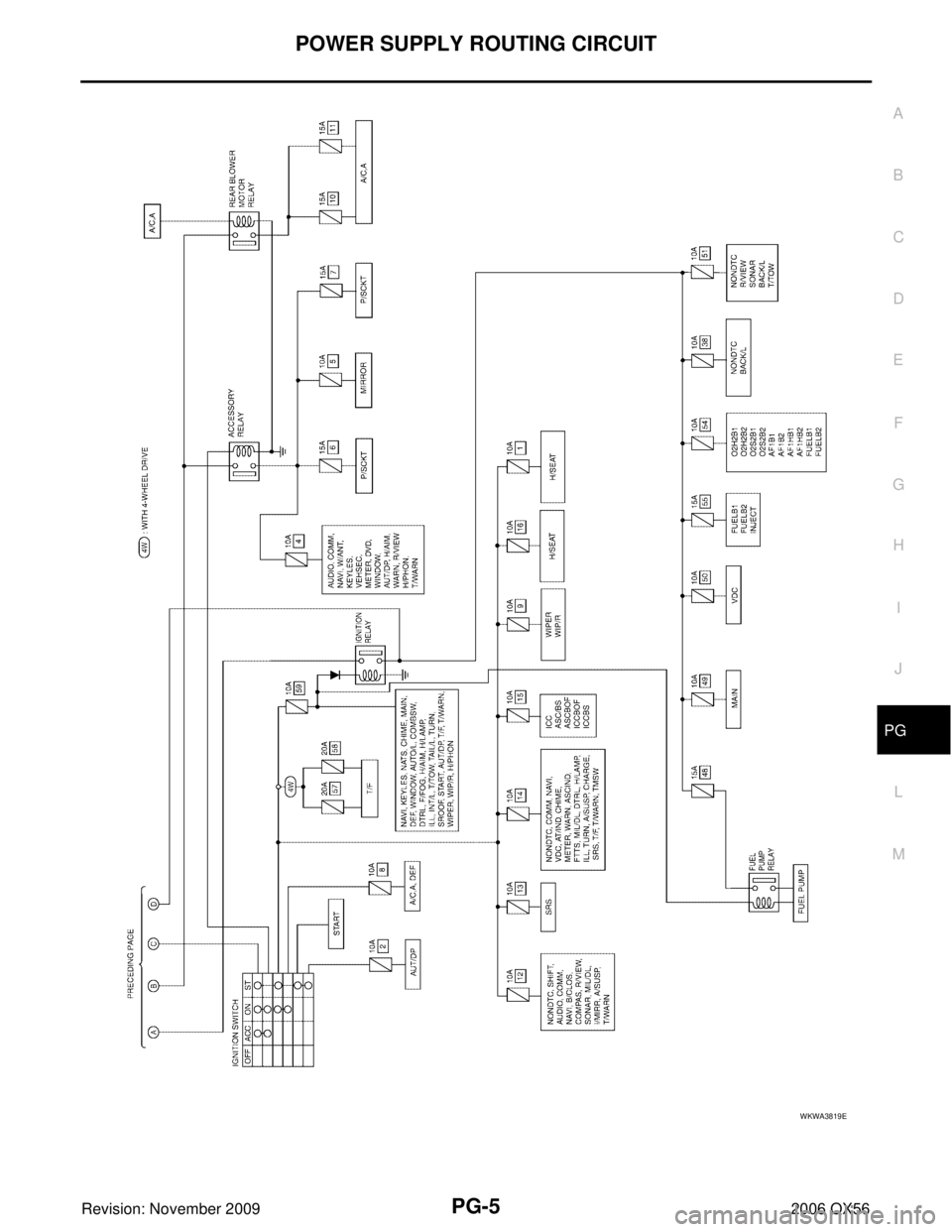

SchematicEKS00BN0
For detailed ground distribution, refer to PG-31, "Ground Distribution" .
WKWA3818E

POWER SUPPLY ROUTING CIRCUITPG-5
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
WKWA3819E

PG-6
POWER SUPPLY ROUTING CIRCUIT
Revision: November 20092006 QX56

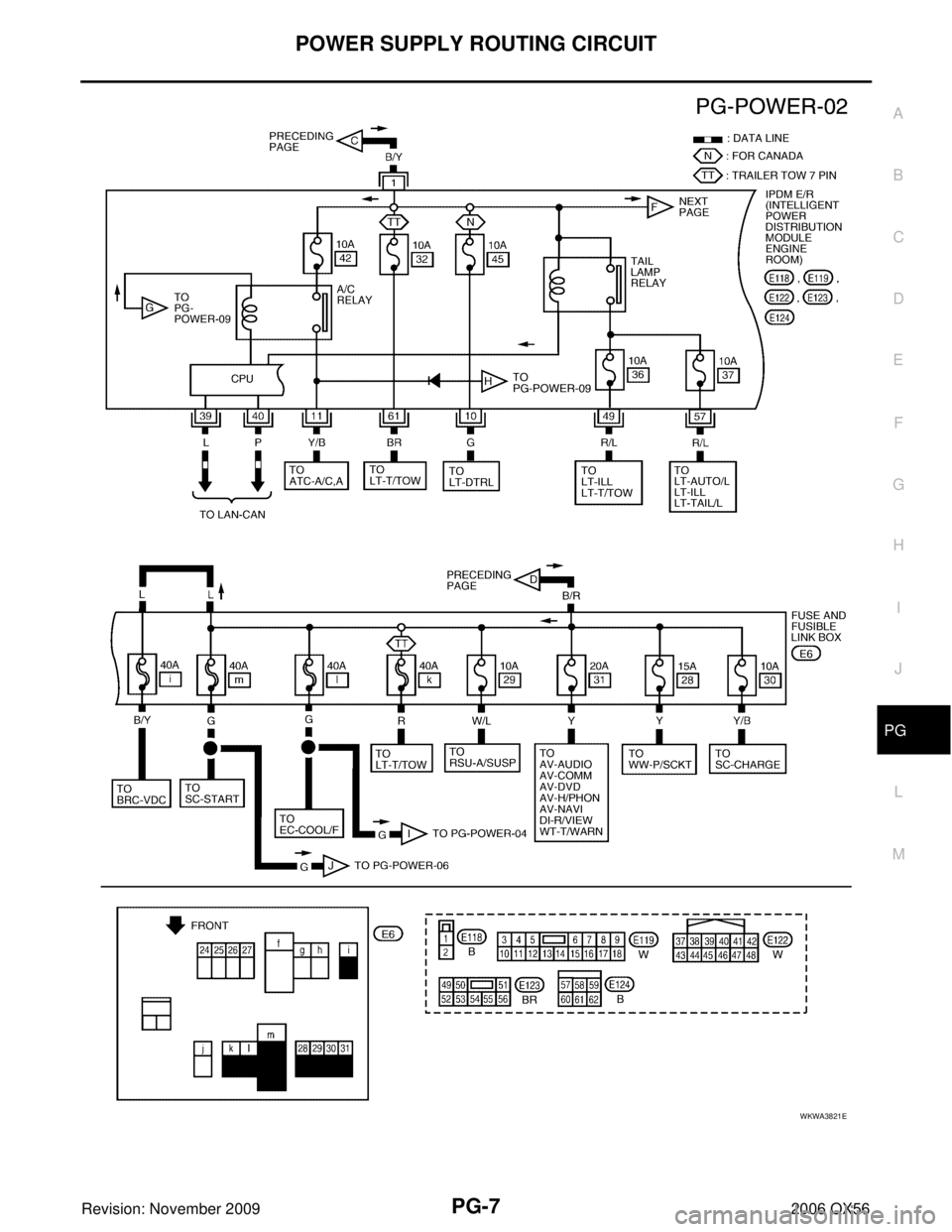

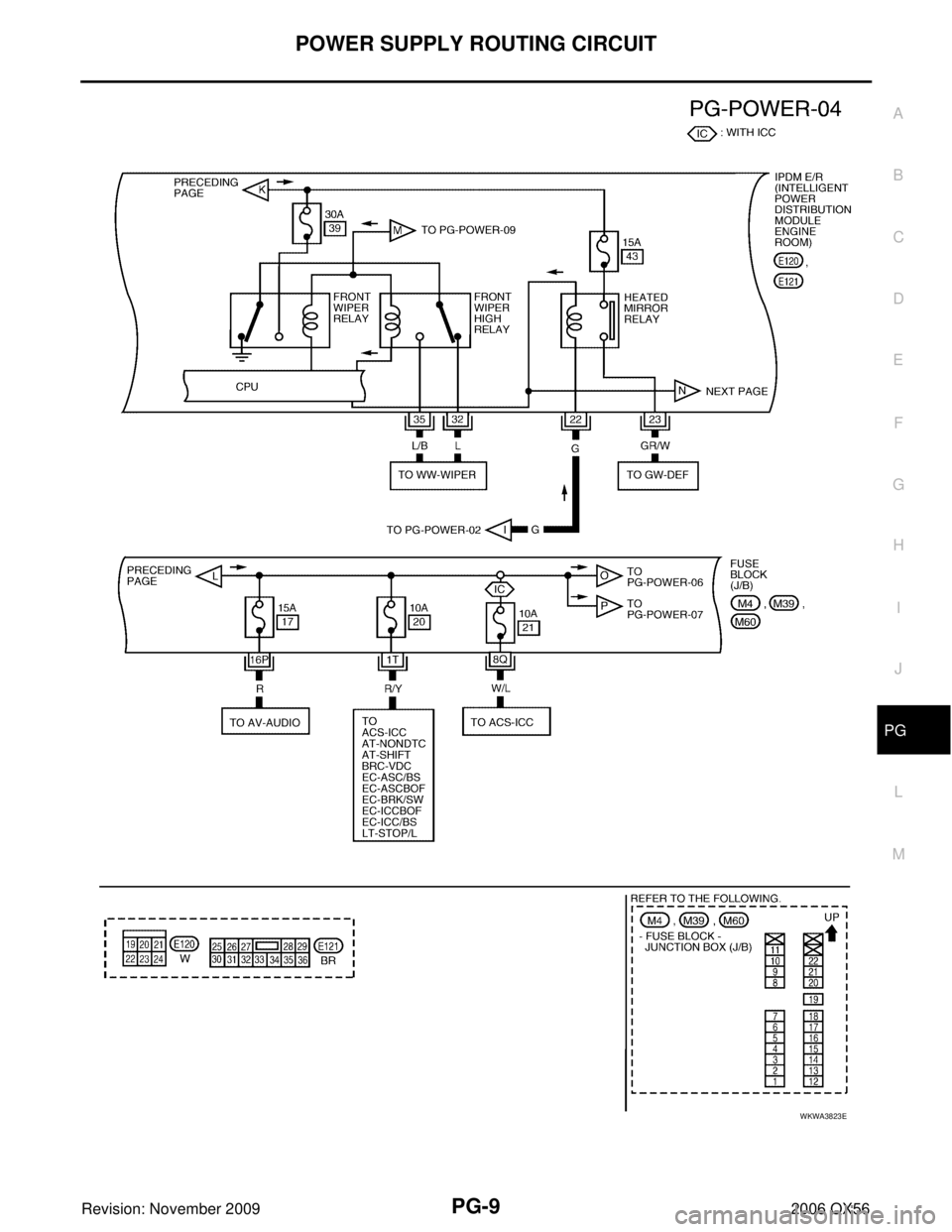

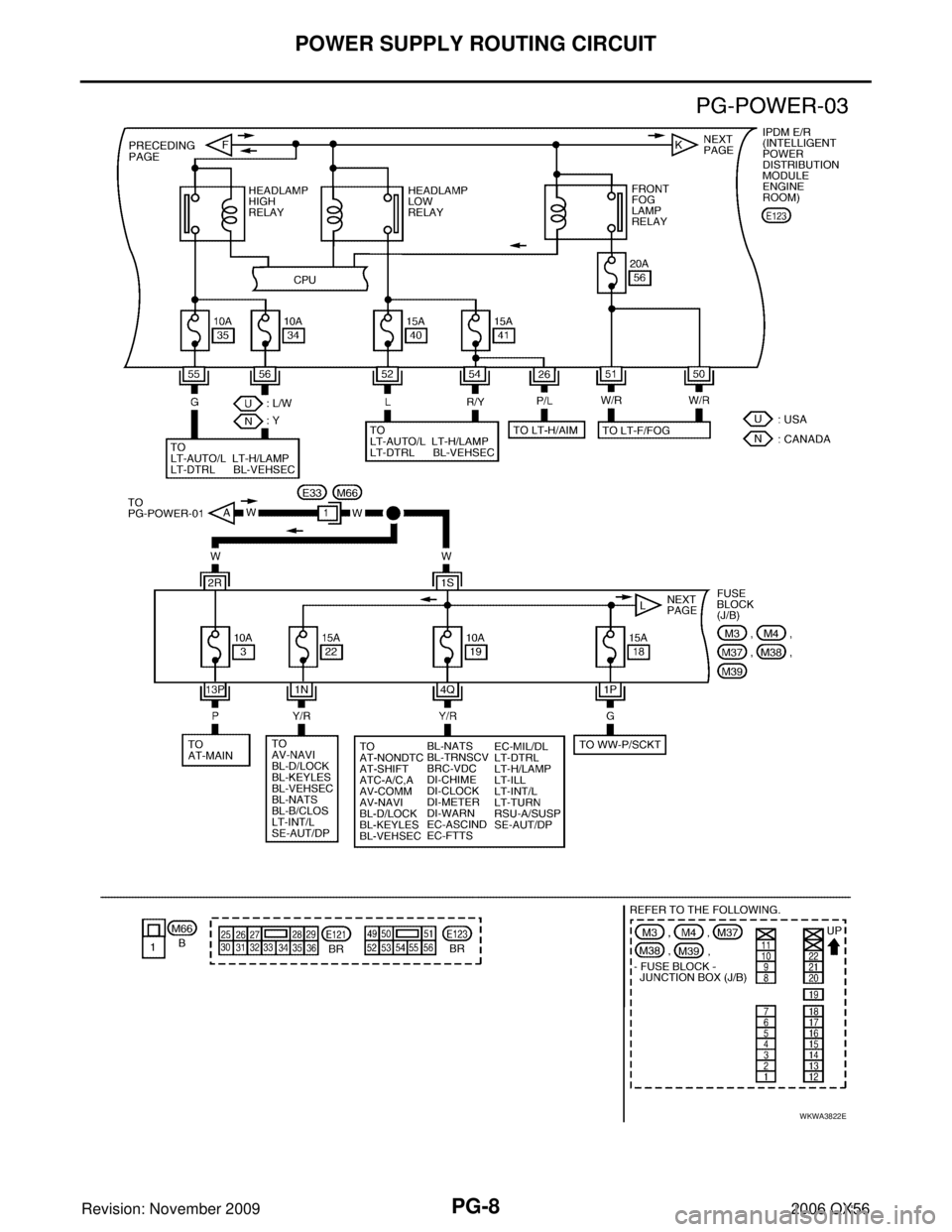

Wiring Diagram — POWER —EKS00BN1
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
WKWA3820E

POWER SUPPLY ROUTING CIRCUITPG-7
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
WKWA3821E

PG-8
POWER SUPPLY ROUTING CIRCUIT
Revision: November 20092006 QX56
WKWA3822E

POWER SUPPLY ROUTING CIRCUITPG-9
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
WKWA3823E
