INFINITI QX56 2006 Factory Service Manual

PG-40
GROUND CIRCUIT
Revision: November 20092006 QX56

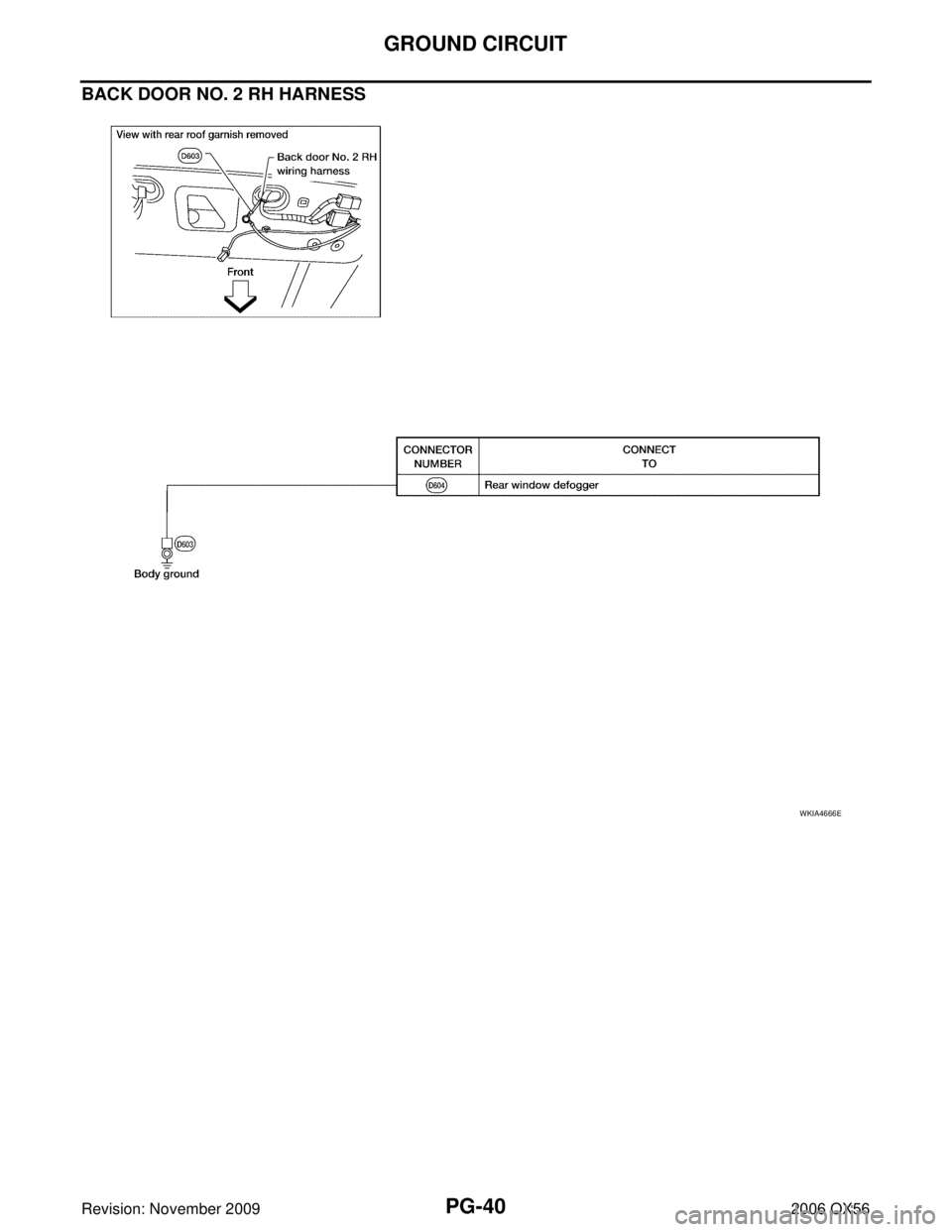

BACK DOOR NO. 2 RH HARNESS
WKIA4666E

HARNESSPG-41
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
HARNESSPFP:24010
Harness LayoutEKS00BND
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

Main Harness

Engine Room Harness LH View (Engine Compartment)

Engine Room Harness RH View (Engine Compartment)

Engine Control Harness

Chassis Harness and Rear Sonar Sensor Sub-harness

Body Harness

Body No. 2 Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated below.
SEL252V
Connector type Water proof type Standard type
Male Female Male Female

Cavity: 4 or Less

Relay connector

Cavity: From 5 to 8

Cavity: 9 or More

Ground terminal etc. —

PG-42
HARNESS
Revision: November 20092006 QX56

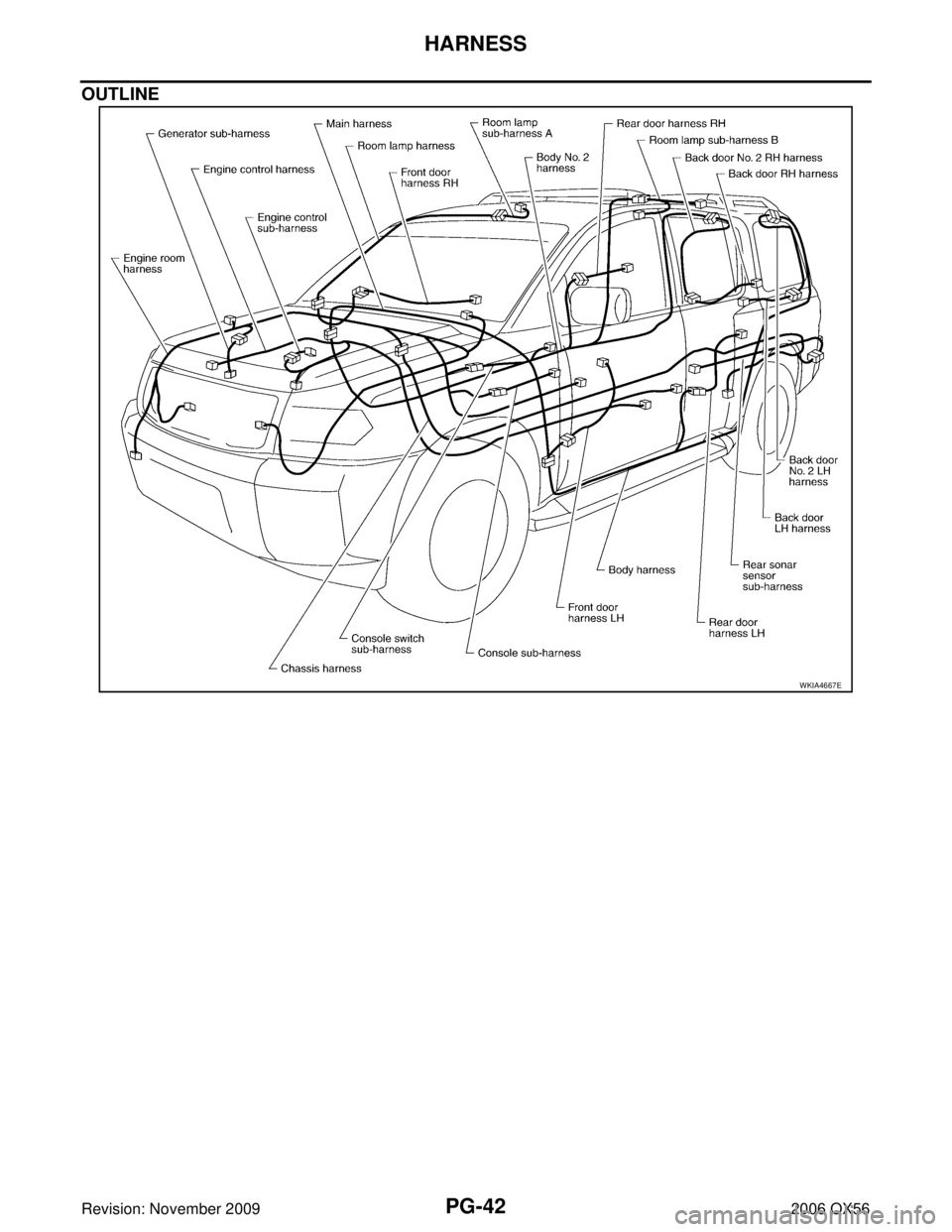

OUTLINE
WKIA4667E

HARNESSPG-43
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56

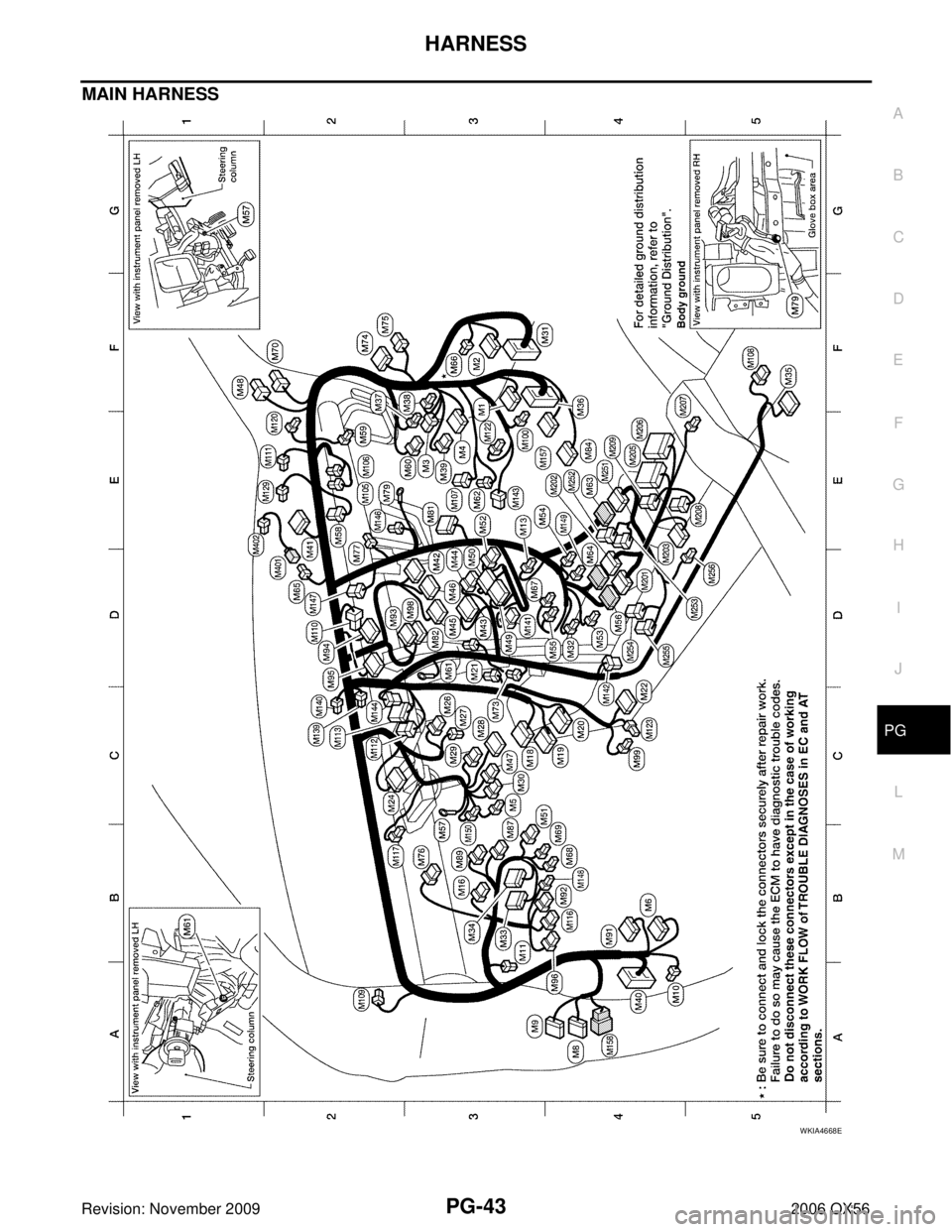

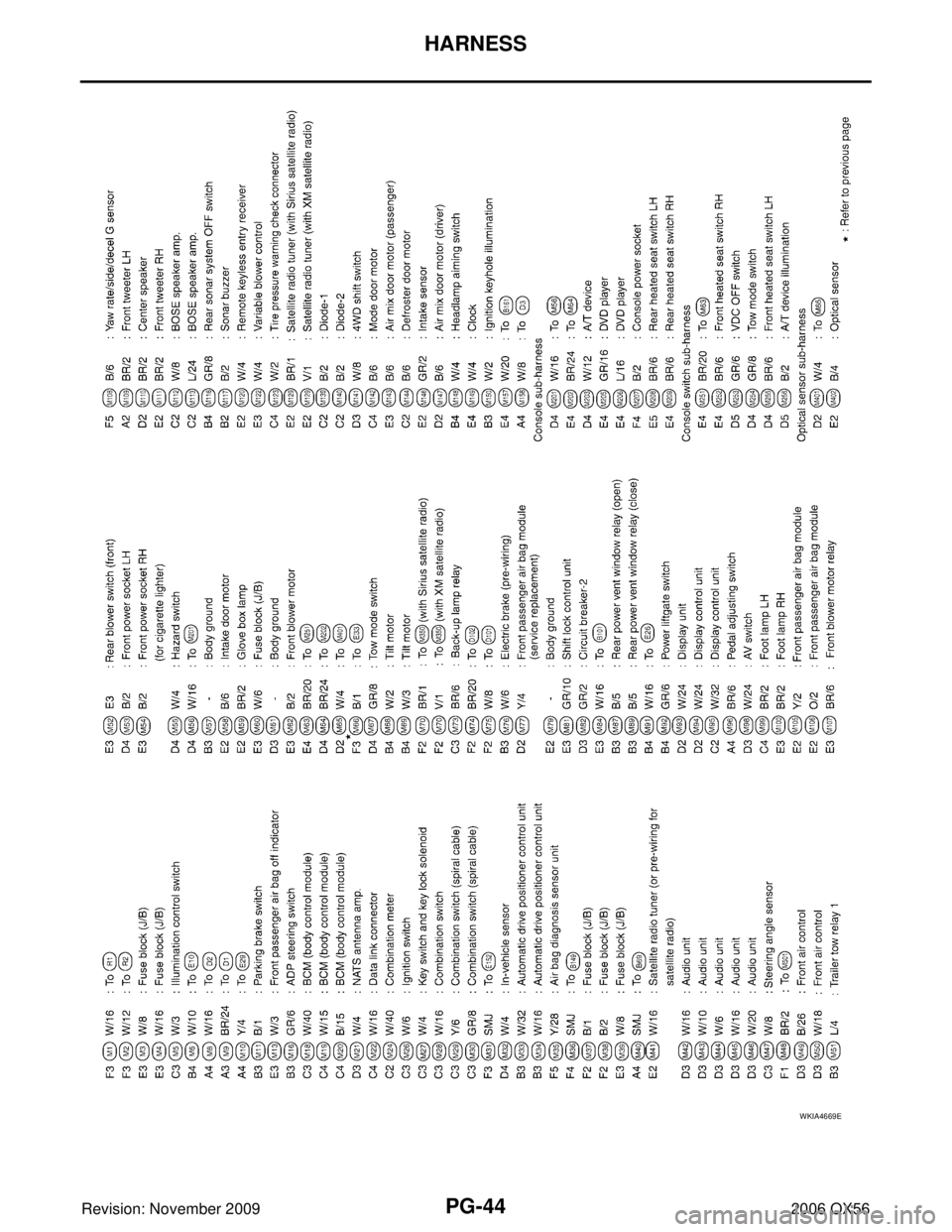

MAIN HARNESS
WKIA4668E

PG-44
HARNESS
Revision: November 20092006 QX56
WKIA4669E

HARNESSPG-45
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56

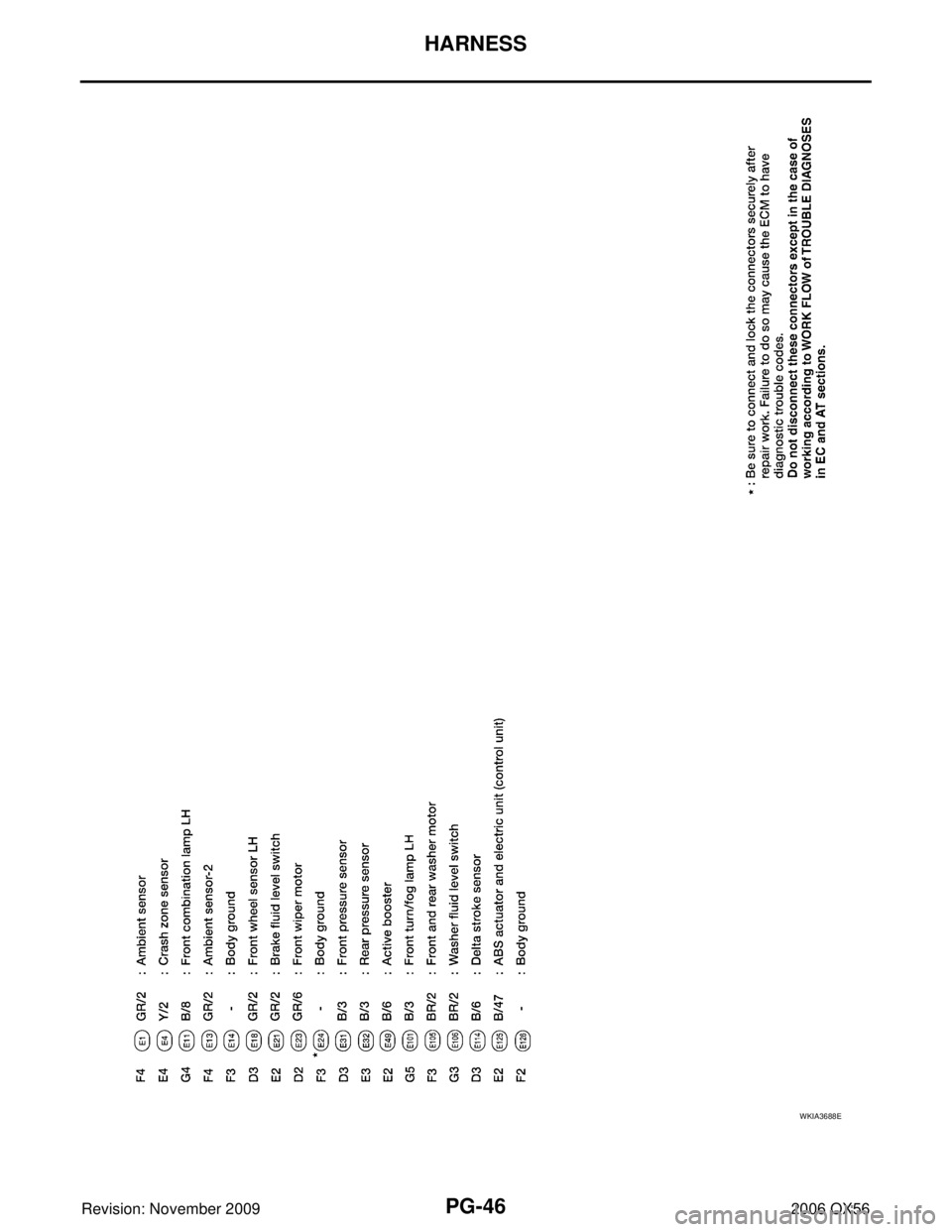

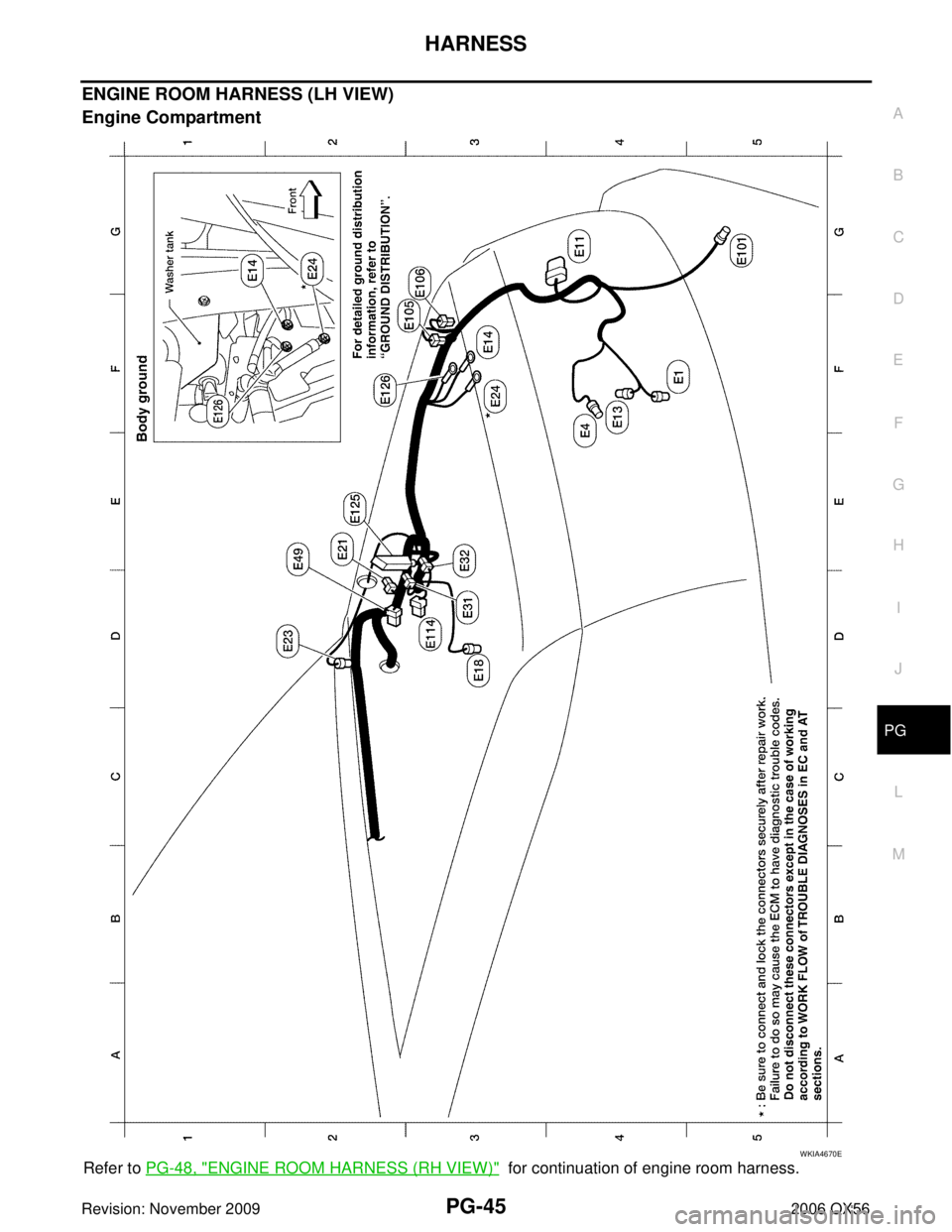

ENGINE ROOM HARNESS (LH VIEW)
Engine Compartment
Refer to PG-48, "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness.
WKIA4670E

PG-46
HARNESS
Revision: November 20092006 QX56
WKIA3688E

HARNESSPG-47
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56

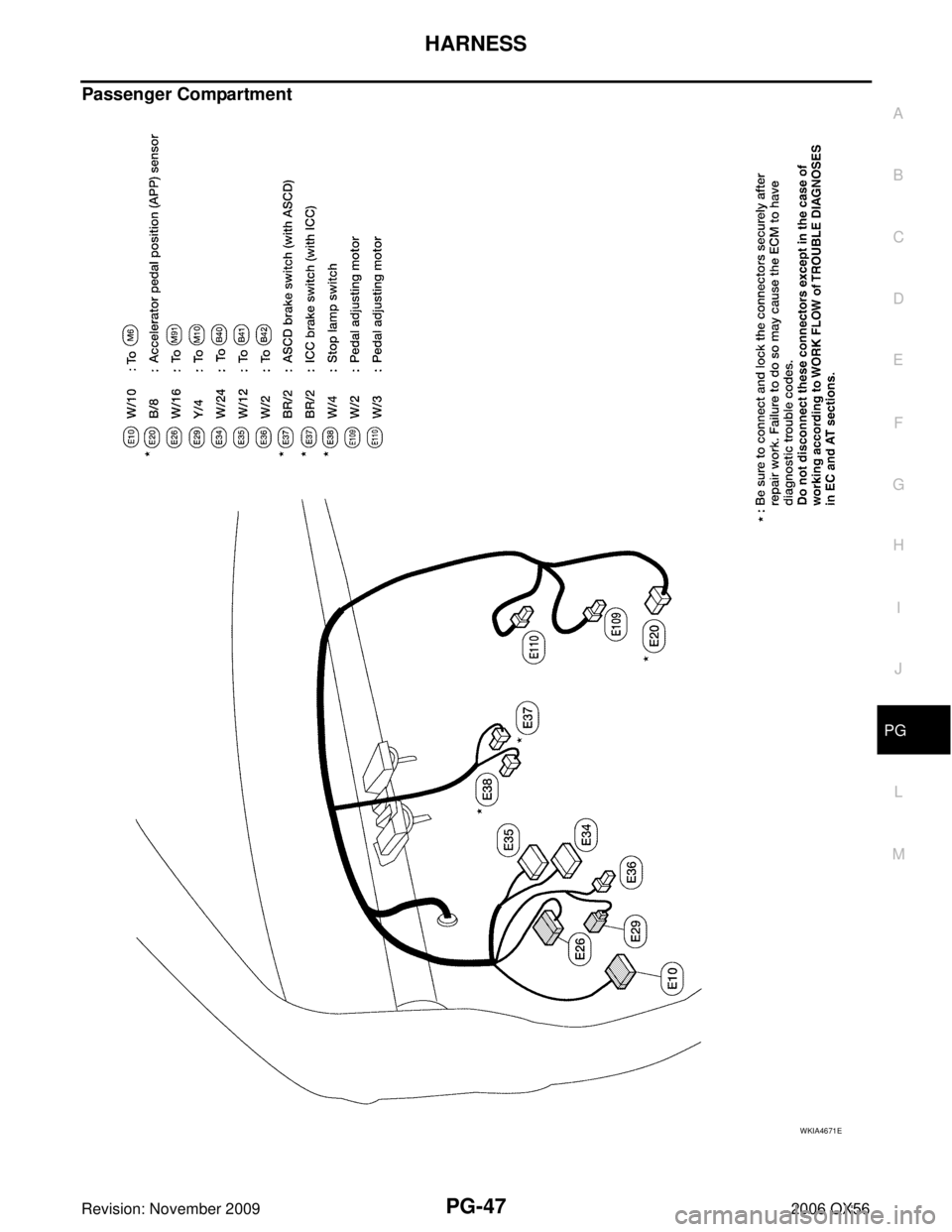

Passenger Compartment
WKIA4671E

PG-48
HARNESS
Revision: November 20092006 QX56

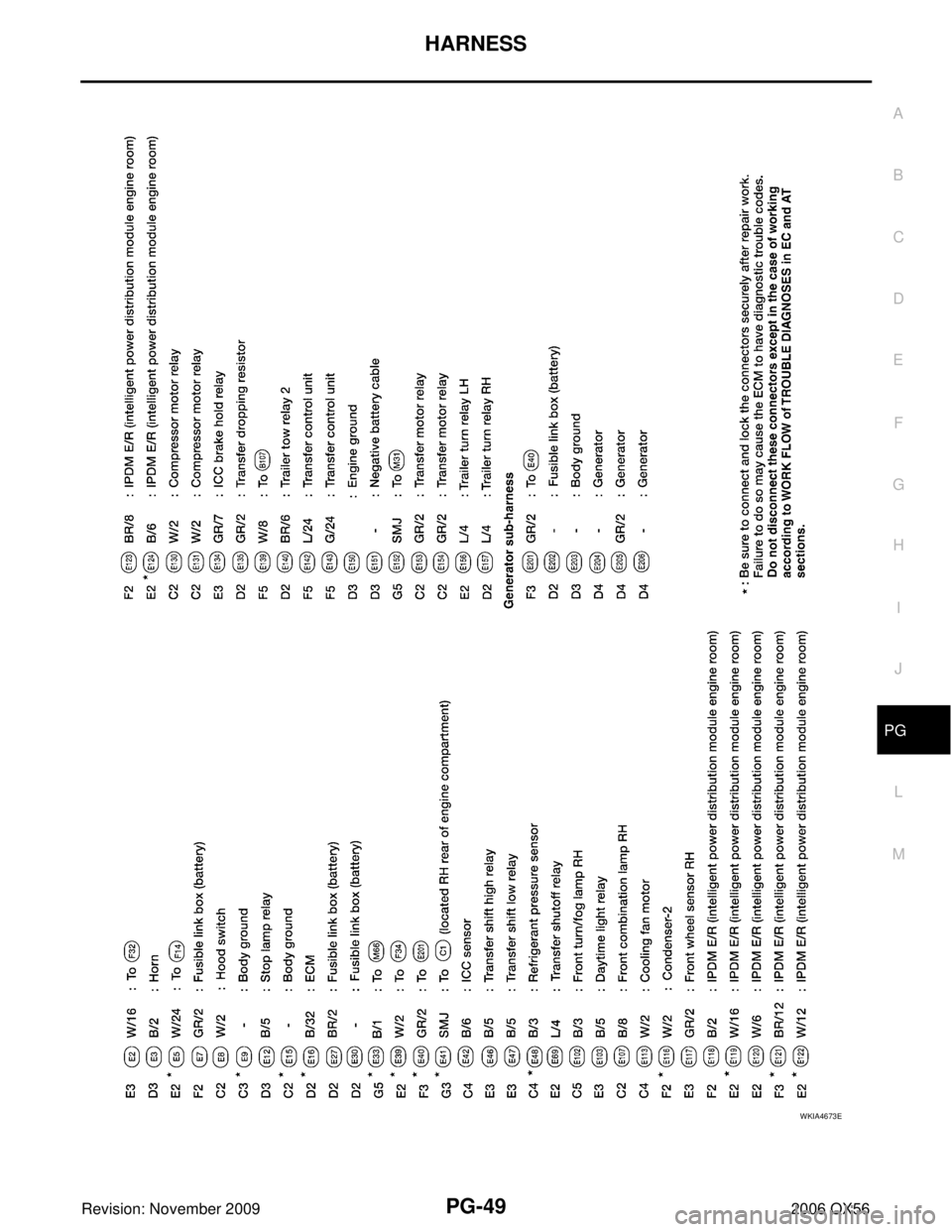

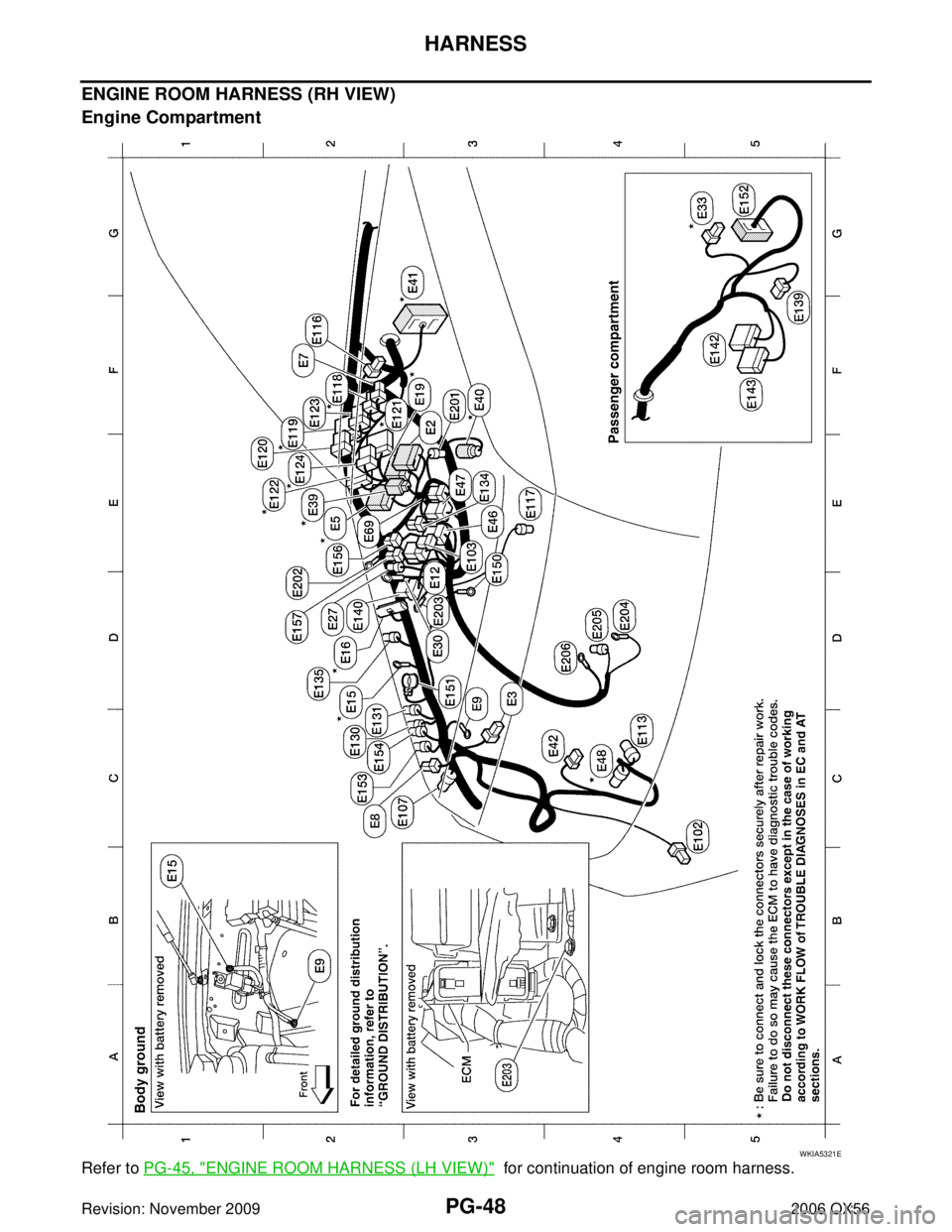

ENGINE ROOM HARNESS (RH VIEW)
Engine Compartment
Refer to PG-45, "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness.
WKIA5321E

HARNESSPG-49
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
WKIA4673E
