INFINITI QX56 2006 Factory Service Manual

PG-30
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: November 20092006 QX56
Removal and Installation of IPDM E/REKS00BNB
REMOVAL
1. Disconnect negative battery cable.
2. Remove IPDM E/R upper cover.
3. Release 2 clips and pull IPDM E/R up from case.
4. Disconnect IPDM E/R connectors and remove the IPDM E/R.
INSTALLATION
Installation is in the reverse order of removal.
WKIA1454E
WKIA1696E

GROUND CIRCUITPG-31
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
GROUND CIRCUITPFP:24080
Ground DistributionEKS00BNC

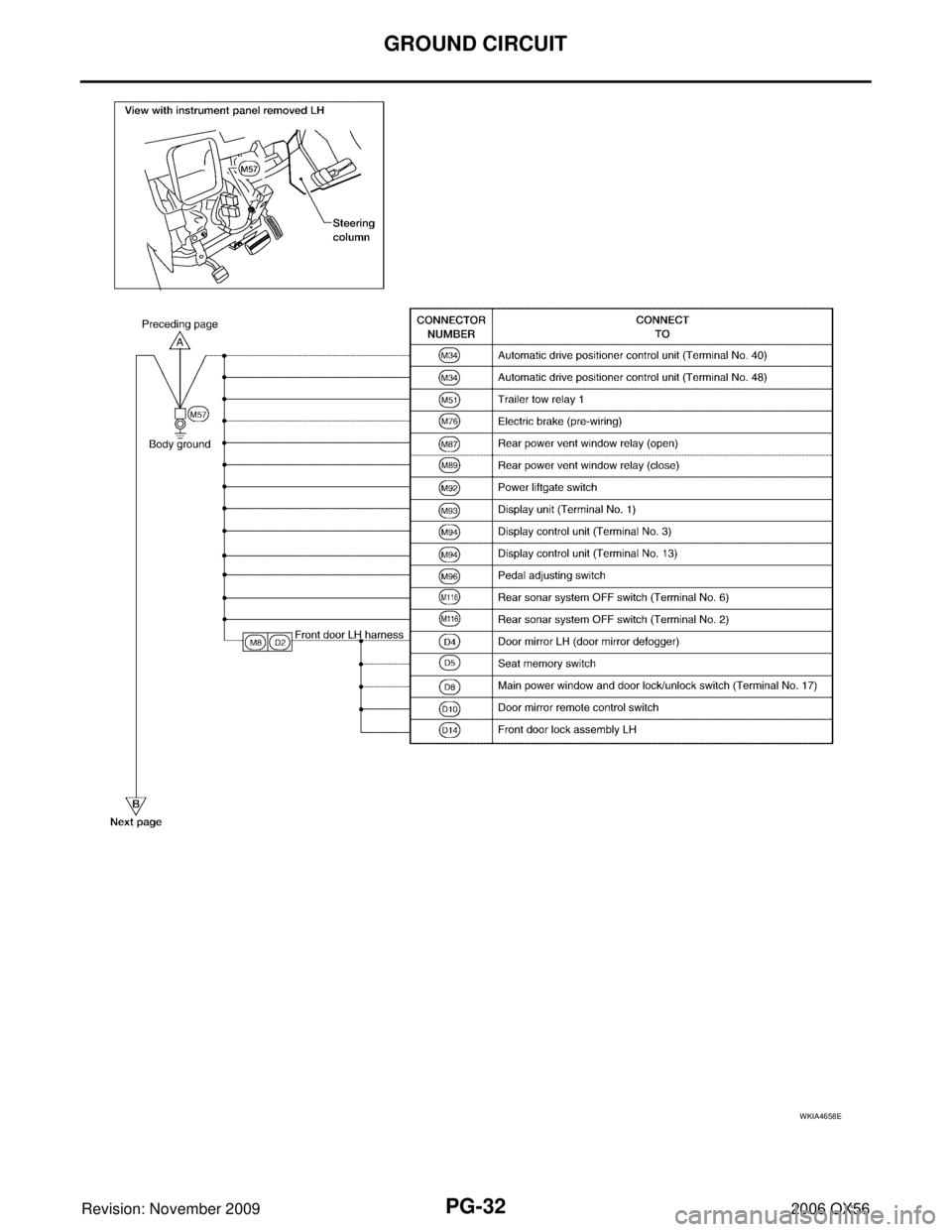

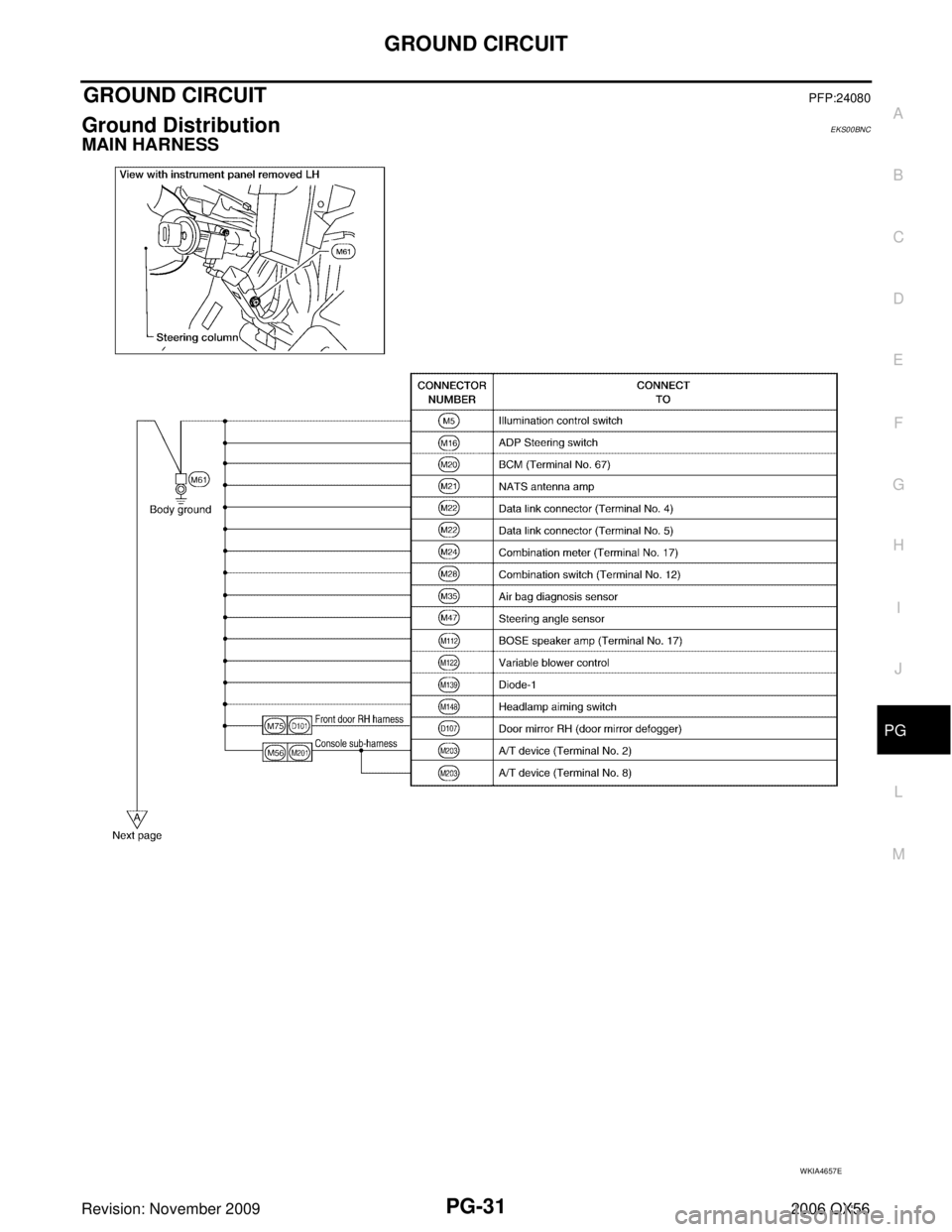

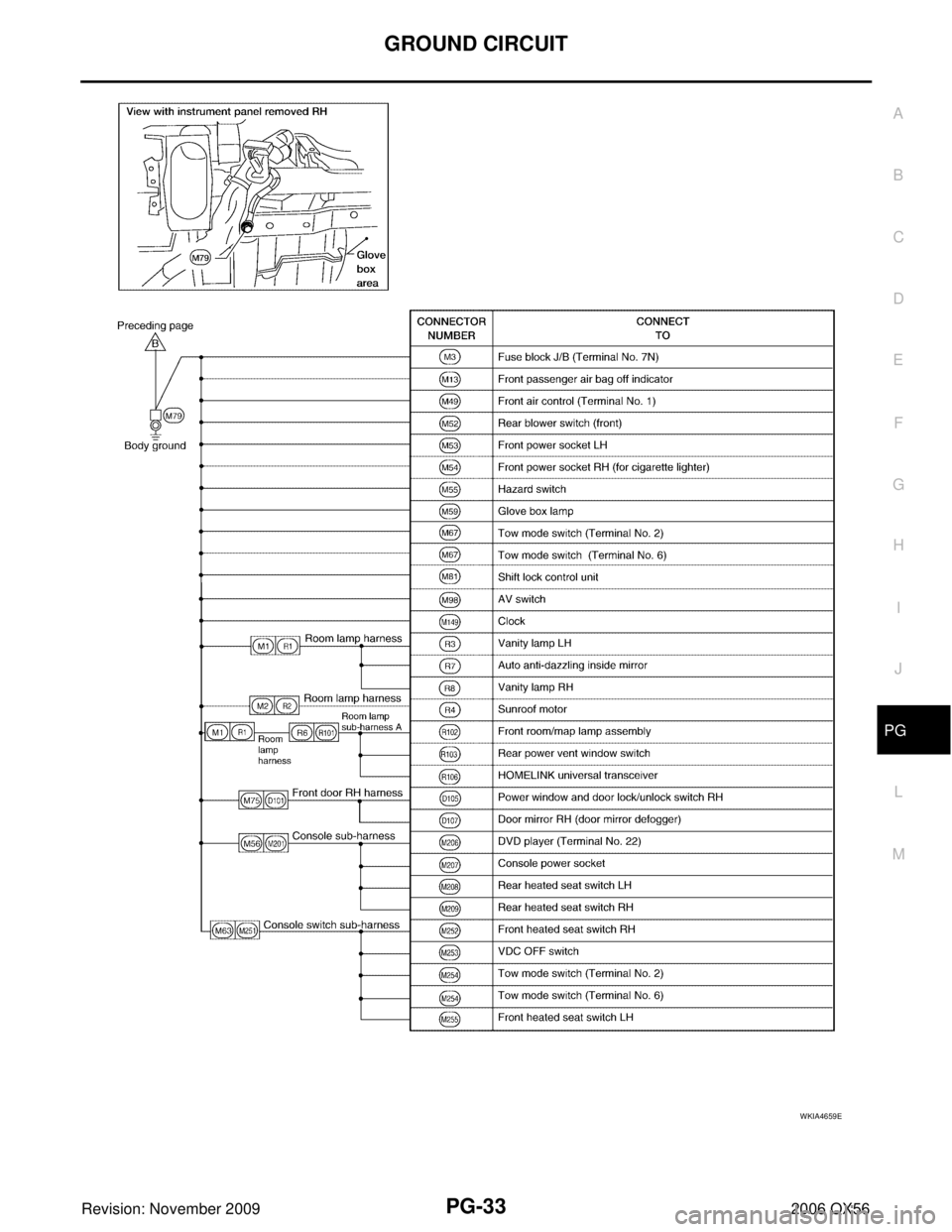

MAIN HARNESS
WKIA4657E

PG-32
GROUND CIRCUIT
Revision: November 20092006 QX56
WKIA4658E

GROUND CIRCUITPG-33
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
WKIA4659E

PG-34
GROUND CIRCUIT
Revision: November 20092006 QX56

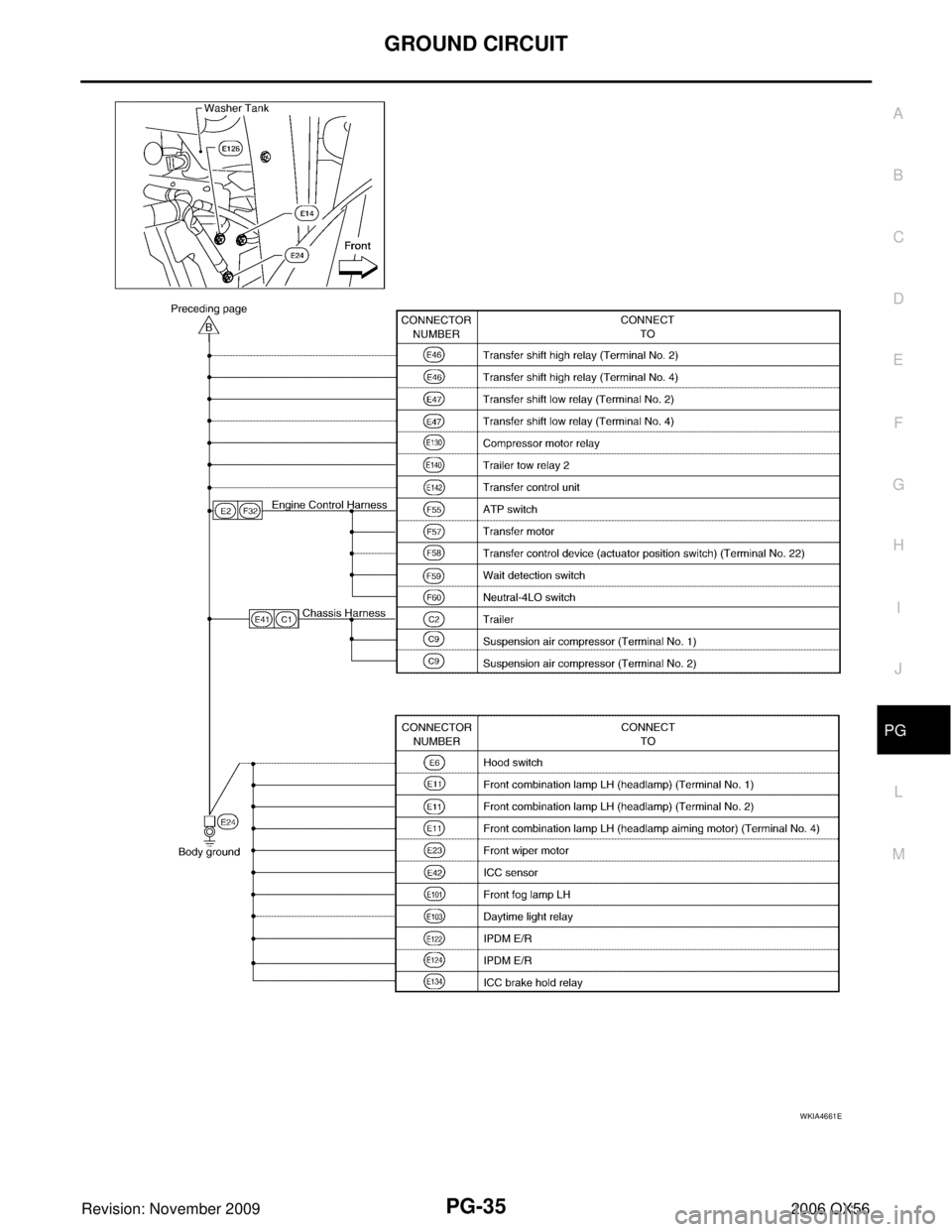

ENGINE ROOM HARNESS
WKIA4660E

GROUND CIRCUITPG-35
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
WKIA4661E

PG-36
GROUND CIRCUIT
Revision: November 20092006 QX56
WKIA4662E

GROUND CIRCUITPG-37
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56

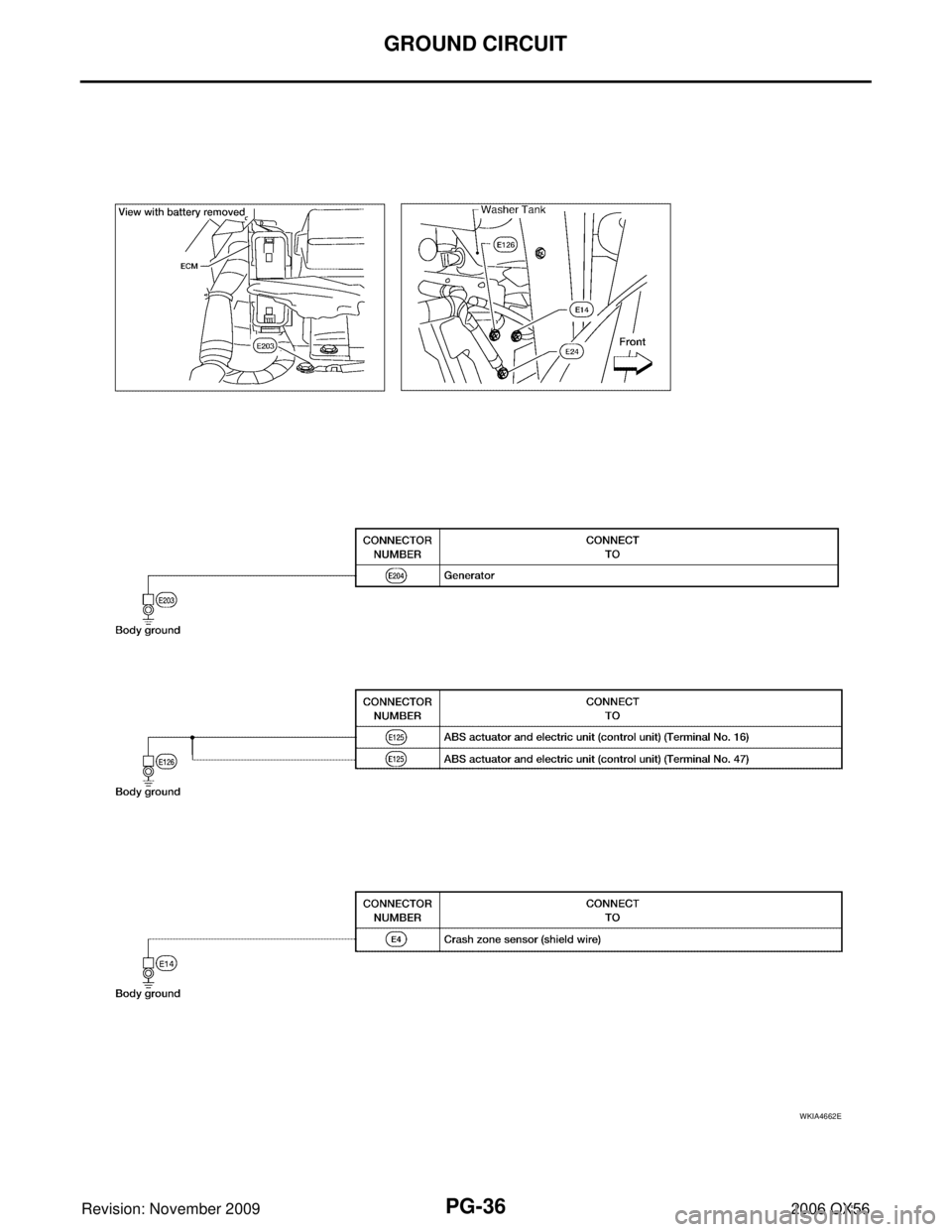

ENGINE CONTROL HARNESS
WKIA4663E

PG-38
GROUND CIRCUIT
Revision: November 20092006 QX56

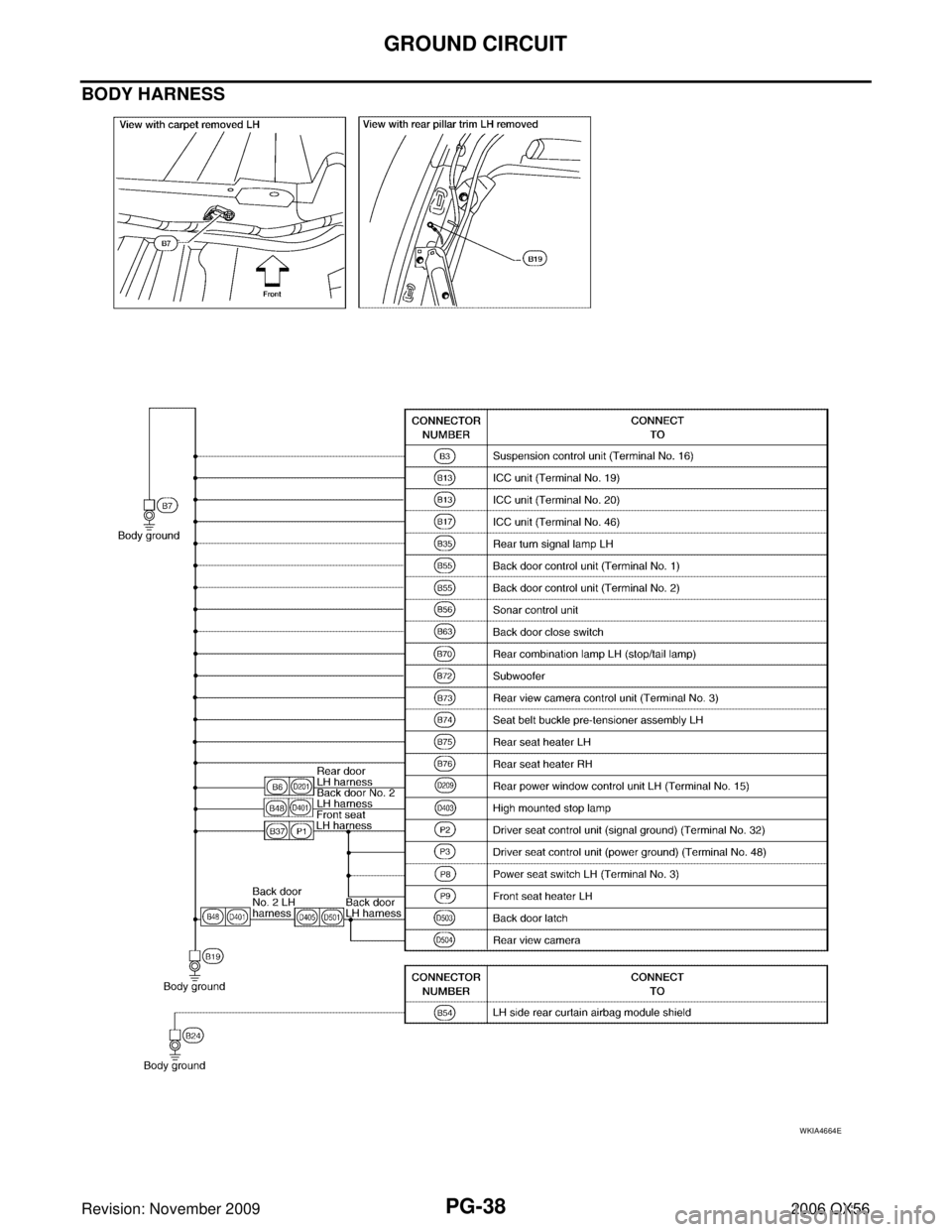

BODY HARNESS
WKIA4664E

GROUND CIRCUITPG-39
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56

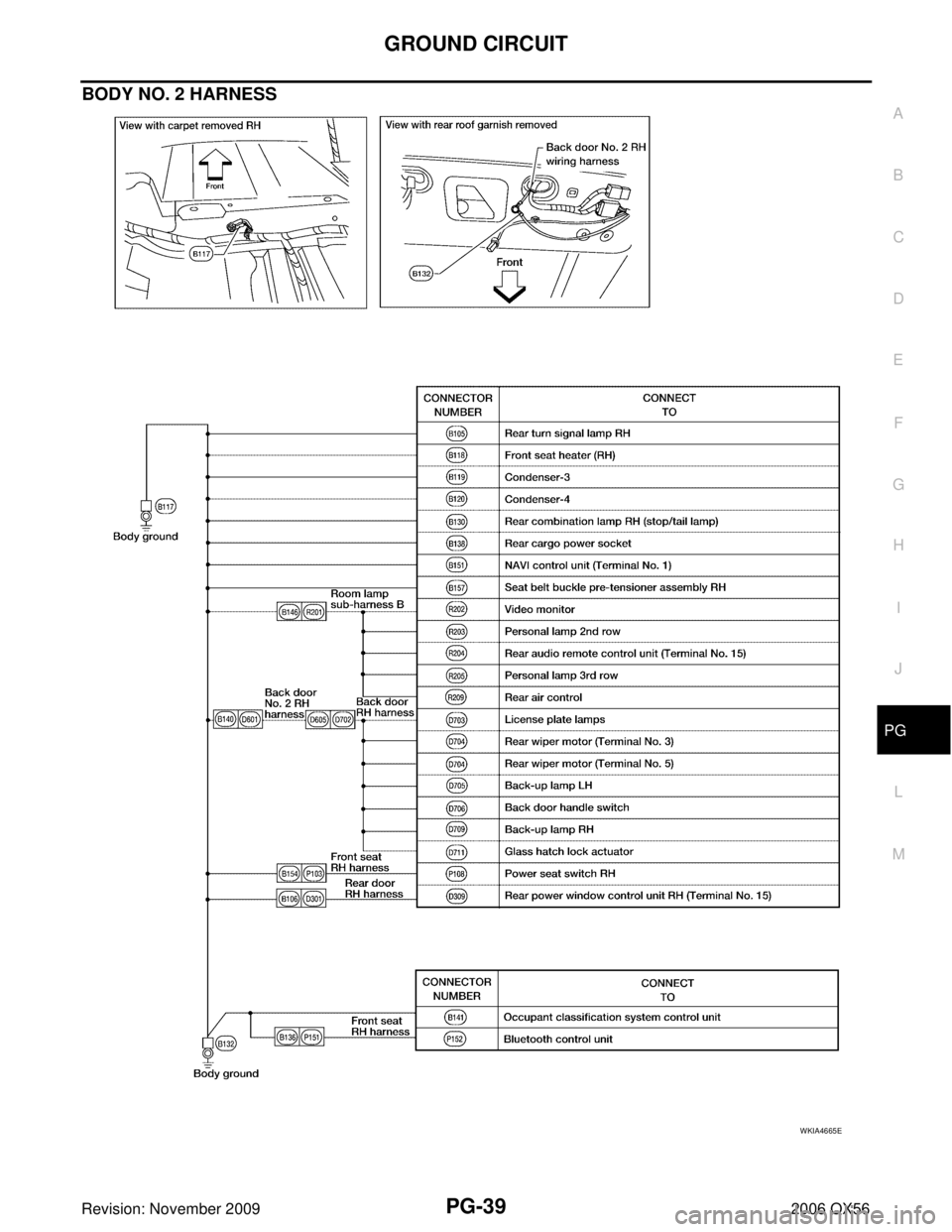

BODY NO. 2 HARNESS
WKIA4665E
