TROUBLE DIAGNOSISATC-49
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. Refer to applicable sections
(items) for details. Fault codes (if any are present) wil l be displayed in the ambient temperature display area.
Refer to "SELF-DIAGNOSIS CODE CHART" .

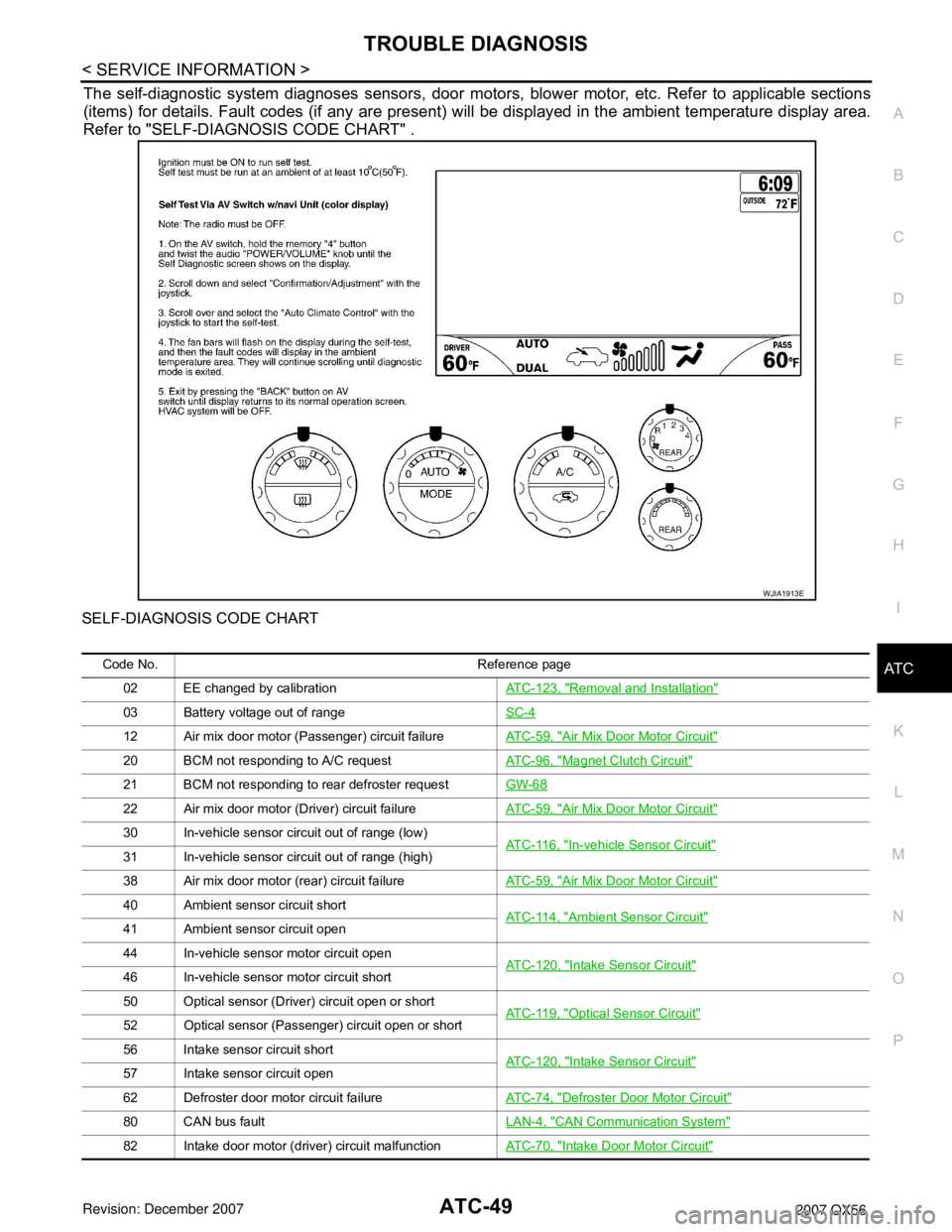

SELF-DIAGNOSIS CODE CHART
WJIA1913E
Code No. Reference page
02 EE changed by calibration ATC-123, "
Removal and Installation"
03 Battery voltage out of rangeSC-4
12 Air mix door motor (Passenger) circuit failureAT C - 5 9 , "Air Mix Door Motor Circuit"
20 BCM not responding to A/C requestAT C - 9 6 , "Magnet Clutch Circuit"
21 BCM not responding to rear defroster requestGW-68
22 Air mix door motor (Driver) circuit failure AT C - 5 9 , "Air Mix Door Motor Circuit"
30 In-vehicle sensor circuit out of range (low)
AT C - 11 6 , "In-vehicle Sensor Circuit"31 In-vehicle sensor circuit out of range (high)
38 Air mix door motor (rear) circuit failure AT C - 5 9 , "
Air Mix Door Motor Circuit"
40 Ambient sensor circuit short
AT C - 11 4 , "Ambient Sensor Circuit"41 Ambient sensor circuit open
44 In-vehicle sensor motor circuit openATC-120, "
Intake Sensor Circuit"46 In-vehicle sensor motor circuit short
50 Optical sensor (Driver) circuit open or shortAT C - 11 9 , "
Optical Sensor Circuit"52 Optical sensor (Passenger) circuit open or short
56 Intake sensor circuit shortATC-120, "
Intake Sensor Circuit"57 Intake sensor circuit open
62 Defroster door motor circuit failureAT C - 7 4 , "
Defroster Door Motor Circuit"
80 CAN bus faultLAN-4, "CAN Communication System"
82 Intake door motor (d river) circuit malfunction AT C - 7 0 , "Intake Door Motor Circuit"

TROUBLE DIAGNOSISATC-51
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
1. Rotate temperature control dial (driver si de or passenger side) counterclockwise until 16 °C (60 °F) is dis-
played.
2. Check for cold air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operat ion. If OK, go to trouble diagnosis procedure for ATC-100,
"Insufficient Cooling" . If air mix door motor appears to be malfunctioning, go to ATC-59, "Air Mix Door Motor
Circuit" or ATC-59, "Air Mix Door Motor Circuit".
If OK, continue the check.
CHECKING TEMPERATURE INCREASE
1. Rotate temperature control dial clockw ise (driver side or passenger side) until 32°C (90 °F) is displayed.
2. Check for hot air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operat ion. If OK, go to trouble diagnosis procedure for ATC-108,
"Insufficient Heating" . If air mix door motor appears to be malfunctioning, go to ATC-59, "Air Mix Door Motor
Circuit" or ATC-59, "Air Mix Door Motor Circuit".
If OK, continue with next check.
CHECK A/C SWITCH
1. Press A/C switch when AUTO switch is ON, or in manual mode.
2. A/C switch indicator will turn ON.
• Confirm that the compressor clutch engages (sound or visual inspection).
NOTE:
If current mode setting is DEF or D/F, compressor clutch may already be engaged.
If NG, go to trouble diagnosis procedure for ATC-96, "
Magnet Clutch Circuit" .
If OK, continue with next check.
CHECKING AUTO MODE
1. Press AUTO switch.
2. Display should indicate AUTO.
• If ambient temperature is warm, and selected temperat ure is cool, confirm that the compressor clutch
engages (sound or visual inspection). (Discharge air and blower speed will depend on ambient, in-vehi-
cle, and set temperatures.)
If NG, go to trouble diagnosis procedure for ATC-52, "
Power Supply and Ground Circuit for Front Air Control" ,
then if necessary, trouble diagnosis procedure for ATC-96, "
Magnet Clutch Circuit" .
If all operational checks are OK (symptom cannot be duplicated), go to malfunction Simulation Tests in AT C -
32, "How to Perform Trouble Diagnosis for Quick and Accurate Repair" and perform tests as outlined to simu-
late driving conditions environment . If symptom appears. Refer to ATC-32, "
How to Perform Trouble Diagnosis
for Quick and Accurate Repair", ATC-32, "How to Perform Trouble Diagnosis for Quick and Accurate Repair"
and perform applicable trouble diagnosis procedures.
Operational Check (Rear)INFOID:0000000003533250
The purpose of the operational check is to confirm that the system operates properly.
CHECKING BLOWER
1. Turn the rear blower control dial to swit ch position "1". Blower should operate on low speed.
2. Turn the rear blower control dial counterclockwis e to switch position "2", "3", and "4" until all speeds are
checked.
3. Leave blower on MAX speed.
If NG, go to trouble diagnosis procedure for ATC-85, "
Rear Blower Motor Circuit" .
If OK, continue the check.
CHECKING TEMPERATURE DECREASE
1. Rotate temperature and mode dial fully counterclockwise.
2. Check for cold air at appropriate discharge air outlets. Conditions : Engine running and at normal operating temperature

ATC-60
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
5.CHECK AIR MIX DOOR OPERATION
Check and verify air mix door mechanism for smooth operation from 16 °C (60 °F) to 32 °C (90 °F) in each
mode.
OK or NG
OK >> GO TO 6.
NG >> Repair as necessary.
6.PERFORM SELF-DIAGNOSIS
Perform self-diagnosis to check for any codes. Refer to ATC-48, "
A/C System Self-Diagnosis Function" .
Are any self-diagnosis codes present?
YES >> Refer to ATC-48, "A/C System Self-Diagnosis Function" .
NO >> GO TO 7.
7.CHECK THE AIR MIX DOOR MOTOR PBR CIRCUIT
Perform diagnostic procedure for the air mix door motors. Refer to "Air Mix Door Motor Circuit" .
OK or NG
OK >> GO TO 8.
NG >> Repair PBR circuit or replace air mix door motor. Refer to ATC-141
.
8.RECHECK FOR CODES
Perform self-diagnosis. Refer to ATC-48, "
A/C System Self-Diagnosis Function" .
Are any self-diagnostic codes present?
YES >> Refer to ATC-48, "A/C System Self-Diagnosis Function" .
NO >> GO TO 9.
9.RECHECK FOR ANY SYMPTOMS
Perform a complete operational check for any symptoms. Refer to ATC-50, "
Operational Check (Front)".
Does another symptom exist?
YES >> Refer to ATC-32, "How to Perform Trouble Diagnosis for Quick and Accurate Repair" .
NO >> Replace front air control. Refer to ATC-123, "
Removal and Installation".
SYSTEM DESCRIPTION
Component Parts
Air mix door control system components are:
• Front air control.
• Air mix door motors (Driver, Passenger, and rear)
• PBR (built-into air mix door motors)
• In-vehicle sensor
• Ambient sensor
• Optical sensor
• Intake sensor
System Operation
The front air control receives data from the temperatur e selected by the driver side, passenger side, and rear.
The front air control then applies a voltage to one circuit of the appropriate air mix door motor, while ground is
applied to the other circuit, causing the appropriate air mix door motor to rotate. The direction of rotation is
determined by which circuit has voltage applied to it, and which one has ground applied to it. The front air con-
trol monitors the air mix door positions by measur ing the voltage signal on the PBR circuits of each door.
In AUTO mode the air mix, intake, mode door, and defrost door positions are set by the front air control which
determines the proper position based on inputs from the in-vehicle sensor, ambient sensor, optical sensor,
intake sensor, and the temperature selected by the driver and front and rear passengers.

TROUBLE DIAGNOSISATC-61
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
Subsequently, HOT/COLD or DEFROST/VENT or FR ESH/RECIRCULATION operation is selected. The new
door position data is returned to the front air control.
Air Mix Door Control Specification
COMPONENT DESCRIPTION
Air Mix Door Motors
The driver (1) and front passenger (2) air mix door motors are
attached to the front heater & cooling unit assembly. The rear air mix
door motor is attached to the rear heater & cooling unit. These
motors rotate so that the air mix door is opened or closed to a posi-
tion set by the front (or rear) air control. Motor rotation is then con-
veyed through a shaft and the air mix door position is then fed back
to the front air control by the PBR built into the air mix door motors.
DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (DRIVER)
1.CHECK FRONT AIR CONTROL FOR POWER AND GROUND
WJIA1244E
WJIA0435E
WJIA2309E
WJIA1245E

TROUBLE DIAGNOSISATC-67
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
1. Disconnect the air mix door mo tor (passenger) harness connec-
tor.
2. Check continuity between air mix door motor (passenger) har-
ness connector M143 (B) terminal 3, 2 and front air control har-
ness connector M49 (A) terminal 2, 15.
OK or NG
OK >> Replace air mix door motor (passenger). Refer to AT C -
141, "Removal and Installation" .
NG >> Repair or replace harness as necessary.
10.CHECK PBR FEEDBACK VOLTAGE
1. Reconnect the front air control harness connector.
2. Turn ignition switch ON.
3. Check voltage between front air control harness connector M50 terminal 41 and ground while rotating temperature control dial
(passenger) from 32 °C (90 ° F) to 16 °C (60 ° F).
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 .CHECK PBR FEEDBACK SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect front air control harness connector.
3. Check continuity between front air control harness connector
M50 terminal 41 and ground.
OK or NG
OK >> Replace front air control. Refer to ATC-123, "Removal
and Installation" .
NG >> Repair or replace harness as necessary.
12.CHECK PBR FEEDBACK CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect the air mix door mo tor (passenger) harness connec-
tor and front air control harness connector.
3. Check continuity between air mix door motor (passenger) har- ness connector M143 terminal 4 and front air control harness
connector M50 terminal 41.
OK or NG
OK >> Replace air mix door motor (passenger). Refer to AT C -
141, "Removal and Installation" .
NG >> Repair or replace harness as necessary.
DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (REAR)
1.CHECK FRONT AIR CONTROL FOR POWER AND GROUND 2 - 3 : Continuity should exist.
15 - 2 : Continuity should exist.
WJIA1777E
Voltage : Approx. .5V - 4.5V
LJIA0047E
Continuity should not exist.
WJIA1743E
Continuity should exist.
WJIA0550E

ATC-68
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
1. Turn ignition switch ON.
2. Rotate temperature control dial (rear) to maximum heat.
3. Check voltage between front air control harness connector M50terminal 27 and terminal 28 while rotating temperature control
dial (rear) to maximum cold.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.CHECK AIR MIX DOOR MOTOR (REAR) CIRCUITS FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the front air control harness connector.
3. Check continuity between front air control harness connector M50 terminal 27, 28 and ground.
OK or NG
OK >> Replace front air control. Refer to ATC-123, "Removal
and Installation" .
NG >> Repair or replace harness as necessary.
3.CHECK FRONT AIR CONTROL FOR POWER AND GROUND
1. Turn ignition switch ON.
2. Rotate temperature control dial (rear) to maximum cold.
3. Check voltage between front air control harness connector M50 terminal 27 and terminal 28 while rotating temperature control
dial (rear) to maximum heat.
OK or NG
OK >> GO TO 4.
NG >> Replace front air control. Refer to ATC-123, "
Removal and Installation".
4.CHECK AIR MIX DOOR MOTOR (REAR) CIRCUITS FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect the front air control harness connector.
3. Check continuity between front air control harness connector M50 terminal 27 and terminal 28.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.CHECK AIR MIX DOOR MOTOR (REAR) CIRCUITS FOR OPEN
ConnectorTe r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
Front air control: M50 27 28 Rotate temp
control dial Battery
voltage
WJIA1744E
27 - Ground : Continuity should not exist.
28 - Ground : Continuity should not exist.
WJIA1745E
Connector Te r m i n a l s
Condition Voltage
(Approx.)
(+) (-)
Front air control: M50 28 27
Rotate temp
control dial Battery
voltage
WJIA1746E
Continuity should exist.
WJIA1747E

TROUBLE DIAGNOSISATC-69
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
1. Disconnect the air mix door motor (rear) harness connector.
2. Check continuity between front air control harness connector
M50 terminal 27, 28 and the air mix door motor (rear) harness
connector B155 terminal 1, 6.
OK or NG
OK >> Replace air mix door motor (rear). Refer to ATC-141,
"Removal and Installation".
NG >> Repair or replace harness as necessary.
6.CHECK FRONT AIR CONTROL FOR PBR POWER AND GROUND
1. Reconnect front air control harness connector.
2. Turn ignition switch ON.
3. Check voltage between front air control harness connector M49 terminal 2 and terminal 15.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.CHECK PBR REFERENCE VOLTAGE CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect the front air control harness connector.
3. Check continuity between front air control harness connector
M49 terminal 2 and ground.
OK or NG
OK >> Replace front air control. Refer to ATC-123, "Removal
and Installation".
NG >> Repair or replace harness as necessary.
8.CHECK PBR REFERENCE VOLT AGE AND GROUND CIRCUITS
1. Turn ignition switch OFF.
2. Disconnect the front air control harness connector.
3. Check continuity between front air control harness connector
M49 terminal 2 and terminal 15.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9.CHECK PBR REFERENCE VOLTAGE CIRCUIT FOR OPEN 27 - 1 : Continuity should exist.
28 - 6 : Continuity should exist.
LJIA0049E
Connector
Te r m i n a l s
Voltage (Ap-
prox.)
(+) (-)
Front air control: M49 2 15 5V
WJIA1729E
Continuity should not exist.
WJIA1730E
Continuity should exist.
WJIA1731E

ATC-70
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
1. Disconnect the air mix door motor (rear) harness connector.
2. Check continuity between air mix door motor (rear) harness con-nector B155 (B) terminal 3, 2 and front air control harness con-
nector M49 (A) terminal 2, 15.
OK or NG
OK >> Replace air mix door motor (rear). Refer to ATC-141,
"Removal and Installation".
NG >> Repair or replace harness as necessary.
10.CHECK PBR FEEDBACK VOLTAGE
1. Reconnect the front air control harness connector.
2. Turn ignition switch ON.
3. Check voltage between front air control harness connector M50 terminal 42 and ground while rotating temperature control dial
(rear) from maximum cold to maximum heat.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 .CHECK PBR FEEDBACK SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect front air control harness connector.
3. Check continuity between front air control harness connector M50 terminal 42 and ground.
OK or NG
OK >> Replace front air control. Refer to ATC-123, "Removal
and Installation" .
NG >> Repair or replace harness as necessary.
12.CHECK PBR FEEDBACK CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect the air mix door motor (rear) harness connector and front air control harness connector.
3. Check continuity between air mix door motor (rear) harness con- nector B155 terminal 4 and front air control harness connector
M50 terminal 42.
OK or NG
OK >> Replace air mix door motor (rear). Refer to ATC-141,
"Removal and Installation".
NG >> Repair or replace harness as necessary.
Intake Door Motor CircuitINFOID:0000000003533254
SYMPTOM:• Intake door does not change.
• Intake door motor does not operate normally. 2 - 3 : Continuity should exist.
15 - 2 : Continuity should exist.
WJIA1748E
Voltage : Approx. 1V - 4.5V
LJIA0053E
Continuity should not exist.
WJIA1749E
Continuity should exist.
LJIA0054E

ATC-94
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
2. Turn the rear blower motor on (1-4 speed).
3. Turn the rear temperature/mode control dial clockwise.
4. Check for hot air at rear foot discharge air outlets.>> GO TO 2.
2.CONFIRM SYMPTOM BY PERFORMING OPER ATIONAL CHECK - TEMPERATURE DECREASE
1. Turn the rear temperature/mode control dial counterclockwise.
2. Check for cold air at rear vent discharge air outlets.
OK or NG?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK FOR ANY SYMPTOMS
Perform a complete operational check for any symptoms. Refer to ATC-50, "
Operational Check (Front)" .
Does another symptom exist?
YES >> Refer to ATC-32, "How to Perform Trouble Diagnosis for Quick and Accurate Repair" .
NO >> System OK.
4.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 5.
5.PERFORM SELF-DIAGNOSIS
Perform self-diagnosis to check for any codes. Refer to ATC-48, "
A/C System Self-Diagnosis Function" .
Are any self-diagnosis codes present?
YES >> Refer to ATC-48, "A/C System Self-Diagnosis Function".
NO >> GO TO 6.
6.CHECK REAR TEMPERATURE/MODE CONTROL DIAL OPERATION
Check and verify rear outlet position and temperat ure change when adjusted from front air control.
OK or NG?
YES >> Check rear air control circuit. Refer to "DIAGNOSTIC PROCEDURE FOR REAR AIR CONTROL".
NO >> Check air mix door motor (rear). Refer to ATC-59, "
Air Mix Door Motor Circuit" .
SYSTEM DESCRIPTION
Component Parts
Rear air control system components are:
• Front air control
• Rear air control
• Air mix door motor (rear)
• Rear blower motor relay
• Rear blower motor resistor
• Rear blower motor

TROUBLE DIAGNOSISATC-95
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
System Operation
Rear Air Control
When the rear blower switch (front) (integral to the front
air control) is in the REAR position the rear blower
motor speeds and the rear temperature and mode are contro lled by the rear blower switch (rear) and the rear
temperature switch (rear) (both integral to the rear air control).
DIAGNOSTIC PROCEDURE FOR REAR AIR CONTROL
SYMPTOM:
• Blower motor operation is malfunctioning. Refer to ATC-85, "Rear Blower Motor Circuit" .
• Temperature and mode operation is malfunctioning.
1.CHECK OPERATION FROM FRONT AIR CONTROL
Does rear temperature and mode operat e normally from front air control?
YES or NO
YES >> GO TO 2.
NO >> Refer to ATC-59, "
Air Mix Door Motor Circuit".
2.CHECK CIRCUIT BETWEEN REAR AIR CONTROL AND FRONT AIR CONTROL FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect front air control and rear air control connectors.
3. Check continuity between front air control harness connector
M50 terminal 33 and rear air control harness connector R209
terminal 5.
4. Check continuity between rear air control harness connector R209 terminal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK CIRCUIT BETWEEN REAR AI R CONTROL AND AIR MIX DOOR MOTOR (REAR) FOR OPEN OR
SHORT
WJIA1132E
33 - 5 Continuity should exist.
5 - Ground Continuity should not exist.
WJIA1441E
