CHG-20
< COMPONENT DIAGNOSIS >
CHARGING SYSTEM

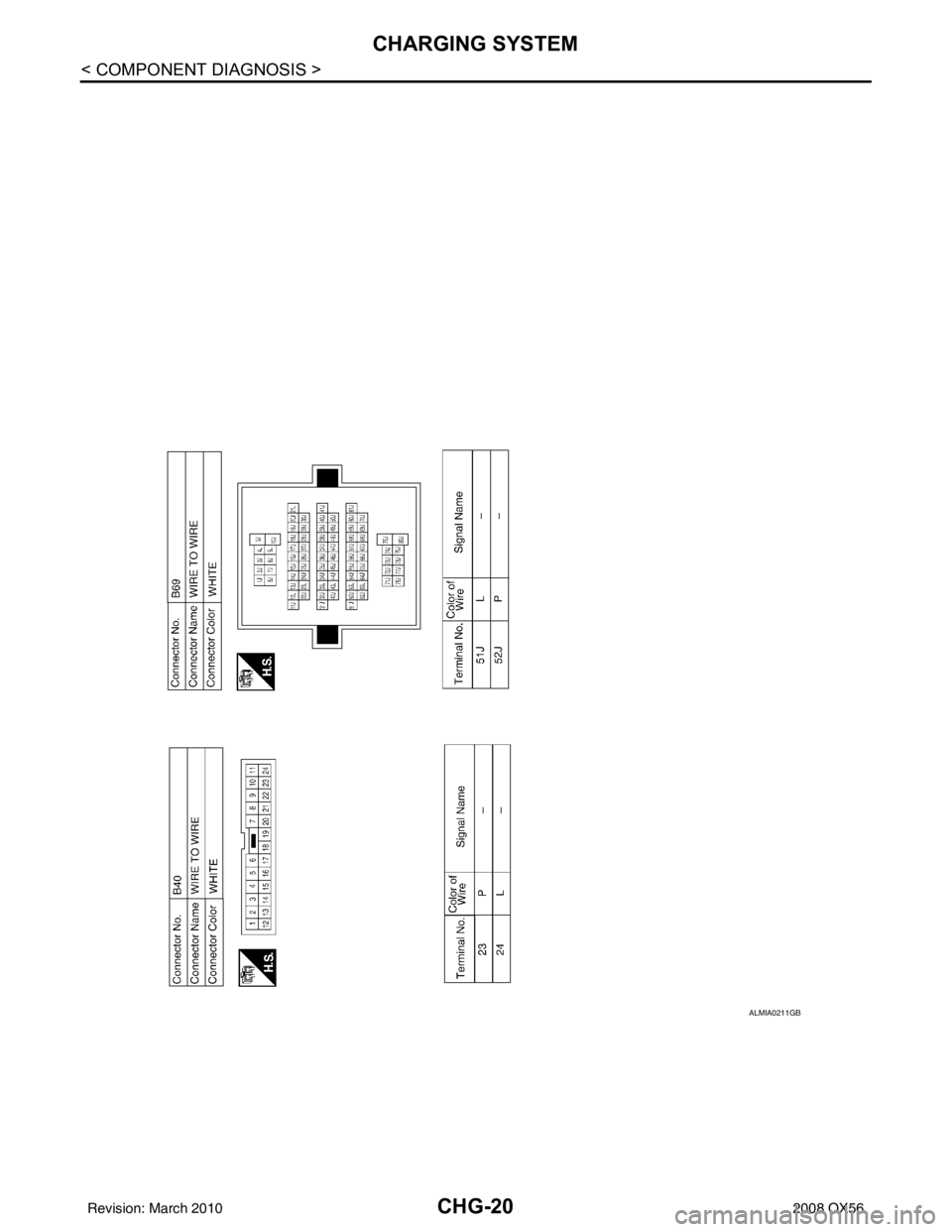

ALMIA0211GB
Revision: March 20102008 QX56

CHG
CHARGING SYSTEMCHG-21
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
SYMPTOM DIAGNOSIS
CHARGING SYSTEM
Symptom TableINFOID:0000000001696193
Symptom
Reference
Battery discharged
Refer to CHG-5, "
Work Flow".
The charge warning lamp does not illuminate when the ignition
switch is set to ON.
The charge warning lamp does not turn OFF after the engine
starts.
The charging warning lamp turns ON when increasing the engine
speed.
Revision: March 2010
2008 QX56

CHG-22
< ON-VEHICLE REPAIR >
GENERATOR
ON-VEHICLE REPAIR
GENERATOR
Removal and InstallationINFOID:0000000001538884
REMOVAL
1. Disconnect the negative battery terminal.
2. Remove the fan shroud. Refer to CO-15, "
Removal and Installation".
3. Remove the drive belt. Refer to EM-13, "
Removal and Installation".
4. Remove lower bracket, using power tools.
5. Remove the generator upper bolt, using power tools.
6. Remove/disconnect the generator harness connectors.
7. Remove the generator.
INSTALLATION
Installation is in the reverse order of removal.
• Install the generator and check the tension of the drive belt. Refer to EM-13, "
Checking Drive Belts".
CAUTION:
Tighten terminal nut carefully.
WKIA1390E
Terminal nut : 10.8 N·m (1.1 kg-m, 8 ft-lb)
