INFINITI QX56 2009 Factory Service Manual

HRN-4
< COMPONENT DIAGNOSIS >
HORN
COMPONENT DIAGNOSIS
HORN
Wiring DiagramINFOID:0000000003776367
ABLWA0062GB
Revision: December 20092009 QX56

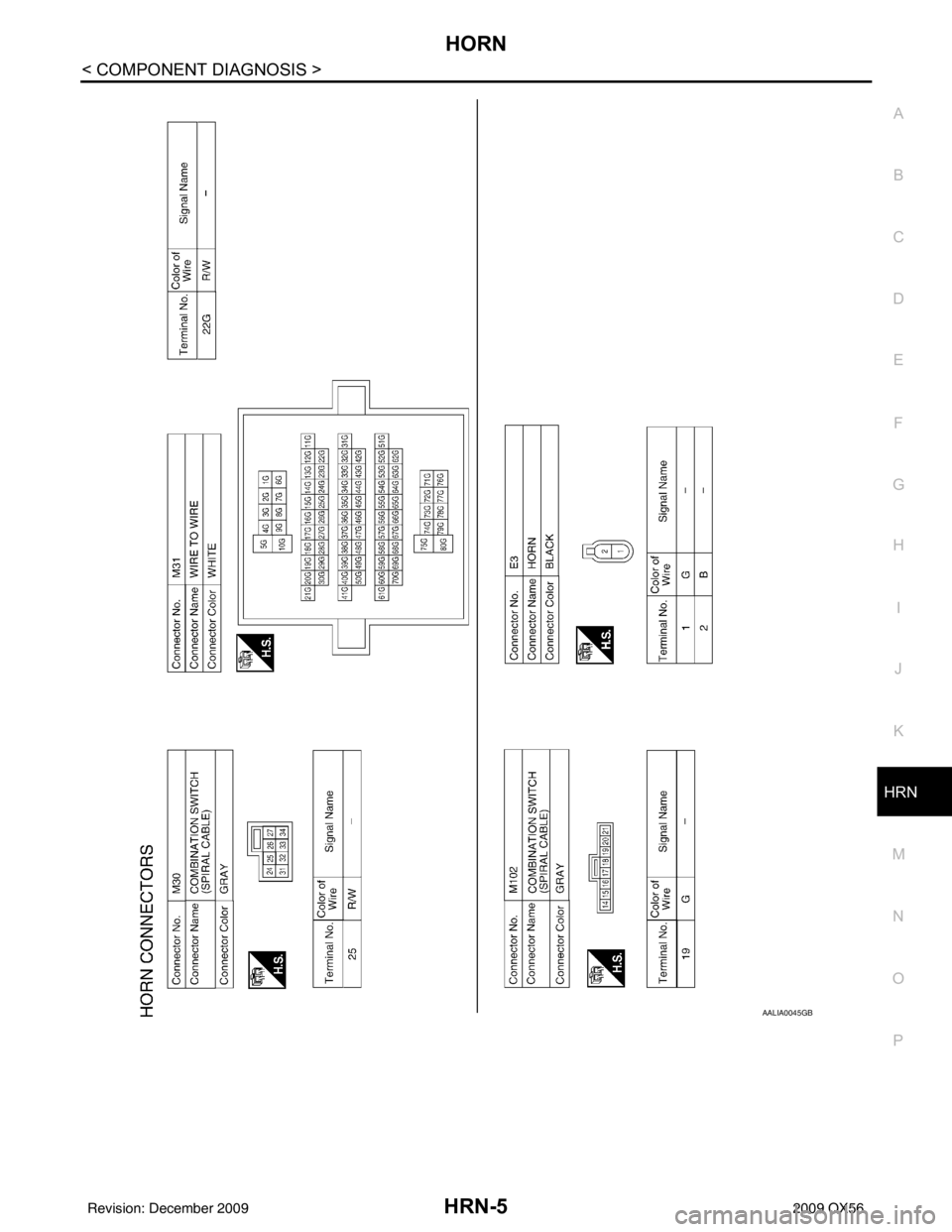

HORN
HRN-5
< COMPONENT DIAGNOSIS >
C
D E
F
G H
I
J
K
M A
B
HRN
N
O P
AALIA0045GB
Revision: December 20092009 QX56

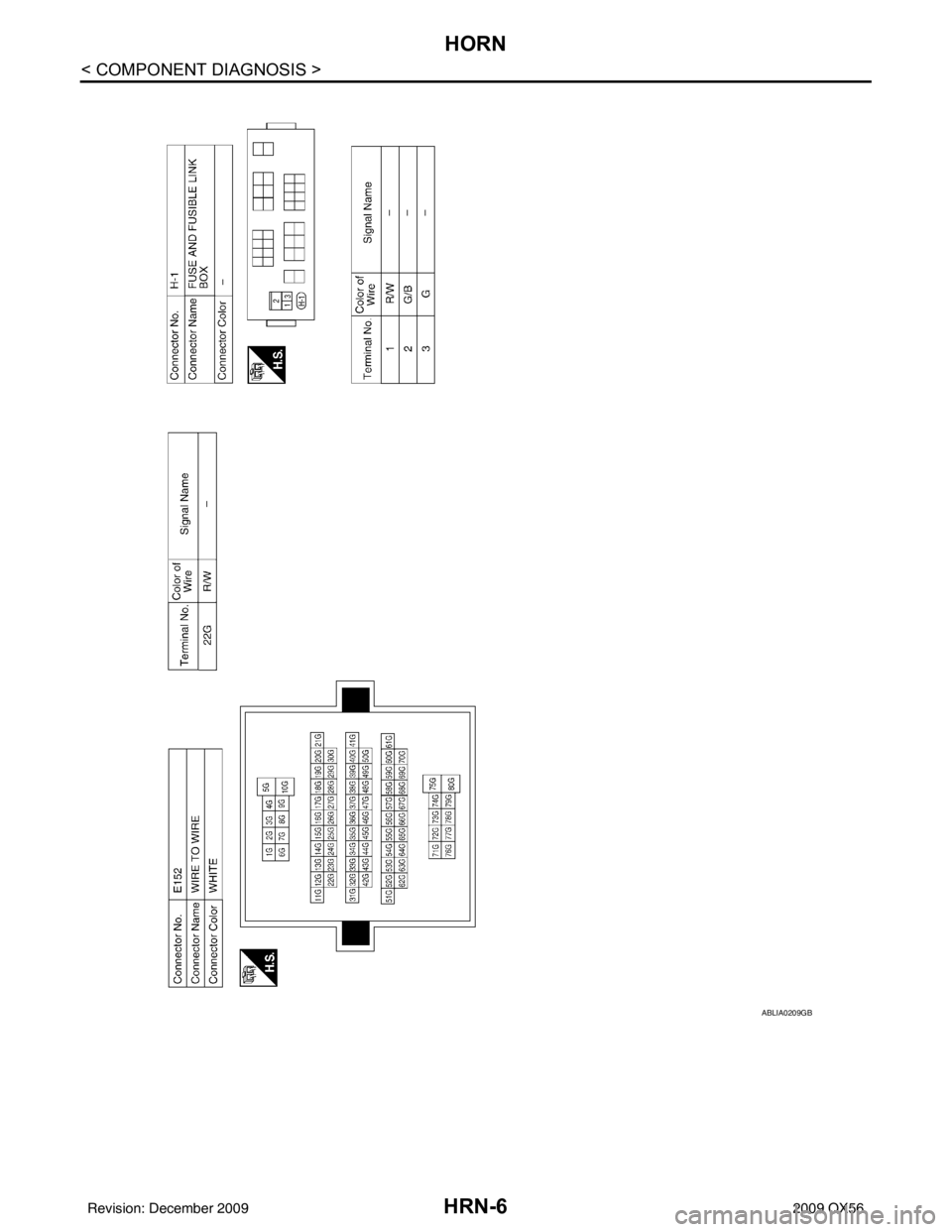

HRN-6
< COMPONENT DIAGNOSIS >
HORN
ABLIA0209GB
Revision: December 20092009 QX56

HORN
HRN-7
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
K
M A
B
HRN
N
O P
REMOVAL AND INSTALLATION
HORN
Removal and InstallationINFOID:0000000003776368
REMOVAL
1. Disconnect horn connector.
2. Remove horn bolt and remove horn from vehicle.
INSTALLATION
Installation is in the reverse order of removal.
LKIA0419E
Revision: December 20092009 QX56

INL-1
DRIVER CONTROLS
C
DE
F
G H
I
J
K
M
SECTION INL
A
B
INL
N
O P
CONTENTS
INTERIOR LIGHTING SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................6
INTERIOR ROOM LAMP CONTROL SYSTEM
.....
6
System Diagram .................................................. ......6
System Description ...................................................6
Component Parts Location ........................................7
Component Description .............................................8
ILLUMINATION CONTROL SYSTEM .................9
System Diagram .................................................. ......9
System Description ...................................................9
Component Parts Location ........................................9
Component Description ...........................................10
DIAGNOSIS SYSTEM (BCM) ............................11
COMMON ITEM ..................................................... ....11
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
11
INT LAMP .............................................................. ....11
INT LAMP : CONSULT-III Function (BCM - INT
LAMP) .....................................................................
12
BATTERY SAVER ................................................. ....13
BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER) ...............................................
13
COMPONENT DIAGNOSIS .........................14
POWER SUPPLY AND GROUND CIRCUIT .. ....14
BCM ....................................................................... ....14
BCM : Diagnosis Procedure ....................................14
BATTERY SAVER OUTPUT/POWER SUP-
PLY CIRCUIT ................................................. ....
15
Description ........................................................... ....15
Component Function Check ....................................15
Diagnosis Procedure ...............................................15
INTERIOR ROOM LAMP CONTROL CIRCUIT
...
17
Description ........................................................... ....17
Component Function Check ....................................17
Diagnosis Procedure ...............................................17
STEP LAMP CIRCUIT .......................................19
Description ........................................................... ....19
Component Function Check ....................................19
Diagnosis Procedure ...............................................19
CARGO LAMP CONTROL CIRCUIT ................21
Description ...............................................................21
Component Function Check ....................................21
Diagnosis Procedure ...............................................21
IGNITION KEYHOLE ILLUMINATION CON-
TROL CIRCUIT .................................................
23
Description ...............................................................23
Component Function Check ....................................23
Diagnosis Procedure ...............................................23
INTERIOR ROOM LAMP CONTROL SYSTEM
...
25
Wiring Diagram .................................................... ....25
ILLUMINATION .................................................41
Wiring Diagram ........................................................41
ECU DIAGNOSIS .........................................55
BCM (BODY CONTROL MODULE) .................55
Reference Value .................................................. ....55
Terminal Layout .......................................................57
Physical Values ................................................... ....57
Wiring Diagram ........................................................63
Fail Safe ..................................................................67
DTC Inspection Priority Chart ...............................68
Revision: December 20092009 QX56

INL-2
DTC Index ..............................................................68
SYMPTOM DIAGNOSIS .............................70
INTERIOR LIGHTING SYSTEM SYMPTOMS ...70
Symptom Table ................................................... ...70
PRECAUTION .............................................71
PRECAUTIONS .............................................. ...71
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
71
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................
71
General precautions for service operations ......... ...72
ON-VEHICLE REPAIR ...............................73
INTERIOR ROOM LAMP ................................ ...73
Removal and Installation .........................................73
ILLUMINATION .............................................. ...77
Removal and Installation .........................................77
SERVICE DATA AND SPECIFICATIONS
(SDS) .......... ................................. ...............
79
BULB SPECIFICATIONS ............................... ...79
Interior Lamp/Illumination ........................................79
Revision: December 20092009 QX56

DIAGNOSIS AND REPAIR WORKFLOWINL-3
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

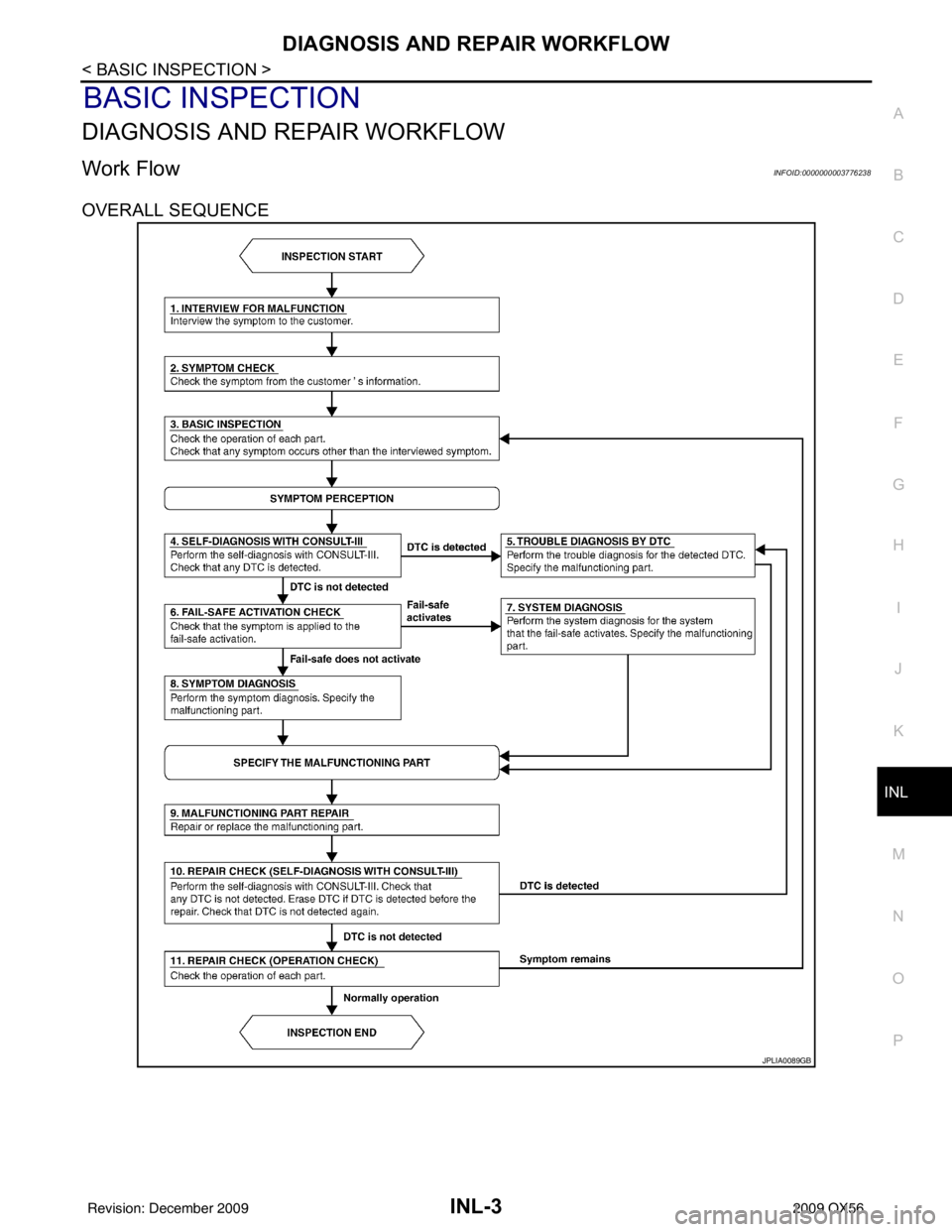

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000003776238
OVERALL SEQUENCE
JPLIA0089GB
Revision: December 20092009 QX56

INL-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Find out what the customer's concerns are.
>> GO TO 2
2.SYMPTOM CHECK
Verify the symptom from the customer's information.
>> GO TO 3
3.BASIC INSPECTION
Check the operation of each part. Check that any conc erns occur other than those mentioned in the customer
interview.
>> GO TO 4
4.SELF-DIAGNOSIS WITH CONSULT-III
Perform the self-diagnosis with CONSULT- III. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5
NO >> GO TO 6
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detect ed DTC. Specify the malfunctioning part.
>> GO TO 9
6.FAIL-SAFE ACTIVATION CHECK
Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7
NO >> GO TO 8
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.
>> GO TO 9
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>> GO TO 9
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 10
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)
Perform the self-diagnosis with CONSULT-III. Verified that no DTCs are detected. Erase all DTCs detected
prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?
YES >> GO TO 5
Revision: December 20092009 QX56

DIAGNOSIS AND REPAIR WORKFLOWINL-5
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
NO >> GO TO 11
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> Inspection End
NO >> GO TO 3
Revision: December 20092009 QX56

INL-6
< FUNCTION DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL SYSTEM
FUNCTION DIAGNOSIS
INTERIOR ROOM LAMP CONTROL SYSTEM
System DiagramINFOID:0000000003776239
System DescriptionINFOID:0000000003776240
OUTLINE
• Interior room lamps* are controlled by the interior room lamp timer control function of the BCM.
*Front room/map lamps, personal lamp 2nd row, personal lamp 3rd row (when lamp switch is in DOOR posi-
tion) and puddle lamps.
• Cargo lamp is controlled by the cargo lamp control function of the BCM.
• Step lamps* are controlled by the step lamp control function of the BCM. *Front step lamps, rear step lamps and foot lamps.
The timer control functions of the BCM activate based on inputs from the remote keyless entry receiver, the
key cylinder lock/unlock switch, the door switc hes or the key switch and ignition knob switch.
ROOM LAMP TIMER OPERATION
When the interior room lamp switch is in the DOOR position and when all conditions below are met, the BCM
begins timer control (maximum 30 seconds) for interior room lamp ON/OFF.
• When the front door LH is unlocked [with Intelligent Key, main power window and door lock/unlock switch, or
front door lock assembly (key cylinder switch)].
• When a door opens → closes and the Intelligent Key is not inserted in the ignition switch.
Timer control is cancelled under the following conditions.
• When the front door LH is locked [with Intelligent Key, main power window and door lock/unlock switch, or
front door lock assembly (key cylinder switch)].
• A door is opened (door switch turns ON).
• Ignition switch is turned ON.
Interior lamp operational settings can be c hanged with the function setting of CONSULT-III.
AWLIA1595GB
Revision: December 20092009 QX56
