INFINITI QX60 2020 User Guide

IMPORTANT INFORMATION
ABOUT THIS MANUAL
You will see various symbols in this manual.
They are used in the following ways:
WARNING
This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the risk,
the procedures must be followed precisely.
CAUTION
This is used to indicate the presence of a
hazard that could cause minor or moderate
personal injury or damage to your vehicle.
To avoid or reduce the risk, the procedures
must be followed carefully.If you see this symbol, it means
“Do not do
this” or“Do not let this happen.”
If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.
Arrows in an illustration that are similar to
these indicate movement or action.
Arrows in an illustration that are similar to
these call attention to an item in the illustration.
CALIFORNIA PERCHLORATE
ADVISORY
Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The fol-
lowing advisory is provided: “Perchlorate
Material – special handling may apply. For
additional information, refer to
www.dtsc.ca.gov/hazardouswaste/
perchlorate/”.
© 2019 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a
retrieval system, or transmitted in any form,
or by any means, electronic, mechanical, pho-
tocopying, recording or otherwise, without
the prior written permission of Nissan Motor
Co., Ltd.APD1005

INFINITI CARES...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:
For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792 The Consumer Affairs Department will ask
for the following information:
– Your name, address, and telephone num-
ber
– Vehicle identification number (on dash panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer’s name
– Your comments or questions
OR You can write to INFINITI with the informa-
tion on the left at:
For U.S. customers
INFINITI Division
Nissan North America, Inc. Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com
If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customers)
or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.
INFINITI CUSTOMER CARE PROGRAM

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and schedules
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10
11

0 Illustrated table of contents
Air bags, seat belts and child restraints........... 0-2
Exterior front ................................... 0-3
Exterior rear .................................... 0-4
Passenger compartment ......................... 0-5 Instrument panel
................................ 0-6
Engine compartment check locations ............. 0-8
Warning and indicator lights ..................... 0-9

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impactand rollover supplemental air bag
(P. 1-50)
4. Head restraints/headrests (P.1-12)
5. Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-17, 1-50)
6. Supplemental air bags (P.1-50)
7. Occupant classification sensor
(weight sensor) (P.1-50)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-50)
10. LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-28)
11. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-28)
12. 3rd row bench seat top tether strap
anchor (located on bottom of
seatback) (P. 1-28)
Refer to the page number indicated in paren-
theses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-22)
2. Wiper and washer switch (P. 2-35)Wiper blades (P. 8-17)
3. Windshield (P. 8-17)
4. Power windows (P. 2-63)
5. Door locks (P. 3-5) INFINITI Intelligent Key (P. 3-7)
Remote Engine Start (if so equipped)
(P. 3-19)
Keys (P. 3-2)
6. Mirrors (P. 3-33) Side camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-26) Flat tire (P. 6-3)
Tire chains (P. 8-26)
8. Sonar sensors (if so equipped)
(P. 5-143)
9. Replacing bulbs (P. 8-24) Headlight and turn signal switch
(P. 2-39)
LED Daytime Running Lights (DRL)
system (P. 2-39)
10. Fog light switch (P. 2-39)
11. Front camera (if so equipped)
(P. 4-11)
See the page number indicated in parenthe-
ses for operating details.
LII2596
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear wiper and washer switch(P. 2-35)
2. Towing (if so equipped) (P. 10-17)
3. Liftgate release (P. 3-22) Rearview camera (P.4-11)
4. Sonar sensors (if so equipped)
(P. 5-143)
5. Replacing bulbs (P. 8-24)
6. Fuel-filler cap (P. 3-28) Fuel recommendation (P. 0-0)
Fuel-filler door (P. 3-28)
7. Child safety rear door lock (P. 3-5)
Refer to the page number indicated in paren-
theses for operating details.
LII2603
EXTERIOR REAR
0-4Illustrated table of contents

1. Power moonroof (P. 2-66)Panoramic sunshade (if so equipped)
(P. 2-67)
2. Console box (P. 2-56)
3. Map lights (P. 2-71)
4. Sun visors (P. 3-32)
5. Glove box (P. 2-56)
6. Cup holders (P. 2-56)
7. Luggage hooks (P. 2-56)
Refer to the page number indicated in paren-
theses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

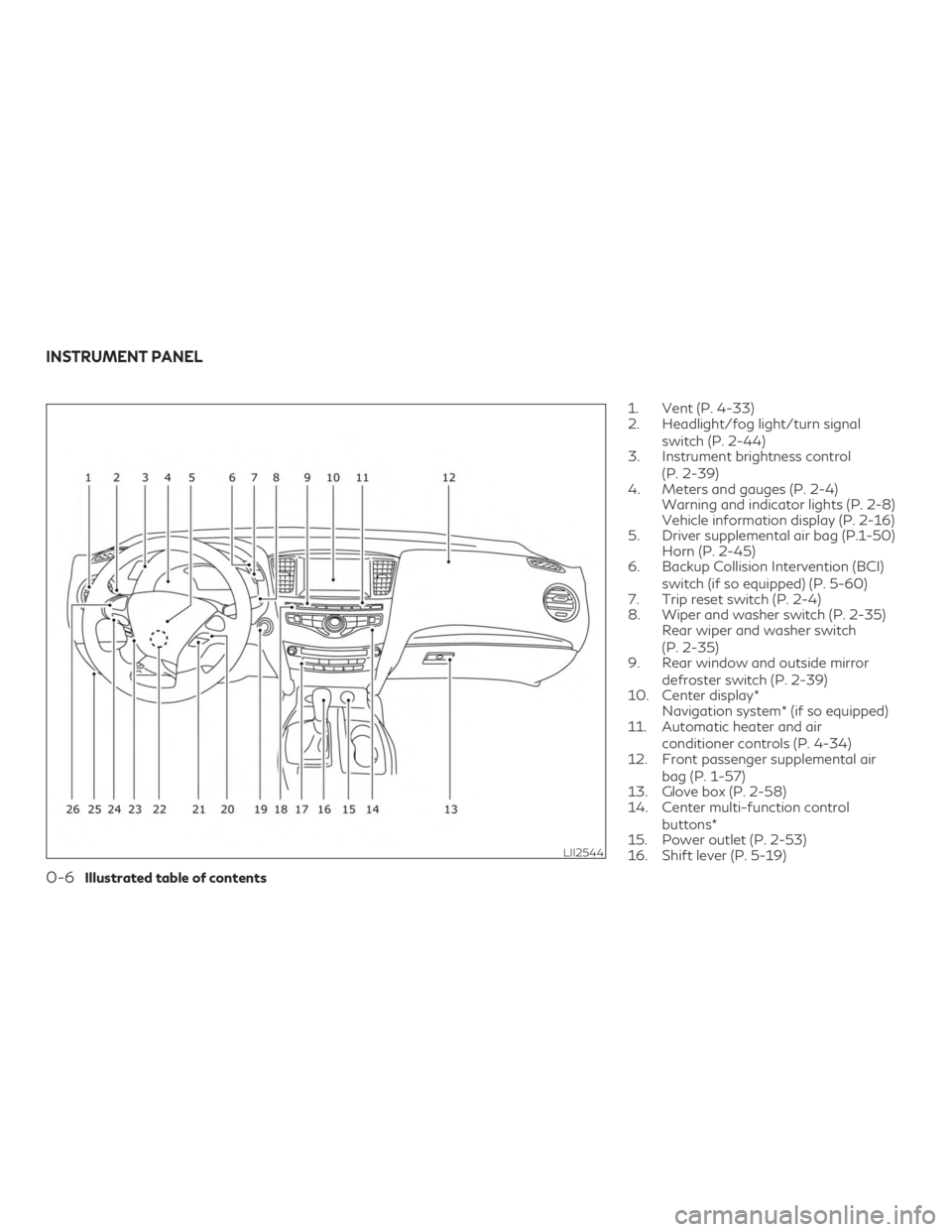

1. Vent (P. 4-33)
2. Headlight/fog light/turn signalswitch (P. 2-44)
3. Instrument brightness control
(P. 2-39)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-45)
6. Backup Collision Intervention (BCI)
switch (if so equipped) (P. 5-60)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Rear window and outside mirror
defroster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air
conditioner controls (P. 4-34)
12. Front passenger supplemental air
bag (P. 1-57)
13. Glove box (P. 2-58)
14. Center multi-function control
buttons*
15. Power outlet (P. 2-53)
16. Shift lever (P. 5-19)
LII2544
INSTRUMENT PANEL
0-6Illustrated table of contents
