INFINITI QX60 2020 Owner's Guide

2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it
while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.
Reclining
To recline the seatback, pull up on the lever
2and lean back. To bring the seatback for-
ward, pull the lever
2up and lean your body
forward. Release the lever to lock the seat-
back in position.
The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to
“Precautions on seat belt usage” in this sec-
tion. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).
WARNING
∙ After adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not ride in a moving vehicle when the seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries.
Power (if so equipped)
LRS2270
Outboard seats
LRS2143
Safety—Seats, seat belts and supplemental restraint system1-5

∙ For the most effective protection whenthe vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat and adjust the seat belt prop-
erly. For additional information, refer to
“Precautions on seat belt usage” in this
section.
One touch walk-in function
The 3rd row can be accessed from outside
the vehicle by using the seatback release le-
ver located on the upper outboard side of the
seatback on the 2nd row bench seat. If a child
safety seat is installed on the passenger’s side
of the 2nd row seat, the 3rd row can be
accessed without removing the child safety
seat. Multi-mode
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
∙ Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
∙ Do not drive with the 2nd row seat tipped up.
∙ Be careful not to allow the 2nd row seat to pinch, hit any part of your body or
other people when operating the 2nd row
seat. Make sure the seat path is clear of
all objects before moving the seat.
To enter the 3rd row from outside the ve-
hicle, lift up on the seatback lever located on
the upper outboard side of the seatback on
the 2nd row bench seat. This will release the
back of the seat and fold up the seat cushion.
This will also release the seat tracks so you
will be able to slide the seat forward or back-
ward.
LRS2142
1-6Safety—Seats, seat belts and supplemental restraint system

Slide the entire seat forward for access to the
3rd row.
To return the seat to a locked position, push
the upper seatback rearward until the seat-
back and tracks are locked. Push the seat
cushion down.
Child seat access mode
The passenger’s side of the 2nd row seat can
be slid forward for easy entry or exit from the
3rd row bench seat without a child safety
seat being removed.
To enter the 3rd row from outside the ve-
hicle, lift up on the seatback lever located on
the upper outboard side of the seatback on
the 2nd row bench seat. This will release the
seatback. Then tilt the seat and release the
tracks so you will be able to slide the seat
forward or backward.
Slide the entire seat forward for access to the
rear seats.
To return the seat to a locked position, push
the upper seatback rearward until the seat-
back and track are locked.WARNING
∙ Do not leave a child in the child safetyseat when operating the child seat access
mode.
∙ When returning the seat to its original position, confirm that the seat and seat-
back are locked properly.
CAUTION
∙ Be careful not to pinch your hand or footor bump your head when operating the
walk-in seat.
∙ Do not drive with the 2nd row seat tipped up.
∙ Be careful not to allow the 2nd row seat to pinch, hit any part of your body or
other people when operating the 2nd row
seat. Make sure the seat path is clear of
all objects before moving the seat. Exiting the 3rd row
To exit the 3rd row from either seating posi-
tion, lift the upper seatback release lever to
the uppermost position. This will release the
back of the seat, then fold the seat cushion
up and release the tracks.
Slide the entire seat forward.
To return the seat to a locked position, push
the upper seatback rearward until the seat-
back and track are locked.
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
Be careful not to pinch your hand or foot or
bump your head when operating the
walk-in seat.
Safety—Seats, seat belts and supplemental restraint system1-7

3RD ROW BENCH SEAT
ADJUSTMENT
Reclining
To recline the seatback, pull up on the latch
located on the outside corner of each seat-
back. Lean back until the desired angle is
obtained.
To bring the seatback forward again, pull up
on the latch and pull the seatback upright
until the desired angle is obtained.The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to
“Precautions on seat belt usage” in this sec-
tion. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).
WARNING
∙ After adjustment, gently rock in the seat
to make sure it is securely locked.
∙ Do not ride in a moving vehicle when the seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries.
∙ For the most effective protection when the vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat and adjust the seat belt prop-
erly. For additional information, refer to
“Precautions on seat belt usage” in this
section.
ARMRESTS
The 2nd row bench seat comes equipped
with an armrest. Pull the armrest down as
shown.
FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in the cargoarea or on the rear seats when they are in
the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be se-
riously injured or killed.
LRS2913LRS2924
1-8Safety—Seats, seat belts and supplemental restraint system

∙ Do not allow people to ride in any area ofyour vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when occupants are in the rear seat area or any
luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat.
∙ Head restraints/headrests should be ad- justed properly as they may provide sig-
nificant protection against injury in an
accident. Always replace and adjust them
properly if they have been removed for
any reason.
∙ If the head restraints/headrests are re- moved for any reason, they should be se-
curely stored to prevent them from caus-
ing injury to passengers or damage to the
vehicle in case of sudden braking or an
accident. ∙ When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
∙ Properly secure all cargo to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.
Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maxi-
mum cargo hauling:
1. Make sure that the head restraints/headrests are lowered. To re-
move the head restraints/headrests,
push and hold the lock knob while mov-
ing the head restraints/headrests in an
upward direction. Store the head
restraints/headrests properly so it is not
loose in the vehicle.
2. Stow the 2nd row seat belts in the seat belt hooks found on the sides of the
vehicle.
LRS2144
Safety—Seats, seat belts and supplemental restraint system1-9

3. Lift up on the recline lever on the side ofthe outboard seats to fold the seatbacks
flat.
4. To return the 2nd row bench seats to a seating position, push up on the seat-
back until it latches in place.
3rd row manual folding seats
To fold the 3rd row seats flat for maximum
cargo capacity:
1. Pull the strap
Ato release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
Dfound on the sides of the
cargo area.
3. Pull up on the latch
Blocated in the
upper corner of each seatback and lower
the seatback forward over the seat base. Manual operation to return the 3rd row seats
to a seating position (if so equipped):
1. Use the pull straps
Cto raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly
raise each seatback to an upright and
secured position.
2. Do not use the pull strap to return the head restraint/headrest to the upright
position. Pull back on the head
restraint/headrest until it latches in the
upright position.
LRS2964
1-10Safety—Seats, seat belts and supplemental restraint system

Power operation to return the 3rd row seats
to a seating position (if so equipped):1. Push and hold the corresponding switch
Elocated on the right and left side in the
cargo area.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is
fully returned to the seating position.
If the control unit detects any obstacle or
malfunctions while in the power operation, a
beep sounds for 4 seconds and the seatback
will return to the folded position automati- cally. Check if there are any obstacles caught
that prevent seats from returning to the
folded position. It is recommended that you
visit an INFINITI retailer if the beep still
sounds.
CAUTION
When operating the 3rd row power seat-
back return, make sure that the vehicle is
stopped and the transmission is in the P
(Park) position.
WARNING
∙ When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned
to the upright position to properly pro-
tect vehicle occupants.
∙ Never allow anyone to ride in the cargo area or on the 3rd row seats when they
are in the fold-down position. In a colli-
sion, people riding in these areas are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly. ∙ Do not fold down the 3rd row seats when
occupants are in the 3rd row seat area or
any luggage is on the 3rd row seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
∙ Properly secure all cargo to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.LRS2623
Safety—Seats, seat belts and supplemental restraint system1-11

WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be ad-
justed properly, as specified in this section.
Check the adjustment after someone else
uses the seat. Do not attach anything to the
head restraint/headrest stalk, except for
genuine INFINITI accessories specifically
tested for use with the vehicle’s head
restraint/headrest stalk. Do not remove
the head restraint/headrest. Do not use
the seat if the head restraint/headrest has
been removed. If the head
restraint/headrest was removed, reinstall
and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to follow
these instructions can reduce the effective-
ness of the head restraints/headrests. This
may increase the risk of serious injury or
death in a collision.The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped
with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest (if
applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable. ∙ Adjustable head restraints/headrests
have multiple notches along the stalk(s)
to lock them in a desired adjustment po-
sition.
∙ The non-adjustable head restraints/headrests have a single lock-
ing notch to secure them to the seat
frame.
∙ Proper Adjustment: – For the adjustable type, align the headrestraint/headrest so the center of
your ear is approximately level with
the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled and
locked in place before riding in that des-
ignated seating position.
LRS2308
HEAD RESTRAINTS/HEADRESTS
1-12Safety—Seats, seat belts and supplemental restraint system

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the
head restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle.
LRS2300LRS2299LRS2302
Safety—Seats, seat belts and supplemental restraint system1-13

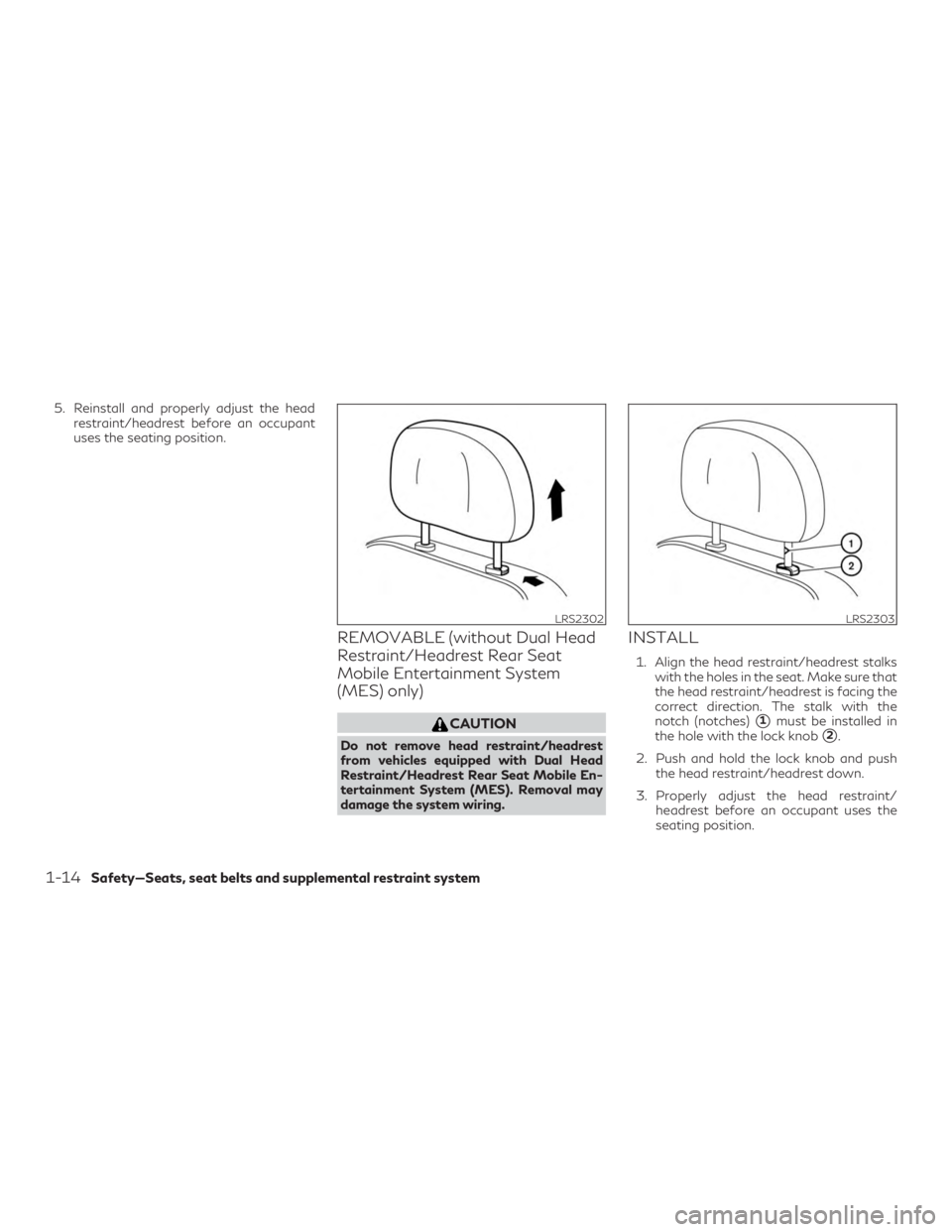

5. Reinstall and properly adjust the headrestraint/headrest before an occupant
uses the seating position.
REMOVABLE (without Dual Head
Restraint/Headrest Rear Seat
Mobile Entertainment System
(MES) only)
CAUTION
Do not remove head restraint/headrest
from vehicles equipped with Dual Head
Restraint/Headrest Rear Seat Mobile En-
tertainment System (MES). Removal may
damage the system wiring.
INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the
notch (notches)
1must be installed in
the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
LRS2302LRS2303
1-14Safety—Seats, seat belts and supplemental restraint system
