INFINITI QX60 2020 Owner's Manual

Precautions on SRS......................... 1-50
Supplemental air bag warning labels .........1-68 Supplemental air bag warning light
...........1-69

WARNING
∙ Do not ride in a moving vehicle when theseatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries. ∙ For the most effective protection when
the vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat with both feet on the floor and
adjust the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.
∙ After adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not leave children unattended inside the vehicle. They could unknowingly acti-
vate switches or controls or make the ve-
hicle move. Unattended children could
become involved in serious accidents. ∙ To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
∙ Do not adjust the driver’s seat while driv- ing so full attention may be given to ve-
hicle operation. The seat may move sud-
denly and could cause loss of control of
the vehicle.
∙ The seatback should not be reclined any more than needed for comfort. Seat belts
are most effective when the passenger
sits well back and straight up in the seat.
If the seatback is reclined, the risk of slid-
ing under the lap belt and being injured is
increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT
ADJUSTMENT
Operating tips
∙ The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the engine is
off. This will discharge the battery. For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired po-
sition.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, refer
to “Precautions on seat belt usage” in this
section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).
LRS2662
Safety—Seats, seat belts and supplemental restraint system1-3

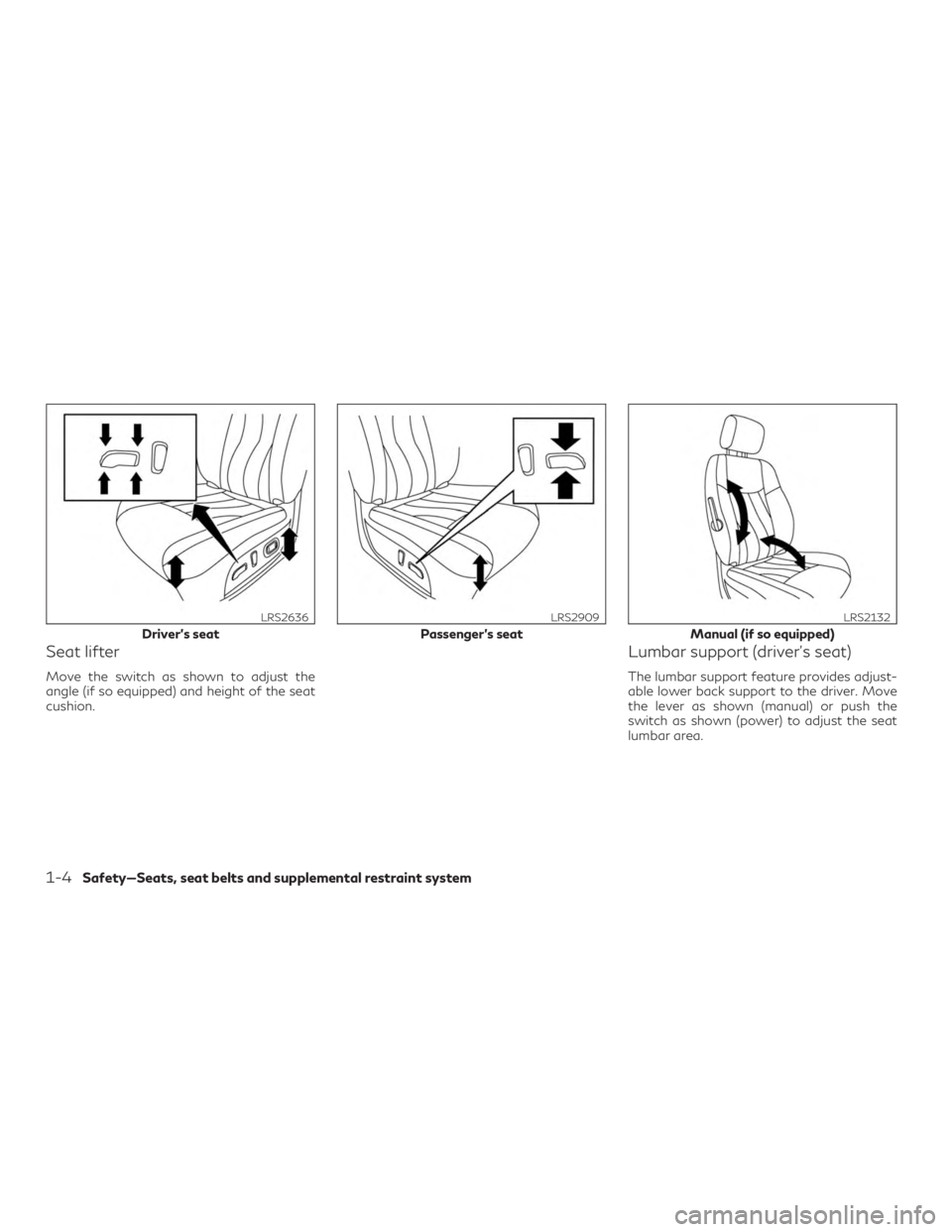

Seat lifter
Move the switch as shown to adjust the
angle (if so equipped) and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides adjust-
able lower back support to the driver. Move
the lever as shown (manual) or push the
switch as shown (power) to adjust the seat
lumbar area.
Driver’s seat
LRS2636
Passenger’s seat
LRS2909
Manual (if so equipped)
LRS2132
1-4Safety—Seats, seat belts and supplemental restraint system

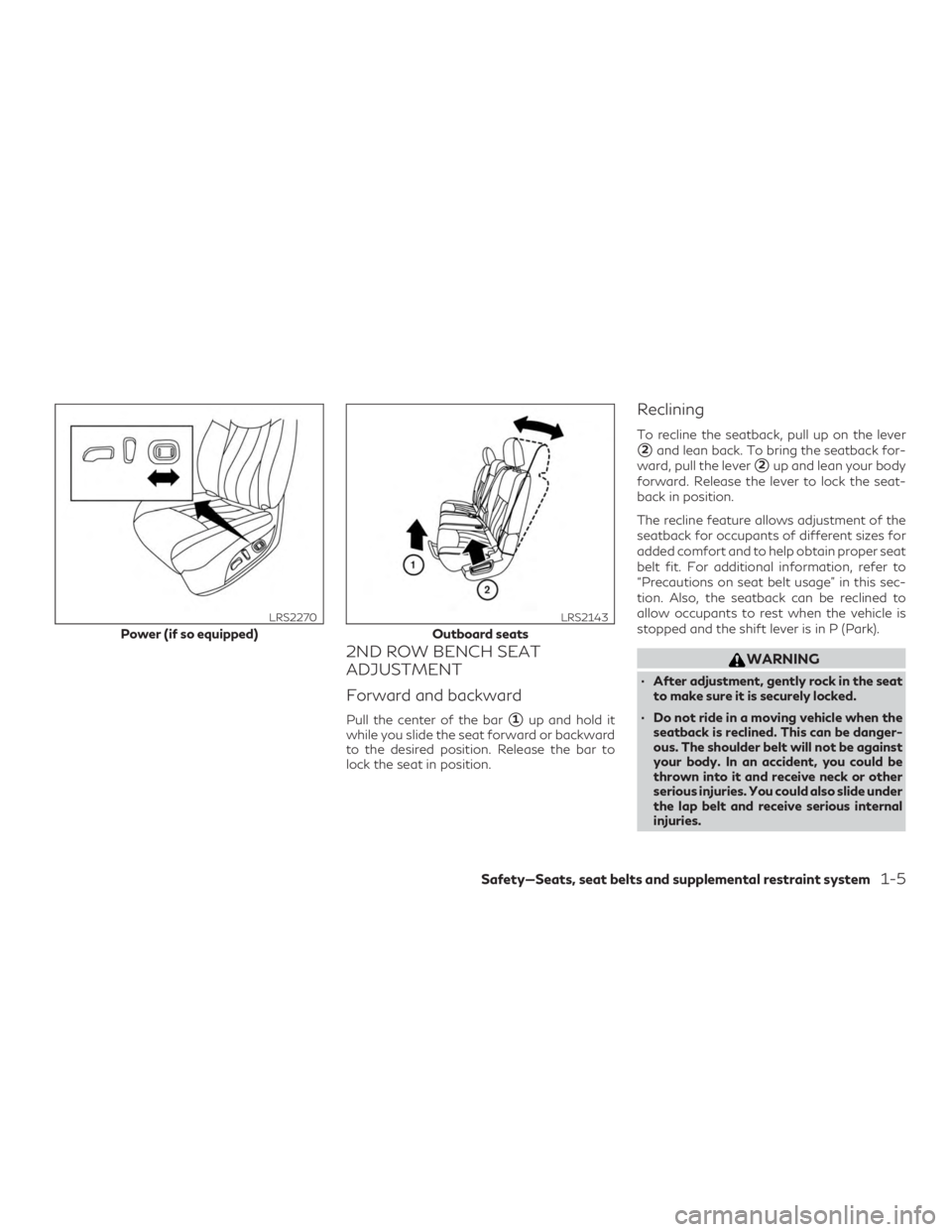

2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it
while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.
Reclining
To recline the seatback, pull up on the lever
2and lean back. To bring the seatback for-
ward, pull the lever
2up and lean your body
forward. Release the lever to lock the seat-
back in position.
The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to
“Precautions on seat belt usage” in this sec-
tion. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).
WARNING
∙ After adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not ride in a moving vehicle when the seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries.
Power (if so equipped)
LRS2270
Outboard seats
LRS2143
Safety—Seats, seat belts and supplemental restraint system1-5

∙ For the most effective protection whenthe vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat and adjust the seat belt prop-
erly. For additional information, refer to
“Precautions on seat belt usage” in this
section.

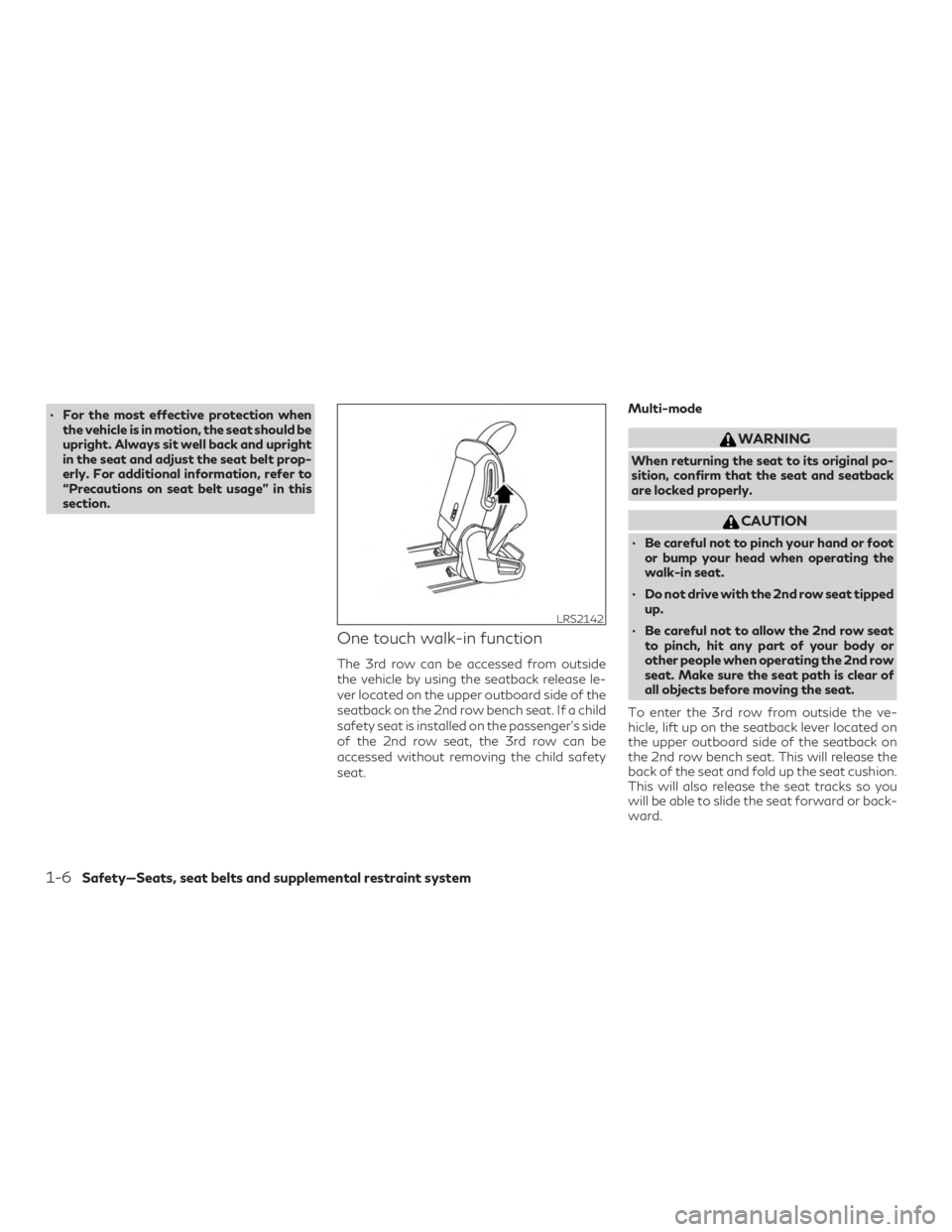

One touch walk-in function
The 3rd row can be accessed from outside
the vehicle by using the seatback release le-
ver located on the upper outboard side of the
seatback on the 2nd row bench seat. If a child
safety seat is installed on the passenger’s side
of the 2nd row seat, the 3rd row can be
accessed without removing the child safety
seat. Multi-mode
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
∙ Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
∙ Do not drive with the 2nd row seat tipped up.
∙ Be careful not to allow the 2nd row seat to pinch, hit any part of your body or
other people when operating the 2nd row
seat. Make sure the seat path is clear of
all objects before moving the seat.
To enter the 3rd row from outside the ve-
hicle, lift up on the seatback lever located on
the upper outboard side of the seatback on
the 2nd row bench seat. This will release the
back of the seat and fold up the seat cushion.
This will also release the seat tracks so you
will be able to slide the seat forward or back-
ward.
LRS2142
1-6Safety—Seats, seat belts and supplemental restraint system

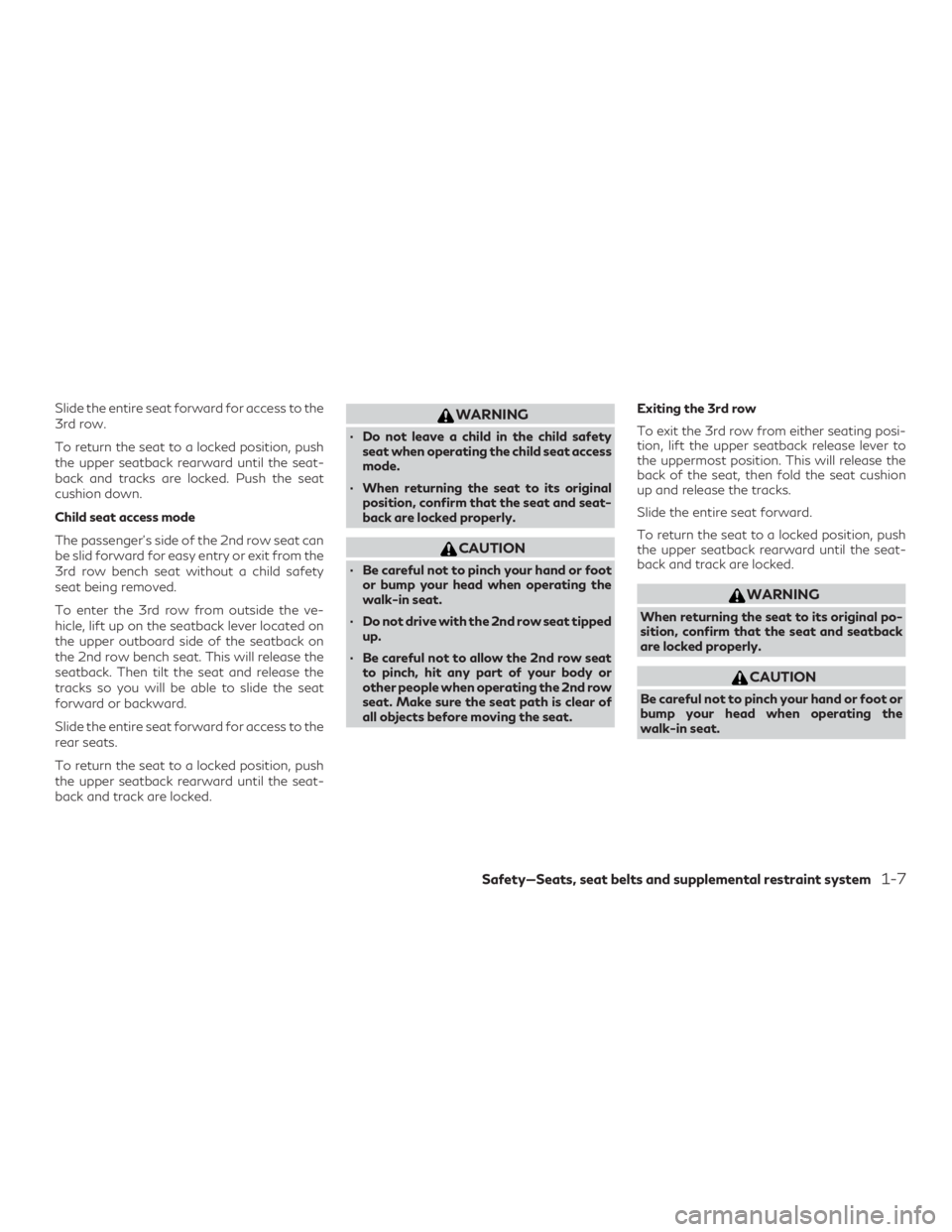

Slide the entire seat forward for access to the
3rd row.
To return the seat to a locked position, push
the upper seatback rearward until the seat-
back and tracks are locked. Push the seat
cushion down.
Child seat access mode
The passenger’s side of the 2nd row seat can
be slid forward for easy entry or exit from the
3rd row bench seat without a child safety
seat being removed.
To enter the 3rd row from outside the ve-
hicle, lift up on the seatback lever located on
the upper outboard side of the seatback on
the 2nd row bench seat. This will release the
seatback. Then tilt the seat and release the
tracks so you will be able to slide the seat
forward or backward.
Slide the entire seat forward for access to the
rear seats.
To return the seat to a locked position, push
the upper seatback rearward until the seat-
back and track are locked.WARNING
∙ Do not leave a child in the child safetyseat when operating the child seat access
mode.
∙ When returning the seat to its original position, confirm that the seat and seat-
back are locked properly.
CAUTION
∙ Be careful not to pinch your hand or footor bump your head when operating the
walk-in seat.
∙ Do not drive with the 2nd row seat tipped up.
∙ Be careful not to allow the 2nd row seat to pinch, hit any part of your body or
other people when operating the 2nd row
seat. Make sure the seat path is clear of
all objects before moving the seat. Exiting the 3rd row
To exit the 3rd row from either seating posi-
tion, lift the upper seatback release lever to
the uppermost position. This will release the
back of the seat, then fold the seat cushion
up and release the tracks.
Slide the entire seat forward.
To return the seat to a locked position, push
the upper seatback rearward until the seat-
back and track are locked.
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
Be careful not to pinch your hand or foot or
bump your head when operating the
walk-in seat.
Safety—Seats, seat belts and supplemental restraint system1-7

3RD ROW BENCH SEAT
ADJUSTMENT
Reclining
To recline the seatback, pull up on the latch
located on the outside corner of each seat-
back. Lean back until the desired angle is
obtained.
To bring the seatback forward again, pull up
on the latch and pull the seatback upright
until the desired angle is obtained.The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to
“Precautions on seat belt usage” in this sec-
tion. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).
WARNING
∙ After adjustment, gently rock in the seat
to make sure it is securely locked.
∙ Do not ride in a moving vehicle when the seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries.
∙ For the most effective protection when the vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat and adjust the seat belt prop-
erly. For additional information, refer to
“Precautions on seat belt usage” in this
section.
ARMRESTS
The 2nd row bench seat comes equipped
with an armrest. Pull the armrest down as
shown.
FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in the cargoarea or on the rear seats when they are in
the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be se-
riously injured or killed.
LRS2913LRS2924
1-8Safety—Seats, seat belts and supplemental restraint system

∙ Do not allow people to ride in any area ofyour vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when occupants are in the rear seat area or any
luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat.
∙ Head restraints/headrests should be ad- justed properly as they may provide sig-
nificant protection against injury in an
accident. Always replace and adjust them
properly if they have been removed for
any reason.
∙ If the head restraints/headrests are re- moved for any reason, they should be se-
curely stored to prevent them from caus-
ing injury to passengers or damage to the
vehicle in case of sudden braking or an
accident. ∙ When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
∙ Properly secure all cargo to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.
Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maxi-
mum cargo hauling:
1. Make sure that the head restraints/headrests are lowered. To re-
move the head restraints/headrests,
push and hold the lock knob while mov-
ing the head restraints/headrests in an
upward direction. Store the head
restraints/headrests properly so it is not
loose in the vehicle.
2. Stow the 2nd row seat belts in the seat belt hooks found on the sides of the
vehicle.
LRS2144
Safety—Seats, seat belts and supplemental restraint system1-9

3. Lift up on the recline lever on the side ofthe outboard seats to fold the seatbacks
flat.
4. To return the 2nd row bench seats to a seating position, push up on the seat-
back until it latches in place.
3rd row manual folding seats
To fold the 3rd row seats flat for maximum
cargo capacity:
1. Pull the strap
Ato release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
Dfound on the sides of the
cargo area.
3. Pull up on the latch
Blocated in the
upper corner of each seatback and lower
the seatback forward over the seat base. Manual operation to return the 3rd row seats
to a seating position (if so equipped):
1. Use the pull straps
Cto raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly
raise each seatback to an upright and
secured position.
2. Do not use the pull strap to return the head restraint/headrest to the upright
position. Pull back on the head
restraint/headrest until it latches in the
upright position.
LRS2964
1-10Safety—Seats, seat belts and supplemental restraint system
