INFO:
To select a phone, the Bluetooth® of the
cellular phone needs to be turned on.
Making a call
1. Touch [Phone] on the Launch Bar.
2. Select one of the following methods to make a call.
[Quick
Dial] Select a telephone number regis-
tered as a Quick Dial number.
“Quick Dial” (page 4-14)
[Phone-
book] Select a person and the phone
number you wish to call from the
phonebook.
Depending on the device, the
phonebook will be downloaded
from the cellular phone automati-
cally when it is connected. If the
automatic download does not take
place, the telephone number must
be transferred to the hands-free
phone system from the cellular
phone prior to using this method.
“Phone settings” (page 4-11)
[Call
History] Select a telephone number from
recent incoming, outgoing or
missed calls. [Dial
Number]
Enter the phone number manually
using the keypad displayed on the
screen.
INFO:
Either of the two connected phone
devices can be selected for dialing op-
eration when [Allow 2 Phones Simulta-
neously] is turned on.
“Bluetooth® settings” (page 2-18)
Receiving a call
When you receive a phone call, the display
switches to the Incoming Call screen and the
ringtone is played through the vehicle’s
audio system. Taking a call:
To answer the call, take one of the following
actions.
. Push <
>on the steering wheel.
. Touch [Answer].
Rejecting a call:
To reject the call, take one of the following
actions. . Push and hold <
>on the steering
wheel.
. Touch [Decline].
Holding a call:
To hold the call, touch [Hold Call].
INFO:
If [Allow 2 Phones Simultaneously] is turned
on, two hands-free phone devices can be
connected at the same time. If one of the
connected devices receives an incoming call
while the other device is already online, a
pop-up message will appear to inform that
answering the call will hang up the line of the
other connected device. Touch [Answer] to
answer the call and hang up the line on the
other device. Touch [Decline] to continue the
conversation on the other device.
4. Hands-Free Phone
4-5

4. Hands-Free Phone
During a call
The Call in Progress screen will appear
during a call.
To hang up the phone, touch [Hang up].
Operations during a call:
There are some options available other than
hanging up a call or answering/rejecting
incoming calls.
Touch one of the following displayed keys on
the screen to take action.
Available item Action
[Use Handset] Transfer the call to thecellular phone.
[Mute] When muted, your voice will not be heard by the person
on the other end of the line. [Dial Number] Using the touch tone, send
digits to the connected
party for using services such
as voicemail.
[Switch Call]* Answer another incoming call. The person you are
talking to will be placed on
hold. Touch once more to
speak to the person on hold
again.
*: Available when a call is received while on
the line with another person. The availability
of this function depends on the cellular
phone.
INFO:
To adjust the person’s voice to be louder or
quieter, push <
>on the steering wheel or
turn /<>on the control
panel while talking on the phone.
Ending a call:
Push <
>on the steering wheel to end an
active call. Call from a second person:
When another phone call is received during a
call, the Call Waiting screen will appear.
Answering call from a second person:
To answer the call from the second person
and place the first caller on hold, take one of
the following actions.
. Push <
>on the steering wheel.
. Touch [Answer].
Rejecting call from a second person:
To reject a call from the second person and
continue the conversation with the first
caller, touch [Decline].
4-6

During a call with a second person:
To hang up the phone and return to the
conversation with the first caller, touch
[Hang up].
To switch between two calls on line, touch
[Switch Call].
HANDS-FREE TEXT MESSAGING
ASSISTANT
WARNING
.Use the text messaging feature after
parking your vehicle in a safe location.
If you have to use the feature while
driving, exercise extreme caution at
all times so full attention may be
given to vehicle operation.
. Laws in some jurisdictions may re-
strict the use of “Text-to-Speech”.
Check local regulations before using this feature.
. Laws in some jurisdictions may re-
strict the use of some of the applica-
tions and features, such as social
networking and texting. Check local
regulations for any requirements.
. If you are unable to devote full
attention to vehicle operation while
using the text messaging feature, pull
off the road to a safe location and
stop your vehicle.
CAUTION
This feature is disabled if the connected
device does not support it. Refer to the
cellular phone Owner’s Manual for details
and instructions.
The system allows for the sending and
receiving of text messages through the
vehicle interface.
The availability of the text message function
may vary depending on the cellular phone.
Receiving a message
Example
When the cellular phone connected to the
vehicle receives a text message, a notifica-
tion will appear on the touch screen display
and on the vehicle information display with a
tone.
To check the message, touch [Read]. Touch
[Ignore] to save the message to be checked
later.
If you want to respond using a predefined
message, touch the message for auto reply
.
The text message for auto reply can be
edited.
“Phone settings” (page 4-11)
4. Hands-Free Phone
4-7

4. Hands-Free Phone

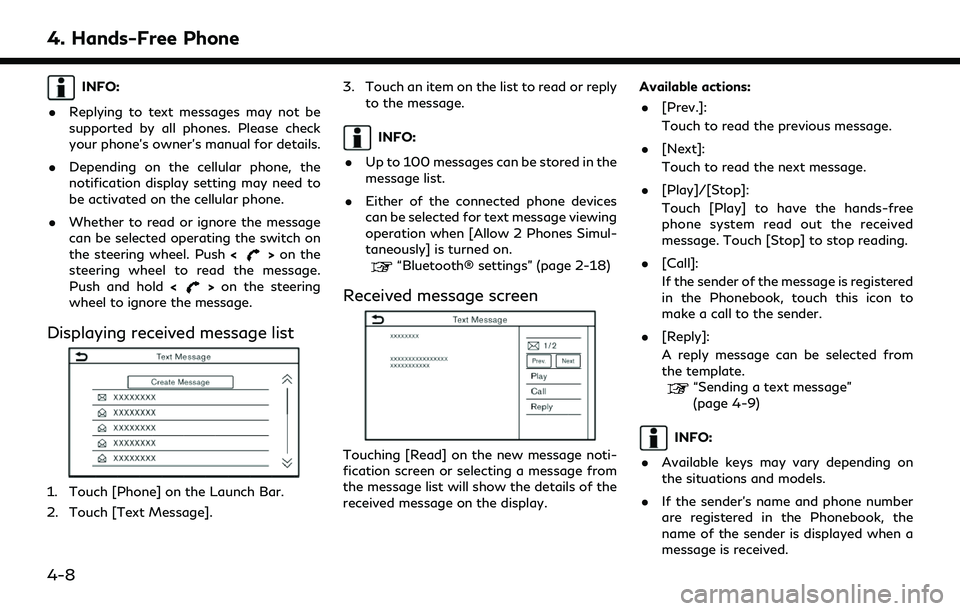

INFO:
. Replying to text messages may not be
supported by all phones. Please check
your phone’s owner’s manual for details.
. Depending on the cellular phone, the
notification display setting may need to
be activated on the cellular phone.
. Whether to read or ignore the message
can be selected operating the switch on
the steering wheel. Push <
>on the
steering wheel to read the message.
Push and hold <
>on the steering
wheel to ignore the message.
Displaying received message list
1. Touch [Phone] on the Launch Bar.
2. Touch [Text Message]. 3. Touch an item on the list to read or reply
to the message.
INFO:
. Up to 100 messages can be stored in the
message list.
. Either of the connected phone devices
can be selected for text message viewing
operation when [Allow 2 Phones Simul-
taneously] is turned on.
“Bluetooth® settings” (page 2-18)
Received message screen
Touching [Read] on the new message noti-
fication screen or selecting a message from
the message list will show the details of the
received message on the display. Available actions:
. [Prev.]:
Touch to read the previous message.
. [Next]:
Touch to read the next message.
. [Play]/[Stop]:
Touch [Play] to have the hands-free
phone system read out the received
message. Touch [Stop] to stop reading.
. [Call]:
If the sender of the message is registered
in the Phonebook, touch this icon to
make a call to the sender.
. [Reply]:
A reply message can be selected from
the template.
“Sending a text message”
(page 4-9)
INFO:
. Available keys may vary depending on
the situations and models.
. If the sender’s name and phone number
are registered in the Phonebook, the
name of the sender is displayed when a
message is received.
4-8

.To adjust the message reading voice
volume, push <>on the steering
wheel or turn /<>
on the control panel.
Sending a text message
This function may not be supported depend-
ing on the cellular phone.
1. Touch [Phone] on the Launch Bar.
2. Touch [Text Message].
3. Touch [Create Message].
INFO:
Either of the connected phone devices can
be selected for text message sending opera-
tion when [Allow 2 Phones Simultaneously]
is turned on.
“Bluetooth® settings” (page 2-18)
The following items are available.
4. Hands-Free Phone
4-9

4. Hands-Free Phone
Available itemAction
[To] [Enter Number by Keypad] Enter the phone number of the recipient using the keypad. Touch [OK] to confirm.
[Quick Dial] Select a recipient from the Quick Dial list.
[Phonebook] Select a recipient from the Phonebook.
[Call History] Select a recipient/phone number from call history.
[Select Text] [Fixed] Touch to display a list of fixed text messages.
[Customized] Touch to display a list of custom text message templates.
Custom text can be created or edited from the setting menu.
“Phone and text message settings” (page 4-11)
[Send] Touch to send the message.
4-10

PHONE AND TEXT MESSAGE SETTINGS
Phone settings
Bluetooth® Hands-Free Phone System settings can be changed according to the user’s preference.
1. Touch [Settings] on the Launch Bar.
“System settings” (page 2-14)
2. Touch [Phone].
Available setting items may vary depending on models, specifications and software versions.
Available setting items
Setting item Action
[Connections] Displays the Connections screen. Phone connection, selection, deletion
and other features are available.
“Connections settings” (page 2-17)
[Quick Dial] [Edit] Entries in the Quick Dial can be edited. Touch [Add New] to register a
new entry.
“Quick Dial” (page 4-14)
[Delete All] Deletes all of the phone numbers in the Quick Dial.
[Phonebook] [Download Entire Phonebook] All of the phone numbers that are stored in a phonebook of a cellular phone that is connected to the vehicle are downloaded at once.
[Auto Downloaded] Turns on/off automatic downloading of the phonebook from the
connected cellular phone.
[Sort Phonebook by] Changes the sorted order of contacts in the phonebook.
4. Hands-Free Phone
4-11

4. Hands-Free Phone
[Text Message][Text Message] Turns the text messaging function on/off.
[Text Message Ringtone] Turns the incoming message sound on/off.
[Signature] Turns the signature setting for the outgoing text message on/off.
[Auto Reply] Turns on/off the automatic text message reply function.
[Auto Reply Text Message] Selects the text message to be used for the automatic reply function.
[Edit Custom Text] Creates or edits a customized text message reply.
[Notifications] [Driver Only] When this item is turned on, incoming call notification is displayed only
in the vehicle information display.
[Ringtone] Turns the vehicle ringtone on/off.
[Automatic Hold] When this item is turned on, an incoming phone call will be put on hold
automatically.
INFO:
. If [Allow 2 Phones Simultaneously] is turned on, available phone names are displayed on the Phone settings screen. You can select the
phone you wish to apply the settings to. You can also display the Connections screen by touching [
].“Connections settings” (page 2-17)
. The Phone settings will become inoperable while Apple CarPlay® or Android Auto is active.
4-12

Volume settings
Volume settings can be adjusted.
1. Touch [Phone] on the Launch Bar.
2. Touch [Volume].
The following volume setting items are available.
Setting itemsAction
[Ringtone] Adjusts the volume level of the ringtone of incoming calls.
[Outgoing Call] Adjusts the volume level of the outgoing calls.
INFO:
The phone volume setting menus can also be accessed from the settings screen.
“System settings” (page 2-14)
4. Hands-Free Phone
4-13

4. Hands-Free Phone
Quick Dial
Up to 20 Quick Dial entries can be regis-
tered.
Quick Dial entries can be used to quickly
make a call or send text messages.
Registration:
1. Touch [Phone] on the Launch Bar.
2. Touch [Quick Dial].
3. Touch [Edit].
4. Touch [Add New] to register a phonenumber to the Quick Dial list.
5. Select a method for registration. Available methods:
.[Copy from Call History]:A phone number can be selected from
[All], [Incoming], [Outgoing], or
[Missed] call history lists.
.[Copy from Phonebook]:A phone number can be selected from
the Phonebook.
.[Enter Number by Keypad]:A phone number can be entered
manually using keypad.
INFO:
Available methods may vary depending
on cellular phone support.
6. When a phone number has been se- lected, the registration screen is dis-
played. Enter the phone number and
edit the entry information as necessary.
7. Touch [OK] to save the entry.
INFO:
.Quick Dial entries can also be regis- tered by touching [Settings] on the
Launch Bar and then selecting
[Phone].
“Phone settings” (page 4-11)
.Either of the connected phone devices
can be selected for dialing operation
when [Allow 2 Phones Simulta-
neously] is turned on.
“Bluetooth® settings” (page 2-18)
Voice Tag:
A voice tag can be recorded for each of the
registered Quick Dial numbers and can be
used to dial the number by speaking it.
On the Quick Dial registration screen, select
[Relationship / Voice Tag]. . Select a preferred relationship from the
list.
. Touch [Customize] and touch [Record]
to register your original voice tag.
INFO:
. Touch [Play] to play the recorded voice
tag.
. Touch [Delete] to delete the voice tag.
4-14
