INFINITI QX60 2023 Owners Manual
Manufacturer: INFINITI, Model Year: 2023, Model line: QX60, Model: INFINITI QX60 2023Pages: 636, PDF Size: 7.28 MB
Page 101 of 636

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light, dis-
playingin the instrument panel, moni-
tors the circuits for the air bag systems, pre-
tensioner(s) and all related wiring. When the
ignition switch is placed in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns
OFF. This means the system is operational. If any of the following conditions occur, the
front air bag, side air bag, knee air bag, cur-
tain air bag and pretensioner systems need
servicing:
• The supplemental air bag warning light re-
mains on after approximately 7 seconds.
• The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag, side
air bag, knee air bag, curtain air bag or pre-
tensioner systems may not operate properly.
They must be checked and repaired. It is rec-
ommended that you visit an INFINITI retailer
for this service.
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, knee air bag, curtain air bag and/or
pretensioner systems will not operate in an
accident. To help avoid injury to yourself or
others, have your vehicle checked as soon
as possible. It is recommended that you
visit an INFINITI retailer for this service.
Repair and replacement procedure
The front air bags, side air bags, knee air
bags, curtain air bags and pretensioner(s) are
designed to inflate on a one-time-only basis.
As a reminder, unless it is damaged, the
supplemental air bag warning light remains
illuminated after inflation has occurred.
These systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags, knee
air bags, curtain air bags, pretensioner(s) and
related parts should be pointed out to the
person performing the maintenance. The ig-
nition switch should always be in the LOCK
position when working under the hood or
inside the vehicle.
LRS0100
Safety-Seats, seat belts and supplemental restraint system1-75
Page 102 of 636

WARNING
• Once a front air bag, side air bag, knee air
bag, or curtain air bag has inflated, the
air bag module will not function again
and must be replaced. Additionally, the
activated pretensioner(s) must also be
replaced. The air bag module and preten-
sioner(s) should be replaced. It is recom-
mended that you visit an INFINITI re-
tailer for this service. However, the air
bag module and pretensioner(s) cannot
be repaired.
• The front air bag, side air bag, knee air
bag, curtain air bag systems and the pre-
tensioner system should be inspected if
there is any damage to the front end or
side portion of the vehicle. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
• If you need to dispose of a supplemental
air bag or pretensioner systems or scrap
the vehicle, it is recommended that you
visit an INFINITI retailer. Incorrect dis-
posal procedures could cause personal
injury. •
If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked to
verify it is still functioning correctly. It is
recommended that you visit an INFINITI
retailer for this service. The OCS should
be checked even if no air bags deploy as a
result of the impact. Failure to verify
proper OCS function may result in an im-
proper air bag deployment resulting in
injury or death.
1-76Safety-Seats, seat belts and supplemental restraint system
Page 103 of 636

2 Instruments and controls
Instrument panel.................................2-4
Meters and gauges ..............................2-6
Speedometer and odometer ...................2-6
Tachometer ..................................2-8
Engine coolant temperature gauge ............2-9
Fuel gauge ................................. 2-10
Distance To Empty (DTE) ...................2-10
Warning lights, indicator lights and audible
reminders ....................................... 2-12
Checking lights .............................. 2-14
Warning/Indicator lights (red) ...............2-14
Warning/Indicator lights (yellow) ............2-16
Warning/Indicator lights (other) ..............2-21
Audible reminders ........................... 2-22
Vehicle information display 7 inch (18 cm) Type
A (if so equipped) .............................. 2-22
How to use the vehicle information
display ...................................... 2-23
Startup display .............................. 2-23
Trip computer .............................. 2-24
Oil control system (if so equipped) ...........2-27
Settings .................................... 2-27
Vehicle information display warnings and
indicators ................................... 2-37
Vehicle information display 12.3 inch (31 cm)
Type B (if so equipped) ......................... 2-44How to use the vehicle information
display
...................................... 2-44
Startup display .............................. 2-45
Trip computer .............................. 2-46
Changing the meter screen view .............2-49
Oil control system (if so equipped) ...........2-49
Settings .................................... 2-50
Vehicle information display warnings and
indicators ................................... 2-60
Security systems ................................ 2-71
Vehicle security system .......................2-71
INFINITI Vehicle Immobilizer System .........2-72
Wiper and washer switch ......................2-73
Switch operation ............................ 2-73
Rain-sensing auto wiper system .............2-75
Rear switch operation ....................... 2-76
Rear
window and outside mirror
(if so equipped) defroster switch .................2-77
Headlight and turn signal switch .................2-77
Headlight control switch .....................2-77
LED Daytime Running Lights (DRL)
system ..................................... 2-82
Instrument brightness control ................2-83
Turn signal switch ........................... 2-83
Horn .......................................... 2-84
Page 104 of 636

Climate controlled seat switches
(if so equipped)................................ 2-84
Heated seat switches (if so equipped) ...........2-85
Heated 2nd row seat switches (if so equipped) . . 2-86
Heated steering wheel switch (if so equipped) . . . 2-87
Steering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ...............2-88
Seat massage switch (if so equipped) ...........2-88
Head Up Display (HUD) (if so equipped) .........2-89
HowtousetheHUD........................ 2-90
Driver Assistance/Navigation linking .........2-91
Emergency call (SOS) button ...................2-92
Rear Door Alert ................................ 2-92
Power outlets ................................. 2-94
12v outlets ................................. 2-94
120v outlet (if so equipped) .................2-95
USB/iPod® charging ports .....................2-96
Wireless charger ............................... 2-97
Wireless charger indicator ...................2-98
Wireless charger operation ..................2-98
Extended storage switch .......................2-99
Storage ...................................... 2-100
Front-door pockets ........................ 2-100Lower console storage tray
................2-100
Seatback pockets .......................... 2-101
Glove box .................................. 2-101
Console box ............................... 2-102
Second row console (if so equipped) ........2-102
Overhead sunglasses storage ...............2-103
Cup holders ................................ 2-104
Cargo area storage bin .....................2-106
Luggage hooks ............................ 2-106
Roof rack (if so equipped) ..................2-107
Windows ..................................... 2-108
Power windows ........................... 2-108
Rear door sunshade (if so equipped) ........2-111
Power moonroof ............................. 2-111
Automatic moonroof and sunshade .........2-112
Interior
lights ................................. 2-114
Console light ............................... 2-114
Map lights ................................. 2-115
Personal lights ............................. 2-115
Cargo light ................................ 2-115
HomeLink® Universal Transceiver
(if so equipped) ............................... 2-116
Programming HomeLink® ..................2-116
Page 105 of 636

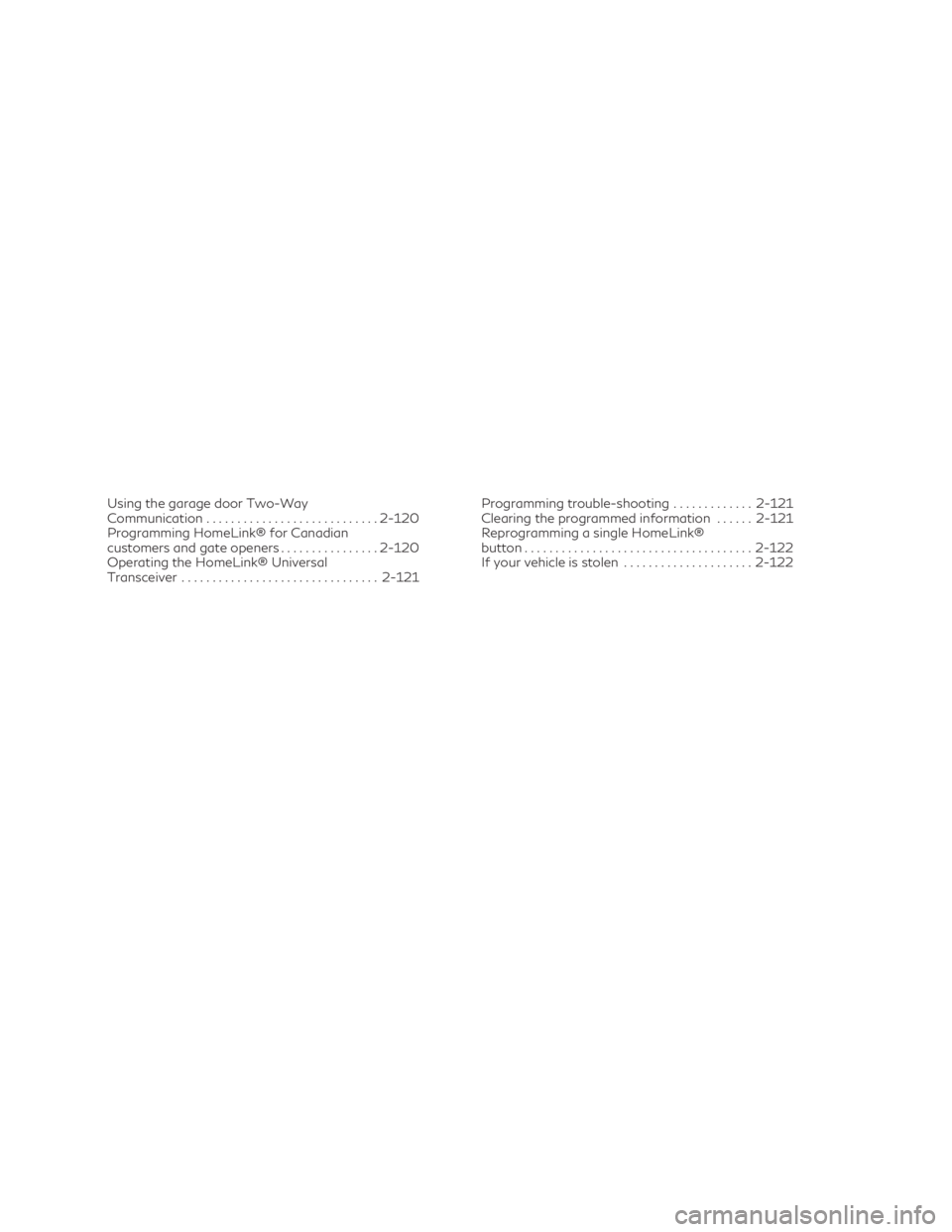

Using the garage door Two-Way
Communication............................ 2-120
Programming HomeLink® for Canadian
customers and gate openers ................2-120
Operating the HomeLink® Universal
Transceiver ................................ 2-121Programming trouble-shooting
.............2-121
Clearing the programmed information ......2-121
Reprogramming a single HomeLink®
button ..................................... 2-122
If your vehicle is stolen .....................2-122
Page 106 of 636

1. Vent (P. 4-28)
2. Headlight/turn signal switch (P. 2-77)Instrument brightness control (P. 2-83) 3. Meters and gauges (P. 2-6)
Warning and indicator lights (P. 2-12)
Vehicle information display (P. 2-22 or
2-44) 4. Driver supplemental air bag (P. 1-54)
Horn (P. 2-84)
5. Wiper and washer switch (P. 2-73) Rear wiper and washer switch (P. 2-76)
6. Driver side heated seat switch
(if so equipped) (P. 2-85)
Driver side climate controlled seat switch
(if so equipped) (P. 2-84)
Audio system controls*
7. Center display* Navigation system* (if so equipped)
8. Heated steering wheel switch
(if so equipped) (P. 2-87)
9. Automatic heater and air conditioner
controls (P. 4-29)
10. Hazard warning flasher switch (P. 6-2)
11. Front passenger air bag status light
(P. 1-65)
12. Passenger side heated seat switch
(if so equipped) (P. 2-85)
Passenger side climate controlled seat
switch (if so equipped) (P. 2-84)
13. Front passenger supplemental air bag
(P. 1-69)
14. Front passenger supplemental knee air
bag (P. 1-72)
15. Glove box (P. 2-101)
16. Wireless charger (P. 2-97)
17. Rear window and outside mirror
defroster switch (if so equipped) (P. 2-77)
18. Shift lever (P. 5-19)
LII2702
INSTRUMENT PANEL
2-4Instruments and controls
Page 107 of 636

19. Center multi-function control buttons*
20. Push-button ignition switch (P. 5-13)
21. Electronic parking brake (P. 5-25)Automatic brake hold switch (P. 5-27)
22. Idling Stop System switch (P. 5-178)
23. INFINITI Drive Mode Selector (P. 5-29)
24. Cruise control switches (if so equipped)
(P. 5-83)
ProPILOT Assist switches
(if so equipped) (P. 5-84)
Bluetooth® Hands-Free Phone System*
25. Driver supplemental knee air bag
(P. 1-72)
26. Tilt and telescopic steering wheel control
(P. 3-30)
27. Hood release (P. 3-21)
28. Control panel and vehicle information
display switches (P. 2-22 or 2-44)
Steering wheel switch for audio control*
29. Liftgate instrument panel switch
(P. 3-22)
Steering Assist switch (if so equipped)
(P. 2-88)
Head Up Display (HUD) switch
(if so equipped) (P. 2-89)
*: Refer to the separate INFINITI InTouchtm
Owner's Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Instruments and controls2-5
Page 108 of 636

1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster (if so
equipped) or the right side of the vehicle in-
formation display. The odometer is located
within the vehicle information display.
LIC4666
METERS AND GAUGES
2-6Instruments and controls
Page 109 of 636

Speedometer
The speedometer indicates vehicle speed.
LIC2218
7 inch (18 cm) Type A (if so equipped)
LIC4857
12.3 inch (31 cm) Type B (if so equipped)
LIC4858
12.3 inch (31 cm) Type C (if so equipped)
Instruments and controls2-7
Page 110 of 636

Odometer
The odometerO1is displayed in the vehicle
information display when the ignition switch
is placed in the ON position.
The odometer records the total distance the
vehicle has been driven.TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev the
engine into the red zone
O1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.
LIC4732LIC4854
7 inch (18 cm) Type A (if so equipped)
LIC4859
12.3 inch (31 cm) Type B (if so equipped)
2-8Instruments and controls
