Installing child restraint LATCH
lower anchor attachments
LATCH compatible child restraints include
two rigid or webbing-mounted attachments
that can be connected to two anchors lo-
cated at certain seating positions in your ve-
hicle. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint. Check your child restraint for a label
stating that it is compatible with LATCH. This
information may also be in the instructions
provided by the child restraint manufacturer.When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.
Top tether anchor
WARNING
• Do not allow cargo to contact the top
tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or cargo that contacts the top
tether strap may damage it during a col-
lision. A child could be seriously injured or
killed in a collision if the top tether strap
is damaged.
• Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorages,
and a child could be seriously injured or
killed in a collision.
LRS0661
LATCH webbing-mounted attachment
LRS0662
LATCH rigid-mounted attachment
Safety-Seats, seat belts and supplemental restraint system1-35

Top tether anchor point locations
1Top tether strap
2Anchor point
Anchor points are located in the following
locations:
• 2nd row bench seat (if so equipped) on the seatback in the seating positions shown.
•
2nd row captain’s seat (if so equipped) on the
seatback in the seating positions shown.
• 3rd row bench on the seatback in the seat- ing positions as shown. If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
LRS3040
2nd row bench seat (if so equipped)
LRS3417
2nd row captain’s seats (if so equipped)
LRS3544
3rd row bench seat
1-36Safety-Seats, seat belts and supplemental restraint system

REAR-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorages, and a child could
be seriously injured or killed in a collision.
For additional information, see “Child safety”
(P. 1-25) and “Child restraints” (P. 1-28) for all
Warnings and Cautions before installing a
child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation. Follow these steps to install a rear-facing
child restraint in the 2nd row seats using the
LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manu-
facturer's instructions.
2. Secure the child restraint anchor attach-ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
LRS2997
Rear-facing webbing-mounted – step 2
Safety-Seats, seat belts and supplemental restraint system1-37

3. For child restraints that are equipped withwebbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your hand to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor
attachments. 4. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint or try installing
LRS2996
Rear-facing rigid-mounted – step 2
LRS0673
Rear-facing – step 3
LRS0674
Rear-facing – step 4
1-38Safety-Seats, seat belts and supplemental restraint system

by using the vehicle seat belt (if appli-
cable). Not all child restraints fit in all types
of vehicles.
5. Check to make sure the child restraint is properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.
REAR-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. For additional information, see “Child safety”
(P. 1-25) and “Child restraints” (P. 1-28) be-
fore installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:
1.Child restraints for infants must be used
in the rear-facing direction and therefore
must not be used in the front seat. Posi-
tion the child restraint on the seat. Always
follow the child restraint manufacturer’s
instructions.
WRS0256
Rear-facing – step 1
Safety-Seats, seat belts and supplemental restraint system1-39

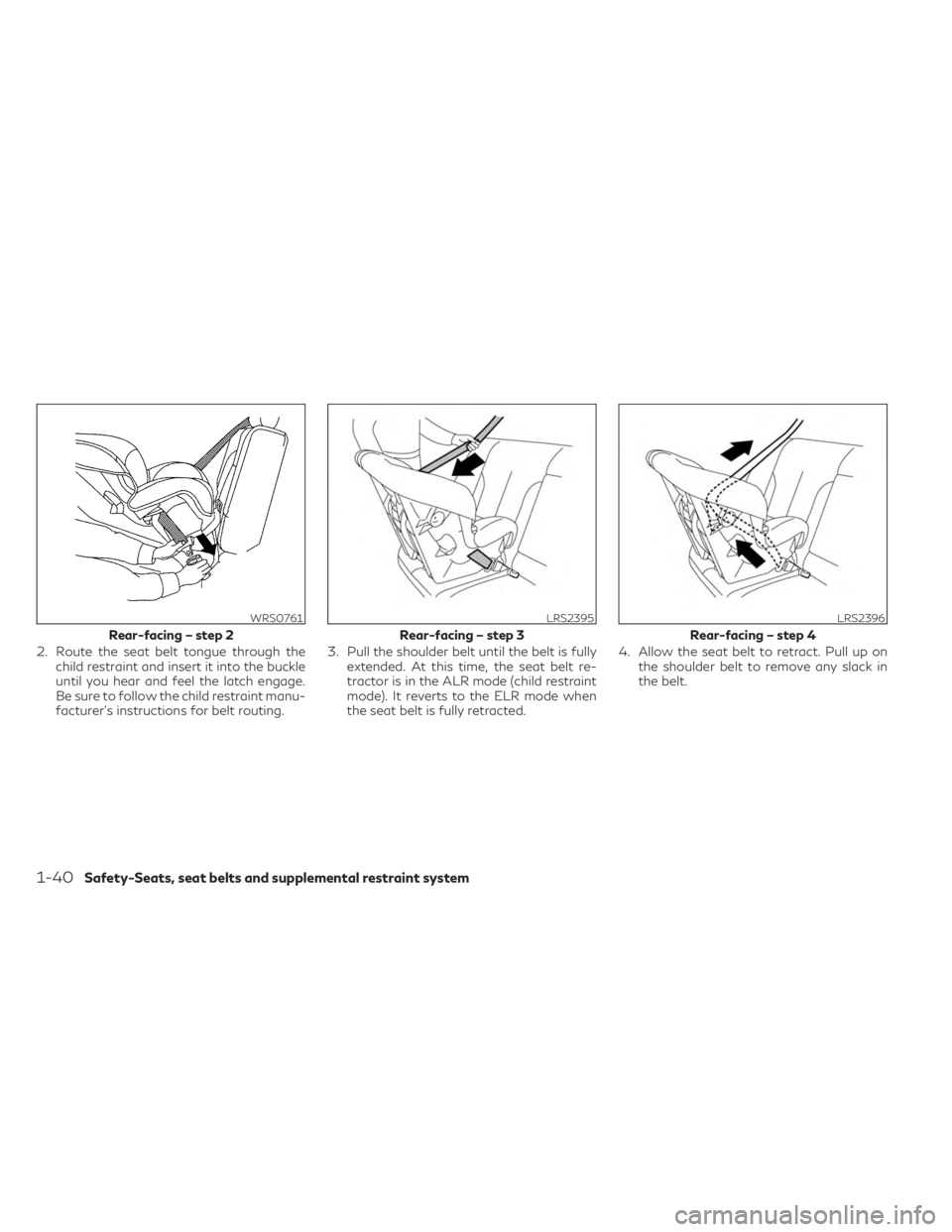

2. Route the seat belt tongue through thechild restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing. 3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to the ELR mode when
the seat belt is fully retracted. 4. Allow the seat belt to retract. Pull up on
the shoulder belt to remove any slack in
the belt.
WRS0761
Rear-facing – step 2
LRS2395
Rear-facing – step 3
LRS2396
Rear-facing – step 4
1-40Safety-Seats, seat belts and supplemental restraint system

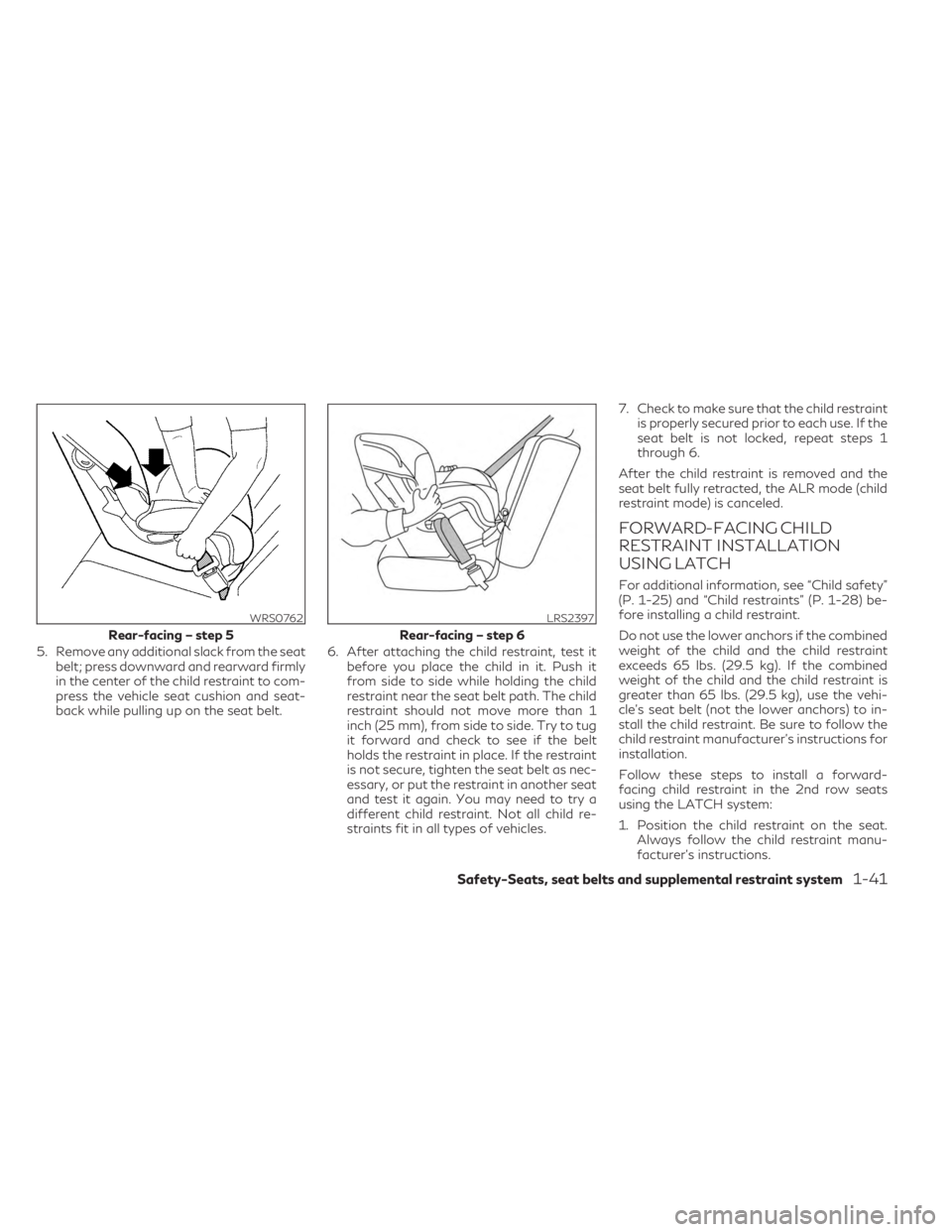

5. Remove any additional slack from the seatbelt; press downward and rearward firmly
in the center of the child restraint to com-
press the vehicle seat cushion and seat-
back while pulling up on the seat belt. 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles. 7. Check to make sure that the child restraint
is properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6.
After the child restraint is removed and the
seat belt fully retracted, the ALR mode (child
restraint mode) is canceled.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH
For additional information, see “Child safety”
(P. 1-25) and “Child restraints” (P. 1-28) be-
fore installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.
Follow these steps to install a forward-
facing child restraint in the 2nd row seats
using the LATCH system:
1. Position the child restraint on the seat. Always follow the child restraint manu-
facturer's instructions.
WRS0762
Rear-facing – step 5
LRS2397
Rear-facing – step 6
Safety-Seats, seat belts and supplemental restraint system1-41

2. Secure the child restraint anchor attach-ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point. For additional information,
see “Installing top tether strap” (P. 1-44). Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.3. The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint/headrest when the child re-
straint is removed. For additional infor-
mation, see “Head restraints/headrests”
(P. 1-12).
If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper child re-
straint fit, try another seating position or a
different child restraint.
LRS2995
Forward-facing webbing-mounted – step 2
LRS2994
Forward-facing rigid-mounted – step 2
1-42Safety-Seats, seat belts and supplemental restraint system

4. For child restraints that are equipped withwebbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your knee to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor
attachments.
5. Tighten the tether strap according to the manufacturer's instructions to remove
any slack. 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint. Not all child re-
straints fit in all types of vehicles. 7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.
LRS0671
Forward-facing – step 4
WRS0697
Forward-facing – step 6
Safety-Seats, seat belts and supplemental restraint system1-43

Installing top tether strap
1Top tether strap
2Anchor point
The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.
First, secure the child restraint with the
LATCH lower anchors. OUTBOARD SEATING POSITIONS
1. Remove the head restraint/headrest and
store it in a secure place. Be sure to rein-
stall the head restraint/headrest when the
child restraint is removed. For additional
information about head restraint/
headrest adjustment, removal and instal-
lation, see “Head restraints/headrests”
(P. 1-12).
2. Position the top tether strap
O1over the
seatback.
3. Secure the tether strap to the tether an- chor point
O2as shown. 4. Tighten the tether strap according to the
manufacturer’s instructions to remove
any slack.
CENTER SEATING POSITION (if so
equipped)
1. Position the top tether strap
O1as shown.
2. Secure the tether strap to the tether an- chor point
O2as shown.
3. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack. Make sure the head restraint/
headrest does not contact the top tether
strap.
LRS3040
2nd row bench seat (if so equipped)
LRS3417
2nd row captain’s seats (if so equipped)
1-44Safety-Seats, seat belts and supplemental restraint system
