WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure. Your INFINITI is covered by the following emis-
sion warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of these warranties may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your INFINITI. If you did
not receive a Warranty Information Booklet, or it is
lost, you may obtain a replacement by writing to:
● INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your INFINITI. If
you did not receive a Warranty Information Book-
let, or it is lost, you may obtain a replacement by
writing to: ● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
10-30Technical and consumer information

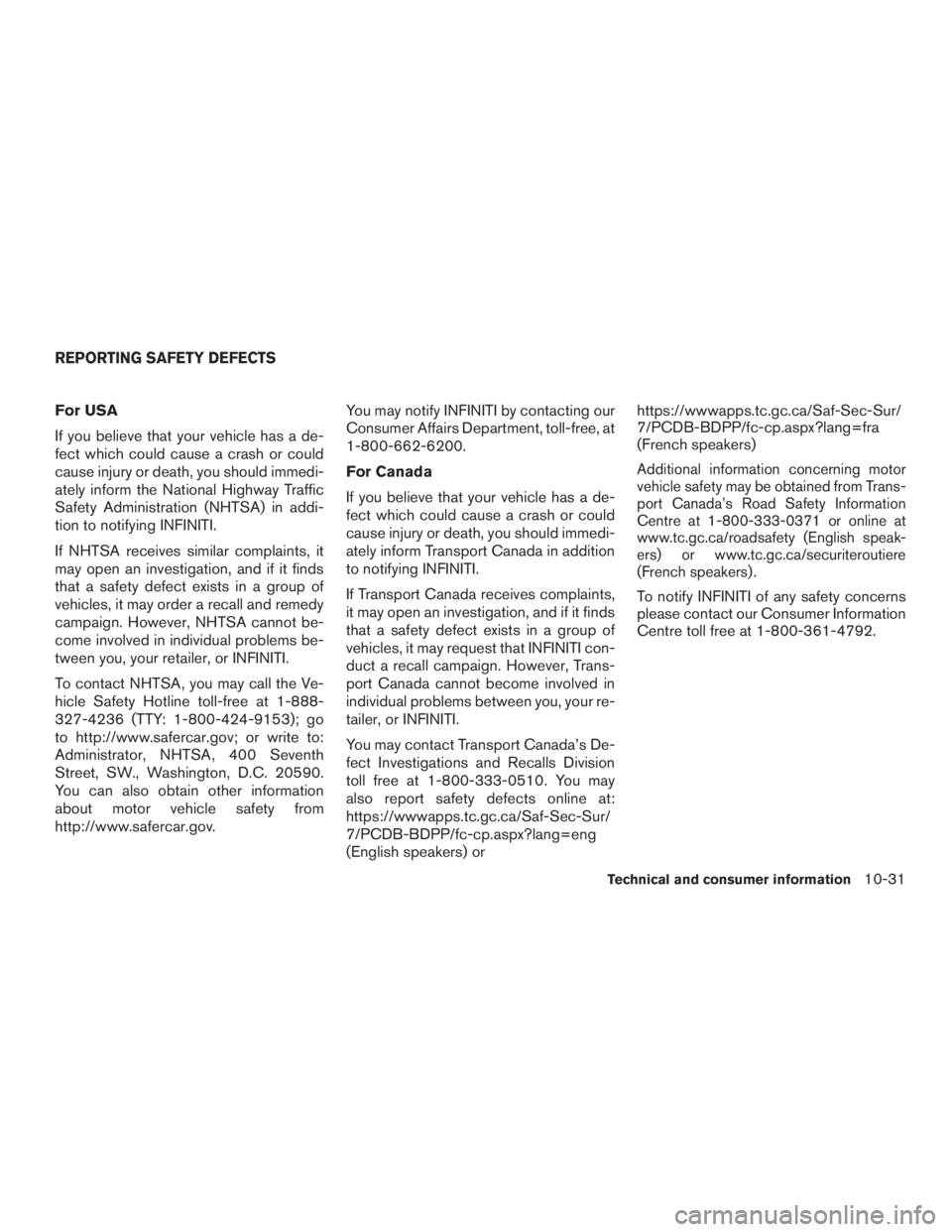

For USA
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying INFINITI.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your retailer, or INFINITI.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.You may notify INFINITI by contacting our
Consumer Affairs Department, toll-free, at
1-800-662-6200.
For Canada
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying INFINITI.
If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that INFINITI con-
duct a recall campaign. However, Trans-
port Canada cannot become involved in
individual problems between you, your re-
tailer, or INFINITI.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP/fc-cp.aspx?lang=eng
(English speakers) orhttps://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP/fc-cp.aspx?lang=fra
(French speakers)
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify INFINITI of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-361-4792.
REPORTING SAFETY DEFECTS
Technical and consumer information10-31

WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing) , or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may re-
sult in transmission damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle. If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. It is recommended that you visit an
INFINITI retailer to set the “ready condition” or to
prepare the vehicle for testing.
This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
10-32Technical and consumer information

To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.Genuine INFINITI Service Manuals for this model
year and prior can be purchased. A Genuine
INFINITI Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory-
trained technicians working at INFINITI retailers.
Genuine INFINITI Owner’s Manuals can also be
purchased.
For USA
For current pricing and availability of Genuine
INFINITI Service Manuals, contact:
www.infiniti-techinfo.com
For current pricing and availability of Genuine
INFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine INFINITI Ser-
vice Manual or Owner’s Manual, for this model
year and prior, it is recommended that you visit an
INFINITI retailer. For the phone number and loca-
tion of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-4792
and a bilingual INFINITI representative will assist
you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information10-33

MEMO
10-34Technical and consumer information

11 Index
2nd row bench seat adjustment......1-5,1-8
A
Active noise cancellation Active sound enhancement ........5-146
Air bag (See supplemental restraint
system) .....................1-49
Air bag system Front (See supplemental front impact
air bag system) ...............1-56
Airbagwarninglabels.............1-66
Airbagwarninglight...........1-67,2-13
Air bag warning light, supplemental . .1-67, 2-13
Aircleaner....................8-16
Air cleaner housing filter ............8-16
Air conditioner Air conditioner specification label ....10-13
Air conditioner system refrigerant and
oil recommendations ............10-8
Air conditioner system refrigerant
recommendations ..............10-8
Heater and air conditioner (automatic)
(if so equipped) ...............4-50
Heater and air conditioner controls ....4-51
Servicing air conditioner ..........4-58
Alarm system
(See vehicle security system) .........2-33
Anchor point locations .............1-32
Antenna .....................4-73
Antifreeze ...................5-144
Anti-lock brake warning light ..........2-8Anti-lock Braking System (ABS)
.......5-135
APPS button ...................4-5
Armrests .....................1-8
AroundView®Monitor.............4-28
Audible reminders ...............2-15
Audio system ..................4-58
AMradioreception.............4-59
Bluetooth® streaming audio ........4-67
Compact disc (CD) player .........4-79
Digital Versatile Disc (DVD) Player
Operation ..................4-89
FM/AM radio with compact disc (CD)
player ....................4-71
FMradioreception.............4-59
iPod® Player .............4-64,4-83
iPod® player operation .......4-64,4-83
Radio ....................4-58
Steering wheel audio control
switch .................4-7,4-72
USB (Universal Serial Bus) Connection
Port..................4-64,4-80
Autolight switch .................2-41
Automatic Automatic drive positioner .....3-36,3-38
Automatic power window switch .....2-65
Automatic anti-glare inside mirror .......3-33
Automatic door locks ..............3-6
Automatic drive positioner .......3-36,3-38
AUXjack ....................4-91 B
Back button ....................4-5
Backup Collision Intervention (BCI)
system......................5-58
Backup Collision Warning (BCW) system . .5-58
Battery .................5- 144, 8-13
Charge warning light .............2-8
Battery replacement ..............8-21
INFINITI Intelligent Key ...........8-22
Keyfob ...................8-21
Before starting the engine ...........5-17
Belt (See drive belt) ..............8-15
Blind Spot Intervention (BSI) system .....5-46
Blind Spot Warning (BSW) warning
system......................5-37
Block heater Engine ...................5-145
Bluetooth® hands-free phone system ....4-116
Boosterseats..................1-46
Brake Anti-lock Braking System (ABS) .....5-135
Brake fluid ..................8-11
Brakelight(Seestoplight).........8-24
Brake system ...............5-134
Brakewarninglight...........2-8,2-9
Brakewearindicators........2-15,8-18
Parking brake operation ..........5-23
Self-adjusting brakes ............
8-18
Brake assist ..................5-136
Brake fluid ....................8-11
Brakes ......................8-18

Brake system..................5-134
Break-in schedule ...............5-128
Brightness/contrastbutton............4-5
Brightness control Instrument panel ...............2-45
Bulb check/instrument panel ...........2-8
Bulb replacement ................8-24
C
Capacities and recommended
fuel/lubricants ..................10-2
Cargoareastoragebin.............2-61
Cargolight....................2-72
Cargo (See vehicle loading information) . . .10-14
Car phone or CB radio .............4-115
CD care and cleaning ..............4-95
CD player (See audio system) .........4-79
Check tire pressure ...............2-30
Child restraints .......1-25,1-25,1-27,1-29
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-29
Precautions on child
restraints.........1-28,1-34,1-40,1-46
Top tether strap anchor point locations . .1-32
Child restraint with top tether strap .......1-32
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-15
Cleaningexteriorandinterior........7-2,7-4
Climatecontrolseatswitch...........2-48
Clock set/adjustment ..............4-16
C.M.V.S.S. certification label .........10-12
Cold weather driving ..............5-144
Compact disc (CD) player ...........4-79
Consolebox...................2-58 Continuously Variable Transmission (CVT) . . .5-18
Continuously Variable Transmission (CVT)
fluid......................8-10
Driving with Continuously Variable
Transmission (CVT) .............5-18
Control panel buttons Back button ..................4-5
Brightness/contrast button ..........4-5
Clockset...................4-16
Setting button .................4-5
Controls Audio controls ................4-71
Audio controls (steering wheel) ....4-7,4-72
Heater and air conditioner controls .....4-51
Coolant Capacities and recommended
fuel/lubricants ................10-2
Changingenginecoolant...........8-5
Checking engine coolant level ........8-5
Checking inverter coolant level ........8-6
Corrosion protection ...............7-7
Cruisecontrol...............5-75,5-76
Cupholders...................2-59
D
Daytime Running Light System .........2-45
Defroster switch Rear window defroster switch .......2-39
Digital Versatile Disc (DVD) player .......4-89
Dimensionsandweights............10-10
Dimmer switch for instrument panel ......2-45
Display...................2-16,2-17
Display controls
(seecontrolpanelbuttons).........4-5,4-8 Distance Control Assist (DCA) system
.....5-97
Doors ........................3-4
Drive belt .....................8-15
Drive positioner, Automatic ........3-36,3-38
Driving Cold weather driving ............5-144
Driving with Continuously Variable
Transmission (CVT) .............5-18
Precautions when starting and driving ....5-4
Driving the vehicle ................5-18
Dual panel moonroof ..............2-67
Dual

power moonroof ...........2-67,2-67
E
Economy-fuel.................5-130
Efficient use of your vehicle .........HEV-11
Emergency hybrid system shut off .......5-15
Emission control information label ......10-12
Emission control system warranty .......10-30
Engine Before starting the engine ..........5-17
Blockheater ................5-145
Capacities and recommended
fuel/lubricants ................10-2
Changing engine coolant ...........8-5
Changingengineoil..............8-8
Changing engine oil filter ...........8-9
Checking engine coolant level ........8-5
Checking engine oil level ...........8-7
Engine compartment check locations ....8-3
Engine cooling system ............8-4
Engineoil ...................8-7
Engine oil and oil filter recommendation . .10-7
Engine oil viscosity ..............10-7
11-2

Engine serial number............10-12
Engine specifications ............10-9
Starting the engine .............5-17
Event Data recorders .............10-32
Exhaust gas (Carbon monoxide) .........5-4
Explanation of maintenance items ........9-2
Explanation of scheduled maintenance items . .9-5
Extendedstorageswitch ............2-55
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-6
Fluid Brake fluid ..................8-11
Capacities and recommended
fuel/lubricants ................10-2
Continuously Variable Transmission (CVT)
fluid......................8-10
Engine coolant .................8-4
Engine oil ...................8-7
Invertercoolant..............8-6,8-7
Power steering fluid .............8-11
Windshield-washerfluid...........8-12
F.M.V.S.S. certification label ..........10-12
Foglightswitch .................2-46
Forward Emergency Braking (FEB) .......2-10
Front air bag system
(See supplemental restraint system) ......1-56
Front and rear sonar system ..........5-140
Front power seat adjustment ...........1-3
Frontseats.....................1-2 Fuel
Capacities and recommended
fuel/lubricants ................10-2
Fuel economy ................5-130
Fuel-filler door and cap ...........3-29
Fuel gauge ...................2-6
Fuel octane rating ..............10-5
Fuel recommendation ............10-4
Loose fuel cap warning ...........2-29
Fuel-filler door ..................3-29
Fuelgauge.....................2-6
Fuses.......................8-19
Fusiblelinks ...................8-20
G
Garage door opener, HomeLink® Universal
Transceiver . .2-72, 2-73, 2-74, 2-75, 2-75, 2-76
Gascap .....................3-29
Gauge Fuel gauge ...................2-6
Odometer ...................2-5
Power meter ..................2-6
Speedometer .................2-5
Tachometer ..................2-5
Trip odometer .................2-5
General maintenance ...............9-2
Glovebox.....................2-57
Gloveboxlock..................2-57
H
Hands-free phone system, Bluetooth® ....4-116
Hazard warning flasher switch ..........6-2Headlightandturnsignalswitch........2-40
Headlightcontrolswitch ............2-40
Headlights....................8-23
Headphones (See INFINITI mobile entertainment
system)
.....................4-107
Head restraints ..................1-10
Heated rear seats ................2-49
Heated seats ...............2-47,2-48
Heated steering wheel .............2-50
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-50
Heater and air conditioner controls .....4-51
Heater operation ...............4-52
Heater

and air conditioner (automatic) .....4-50
High-voltage cautions .............HEV-3
High voltage components ..........HEV-12
HomeLink® Universal Transceiver . . .2-72, 2-73, 2-74, 2-75, 2-75, 2-76
Hood.......................3-21
Hook Luggage hook ................2-61
Horn .......................2-46
Hybrid System Stops operating while driving ........6-10
Vehicle does not start ............6-10
Hybrid vehicle characteristics ........HEV-13
Hybrid vehicle precautions .........HEV-12
I
Ignition Switch Push-Button Ignition Switch ........5-13
Immobilizer system ................5-16
Important vehicle information label ......10-12
11-3

In-cabin microfilter................8-16
Increasing fuel economy ............5-130
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)...............2-7,2-8,2-13
INFINITI Drive mode selector ..........5-24
INFINITI Intelligent Key System .......3-2,3-7
INFINITI vehicle immobilizer
system................2-34,3-4,5-16
Informationdisplay............2-16,2-17
Inside automatic anti-glare mirror ........3-33
Instrument brightness control ..........2-45
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-45
Intelligent cruise control (ICC) system Brake assist .................5-77
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-70
Inverter Checking inverter coolant level ........8-6
Inverter cooling system ............8-6
iPod®Player ...............4-64,4-83
ISOFIX child restraints .............1-29
J
Jump starting ...............6-11,8-14 K
Key.........................3-2
Keyfobbatteryreplacement ..........8-21
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
L
Label Tire and Loading Information label ....10-13
Labels Air conditioner specification label .....10-13
C.M.V.S.S. certification label .......10-12
Emission control information label ....10-12
Engine serial number ............10-12
F.M.V.S.S. certification label ........10-12
Tire and Loading Information label ....10-13
Vehicle identification number (VIN) ....10-11
Vehicle identification number (VIN) plate .10-11
Warning labels (for SRS) ..........1-66
Lane Departure Prevention (LDP)
system ...............5-26,5-31,5-34
Lane Departure Warning (LDW)
system ...............5-26,5-31,5-34
Language setting ................4-17
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-29
License plate Installing the license plate .........10-13
Liftgate ......................3-22
Liftgate release ..................3-27 Light
Air bag warning light .........1-67,2-13
Brake light (See stop light) .........8-24
Bulb check/instrument panel .........2-8
Bulbreplacement..............8-24
Charge warning light .............2-8
Exterior and Interior lights ..........8-24
Foglights...................8-23
Fog light switch ...............2-46
Headlightandturnsignalswitch......2-40
Headlight control switch ..........2-40
Headlights..................8-23
Interiorlight..................2-70
Lightbulbs..................8-23
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light......................2-29
Passenger air bag and status light .....1-58
Personal lights ................2-71
Security

indicator light ............2-15
Warning/indicator lights and audible
reminders .............2-7,2-8,2-13
Lights.......................8-23 Maplights ..................2-71
Lock Child safety rear door lock ..........3-6
Gloveboxlock................2-57
Liftgate release ................3-27
Power door locks ............3-5,3-6
Loose fuel cap warning .............2-29
Low fuel warning light ........2-9,2-12,2-29
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning light . . .2-29
Luggage hook ..................2-61
Luggage rack (see roof rack) ..........2-62
Luggage (See vehicle loading information) . .10-14
11-4

M
Maintenance General maintenance .............9-2
Insidethevehicle...............9-3
Maintenance precautions ...........8-2
Outside the vehicle ..............9-2
Seat belt maintenance ............1-24
Under the hood and vehicle .........9-4
Maintenance log .................9-15
Maintenance requirements ............9-2
Maintenance schedules ..............9-7
Maintenance under severe operation
conditions ....................9-13
Malfunction indicator light ............2-14
Maplights ....................2-71
Map pocket ....................2-56
Memory Seat ...............3-36,3-38
Meters and gauges ................2-4
Instrument brightness control ........2-45
Mirror Automatic anti-glare inside mirror ......3-33
Outside mirrors ...............3-34
Vanity mirror .................3-33
Mirrors ......................3-33
Mobile Entertainment System (MES) ......4-95
Moonroof ..................2-66,7-5
Moving Object Detection (MOD) ........4-44
O
Octanerating(Seefueloctanerating).....10-5
Odometer .....................2-5 Oil
Capacities and recommended
fuel/lubricants ................10-2
Changingengineoil..............8-8
Changing engine oil filter ...........8-9
Checking engine oil level ...........8-7
Engine oil ...................8-7
Engine oil and oil filter recommendation . .10-7
Engine oil viscosity ..............10-7
Operation of the hybrid system ........HEV-4
Outside mirrors .................3-34
Owner’s manual order form ..........10-33
Owner’s manual/service manual order
information ...................10-33
P
Parking Parking brake operation ...........5-23
Parking/parking on hills ..........5-134
Parking brake ...................5-23
Personallights..................2-71
Phone, Bluetooth® hands-free system ....4-116
Power Power door locks ............3-5,3-6
Power outlet ..............2-53,2-54
Power rear windows .............2-64
Power steering fluid .............8-11
Power steering system ...........5-134
Power windows ...............2-63
Rear power windows ............2-64
Power inverter switch ..............2-52
Power meter ....................2-6
Power outlet ................2-53,2-54
Power steering .................5-134 P
ower steering fluid
...............8-11
Precautions Maintenance precautions ...........8-2
On-pavement and off-road driving
precautions ..................5-9
Precautions on booster
seats ...........1-28,1-34,1-40,1-46
Precautions on child
restraints .........1-28,1-34,1-40,1-46
Precautions on seat belt usage .......1-16
Precautions on supplemental restraint
system ....................1-49
Precautions when starting and driving ....5-4
Predictive Forward Collision Warning
(PFCW).....................5-117
Push starting ...................6-14
R
Radio CarphoneorCBradio...........4-115
FM/AM radio with compact disc (CD)
player .....................4-71
Steering wheel audio control
switch..................4-7,4-72
Rainsensor....................2-37
Readiness for inspection maintenance (I/M)
test .......................10-32
Rear Cross Traffic Alert (RCTA) ........5-66
Rear power windows ..............2-64
RearView Monitor ................4-21
Rear window defroster switch .........2-39
Rear window wiper and washer switches . . .2-38
Recommended Fluids ..............10-2
11-5
