Page 1871 of 2100

ISUZU AXIOM 2002  Service Repair Manual METER AND GAUGE8E±5
Connector A
TerminalFunction
1Ð
2Intelligent suspension indicator light
3TOD indicator light ªRearº
4Ð
5TOD indicator light ªAUTOº
6Ð
7TOD indicator light ªFrontº
8A/T sh

Page 1872 of 2100

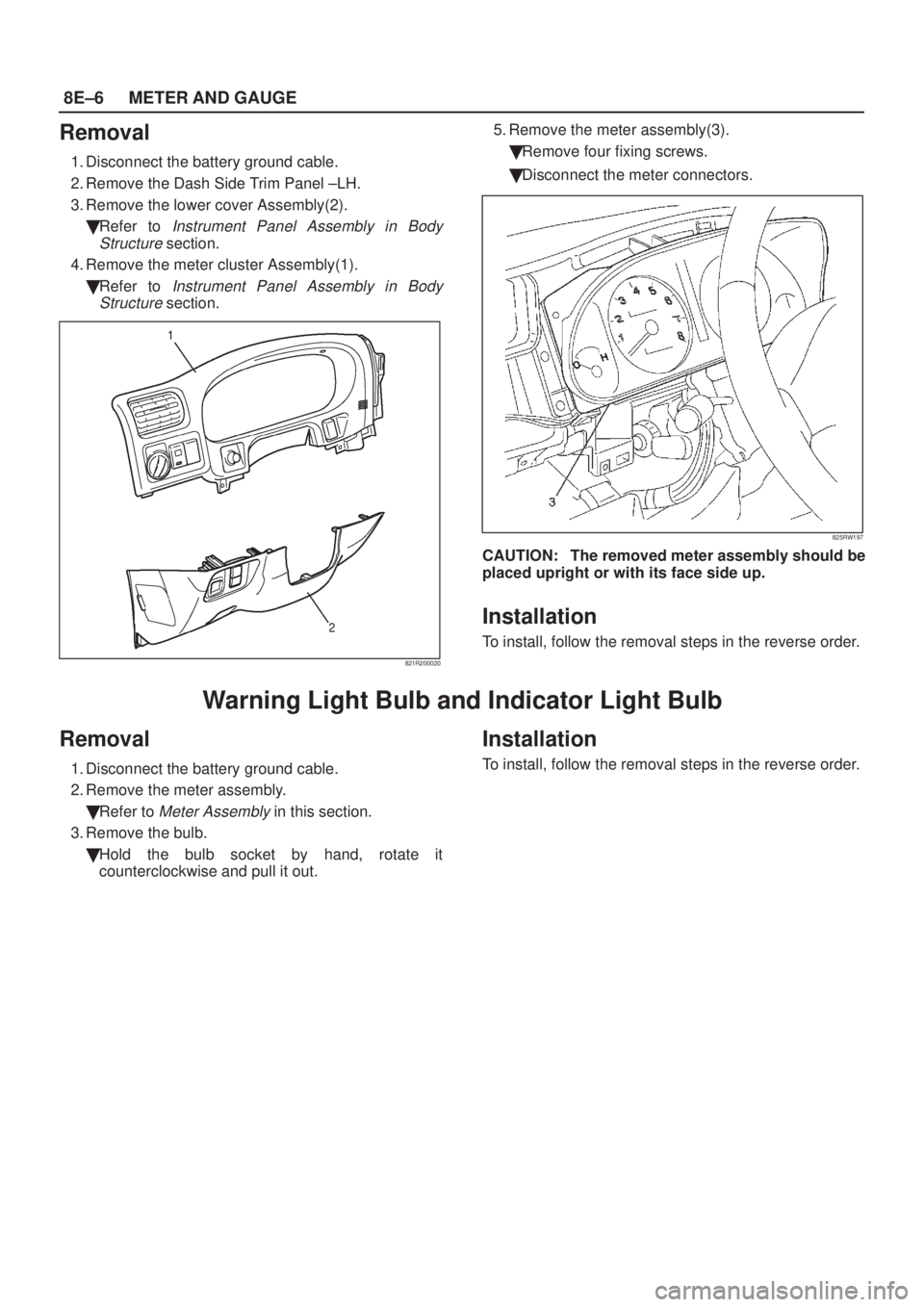

ISUZU AXIOM 2002  Service Repair Manual 8E±6METER AND GAUGE
Removal
1. Disconnect the battery ground cable.
2. Remove the Dash Side Trim Panel ±LH.
3. Remove the lower cover Assembly(2).
Refer to
Instrument Panel Assembly in Body
Struct

Page 1873 of 2100

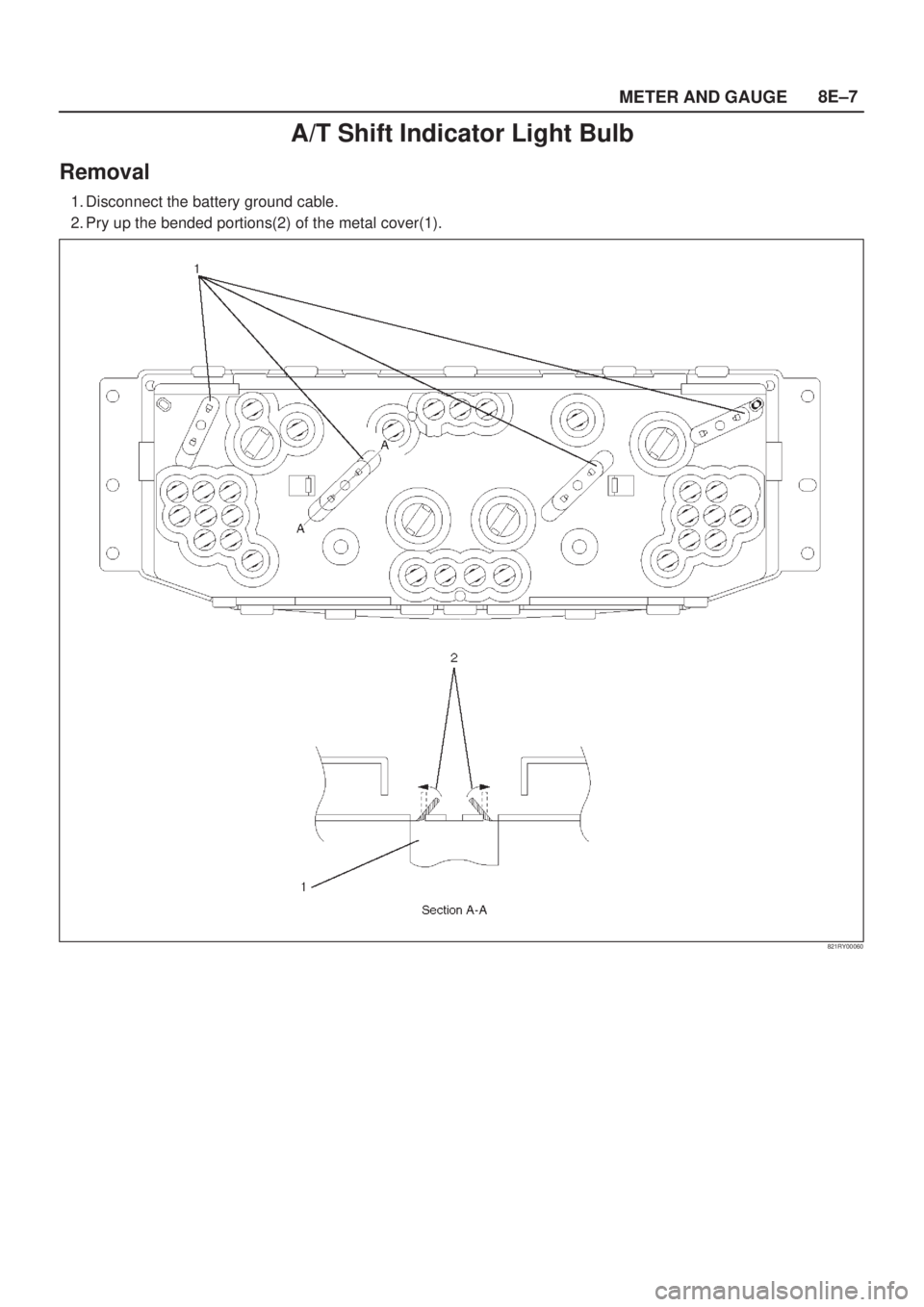

ISUZU AXIOM 2002  Service Repair Manual METER AND GAUGE8E±7
A/T Shift Indicator Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Pry up the bended portions(2) of the metal cover(1).
821RY00060

Page 1874 of 2100

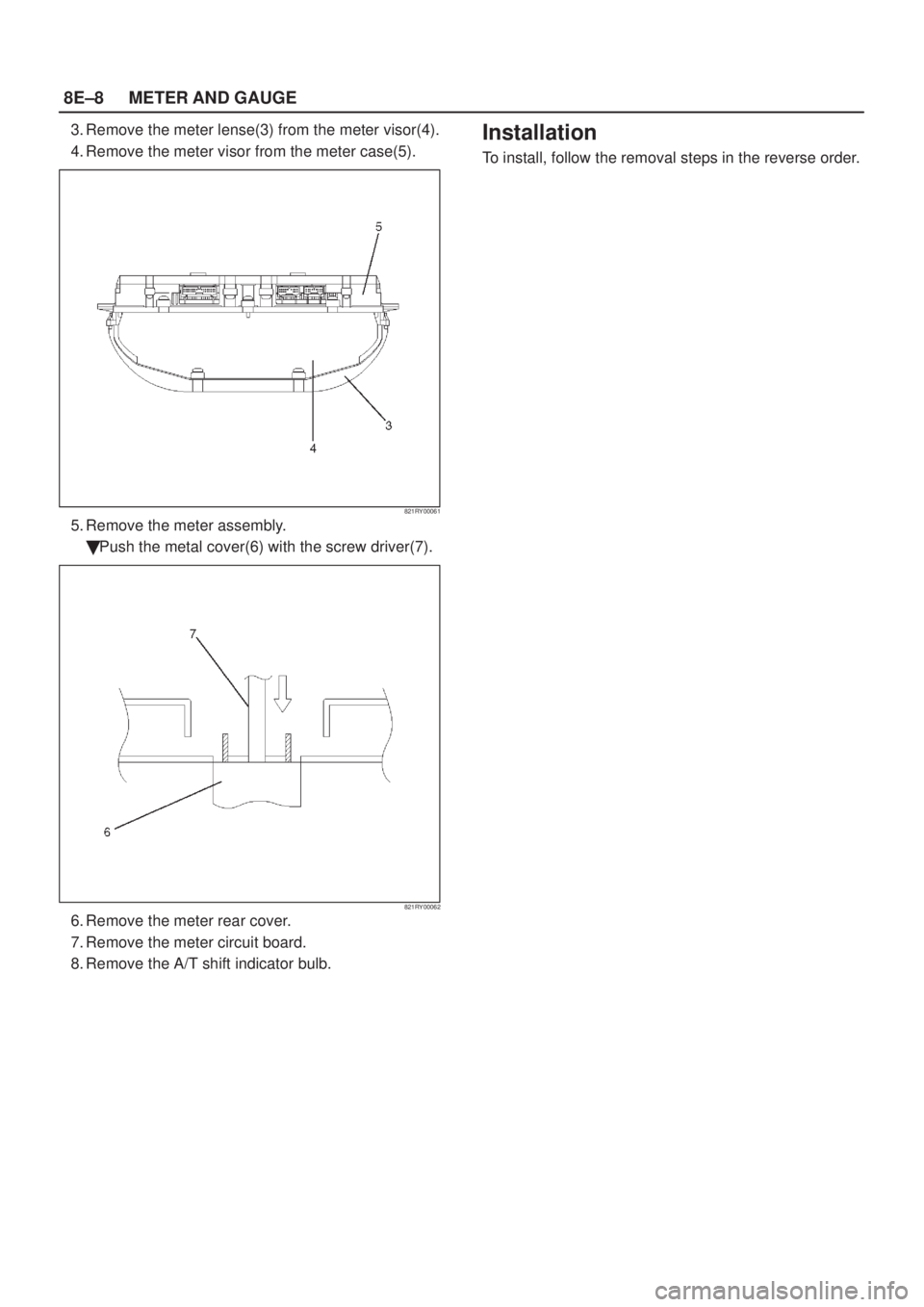

ISUZU AXIOM 2002  Service Repair Manual 8E±8METER AND GAUGE
3. Remove the meter lense(3) from the meter visor(4).
4. Remove the meter visor from the meter case(5).
821RY00061
5. Remove the meter assembly.
Push the metal cover(6) with the

Page 1875 of 2100

ISUZU AXIOM 2002  Service Repair Manual METER AND GAUGE8E±9
Vehicle Speed Sensor
Removal
1. Disconnect the battery ground cable.
2. Remove the vehicle speed sensor(1).
Disconnect the connector.
Rotate the sensor counterclockwise.
225R200

Page 1876 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8E±10METER AND GAUGE
Main Data and Specifications
Torque Specifications
ApplicationN´mLb FtLb In
Vehicle Speed Sensor Fixing2720Ð

Page 1877 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±1 BODY STRUCTURE
AXIOM
BODY AND ACCESSORIES
BODY STRUCTURE
CONTENTS
Service Precaution 8F±2. . . . . . . . . . . . . . . . . . . . . .
Frame 8F±2. . . . . . . . . . . . . . . . . . . . . . . .

Page 1878 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±2BODY STRUCTURE
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PER

Page 1879 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±3 BODY STRUCTURE
Frame Dimensions
501R200004

Page 1880 of 2100

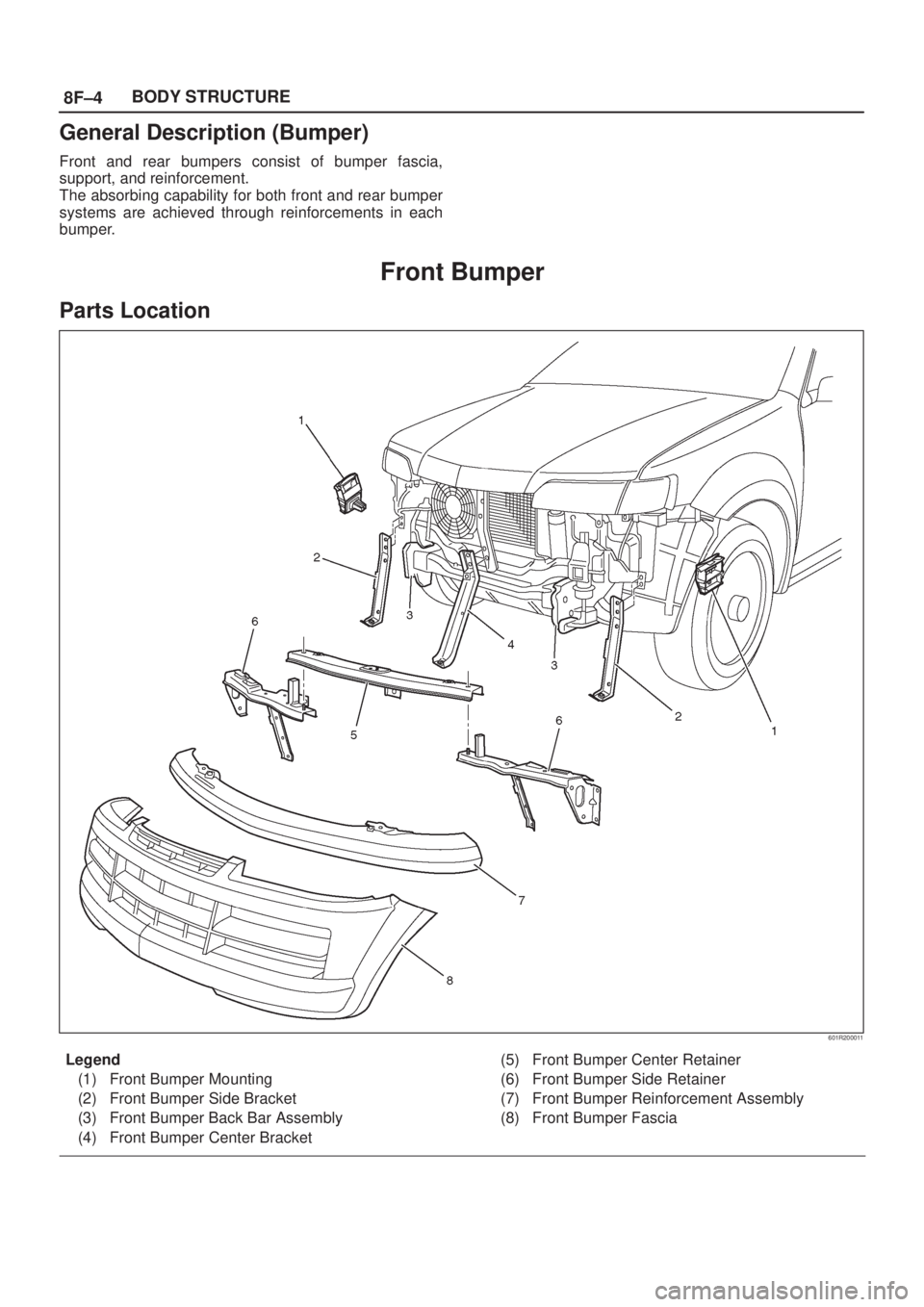

ISUZU AXIOM 2002  Service Repair Manual 8F±4BODY STRUCTURE
General Description (Bumper)
Front and rear bumpers consist of bumper fascia,
support, and reinforcement.
The absorbing capability for both front and rear bumper
systems are achiev
