Page 1881 of 2100

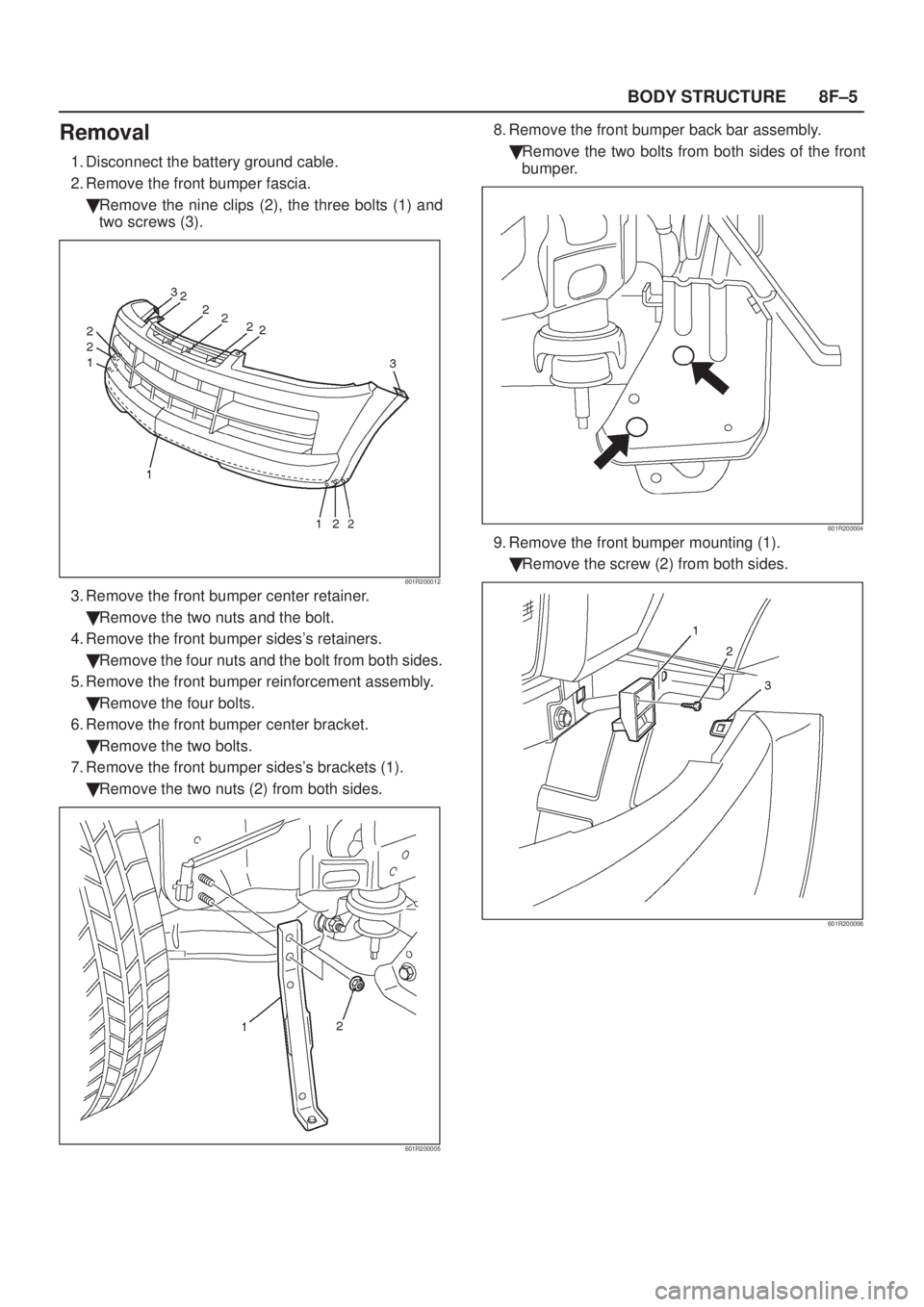

ISUZU AXIOM 2002  Service Repair Manual 8F±5 BODY STRUCTURE
Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper fascia.
Remove the nine clips (2), the three bolts (1) and
two screws (3).
601R200012
3. Remove the fro

Page 1882 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±6BODY STRUCTURE
Installation
To install, follow the removal steps in reverse order noting
the following points:
1. Tight the front bumper back bar assembly fixing bolts
to the specified torque.
To

Page 1883 of 2100

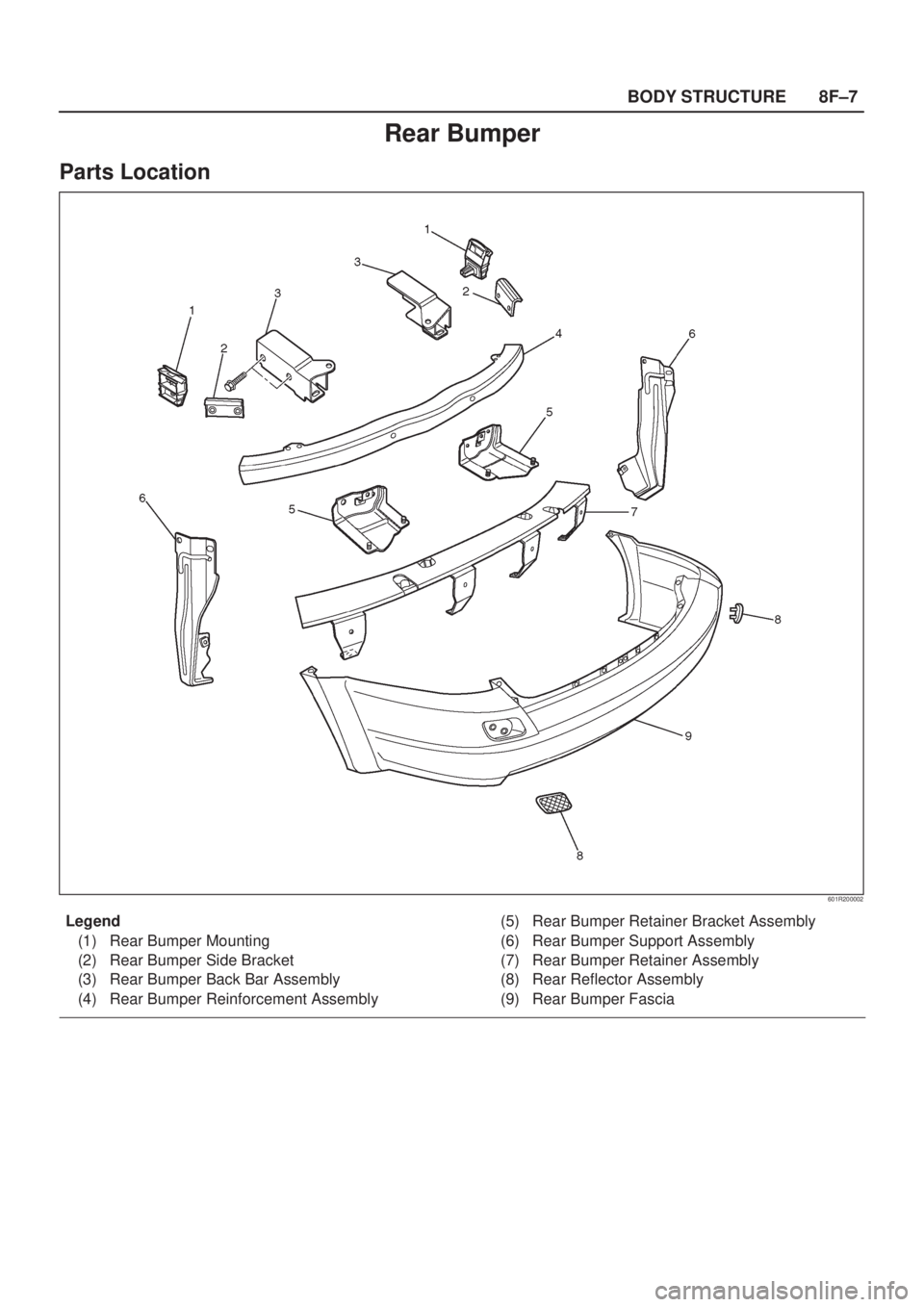

ISUZU AXIOM 2002  Service Repair Manual 8F±7 BODY STRUCTURE
Rear Bumper
Parts Location
601R200002
Legend
(1) Rear Bumper Mounting
(2) Rear Bumper Side Bracket
(3) Rear Bumper Back Bar Assembly
(4) Rear Bumper Reinforcement Assembly(5) Rear

Page 1884 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±8BODY STRUCTURE
Removal
1. Disconnect the battery ground cable.
2. Remove the rear bumper fascia.
Remove the two screws (1), six bolts (3) and nine
clips (2).
601R200010
3. Remove the rear bumper

Page 1885 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±9 BODY STRUCTURE
9. Remove the rear bumper back bar assembly.
Remove the two bolts from both sides.
690R200007
10. Remove the reflector assembly.
Remove the two nuts.
Installation
To install, fo

Page 1886 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±10BODY STRUCTURE
General Description (Sheet Metal)
This section includes items of front end sheet metal that
are attached by bolts, screws or clips and related
accessory components.
Anticorrosion

Page 1887 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±11 BODY STRUCTURE
Removal
1. Open the hood.
2. Support the hood.
3. Remove the windshield washer nozzle tube.
860R200005
4. Remove the hood hinge bolts.
Before removing the hinges from the engine

Page 1888 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±12BODY STRUCTURE
610R200004

Page 1889 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±13 BODY STRUCTURE
Engine Hood Lock
Parts Location
610R200012
Legend
(1) Engine Hood Lock Assembly
(2) Control Cable(3) Hood Lock Control Lever
(4) Inner Liner
Removal
1. Remove the hood lock contr

Page 1890 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±14BODY STRUCTURE
Installation
To install, follow the removal steps in the reverse order
noting the following points:
1. Reroute the control cable to its original position, and
check and see if the
