8F±15 BODY STRUCTURE

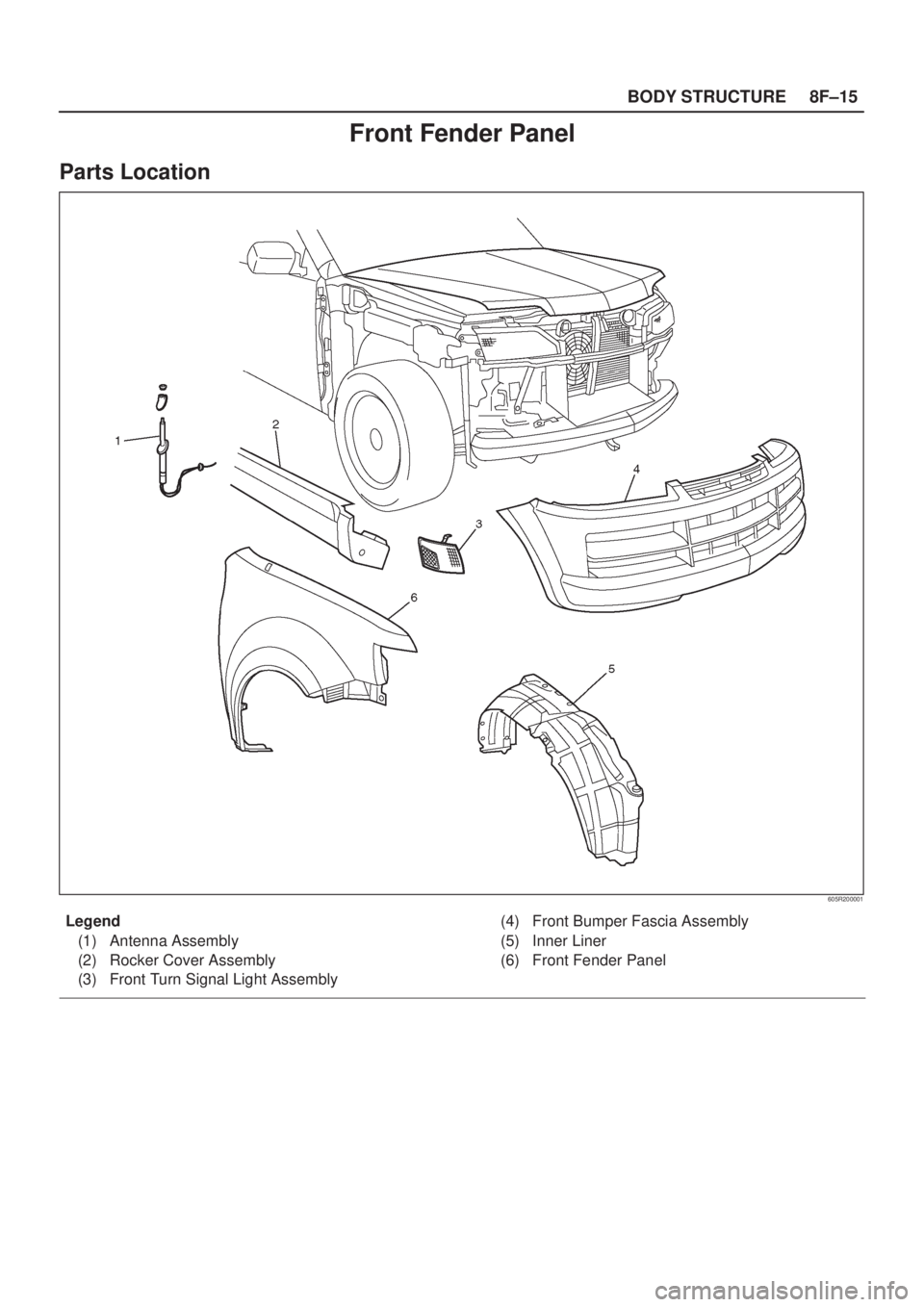

Front Fender Panel
Parts Location
605R200001
Legend
(1) Antenna Assembly
(2) Rocker Cover Assembly
(3) Front Turn Signal Light Assembly(4) Front Bumper Fascia Assembly
(5) Inner Liner
(6) Front Fender Panel

8F±16BODY STRUCTURE
Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper fascia assembly.

Refer to
Front Bumper in this section.
3. Remove the front turn signal light assembly.

Remove the fixing screw and disconnect the
connector.
610R200008
4. Remove the rocker cover assembly.

Refer to
Rocker Cover Assembly in Exterior/Interior
Trim section.
5. Remove the inner liner.
647RY00003
6. Remove the antenna assembly.

Refer to
Rod Type Antenna in Entertainment
section.
7. Remove the front fender panel (1).

Remove the eight fixing bolts.
8. Remove the engine compartment upper extension
(2).
614R200002
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the front fender panel fixing bolts to the
specified torque.
Torque : 7 N´m (61 lb in)
2. Check the fender and front door (1).
Clearance: 5.0 mm (0.196 in)
Height (step): Flush
610R200009

8F±17 BODY STRUCTURE
610RW001

8F±18BODY STRUCTURE
Body Mounting
Parts Location
501R200002
Legend
(1) No.1 Body Mounting
(2) No.2 Body Mounting
(3) No.3 Body Mounting(4) No.4 Body Mounting
(5) No.5 Body Mounting
(6) Body Side Mounting Bracket
(7) Frame Side Mounting Bracket
Tightening Torque
1. Tighten the body mounting bolts to specified torque.
Torque : 50 N´m (41 lb ft)

8F±19 BODY STRUCTURE

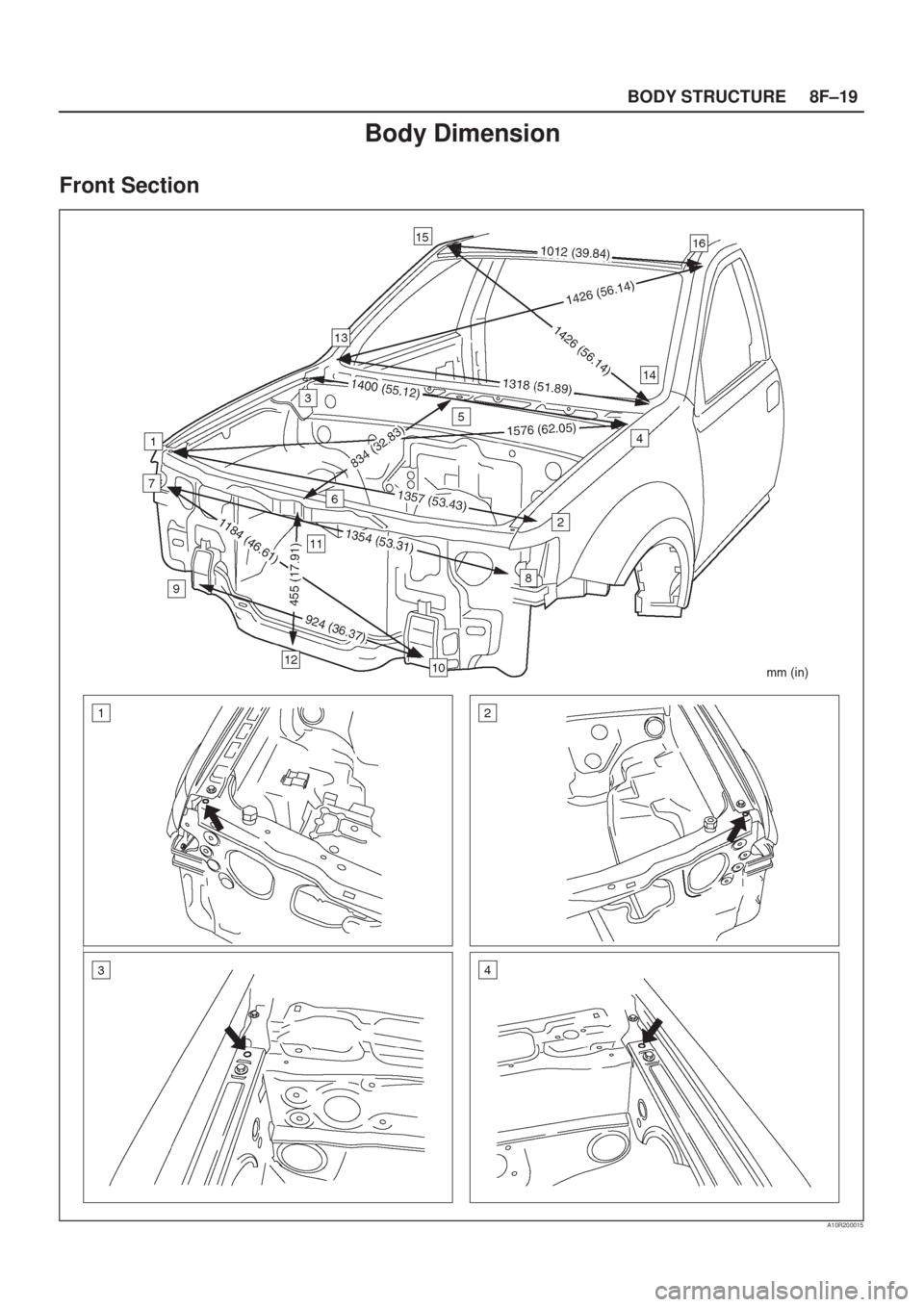

Body Dimension
Front Section
A10R200015

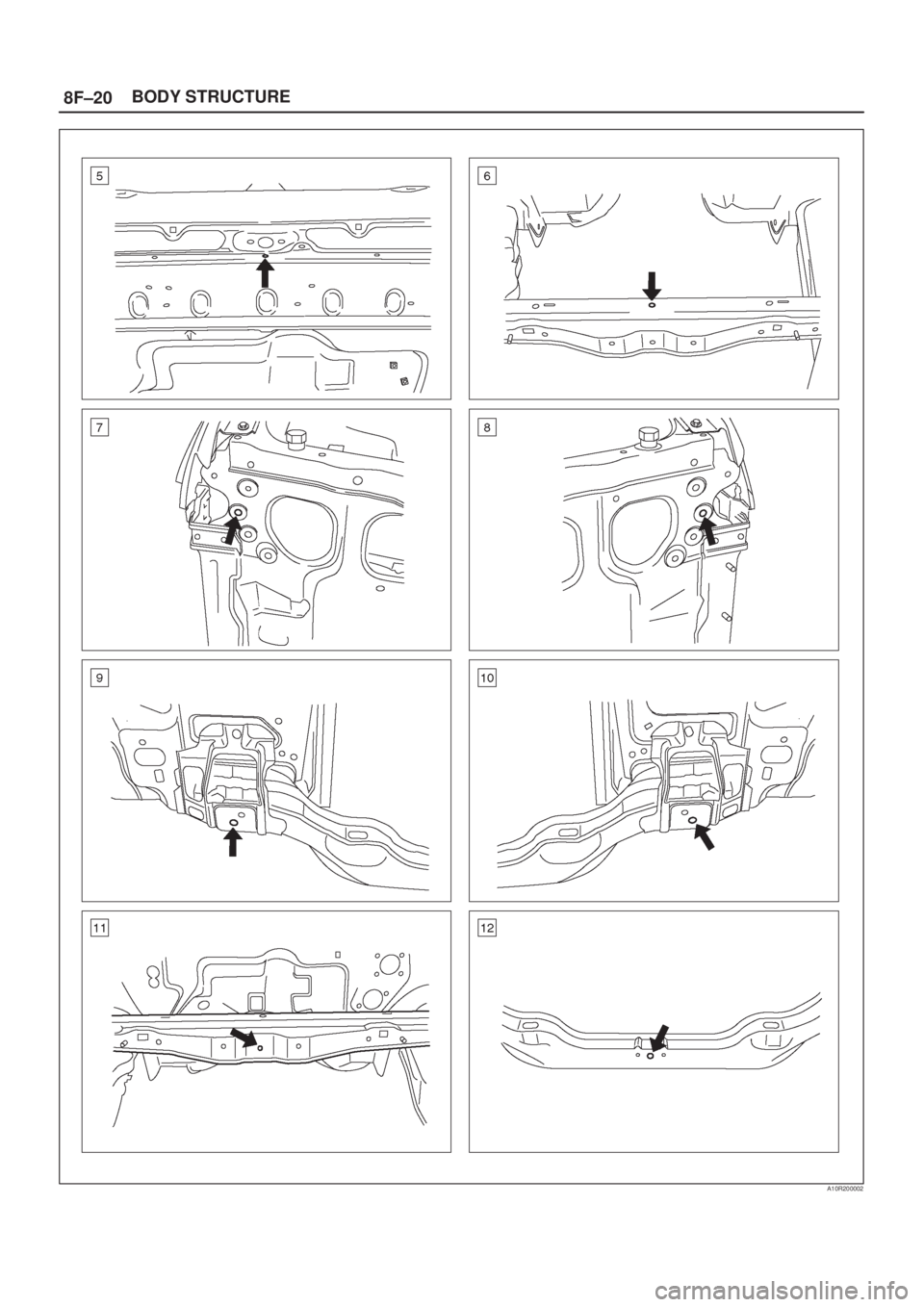

8F±20BODY STRUCTURE
A10R200002

8F±21 BODY STRUCTURE
A10R200003

8F±22BODY STRUCTURE

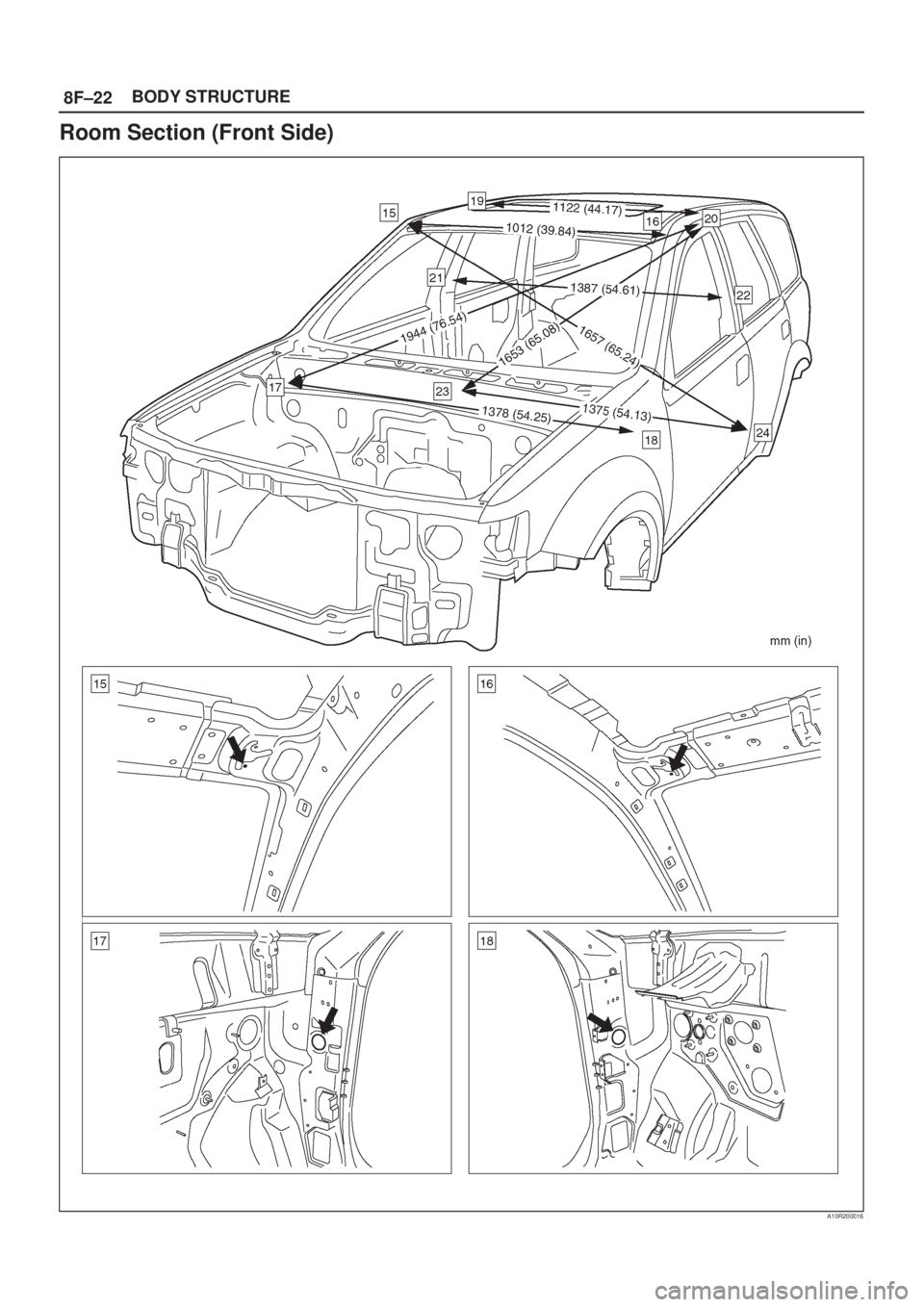

Room Section (Front Side)
A10R200016

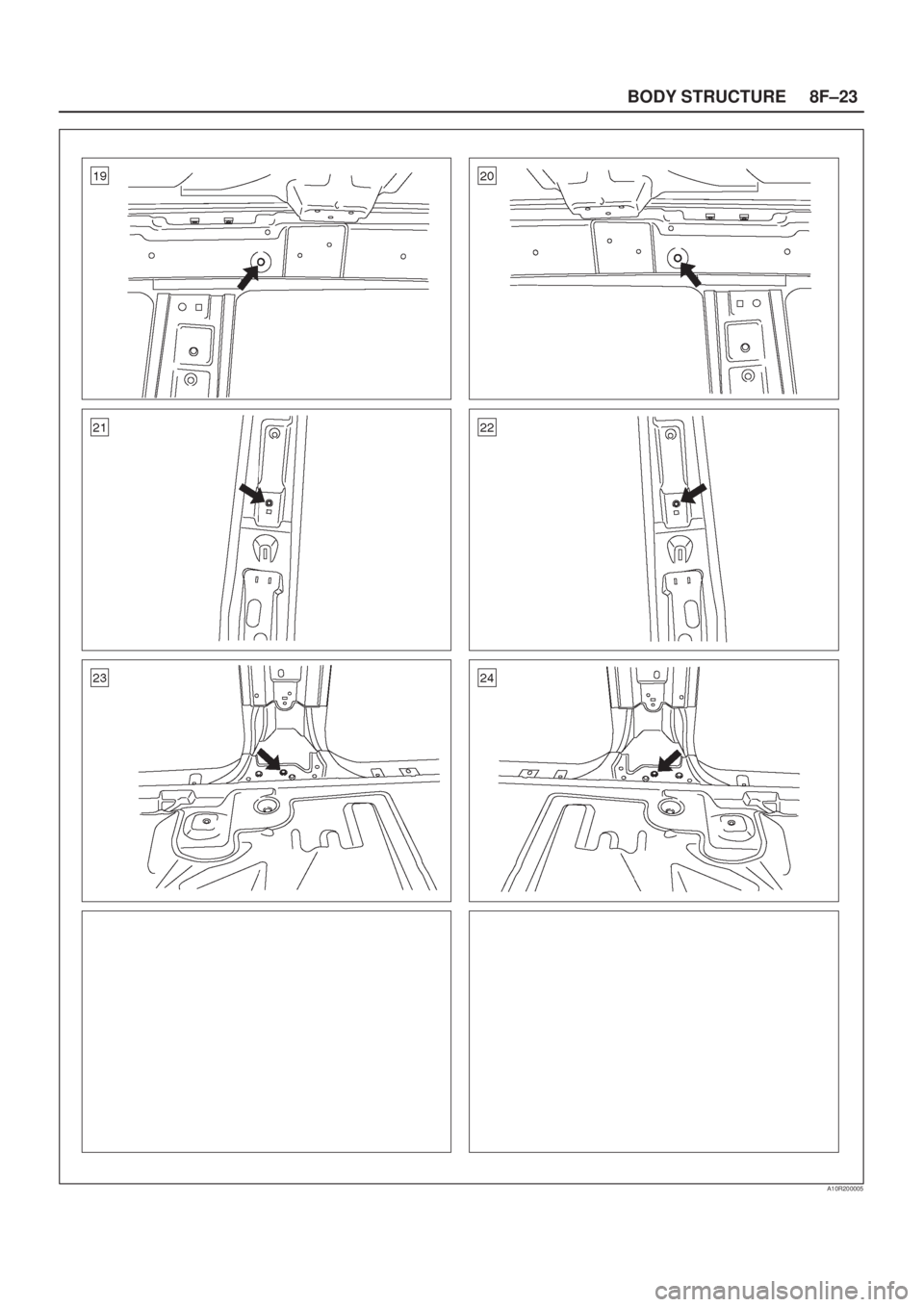

8F±23 BODY STRUCTURE
A10R200005

8F±24BODY STRUCTURE

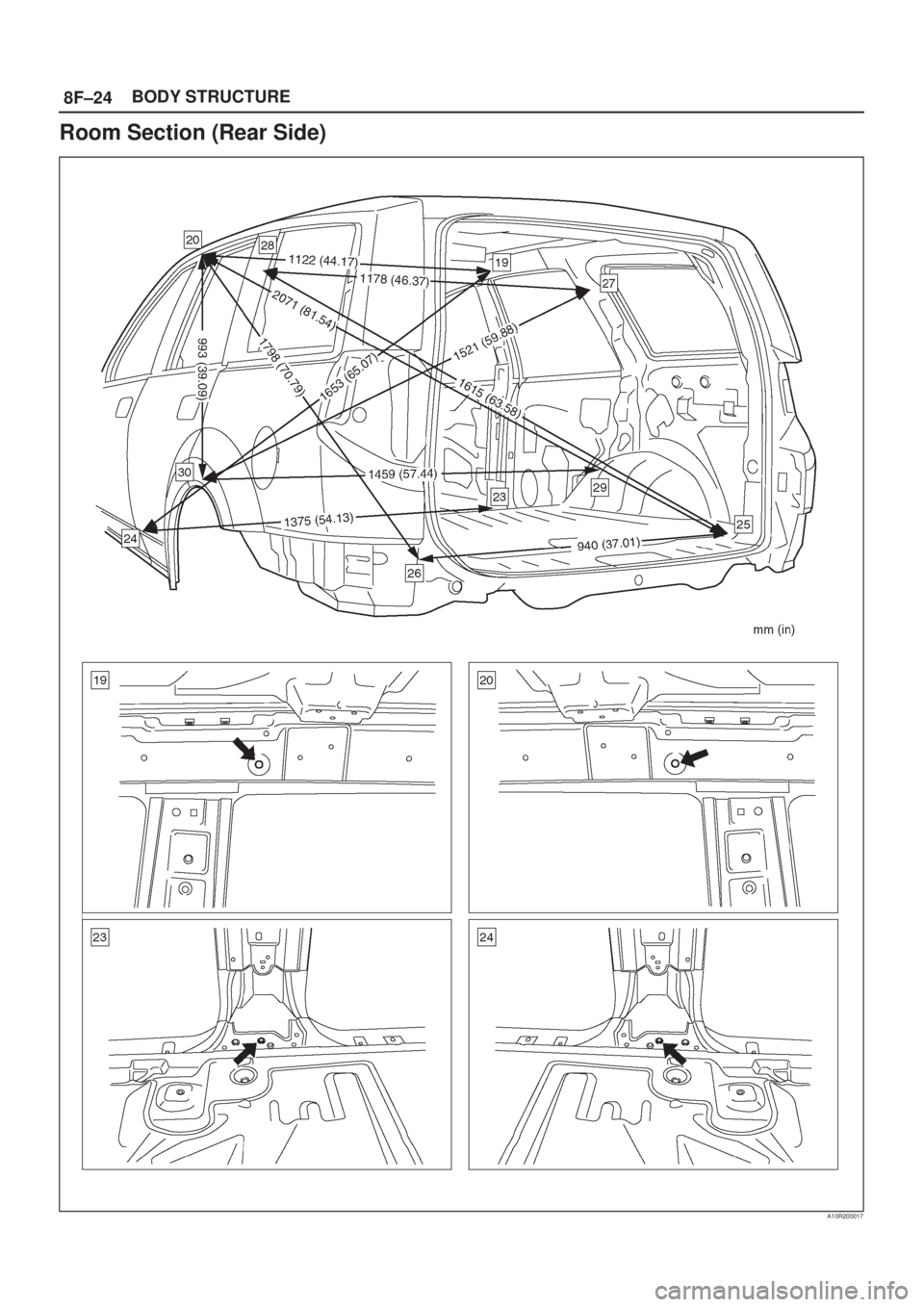

Room Section (Rear Side)
A10R200017
