ISUZU KB P190 2007 Workshop Repair Manual

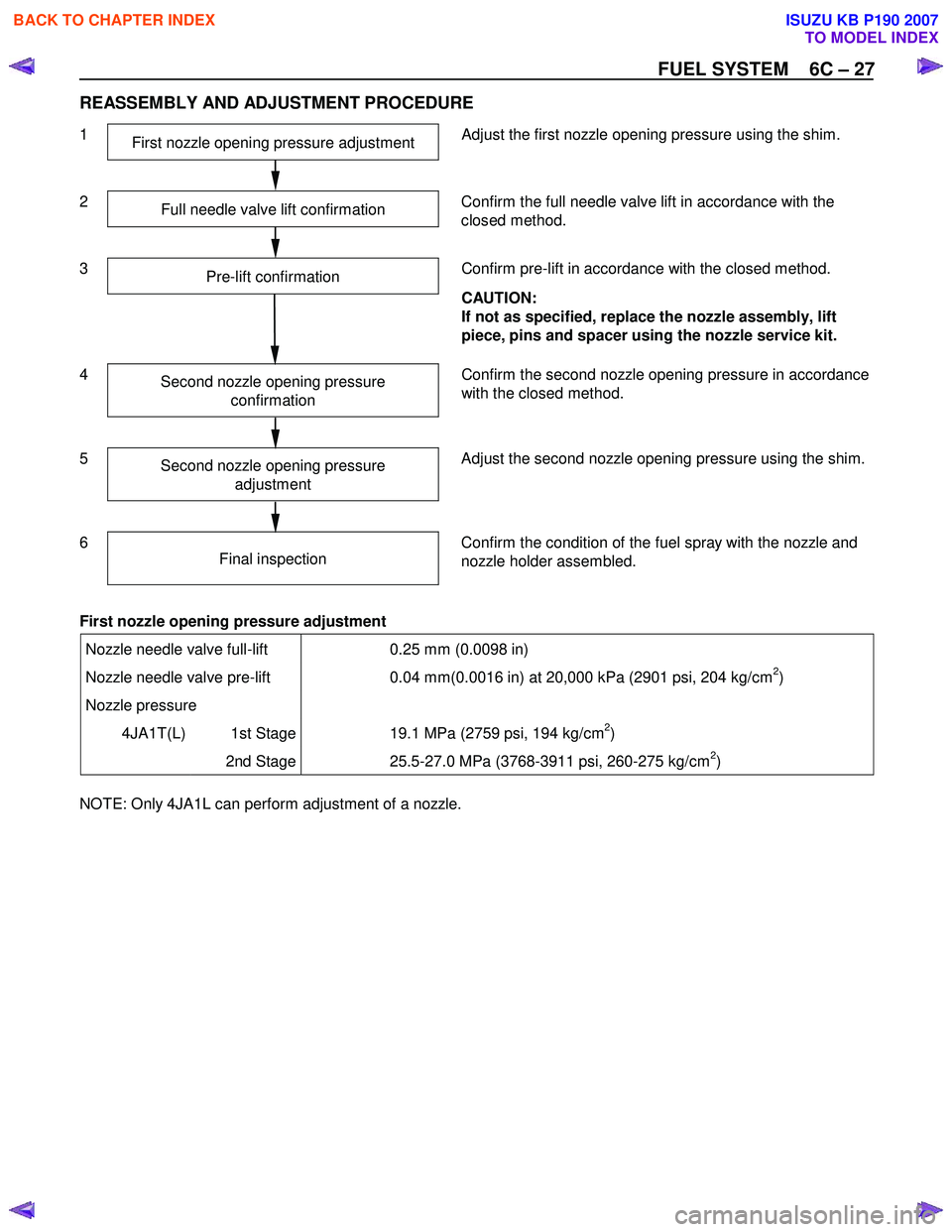

FUEL SYSTEM 6C – 27

REASSEMBLY AND ADJUSTMENT PROCEDURE
1 First nozzle opening pressure adjustment Adjust the first nozzle opening pressure using the shim.

2
Full needle valve lift confirmation Confirm the full needle valve lift in accordance with the
closed method.

3 Pre-lift confirmation

Confirm pre-lift in accordance with the closed method.

CAUTION:
If not as specified, replace the nozzle assembly, lift
piece, pins and spacer using the nozzle service kit.
4
Second nozzle opening pressure
confirmation Confirm the second nozzle opening pressure in accordance
with the closed method.

5 Second nozzle opening pressure
adjustment Adjust the second nozzle opening pressure using the shim.

6
Final inspection Confirm the condition of the fuel spray with the nozzle and
nozzle holder assembled.







First nozzle opening pressure adjustment
Nozzle needle valve full-lift 0.25 mm (0.0098 in)
Nozzle needle valve pre-lift 0.04 mm(0.0016 in) at 20,000 kPa (2901 psi, 204 kg/cm2)
Nozzle pressure
4JA1T(L) 1st Stage 19.1 MPa (2759 psi, 194 kg/cm2)
2nd Stage 25.5-27.0 MPa (3768-3911 psi, 260-275 kg/cm2)

NOTE: Only 4JA1L can perform adjustment of a nozzle.

BACK TO CHAPTER INDEX
TO MODEL INDEX

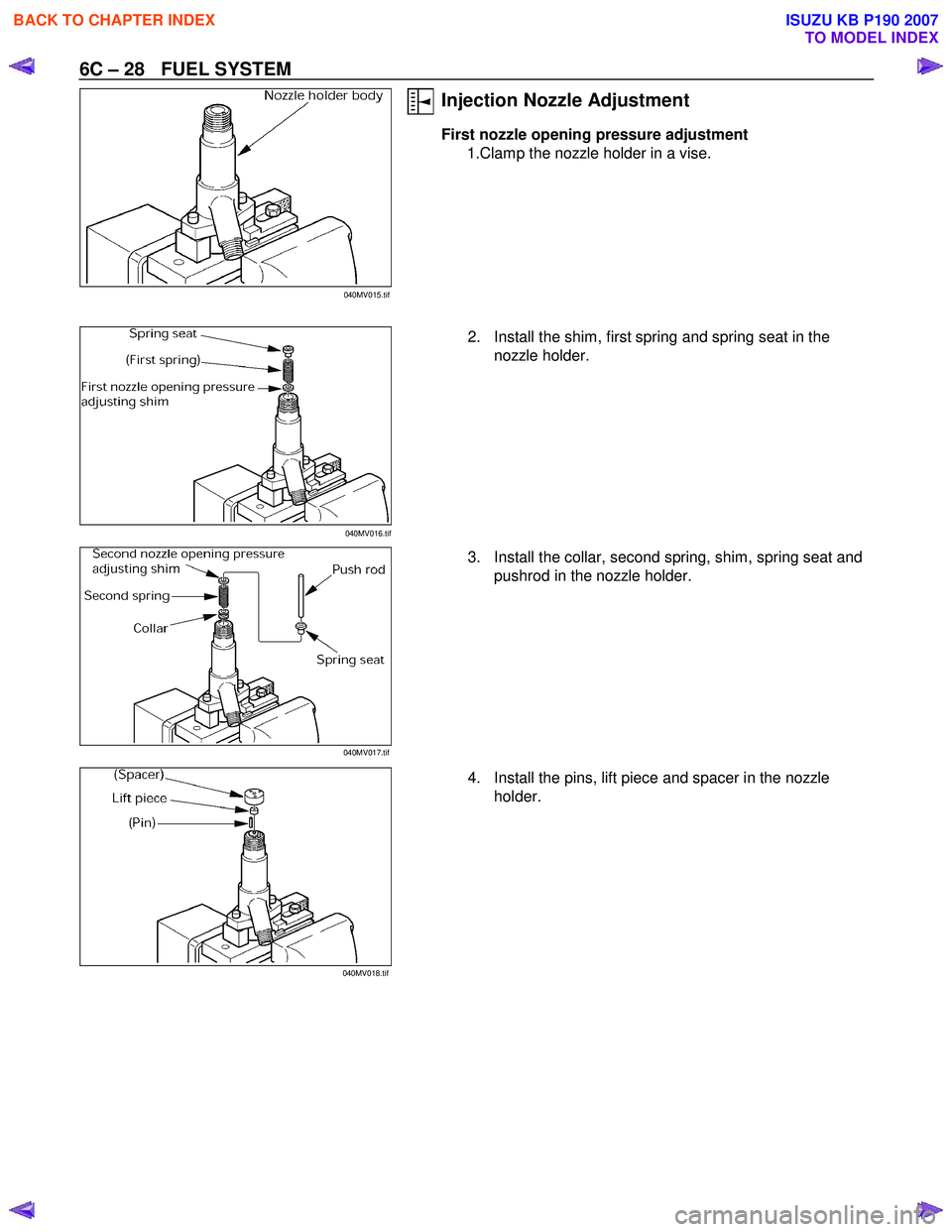

ISUZU KB P190 2007

6C – 28 FUEL SYSTEM

Injection Nozzle Adjustment
First nozzle opening pressure adjustment
1.Clamp the nozzle holder in a vise.

2. Install the shim, first spring and spring seat in the nozzle holder.

3. Install the collar, second spring, shim, spring seat and pushrod in the nozzle holder.

4. Install the pins, lift piece and spacer in the nozzle holder.



040MV015.tif
040MV016.tif
040MV017.tif
040MV018.tif

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

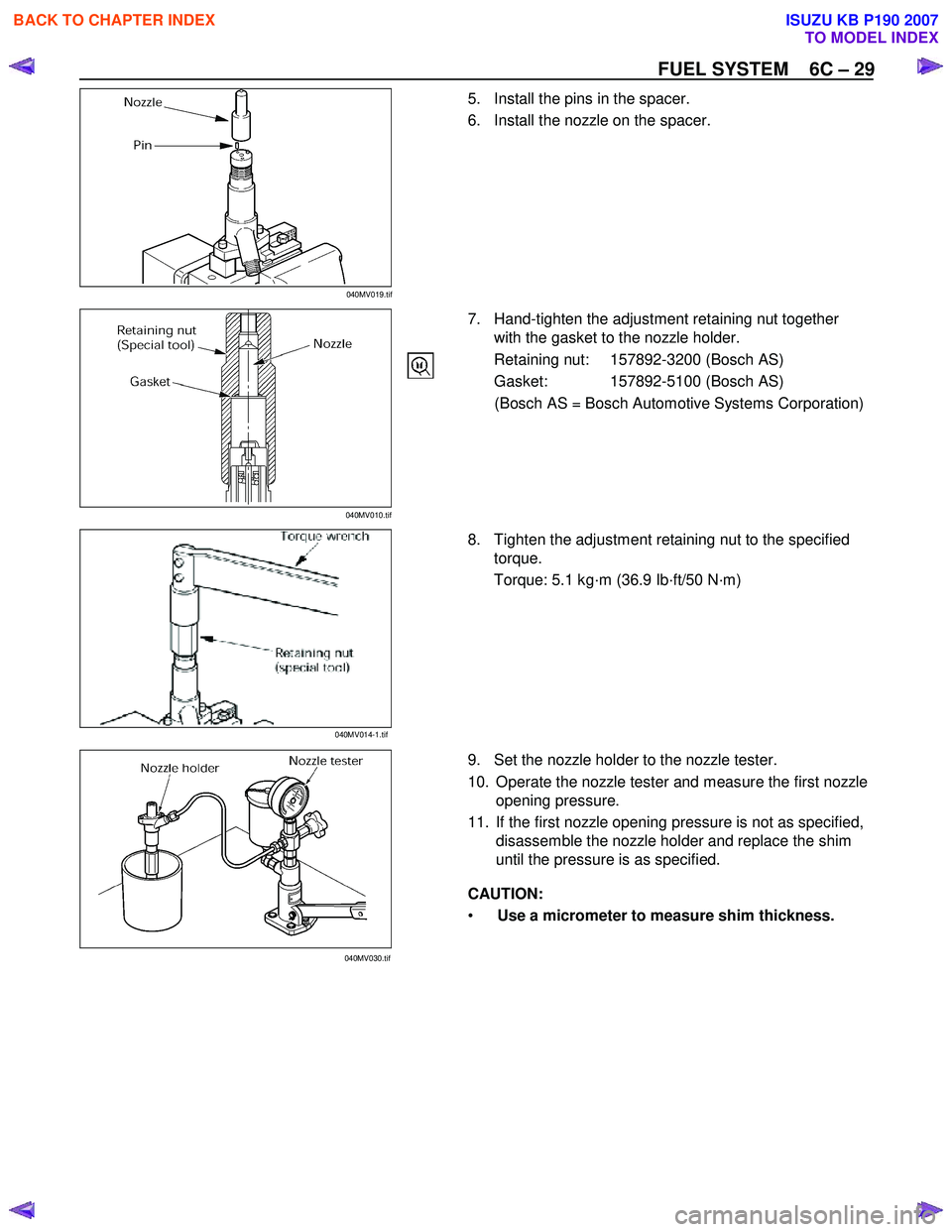

FUEL SYSTEM 6C – 29
5. Install the pins in the spacer.
6. Install the nozzle on the spacer.



7. Hand-tighten the adjustment retaining nut together with the gasket to the nozzle holder.
Retaining nut: 157892-3200 (Bosch AS)
Gasket: 157892-5100 (Bosch AS) (Bosch AS = Bosch Automotive Systems Corporation)

8. Tighten the adjustment retaining nut to the specified torque.
Torque: 5.1 kg·m (36.9 Ib·ft/50 N·m)



9. Set the nozzle holder to the nozzle tester.
10. Operate the nozzle tester and measure the first nozzle opening pressure.
11. If the first nozzle opening pressure is not as specified, disassemble the nozzle holder and replace the shim
until the pressure is as specified.

CAUTION:
• Use a micrometer to measure shim thickness.

040MV019.tif
040MV010.tif
040MV014-1.tif
040MV030.tif

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

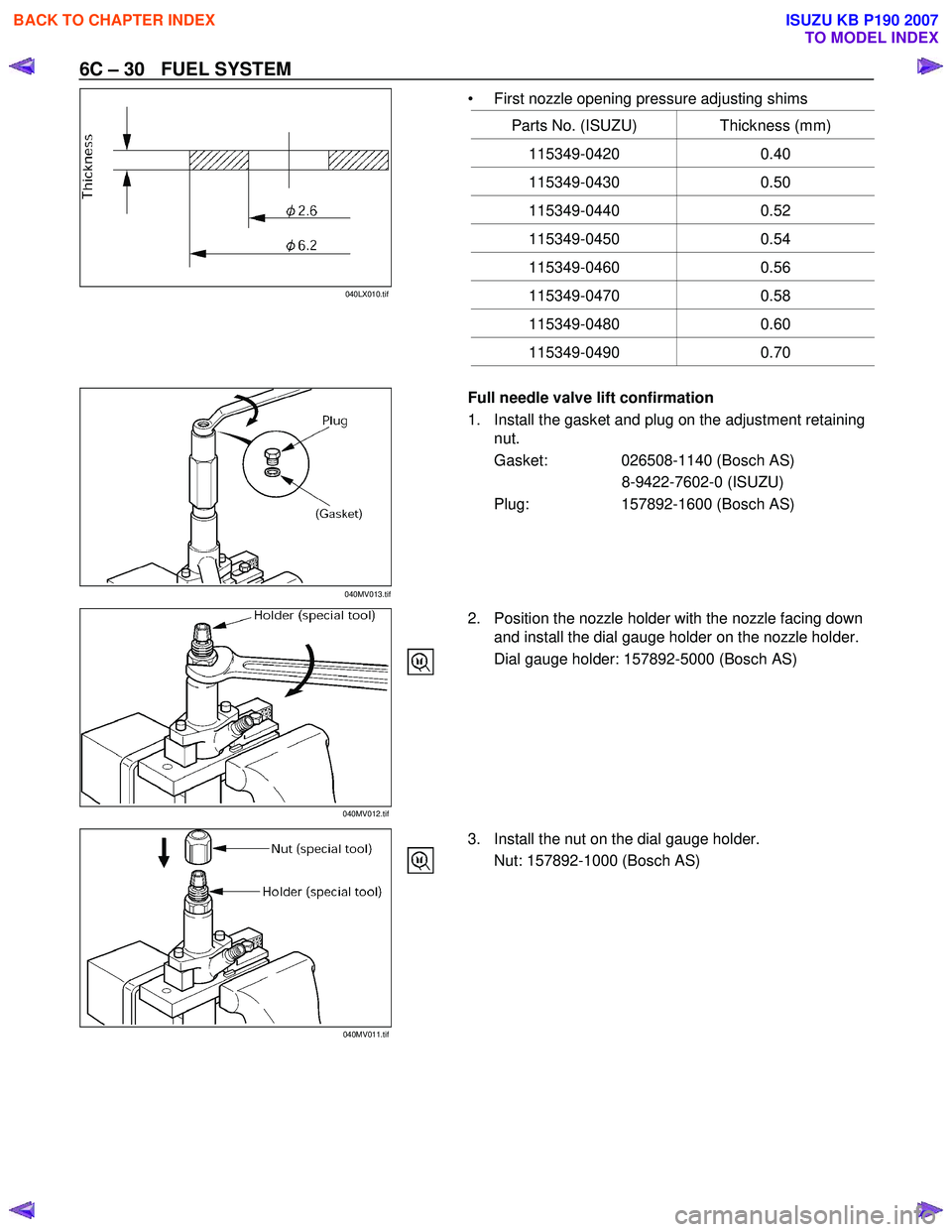

6C – 30 FUEL SYSTEM
• First nozzle opening pressure adjusting shims
Parts No. (ISUZU) Thickness (mm)
115349-0420 0.40
115349-0430 0.50
115349-0440 0.52
115349-0450 0.54
115349-0460 0.56
115349-0470 0.58
115349-0480 0.60

115349-0490 0.70
Full needle valve lift confirmation
1. Install the gasket and plug on the adjustment retaining nut.
Gasket: 026508-1140 (Bosch AS) 8-9422-7602-0 (ISUZU)
Plug: 157892-1600 (Bosch AS)



2. Position the nozzle holder with the nozzle facing down and install the dial gauge holder on the nozzle holder.
Dial gauge holder: 157892-5000 (Bosch AS)


3. Install the nut on the dial gauge holder.
Nut: 157892-1000 (Bosch AS)


040LX010.tif
040MV013.tif
040MV012.tif
040MV011.tif

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

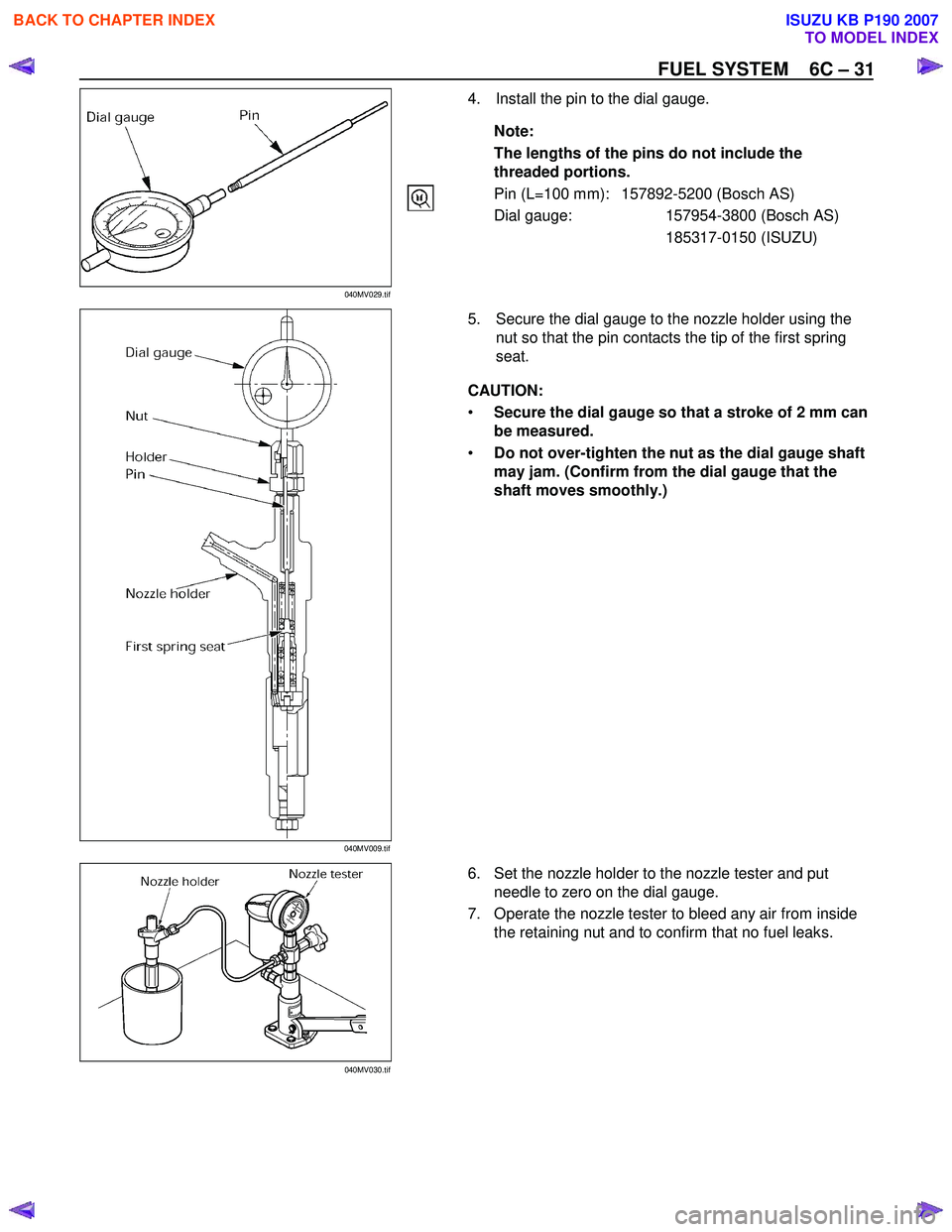

FUEL SYSTEM 6C – 31




4. Install the pin to the dial gauge.
Note:
The lengths of the pins do not include the threaded portions.
Pin (L=100 mm): 157892-5200 (Bosch AS)
Dial gauge: 157954-3800 (Bosch AS)
185317-0150 (ISUZU)

5. Secure the dial gauge to the nozzle holder using the nut so that the pin contacts the tip of the first spring
seat.

CAUTION:
• Secure the dial gauge so that a stroke of 2 mm can
be measured.
• Do not over-tighten the nut as the dial gauge shaft
may jam. (Confirm from the dial gauge that the
shaft moves smoothly.)

6. Set the nozzle holder to the nozzle tester and put needle to zero on the dial gauge.
7. Operate the nozzle tester to bleed any air from inside the retaining nut and to confirm that no fuel leaks.



040MV029.tif
040MV009.tif 040MV030.tif

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6C – 32 FUEL SYSTEM

8. Operate the nozzle tester and increase the in-line
pressure to 34.3 - 44.1 MPa (350 - 450 kg/cm2) so that
the nozzle’s needle valve moves through its full lift.
Record full lift ‘L’. (Read dial gauge)
Nozzle Full Lift mm (in)
0.25 ± 0.02 (0.0098 ± 0.00008)
Note:
The above operation is used to determine whether
the nozzle seat is worn and whether the nozzle
assembly is in good condition.

Pre-lift confirmation 1. W ith the needle valve at full lift, release the nozzle tester handle.

Note:
The in-line pressure will decrease and needle
valve lift (as indicated on the dial gauge) will also
decrease a little.


040R300008

040MV007.tif040MV008.tif

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

FUEL SYSTEM 6C – 33

2. Read the needle valve “pre-lift” point from the dial gauge indication (once the needle valve has
descended when the second spring has stopped
operating).
Pre-lift measuring point:
Read the dial gauge at first nozzle opening pressure +approx
1 MPa (10 kg/cm
2).
Pre-lift mm
Pressure Mpa
(psi/ kg/cm
2) Lift mm (in)
4JA1T(L) 20.1 (2,858/205) 0.04 (0.0016)
Note:
This point can be found while the pressure is
decreasing.

3. Confirm that pre-lift is as specified.
4. If pre-lift is not as specified, replace the pins, lift piece, spacer and nozzle assembly as a set with the service
kit.
Service kit
105017-2990 (Bosch AS)
897302-3070 (ISUZU)

Second nozzle opening pressure confirmation
1. After pre-lift confirmation, operate the nozzle tester to increase in-line pressure to 34.3 - 44.1 MPa (350 - 450
kg/cm
2) so that the nozzle’s needle valve moves
through its full lift.


040MV005.tif
040MV031.tif
040MV030.tif 040H100007

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6C – 34 FUEL SYSTEM
2. Release the nozzle tester handle so that in-line
pressure decreases.
Note:
The in-line pressure will decrease and needle
valve lift (as indicated on the dial gauge) will also
decrease a little.



3. Then, read the pressure gauge indication (second
nozzle opening pressure) the instant that the dial
gauge indicates the specified needle valve lift (usually
pre-lift + 0.05 mm).
Second Nozzle Opening Pressure
Pressure Mpa
(psi/ kg/cm
2) Lift mm (in)
4JA1T(L) 25.5-27.0
(3768-3911/260-275) 0.09 (0.0035)


040MV022.tif
040M100006

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

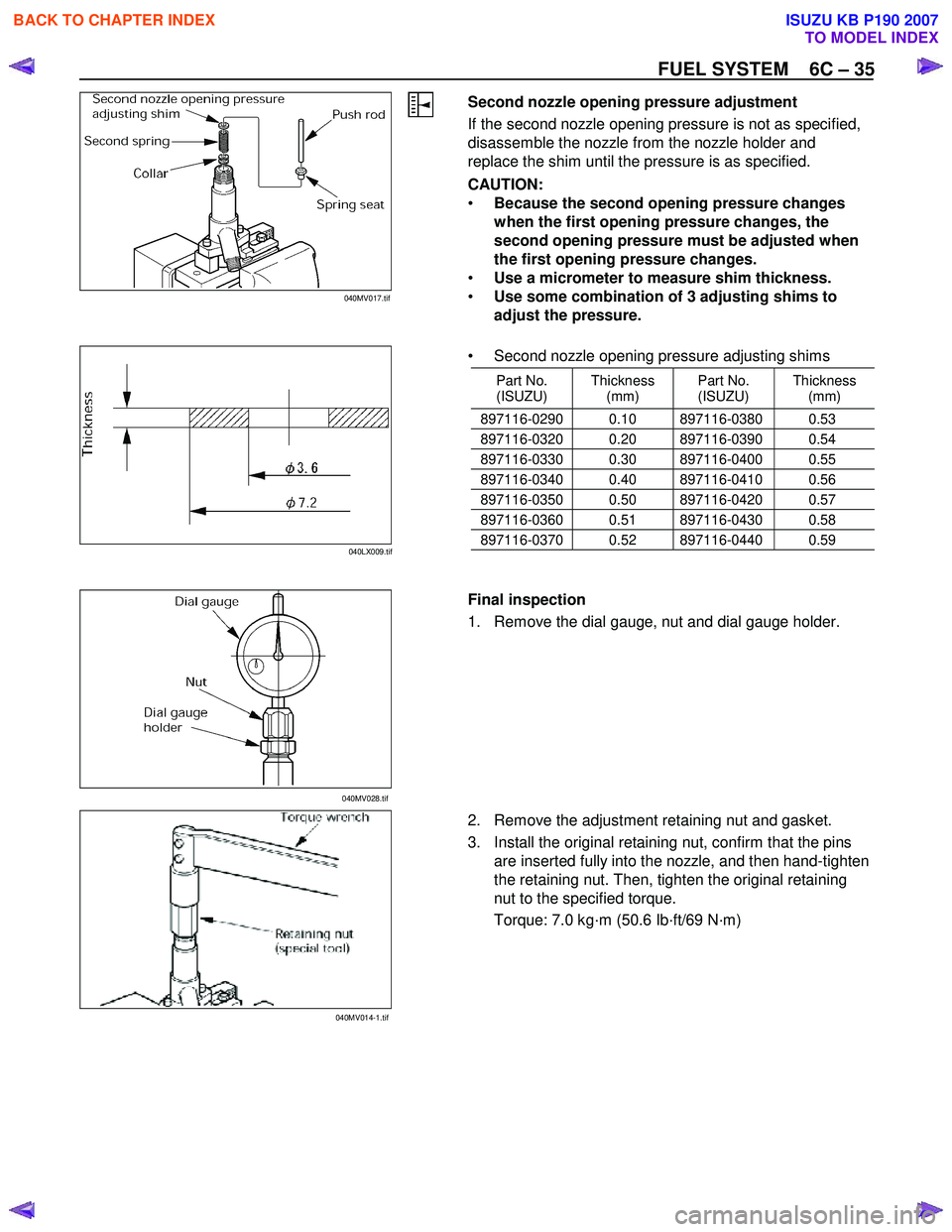

FUEL SYSTEM 6C – 35


Second nozzle opening pressure adjustment
If the second nozzle opening pressure is not as specified,
disassemble the nozzle from the nozzle holder and
replace the shim until the pressure is as specified.
CAUTION:
• Because the second opening pressure changes
when the first opening pressure changes, the
second opening pressure must be adjusted when
the first opening pressure changes.
• Use a micrometer to measure shim thickness.
• Use some combination of 3 adjusting shims to
adjust the pressure.


• Second nozzle opening pressure adjusting shims
Part No. (ISUZU) Thickness
(mm) Part No.
(ISUZU) Thickness
(mm)
897116-0290 0.10 897116-0380 0.53
897116-0320 0.20 897116-0390 0.54
897116-0330 0.30 897116-0400 0.55
897116-0340 0.40 897116-0410 0.56
897116-0350 0.50 897116-0420 0.57
897116-0360 0.51 897116-0430 0.58
897116-0370 0.52 897116-0440 0.59


Final inspection
1. Remove the dial gauge, nut and dial gauge holder.

2. Remove the adjustment retaining nut and gasket.
3. Install the original retaining nut, confirm that the pins are inserted fully into the nozzle, and then hand-tighten
the retaining nut. Then, tighten the original retaining
nut to the specified torque.
Torque: 7.0 kg·m (50.6 Ib·ft/69 N·m)


040MV017.tif
040LX009.tif
040MV028.tif
040MV014-1.ti
f

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

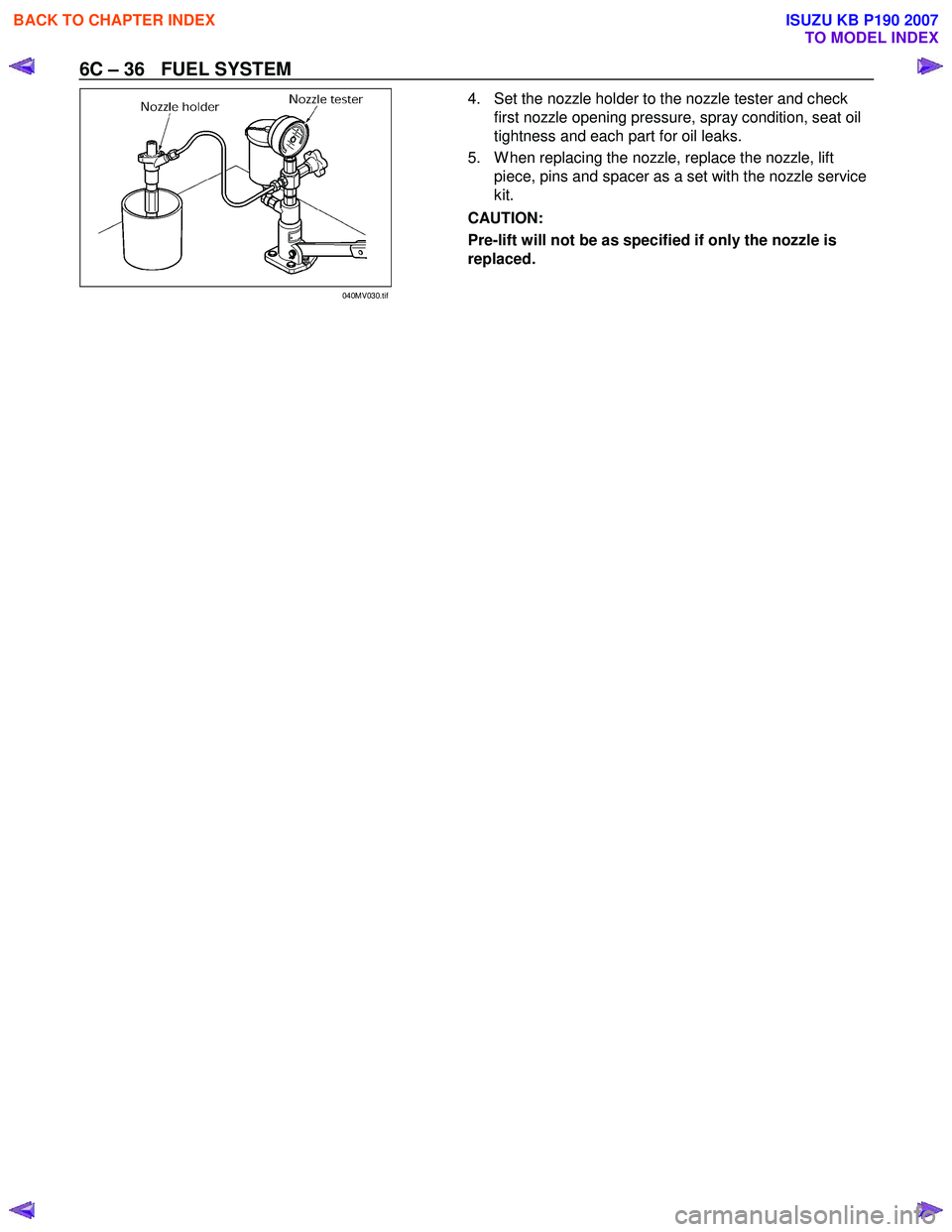

6C – 36 FUEL SYSTEM
4. Set the nozzle holder to the nozzle tester and check
first nozzle opening pressure, spray condition, seat oil
tightness and each part for oil leaks.
5. W hen replacing the nozzle, replace the nozzle, lift piece, pins and spacer as a set with the nozzle service
kit.
CAUTION:
Pre-lift will not be as specified if only the nozzle is
replaced.


040MV030.tif
