ISUZU KB P190 2007 Workshop Repair Manual

ANTITHEFT SYSTEM 11B-57
DTC 43 Driver Door Lock Switch Super lock Defect
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 43 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 Check the driver door lock function.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “OFF”.
4. Observe to display door lock switch data with the Tech-2.
5. Turn ON by driver door lock.
Does the Tech-2 display Closed? — Go to Step 4 Go to Step 5
4
1. Key position is “OFF”.
2. Observe to display door lock data with the Tech-2.
3. Turn OFF by driver door lock.
Does the Tech-2 display Open? — Refer to
Diagnostic Aids ,
and then go to step 5 Go to Step 5
5
1. Check the driver door lock switch circuit for an
open, short to ground, or short to voltage.
Also, check the door lock connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 6
6
1. Repair or replace the driver door lock switch.
2. Check the DTC on the Tech-2.
Is DTC 43 stored? — Go to Step 7 Verify repair
7 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11B-58 ANTITHEFT SYSTEM
DTC 44 Passenger Door Lock Switch lock Defect
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 44 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 Check the passenger door lock function.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “OFF”.
4. Observe to display door lock switch data with the Tech-2.
5. Turn ON by passenger door lock.
Does the Tech-2 display Closed? — Go to Step 4 Go to Step 5
4
1. Key position is “OFF”.
2. Observe to display door lock data with the Tech-2.
3. Turn OFF by passenger door lock.
Does the Tech-2 display Open ? — Refer to
Diagnostic Aids ,
and then go to step 5 Go to Step 5
5
1. Check the passenger door lock switch circuit for
an open, short to ground, or short to voltage.
Also, check the door lock connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 6
6
1. Repair or replace the passenger door lock switch.
2. Check the DTC on the Tech-2.
Is DTC 44 stored? — Go to Step 7 Verify repair
7 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ANTITHEFT SYSTEM 11B-59
DTC 45 Passenger Door Lock Switch Unlock Defect
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 44 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 Check the passenger door lock function.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “OFF”.
4. Observe to display door lock switch data with the Tech-2.
5. Turn ON by passenger door lock.
Does the Tech-2 display Closed ? — Go to Step 4 Go to Step 5
4
1. Key position is “OFF”.
2. Observe to display door lock data with the Tech-2.
3. Turn OFF by passenger door lock.
Does the Tech-2 display Open ? — Refer to
Diagnostic Aids,
and then go to step 5 Go to Step 5
5
1. Check the passenger door lock switch circuit for
an open, short to ground, or short to voltage.
Also, check the door lock connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 6
6
1. Repair or replace the passenger door lock switch.
2. Check the DTC on the Tech-2.
Is DTC 45 stored? — Go to Step 7 Verify repair
7 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11B-60 ANTITHEFT SYSTEM
DTC 47 Battery Voltage For Door Lock Actuators Is Missing
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 47 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 Check the antilock system voltage.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Observe to display system voltage data with the Tech-2.
Is the voltage near the specified value ? — Go to Step 5 Go to Step 4
4
1. Key position is “OFF”.
2. Check the battery voltage.
3. If a problem found, repair as necessary. (Chage battery)
W as the problem found? — Verify repair Refer to
Diagnostic Aids
5 Check the door lock motor output voltage.
1. Key position is “OFF”.
2. Connect a digital volt meter to measure voltage.
between ACU terminal 7 and body ground.
3. Key position is “ON”.
4. Observe to display voltage with the DVM.
5. Door lock ON.
Is the voltage near the specified value ? — Go to Step 6 Go to Step 7
6
1. Check the door lock motor circuit for an open,
short to ground, or short to voltage.
Also, check the door lock motor connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair —
7 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ANTITHEFT SYSTEM 11B-61
DTC 50 A/D Converter Defect Or Battery Voltage Less Than 9 Volt
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 50 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 Check the antilock system voltage.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Observe to display system voltage data with the Tech-2.
Is the voltage near the specified value ? — Go to Step 6 Go to Step 4
4
1. Key position is “OFF”.
2. Check the battery voltage.
3. If a problem found, repair as necessary. (Chage battery)
W as the problem found? — Verify repair Go to Step 5
5
1. Check the ignition feed circuit for an open, short to
ground.
Also, check the ACU ground circuit for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Refer to
Diagnostic Aids
6 Replace the antitheft control unit (ACU). IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11B-62 ANTITHEFT SYSTEM

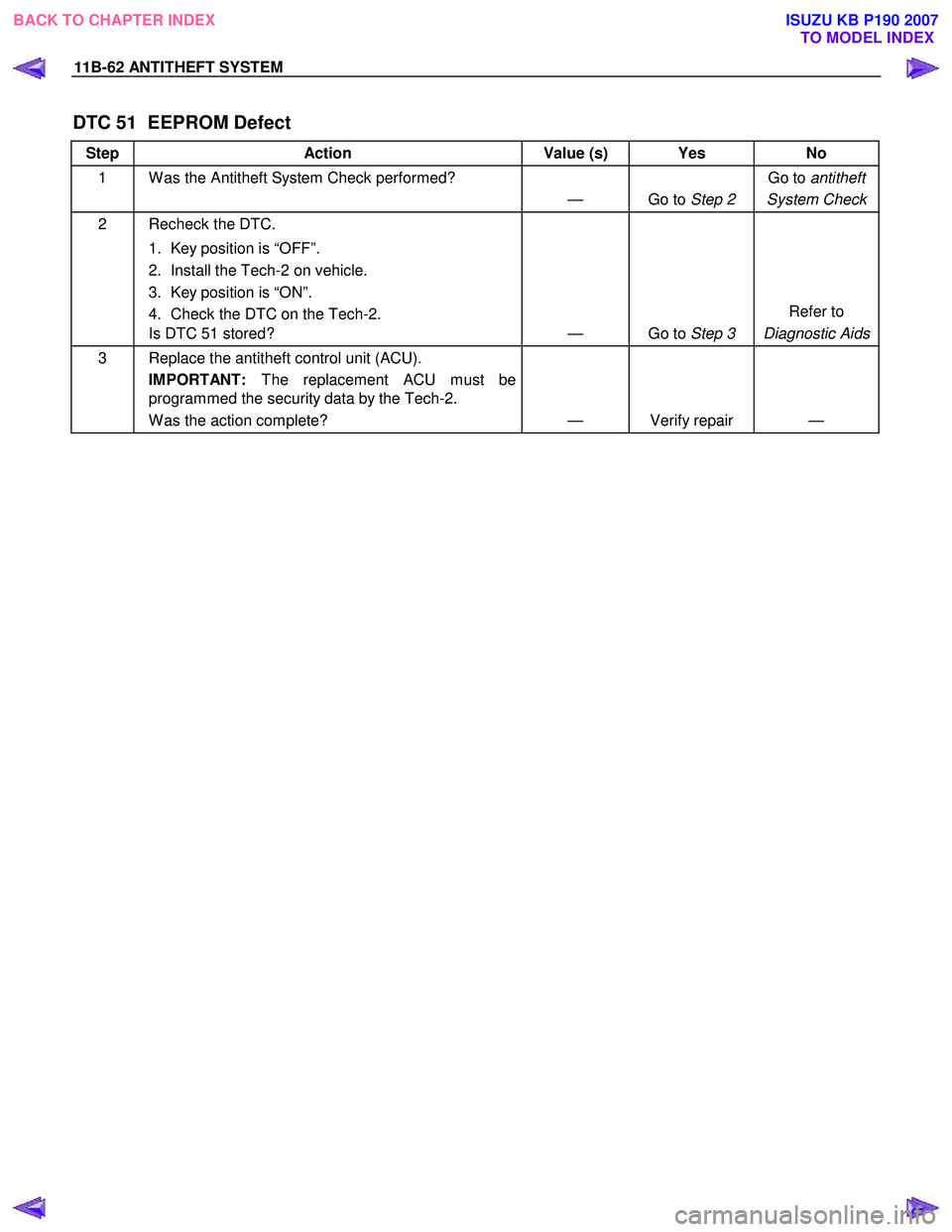

DTC 51 EEPROM Defect
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 51 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 Replace the antitheft control unit (ACU). IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ANTITHEFT SYSTEM 11B-63
DTC 52 EEPROM Not Programmed By ISUZU
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Check the antitheft programming functions for EOL information with the Tech-2.
W as a problem found? — Go to Step 3 Go to Step 4
3 Perform the antitheft programming functions.
• IOL information
(Refer to “Important information on Programming”)
W as the action complete? — Go to Step 4 —
4 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC 52 stored? — Go to Step 5 Verify repair
5 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11B-64 ANTITHEFT SYSTEM
DTC 55 Control unit defect
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC 55 stored? — Go to Step 3 Verify repair
3 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the tech2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ANTITHEFT SYSTEM 11B-65
DTC 123 Output flasher short circuit to ground or broken wire
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the tech2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the tech2.
Is DTC 123 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 1. Check the flasher circuit for an open, short to
ground, or short to voltage.
Also, check the flasher connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 4
4 Check the flasher function.
1. Key position is “OFF”.
2. Connect a jumper wire between ACU terminal 28 and body ground.
3. Key position is “ON”.
4. Observe to operate flasher lamp.
If the problem found about the flasher lamp circuit,
repair as necessary.
W as the problem found? — Verify repair Go to Step 5
5 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the tech2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11B-66 ANTITHEFT SYSTEM
DTC 125 Output Alarm Horn Broken Wire
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 125 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 1. Check the alarm horn circuit for an open, short to
ground, or short to voltage.
Also, check the alarm horn connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 4
4 Check the alarm horn function.
1. Key position is “OFF”.
2. Connect a jumper wire between ACU terminal 5 and body ground.
3. Key position is “ON”.
4. Observe to operate sound with the alarm horn.
If the problem found about the alarm horn, replace as
necessary.
W as the problem found? — Verify repair Go to Step 5
5 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —


BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
