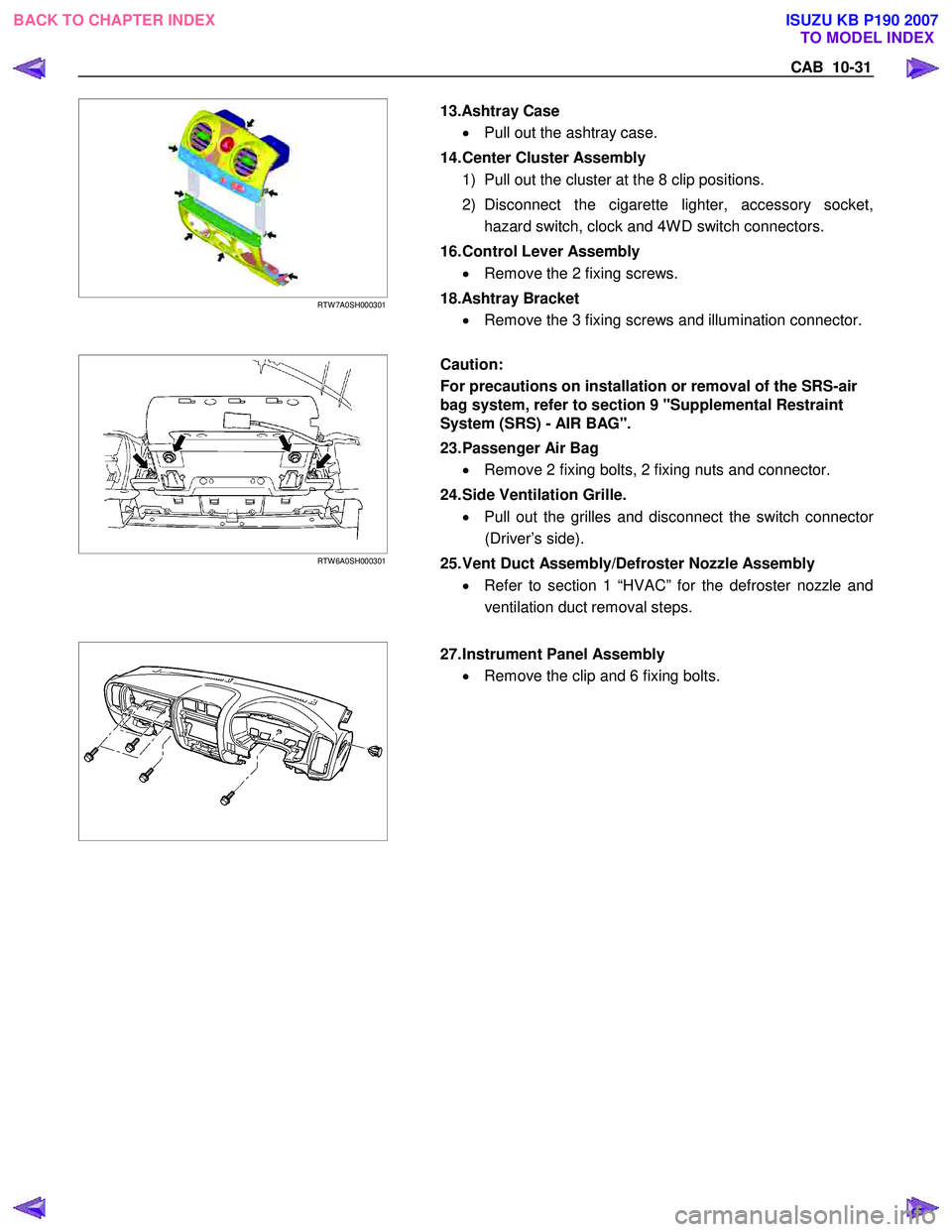

CAB 10-31


RTW 7A0SH000301

13.Ashtray Case
• Pull out the ashtray case.
14. Center Cluster Assembly 1) Pull out the cluster at the 8 clip positions.
2) Disconnect the cigarette lighter, accessory socket, hazard switch, clock and 4W D switch connectors.
16. Control Lever Assembly • Remove the 2 fixing screws.
18.Ashtray Bracket • Remove the 3 fixing screws and illumination connector.



RTW 6A0SH000301

Caution:
For precautions on installation or removal of the SRS-air
bag system, refer to section 9 "Supplemental Restraint
System (SRS) - AIR BAG".
23. Passenger Air Bag
• Remove 2 fixing bolts, 2 fixing nuts and connector.
24. Side Ventilation Grille. • Pull out the grilles and disconnect the switch connecto
r
(Driver’s side).
25. Vent Duct Assembly/Defroster Nozzle Assembly • Refer to section 1 “HVAC” for the defroster nozzle and
ventilation duct removal steps.


27. Instrument Panel Assembly
• Remove the clip and 6 fixing bolts.



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

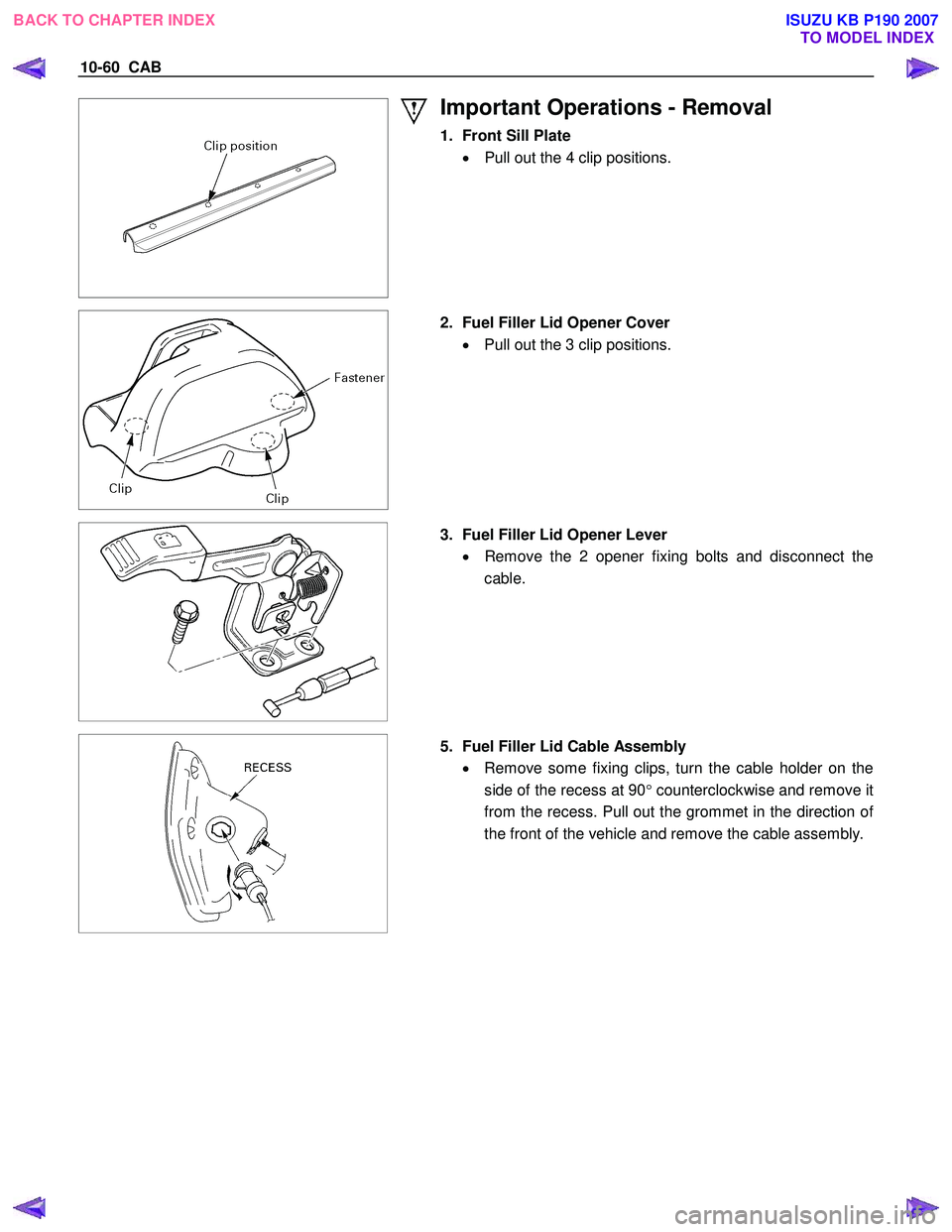

10-60 CAB

Important Operations - Removal
1. Front Sill Plate
• Pull out the 4 clip positions.


2. Fuel Filler Lid Opener Cover
• Pull out the 3 clip positions.


3. Fuel Filler Lid Opener Lever
• Remove the 2 opener fixing bolts and disconnect the
cable.


5. Fuel Filler Lid Cable Assembly
• Remove some fixing clips, turn the cable holder on the
side of the recess at 90 °counterclockwise and remove it
from the recess. Pull out the grommet in the direction o
f
the front of the vehicle and remove the cable assembly.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

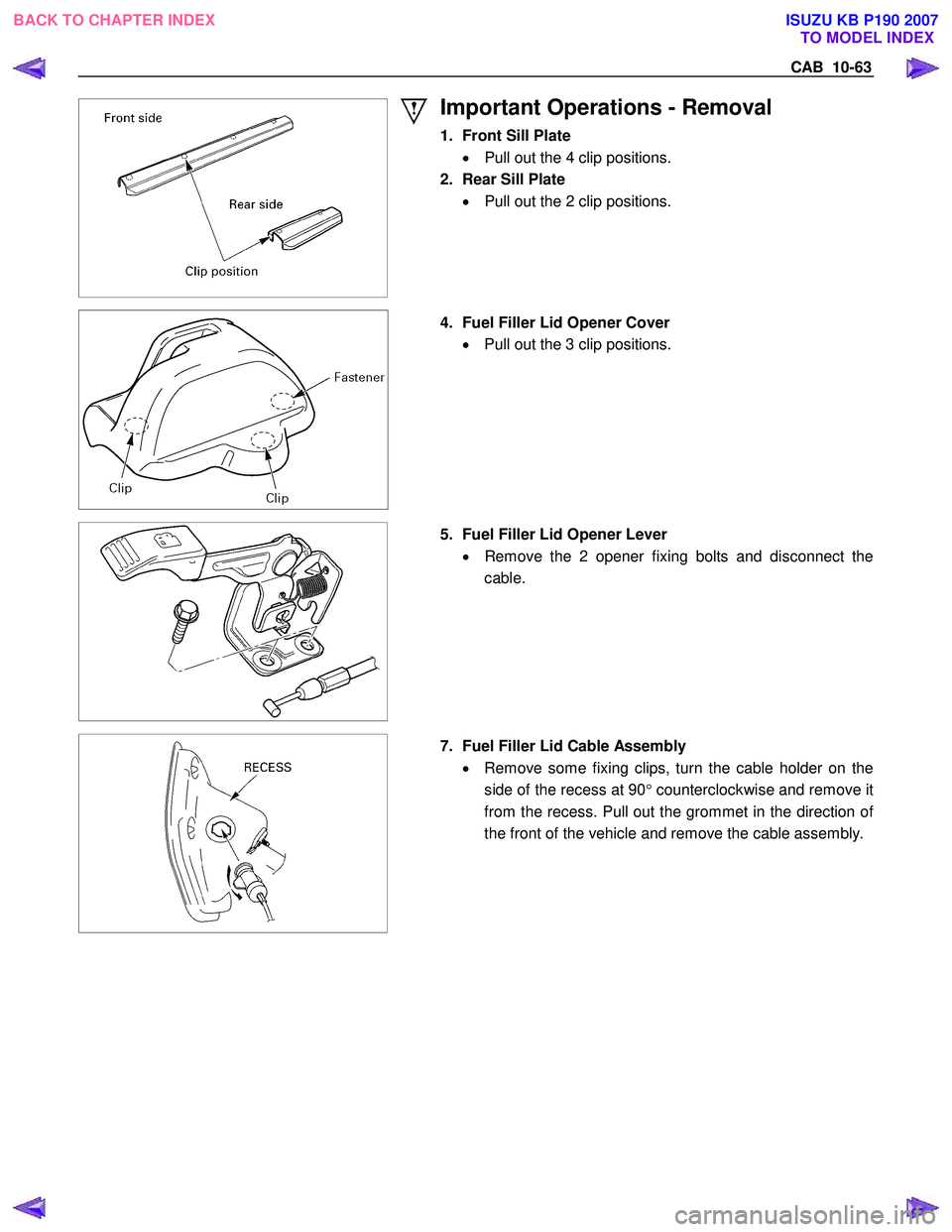

CAB 10-63


Important Operations - Removal
1. Front Sill Plate
• Pull out the 4 clip positions.
2. Rear Sill Plate • Pull out the 2 clip positions.

4. Fuel Filler Lid Opener Cover
• Pull out the 3 clip positions.


5. Fuel Filler Lid Opener Lever
• Remove the 2 opener fixing bolts and disconnect the
cable.


7. Fuel Filler Lid Cable Assembly
• Remove some fixing clips, turn the cable holder on the
side of the recess at 90 °counterclockwise and remove it
from the recess. Pull out the grommet in the direction o
f
the front of the vehicle and remove the cable assembly.
