5A-64 BRAKE CONTROL SYSTEM

DTC C0236 (Flash Code 36) Rear Left Wheel Speed Sensor Incorrect Signal

LTW35AMF000101

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Check for a poor connection at the rear left wheel
speed sensor harness connector.
2. Check installation condition for rear left wheel
speed sensor.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3
3 1. Ignition “OFF,” disconnect the EHCU and rear left
wheel speed sensor.
2. Check the circuit between EHCU and rear left
wheel speed sensor. (short to ground, or short to
voltage.)
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 4
4 1. Replace rear left wheel speed sensor.
2. Select “Display DTCs” with the Tech 2.
Note : Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 5 Verify repair

5A-66 BRAKE CONTROL SYSTEM

DTC C0237 (Flash Code 37) Rear Left Wheel Speed Sensor Signal - Tooth
Chipping

LTW35AMF000101

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Check for a poor connection at the rear left wheel
speed sensor harness connector.
2. Check installation condition for rear left wheel
speed sensor.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3
3 1. Check condition for sensor rotor at rear axle.
2. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 4
4 1. Ignition “OFF,” disconnect the EHCU and rear left
wheel speed sensor.
2. Check the circuit between EHCU and rear left
wheel speed sensor. (short to ground, or short to
voltage.)
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 5

BRAKE CONTROL SYSTEM 5A-69

DTC C0241 (Flash Code 41) Front Right Isolation Solenoid Circuit Open or
Shorted to Ground
DTC C0242 (Flash Code 42) Front Right Dump Solenoid Circuit Open or
Shorted to Ground
DTC C0243 (Flash Code 43) Front Right Isolation Solenoid Circuit Shorted to
Battery
DTC C0244 (Flash Code 44) Front Right Dump Solenoid Circuit Shorted to
Battery



RTW45AMF000201

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Ignition “OFF”.
2. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3

5A-70 BRAKE CONTROL SYSTEM

Step Action
Value(s) Yes No
3 1. Ignition “ON,” engine “OFF.”
2. Select “Display DTCs” with the Tech 2.
Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 4 Verify repair
4 Replace EHCU.
Note : Check the EHCU type for specification, when
the EHCU is replaced.
(Specification ; 2WD model or 4WD model)
Was the action complete? - Verify repair -

BRAKE CONTROL SYSTEM 5A-71

DTC C0245 (Flash Code 45) Front Left Isolation Solenoid Circuit Open or
Shorted to Ground
DTC C0246 (Flash Code 46) Front Left Dump Solenoid Circuit Open or
Shorted to Ground
DTC C0247 (Flash Code 47) Front Left Isolation Solenoid Circuit Shorted to
Battery
DTC C0248 (Flash Code 48) Front Left Dump Solenoid Circuit Shorted to
Battery



RTW45AMF000201

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Ignition “OFF”.
2. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3

5A-72 BRAKE CONTROL SYSTEM

Step Action
Value(s) Yes No
3 1. Ignition “ON,” engine “OFF.”
2. Select “Display DTCs” with the Tech 2.
Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 4 Verify repair
4 Replace EHCU.
Note : Check the EHCU type for specification, when
the EHCU is replaced.
(Specification ; 2WD model or 4WD model)
Was the action complete? - Verify repair -

BRAKE CONTROL SYSTEM 5A-73

DTC C0251 (Flash Code 51) Rear Isolation Solenoid Circuit Open or Shorted
to Ground
DTC C0252 (Flash Code 52) Rear Dump Solenoid Circuit Open or Shorted to
Ground
DTC C0253 (Flash Code 53) Rear Isolation Solenoid Circuit Shorted to Battery
DTC C0254 (Flash Code 54) Rear Dump Solenoid Circuit Shorted to Battery



RTW45AMF000201

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Ignition “OFF”.
2. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3

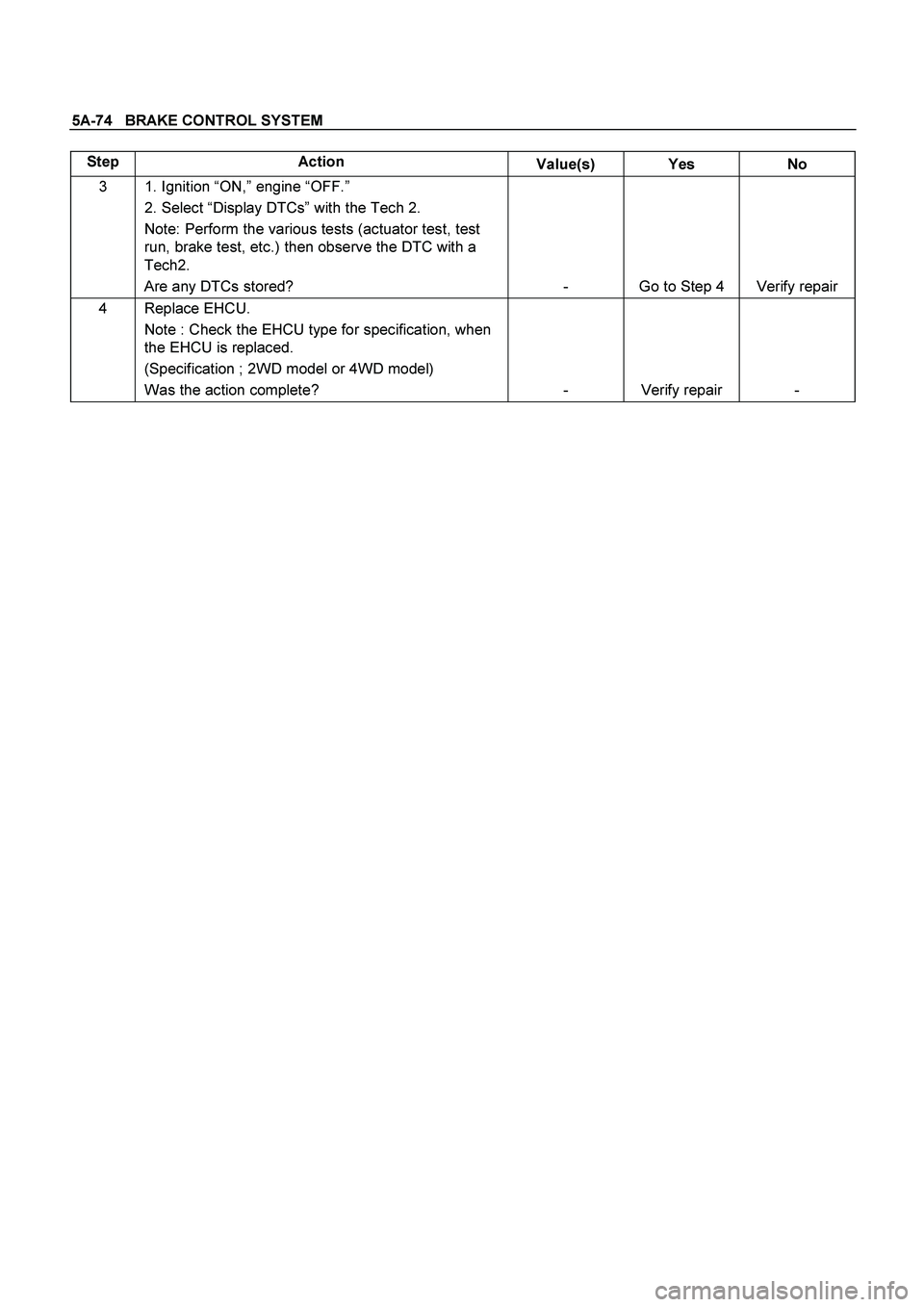

5A-74 BRAKE CONTROL SYSTEM

Step Action
Value(s) Yes No
3 1. Ignition “ON,” engine “OFF.”
2. Select “Display DTCs” with the Tech 2.
Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 4 Verify repair
4 Replace EHCU.
Note : Check the EHCU type for specification, when
the EHCU is replaced.
(Specification ; 2WD model or 4WD model)
Was the action complete? - Verify repair -

BRAKE CONTROL SYSTEM 5A-75

DTC C0265 (Flash Code 65) Fail Safe Relay (FSR) Shorted to Ground
DTC C0266 (Flash Code 66) Fail Safe Relay (FSR) Shorted to Battery



RTW45AMF000201

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Ignition “OFF”.
2. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3
3 1. Ignition “ON,” engine “OFF.”
2. Select “Display DTCs” with the Tech 2.
Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 4 Verify repair

BRAKE CONTROL SYSTEM 5A-77

DTC C0267 (Flash Code 67) ABS Motor Shorted to Ground
DTC C0268 (Flash Code 68) ABS Motor Shorted to Battery



RTW45AMF000201

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Ignition “OFF”.
2. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3
3 1. Ignition “ON,” engine “OFF.”
2. Select “Display DTCs” with the Tech 2.
Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 4 Verify repair
