ISUZU TF SERIES 2004 Workshop Manual

ELECTRICAL-BODY AND CHASSIS 8A-403

CIRCUIT DIAGRAM (RHD) Sheet 1/2



RTW48AXF023901

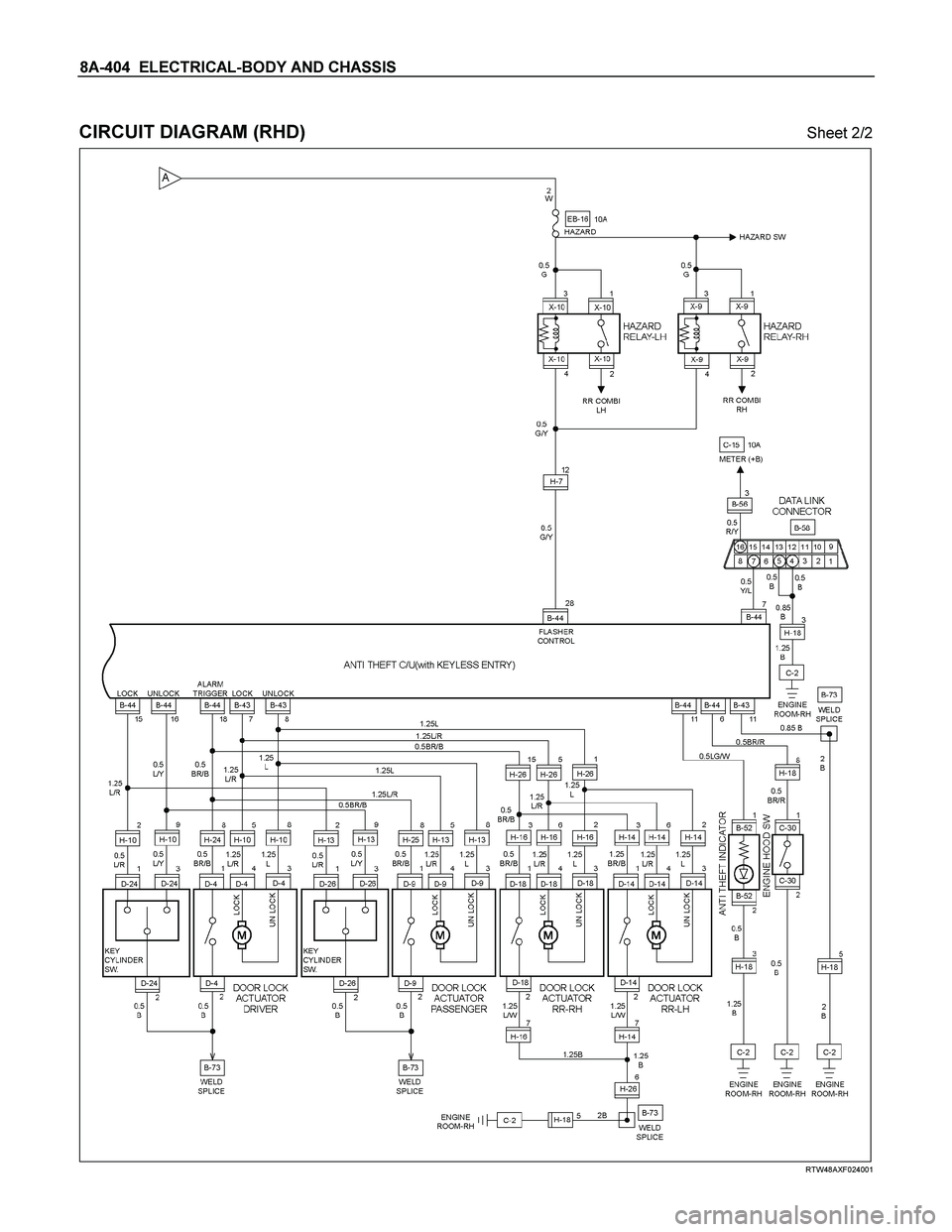

8A-404 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM (RHD)
Sheet 2/2



RTW48AXF024001

ELECTRICAL-BODY AND CHASSIS 8A-405

CIRCUIT DIAGRAM ANTI THEFT WITH SUPER LOCK (RHD)
Sheet 1/3




RTW48AXF025401

8A-406 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM ANTI THEFT WITH SUPER LOCK (RHD) Sheet 2/3




RTW48AXF024801

ELECTRICAL-BODY AND CHASSIS 8A-407

CIRCUIT DIAGRAM ANTI THEFT WITH SUPER LOCK (RHD) Sheet 3/3








RTW48AXF024901

8A-408 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM (LHD) Sheet 1/2





RTW48AXF025001

ELECTRICAL-BODY AND CHASSIS 8A-409

CIRCUIT DIAGRAM (LHD) Sheet 2/2





RTW48AXF025101

8A-410 ELECTRICAL-BODY AND CHASSIS
ANTI THEFT INDICATOR


Removal
1. Disconnect the battery ground cable.


RTW3A0SH001301
2. Remove the side ventilation grille.




RTW08ASH000101
3. Disconnect the indicator connector and screw from the
backside of the side ventilation grille to remove the anti thef
t
indicator.


Installation
To install, follow the removal steps in the reverse order, noting
the following point.
1. Push in the switch with your fingers until it locks securely.

ELECTRICAL-BODY AND CHASSIS 8A-411
ANTITHEFT AND KEYLESSENTRY CONTROL UNIT


Removal and Installation

Refer to Antitheft And Keylessentry Control Unit in this
section.

8A-412 ELECTRICAL-BODY AND CHASSIS
AUTO CRUISE
PARTS LOCATION 6VE1






RTW48AXF022501 & RTW48AXF022601
